Dell P2016 Monitor
User’s Guide
Model: P2016
Regulatory model: P2016t/P2016b
NOTE: A NOTE indicates important information that helps you make better use of
your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of data if
instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal
injury, or death.
Copyright © 2015 Dell Inc. All rights reserved. This product is protected by U.S. and international
copyright and intellectual property laws.
Dell™ and the Dell logo are trademarks of Dell Inc. in the United States and/or other jurisdictions.
All other marks and names mentioned herein may be trademarks of their respective companies.
2015 – 09 Rev. A02
Contents
About Your Monitor ..................................... 5
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Identifying Parts and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Monitor Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Plug-and-Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
LCD Monitor Quality and Pixel Policy. . . . . . . . . . . . . . . . . . . . . . 18
Setting Up the Monitor.................................. 19

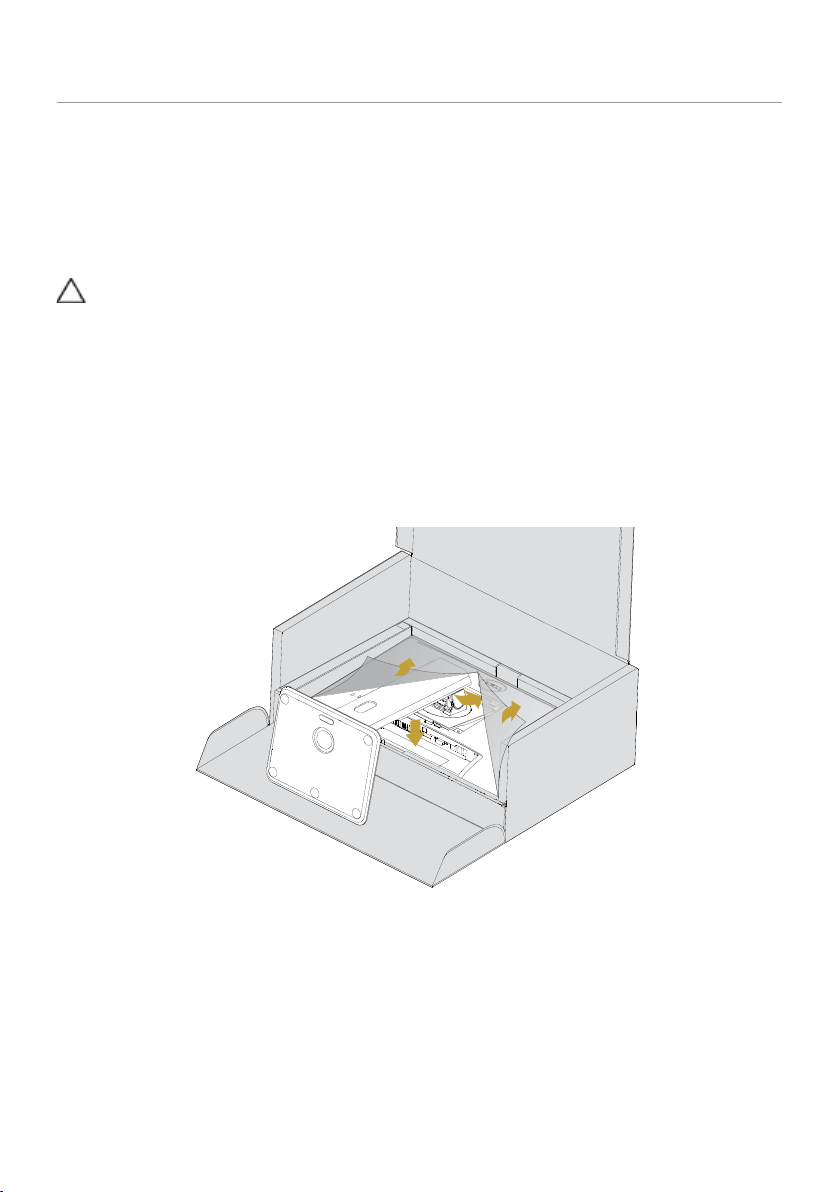

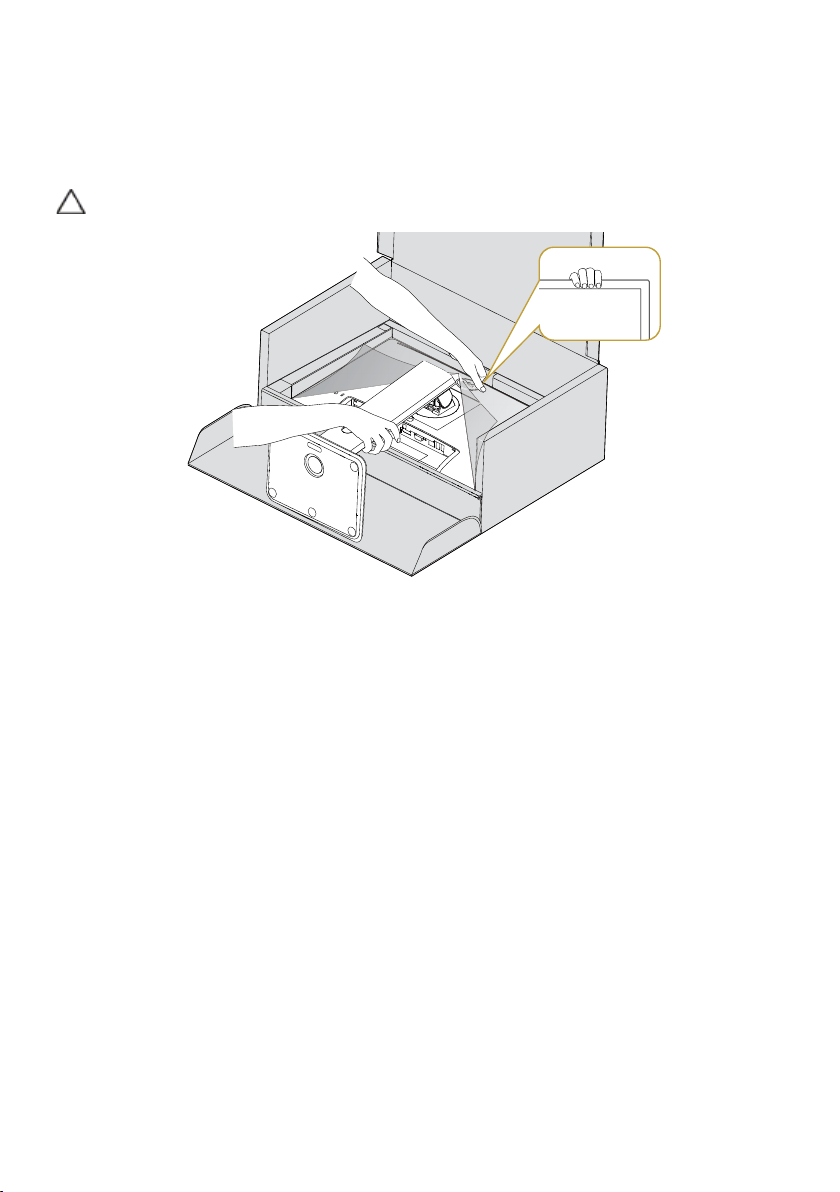

Attaching the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Connecting Your Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Organizing Your Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Attaching the Cable Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Removing the Monitor Stand. . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Wall Mounting (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Operating the Monitor .................................. 25
Turning on the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Using the Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . 25
Using the On-Screen Display (OSD) Menu . . . . . . . . . . . . . . . . . . . 27
Using the Tilt, Swivel, and Vertical Extension . . . . . . . . . . . . . . . . . 40
Contents | 3
Troubleshooting ....................................... 43
Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Built-in Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Common Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Product Specific Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Universal Serial Bus (USB) Specific Problems . . . . . . . . . . . . . . . . . 47
Appendix ..............................................48
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
FCC Notices (U.S. only) and Other Regulatory Information . . . . . . . . 48
Contacting Dell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Setting Up Your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Maintenance Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
4 | Contents
About Your Monitor
Package Contents
Your monitor ships with the components shown below. Make sure that you have
received all the components and contact Dell if something is missing.
NOTE: Some items may be optional and may not ship with your monitor.
Somefeatures or media may not be available in certain countries.
NOTE: To set up with any other stand, please refer to the respective stand setup
guide for setup instructions.
Monitor
Stand
Cable cover
Power cable (varies by country)
About Your Monitor | 5
DisplayPort cable
USB upstream cable (enables the
USB ports on the monitor)
•Drivers and documentation media
•Quick Setup Guide
•Safety and Regulatory Information
Product Features
The Dell P2016 flat panel display has an active matrix, thin-film transistor (TFT), liquid
crystal display (LCD), and LED backlight. The monitor features include:
• 49.40 cm (19.45 inch) active area display (Measured diagonally) 1440 x 900
resolution, plus full-screen support for lower resolutions.
• Tilt, swivel, vertical extension and rotate adjustment capabilities.
• Removable pedestal and Video Electronics Standards Association (VESA™) 100 mm
mounting holes for flexible mounting solutions.
• Plug and play capability if supported by your system.
• On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.
• Software and documentation media includes an information file (INF), Image
color Matching File (ICM), Dell Display Manager software application and product
documentation. Dell Display Manager included (comes in the CD attached with the
monitor).
• Security lock slot.
• Stand lock.
• Asset Management Capability.
• Energy Star Compliant.
• EPEAT Gold Compliant.
• RoHS compliant.
• BFR/PVC-free (excluding external cables).
• Arsenic-Free glass and Mercury Free for Panel only.
• Energy Gauge shows the energy level being consumed by the monitor in real time.
• TCO Certified Displays.
• Analog backlight dimming control for flicker free display.
6 | About Your Monitor
Identifying Parts and Controls
Front view
Label Description
1 Function buttons (For more information, see Operating the Monitor)
2 Power on/off button (with LED indicator)
About Your Monitor | 7
Back View
Label Description Use
1 VESA mounting holes
(100mmx100mm - behind
attached VESA cover)
2 Regulatory label Lists the regulatory approvals.
3 Stand-release button Release stand from monitor.
4 Security-lock slot Secures monitor with security lock
5 Barcode serial number label Refer to this label if you need to contact
6 Dell Soundbar mounting slots
7 Cable-management slot Use to organize cables by placing them
Wall mount monitor using
VESA-compatible wall mount kit
(100mmx100mm).
(sold separately).
Dell for technical support.
NOTE: Service tag printing (EMEA region
only).
Attaches the optional Dell Soundbar.
NOTE: Please remove the plastic strip
covering the mounting slots before
affixing the Dell Soundbar.
through the slot.
8 | About Your Monitor
Bottom View
Label Description Use
1 Stand lock Lock the stand to the monitor using a M3 x 6 mm
2 AC power connector To connect the monitor power cable.
3 DP connector Connect your computer with DP cable.
4 VGA port Connect your computer with VGA cable (optional).
5 USB upstream port Connect the USB cable to your computer and the
6 USB downstream ports (2) Connect USB devices.
screw (screw not included).
monitor to enable the USB ports on the monitor.
NOTE: You must connect the USB upstream cable
to the monitor and your computer to be able to use
these ports.
About Your Monitor | 9
Monitor Specifications
Flat Panel Specifications
Screen type Active matrix - TFT LCD
Panel type In-plane switching type
Viewable image:
Diagonal 49.40 cm (19.45 inches)
Active Area:
Horizontal 418.61 mm (16.48 inches)
Vertical 262.35 mm (10.33 inches)
Area 109821.81 mm2 (170.22inch2)
Pixel pitch 0.2915 mm x 0.2915 mm
Viewing angle:
Horizontal 178° (typical)
Vertical 178° (typical)
Luminance output 250 cd/m² (typical)
Contrast ratio 1000:1 (typical)
Dynamic contrast ratio 2,000,000:1
Faceplate coating AG type, hard-coating 3H
Backlight LED
Response time 6ms Typ. g-to-g with OD (Fast mode)
Color depth 16.7 million colors
Color gamut (typical) 72%* (CIE1931)
*Color gamut (typical) is based on CIE1976 (85%) and CIE1931 (72%) test standards.
Resolution Specifications
Horizontal scan range 30 kHz to 83 kHz (automatic)
Vertical scan range 56 Hz to 76 Hz (automatic)
Maximum preset resolution 1440x900 at 60 Hz
Video display capabilities
(DP playback)
10 | About Your Monitor
480i, 576i, 480p, 576p, 720p,
Preset Display Modes
(kHz)
Vertical)
Display Mode Horizontal
Frequency
720 x 400 31.47 70 28.32 -/+
640 x 480 31.47 60 25.18 -/-
640 x 480 37.50 75 31.50 -/-
800 x 600 37.88 60 40 +/+
800 x 600 46.88 75 49.50 +/+
1024 x 768 48.36 60 65 -/-
1024 x 768 60.02 75 78.75 +/+
1152 x 864 67.50 75 108 +/+
1280 x 1024 64 60 108 +/+
1280 x 1024 80 75 135 +/+
1280 x 800 49.70 60 83.50 -/+
1440 x 900 55.94 60 106.50 -/+
1440 x 900 70.60 75 136.75 -/+
Vertical
Frequency (Hz)
Pixel Clock
(MHz)
Sync Polarity
(Horizontal/
Electrical Specifications
Video input signals •Analog RGB, 0.7 Volts +/-5%, positive polarity at 75 ohm
input impedance
•DP 1.2 signal input support
Synchronization input
signals
AC input voltage/
frequency/current
Inrush current 120 V:30 A (Max.)
Separate horizontal and vertical synchronization,
polarity-free TTL level, SOG (Composite SYNC on green)
100 VAC to 240 VAC/
50 Hz or 60 Hz + 3 Hz/1.5 A (Max.)
240 V:60 A (Max.)
About Your Monitor | 11
Physical Characteristics
Connector type •15-pin D-subminiature (black connector).
•DP, black connector.
Signal cable type •Digital: DisplayPort, 20 pins.
•Analog: Detachable, D-Sub, 15 pins (Not
included).
Dimensions (with stand):
Height (extended) 481 mm (18.94 inches)
Height (compressed) 351 mm (13.82 inches)
Width 455.20 mm (17.92 inches)
Depth 180 mm (7.09 inches)
Dimensions (without stand):
Height 299 mm (11.77 inches)
Width 455.20 mm (17.92 inches)
Depth
Stand dimensions:
Height (extended) 399.80 mm (15.74 inches)
Height (compressed) 354.20 mm (13.94 inches)
Width 225 mm (8.86 inches)
Depth 180 mm (7.09 inches)
Weight:
With packaging 6.08 kg (13.38 lb)
With stand assembly and cables 4.42 kg (9.72 lb)
Without stand
assembly (for wall mount or VESA
mount considerations - no
cables)
Stand assembly 1.78 kg (3.92 lb)
46.50 mm (1.83 inches)
2.34 kg (5.15 lb)
12 | About Your Monitor
Environmental Characteristics
Temperature:
Operating 0°C to 40°C (32°F to 104°F)
Non-operating –20°C to 60°C (–4°F to 140°F)
Humidity:
Operating
Non-operating 5% to 90% (non-condensing)
Altitude:
Operating 5,000 m (16,404 ft) (maximum)
Non-operating 12,192 m (40,000 ft) (maximum)
Thermal dissipation •102.36 BTU/hour (maximum)
10% to 80% (non-condensing)
•54.59 BTU/hour (typical)
Power Management Modes
If you have VESA’s DPM-compliant video card or software installed in your PC, the
monitor can automatically reduce its power consumption when not in use. This is
referred to as power save mode*. If the computer detects input from the keyboard,
mouse, or other input devices, the monitor automatically resumes functioning. The
following table shows the power consumption and signaling of this automatic power
saving feature.
VESA
Modes
Normal
operation
Active-off
mode
Switch off - - - Off Less than 0.3 W
Energy Star Power Consumption
On Mode 13.02W ***
Horizontal
Sync
Active Active Active White 30 W (maximum)**
Inactive Inactive Off Breathing White
Vertical
Sync
Video Power
Indicator
(blinking slowly)
Power Consumption
16 W (typical)
Less than 0.3 W
About Your Monitor | 13
The OSD operates only in the normal operation mode. If you press any button in the
active-off mode, the following message is displayed:
*Zero power consumption in OFF mode can only be achieved by disconnecting the
power adapter from the monitor.
**Maximum power consumption with maximum luminance.
***Energy consumption (On Mode) is tested at 230 Volts / 50 Hz.
This document is informational only and reflects laboratory performance. Your
product may perform differently, depending on the software, components and
peripherals you ordered and shall have no obligation to update such information.
Accordingly, the customer should not rely upon this information in making
decisions about electrical tolerances or otherwise. No warranty as to accuracy or
completeness is expressed or implied.
Activate the computer and the monitor to gain access to the OSD.
NOTE: This monitor is ENERGY STAR -compliant.
14 | About Your Monitor
Pin Assignments
VGA port
Pin number 15-pin side of theconnected signal cable
1 Video-Red
2 Video-Green
3 Video-Blue
4 GND
5 Self-test
6 GND-R
7 GND-G
8 GND-B
9 Computer 5 V / 3.3 V
10 GND-sync
11 GND
12 DDC data
13 H-sync
14 V-sync
15 DDC clock
About Your Monitor | 15
Displayport port
Pin number 20-pin side of theconnected signal cable
1 ML_Lane 3 (n)
2 GND
3 ML_Lane 3 (p)
4 ML_Lane 2 (n)
5 GND
6 ML_Lane 2 (p)
7 ML_Lane 1 (n)
8 GND
9 ML_Lane 1 (p)
10 ML_Lane 0 (n)
11 GND
12 ML_Lane 0 (p)
13 CONFIG1
14 CONFIG2
15 AUX CH (p)
16 GND
17 AUX CH (n)
18 Hot Plug Detect
19 Return
20 DP PWR
16 | About Your Monitor
Loading...
