Contents

Setting Up Your Inspiron Laptop. . . . . . . . . .5

Before Setting Up Your Computer . . . . . . . . . 5

Connect the AC Adapter . . . . . . . . . . . . . . . .6

Connect the Network Cable (Optional) . . . . . 7

Press the Power Button . . . . . . . . . . . . . . . . . 8

Set Up the Operating System . . . . . . . . . . . . . 9

Create System Recovery Media

(Recommended). . . . . . . . . . . . . . . . . . . . . . . 10

Enable or Disable Wireless (Optional). . . . . 12

Connect to the Internet (Optional) . . . . . . . . 14

Using Your Inspiron Laptop. . . . . . . . . . . . .18

Right View Features. . . . . . . . . . . . . . . . . . . . 18

Left View Features. . . . . . . . . . . . . . . . . . . . . 20

Front View Features. . . . . . . . . . . . . . . . . . . . 22

Status Lights and Indicators. . . . . . . . . . . . . 24

Computer Base and Keyboard Features . . . 26

Touch Pad Gestures. . . . . . . . . . . . . . . . . . . . 28

Multimedia Control Keys. . . . . . . . . . . . . . . . 30

Using the Optical Drive . . . . . . . . . . . . . . . . . 32

Display Features . . . . . . . . . . . . . . . . . . . . . .34

Removing and Replacing the Battery . . . . . 36

Software Features . . . . . . . . . . . . . . . . . . . . . 38

Dell Dock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Dell DataSafe Online Backup . . . . . . . . . . . .40

Solving Problems . . . . . . . . . . . . . . . . . . . . .41

Beep Codes . . . . . . . . . . . . . . . . . . . . . . . . . .41

Network Problems . . . . . . . . . . . . . . . . . . . . . 42

Power Problems. . . . . . . . . . . . . . . . . . . . . . . 43

Memory Problems . . . . . . . . . . . . . . . . . . . . . 44

Lockups and Software Problems . . . . . . . . . 45

Contents

Using Support Tools. . . . . . . . . . . . . . . . . . .48

Dell Support Center . . . . . . . . . . . . . . . . . . . . 48

My Dell Downloads . . . . . . . . . . . . . . . . . . . . 49

System Messages . . . . . . . . . . . . . . . . . . . . . 49

Hardware Troubleshooter . . . . . . . . . . . . . . . 51

Dell Diagnostics . . . . . . . . . . . . . . . . . . . . . . 51

Restoring Your Operating System . . . . . . .56

System Restore . . . . . . . . . . . . . . . . . . . . . . . 57

Dell DataSafe Local Backup. . . . . . . . . . . . . 58

System Recovery Media . . . . . . . . . . . . . . . .61

Dell Factory Image Restore . . . . . . . . . . . . .62

Getting Help . . . . . . . . . . . . . . . . . . . . . . . . .64

Technical Support and Customer

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

DellConnect . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Online Services . . . . . . . . . . . . . . . . . . . . . . . 66

Automated Order‑Status Service. . . . . . . . . 67

Product Information. . . . . . . . . . . . . . . . . . . . 67

Returning Items for Repair Under

Warranty or for Credit . . . . . . . . . . . . . . . . . . 68

Before You Call. . . . . . . . . . . . . . . . . . . . . . . .70

Contacting Dell. . . . . . . . . . . . . . . . . . . . . . . . 72

Finding More Information and

Resources . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Specifications . . . . . . . . . . . . . . . . . . . . . . .76

Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . .83

Macrovision Product Notice. . . . . . . . . . . . . 83

Information for NOM, or Official Mexican

Standard (Only for Mexico). . . . . . . . . . . . . . 84

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

Setting Up Your Inspiron Laptop

INSPIRON

This section provides information about setting up your Dell™ Inspiron™ laptop.

Before Setting Up Your Computer

When positioning your computer, ensure that you allow easy access to a power source, adequate ventilation, and a level surface to place your computer.

Restricting airflow around your laptop may cause it to overheat. To prevent overheating ensure that you leave at least 10.2 cm (4 inches) at the back of the computer and a minimum of

5.1 cm (2 inches) on all other sides. You should never place your computer in an enclosed space, such as a cabinet or drawer when it is powered on.

WARNING: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not place your Dell™ computer in a low-airflow environment, such as a closed briefcase, or on fabric surfaces, such as carpets or rugs, while it is powered on. Restricting the airflow can damage the computer, deteriorate the computer performance, or cause a fire. The computer turns on the fan when the computer gets hot. Fan noise is normal and does not indicate a problem with the fan or the computer.

CAUTION: Placing or stacking heavy or sharp objects on the computer may result in permanent damage to the computer.

Setting Up Your Inspiron Laptop

Connect the AC Adapter

Connect the AC adapter to the computer and then plug it into an electrical outlet or surge protector.

WARNING: The AC adapter works with electrical outlets worldwide. However, power connectors and power strips vary among countries. Using an incompatible cable or improperly connecting the cable to a power strip or electrical outlet may cause fire or permanent damage to your computer.

Connect the Network Cable (Optional)

To use a wired network connection, connect the network cable.

Setting Up Your Inspiron Laptop

Press the Power Button

Setting Up Your Inspiron Laptop

Set Up the Operating System

Your Dell computer is preconfigured with the operating system you selected at the time of purchase.

Set Up Microsoft Windows

To set up Microsoft® Windows® for the first time, follow the instructions on the screen. These steps are mandatory and may take some time to complete. The Windows setup screens will take you through several procedures including accepting license agreements, setting preferences, and setting up an Internet connection.

CAUTION: Do not interrupt the operating system’s setup process. Doing so may render your computer unusable and you will need to reinstall the operating system.

NOTE: For optimal performance of your computer, it is recommended that you download and install the latest BIOS and drivers for your computer available at support.dell.com.

NOTE: For more information on the operating system and features, see support.dell.com/MyNewDell.

Set Up Ubuntu

To set up Ubuntu® for the first time, follow the instructions on the screen. See the Ubuntu documentation for more operating system specific information.

Setting Up Your Inspiron Laptop

Create System Recovery Media (Recommended)

NOTE: It is recommended that you create a system recovery media as soon as you set up

Microsoft Windows.

The system recovery media can be used to restore your computer to the operating state it was in when you purchased the computer, while preserving data files (without the need of the

System

disc). You can use the system recovery media if changes to the hardware, software, drivers,

or other system settings have left the computer in an undesirable operating state.

You will require the following to create the system recovery media:

Dell DataSafe Local Backup•

USB key with a minimum capacity of 8 GB or DVD‑R/DVD+R/Blu‑ray Disc•

NOTE: Dell DataSafe Local Backup does not support rewritable discs.

™

Operating

Setting Up Your Inspiron Laptop

To create a system recovery media:

Ensure that the AC adapter is connected (see “Connect the AC Adapter” on page 1. 6).

Insert the disc or USB key in the computer.2.

Click 3. Start → Programs→ Dell DataSafe Local Backup.

Click 4. Create Recovery Media.

Follow the instructions on the screen.5.

NOTE: For information on using the system recovery media, see “System Recovery Media” on page 61.

Setting Up Your Inspiron Laptop

Enable or Disable Wireless (Optional)

Setting Up Your Inspiron Laptop

NOTE: The wireless feature is available on your computer only if you ordered a WLAN card at the time of purchase. For more information on the cards supported by your computer, see “Specifications” on page 76.

To enable wireless:

Ensure that your computer is turned on.1.

Press the wireless key 2. on the function key row on the keyboard. A confirmation of your selection appears on the screen.

Wireless enabled

Wireless disabled

To disable wireless:

Press the wireless key on the function key row on the keyboard again to turn off all radios.

NOTE: The wireless key allows you to quickly turn off wireless radios (Wi‑Fi and Bluetooth®), such as when you are asked to disable all wireless radios on an airplane flight.

Setting Up Your Inspiron Laptop

Connect to the Internet (Optional)

To connect to the Internet, you need an external modem or network connection and an Internet Service Provider (ISP).

If an external USB modem or WLAN adapter is not a part of your original order, you can purchase one at www.dell.com.

Setting Up a Wired Connection

If you are using a dial‑up connection, • connect the telephone line to the optional external USB modem and to the telephone wall connector before you set up your Internet connection.

If you are using a DSL or cable/satellite • modem connection, contact your ISP or cellular telephone service for setup

instructions. To complete setting up your wired Internet connection, follow the instructions in “Setting Up Your Internet Connection” on page 16.

Setting Up Your Inspiron Laptop

Setting Up a Wireless Connection

NOTE: To set up your wireless router, see

the documentation that shipped with your router.

Before you can use your wireless Internet connection, you need to connect to your wireless router.

To set up your connection to a wireless router:

Windows Vista

Ensure that wireless is enabled on your 1. computer (see “Enable or Disable Wireless” on page 12).

Save and close any open files, and exit any 2. open programs.

Click 3. Start → Connect To.

Follow the instructions on the screen to 4. complete the setup.

Windows® 7

Ensure that wireless is enabled on your 1. computer (see “Enable or Disable Wireless” on page 12).

Save and close any open files, and exit any 2. open programs.

Click 3. Start → Control Panel.

In the search box, type 4. network, and then click Network and Sharing Center→ Connect to a network.

Follow the instructions on the screen to 5. complete the setup.

Setting Up Your Inspiron Laptop

Setting Up Your Internet Connection

ISPs and ISP offerings vary by country. Contact your ISP for offerings available in your country.

If you cannot connect to the Internet but have successfully connected in the past, the ISP might have a service outage. Contact your ISP to check the service status, or try connecting again later.

Have your ISP information ready. If you do not have an ISP, the Connect to the Internet wizard can help you get one.

To set up your Internet connection:

Windows Vista

Save and close any open files, and exit any 1.

open programs.

Click 2. Start → Control Panel.

In the search box, type 3. network, and then

click Network and Sharing Center→ Set up

a connection or network→ Connect to the

Internet.

The Connect to the Internet window appears.

NOTE: If you do not know which type of

connection to select, click Help me choose or contact your ISP.

Follow the instructions on the screen and 4.

use the setup information provided by your

ISP to complete the setup.

Windows 7

Save and close any open files, and exit any 1. open programs.

Click 2. Start → Control Panel.

In the search box, type 3. network, and then click Network and Sharing Center→ Set up

a new connection or network→ Connect to the Internet. The Connect to the Internet window appears.

NOTE: If you do not know which type of

connection to select, click Help me choose or contact your ISP.

Follow the instructions on the screen and 4. use the setup information provided by your ISP to complete the setup.

Setting Up Your Inspiron Laptop

Using Your Inspiron Laptop

This section provides information about the features available on your Inspiron™ laptop.

INSPIRON

Right View Features

Using Your Inspiron Laptop

Audio out/Headphone connector — Connects to a pair of headphones or to a powered

speaker or sound system.

Audio in/Microphone connector — Connects to a microphone or inputs signal for use

with audio programs.

USB 2.0 connectors (2) — Connect to USB devices, such as a mouse, keyboard, printer,

external drive, or MP3 player.

VGA connector — Connects to a monitor or projector.

Using Your Inspiron Laptop

4 5

Left View Features

Using Your Inspiron Laptop

AC adapter connector — Connects to the AC adapter to power the computer and charge

the battery.

USB 2.0 connector — Connects to USB devices, such as a mouse, keyboard, printer,

external drive, or MP3 player.

Network connector — Connects your computer to a network or a broadband device if

you are using a wired network.

Optical drive light — Blinks when you press the optical drive eject button or when you insert a

disc and it is being read.

Optical drive eject button — Opens the optical drive tray when pressed.

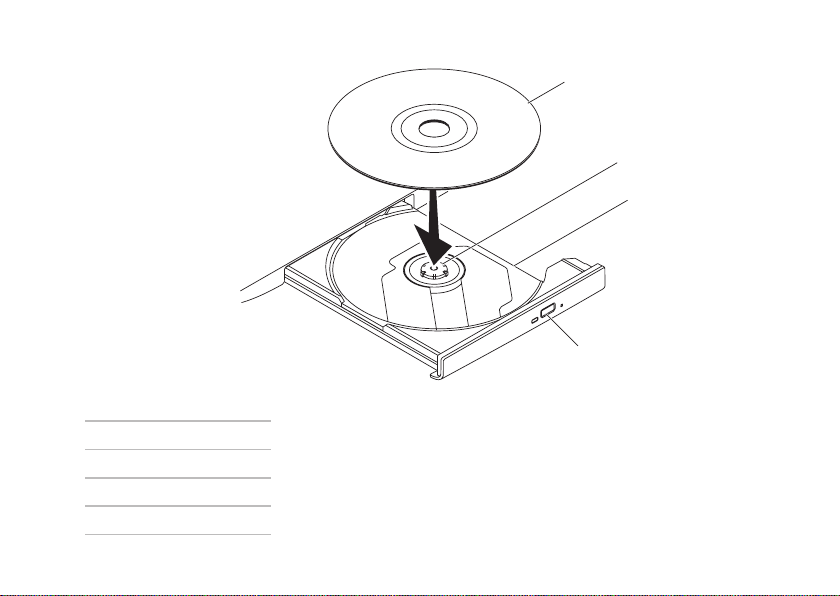

Optical drive — Plays or records CDs and DVDs.

For more information, see “Using the Optical Drive” on page 32.

Using Your Inspiron Laptop

Front View Features

Using Your Inspiron Laptop

Power indicator light — Indicates the power states. For more information on the power

indicator light, see “Status Lights and Indicators” on page 24.

Hard drive activity light — Turns on when the computer reads or writes data. A white

light indicates hard drive activity.

CAUTION: To avoid loss of data, never turn off the computer while the hard drive activity light is active.

Battery status light — Turns on steadily or blinks to indicate the battery charge status.

For more information on the battery status light, see “Status Lights and Indicators” on page 24.

NOTE: The battery is charging when the computer is powered using the AC adapter.

Analog microphone — Provides quality sound for video conferencing and voice recording.

share digital photos, music, videos, and documents stored on the memory cards.

NOTE: Your computer ships with a plastic blank installed in the media card slot. Blanks protect unused slots from dust and other particles. Save the blank for use when no media card is installed in the slot; blanks from other computers may not fit in your computer.

5-in-1 Media Card Reader — Provides a fast and convenient way to view and

Using Your Inspiron Laptop

Status Lights and Indicators

Battery Status Light

Indicator light status Computer state(s) Battery charge level

AC adapter

Battery

NOTE: The battery is charging when the computer is powered using the AC adapter.

solid white on/standby/off/

hibernate

off on/standby/off/

hibernate

solid amber on/standby <=10%

off on/standby/off/

hibernate off/hibernate

<=98%

>98%

>10%

<=10%

Using Your Inspiron Laptop

Power Indicator Light

Indicator light status Computer state(s)

solid white

breathing white

off

NOTE: For information on power problems, see “Power Problems” on page 43.

standby

off/hibernate

Using Your Inspiron Laptop

3 4

Computer Base and Keyboard Features

+ 64 hidden pages
