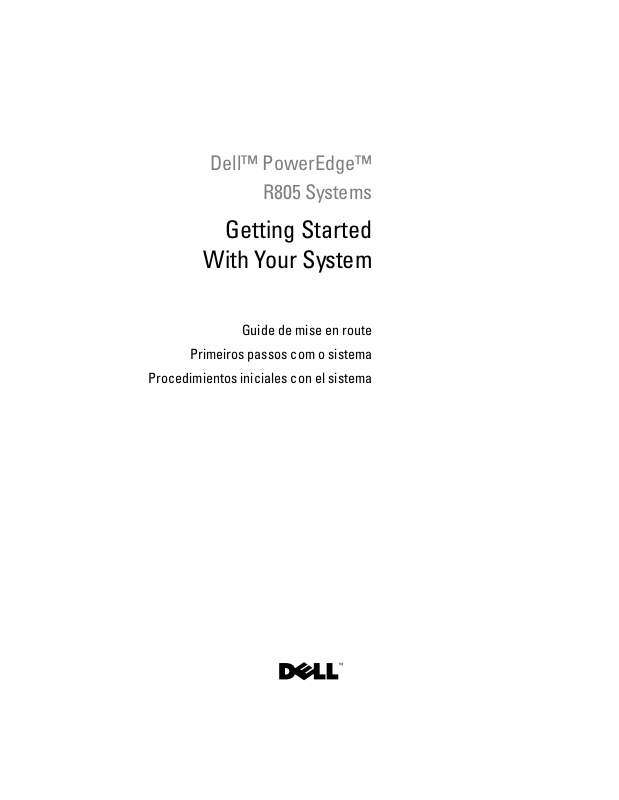

Dell™ PowerEdge™

R805 Systems

Getting Started

With Your System

Guide de mise en route

Primeiros passos com o sistema

Procedimientos iniciales con el sistema

Dell™ PowerEdge™

R805 Systems

Getting Started

With Your System

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use

of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data

and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury,

or death.

____________________

Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; AMD and AMD

Opteron are registered trademarks of Advanced Micro Devices; Microsoft, Windows, and Windows Server are registered trademarks of Microsoft Corporation; Novell and NetWare are registered

trademarks of Novell, Inc.; Red Hat and Red Hat Enterprise Linux are registered trademarks of Red Hat, Inc.; SUSE is a registered trademark of Novell Inc.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

Model EMS01

August 2007 P/N NX702 Rev. A00

System Features

This section describes the major hardware and software features of your system. It also provides information about other documents you may need when setting up your system and how to obtain technical assistance.

• Two dual-core or quad-core AMD Opteron™ processors.

• A minimum of 2 GB single- or dual-ranked 667-MHz DDR2 (PC2-5300) memory modules (installed in two sets of pairs). Memory is upgradable to a maximum of 128 GB by installing combinations of 512-MB, 1-GB, 2-GB, 4-GB, or 8-GB memory modules in the 16 memory module sockets (eight per CPU) on the system board.

• Support for up to two 2.5-inch, internal hot-pluggable Serial Attached SCSI (SAS) or SATA hard drives.

• An optional slim-line SATA DVD-ROM drive, slim-line SATA DVD-RW drive, or combination CD-RW/DVD drive (when available).

NOTE: DVD devices are data only.

• An intrusion switch that signals the appropriate systems management software if the cover is opened.

• Up to two hot-pluggable, 700-W power supplies in an optional 1 + 1 redundant configuration.

• Six hot-pluggable system cooling fans.

• Optional support for iSCSI boot.

The system board includes the following features:

• A right riser card (riser 1) containing two PCIe (x4 and x8) slots. The right riser card also contains an SD (Secure Digital) slot for embedded OS support.

• A left riser card (riser 2) containing one full-length PCIe (x8) slot and one half-length PCIe (x8) slot.

• An integrated SAS controller card (via a dedicated PCIe slot on the sideplane board) supporting both SAS 6i/R and PERC 6/i adapters.

• Optional integrated PERC controller (PERC 6i) with integrated cache and battery backup.

• Four integrated Gigabit Ethernet NICs, capable of supporting 10-Mbps, 100-Mbps, and 1000-Mbps data rates.

Getting Started With Your System 3

• Four external USB 2.0-compliant connectors (two on the front and two on the back) supporting a diskette drive, a DVD-ROM drive, a keyboard, a mouse, or a USB flash drive.

• One internal USB 2.0-compliant connector supporting an optional bootable USB flash drive or USB security key.

• Optional remote access controller (RAC) for remote systems management.

• An integrated VGA-compatible video subsystem based on an integrated ATI ES1000 33-MHz PCI video controller. The video subsystem includes 32MB of graphics memory and supports various 2D graphics video modes. Maximum resolution is 1600x1200 with 65,536 colors. (When the optional RAC is installed, the maximum resolution of the integrated video subsystem is 1280x1024.)

• Systems management circuitry that monitors operation of the system fans as well as critical system voltages, temperatures, and system power consumption. The systems management circuitry works in conjunction with the systems management software.

• Standard Baseboard Management Controller (BMC) with serial and LAN access.

• Back-panel connectors include one serial, one video, two USB, and four NIC connectors.

• Front-panel connectors include a video and two USB connectors.

• Front-panel 1x5 LCD for system ID and error messaging.

• System ID button on the front and back panels.

For more information about specific features, see Technical Specifications.

Supported Operating Systems

• Microsoft® Windows Server® 2003 R2 Standard and Enterprise Editions (SP1 and later)

• Microsoft Windows Server 2003 R2 Standard and Enterprise x64 Editions (SP1 and later)

• Red Hat Enterprise Linux Server 5 (x86)

• Red Hat Enterprise Linux Server 5 (x86_64)

• Red Hat Enterprise Linux Server ES (Version 4.5) (x86)

4 Getting Started With Your System

• Red Hat Enterprise Linux Server ES (Version 4.5) (x86_64)

•SUSE

Linux Enterprise Server 9 (x86_64)

• SUSE Linux Enterprise Server 10 (x86_64)

•VMware

NOTE: For the latest information on supported operating systems, see www.dell.com.

NOTE: SUSE Linux Enterprise Server 9, prior to SP4, does not support SATA optical

devices. Installation must be performed using other methods, such as an external USB CD-ROM drive.

ESX Server 3 (including embedded versions)

Other Information You May Need

CAUTION: The Product Information Guide provides important safety and

regulatory information. Warranty information may be included within this document or as a separate document.

• The

• CDs included with your system provide documentation and tools for

• Systems management software documentation describes the features,

• Operating system documentation describes how to install (if necessary),

• Documentation for any components you purchased separately provides

• Updates are sometimes included with the system to describe changes

Rack Installation Guide

Rack Installation Instructions

included

with your rack solution describes how to install your system into a rack.

Hardware Owner’s Manual

provides information about system features and describes how to troubleshoot the system and install or replace system components.

configuring and managing your system.

requirements, installation, and basic operation of the software.

configure, and use the operating system software.

information to configure and install these options.

to the system, software, and/or documentation.

NOTE: Always check for updates on support.dell.com and read the updates

first because they often supersede information in other documents.

• Release notes or readme files may be included to provide last-minute updates to the system or documentation or advanced technical reference material intended for experienced users or technicians.

Getting Started With Your System 5

Obtaining Technical Assistance

If you do not understand a procedure in this guide or if the system does not perform as expected, see your Hardware Owner’s Manual.

Dell™ Enterprise Training and Certification is available; see

training

for more information. This service may not be offered in all locations.

www.dell.com/

Installation and Configuration

CAUTION: Before performing the following procedure, read and follow the

safety instructions and important regulatory information in your Product Information Guide.

This section describes the steps to set up your system for the first time.

Unpacking the System

Unpack your system and identify each item.

Keep all shipping materials in case you need them later.

NOTE: Depending on options ordered, not all components shown may be

included.

6 Getting Started With Your System

Installing the Rails and System in a Rack

Once you have read the "Safety Instructions" located in the rack installation documentation for your system, install the rails and the system in the rack.

See your rack installation documentation for instructions on installing your system in a rack.

Connecting the Keyboard, Mouse, and Monitor

Connect the keyboard, mouse, and monitor (optional).

The connectors on the back of your system have icons indicating which cable to plug into each connector. Be sure to tighten the screws (if any) on the monitor's cable connector.

Getting Started With Your System 7

Connecting the Power

Connect the monitor’s power cable to the monitor (optional), and connect the system’s power cable(s) to the system.

Installing the Power Cord Retention Bracket

Attach the power cord retention bracket on the right bend of the power supply handle. Bend the system power cable into a loop as shown in the illustration and attach to the bracket’s cable clasp. Repeat the procedure for the second power supply.

Plug the other end of the power cables into a grounded electrical outlet or a separate power source such as an uninterrupted power supply (UPS) or a power distribution unit (PDU).

8 Getting Started With Your System

Turning on the System

Turn on the system and monitor (optional).

With the bezel removed, press the power button on the system and the monitor. The power indicators should light. Adjust the monitor's controls until the displayed image is satisfactory.

Installing the Bezel

Install the bezel (optional).

Getting Started With Your System 9

Complete the 0perating System Setup

If you purchased a preinstalled operating system, see the operating system documentation that ships with your system. To install an operating system for the first time, see the Quick Installation Guide. Be sure the operating system is installed before installing hardware or software not purchased with the system.

Technical Specifications

Processor

Processor type Two dual- or quad-core AMD Opteron processors

Expansion Bus

Bus type PCIe

Expansion slots

Right riser (riser 1):

PCIe

Left riser (riser 2):

PCIe

One x8 full-height, full-length slot (top) One x4 full-height, half-length slot (bottom)

One internal SD (Secure Digital) card slot

One x8 full-height, full-length slot (top) One x8 full-height, half-length slot (bottom)

One internal USB key socket

Memory

Architecture 667-MHz registered parity DDR2 memory

modules

Memory module sockets 16 240-pin

Memory module capacities 512 MB, 1 GB, 2 GB, 4 GB, or 8 GB (single-

or dual-rank only, quad-rank not supported)

Minimum RAM (installed in two sets of pairs)

Maximum RAM 128 GB (64 GB each processor)

2 GB (1 GB each processor, 2 DIMMs per processor)

10 Getting Started With Your System

Drives

Hard drives Up to two 2.5-inch, hot-plug SAS or SATA

internal drives

Optical drive One optional slim-line SATA DVD-ROM drive or

DVD-RW drive, or combination CD-RW/DVD drive (when available)

NOTE: DVD devices are data only.

External optional USB DVD

Flash drive External optional USB

Internal optional USB Internal optional SD card

Connectors

Back

NIC

Serial

USB

Video

Front

Video

USB

Internal

USB

Four RJ-45 10/100/1000

9-pin, DTE, 16550-compatible

Two 4-pin, USB 2.0-compliant

15-pin VGA

Two 4-pin, USB 2.0-compliant

One 4-pin, USB 2.0-compliant

One flash memory card slot on right PCIe riser (riser 1)

Video

Video type ATI ES1000 video controller; VGA connector

Video memory 32 MB

Getting Started With Your System 11

Power

AC power supply (per power supply)

Wa t ta g e

Vo lt ag e

Heat dissipation

Maximum inrush current

Batteries

System battery

RAID battery (optional)

Physical

Height

Width

Depth

Weight (maximum configuration)

700 W

85–264 VAC, autoranging, 47–63 Hz

2697 BTU/hr maximum

Under typical line conditions and over the entire system ambient operating range, the inrush current may reach 55 A per power supply for 10 ms or less.

CR 2032 3.0-V lithium ion coin cell

4.1-V lithium ion

8.67 cm (3.41 in)

44.4 cm (17.5 in)

71.26 cm (28.05 in)

20.23 kg (44.6 lb)

12 Getting Started With Your System

Environmental

NOTE: For additional information about environmental measurements for specific

system configurations, see www.dell.com/environmental_datasheets.

Temperature

Operating

10° to 35°C (50° to 95°F) with a maximum temperature gradation of 10°C per hour

NOTE: For altitudes above 2950 feet, the maximum

operating temperature is derated 1ºF/550 ft.

Storage

Relative humidity

Operating

Storage

Maximum vibration

Operating

Storage

Maximum shock

Operating

Storage

Altitude

Operating

–40° to 65°C (–40° to 149°F) with a maximum temperature gradation of 20°C per hour

20% to 80% (noncondensing) with a maximum humidity gradation of 10% per hour

5% to 95% (noncondensing) with a maximum humidity gradation of 10% per hour

0.26 Grms at 5–350 Hz in operational orientations

1.54 Grms at 10–250 Hz in all orientations

One shock pulse in the positive z axis (one pulse on each side of the system) of 31 G for 2.6 ms in the operational orientation

Six consecutively executed shock pulses in the positive and negative x, y, and z axes (one pulse on each side of the system) of 71 G for up to 2 ms

–16 to 3048 m (–50 to 10,000 ft)

NOTE: For altitudes above 2950 feet, the maximum

operating temperature is derated 1ºF/550 ft.

Storage

–16 to 10,600 m (–50 to 35,000 ft)

Getting Started With Your System 13

14 Getting Started With Your System

Systèmes Dell™

PowerEdge™ R805

Guide de mise en route

Modèle EMS01

Remarques, avis et précautions

REMARQUE : Une REMARQUE indique des informations importantes qui peuvent

vous aider à mieux utiliser votre ordinateur.

AVIS : Un AVIS vous avertit d'un risque de dommage matériel ou de perte de

données et vous indique comment éviter le problème.

PRÉCAUTION : Une PRÉCAUTION indique un risque potentiel d'endommagement

du matériel, de blessure corporelle ou de mort.

____________________

La reproduction de ce document de quelque manière que ce soit sans l'autorisation écrite de Dell Inc. est strictement interdite.

Marques utilisées dans ce document : Dell et le logo DELL sont des marques de Dell Inc. ; AMD et AMD Opteron sont des marques déposées d'Advanced Micro Devices ; Microsoft, Windows et Windows Server sont des marques déposées de Microsoft Corporation ; Novell et NetWare sont des marques déposées de Novell, Inc. ; Red Hat et Red Hat Enterprise Linux sont des marques déposées de Red Hat, Inc. ; SUSE est une marque déposée de Novell Inc.

D'autres marques et noms de marques peuvent être utilisés dans ce document pour faire référence aux entités se réclamant de ces marques et de ces noms ou à leurs produits. Dell Inc. dénie tout intérêt propriétaire vis-à-vis des marques et des noms de marque autres que les siens.

Modèle EMS01

Août 2007 N/P NX702 Rév. A00
