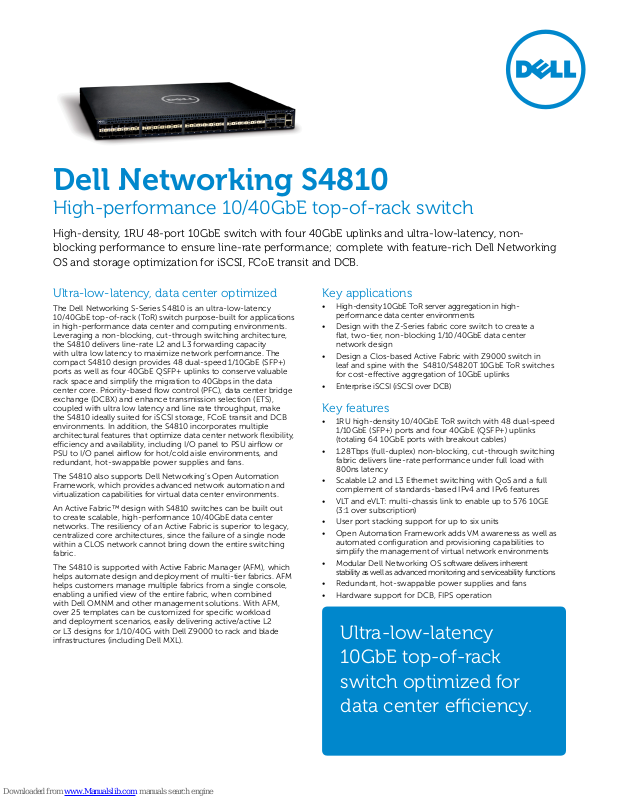

Dell Networking S4810 Specifications

Dell Networking S4810

High-performance 10/40GbE top-of-rack switch

High-density, 1RU 48-port 10GbE switch with four 40GbE uplinks and ultra-low-latency, non­blocking performance to ensure line-rate performance; complete with feature-rich Dell Networking
OS and storage optimization for iSCSI, FCoE transit and DCB.

Ultra-low-latency, data center optimized

The Dell Networking S-Series S4810 is an ultra-low-latency
10/40GbE top-of-rack (ToR) switch purpose-built for applications
in high-performance data center and computing environments.
Leveraging a non-blocking, cut-through switching architecture,
the S4810 delivers line-rate L2 and L3 forwarding capacity
with ultra low latency to maximize network performance. The
compact S4810 design provides 48 dual-speed 1/10GbE (SFP+)
ports as well as four 40GbE QSFP+ uplinks to conserve valuable
rack space and simplify the migration to 40Gbps in the data

center core. Priority-based ow control (PFC), data center bridge
exchange (DCBX) and enhance transmission selection (ETS),

coupled with ultra low latency and line rate throughput, make

the S4810 ideally suited for iSCSI storage, FCoE transit and DCB
environments. In addition, the S4810 incorporates multiple
architectural features that optimize data center network exibility,
eciency and availability, including I/O panel to PSU airow or
PSU to I/O panel airow for hot/cold aisle environments, and

redundant, hot-swappable power supplies and fans.

The S4810 also supports Dell Networking’s Open Automation

Framework, which provides advanced network automation and
virtualization capabilities for virtual data center environments.

An Active Fabric™ design with S4810 switches can be built out

to create scalable, high-performance 10/40GbE data center

networks. The resiliency of an Active Fabric is superior to legacy,

centralized core architectures, since the failure of a single node

within a CLOS network cannot bring down the entire switching

fabric.

The S4810 is supported with Active Fabric Manager (AFM), which
helps automate design and deployment of multi-tier fabrics. AFM

helps customers manage multiple fabrics from a single console,

enabling a unied view of the entire fabric, when combined
with Dell OMNM and other management solutions. With AFM,
over 25 templates can be customized for specic workload

and deployment scenarios, easily delivering active/active L2
or L3 designs for 1/10/40G with Dell Z9000 to rack and blade

infrastructures (including Dell MXL).

Key applications

• High-density 10GbE ToR server aggregation in high­performance data center environments

• Design with the Z-Series fabric core switch to create a
at, two-tier, non-blocking 1/10/40GbE data center
network design

• Design a Clos-based Active Fabric with Z9000 switch in
leaf and spine with the S4810/S4820T 10GbE ToR switches

for cost-eective aggregation of 10GbE uplinks

• Enterprise iSCSI (iSCSI over DCB)

Key features

• 1RU high-density 10/40GbE ToR switch with 48 dual-speed
1/10GbE (SFP+) ports and four 40GbE (QSFP+) uplinks
(totaling 64 10GbE ports with breakout cables)

• 1.28Tbps (full-duplex) non-blocking, cut-through switching
fabric delivers line-rate performance under full load with
800ns latency

• Scalable L2 and L3 Ethernet switching with QoS and a full

complement of standards-based IPv4 and IPv6 features

• VLT and eVLT: multi-chassis link to enable up to 576 10GE
(3:1 over subscription)

• User port stacking support for up to six units

• Open Automation Framework adds VM awareness as well as
automated conguration and provisioning capabilities to
simplify the management of virtual network environments

• Modular Dell Networking OS software delivers inherent
stability as well as advanced monitoring and serviceability functions

• Redundant, hot-swappable power supplies and fans

• Hardware support for DCB, FIPS operation

Ultra-low-latency

10GbE top-of-rack
switch optimized for
data center eciency.

Specifications: S4810 high-performance 10/40-GbE top-of-rack switch

Dell SKU description

S4810

S4810, 48x 10GbE SFP+, 4x QSFP+, 1x AC PSU, 2x Fans, I/O
Panel to PSU Airow
S4810, 48x 10GbE SFP+, 4x QSFP+, 1x AC PSU, 2x Fans, PSU
to I/O Panel Airow
S4810, 48x 10GbE SFP+, 4x QSFP+, 1x AC PSU, 2x Fans, PSU
to I/O Panel Airow, Rear Mnt Bracket
S4810, 48x 10GbE SFP+, 4x QSFP+, 1x DC PSU, 2x Fans, I/O
Panel to PSU Airow
S4810, 48x 10GbE SFP+, 4x QSFP+, 1x DC PSU, 2x Fans, PSU
to I/O Panel Airow
S4810, 48x 10GbE SFP+, 4x QSFP+, 1x AC PSU, 2x Fans, I/O
panel to PSU Airow (Normal), TAA/FIPS/USGv6-L2
S4810, 48x 10GbE SFP+, 4x QSFP+, 1x AC PSU, 2x Fans, PSU
to I/O Panel Airow (Reverse), TAA/FIPS/USGv6-L2
S4810, 48x 10GbE SFP+, 4x QSFP+, 1x AC PSU, 2x Fans, I/O
Panel to PSU (Normal) Airow, TAA/FIPS/USGv6-L2
S4810, 48x 10GbE SFP+, 4x QSFP+, 1x AC PSU, 2x Fans, PSU
to I/O Panel (Reverse) Airow, TAA/FIPS/USGv6-L2

Redundant power supplies

S4810, AC Power Supply, I/O Panel to PSU Airow
S4810, AC Power Supply, PSU to I/O Panel Airow
S4810, DC Power Supply, I/O Panel to PSU Airow
S4810, DC Power Supply, PSU to I/O Panel Airow

Fans

S4810 Fan Module, I/O Panel to PSU Airow
S4810 Fan Module, PSU to I/O SR4 Panel Airow

Optics

Transceiver, QSFP+, 40GbE SR Optics, 850nm Wavelength,
100–150m Reach on OM3/OM4
Transceiver, QSFP+, 40GbE eSR Optics, 850nm Wavelength,
300–400m Reach on OM3/OM4
Transceiver, SFP+, 10GbE, SR, 850nm Wavelength, 300m Reach
Transceiver, SFP+, 10GbE, LR, 1310nm Wavelength, 10km Reach
Transceiver, SFP+, 10GbE, DWDM, ITU Channel 17–61, 40km

Reach

Transceiver, SFP+, 10GbE, ER, 1310nm Wavelength, 40km Reach
Transceiver, SFP+ LRM (Long Reach Multimode) Optic, 10GbE,
1310nm Wavelength, 220m Reach on MMF
Transceiver, SFP, 1000Base-SX, 850nm Wavelength, 550m Reach
Transceiver, SFP, 1000Base-LX, 1310nm Wavelength, 10km Reach
Transceiver, SFP, 1000Base-T

Cables

Cable, 40GbE QSFP+ to 4xSFP+, Direct Attach Breakout Cable,

0.5m, 1m, 3m, 5m, 7m

Cable, 40GbE QSFP+, Active Fiber Optic, 10m, 50m
Cable, 40GbE QSFP+, Direct Attach Cable, 0.5m, 1m, 3m, 5m, 7m
Cable, 40GbE MTP to 4xLC, 1m, 3m, 5m, 7m Optical Breakout
Cable (optics not included)
Cable, 40GbE MTP Fiber over OM3, 1m, 3m, 5m, 7m, 10m, 25m,

50m (75m and 100m in 2014)

Cable , SFP+, CU, 10GbE, Direct Attach Cable, 0.5m, 1m, 3m, 5m, 7m

Software

Software, FTOS: Networking Operating System Software, S4810
Software, Networking, iSCSI-Optimized Conguration, S4810
Software, Networking, FCOE-Optimized Conguration, S4810

Note: In-eld change of airow direction not supported.

Physical

48 line-rate 10 Gigabit Ethernet SFP+ ports
4 line-rate 40 Gigabit Ethernet QSFP+ ports
1 RJ45 console/management port with RS232 signaling

Size: 1 RU, 1.73 x 17.32 x 18.11” (4.4 x 44 x 46 cm) (H x W x D)
Weight: 14.39 lbs (6.54 kg)
ISO 7779 A-weighted sound pressure level: 59.6 dBA at 73.4°F (23°C)
Power supply: 100–240V AC 50/60Hz
Max. thermal output: 1194 BTU/h
Max. current draw per system:

4A at 100/120V AC 2A at 200/240V AC

10A at 36V DC 5A at 72V DC
Max. power consumption: 350 Watts (AC), 300 Watts (DC)
Typ. power consumption: 220 Watts
Max. operating specications:

Operating temperature: 32°F to 104°F (0°C to 40°C)

Operating humidity: 10 to 85% (RH), non-condensing
Max. non-operating specications:

Storage temperature: –40°F to 158°F (–40°C to 70°C)

Storage humidity: 5 to 95% (RH), non-condensing

Redundancy

Hot swappable redundant power
Hot swappable redundant fans

Performance

MAC addresses: 128K
IPv4 routes: 16K
IPv6 routes: 8K (shared CAM space with IPv4)

Switch fabric capacity: 1.28Tbps (full-duplex)
640Gbps (half-duplex)

Forwarding capacity: 960Mpps

Link aggregation: 8 links per group, 128 groups per
stack
Queues per port: 4 queues

Layer 2 VLANs: 4K
MSTP : 64 instances
Line-rate layer 2 switching: All protocols, including IPv4 and
IPv6
Line-rate layer 3 routing: IPv4 and IPv6
IPv4 host table size 8K
IPv6 host table size 4K
IPv4 multicast table size 4K
LAG loa d bala nci ng : Based on Layer 2, IPv4 or IPv6

headers
Latency: Sub 700ns

Packet buer memory: 9MB
CPU memory: 2GB

IEEE compliance

802.1AB LLDP

802.1ag Connectivity Fault Management

802.1D Bridging, STP

802.1p L2 Prioritization

802.1Q VLAN Tagging, Double VLAN Tagging, GVRP

802.1s MSTP

802.1w RSTP

802.1X Network Access Control

802.3ab Gigabit Ethernet (1000BASE-T)

802.3ac Frame Extensions for VLAN Tagging

802.3ad Link Aggregation with LACP

802.3ae 10 Gigabit Ethernet (10GBASE-X)

802.3ba 40 Gigabit Ethernet (40GBase-SR4, 40GBase-CR4)
on Optical Ports

802.3u Fast Ethernet (100BASE-TX) on Management Ports

802.3x Flow Control

802.3z Gigabit Ethernet (1000BASE-X)
ANSI/TIA-1057 LLDP-MED

Force10 PVST+

MTU 12,000 bytes

RFC and I-D compliance

General Internet protocols

768 UDP 1350 TFTP
793 TCP 2474 Dierentiated

854 Telnet Services
959 FTP 3164 Syslog

1321 MD5 5880 BFD

General IPv4 protocols

791 IPv4 1812 Routers
792 ICMP 1858 IP Fragment Filtering
826 ARP 2131 DHCP (relay)
1027 Proxy ARP 2338 VRRP
1035 DNS (client) 3021 31-bit Prexes
1042 Ethernet Transmission 3046 DHCP Option 82
1305 NTPv3 3069 Private VLAN
1519 CIDR 3128 Tiny Fragment Attack
1542 BOOTP (relay) Protection

General IPv6 protocols

2460 IPv6 1858 IP Fragment Filtering

2461 Neighbor Discovery 2675 Jumbograms

(partial) 3587 Global Unicast
2462 Stateless Address Address Format
Autoconguration (partial) 429 1 Addr ess in g
2463 ICMPv6

RIP

1058 RIPv1 2453 RIPv2

OSPF

2154 MD5 3623 Graceful Restart
1587 NSSA 4222 Prioritization and
2328 OSPFv2 Congestion
2370 Opaque LSA Avoidance

BGP

1997 Communities
2385 MD5
RFC 2545 BGP-4 Multiprotocol Extensions for IPv6 Inter-

Domain Routing
2439 Route Flap Damping

2796 Route Reection
2842 Capabilities
2858 Multiprotocol Extensions

2918 Route Refresh

3065 Confederations
4360 Extended Communities
4893 4-byte ASN
5396 4-byte ASN representations
draft-ietf-idr-bgp4-20 BGPv4

draft-ietf-idr-restart-06 Graceful Restart

draft-michaelson-4byte-as-representation-05 4-byte ASN

Representation (partial)

IS-IS

RFC 1195 Routing IPv4 with IS-IS
RFC 5308 Routing IPv6 with IS-IS

Multicast

1112 IGMPv1 3569 SSM for IPv4
2236 IGMPv2 4541 IGMPv1/v2
3376 IGMPv3 Snooping
draft-ietf-pim-sm-v2-new-05 PIM-SM

Network management

1155 SMIv1
1156 Internet MIB
1157 SNMPv1
1212 Concise MIB Denitions
1215 SNMP Traps
1493 Bridges MIB
1850 OSPFv2 MIB
1901 Community-based SNMPv2
2011 IP MIB
2012 TCP MIB
2013 UDP MIB
2096 IP Forwarding Table MIB
2570 SNMPv3
2571 Management Frameworks
2572 Message Processing and Dispatching
2576 Coexistence Between SNMPv1/v2/v3
2578 SMIv2
2579 Textual Conventions for SMIv2
2580 Conformance Statements for SMIv2
2618 RADIUS Authentication MIB
2665 Ethernet-like Interfaces MIB
2674 Extended Bridge MIB
2787 VRRP MIB
2819 RMON MIB (groups 1, 2, 3, 9)
2863 Interfaces MIB
2865 RADIUS
3273 RMON High Capacity MIB
3416 SNMPv2
3418 SNMP MIB
3434 RMON High Capacity Alarm MIB
3580 802.1X with RADIUS
5060 PIM MIB
ANSI/TIA-1057 LLDP-MED MIB
draft-grant-tacacs-02 TACACS+
draft-ietf-idr-bgp4-mib-06 BGP MIBv1
IEEE 802.1AB LLDP MIB
IEEE 802.1AB LLDP DOT1 MIB
IEEE 802.1AB LLDP DOT3 MIB
ruzin-mstp-mib-02 MSTP MIB (traps)

sFlow.org sFlowv5

sFlow.org sFlowv5 MIB (version 1.3)
FORCE10-BGP4-V2-MIB Force10 BGP MIB

FORCE10-IF-EXTENSION-MIB
FORCE10-LINKAGG-MIB
FORCE10-COPY-CONFIG-MIB
FORCE10-MON-MIB
FORCE10-PRODUCTS-MIB
FORCE10-SS-CHASSIS-MIB
FORCE10-SMI
FORCE10-SYSTEM-COMPONENT-MIB
FORCE10-TC-MIB
FORCE10-TRAP-ALARM-MIB
FORCE10-FORWARDINGPLANE-STATS-MIB

(draft-ietf-idr-bgp4-mibv2-05)

Regulatory compliance

Safety

UL/CSA 60950-1, Second Edition

EN 60950-1, Second Edition

IEC 60950-1, Second Edition Including All National
Deviations and Group Dierences

EN 60825-1 Safety of Laser Products Part 1: Equipment

Classication Requirements and User’s Guide

EN 60825-2 Safety of Laser Products Part 2: Safety of

Optical Fibre Communication Systems
FDA Regulation 21 CFR 1040.10 and 1040.11

Emissions

Australia/New Zealand: AS/NZS CISPR 22: 2009, Class A
Canada: ICES-003, Issue-4, Class A
Europe: EN 55022: 2006+A1:2007 (CISPR 22: 2006), Class A
Japan: VCCI V3/2009 Class A
USA: FCC CFR 47 Part 15, Subpart B:2009, Class A

Immunity

EN 300 386 V1.4.1:2008 EMC for Network Equipment
EN 55024: 1998 + A1: 2001 + A2: 2003
EN 61000-3-2: Harmonic Current Emissions

EN 61000-3-3: Voltage Fluctuations and Flicker
EN 61000-4-2: ESD

EN 61000-4-3: Radiated Immunity

EN 61000-4-4: EFT
EN 61000-4-5: Surge

EN 61000-4-6: Low Frequency Conducted Immunity

RoHS

All S-Series components are EU RoHS compliant.

Certications

TAA (Trade Agreement Act) compliant models also available
FIPS certied

© 2013 Dell Inc. All rights reserved. Dell and the DELL logo are trademarks of Dell, Inc. All other company names are trademarks of their respective holders.
Information in this document is subject to change without notice. Dell Inc. assumes no responsibility for any errors that may appear in this document.

Learn More at Dell.com/Networking

November 2013 | Version 2.1
dell-networking-s series-S4810-spec sheet
