About Your Dell Wireless Dock
The Dell™ Wireless Dock enables you to connect USB peripherals such as
external storages, printers, keyboards, mice, etc. to your notebook through
the wireless USB technology. You can also extend your notebook’s audio and
video support by connecting an external display and speakers.
NOTE: The Dell Wireless Dock supports a screen resolution of
up to 1680x1050 (wide screen) or 1600x1200 (standard screen) through
a DVI-I connector. If you need to connect a VGA display, you must
use a DVI to VGA adapter.
Wireless USB technology performs best within a one-meter range;
generally within a single room environment. The technology is different
from Wi-Fi
You can associate up to sixteen different notebooks with the Dell Wireless Dock.
However, you can connect the Dell Wireless Dock to only one of the
associated hosts at a given time.
NOTE: When the seventeenth host is associated, the first associated host
®
technology and is not discoverable by any Wi-Fi device.
will no longer be associated with the Dell Wireless Dock.
NOTE: The Dell Wireless Dock provides integrity checking along with
AES-128/CCM encryption.
About Your Dell Wireless Dock 5
Page 6
Front and Back View
1 power light
2 wireless link and
activity light
3 line out (speaker)
4 line in (microphone)
5 USB connectors (2)
6 antenna
7 reset button
8 mini-USB connector for
cable association
9 USB connectors (2)
10 DVI-I connector
11 DC-IN connector
6
4
5
3
1
2
7
8
9
10
11
6 About Your Dell Wireless Dock
Page 7
Configuring Your Dell Wireless Dock
Installing the Software
The Drivers and Utilities media that ships with your Dell™ Wireless Dock
contains the software required for installing and associating your
Dell Wireless Dock.
NOTE: You must install the software and drivers before you begin to use your
Dell Wireless Dock.
NOTE: Ensure your notebook’s video card drivers are installed before continuing
with the installation.
1
Insert the
your notebook’s CD/DVD drive. The installation wizard appears.
2
Click
Drivers and Utilities
Next
to continue.
media for Dell Wireless Dock into
Configuring Your Dell Wireless Dock 7
Page 8
3
Select
UWB Card and Wireless Dock drivers
4
The Dell Wireless USB card installation begins. This may take
several minutes.
and click
Next
to continue.
8 Configuring Your Dell Wireless Dock
Page 9
5
Click
Next
to install the Dell Wireless USB card.
6
The Dell Wireless USB card installation continues. This may take
several minutes.
Configuring Your Dell Wireless Dock 9
Page 10
7
The Dell Wireless USB card firmware update wizard appears.
NOTE: The installer will skip this step if your firmware is already up to date.
Scroll and read the
a
b
Click
Next
to continue.
General Notes
section and then click
Next
.
c
Click
Next
to update the Wireless USB card firmware.
CAUTION: Do not disconnect your AC adapter during the firmware update.
10 Configuring Your Dell Wireless Dock
Page 11
d
Click OK.
e
The firmware update for the Wireless USB card begins.
This may take several minutes.
f
Click
Finish
to close the firmware update wizard.
8
Click
Finish
to continue.
Configuring Your Dell Wireless Dock 11
Page 12
9
The Dell Wireless USB installation continues. This may take several minutes.
10
Click
Next
to install the Dell Wireless Dock software.
12 Configuring Your Dell Wireless Dock
Page 13
11
The Dell Wireless Dock installation begins. This may take several minutes.
NOTE: Your notebook’s display may flicker or go blank for a few seconds
during the installation of the Dell Wireless Dock device drivers.
12
The
Dell Wireless Dock Firmware Upgrade Utility
a
Connect the AC adapter to the Dell Wireless Dock and the notebook.
appears.
Then connect the USB cable, shipped with the Dell Wireless Dock,
from the mini-USB connector of the Dell Wireless Dock to the
USB connector of the notebook.
b
If you have the latest Dell Wireless Dock firmware, click
Configuring Your Dell Wireless Dock 13
Finish
.
Page 14
c
If you do not have the latest Dell Wireless Dock firmware, click
i The firmware update begins.
Upgrade
.
Finish
ii Click
. Disconnect the AC adapter and the USB cable
connecting the Dell Wireless Dock to the notebook.
14 Configuring Your Dell Wireless Dock
Page 15
13
Click
Finish
to continue.
14
The Dell Wireless Dock installation continues. This may take several minutes.
15
Click
Finish
.
Configuring Your Dell Wireless Dock 15
Page 16
Turning Your Dell Wireless Dock On
WARNING: Use only the AC adapter shipped with your Dell Wireless Dock to
avoid damage to the docking station.
Connect the AC adapter to the DC-IN connector on the Dell Wireless Dock
and an electrical outlet. The power light on the Dell Wireless Dock turns on.
Associating Your Dell Wireless Dock
You can associate your Dell Wireless Dock with your notebook using one of
the following methods:
•
Cable association
cable connection to the Dell Wireless Dock.
•
PIN association
entering the PIN code found on the label located on the bottom of the
Dell Wireless Dock.
— Completes the association process using a one-time
— Completes the association process wirelessly by
NOTE: Ensure that your notebook has a wireless USB card installed (includes
hardware and software) and that the card is enabled.
16 Configuring Your Dell Wireless Dock
Page 17
Associating Your Dell Wireless Dock Using Cable Association
1
Double-click the Wireless USB Manager icon located on the taskbar.
The
Dell Wireless USB Manager
2
Turn on your Dell Wireless Dock.
NOTE: The Dell Wireless Dock does not have a power button. You must
connect or disconnect the power cable to turn on or turn off the device.
3
Connect one end of the USB cable, shipped with the Dell Wireless Dock,
to the mini-USB connector on the Dell Wireless Dock and then connect
the other end of the USB cable to any of the USB connectors of the notebook.
window appears.
Configuring Your Dell Wireless Dock 17
Page 18
The association process begins and the Dell Wireless Dock icon appears in
the
Connection Manager
4
Disconnect the USB cable connecting your notebook to the Dell
Wireless Dock.

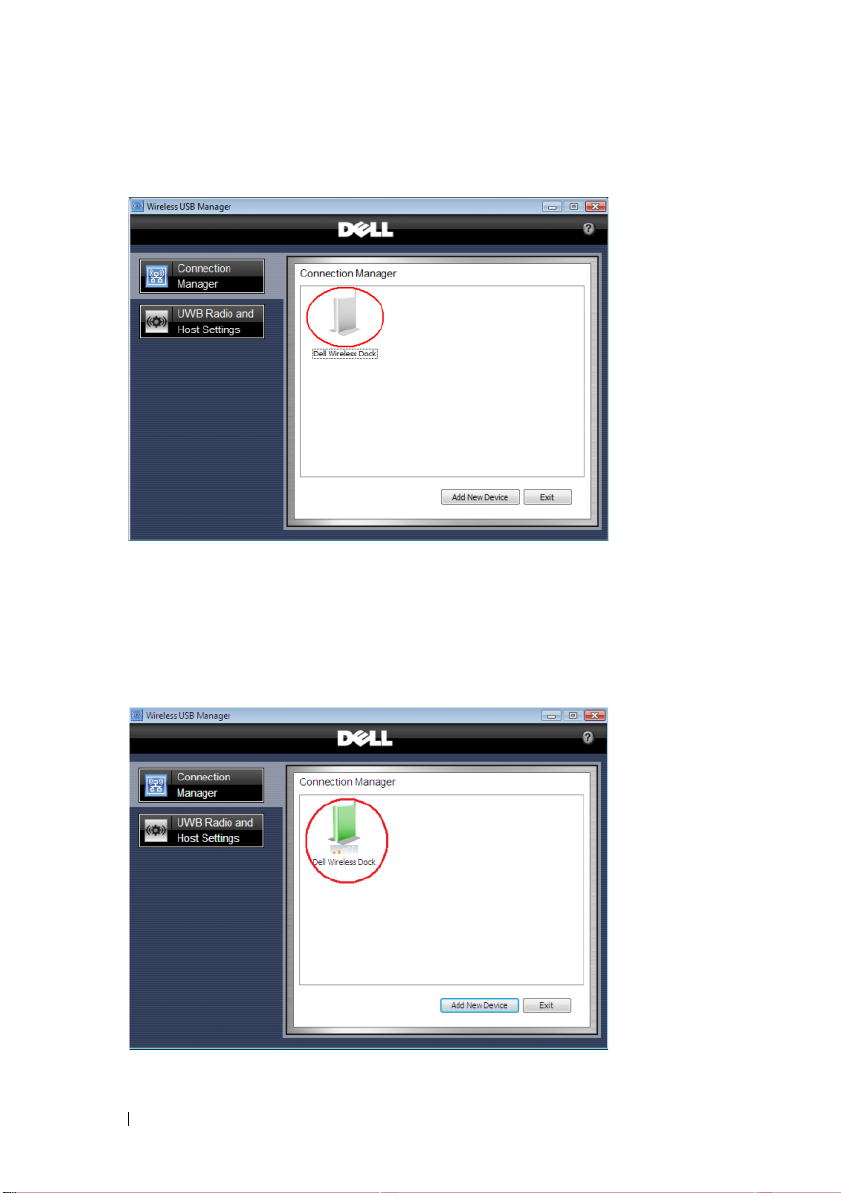

The Dell Wireless Dock icon turns green indicating a successful wireless
connection has been established. The icon remains gray if the connection
is not established.
window.
18 Configuring Your Dell Wireless Dock
Page 19
Associating Your Dell Wireless Dock Using PIN Association
1
Turn on your Dell Wireless Dock.
NOTE: The Dell Wireless Dock does not have a power button. You must
connect or disconnect the power cable to turn on or turn off the device.
2
Double-click the Wireless USB Manager icon located on the taskbar.
Dell Wireless USB Manager
The
3
On the
Wireless USB Manager
The notebook scans for wireless devices.
window appears.
screen, click
Add New Device
.
4

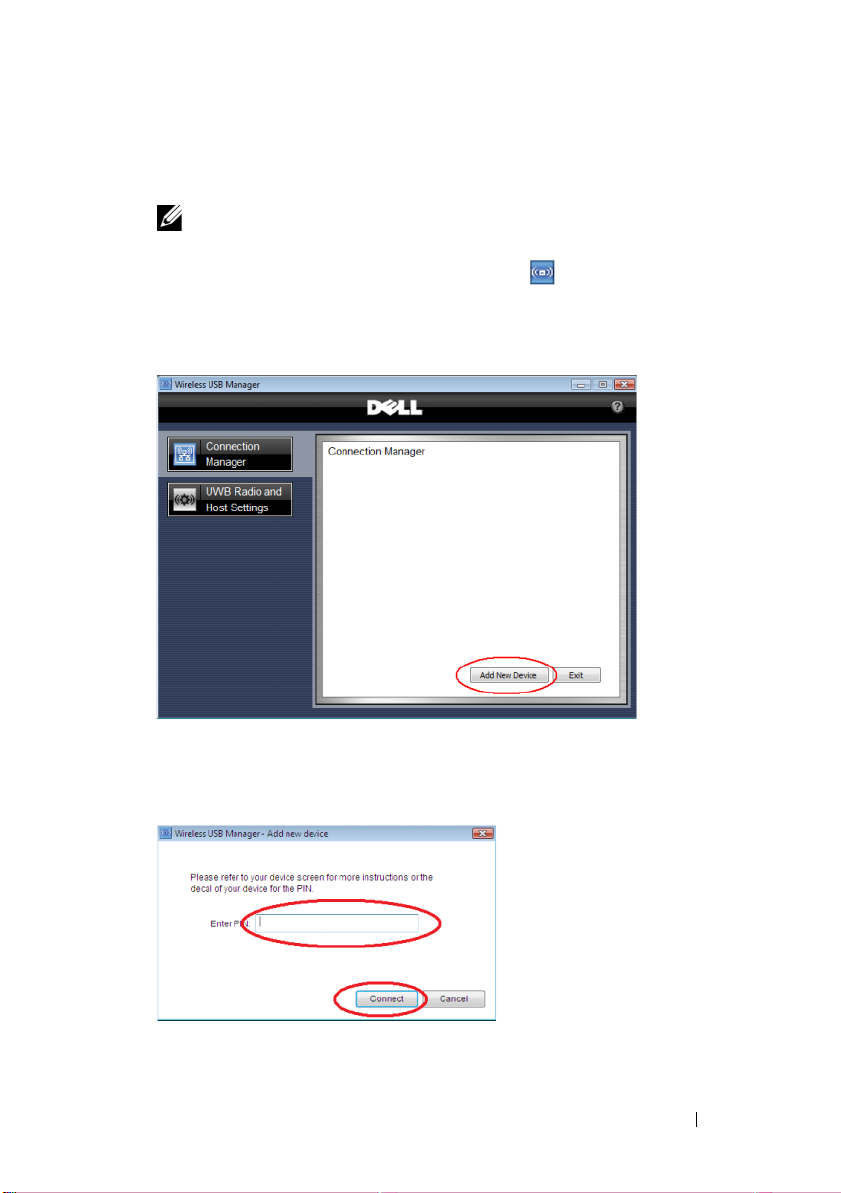

The
Add new device
window appears. Enter the PIN code found on the
label located on the bottom of your Dell Wireless Dock then click the
Connect
button.
Configuring Your Dell Wireless Dock 19
Page 20
A
Connection successful!
message appears. Click
Next
.
If the PIN code is incorrect, a
Click
OK
and repeat step 3 to step 6 to try again.
PIN association failed
message appears.
If the notebook does not detect your Dell Wireless Dock, a
devices found
message appears. Move your notebook closer to the
Dell Wireless Dock and repeat step 3 to step 6 to try again.
5
Ty p e th e
Select
Display Name
and select
Connection Mode
Automatically connect within range
.
to connect the Dell Wireless
Dock automatically when your notebook is within range. Select
connect
to manually connect to the Dell Wireless Dock.
NOTE: You can modify the Connection mode and Display Name in the
Connection Manager after setup completes.
No wireless
Manual
20 Configuring Your Dell Wireless Dock
Page 21
6
Click
Finish
.
The Dell Wireless Docking icon turns green indicating that a successful
wireless connection has been established.
Setting Up Your Dell Wireless Dock
NOTE: You can connect devices to the Dell Wireless Dock while your notebook
is turned on.
Adjusting Your Display Settings (If a Monitor is Connected)
1
Right-click the Wireless USB Display icon located on the taskbar.
2
Select the display mode:
•
Extend mode
•
Mirror
— Duplicates the notebook screen on the monitor
(default mode).
Set as Main Monitor
•
the display to the external monitor.
•
Off
— Disables the external monitor.
— Provides additional screen space for you to use.
— Disables the notebook monitor and moves
Configuring Your Dell Wireless Dock 21
Page 22
3
Figure (a)
Figure (b)
Select the desired screen resolution.
4
Set other display options:
•
Updates
— Checks for available software updates for the
Wireless USB display.
•
Color Quality
— Choose between Medium (16-bit) and
Highest (32-bit).
•
Screen Rotation
Extend to
•
— Rotates the monitor left, right, or upside-down.
— Extends your monitor to the left, right, above, or below
when in Extend mode.
•
Advanced
— Opens your notebook operating system’s display
properties settings window.
Adjusting the Antenna Position
It is recommended that you keep the antenna in the upright position for best
video performance.
Positioning the Dell Wireless Dock
It is recommended that you place the Dell Wireless Dock next to a monitor,
as shown in Figure (a). Do not place the Dell Wireless Dock behind a
monitor or any other object, as shown in Figure (b).
22 Configuring Your Dell Wireless Dock
Page 23
When the wireless link between the notebook and the Dell Wireless Dock
becomes weak, move the notebook closer to the Dell Wireless Dock or rotate
the notebook to find a position with a stronger wireless link. For example,
if you find that the wireless signal strength is reduced when the notebook
lid is closed, you can try to rotate the notebook to find the best reception.
NOTE: The wireless connection works best if there is a clear line-of sight between
your notebook and the Dell Wireless Dock.
Moving an Associated Notebook
You can move an associated notebook anywhere within a range of one meter
from the Dell Wireless Dock.

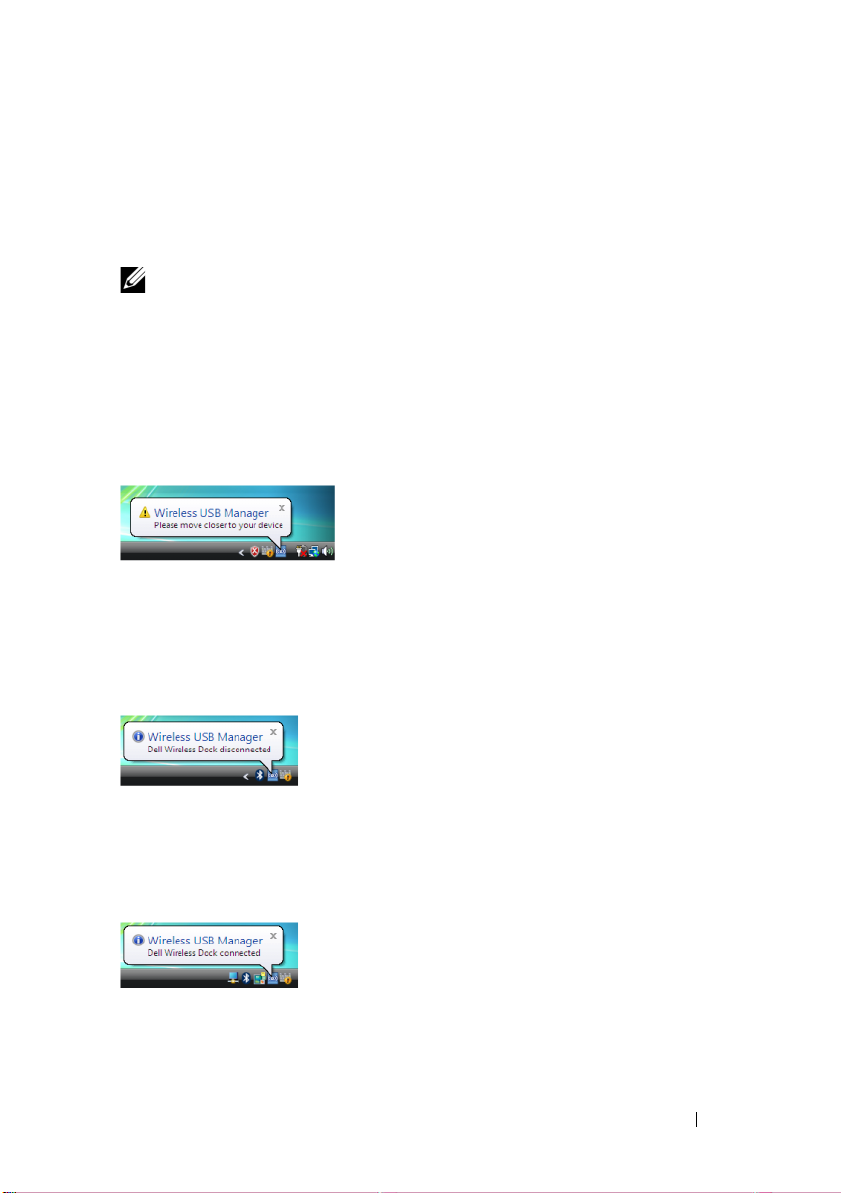

When the notebook is wirelessly connected and is moved away from the
Dell Wireless Dock, you may see the following message appear in the taskbar.
This indicates that the range between the Dell Wireless Dock and the notebook
is near the maximum allowable distance for maintaining a connection.
If you intend to continue using the Dell Wireless Dock, you must move
your notebook closer to the Dell Wireless Dock. Otherwise, the wireless
connection drops and the following message appears:
To reconnect, move the notebook closer to the Wireless Docking. If you
chose Automatically connect within range during setup, the wireless
connection automatically re-establishes. Otherwise, you must manually
establish the connection again.
Configuring Your Dell Wireless Dock 23
Page 24
Working With Your Notebook Lid Closed
The wireless connection between your notebook (with the lid closed) and
the Dell Wireless Dock depends on your notebook’s power settings.
If the power option is set to Hibernate or Standby, then the wireless connection
will disconnect.
If the power option is set to Do Nothing, the notebook will retain the
wireless connection even when the lid is closed.
NOTE: When the lid is closed, the performance and maximum range may reduce.
If you need to use the Dell Wireless Dock for high performance or long range
applications, it is recommended to use the notebook with the lid open.
24 Configuring Your Dell Wireless Dock
Page 25
Using the Dell Wireless USB Manager
The Dell™ Wireless USB Manager interface allows you to monitor the
connection status of the Dell Wireless Dock. It also allows you to change
settings on your notebook and the Dell Wireless Dock, as well as other
devices that have been associated to your notebook.
Connection Manager
The Connection Manager section allows you to:
• Observe the connection status of the Dell Wireless Dock
• Modify the connected device name
• Change the connection mode
• Disconnect the device
• Delete the device
Using the Dell Wireless USB Manager 25
Page 26
To Do
Rename Click the device icon, expand the Options menu and
select Rename. This allows you to change the name that
is displayed under the device icon.
Delete Click the device icon, expand the Options menu and
select Delete. The device associated will be deleted and you
will no longer be able to connect the device to the notebook
unless you re-associate the device with the notebook.
Disconnect Click the device icon, expand the Options menu and select
Disconnect. The device will disconnect from the notebook and
the connection mode will automatically change to Manual.
To re-establish a connection to the device, you must click the
device icon and select Connect under the Options menu.
Connect This will only be enabled under the Options menu if
the Dell Wireless Dock is in the manual connection mode.
Select Connect to manually connect the device to
the notebook.
NOTE: Both notebook and the Dell Wireless Dock must be turned
on to establish the connection.
Connection Mode Automatic
Connection Mode Manual
Select this if you want the Dell Wireless Dock to connect
automatically to the notebook any time both the notebook
and the Dell Wireless Dock are turned on and within range
of each other.
Select this if you do not want the Dell Wireless Dock to connect
automatically. To connect your Dell Wireless Dock to the
notebook in this mode, you must click the Dell Wireless Dock
icon and select
Connect
under the
Options
menu.
UWB Radio and Host Settings
The UWB Radio and Host Settings section allows you to:
• Enable or disable the Wireless USB radio.
• Select audio output
26 Using the Dell Wireless USB Manager
Page 27
• Change wireless USB channels
3
4
2
5
1
• Run diagnostics

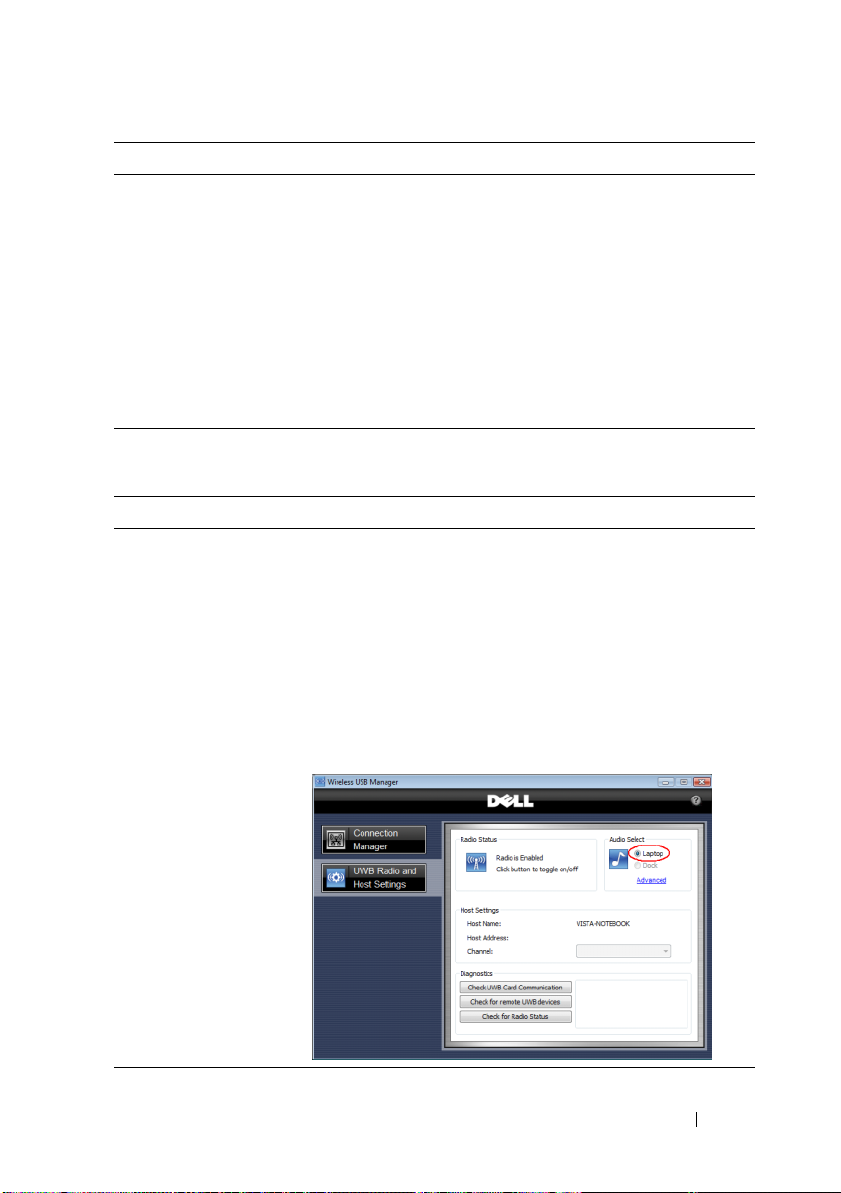

1 Diagnostics section allows you to run device diagnostics.
Click Check UWB Card Communication button to check if your notebook
is working properly.
Click Check for remote UWB devices button to check for other Wireless
USB Devices.
Click Check for Radio Status button to see what channel is running
at the moment.
2 Host Settings section displays the Host Name and Host Address
(Media Access Control address), and allows you to change channels.
For optimized performance, it is recommended to set the channel to Auto.
3 Move your mouse cursor on this area to change channel, select audio output,
turn radio on/off and run diagnostics.
4 Radio Status allows you to enable or disable the Wireless USB radio.
5 Audio Select allows you to send audio output to your notebook or to external
speakers connected to your Dell Wireless Dock.
Using the Dell Wireless USB Manager 27
Page 28
28 Using the Dell Wireless USB Manager
Page 29

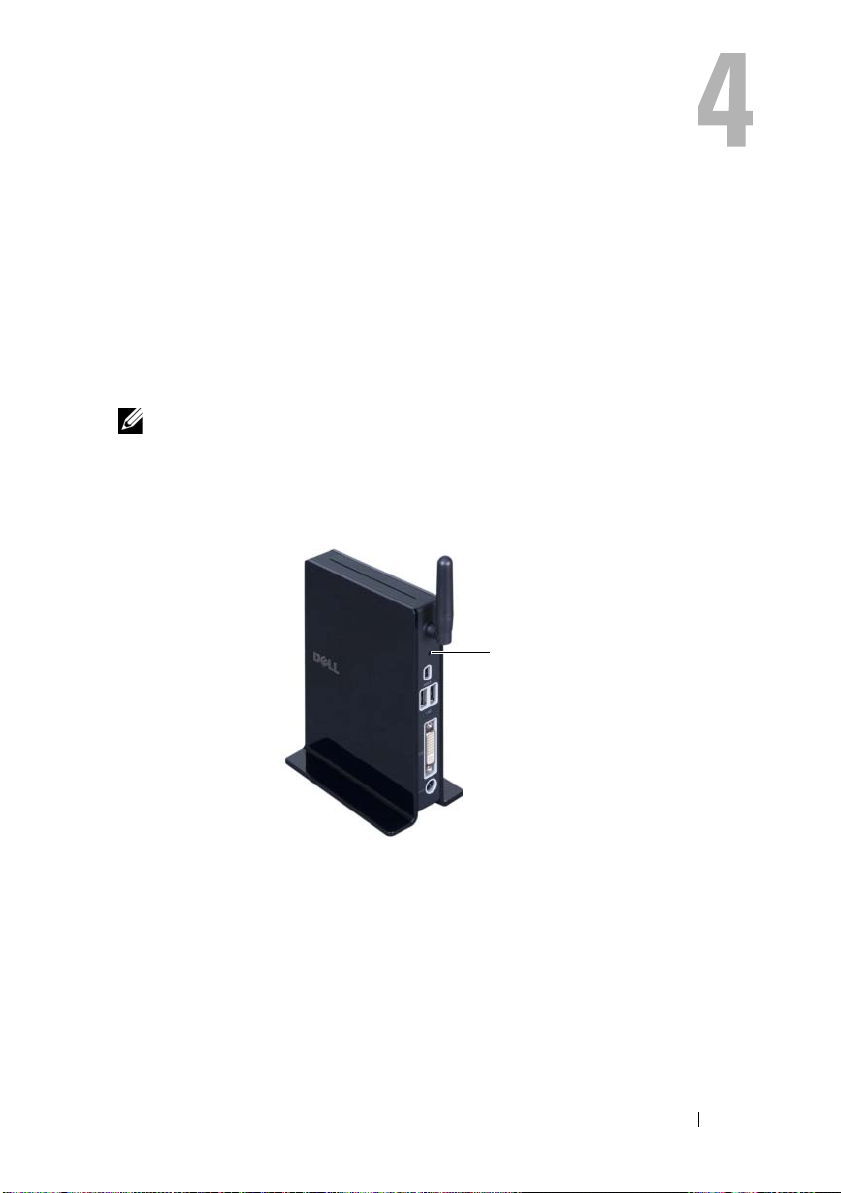

Resetting the Dell Wireless Dock
Reset button
To delete all associations stored on your Dell™ Wireless Dock, press and hold
down the reset button for 10 seconds. All notebook-to-dock associations will
be lost and you will have to re-establish a connection.
To re-establish a connection to a notebook, you must repeat the association
process. For more information, see the "Associating Your Dell Wireless Dock"
on page 16.
NOTE: The previously associated device entries will remain in the Connection
Manager on your notebook, but will be grayed out. Delete these device entries to
avoid confusion.
Resetting the Dell Wireless Dock 29
Page 30
30 Resetting the Dell Wireless Dock
Page 31
Troubleshooting
General
Problem Possible Solution
The Dell™ Wireless
Dock power light
is Off.
My notebook will
not connect to the
Dell Wireless Dock
and the power light
is on.
• Ensure that the AC adapter shipped with the Dell Wireless
Dock is connected to the docking station and to a working
electrical outlet.
• Disable and enable the Dell Wireless Dock in
Microsoft® Windows® device manager.
• Ensure that the notebook is within six meters of the
Dell Wireless Dock and there are no objects obstructing
the line of sight between them.
• Ensure that the wireless USB radio is on by checking
the wireless USB manager’s
Host Settings
• Ensure that the Dell Wireless Dock has an icon in the
Connection Manager
• If there is a device icon in the
your Dell Wireless Dock, click on the icon and select
Connect
connect within range
• If you continue to have connection problems, press and
hold the reset button for 10 seconds to reset the Dell
Wireless Dock to the original factory settings. This deletes
all associations. You must associate all the devices again.
under the
window.
Options
UWB Radio and
.
Connection Manager
menu or select
under
Connection Mode
for
Automatically
.
Troubleshooting 31
Page 32
Video Output
Problem Possible Solution
The monitor is blank.
My monitor is not
correctly displaying
videos and images
from my
Windows Vista
notebook.
The video playback
on my external
monitor is choppy
or is dropping frames.
®
• Ensure that the notebook connected to the Dell Wireless Dock
is functioning properly and is not in
mode. When the notebook is in
mode, the display is always blank.
• Ensure that the AC adapter is connected to the
Dell Wireless Dock and to a working electrical outlet.
• Ensure that the video cable is securely connected to the DVI
connector and is secured with the fixing screws on both sides.
• Ensure that the drivers and utilities for Dell Wireless Dock
software are installed. The Wireless USB display icon
for the docking station should be visible in the taskbar.
• If the problem persists, disconnect and reconnect the
AC adapter from the Dell Wireless Dock.
To correctly display video and images in Windows Vista, you
must set the notebook to Windows Aero
To enable Aero:
1
Right-click the desktop background and select
to open the
2
Click
Window Color and Appearance
3
Select
Windows Aero
OK
click
To improve video playback performance, ensure that:
• The notebook is within the maximum operating range of
the Dell Wireless Dock.
• The notebook has a clear line-of-sight to the
Dell Wireless Dock.
• The window size of the video being played is smaller
than 50% of the external monitor’s viewable area.
.
Standby
Standby
Personalize appearance and sounds
from the
Color Scheme
®
mode.
.
and
or
Hibernate
list and
Hibernate
Personalize
window.
32 Troubleshooting
Page 33
Problem Possible Solution
When I close the
lid of my notebook,
the display of the
external monitor
goes blank.
By default, most notebooks go into Standby or Hibernate
mode when the lid is closed.
To change this setting:
Open the Control Panel and select Power Opt ions.
•
Windows Vista
the left column. Select the
Do nothing
select
Windows XP
•
section, under the option
computer
, select
Audio Output
Problem Possible Solution
I cannot hear
anything through
my notebook
speakers and my
built-in microphone
does not work after
connecting to the
Dell Wireless Dock.
By default, most notebooks send the audio output to the
Dell Wireless Dock when associated, thereby disabling
your notebook’s built-in speakers and microphone.
To enable the speakers and microphone:
1
Open the
the
2
Select
on your notebook.
UWB Radio and Host Settings
Wireless USB Manager
Laptop
NOTE: You must restart the application currently using the
audio device to enable this change.
: Select
Choose what closing the lid does
When I close the lid
.
: Select the
to enable the speakers and microphone
Advanced
When I close the lid of my
Do nothing
tab. In the
.
.
, and then
Power buttons
window in
on
Troubleshooting 33
Page 34
34 Troubleshooting
Page 35
Specifications
Physical
Height 172 mm
Depth 26–80 mm
Width 116 mm
Weight 320 g
I/O Connectors
USB Four 4-pin USB 2.0 compliant connectors
mini-USB One mini-USB connector for cable association
Audio Speaker and microphone connectors
Video DVI-I connector.
Maximum resolution supported:
1680x1050 — wide screen aspect ratio
1600x1200 — standard screen aspect ratio
AC Adapter Power
Input Voltage 100–240 VAC, 50/60 Hz
Wattage 65 W
Amperage 1.5 A
System Level Operational Specifications
Temperature (system external) 0ºC–35ºC, typical at 25ºC
Temperature ramp rate 0ºC/hr–35ºC/hr
Humidity (non-condensing) 10%–80%
Humidity ramp rate 20%/hr maximum
Altitude 0–3048 m
Operating Range 1 meter (optimum)
Specifications 35
Page 36
System Level Non-Operational and Shipping Specifications
Temperature (system external) -40ºC to 65ºC
Temperature ramp rate 0ºC/hr–20ºC/hr
Humidity (non-condensing) 5%–95%
Humidity ramp rate 20%/hr maximum
Altitude 0–10670 m
36 Specifications
Page 37
General Safety Information
Use the following safety guidelines to help ensure your own personal safety,
and to help protect your equipment and working environment from
potential damage.
You can find additional Safety Best Practices information on the Regulatory
Compliance Homepage at www.dell.com/regulatory_compliance.
NOTE: In this document, the terms product, equipment, and device are used
interchangeably and refer to all portable devices (such as notebooks, port
replicators, media bases, docking stations, and similar devices), desktop
computers, printers, and monitors.
WARNING: Use of controls, adjustments, procedures, connections, or signal
types other than those specified in your documentation may result in exposure
to shock, electrical hazards, and/or mechanical hazards.
CAUTION: Dell products are not intended for use in patient healthcare
environments unless specially designated.
CAUTION: Dell products are not designed for use in flammable or
explosive environments.
When setting up the equipment for use:
• Place the equipment on a hard, level surface.
• Do not stack the equipment, place it in an enclosed space, or otherwise
install it where it is subject to heated air. The equipment should have at
least 10.2 cm (4 in) of clearance on all vented sides to permit the airflow
required for proper ventilation. Restricting airflow can damage the
equipment or cause overheating.
General Safety Information 37
Page 38
When operating your equipment:
WARNING: Do not use your equipment in a wet environment. Protect equipment
from liquid intrusion.
• Do not use damaged equipment, including exposed, frayed, or damaged
power cords.
• Disconnect your device and all peripherals (including an integrated or
optional modem or TV tuner) from any wall connections during an
electrical (lightning) storm, or when you will be away for extended periods.
• Do not push any objects into the air vents or openings of your equipment.
Doing so can cause fire or electric shock by shorting out interior components.
• Do not allow your notebook or adapter to operate with the base resting
directly on exposed skin for extended periods of time. The surface
temperature of the base will rise during normal operation, particularly when
AC power is present. Allowing sustained contact with exposed skin can
cause discomfort or burn.
• Contact Dell (or an authorized dealer or service center for retail
purchases) if your equipment does not operate normally.
General Power Safety
Observe the following guidelines when connecting your equipment to a
power source.
If your equipment uses an AC adapter:
• Use only the Dell provided AC adapter approved for use with this device:
E16WD01:PA-2E. Use of another AC adapter may cause a fire or explosion.
• Place the AC adapter in a ventilated area, such as a desk top or on the floor,
when you use it to run the Dell Wireless Dock.
• The AC adapter may become hot during normal operation of your
Dell Wireless Dock. Use care when handling the adapter during or
immediately after operation.
38 General Safety Information
Page 39
Earphone and Headphone Safety
WARNING: Excessive sound pressure from earphones or headphones can cause
hearing damage or loss. Adjustment of the volume control and/or the equalizer to
settings other than the center position may increase the earphones or headphones
output voltage, and therefore the sound pressure level.
The use of factors influencing the earphones or headphones output other
than those specified by the manufacturer (e.g. operating system, equalizer
software, firmware, driver) may increase the earphones or headphones output
voltage and therefore the sound pressure level.
The use of earphones or headphones other than those specified by the
manufacturer may lead to heightened sound pressure level.
Ergonomic Instructions
For information concerning ergonomics, please go to the Regulatory
Compliance Homepage at www.dell.com/regulatory_compliance.
Environmental Information
Recycling Information
Dell recommends that customers dispose of their used computer hardware,
monitors, printers, and other peripherals in an environmentally sound
manner. Potential methods include reuse of parts or whole products and
recycling of products, components, and/ or materials.
For specific information on Dell's worldwide recycling programs,
see www.dell.com/recyclingworldwide.
Waste Electrical and Electronic Equipment (WEEE) Directive
In the European Union, this label indicates that this product
should not be disposed of with household waste. It should be
deposited at an appropriate facility to enable recovery and
recycling. For information on how to recycle this product
responsibly in your country, visit www.euro.dell.com/recycling.
General Safety Information 39
Page 40
Registration, Evaluation, and Authorization of Chemicals (REACH)
REACH is the European Union chemical substances regulatory framework.
Information on substances of very high concern contained in Dell products
in a concentration above 0.1% weight by weight (w/w) can be found at
www.dell.com/reach.
Finding Additional Information
For additional user information about your Dell Wireless Dock and individual
components (such as storage drives, PC cards, and other peripherals), see the
Dell Support website at support.dell.com/manuals.
For additional Safety Best Practices and Regulatory information, see the
Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
For additional recycling information, see the Global Recycling Homepage at
www.dell.com/recyclingworldwide.
Export Regulations
Customer acknowledges that these Products, which may include technology
and software, are subject to the customs and export control laws and
regulations of the United States ("U.S.") and may also be subject to the
customs and export laws and regulations of the country in which the Products
are manufactured and/or received. Customer agrees to abide by those laws
and regulations. Further, under U.S. law, the Products may not be sold,
leased or otherwise transferred to restricted end-users or to restricted countries.
In addition, the Products may not be sold, leased or otherwise transferred to,
or utilized by an end-user engaged in activities related to weapons of mass
destruction, including without limitation, activities related to the design,
development, production or use of nuclear weapons, materials, or facilities,
missiles or the support of missile projects, and chemical or biological weapons.
40 General Safety Information
Page 41
Additional Country-Specific Safety, Regulatory, and Environmental Information
Korea (Korean)
Energy Statement
Power consumption of this product can be 0 if it is unplugged.
China (S. Chinese)
China RoHS
In accordance with China's Administrative Measures on the Control of
Pollution Caused by Electronic Information Products (also known as
China RoHS), the following information is provided regarding the names
and concentration levels of toxic and/or hazardous substances which may be
contained in Dell products. The China RoHS requirements can be found in
Chinese MII MCV standard: "Requirements for Concentration Limits for
Certain Hazardous Substances in Electronic Information Products."
Toxic or Hazardous Substances and Elements
Part Name
Chassis/Bezel X 0 0 0 0 0
Printed Circuit Assembly (PCA)* X 0 0 0 0 0
Cables/Cords/ Connectors X 0 0 0 0 0
Power Supply/ Power Adapter X 0 0 0 0 0
* Printed Circuit Assembly includes all Printed Circuit Boards (PCBs) and their respective population
of discrete components, ICs, and connectors.
"0" indicates the hazardous and toxic substance content of the part is lower than the threshold
defined by the MCV Standard.
"X" indicates the hazardous and toxic substance content of the part is over the threshold defined by
the MCV Standard. In all cases where an X is shown, Dell uses an allowable exemption per EU RoHS.
Lead (Pb)
Mercury (Hg)
Cadmium (Cd)
Hexavalent
Chromium (Cr VI)
General Safety Information 41
Polybrominated
biphenyls (PBB)
Polybrominated
diphenyl ethers
(PBDE)
Page 42
42 General Safety Information
Loading...
