Dell B1160, B1160W User Manual

User’s Guide

BASIC

This guide provides information concerning installation, basic operation and troubleshooting on windows.

ADVANCED

This guide provides information about installation, advanced configuration, operation and troubleshooting on various OS environments.

Dell B1160

Dell B1160w

Some features may not be available depending on models or countries.

Available supplies 36

1. Introduction

Key benefits 4

Features by models 6

Useful to know 7

About this user’s guide 8

Safety information 9

Machine overview 14

Control panel overview 16

Turning on the machine 17

Installing the driver locally 18

Reinstalling the driver 20

2. Learning the Basic Usage

Storing the toner cartridge 37

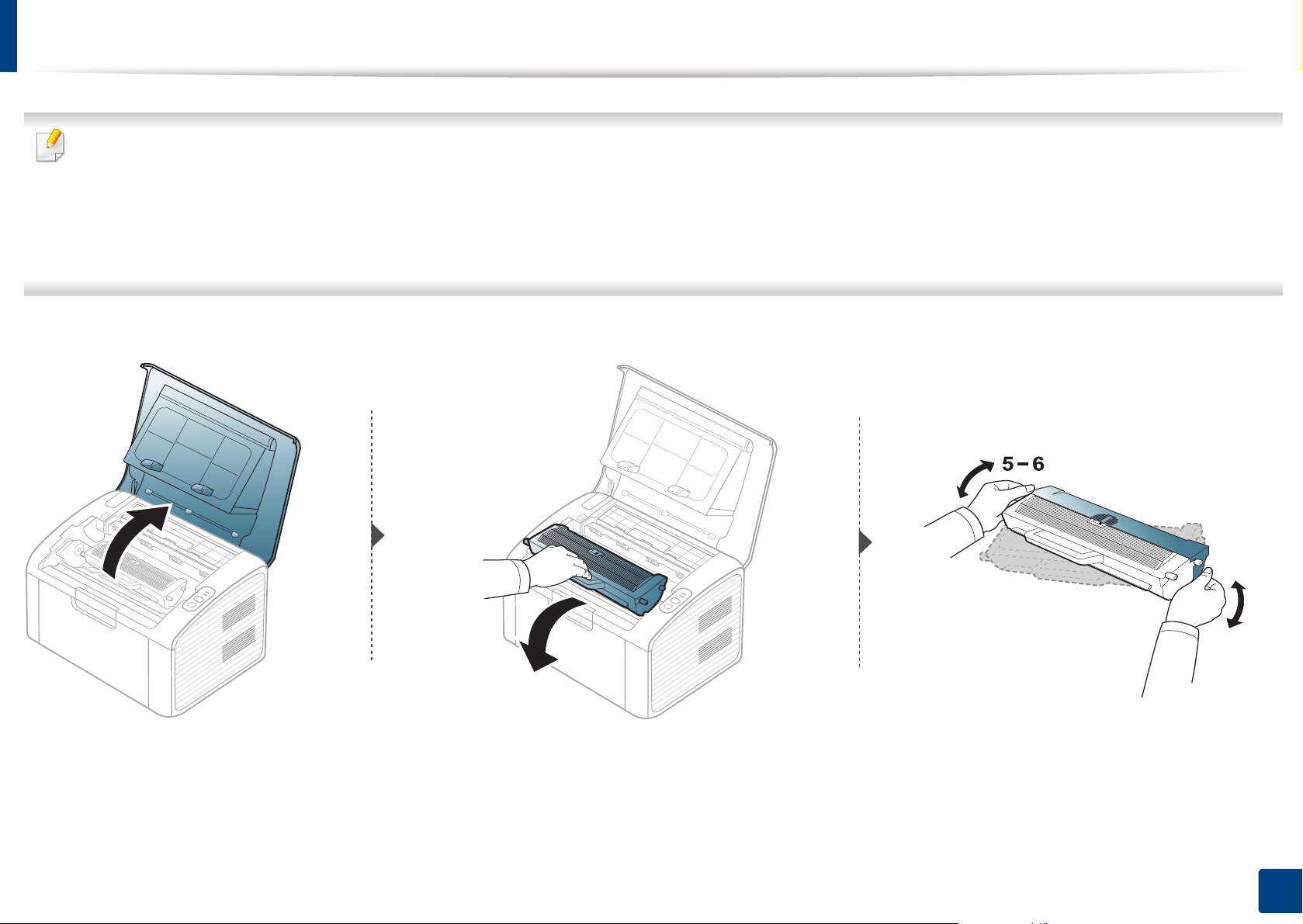

Redistributing toner 39

Replacing the toner cartridge 40

Cleaning the machine 42

Tips for moving & storing your machine 46

4. Troubleshooting

Tips for avoiding paper jams 48

Out-of-paper error resolution 49

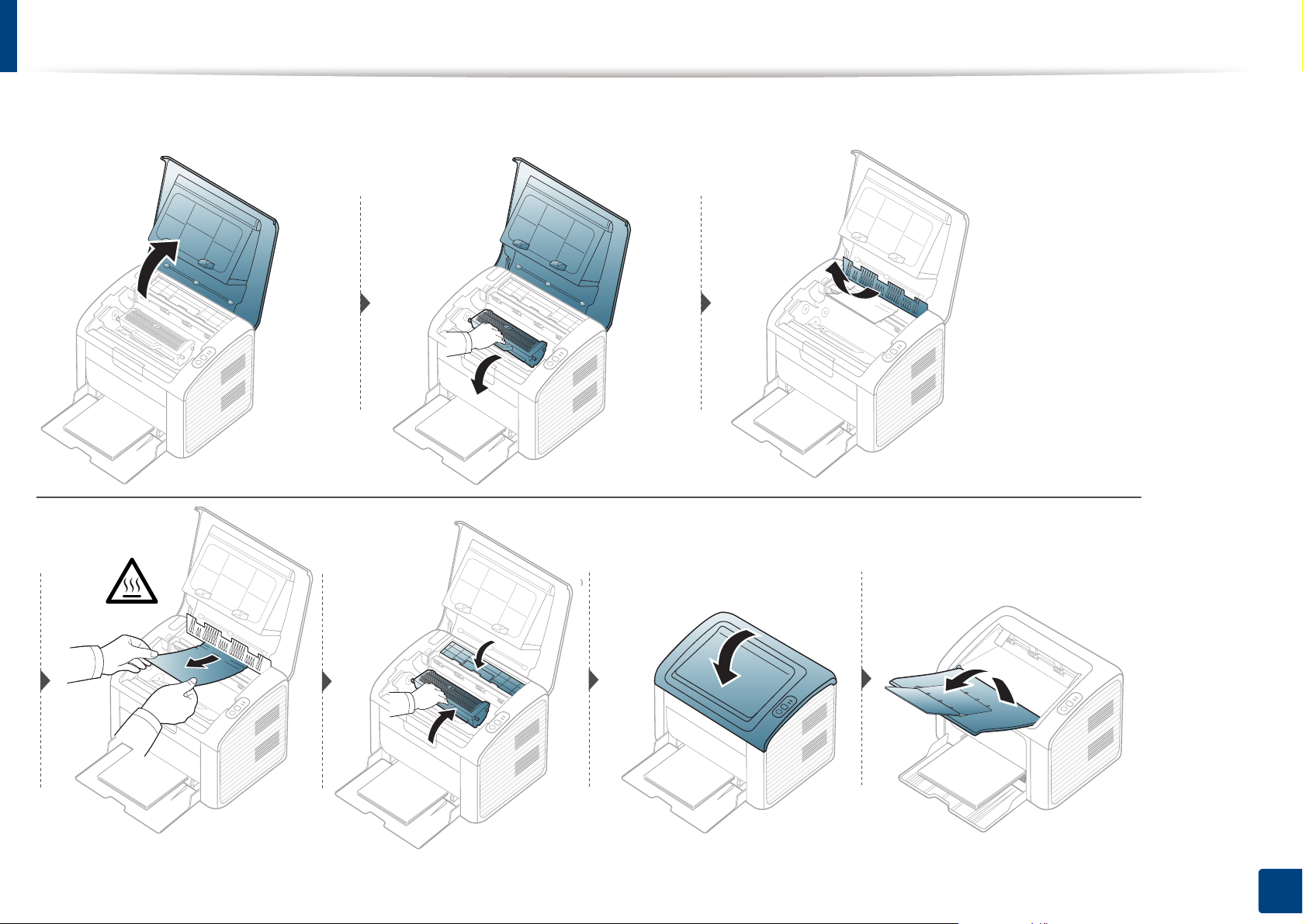

Clearing paper jams 50

Understanding the status LED 53

5. Appendix

Printing a test page 22

Media and tray 23

Basic printing 31

3. Maintenance

Ordering supplies and accessories 35

Specifications 56

Dell technical support policy 64

Contacting Dell 65

Warranty and return policy 66

1. Introduction

This chapter provides information you need to know before using the machine.

•Key benefits 4

• Features by models 6

• Useful to know 7

• About this user’s guide 8

• Safety information 9

• Machine overview 14

• Control panel overview 16

• Turning on the machine 17

• Installing the driver locally 18

• Reinstalling the driver 20

Key benefits

Environmentally friendly

• To save paper, you can print multiple pages on a single sheet of paper (see "Using advanced print features" on page 110).

• To save paper, you can print on both sides of the paper (manual doublesided printing) (see "Using advanced print features" on page 110).

• To save electricity, this machine automatically conserves electricity by substantially reducing power consumption when not in use.

Print with excellent quality and speed

• You can print with a resolution of up to 1,200 x 1,200 dpi effective output.

• Fast, on-demand printing.

- For single-side printing, 20 ppm (A4) or 21 ppm (Letter).

Convenience

• Dell Printer Manager and Dell Printer Status are a program that monitors and informs you of the machine’s status and allows you to customize the machine’s settings (see "Using Dell Printer Manager" on page 125).

• You can access Dell Support at www.dell.com or support.dell.com. Select your region on the WELCOME TO DELL SUPPORT page, and fill in the requested details to access help tools and information.

Wide range of functionality and application support

• Supports various paper sizes (see "Print media specifications" on page 58).

• Print watermark: You can customize your documents with words, such as “Confidential” (see "Using advanced print features" on page 110).

• Print posters: The text and pictures of each page of your document are magnified and printed across the multiple sheets of paper and can then be taped together to form a poster (see "Using advanced print features" on page 110).

Key benefits

• You can print in various operating systems (see "System requirements" on page 61).

• Your machine is equipped with a USB interface.

Supports various wireless network setting method

• Using the WPS (Wi-Fi Protected Setup™) button

- You can easily connect to a wireless network using the WPS button on

the machine and the access point (a wireless router).

•Using the USB cable

- You can connect and set various wireless network settings using a USB

cable.

• Using the Wi-Fi Direct

- You can conveniently print from your mobile device using the Wi-Fi or

Wi-Fi Direct feature.

See "Introducing wireless set up methods" on page 84.

Features by models

Some features and optional goods may not be available depending on model or country.

Operating System

(●: Included, Blank: Not available)

Software

(●: Included, Blank: Not available)

Variety feature

(●: Included, Blank: Not available)

Operating System B1160 B1160w

Windows ● ●

Macintosh ● ●

Linux ● ●

Software B1160 B1160w

SPL printer driver ● ●

XPS printer driver ● ●

Dell Printer Manager ● ●

Embedded Web Service ●

Dell Supplies Ordering Utility ● ●

Dell Printer Status ● ●

Firmware Update Utility ● ●

Features B1160 B1160w

Hi-Speed USB 2.0 ● ●

Network Interface 802.11b/g/n wireless LAN

●

IPv6 ●

Wi-Fi Protected Setup™ (WPS) ●

Manual duplex (2-sided) printing ● ●

Useful to know

Where can I download the machine’s driver?

• Visit www.support.dell.com to download the latest machine’s driver, and install it on your system.

Where can I purchase accessories or supplies?

• Inquire at a Dell distributor or your retailer.

• Visit www.support.dell.com. Select your country/region to view product service information.

The status LED flashes or remains constantly on.

• Turn the product off and on again.

• Check the meanings of LED indications in this manual and troubleshoot accordingly (see "Understanding the status LED" on page 53).

Printouts are blurry.

• The toner level might be low or uneven. Shake the toner cartridge.

• Try a different print resolution setting.

• Replace the toner cartridge.

The machine does not print.

• Open the print queue list and remove the document from the list (see "Canceling a print job" on page 32).

• Remove the driver and install it again (see "Installing the driver locally" on page 18).

• Select your machine as your default machine in your Windows.

A paper jam has occurred.

• Open and close the top cover (see "Front view" on page 15).

• Check the instructions on removing jammed paper in this manual and troubleshoot accordingly (see "Clearing paper jams" on page 50).

About this user’s guide

This user's guide provides information for your basic understanding of the machine as well as detailed steps to explain machine usage.

• Read the safety information before using the machine.

• If you have a problem using the machine, refer to the troubleshooting chapter.

• Terms used in this user’s guide are explained in the glossary chapter.

• All illustrations in this user’s guide may differ from your machine depending on its options or model you purchased.

• The screenshots in this user's guide may differ from your machine depending on the machine’s firmware/driver version.

• The procedures in this user’s guide are mainly based on Windows 7.

Conventions

General icons

Icon Text Description

Gives users information to protect the machine from

Caution

Note

possible mechanical damage or malfunction.

Provides additional information or detailed specification of the machine function and feature.

Some terms in this guide are used interchangeably, as below:

• Document is synonymous with original.

• Paper is synonymous with media, or print media.

• Machine refers to printer or MFP.

1. Introduction

Safety information

These warnings and precautions are included to prevent injury to you and others, and to prevent any potial damage to your machine. Be sure to read and understand all of these instructions before using the machine. After reading this section, keep it in a safe place for future reference.

Important safety symbols

Explanation of all icons and signs used in this chapter

Warning

Caution

Hazards or unsafe practices that may result in severe personal injury or death.

Hazards or unsafe practices that may result in minor personal injury or property damage.

Operating environment

Warning

Do not use if the power cord is damaged or if the electrical outlet is not grounded.

This could result in electric shock or fire.

Do not place anything on top of the machine (water, small metal or heavy objects, candles, lit cigarettes, etc.).

This could result in electric shock or fire.

• If the machine gets overheated, it releases smoke, makes strange noises, or generates an odd odor, immediately turn off the power switch and unplug the machine.

Do not attempt.

• The user should be able to access the power outlet in case of emergencies that might require the user to pull the plug out.

This could result in electric shock or fire.

Do not bend, or place heavy objects on the power cord.

Stepping on or allowing the power cord to be crushed by a heavy object could result in electric shock or fire.

Do not remove the plug by pulling on the cord; do not handle the plug with wet hands.

This could result in electric shock or fire.

1. Introduction

Safety information

Caution

During an electrical storm or for a period of non-operation, remove the power plug from the electrical outlet.

This could result in electric shock or fire.

Be careful, the paper output area is hot.

Burns could occur.

If the machine has been dropped, or if the cabinet appears damaged, unplug the machine from all interface connections and request assistance from qualified service personnel.

Otherwise, this could result in electric shock or fire.

If the machine does not operate properly after these instructions have been followed, unplug the machine from all interface connections and request assistance from qualified service personnel.

Operating method

Caution

Do not forcefully pull the paper out during printing.

It can cause damage to the machine.

Be careful not to put your hand between the machine and paper tray.

You may get injured.

This machine's power reception device is the power cord.

To switch off the power supply, remove the power cord from the electrical outlet.

Otherwise, this could result in electric shock or fire.

If the plug does not easily enter the electrical outlet, do not attempt to force it in.

Call an electrician to change the electrical outlet, or this could result in electric shock.

Do not allow pets to chew on the AC power, telephone or PC interface cords.

This could result in electric shock or fire and/or injury to your pet.

Be care when replacing paper or removing jammed paper.

New paper has sharp edges and can cause painful cuts.

When printing large quantities, the bottom part of the paper output area may get hot. Do not allow children to touch.

Burns can occur.

When removing jammed paper, do not use tweezers or sharp metal objects.

It can damage the machine.

1. Introduction

Safety information

Do not allow too many papers to stack up in the paper output tray.

It can damage the machine.

Do not block or push objects into the ventilation opening.

This could result in elevated component temperatures which can cause damage or fire.

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Installation / Moving

Warning

Do not place the machine in an area with dust, humidity, or water leaks.

This could result in electric shock or fire.

Caution

Before moving the machine, turn the power off and disconnect all cords. The information below are only suggestions based on the units weight.

If you have a medical condition that prevents you from lifting, do not lift the machine. Ask for help, and always use the appropriate amount of people to left the device safety.

Then lift the machine:

• If the machine weighs under 20 kg (44.09 lbs), lift with 1 person.

• If the machine weighs 20 kg (44.09 lbs) - 40kg (88.18 lbs), lift

• If the machine weighs more than 40 kg (88.18 lbs), lift with 4 or

The machine could fall, causing injury or machine damage.

Do not place the machine on an unstable surface.

The machine could fall, causing injury or machine damage.

Use only No.26 AWG

Otherwise, it can cause damage to the machine.

with 2 people.

more people.

or larger, telephone line cord, if necessary.

1. Introduction

Safety information

Use the power cord supplied with your machine for safe operation. If you are using a cord which is longer than 2 meters (6 feet) with a 110 V machine, then the gauge should be 16 AWG or larger.

Maintenance / Checking

Otherwise, it can cause damage to the machine, and could result in electric shock or fire.

Make sure you plug the power cord into a grounded electrical outlet.

Otherwise, this could result in electric shock or fire.

Do not overload wall outlets and extension cords.

This can diminish performance, and could result in electric shock or fire.

Do not put a cover over the machine or place it in an airtight location, such as a closet.

If the machine is not well-ventilated, this could result in fire.

The machine should be connected to

the power level which is specified on the label.

If you are unsure and want to check the power level you are using, contact the electrical utility company.

a. AWG: American Wire Gauge

Caution

Unplug this product from the wall outlet before cleaning the inside of the machine. Do not clean the machine with benzene, paint thinner or alcohol; do not spray water directly into the machine.

This could result in electric shock or fire.

When you are working inside the machine replacing supplies or cleaning the inside, do not operate the machine.

You could get injured.

Keep cleaning supplies away from children.

Children could get hurt.

Do not disassemble, repair or rebuild the machine by yourself.

It can damage the machine. Call a certified technician when the machine needs repairing.

1. Introduction

Safety information

Supply usage

• Do not remove any covers or guards that are fastened with screws.

• Fuser units should only be repaired by a certified service technician. Repair by non-certified technicians could result in fire or electric shock.

• The machine should only be repaired by a Dell service technician.

To clean and operate the machine, strictly follow the user's guide provided with the machine.

Otherwise, you could damage the machine.

Keep the power cable and the contact surface of the plug clean from dust or water.

Otherwise, this could result in electric shock or fire.

Do not burn any of the supplies such as toner cartridge or fuser unit.

This could cause an explosion or uncontrollable fire.

When storing supplies such as toner cartridges, keep them away from children.

Toner dust can be dangerous if inhaled or ingested.

When changing the toner cartridge or removing jammed paper, be careful not to let toner dust touch your body or clothes.

Toner dust can be dangerous if inhaled or ingested.

When toner gets on your clothing, do not use hot water to wash it.

Hot water sets toner into fabric. Use cold water.

Using recycled supplies, such as toner, can cause damage to the machine.

In case of damage due to the use of recycled supplies, a service fee will be charged.

Caution

Do not disassemble the toner cartridge.

Toner dust can be dangerous if inhaled or ingested.

1. Introduction

Machine overview

Accessories

Power cord Quick installation guide

Software CD

a. Refer to the Quick Install Guide to attach the output stacker to the machine. b. The software CD contains the printer drivers, software applications, and user’s guide. c. Miscellaneous accessories included with your machine may vary by country of purchase and specific model.

USB cable (B1160w only)

Output stacker

Misc. accessories

1. Introduction

Machine overview

Front view

• This illustration may differ from your machine depending on its model.

• Some features and optional goods may not be available depending on model or country (see "Features by models" on page 6).

Rear view

• This illustration may differ from your machine depending on its model.

• Some features and optional goods may not be available depending on model or country (see "Features by models" on page 6).

1 Control panel 5 Output support

2 Tray handle 6 Top cover

3 Tray 7 Toner cartridge

4 Output tray

1USB port

2Power receptacle

1. Introduction

Control panel overview

This control panel may differ from your machine depending on its model. There are various types of control panels.

1 Toner LED Shows the status of the toner (see "Status LED" on

page 53).

2 Status LED Shows the status of your machine (see "Status LED"

on page 53).

WPS (B1160w only)

Info (B1160 only)

Configures the wireless network connection easily without a computer (see "Wireless network setup" on page 83).

• Prints configuration sheet

- Press and hold this button for about 10 seconds until the green LED blinks slowly, and release.

• Prints supplies info report / error report

- Press and hold this button for about 15 seconds until the green LED on, and release.

• Prints manual

- Press this button each time you load a sheet of paper in the tray if you have selected Manual Feeder for Source in your printer driver.

• Prints configuration sheet

- Press and hold this button for about 10 seconds until the green LED blinks slowly, and release.

• Prints supplies info report / error report

- Press and hold this button for about 15 seconds until the green LED on, and release.

• Prints manual

4 Power/

Cancel

- Press this button each time you load a sheet of paper in the tray if you have selected Manual Feeder for Source in your printer driver.

• You can turn the power off or wake the machine up from the sleep mode with this button.

• Stops an operation at any time

1. Introduction

Turning on the machine

Connect the machine to the electricity supply first.

Press (power/cancel) button on the control panel.

If you want to turn the power off, press (power/cancel) button on the control panel.

1. Introduction

Installing the driver locally

A locally connected machine is a machine directly attached to your computer using the cable.

• If you are a Macintosh or Linux OS user, refer to the "Software Installation" on page 70.

• The installation window in this User’s Guide may differ depending on the machine and interface in use.

• Selecting Custom Installation allows you to choose which programs to install.

• Only use a USB cable no longer than 3 meters (118 inches).

Windows

Make sure that the machine is connected to your computer and

powered on.

Insert the supplied software CD into your CD-ROM drive.

The software CD should automatically run and an installation window will appear.

If the installation window does not appear, click Start > All programs > Accessories > Run.

X:\Setup.exe replacing “X” with the letter, which represents your CDROM drive and click OK.

Select Next.

If the “Found New Hardware Wizard” appears during the installation procedure, click Cancel to close the window.

Your printer driver installation window that appears in this User’s Guide may differ depending on the printer in use.

1. Introduction

Installing the driver locally

Select Connect to the computer using USB cable. Click Next.

Your printer driver installation window that appears in this User’s Guide may differ depending on the printer in use.

Follow the instructions in the installation window to complete the

installation process.

1. Introduction

Reinstalling the driver

If the printer driver does not work properly, follow the steps below to reinstall the driver.

Windows

Make sure that the machine is connected to your computer and

powered on.

From the Start menu, select Programs or All Programs > Dell > Dell

Printers > your printer driver name > Maintenance.

Select Repair and click Next.

Follow the instructions in the repair window.

Insert the software CD into your CD-ROM drive and install the driver

again (see "Installing the driver locally" on page 18).

1. Introduction

2. Learning the Basic Usage

After installation is complete, you may want to set the machine’s default settings. Refer to the next section if you would like to set or change values. This chapter provides information about the overall menu structure and the basic setup options.

• Printing a test page 22

• Media and tray 23

• Basic printing 31

Printing a test page

Print a test page to make sure that the machine is operating correctly.

Available for Windows OS users only.

To print a test page:

Open the document you want to print.

Select Print from the file menu.

Select your machine from the Select Printer.

Click Properties or Preferences.

Click Dell tab > Test page.

2. Learning the Basic Usage

Media and tray

This chapter provides information on how to load print media into your machine.

• Using print media that does not meet these specifications may cause problems or require repairs. Such repairs are not covered by Dell’s warranty or service agreements.

• Make sure not to use the inkjet photo paper with this machine. It could cause damage to the machine.

• Using inflammable print media can cause a fire.

• Use designated print media (see "Print media specifications" on page

58).

The use of inflammable media or foreign materials left in the printer may lead to overheating of the unit and, in rare cases may cause a fire.

Tray overview

To change the size, you need to adjust the paper guide.

1 Paper width guide 2 Tray

If you do not adjust the guide, it may cause paper registration, image skew, or jamming of the paper.

2. Learning the Basic Usage

Media and tray

Loading paper in the tray

When the paper tray is empty or a paper jam has occurred, open and close the top cover to resume printing after clearing the error (see "Out-of-paper error resolution" on page 49 or "Clearing paper jams" on page 50).

Open the tray. Then, adjust the tray size to the media size you are loading

(see "Tray overview" on page 23).

Flex or fan the edge of the paper stack to separate the pages before

loading papers.

Place the paper with the side you want to print facing up and

open the output tray.

2. Learning the Basic Usage

Media and tray

Squeeze the paper width guide and slide it to the edge of the paper stack

without causing it to bend.

• Do not push the paper width guide too far causing the media to warp.

The settings made from the machine driver override the settings on the control panel.

a To print in application, open an application and start the print menu. b Open Printing Preferences (see "Opening printing preferences" on

page 32).

c Press the Paper tab in Printing Preferences, and select an appropriate

paper type. For example, if you want to use a label, set the paper type to Label.

d Select Auto Select (or Manual Feeder) in paper source, then press OK. e Start printing in application.

• Do not use a paper with a leading-edge curl, it may cause a paper jam or the paper can be wrinkled.

• If you do not adjust the paper width guide, it may cause paper jams.

When you print a document, set the paper type and size for the tray (see

"Setting the paper size and type" on page 30).

2. Learning the Basic Usage

Media and tray

Manual feeding in the tray

The tray can hold special sizes and types of print material, such as postcards, note cards, and envelopes (see "Print media specifications" on page 58).

Tips on using the manual feeder

• Load only one type, size and weight of print media at time in the manual feeder.

•If you select Paper > Source > Manual Feeder for the paper source in

your software application, you need to press (Info) or (WPS)

button each time you print a page and load only one type, size and weight of print media at a time on the manual tray.

• To prevent paper jams, do not add paper while printing when there is still paper in the manual feeder.

• Print media should be loaded face up with the top edge going into the manual feeder first and be placed in the center of the tray.

Printing on special media

• To ensure printing quality and to prevent paper jams, only load the available paper (see "Print media specifications" on page 58).

• Flatten any curl on postcards, envelopes, and labels before loading them into the manual feeder.

• When printing on special media, you must follow the loading guidelines (see "Printing on special media" on page 26).

The table below shows the special media usable in each tray.

The media types are shown in the Printing Preferences. To get the highest printing quality, select the proper media type from the Printing Preferences window > Paper tab > Paper Type (see "Opening printing preferences" on page

32).

• When the machine is in a power save mode, the machine does not feed paper from the manual feeder. Wake up the machine by pressing the

For example, if you want to print on labels, select Labels for Paper Type.

power button before using the manual feeder.

2. Learning the Basic Usage

Media and tray

When using special media, we recommend you feed one sheet at a time (see "Print media specifications" on page 58).

To see for paper weights for each sheet, refer to "Print media specifications" on page 58.

Envelope

Printing successfully on envelopes depends upon the quality of the envelopes.

To print an envelope, place it as shown in the following figure.

Types

Plain ●

Thick ●

Thin ●

Bond ●

Color ●

CardStock ●

Labels ●

Envelope ●

Preprinted ●

Cotton ●

Recycled ●

Archive ●

a. The paper types available manual feeding in tray.

Tray

If you select Envelope from the Printing Preferences window, but the printed images get easily erased, select Thick Envelope and try printing again. However, this might cause some noise when printing.

• When selecting envelopes, consider the following factors:

- Weight: should not exceed 90 g/m2 otherwise; jams may occur.

- Construction: should lie flat with less than 6 mm curl and should not contain air.

(●: Supported)

- Condition: should not be wrinkled, nicked, nor damaged.

2. Learning the Basic Usage

Media and tray

- Temperature: should resist the heat and pressure of the machine during operation.

• Use only well-constructed envelopes with sharp and well-creased folds.

• Do not use stamped envelopes.

• Do not use envelopes with clasps, snaps, windows, coated lining, selfadhesive seals, or other synthetic materials.

• Do not use damaged or poorly made envelopes.

• Be sure the seam at both ends of the envelope extends all the way to the corner of the envelope.

1 Acceptable 2 Unacceptable

Labels

To avoid damaging the machine, use only labels designed for use in laser printers.

• When selecting labels, consider the following factors:

• Envelopes with a peel-off adhesive strip or with more than one flap that folds over to seal must use adhesives compatible with the machine’s fusing temperature for 0.1 second (about 170°C (338 °F)). The extra flaps and strips might cause wrinkling, creasing, or jams, and may even damage the fuser.

• For the best print quality, position margins no closer than 15 mm from the edges of the envelope.

• Avoid printing over the area where the envelope’s seams meet.

- Adhesives: Should be stable at your machine’s fusing temperature. Check your machine’s specifications to view the fusing temperature (about 170°C (338°F)).

- Arrangement: Only use labels with no exposed backing between them. Labels can peel off sheets that have spaces between the labels, causing serious jams.

- Curl: Must lie flat with no more than 13 mm of curl in any direction.

- Condition: Do not use labels with wrinkles, bubbles, or other indications of separation.

2. Learning the Basic Usage

Media and tray

• Make sure that there is no exposed adhesive material between labels. Exposed areas can cause labels to peel off during printing, which can cause paper jams. Exposed adhesive can also cause damage to machine components.

• Do not run a sheet of labels through the machine more than once. The adhesive backing is designed for only a single pass through the machine.

• Do not use labels that are separating from the backing sheet or are wrinkled, bubbled, or otherwise damaged.

Card stock/ Custom-sized paper

Preprinted paper

When loading preprinted paper, the printed side should be facing up with an uncurled edge at the front. If you experience problems with paper feeding, turn the paper around. Note that print quality is not guaranteed.

• In the software application, set margins at least 6.4 mm (0.25 inches) away from the edges of the material.

• Must be printed with heat-resistant ink that will not melt, vaporize, or release hazardous emissions when subjected to the machine’s fusing temperature for 0.1 second (about 170°C (338°F)).

• Preprinted paper ink must be non-flammable and should not adversely affect machine rollers.

• Before you load preprinted paper, verify that the ink on the paper is dry. During the fusing process, wet ink can come off preprinted paper, reducing print quality.

2. Learning the Basic Usage

Media and tray

Setting the paper size and type

After loading paper in the paper tray, set the paper size and type.

Open the Printing Preferences (see "Opening printing preferences" on page

32) and set the paper size and type in the Paper tab.

If you want to use special-sized paper such as billing paper, select Custom in the Paper tab in the Printing Preferences (see "Opening printing preferences" on page 32).

2. Learning the Basic Usage

Basic printing

For special printing features, refer to the Advanced Guide (see "Using advanced print features" on page 110).

Printing

If you are a Macintosh or Linux user, refer to the "Macintosh printing" on page 116 or "Linux printing" on page 118.

The following Printing Preferences window is for Notepad in Windows 7.

Open the document you want to print.

Select your machine from the Select Printer list.

Select Print from the File menu.

The basic print settings including the number of copies and print range

are selected within the Print window.

To take advantage of the advanced printing features, click Properties or Preferences from the Print window (see "Opening printing preferences" on page 32).

To start the print job, click OK or Print in the Print window.

2. Learning the Basic Usage

Basic printing

Canceling a print job

If the print job is waiting in the print queue or print spooler, cancel the job as follows:

• You can access this window by simply double-clicking the machine icon

( ) in the Windows task bar.

• You can also cancel the current job by pressing (power/cancel) button

on the control panel.

Opening printing preferences

Select your machine from the Select Printer.

Click Properties or Preferences.

• The Printing Preferences window that appears in this user’s guide may

differ depending on the machine in use. However, the composition of the Printing Preferences window is similar.

• When you select an option in Printing Preferences, you may see a

warning mark or . An mark means you can select that certain

option but it is not recommended, and an mark means you cannot

select that option due to the machine’s setting or environment.

Open the document you want to print.

Select Print from the file menu.

You can check the machine's current status using the Printer Status button (see "Using Dell Printer Status" on page 127).

2. Learning the Basic Usage

Basic printing

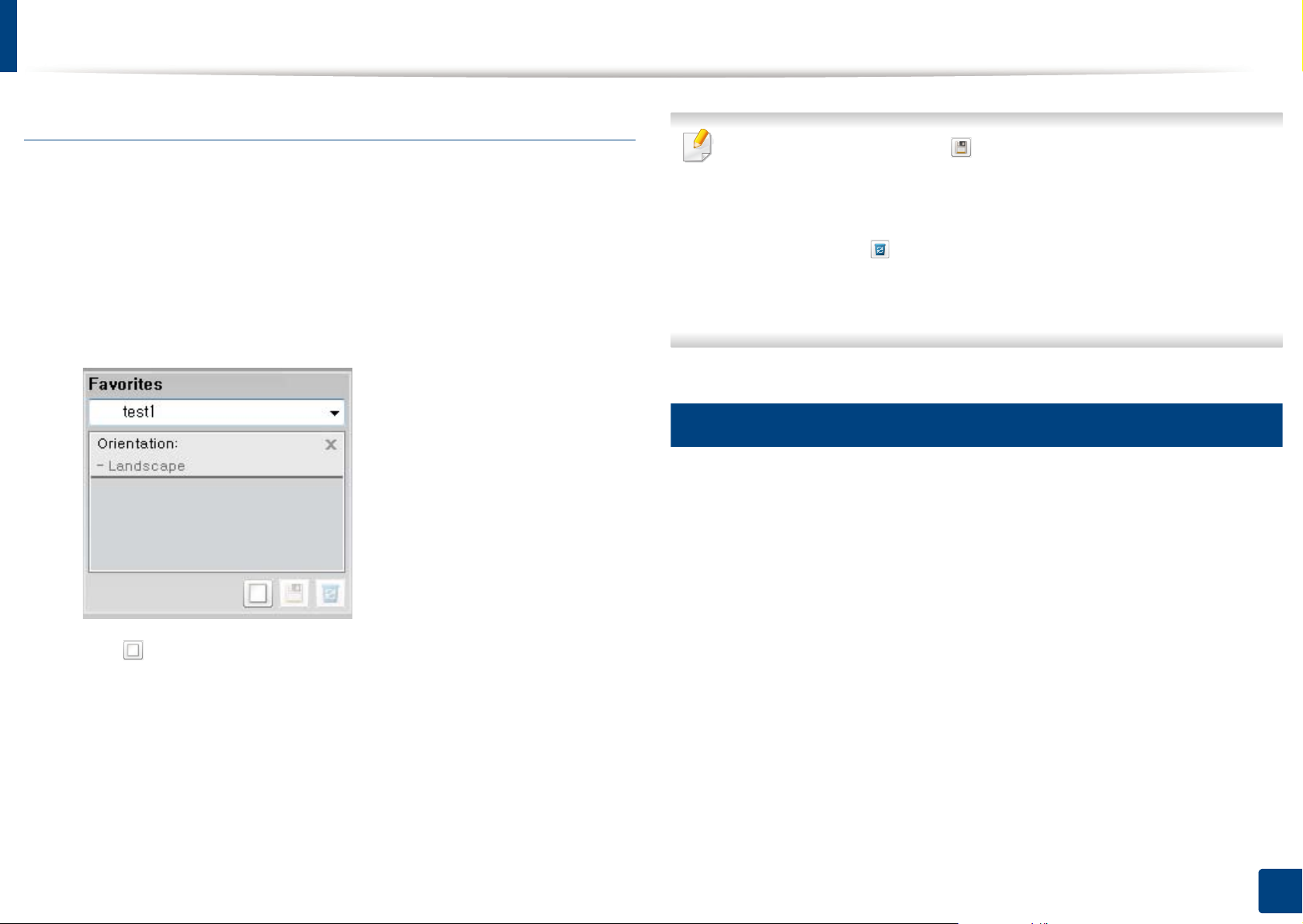

Using a favorites setting

The Favorites option, which is visible on each preferences tab except for the Dell tab, allows you to save the current preferences for future use.

To save a Favorites item, follow these steps:

Select more options and click (Update), settings will be added to the Presets you made. To use a saved setting, select it from the Favorites dropdown list. The machine is now set to print according to the settings you have selected. To delete saved settings, select it from the Favorites drop-

down list and click (Delete).

Change the settings as needed on each tab.

Enter a name for the item in the Favorites input box.

Click (Add). When you save Favorites, all current driver settings are

saved.

You can also restore the printer driver’s default settings by selecting Default Favorite from the Favorites drop-down list.

Using help

Click the option you want to know on the Printing Preferences window and press F1 on your keyboard.

2. Learning the Basic Usage

3. Maintenance

This chapter provides information about purchasing supplies, accessories and maintenance parts available for your machine.

• Ordering supplies and accessories 35

• Available supplies 36

• Storing the toner cartridge 37

• Redistributing toner 39

• Replacing the toner cartridge 40

• Cleaning the machine 42

• Tips for moving & storing your machine 46

Ordering supplies and accessories

Available accessories may differ from country to country. Contact your sales representatives to obtain the list of available supplies, and maintenance parts.

To order Dell-authorized supplies and accessories visit www.dell.com/supplies, or contact your local Dell dealer or the retailer where you purchased your machine. You can also visit www.dell.com or support.dell.com, select your country/region, and obtain information on calling for service.

3. Maintenance

Available supplies

When supplies reach the end of their life spans, you can order the following types of supplies for your machine:

Type

Average yield

Part name

Approx. 1,500 pages YK1PM (All countries except China)

Toner cartridge

15RRN (For China only)

a. Declared yield value in accordance with ISO/IEC 19752. The number of pages may be affected by operating environment, printing interval, graphics,

media type and media size.

Depending on the options, percentage of image area, and job mode used, the toner cartridge’s lifespan may differ.

When purchasing new toner cartridges or other supplies, these must be purchased in the same country as the machine you are using. Otherwise, new toner cartridges or other supplies will be incompatible with your machine due to different configurations of toner cartridges and other supplies according to the specific country conditions.

Dell does not recommend using non-genuine Dell toner cartridge such as refilled or remanufactured toner. Dell cannot guarantee non-genuine Dell toner cartridge's quality. Service or repair required as a result of using non-genuine Dell toner cartridges will not be covered under the machine’s warranty.

3. Maintenance

Storing the toner cartridge

Toner cartridges contain components that are sensitive to light, temperature and humidity. Dell suggests users follow these recommendations to ensure optimal performance, highest quality, and longest life from your new Dell toner cartridge.

Store this cartridge in the same environment in which the printer will be used. This should be in controlled temperature and humidity conditions. The toner cartridge should remain in its original and unopened package until installation – if original packaging is not available, cover the top opening of the cartridge with paper and store in a dark cabinet.

Opening the cartridge package prior to use dramatically shortens its useful shelf and operating life. Do not store on the floor. If the toner cartridge is removed from the printer, follow the instructions below to store the toner cartridge properly.

• Store the cartridge inside the protective bag from the original package.

• Store lying flat (not standing on end) with the same side facing up as if it were installed in the machine.

- An environment with salty air.

Handling instructions

• Do not touch the surface of the photoconductive drum in the cartridge.

• Do not expose the cartridge to unnecessary vibrations or shock.

• Never manually rotate the drum, especially in the reverse direction; this can cause internal damage and toner spillage.

Toner cartridge usage

Dell Inc. does not recommend or approve the use of non-Dell brand toner cartridges in your printer including generic, store brand, refilled, or remanufactured toner cartridges.

• Do not store consumables in any of the following conditions:

- Temperature greater than 40°C (104°F).

- Humidity range less than 20% and greater than 80%.

- An environment with extreme changes in humidity or temperature.

- Direct sunlight or room light.

- Dusty places.

- A car for a long period of time.

- An environment where corrosive gases are present.

Dell’s printer warranty does not cover damage to the machine caused by the use of a refilled, remanufactured, or non-Dell brand toner cartridges.

3. Maintenance

Storing the toner cartridge

Estimated cartridge life

Estimated cartridge life the life of the toner cartridge (or imaging unit) yield depends on the amount of toner that print jobs require. The actual print yield may vary depending on the print density of the pages you print on, operating environment, percentage of image area, printing interval, media type and/or media size. For example, if you print a lot of graphics, the consumption of the toner is higher and you may need to change the cartridge more often.

3. Maintenance

Redistributing toner

When the toner cartridge is near the end of its life:

• White streaks or light printing occurs and/or density variation side to side.

• The Toner LED blinks orange.

If this happens, you can temporarily improve print quality by redistributing the remaining toner in the cartridge. In some cases, white streaks or light printing will still occur even after you have redistributed the toner.

• Before opening the top cover, close the output support first.

• If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.

3. Maintenance

Replacing the toner cartridge

• Before opening the top cover, close the output support first.

• Do not use sharp objects such as a knife or scissors to open the toner cartridge package. They might scratch the drum of the cartridge.

• If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.

• Shake the toner cartridge thoroughly, it will increase the initial print quality.

• Do not touch the green side of the toner cartridge. Use the handle on the cartridge to avoid touching this area.

When a toner cartridge has reached the end of life, the machine will stop printing.

3. Maintenance

Replacing the toner cartridge

3. Maintenance

Cleaning the machine

If printing quality problems occur or if you use your machine in a dusty environment, you need to clean your machine regularly to keep it in the best printing condition and use your machine longer.

• Cleaning the cabinet of the machine with cleaning materials containing large amounts of alcohol, solvents, or other strong substances can discolor or distort the cabinet.

• If your machine or the surrounding area is contaminated with toner, we recommend you use a cloth or tissue dampened with water to clean it. If you use a vacuum cleaner, toner blows in the air and might be harmful to you.

• During the printing process, paper, toner, and dust particles can accumulate inside the machine. This buildup can cause print quality problems, such as toner specks or smearing. Cleaning the inside of the machine clears and reduces these problems.

Cleaning the outside

Clean the machine cabinet with a soft, lint-free cloth. Dampen the cloth slightly with water, but be careful not to let any water drip onto or into the machine.

3. Maintenance

Cleaning the machine

Cleaning the inside

During the printing process, paper, toner, and dust particles can accumulate inside the machine. This buildup can cause print quality problems, such as toner specks or smearing. Cleaning the inside of the machine clears and reduces these problems.

• Use a dry lint-free cloth to clean the machine.

• If your machine has a power switch, turn the power switch off before cleaning the machine.

• Before opening the top cover, close the output support first.

3. Maintenance

Cleaning the machine

3. Maintenance

Cleaning the machine

Cleaning the pickup roller

• Use a dry lint-free cloth to clean the machine.

• If your machine has a power switch, turn the power switch off before cleaning the machine.

• Before opening the top cover, close the output support first.

3. Maintenance

Tips for moving & storing your machine

• When moving the machine, do not tilt or turn it upside down. Otherwise, the inside of the machine may be contaminated by toner, which can cause damage to the machine or reduce print quality.

• When moving the machine, make sure at least two people are holding the machine securely.

3. Maintenance

4. Troubleshooting

This chapter gives helpful information for what to do if you encounter an error.

• Tips for avoiding paper jams 48

• Out-of-paper error resolution 49

• Clearing paper jams 50

• Understanding the status LED 53

This chapter gives helpful information for what to do if you encounter an error.

If you cannot find a solution to your problem in this chapter, refer to the Troubleshooting chapter in the Advanced User's Guide (see "Troubleshooting" on page 133).

If you cannot find a solution in the User's Guide or the problem persists, call for service.

Tips for avoiding paper jams

By selecting the correct media types, most paper jams can be avoided. To avoid paper jams, refer to the following guidelines:

• Ensure that the adjustable guides are positioned correctly (see "Tray overview" on page 23).

• Do not overload the tray. Ensure that the paper level is below the paper capacity mark on the inside of the tray.

• Do not remove paper from the tray while your machine is printing.

• Flex, fan, and straighten paper before loading.

• Do not use creased, damp, or highly curled paper.

• Do not mix paper types in a tray.

• Use only recommended print media (see "Print media specifications" on page 58).

4. Troubleshooting

Out-of-paper error resolution

If there is no paper in the tray or the status LED is red. To resolve this problem, load paper in the tray and then open and close the top cover.

4. Troubleshooting

Clearing paper jams

• When the paper tray is a paper jam has occurred, open and close the top cover to resume printing after clearing the error.

• To avoid tearing the paper, pull the jammed paper out slowly and gently.

In tray

4. Troubleshooting

Clearing paper jams

Inside the machine

• The fuser area is hot. Take care when removing paper from the machine.

• Before opening the top cover, close the output support first.

4. Troubleshooting

Clearing paper jams

If you do not see the paper in this area, stop and go to next step:

4. Troubleshooting

Understanding the status LED

The color of the LED indicates the machine's current status.

• Some LEDs may not be available depending on model or country.

• To resolve the error, look at the error message and its instructions from the troubleshooting part.

• You can also resolve the error with the guidelines from the Dell Printer Status program window.

• If the problem persists, call a service representative.

Status LED

Status Description

(Status LED)

Off The machine is off-line or save mode.

Green

Blinking

On The machine is on-line and can be used.

Blinking

Red

Blinking Upgrading firmware.

Orange

On A paper jam has occurred (see "Clearing paper jams" on page 50).

• When the backlight slowly blinks, the machine is receiving data from the computer.

• When the backlight blinks rapidly, the machine is printing data.

Waiting for a (Info) or (WPS) button to be pressed for manual printing.

• The cover is opened. Close the cover.

• There is no paper in the tray when receiving or printing data. Load paper in the tray. Then, open and close the top cover to resume printing (see "Out-of-paper error resolution" on page 49).

• The machine has stopped due to a major error.

4. Troubleshooting

Understanding the status LED

Toner LED/ WPS LED

Status Description

Small amount of toner is left in the cartridge. The estimated cartridge life of toner is close. Prepare a

(Toner LED)

(WPS LED)

Blinking

Orange

Off All toner cartridges are at normal capacity.

Blinking The machine is connecting to a wireless network.

Blue

Off The machine is disconnected from a wireless network.

new cartridge for replacement. You may temporarily increase the printing quality by redistributing the toner (see "Redistributing toner" on page 39).

A toner cartridge has almost reached its estimated cartridge life toner cartridge (see "Replacing the toner cartridge" on page 40).

The machine is connected to a wireless network (see "Using the WPS button" on page 85).

. It is recommended to replace the

On The machine is in power save mode.

(Power LED)

a. Estimated cartridge life means the expected or estimated toner cartridge life, which indicates the average capacity of print-outs and is designed pursuant to ISO/IEC 19752. The number of

pages may be affected by operating environment, printing interval, graphics, media type and media size. Some amount of toner may remain in the cartridge even when red LED is on and the printer stops printing.

b. Wireless model only (see "Features by models" on page 6).

Blue

Off

The machine is in ready mode or the machine’s power is off.

4. Troubleshooting

5. Appendix

This chapter provides product specifications and information concerning applicable regulations.

•Specifications 56

• Dell technical support policy 64

• Contacting Dell 65

• Warranty and return policy 66

•Copyright 67

Specifications

General specifications

The specification values listed below are subject to change without notice. See www.dell.com or support.dell.com for possible changes in information.

Items Description

Dimension Width x Length x Height 331 x 215 x 178 mm (14.96 x 8.46 x 7.01 inches)

Weight Machine with consumables 4.0 kg (8.82 lbs)

Noise Level

Temperature

Humidity

Power rating

Ready mode Less than 26 dB (A)

Print mode Less than 50 dB (A)

Operation 10 to 32°C (50 to 90°F)

Storage (packed) -20 to 40°C (-4 to 104°F)

Operation 10 to 80% RH

Storage (packed) 20 to 95% RH

110 volt models AC 110 - 127 V

220 volt models AC 220 - 240 V

5. Appendix

Specifications

Items Description

Power consumption

Wireless

a. Sound Pressure Level, ISO 7779. Configuration tested: basic machine installation, A4 paper, simplex printing. b. See the rating label on the machine for the correct voltage (V), frequency (hertz) and type of current (A) for your machine. c. Wireless model only (see "Features by models" on page 6).

Average operating mode Less than 310W

Ready mode Less than 30 W

Power save mode Less than 0.9 W (B1160), Less than 1.2 W (B1160w)

Power off mode Less than 0.45 W

Module

SPW-B4319S

5. Appendix

Specifications

Print media specifications

Type Size Dimensions

Plain paper

Envelope

Letter 216 x 279 mm (8.5 x 11 inches)

Legal 216 x 356 mm (8.5 x 14 inches)

US Folio 216 x 330 mm (8.5 x 13 inches)

A4 210 x 297 mm (8.27 x 11.69 inches)

Oficio 216 x 343 mm (8.5 x 13.5 inches)

JIS B5 182 x 257 mm (7.17 x 10.12 inches)

ISO B5 176 x 250 mm (6.93 x 9.84 inches)

Executive 184 x 267 mm (7.25 x 10.5 inches)

A5 148 x 210 mm (5.83 x 8.27 inches)

Envelope Monarch 98 x 191 mm (3.87 x 7.5 inches)

Envelope No. 10 105 x 241 mm (4.12 x 9.5 inches)

Envelope DL 110 x 220 mm (4.33 x 8.66 inches)

Print media weight/Capacity

Tray

71 to 85 g/m

(19 to 23 lbs

bond)

• 150 sheets of 80 g/m bond)

75 to 90 g/m

(20 to 24 lbs

bond)

• 10 sheets

(21 lbs

Manual feeding in tray

71 to 85 g/m

(19 to 23 lbs bond)

• 1 sheet

75 to 90 g/m2 (20 to 24 lbs bond)

• 1 sheet

Envelope C5 162 x 229 mm (6.38 x 9.02 inches)

5. Appendix

Specifications

Type Size Dimensions

Thick paper

Thin paper

Cotton

Colored

Refer to the Plain paper section

Print media weight/Capacity

Tray

86 to 120 g/m

(23 to 32 lbs

bond)

• 50 sheets of 120 g/m bond)

60 to 70 g/m

(16 to 19 lbs bond)

• 160 sheets of 60 g/m bond)

75 to 90 g/m

(20 to 24 lbs bond)

• 150 sheets of 80 g/m bond)

75 to 90 g/m

(20 to 24 lbs bond)

• 150 sheets of 80 g/m bond)

(32 lbs

(16 lbs

(21 lbs

Manual feeding in tray

86 to 120 g/m

• 1 sheet

60 to 70 g/m

• 1 sheet

75 to 90 g/m

• 1 sheet

75 to 90 g/m

• 1 sheet

(23 to 32 lbs bond)

(16 to 19 lbs bond)

(20 to 24 lbs bond)

Pre-printed

Recycled

Refer to the Plain paper section

75 to 90 g/m

(20 to 24 lbs bond)

• 150 sheets of 80 g/m bond)

60 to 90 g/m

(16 to 24 lbs bond)

• 150 sheets of 80 g/m bond)

(21 lbs

75 to 90 g/m

• 1 sheet

60 to 90 g/m

• 1 sheet

(20 to 24 lbs bond)

(16 to 24 lbs bond)

5. Appendix

Specifications

Type Size Dimensions

Labels

Card stock

Bond paper

Dell technical support policy

Technician-assisted technical support requires the cooperation and participation of the customer in the troubleshooting process and provides for restoration of the Operating System, application software, and hardware drivers to the original default configuration as shipped from Dell, as well as the verification of appropriate functionality of the printer and all Dell-installed hardware. In addition to this technician assisted technical support, online technical support is available at Dell Support. Additional technical support options may be available for purchase.

Dell provides limited technical support for the printer and any Dell-installed software and peripherals. Support for third-party software and peripherals is provided by the original manufacturer, including those purchased and/or installed through Software & Peripherals (DellWare), ReadyWare, and Custom Factory Integration (CFI/DellPlus).

5. Appendix

Contacting Dell

You can access Dell Support at support.dell.com. Select your region on the WELCOME TO DELL SUPPORT page, and fill in the requested details to access help tools and information.

You can contact Dell electronically using the following addresses:

• World Wide Web

- www.dell.com/

- www.dell.com/ap/ (Asian/Pacific countries only)

- www.dell.com/jp/ (Japan only)

- www.euro.dell.com (Europe only)

- www.dell.com/la/ (Latin American and Caribbean countries)

- www.dell.ca (Canada only)

• Anonymous file transfer protocol (FTP)

- ftp.dell.com

- support.euro.dell.com (Europe only)

• Electronic Quote Service

- apmarketing@dell.com (Asian/Pacific countries only)

- sales_canada@dell.com (Canada only)

• Electronic Support Service

- mobile_support@us.dell.com

- support@us.dell.com

- la-techsupport@dell.com (Latin America and Caribbean countries only)

- apsupport@dell.com (Asian/Pacific countries only)

- support.jp.dell.com (Japan only)

5. Appendix

Warranty and return policy

Dell Inc. (“Dell”) manufactures its hardware products from parts and components that are new or equivalent to new in accordance with industry-standard practices. For information about the Dell warranty for your printer, refer to the Product Information Guide.

5. Appendix

Copyright

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the Dell logo, and Dell Supplies Ordering Utility are trademarks of Dell Inc.; Microsoft, Windows, Windows Vista, and Windows Server are registered trademarks of Microsoft Corporation in the United States and/or other countries; Adobe and Acrobat Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

Other trademarks and trade names may be used in this document to refer to the entities claiming the marks and names of their products.

Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

Refer to the 'LICENSE.txt' file in the provided CD-ROM for the open source license information.

REV. 1.01

5. Appendix

User’s Guide

ADVANCED

This guide provides information about installation, advanced configuration, operation and troubleshooting on various OS environments.

Some features may not be available depending on models or countries.

BASIC

Dell B1160

Dell B1160w

This guide provides information concerning installation, basic operation and troubleshooting on windows.

ADVANCED

Macintosh printing 116

1. Software Installation

Installation for Macintosh 71

Reinstallation for Macintosh 72

Installation for Linux 73

Reinstallation for Linux 74

2. Using a Network-Connected Machine (B1160w only)

Useful network program 76

Printing a network configuration report 77

Installing driver over the network 78

IPv6 configuration 82

Wireless network setup 83

Linux printing 118

4. Useful Management Tools

Using Firmware Update Utility 121

Using Dell Supplies Ordering Utility 122

Using Embedded Web Service (B1160w only) 123

Using Dell Printer Manager 125

Using Dell Printer Status 127

Using the Linux Unified Driver Configurator 129

5. Troubleshooting

Paper feeding problems 134

Power and cable connecting problems 135

3. Special Features

Altitude adjustment 107

Changing the default print settings 108

Setting your machine as a default machine 109

Using advanced print features 110

Printing problems 136

Printing quality problems 140

Operating system problems 148

1. Software Installation

This chapter provides instructions for installing essential and helpful software for use in an environment where the machine is connected via a cable. A locally connected machine is a machine directly attached to your computer using the cable.

• Installation for Macintosh 71

• Reinstallation for Macintosh 72

• Installation for Linux 73

• Reinstallation for Linux 74

• If you are a Windows OS user, refer to the "Installing the driver locally" on page 18 for installing the machine’s driver.

• Only use a USB cable no longer then 3 meter (118 inches).

Installation for Macintosh

Make sure that the machine is connected to your computer and

powered on.

Insert the supplied software CD into your CD-ROM drive.

Double-click the CD-ROM icon that appears on your Macintosh desktop.

Double-click the MAC_Installer folder > Installer OS X icon.

Click Continue.

Read the license agreement and click Continue.

Click Agree to agree to the license agreement.

When the message that warns that all applications will close on your

computer appears, click Continue.

Click Continue on the User Options Pane.

Open the Applications folder > Utilities > Print Setup Utility.

• For Mac OS X 10.5 -10.7, open the Applications folder > System Preferences and click Print & Fax.

Click Add on the Printer List.

• For Mac OS X 10.5 -10.7, click the “+” folder icon; a display window will pop up.

Click Default Browser and find the USB connection.

• For Mac OS X 10.5-10.7, click Default and find the USB connection.

For Mac OS X 10.4, if Auto Select does not work properly, select Dell in Print Using and your machine name in Model.

• For Mac OS X 10.5-10.7, if Auto Select does not work properly, select Select a driver to use... and your machine name in Print Using.

Your machine appears on the Printer List, and is set as the default machine.

Click Install. All components necessary for machine operations will be installed.

If you click Customize, you can choose individual components to install.

Enter the password and click OK.

Installing software requires you to restart your computer. Click Continue Installation.

After the installation is finished, click Close.

Click Add.

1. Software Installation

Reinstallation for Macintosh

If the printer driver does not work properly, uninstall the driver and reinstall it.

Make sure that the machine is connected to your computer and

powered on.

Insert the supplied software CD into your CD-ROM drive.

Double-click the CD-ROM icon that appears on your Macintosh desktop.

Double-click the MAC_Installer folder > Uninstaller OS X icon.

Enter the password and click OK.

When the uninstall is done, click OK.

If a machine has already been added, delete it from the Print Setup Utility or Print & Fax.

1. Software Installation

Installation for Linux

You need to download Linux software packages from the Dell website to install the printer software (www.dell.com or support.dell.com > find your product > Support or Downloads).

Installing the Unified Linux Driver

Make sure that the machine is connected to your computer and

powered on.

When the Administrator Login window appears, type “root” in the

You must log in as a super user (root) to install the machine software. If you are not a super user, ask your system administrator.

The installation program added the Unified Driver Configurator desktop icon and the Unified Driver group to the system menu for your convenience. If you have any difficulties, consult the on-screen help that is available through your system menu or from the driver package Windows applications, such as Unified Driver Configurator or Image Manager.

From the Dell website, download the Unified Linux Driver package to

your computer.

Right-click the Unified Linux Driver package and extract the package.

Double click cdroot > autorun.

When the welcome screen appears, click Next.

When the installation is complete, click Finish.

1. Software Installation

Reinstallation for Linux

If the printer driver does not work properly, uninstall the driver and reinstall it.

Make sure that the machine is connected to your computer and

powered on.

When the Administrator Login window appears, type “root” in the

You must log in as a super user (root) to uninstall the printer driver. If you are not a super user, ask your system administrator.

Click the icon at the bottom of the desktop. When the Terminal screen

appears, type in the following.

[root@localhost root]#cd /opt/Dell/mfp/uninstall/

[root@localhost uninstall]#./uninstall.sh

Click Uninstall.

Click Next.

Click Finish.

1. Software Installation

2. Using a NetworkConnected Machine (B1160w only)

This chapter gives you step-by-step instructions for setting up a network connected machine and software.

• Useful network program 76

• Printing a network configuration report 77

• Installing driver over the network 78

• IPv6 configuration 82

• Wireless network setup 83

Supported optional devices and features may differ according to your model (see "Features by models" on page 6).

Useful network program

There are several programs available to setup the network settings easily in a network environment. For the network administrator especially, managing several machines on the network is possible.

Before using the programs below, set the IP address first.

Embedded Web Service

The web server embedded on your network machine allows you to do the following tasks (see "Using Embedded Web Service" on page 82):

• Check the supplies information and status.

• Customize machine settings.

• Set the email notification option. When you set this option, the machine status (toner cartridge shortage or machine error) will be sent to a certain person's email automatically.

• Configure the network parameters necessary for the machine to connect to various network environments.

2. Using a Network-Connected Machine (B1160w only)

Printing a network configuration report

You can print Network Configuration Report from the machine’s control panel that will show the current machine’s network settings. This will help you to set up a network.

Press the (WPS) button formore than 10 seconds on the control panel.

Using this Network Configuration Report, you can find your machine’s MAC address and IP address.

For example:

• MAC Address: 00:15:99:41:A2:78

• IP Address: 169.254.192.192

2. Using a Network-Connected Machine (B1160w only)

Installing driver over the network

Windows

Make sure that the machine is connected to the network and powered

on. Also, your machine’s IP address should have been set.

If the “Found New Hardware Wizard” appears during the installation procedure, click Cancel to close the window.

Insert the supplied software CD into your CD-ROM drive.

The software CD should automatically run and an installation window will appear.

If the installation window does not appear, click Start > All programs > Accessories > Run.

X:\Setup.exe replacing “X” with the letter, which represents your CDROM drive and click OK.

Select Next.

Select Connect a network printer to the computer. Click Next.

2. Using a Network-Connected Machine (B1160w only)

Installing driver over the network

The Custom installation allows you to select the machine’s connection and choose individual components to install. Follow the instructions on the window.

The searched machines will be shown on the screen. Select the one you

wish to use and click Next.

If you cannot find your machine in network, turn off the firewall and click Update. For Windows operating system, Start > Control Panel and start windows firewall, and set this option unactivated. For other operating system, refer to its on-line guide.

Follow the instructions in the installation window to complete the

installation process.

Click Continue.

Read the license agreement and click Continue.

Click Agree to agree to the license agreement.

When the message which warns that all applications will close on your

computer appears, click Continue.

Click Continue on the User Options Pane.

If you want to set the wireless setting, refer to "Setup using Macintosh" on page 94.

Click Install. All components necessary for machine operations will be installed.

Macintosh

Make sure that the machine is connected to your network and powered

on.

Insert the supplied software CD into your CD-ROM drive.

Double-click the CD-ROM icon that appears on your Macintosh desktop.

Double-click the MAC_Installer folder > Installer OS X icon.

If you click Customize, you can choose individual components to install.

Enter the password and click OK.

Installing software requires you to restart your computer. Click Continue Installation.

After the installation is finished, click Quit or Restart.

2. Using a Network-Connected Machine (B1160w only)

Installing driver over the network

Open the Applications folder > Utilities > Print Setup Utility.

• For Mac OS X 10.5-10.7, open the Applications folder > System Preferences and click Print & Fax.

Click Add on the Printer List.

• For Mac OS X 10.5-10.7, click the “+” icon. A display window will pop up.

For Mac OS X 10.4, click IP Printer.

• For Mac OS X 10.5-10.7, click IP.

Select HP Jetdirect - Socket in Protocol.

When printing a document containing many pages, printing performance may be enhanced by choosing Socket for Printer Type option.

For Mac OS X 10.4, if Auto Select does not work properly, select Dell in Print Using and your machine name in Model.

• For Mac OS X 10.5-10.7, if Auto Select does not work properly, choose Select Printer Software and your machine name in Print Using.

Click Add.

Your machine appears in the Printer List, and is set as the default machine.

Linux

You need to download Linux software packages from the Dell website to install the printer software (www.dell.com or support.dell.com > find your product > Support or Downloads).

Enter the machine’s IP address in the Address input field.

Enter the queue name in the Queue input field. If you cannot determine the queue name for your machine server, try using the default queue first.

To install other software:

• See "Installing the Unified Linux Driver" on page 73.

Install the Linux driver and add network printer

Make sure that the machine is connected to your network and powered

on. Also, your machine’s IP address should have been set.

Download the Unified Linux Driver package from the Dell website.

2. Using a Network-Connected Machine (B1160w only)

Installing driver over the network

Extract the UnifiedLinuxDriver.tar.gz file and open the new directory.

Double-click the Linux folder > install.sh icon.

The Dell installer window opens. Click Continue.

The add printer wizard window opens. Click Next.

Select network printer and click Search button.

The machine’s IP address and model name appears on list field.

Select your machine and click Next.

Input the printer description and Next.

After the machine is added, click Finish.

When installation is done, click Finish.

The printer’s IP address and model name appears on list field.

Select your machine and click Next.

Enter the printer description and click Next.

After the machine is added, click Finish.

Add a network printer

Double-click the Unified Driver Configurator.

Click Add Printer.

The Add printer wizard window opens. Click Next.

Select Network printer and click the Search button.

2. Using a Network-Connected Machine (B1160w only)

IPv6 configuration

IPv6 is supported properly only in Windows Vista or higher.

If the IPv6 network seems to not be working, set all the network setting to the factory defaults and try again.

In the IPv6 network environment, follow the next procedure to use the IPv6 address.

From the Embedded Web Service

You need to access Embedded Web Service first using the IPv4 address and follow the below procedure to use IPv6.

When the Embedded Web Service window opens, move the mouse

cursor over the Settings of the top menu bar and then click Network Settings.

Click TCP/IPv6 on the left pane of the website.

Check the IPv6 Protocol check box to activate IPv6.

Check the Manual Address check box. Then, the Address/Prefix text

box is activated.

Enter the rest of the address (e.g.,:3FFE:10:88:194::AAAA. “A” is the

hexadecimal 0 through 9, A through F).

Choose the DHCPv6 configuration.

Click the Apply button.

Using Embedded Web Service

Start a web browser, such as Internet Explorer, that supports IPv6

addressing as a URL.

Access a web browser, such as Internet Explorer, from Windows. Enter

the machine IP address (http://xxx.xxx.xxx.xxx) in the address field and press the Enter key or click Go.

If it’s your first time logging into Embedded Web Service you need to

log-in as an administrator. Type in the below default ID and password.

• ID: admin

• Password: dell00000

Select one of the IPv6 addresses (Link-local Address, Stateless

Address, Stateful Address, Manual Address) from Network Configuration Report (see "Printing a network configuration report" on

page 77).

Enter the IPv6 addresses (e.g.,: http://[FE80::215:99FF:FE66:7701]).

Address must be enclosed in '[ ]' brackets.

2. Using a Network-Connected Machine (B1160w only)

Wireless network setup

• Make sure your machine supports wireless networking. Wireless networking may not be available depending on the model (see "Features by models" on page 6).

• If the IPv6 network seems to not be working, set all the network settings to the factory defaults and try again.

Getting started

Understanding your network type

Typically, you can only have one connection between your computer and the

Wireless network name and network key

Wireless networks require higher security, so when an access point is first set up, a network name (SSID), the type of security used, and a Network Key are created for the network. Ask your network administrator about this information before proceeding with the machine installation.

machine at a time.

Infrastructure mode

This is an environment generally used for homes and SOHOs (Small Office/ Home Office). This mode uses an access point to communicate with the wireless machine.

Ad hoc mode

This mode does not use an access point. The wireless computer and wireless machine communicate directly.

2. Using a Network-Connected Machine (B1160w only)

Wireless network setup

Introducing wireless set up methods

You can set wireless settings either from the machine or the computer. Choose the setting method from the below table.

Some wireless network installation types may not be available depending on the model or country.

Set up method Connecting method Description & Reference

From the machine’s control panel Using the WPS (recommended)

()

From the computer Access point via USB cable (recommended)

()

Ad hoc via USB cable

()

If problems occur during wireless set up or driver installation, refer to the troubleshooting chapter (see "Troubleshooting for wireless network" on page 102).

• See "Using the WPS button" on page 85.

• Windows user, see "Access point via USB cable in Windows" on page 87.

• Macintosh user, see "Access point via USB cable in Macintosh" on page 95.

• Windows user, see "Ad hoc via USB cable in Windows" on page 91.

• Macintosh user, see "Ad hoc via USB cable in Macintosh" on page 97.

2. Using a Network-Connected Machine (B1160w only)

Wireless network setup

Using the WPS button

Choosing your type

There are two methods available to connect your machine to a wireless network

If your machine and an access point (or wireless router) support Wi-Fi Protected Setup™ (WPS), you can easily configure the wireless network settings by

pressing the (WPS) button on the control panel without a computer.

• If you want to use the wireless network using the infrastructure mode, make sure that the network cable is disconnected from the machine. Using the WPS (PBC) button or entering the PIN from the computer to connect to the access point (or wireless router) varies depending on the access point (or wireless router) you are using. Refer to the user's guide of the access point (or wireless router) you are using.

• When using the WPS button to set the wireless network, security settings may change. To prevent this, lock the WPS option for the current wireless security settings. The option name may differ depending on the access point (or wireless router) you are using.

Items to prepare

using the (WPS) button on the control panel.

The Push Button Configuration (PBC) method allows you to connect your

machine to a wireless network by pressing both the (WPS) button on the control panel of your machine and the WPS (PBC) button on a Wi-Fi Protected Setup™ WPS-enabled access point (or wireless router) respectively.

The Personal Identification Number (PIN) method helps you connect your machine to a wireless network by entering the supplied PIN information on a WiFi Protected Setup™ WPS-enabled access point (or wireless router).

Factory default in your machine is PBC mode, which is recommended for a typical wireless network environment.

• Check if the access point (or wireless router) supports Wi-Fi Protected Setup™ (WPS).

• Check if your machine supports Wi-Fi Protected Setup™ (WPS).

• Networked computer (PIN mode only)

2. Using a Network-Connected Machine (B1160w only)

Wireless network setup

Connecting in PBC mode

Press and hold the (WPS) button on the control panel for about 2 - 4

seconds until the status LED blinks quickly.

The machine starts connecting to the wireless network. The LED blinks slowly for up to two minutes until you press the PBC button on the access point (or wireless router).

Press the WPS (PBC) button on the access point (or wireless router).

a The light blinks fast on the WPS LED. The machine is connecting to

the access point (or wireless router).

b When the machine is successfully connected to the wireless

network, the WPS LED light stays on.

Connecting in PIN mode

The network configuration report, including PIN, must be printed (see

"Printing a network configuration report" on page 77).

You need to enter the eight-digit PIN within two minutes on the

computer that is connected to the access point (or wireless router).

The LED blinks slowly for up to two minutes until you enter the eightdigit PIN.

The WPS LED blinks in the order below:

a The light blinks fast on the WPS LED. The machine is connecting to

the access point (or wireless router).

b When the machine is successfully connected to the wireless

network, the WPS LED light stays on.

Re-connecting to a network

When the wireless function is off, the machine automatically tries to re-connect to the access point (or wireless router) with the previously used wireless connection settings and address.

In the following cases, the machine automatically re-connects to the wireless network:

In ready mode, press the (WPS) button for more than ten seconds on the control panel.

You can find your machine’s PIN.

Press and hold the (WPS) button on the control panel for more than

4 seconds until the status LED stays on.

The machine starts connecting to the access point (or wireless router).

• The machine is turned off and on again.

• The access point (or wireless router) is turned off and on again.

2. Using a Network-Connected Machine (B1160w only)

Wireless network setup

Canceling the connection process

To cancel the wireless network connection when the machine is connecting to

Setup using Windows

the wireless network, press and release the (power/cancel) button on the

control panel. You need to wait 2 minutes to re-connect to the wireless

network.

Disconnecting from a network

To disconnect the wireless network connection, press the (WPS) button on the control panel for more than two seconds.

• When the Wi-Fi network is in idle mode: The machine is immediately disconnected from the wireless network and the WPS LED turns off.

• When the Wi-Fi network is being used: While the machine waits until the current job is finished, the light blinks fast on the WPS LED. Then, the wireless network connection is automatically disconnected and the WPS

LED turns off.

Access point via USB cable in Windows

• Items to prepare

- Access point

- Network-connected computer

- Software CD that was provided with your machine

- The machine installed with a wireless network interface

-USB cable

Check whether the USB cable is connected to the machine.

Turn on your computer, access point, and machine.

If the “Found New Hardware Wizard” appears during the installation procedure, click Cancel to close the window.

2. Using a Network-Connected Machine (B1160w only)

Wireless network setup

Insert the supplied software CD into your CD-ROM drive.

The software CD should automatically run and an installation window will appear.

If the installation window does not appear, click Start > All programs > Accessories > Run.

X:\Setup.exe replacing “X” with the letter, which represents your CDROM drive and click OK.

Select Next.

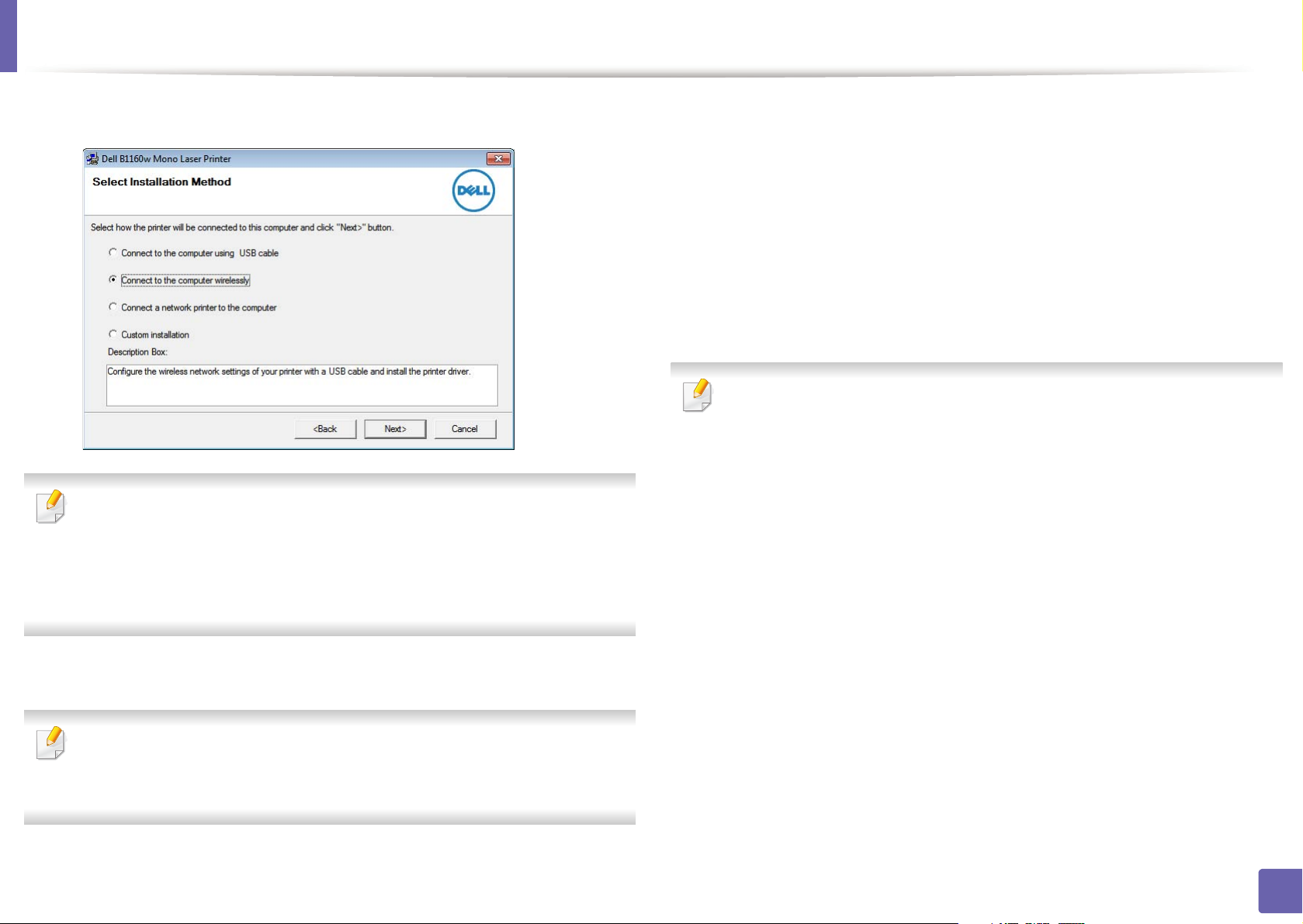

Select Connect to the computer wirelessly. Click Next.

Connect to a network printer to the computer: If you have already set up

the wireless network, select this to install the machine’s driver to use the wireless network machine. If you have not set up the wireless network, select the Connect to the computer wirelessly to set up the wireless network before you select this.

The software searches the wireless network.

If the search has failed, you may check if the USB cable is properly connected between the computer and machine, and follow the instructions on the window.

2. Using a Network-Connected Machine (B1160w only)

Wireless network setup

After searching, the window shows the wireless network devices. Select

the name (SSID) of the access point you are using and click Next.

If you cannot find the network name you want to choose, or if you want to set the wireless configuration manually, click Advanced Setting.

• Enter the wireless Network Name: Enter the SSID of access point you want (SSID is case-sensitive).

The wireless network security window appears when the access point has security settings.

The wireless network security window appears. The window may differ according to its security mode: WEP, or WPA.

• WEP

Select Open System or Shared Key for the authentication and enter the WEP security key. Click Next.

• Operation Mode: Select Infrastructure.

• Authentication: Select an authentication type.

Open System: Authentication is not used, and encryption may or may not be used, depending on the need for data security.

Shared Key: Authentication is used. A device that has a proper WEP key can access the network.

WPA Personal or WPA2 Personal: Select this option to authenticate the print server based on WPA Pre-Shared Key. This uses a shared secret key (generally called Pre- Shared Key pass phrase) which is manually configured on the access point and each of its clients.

• Encryption: Select the encryption (None, WEP64, WEP128, TKIP, AES,

WEP (Wired Equivalent Privacy) is a security protocol preventing unauthorized access to your wireless network. WEP encrypts the data portion of each packet exchanged on a wireless network using a 64-bit or 128-bit WEP encryption key.

• WPA

Enter the WPA shared key and click Next. WPA authorizes and identifies users based on a secret key that changes

automatically at regular intervals. WPA also uses TKIP (Temporal Key Integrity Protocol) and AES (Advanced Encryption Standard) for data encryption.

TKIP AES).

• Network Key: Enter the encryption network key value.

• Confirm Network Key: Confirm the encryption network key value.

• WEP Key Index: If you are using WEP Encryption, select the appropriate

WEP Key Index.

2. Using a Network-Connected Machine (B1160w only)

Wireless network setup

The window shows the wireless network settings and checks if the

settings are correct. Click Next.

• For the DHCP method

If the IP address assignment method is DHCP, check if DHCP is shown in the window. If it shows Static, click Change TCP/IP to change the assignment method to DHCP.

• For the Static method

If the IP address assignment method is Static, check if Static is shown in the window. If it shows DHCP, click Change TCP/IP to enter the IP address and other network configuration values for the machine. Before entering the IP address for the machine, you must know the computer’s network configuration information. If the computer is set to DHCP, you must contact the network administrator to get the static IP address.

For example:

If the computer’s network information is as shown below:

The Wireless Network Setting Complete window appears.

Select Yes if you accept the current settings and continue the setup procedure.

Select No if you want to return to the beginning screen.

Then, click Next.

Click Next when the Confirm Printer Connection window appears.

Select the components to be installed. Click Next.

After selecting the components, you can also change the machine name, set the machine to be shared on the network, set the machine as the default machine, and change the port name of each machine. Click Next.

After the installation is finished, a window asking you to print a test page appears. If you want to print a test page, click Print a test page.

Otherwise, just click Next and go to step 16.

- IP address: 169.254.133.42

- Subnet Mask: 255.255.0.0

Then, the machine’s network information should be as follows:

- IP address: 169.254.133.43

- Subnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)

- Gateway: 169.254.133.1

When the wireless network setting is completed, disconnect the USB

cable between the computer and machine. Click Next.

If the test page prints out correctly, click Yes.

If not, click No to reprint it.

Click Finish.

2. Using a Network-Connected Machine (B1160w only)

Wireless network setup

Ad hoc via USB cable in Windows

If you do not have an access point (AP), you may still connect the machine wirelessly to your computer by setting up an ad-hoc wireless network by following the simple steps below.

• Items to prepare

- Network-connected computer

- Software CD that was provided with your machine

- The machine installed with a wireless network interface

-USB cable

Check whether the USB cable is connected to the machine.

Turn on your computer and the wireless network machine.

Insert the supplied software CD into your CD-ROM drive.

The software CD should automatically run and an installation window will appear.

Select Next.

If the installation window does not appear, click Start > All programs > Accessories > Run.

X:\Setup.exe replacing “X” with the letter, which represents your CDROM drive and click OK.

2. Using a Network-Connected Machine (B1160w only)

Wireless network setup

Select Connect to the computer wirelessly. Click Next.

After searching the wireless networks, a list of wireless networks your

machine has searched appears.

If you want to use the Dell default ad hoc setting, select the last wireless network on the list, Network Name(SSID) is Dell_device and Signal is Printer Self Network.

Then, click Next.

If you want to use other ad hoc settings, select another wireless network from the list.

If you want to change ad hoc settings click the Advanced Setting button.

• Enter the wireless Network Name: Enter the SSID name you want (SSID is case-sensitive).

Connect to a network printer to the computer: If you have already set up the wireless network, select this to install the machine’s driver to use the wireless network machine. If you have not set up the wireless network, select the Connect to the computer wirelessly to set up the wireless network before you select this.

• Operation Mode: Select ad hoc.

• Channel: Select the channel. (Auto Setting or 2412 MHz to 2467 MHz).

• Authentication: Select an authentication type.

Open System: Authentication is not used, and encryption may or may not be used, depending on the need for data security.

Shared Key: Authentication is used. A device that has a proper WEP key can access the network.

The software searches the wireless network.

If the software has failed to search the network, check if the USB cable is connected properly between the computer and machine, and follow the instruction in the window.

• Encryption: Select the encryption (None, WEP64, WEP128).

• Network Key: Enter the encryption network key value.

• Confirm Network Key: Confirm the encryption network key value.

• WEP Key Index: If you are using WEP Encryption, select the appropriate

WEP Key Index.

2. Using a Network-Connected Machine (B1160w only)

Wireless network setup

The wireless network security window appears when the ad hoc network has security setting.

The wireless network security window appears. Select Open System or Shared Key for the authentication and click Next.

• WEP (Wired Equivalent Privacy) is a security protocol preventing unauthorized access to your wireless network. WEP encrypts the data portion of each packet exchanged on a wireless network using a 64-bit or 128-bit WEP encryption key.

The window showing the wireless network setting appears. Check the

settings and click Next.

Before entering the IP address for the machine, you must know the computer’s network configuration information. If the computer’s network configuration is set to DHCP, the wireless network setting should also be DHCP. Likewise, if the computer’s network configuration is set to Static, the wireless network setting should also be Static.

If your computer is set to DHCP and you want to use the Static wireless network setting, you must contact the network administrator to get the static IP address.

• For the DHCP method

If the IP address assignment method is DHCP, check if DHCP is shown in the Wireless Network Setting Confirm window. If it shows Static, click

Change TCP/IP to change the assignment method to Receive IP address automatically (DHCP).

• For the Static method

If the IP address assignment method is Static, check if Static is shown in the Wireless Network Setting Confirm window. If it shows DHCP, click Change TCP/IP to enter the IP address and other network configuration values for the machine.

For example: If the computer’s network information is as shown follows:

- IP address: 169.254.133.42

- Subnet Mask: 255.255.0.0 Then, the machine’s network information should be as below:

- IP address: 169.254.133.43

- Subnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)

- Gateway: 169.254.133.1

2. Using a Network-Connected Machine (B1160w only)

Wireless network setup

When the wireless network settings are completed, disconnect the USB cable between the computer and machine. Click Next.

If the Change PC Network Setting window appears, follow the steps in the window.

Click Next if you are finished with the computer’s wireless network settings.

If you set the computer’s wireless network on DHCP, it will take several minutes to receive the IP address.

The Wireless Network Setting Complete window appears. To print from a Wi-Fi Direct supported mobile device, set the Wi-Fi Direct Option (see "Setting up Wi-Fi Direct" on page 100).

Wi-Fi Direct Option:

• Wi-Fi Direct option appears on the screen only if your printer supports this feature.

• Can start to build Wi-Fi Direct by using Dell Printer Manager (see "Setting up Wi-Fi Direct" on page 100).

• Network Name(SSID): The default Network Name is the model name and the maximum length is 22 characters (not including "Direct-xx-").

• Network Key is the numeric string, and the size is 8 ~ 64 characters.

After the installation is finished, a window asking you to print a test page appears. If you want to print a test page, click Print a test page.

Otherwise, just click Next and go to step 16.

If the test page prints out correctly, click Yes.

If not, click No to reprint it.

Click Finish.

Setup using Macintosh

• Items to prepare

- Access point

- Network-connected computer

- Software CD that was provided with your machine

- The machine installed with a wireless network interface

-USB cable

Click Next when the Confirm Printer Connection window appears.

Select the components to be installed. Click Next.

2. Using a Network-Connected Machine (B1160w only)

Wireless network setup

Access point via USB cable in Macintosh

Check whether the USB cable is connected to the machine.

Turn on your computer, access point, and machine.

Insert the supplied software CD into your CD-ROM drive.

Double-click the CD-ROM icon that appears on your Macintosh desktop.

Double-click the MAC_Installer folder > Installer OS X icon.

Click Continue.

Read the license agreement and click Continue.

Click Agree to agree to the license agreement.

When the message that warns that all applications will close on your

computer appears, click Continue.

After searching, the window shows the wireless network devices. Select the name (SSID) of the access point you are using and click Next.

When you set the wireless configuration manually, click Advanced Setting.

• Enter the wireless Network Name: Enter the SSID of the access point you want with (SSID is case-sensitive).

• Operation Mode: Select Infrastructure.

• Authentication: Select an authentication type.

Open System: Authentication is not used, and encryption may or may not be used, depending on the need for data security.

Shared Key: Authentication is used. A device that has a proper WEP key can access the network.

WPA Personal or WPA2 Personal: Select this option to authenticate the print server based on WPA Pre-Shared Key. This uses a shared secret key (generally called Pre- Shared Key pass phrase) that is manually configured on the access point and each of its clients.

• Encryption: Select the encryption. (None, WEP64, WEP128, TKIP, AES, TKIP, AES)

• Network Key: Enter the encryption network key value.

Click Wireless Network Setting button on the User Options Pane.

The software searches the wireless network.

If the search has failed, you may check if the USB cable is connected between the computer and machine properly, and follow the instructions in the window.

• Confirm Network Key: Confirm the encryption network key value.

• WEP Key Index: If you are using WEP Encryption, select the appropriate

WEP Key Index.

2. Using a Network-Connected Machine (B1160w only)

Wireless network setup

The wireless network security window appears when the access point has security setting.

The wireless network security window appears. The window may differ according to its security mode: WEP or WPA.

• WEP

Select Open System or Shared Key for the authentication and enter the WEP security key. Click Next.

• WPA

Enter the WPA shared key and click Next. WPA authorizes and identifies users based on a secret key that changes

automatically at regular intervals. WPA also uses TKIP (Temporal Key Integrity Protocol) and AES (Advanced Encryption Standard) for data encryption.

The window shows the wireless network settings and check if settings are right. Click Next.

• For the DHCP method

If the IP address assignment method is DHCP, check if DHCP is shown in the window. If it shows Static, click Change TCP/IP to change the assignment method to DHCP.

• For the Static method

For example:

If the computer’s network information is as shown follows:

- IP address: 169.254.133.42

- Subnet Mask: 255.255.0.0

Then, the machine’s network information should be as follows:

- IP address: 169.254.133.43

- Subnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)

- Gateway: 169.254.133.1

The wireless network connects according to the network configuration.

2. Using a Network-Connected Machine (B1160w only)

Wireless network setup

Wireless network setting is completed. To print from a Wi-Fi Direct supported mobile device, set the Wi-Fi Direct Option (see "Setting up WiFi Direct" on page 100).

Wi-Fi Direct Option:

• Wi-Fi Direct Option appears on the screen only if your printer supports this feature.

• Can start to build Wi-Fi Direct by using Dell Printer Manager (see "Setting up Wi-Fi Direct" on page 100).

• Network Name(SSID): The default Network Name is the model name and the maximum length is 22 characters (not including "Direct-xx-").

• Network Key is the numeric string, and the size is 8 ~ 64 characters.

Follow the instructions on the screen to complete the installation. After the installation is finished, click Quit or Restart.

-USB cable

Check whether the USB cable is connected to the machine.

Turn on your computer and machine.

Insert the supplied software CD into your CD-ROM drive.

Double-click the CD-ROM icon that appears on your Macintosh desktop.

Double-click the MAC_Installer folder.

Double-click the Installer OS X icon.

Enter the password and click OK.

Click Continue.

Read the license agreement and click Continue.

Ad hoc via USB cable in Macintosh

If you do not have an access point (AP), you may still connect the machine wirelessly to your computer by setting up an ad hoc wireless network by following these simple directions.

• Items to prepare

- Network-connected computer

- Software CD that provided with your machine

- The machine installed with a wireless network interface

Click Agree to agree to the license agreement.

Select Easy Install and click Install. Easy Install is recommended for most users. All components necessary for machine operations will be installed.

If you select Custom Install, you can choose individual operations will be installed.

Click Wireless Setting and Installation.

2. Using a Network-Connected Machine (B1160w only)

Wireless network setup

The software searches the wireless network devices.

If the search has failed, check if the USB cable is connected between the computer and machine properly, and follow the instructions in the window.

After searching the wireless networks, a list of wireless networks your machine has searched appears.

If you want to use the Dell default ad hoc setting, select the last wireless network on the list, which Network Name(SSID) is Dell_device and Signal is Printer Self Network.

Then, click Next.

If you want to use other ad hoc settings, select another wireless network from the list.

If you want to change ad hoc settings click the Advanced Setting button.

• Enter the wireless Network Name: Enter the SSID name you want (SSID is case-sensitive).

• Network Key: Enter the encryption network key value.

• Confirm Network Key: Confirm the encryption network key value.

• WEP Key Index: If you are using WEP Encryption, select the appropriate WEP Key Index.

The wireless network security window appears when the ad hoc network has security setting.

The wireless network security window appears. Select Open System or Shared Key for the authentication and click Next.

The window showing the wireless network settings appears. Check the settings and click Next.

• Operation Mode: Select ad hoc.

• Channel: Select the channel (Auto Setting or 2412 MHz to 2467 MHz).

• Authentication: Select an authentication type.

Open System: Authentication is not used, and encryption may or may not be used, depending on the need for data security.

Shared Key: Authentication is used. A device that has a proper WEP key can access the network.

• Encryption: Select the encryption (None, WEP64, WEP128).

2. Using a Network-Connected Machine (B1160w only)

Wireless network setup

If your computer is set to DHCP and you want to use Static wireless network setting, you must contact the network administrator to get the static IP address.

• For the DHCP method

If the IP address assignment method is DHCP, check if DHCP is shown in the Wireless Network Setting Confirm window. If it shows Static, click

Change TCP/IP to change the assignment method to Receive IP address automatically (DHCP).

• For the Static method

For example: If the computer’s network information is as shown follows:

- IP address: 169.254.133.42

- Subnet Mask: 255.255.0.0 Then, the machine’s network information should be as below:

The wireless network connects according to the network configuration.

When the wireless network setting is completed, disconnect the USB cable between the computer and machine.

Follow the instructions on the screen to complete the installation. After the installation is finished, click Quit or Restart.

Turning the Wi-Fi network on/off

Check whether the machine is connected to the network.

Start a web browser such as Internet Explorer, Safari, or Firefox and enter

your machine’s new IP address in the browser window.

For example,

Click Login on the upper right of the Embedded Web Service website.

Type in the ID and Password, then click Login.

• ID: admin

- IP address: 169.254.133.43

- Subnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)

- Gateway: 169.254.133.1

• Password: dell00000

When the Embedded Web Service window opens, click Settings >

Network Settings.

2. Using a Network-Connected Machine (B1160w only)

Wireless network setup

Click Wireless > Custom.

You can also turn the Wi-Fi network on/off.

Setting the Wi-Fi Direct for mobile printing

Wi-Fi Direct is an easy-to-setup peer-to-peer connecting between method for your printer and a mobile device that provides a secure connection and better throughput than ad hoc mode.

With Wi-Fi Direct, you can connect your printer to a Wi-Fi Direct network while concurrently connecting to an access point, You can also use a wired network and a Wi-Fi Direct network simultaneously so multiple users can access and print documents both from Wi-Fi Direct and from a wired network.

• You cannot connect to the internet through the printer’s Wi-Fi Direct.

• The supported protocol list may differ from your model, Wi-Fi Direct networks do NOT support IPv6, network filtering, IPSec, WINS, and SLP services.

From the USB cable-connected computer(recommended)

• When setting from the supplied software CD, see the access point via USB cable.

- Windows user

See "Access point via USB cable in Windows" on page 87.

See "Ad hoc via USB cable in Windows" on page 91.

- Macintosh user

See "Access point via USB cable in Macintosh" on page 95.

See "Ad hoc via USB cable in Macintosh" on page 97.

• After the driver installation is complete, Dell Printer Manager can be set and changes in the Wi-Fi Direct can be made.

• Wifi direct setup can also be done from Ad hoc mode as well, when no network is available. Users will have to enable it through Dell Printer Manager as indicated below.

Dell Printer Manager is Available for Windows and Macintosh OS users only.

- From the Start menu, select Programs or All Programs > Dell Printers

Setting up Wi-Fi Direct

You can enable Wi-Fi Direct feature by one of the following methods.

> Dell Printer Manager > (Switch to advanced mode) > Device

Settings > Network.

▪ Wi-Fi Direct On/Off: Select On to enable.

▪ Device Name: Enter the printer’s name for searching for your

printer on a wireless network. By default, the device name is the model name.

2. Using a Network-Connected Machine (B1160w only)

100

Dell B1160, B1160W User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

BASIC

1. Introduction

Key benefits

Features by models

Useful to know

About this user’s guide

Safety information

Machine overview

Control panel overview

Turning on the machine

Installing the driver locally

Reinstalling the driver

2. Learning the Basic Usage

Printing a test page

Media and tray

Basic printing

3. Maintenance

Ordering supplies and accessories

Available supplies

Storing the toner cartridge

Redistributing toner

Replacing the toner cartridge

Cleaning the machine

Tips for moving & storing your machine

4. Troubleshooting

Tips for avoiding paper jams

Out-of-paper error resolution

Clearing paper jams

Understanding the status LED

5. Appendix

Specifications

Dell technical support policy

Contacting Dell

Warranty and return policy

Copyright

ADVANCED

1. Software Installation

Installation for Macintosh

Reinstallation for Macintosh

Installation for Linux

Reinstallation for Linux

Useful network program

Printing a network configuration report

Installing driver over the network

IPv6 configuration

Wireless network setup
