Dell AY511 User Manual 2

About Warnings

WARNING: A WARNING indicates a potential for property damage, personal injury,

or death

Dell™ AY511 Soundbar User's Guide

WARNING: To power the soundbar, use only the DC 12 V power adapter that shipped

with your soundbar.

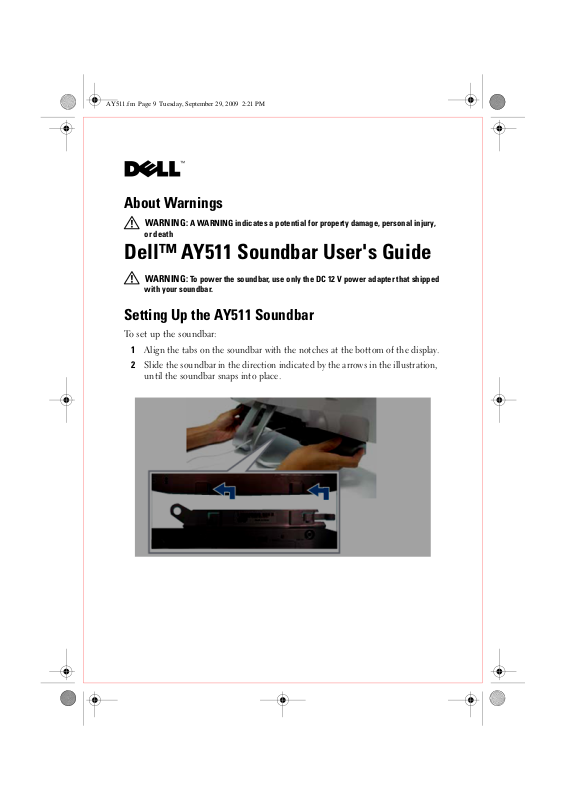

Setting Up the AY511 Soundbar

To set up the soundbar:

1

Align the tabs on the soundbar with the notches at the bottom of the display.

2

Slide the soundbar in the direction indicated by the arrows in the illustration,
until the soundbar snaps into place.

3

Connect the power adapter to your soundbar.

4

Connect the black mini stereo connector from the soundbar to the green
headphone or line-out connector on your computer.

WARNING: Use the soundbar only with the appropriate power source indicated on

the marking label. If you are not sure of the type power supply, consult the product
dealer or the local power company.

5

Touch the power on/off control on the front panel to turn on the soundbar.

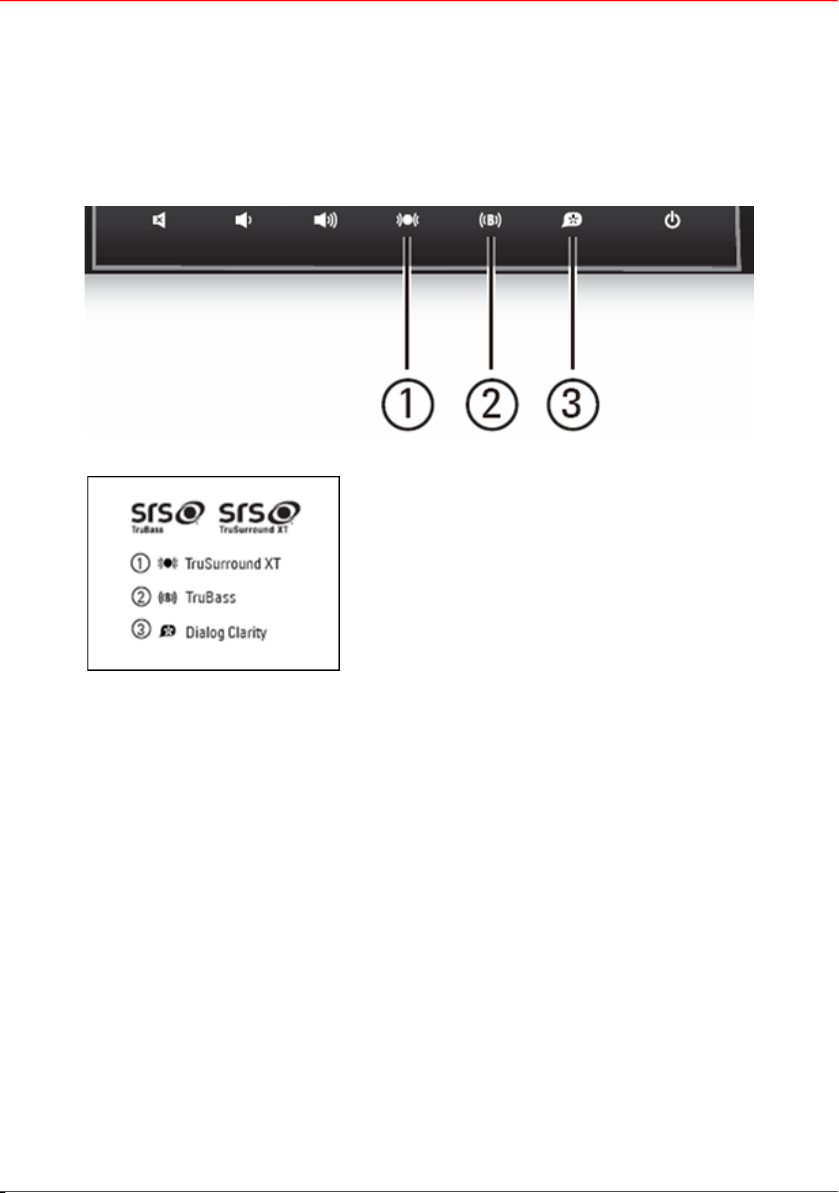

Adjusting the Volume Level

•

Increase the volume

front panel. The LED between the speakers blinks to indicate a change in the
volume level.

•

Decrease the volume

front panel. The LED between the speakers blinks to indicate a change in the
volume level.

Mute

•

— To mute or unmute audio, touch the control on the front panel.

— To increase the volume, touch the control on the

— To decrease the volume, touch the control on the

Connecting to a Headphone or Other Audio Player Source (Optional)

Connect your soundbar to a headphone or other audio player source using the
audio out/headhpone connector or the line-in connector on your soundbar.

Connecting to a Subwoofer (Optional)

Connect your soundbar to an external subwoofer using the subwoofer output
connector on your soundbar.
