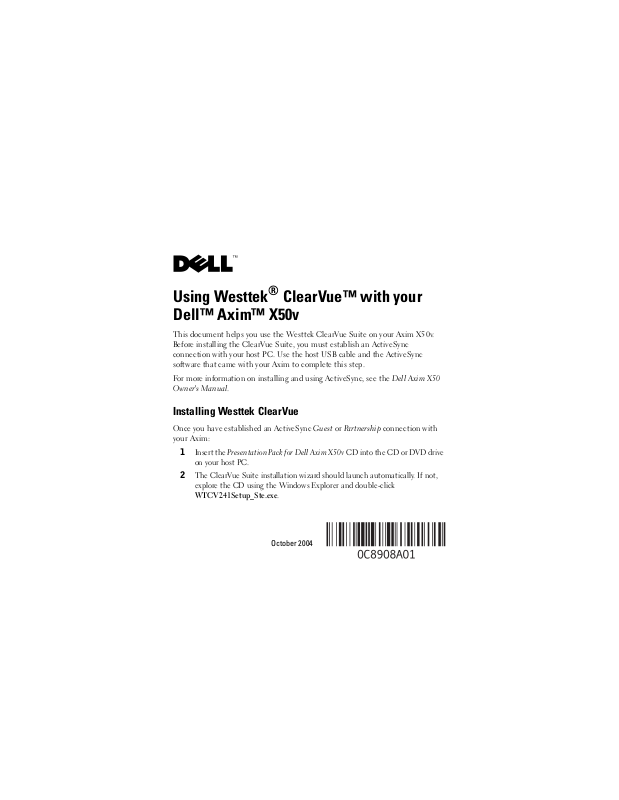

Using Westtek® ClearVue™ with your
Dell™ Axim™ X50v

This document helps you use the Westtek ClearVue Suite on your Axim X50v.
Before installing the ClearVue Suite, you must establish an ActiveSync
connection with your host PC. Use the host USB cable and the ActiveSync
software that came with your Axim to complete this step.

For more information on installing and using ActiveSync, see the Dell Axim X50
Owner's Manual.

Installing Westtek ClearVue

Once you have established an ActiveSync Guest or Partnership connection with
your Axim:

1

Insert the
on your host PC.

2

The ClearVue Suite installation wizard should launch automatically. If not,
explore the CD using the Windows Explorer and double-click

WTCV241Setup_Ste.exe

Presentation Pack for Dell Axim X50v

.

October 2004

CD into the CD or DVD drive

3

Follow the on-screen instructions to install the software.

4

When prompted for a product serial number, enter the serial number on the
CD sleeve.

When installation is complete, the ClearVue software icon will be displayed in the
Programs folder on your Axim.

Installing the VGA Cable

Before using external video, make sure that the VGA cable is attached to your
Axim. Options for using the Presentation Pack are available under the
External Video menu option within ClearVue.

For more information on external video options, access the ClearVue online help
by selecting Start→Help from the ClearVue application.

Enabling Mirror Mode with Windows Media Player

To play video with Windows Media Player 10 on both the PDA screen and an
external monitor, enable Mirror Mode before playing the movie.

To enable Mirror Mode, check the option in

Start →Settings →System →Mirror Mode.

If you have started the movie before enabling Mirror Mode, stop the movie by
clicking Menu → Stop and then restart the movie.
