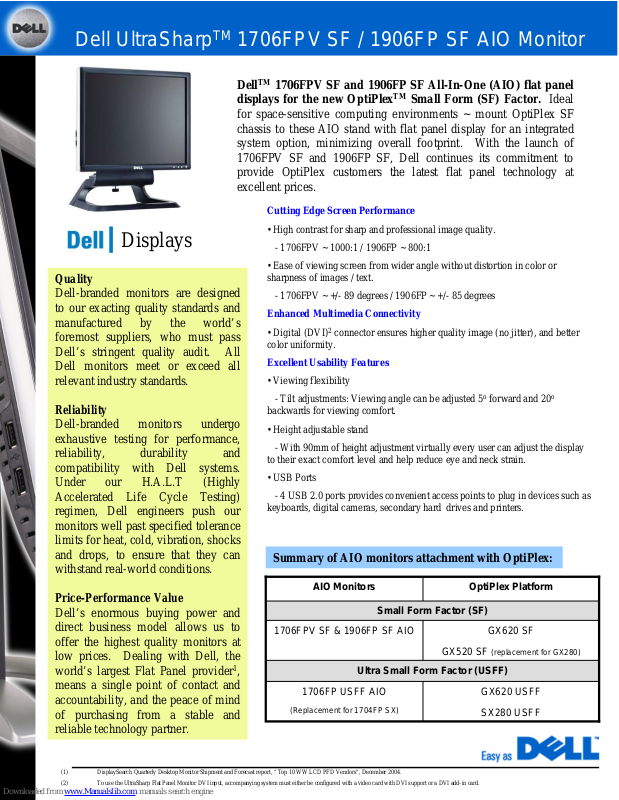

Page 1
Dell UltraSharp
TM
1706FPV SF / 1906FP SF AIO Monitor
Displays
DellTM1706FPV SF and 1906FP SF All-In-One (AIO) flat panel
displays for the new OptiPlexTMSmall Form (SF) Factor. Ideal
for space-sensitive computing environments ~ mount OptiPlex SF
chassis to these AIO stand with flat panel display for an integrated
system option, minimizing overall footprint. With the launch of
1706FPV SF and 1906FP SF, Dell continues its commitment to
provide OptiPlex customers the latest flat panel technology at
excellent prices.
Cutting Edge Screen Performance
• High contrast for sharp and professional image quality.
- 1706FPV ~ 1000:1 / 1906FP ~ 800:1
• Ease of viewing screen from wider angle without distortion in color or
sharpness of images / text.
- 1706FPV ~ +/- 89 degrees / 1906FP ~ +/- 85 degrees
Enhanced Multimedia Connectivity
• Digital (DVI)
2
connector ensures higher quality image (no jitter), and better
color uniformity.
Excellent Usability Features
• Viewing flexibility
- Tilt adjustments: Viewing angle can be adjusted 5
o
forward and 20
o
backwards for viewing comfort.
• Height adjustable stand
- With 90mm of height adjustment virtually every user can adjust the display
to their exact comfort level and help reduce eye and neck strain.
•USB Ports
- 4 USB 2.0 ports provides convenient access points to plug in devices such as
keyboards, digital cameras, secondary hard drives and printers.
Quality
Dell-branded monitors are designed
to our exacting quality standards and
manufactured by the world’s
foremost suppliers, who must pass
Dell’s stringent quality audit. All
Dell monitors meet or exceed all
relevant industry standards.
Reliability
Dell-branded monitors undergo
exhaustive testing for performance,
reliability, durability and
compatibility with Dell systems.
Under our H.A.L.T (Highly
Accelerated Life Cycle Testing)
regimen, Dell engineers push our
monitors well past specified tolerance
limits for heat, cold, vibration, shocks
and drops, to ensure that they can
withstand real-world conditions.
Price-Performance Value
Dell’s enormous buying power and
direct business model allows us to
offer the highest quality monitors at
low prices. Dealing with Dell, the
world’s largest Flat Panel provider
1
,
means a single point of contact and
accountability, and the peace of mind
of purchasing from a stable and
reliable technology partner.
Summary of AIO monitors attachment with OptiPlex:
AIO Monitors OptiPlex Platform
Small Form Factor (SF)
1706FPV SF & 1906FP SF AIO
GX620 SF
GX520 SF
(replacement for GX280)
1706FP USFF AIO
(Replacement for 1704FP SX)
GX620 USFF
SX280 USFF
Ultra Small Form Factor (USFF)
(1) DisplaySearchQuarterly Desktop Monitor Shipment and Forecast report, “Top 10 WW LCD PFD Vendors”, December 2004.
(2) To use the UltraSharp Flat Panel Monitor DVI input, accompanying system must either be configured with a video card with DVI support or a DVI add-in card.
Page 2
DETAILED SPECIFICATIONS
Dell Flat Panels Dell 1706FPV AIO for SF Dell 1906FP AIO for SF
Panel
Screen Type Active matrix - TFT LCD Active matrix - TFT LCD
VIS (Viewable Image Size)
17 inches (17-inch viewable image size)
19 inches (19-inch viewable image
size)
Pixel Pitch
0.264 mm 0.294 mm
Typical Response Time
25ms typical
20ms typical
Preset Display Area:
Horizontal
337 mm (13.3 inches) 376 mm (14.8 inches)
Vertical
270 mm (10.6 inches) 301 mm (11.85 inches)
Viewing Angle
+/-89° (vertical) typ, +/-89° (horizontal) typ +/-85° (vertical) typ, +/-85° (horizontal) typ
Luminance (Brightness)
280 CD/m ²(typ) 250 CD/m ²(typ)
Contrast Ratio
1000:1 (typ) 800:1 (typ)
Faceplate coating
Antiglare with hard-coating 3H
Antiglare with hard-coating 3H
Backlights 4 CCFL type CCFL (4) edgelight system
Resolution
Horizontal scan range
30 kHz to 81 kHz (automatic)
31 kHz to 80 kHz (automatic)
Vertical scan range
56 Hz to 76 Hz (automatic)
56 Hz to 76 Hz (automatic)
Optimal preset resolution
1280 x 1024 at 60 Hz
1280 x 1024 at 60 Hz
Highest preset resolution
1280 x 1024 at 75 Hz
1280 x 1024 at 75 Hz
Preset Display Modes
Display Modes
VGA, 720 x 400 31.5 kHz Horizontal, 70.1 Hz Vertical 31.5 kHz Horizontal, 70.0 Hz Vertical
VGA, 640 x 480 31.5 kHz Horizontal, 60 Hz Vertical 31.5 kHz Horizontal, 60.0 Hz Vertical
VESA, 640 x 480 37.5 kHz Horizontal, 75.0 Hz Vertical 37.5 kHz Horizontal, 75.0 Hz Vertical
VESA, 800 x 600 37.9 kHz Horizontal, 60.3 Hz Vertical 37.9 kHz Horizontal, 60.3 Hz Vertical
VESA, 800 x 600 46.9 kHz Horizontal, 75.0 Hz Vertical 46.9 kHz Horizontal, 75.0 Hz Vertical
VESA, 1024 x 768 48.4 kHz Horizontal, 60.0 Hz Vertical 48.4 kHz Horizontal, 60.0 Hz Vertical
VESA, 1024 x 768 60.0 kHz Horizontal, 75.0 Hz Vertical 60.0 kHz Horizontal, 75.0 Hz Vertical
VESA, 1152 x 864 67.5 kHz Horizontal, 75.0 Hz Vertical 67.5 kHz Horizontal, 75.0 Hz Vertical
VESA, 1280 x 1024 64.0 kHz Horizontal, 60.0 Hz Vertical 64.0 kHz Horizontal, 60.0 Hz Vertical
VESA, 1280 x 1024 80.0 kHz Horizontal, 75.0 Hz Vertical 80.0 kHz Horizontal, 75.0 Hz Vertical
VESA, 1600 x 1200
Not applicable Not applicable
Page 3
DETAILED SPECIFICATIONS
Physical Characteristics
Signal cable type
Analog: Detachable, D-sub, 15pin, shipped
detached to the monitor, Digital:
Detachable, DVI-D, Solid pins, shipped
detached from the monitor
Analog: Detachable, D-sub, 15pin, shipped
attached to the monitor
Digital: Detachable, DVI-D, Solid pins,
shipped detached from the monitor
Connector type
15-pin D-subminiature, blue connector; DVI-
D, white connector
15-pin D-subminiature, blue connector; DVI-D,
white connector
VESA Mounting Support Yes (100mm) Yes (100mm)
Industrial Design
Dimensions (with stand):
Height (extended)
20.23 inches (513.84 mm ) 21.09 inches (535.7 mm )
Height (locked)
16.69 inches (423.84 mm ) 17.55 inches (445.7 mm )
Width
14.8 inches (376 mm ) 16.35 inches (415.3 mm )
Depth
10.45 inches (265.39 mm ) 10.49 inches (266.5 mm )
Weight (monitor only)
8.0 lbs (3.6 kg ) 10.43 lbs (4.74 kg )
Weight (with packaging)
21.43 lbs ( 9.73 kg ) 22.38 lbs (10.16 kg )
Environmental
Power Usage:
AC input voltage
100 to 240 VAC / 50 or 60 Hz + 3 Hz / 2.0A
(Max.)
100 to 240 VAC / 50 or 60 Hz +
3 Hz /
1.5A (Max.)
Operating (Typical -
Maximum)
32 W (typical), 65 W (maximum)
32W - 65W max with USB and Sound Bar
Active Off
Less than 3 W
Less than 3W
Switched Off
Less than 1 W
Less than 1W
Temperature:
Operating
5° to 35°C (41° to 95°F)
5°to 35°C (41°to 95°F)
Non-operating (Shipping
Conditions)
Storage: 0° to 60°C (32° to 140°F)
Shipping: -20° to 60°C(-4° to 140°F)
Storage: -20° to 60°C (-4° to 140°F)
Shipping: -20° to 60°C(-4° to 140°F)
Humidity:
Operating
10% to 80% (non-condensing)
10% to 80% (non-condensing)
Non-operating (Shipping
Conditions)
Storage: 5% to 90% (non-condensing)
Shipping: 5% to 90%(noncondensing)
Storage: 5% to 90% (non-condensing)
Shipping: 5% to 90%(noncondensing)
Altitude:
Operating
3,657.6m (12,000 ft) max
3,657.6m (12,000 ft) max
Non-operating (Shipping
Conditions)
12,192 m (40,000 ft) max
12,192 m (40,000 ft) max
Thermal dissipation
221.937 BTU/hour (maximum) 221.937 BTU/hour (maximum)
109.261 BTU/hour (typical) 109.261 BTU/hour (typical)
Dell and the Dell logo are trademarks of De l l Inc. Dell disclaims proprietary interest in the marks and n ames of others. Copy right 2005 Dell Inc. All rights reserved.

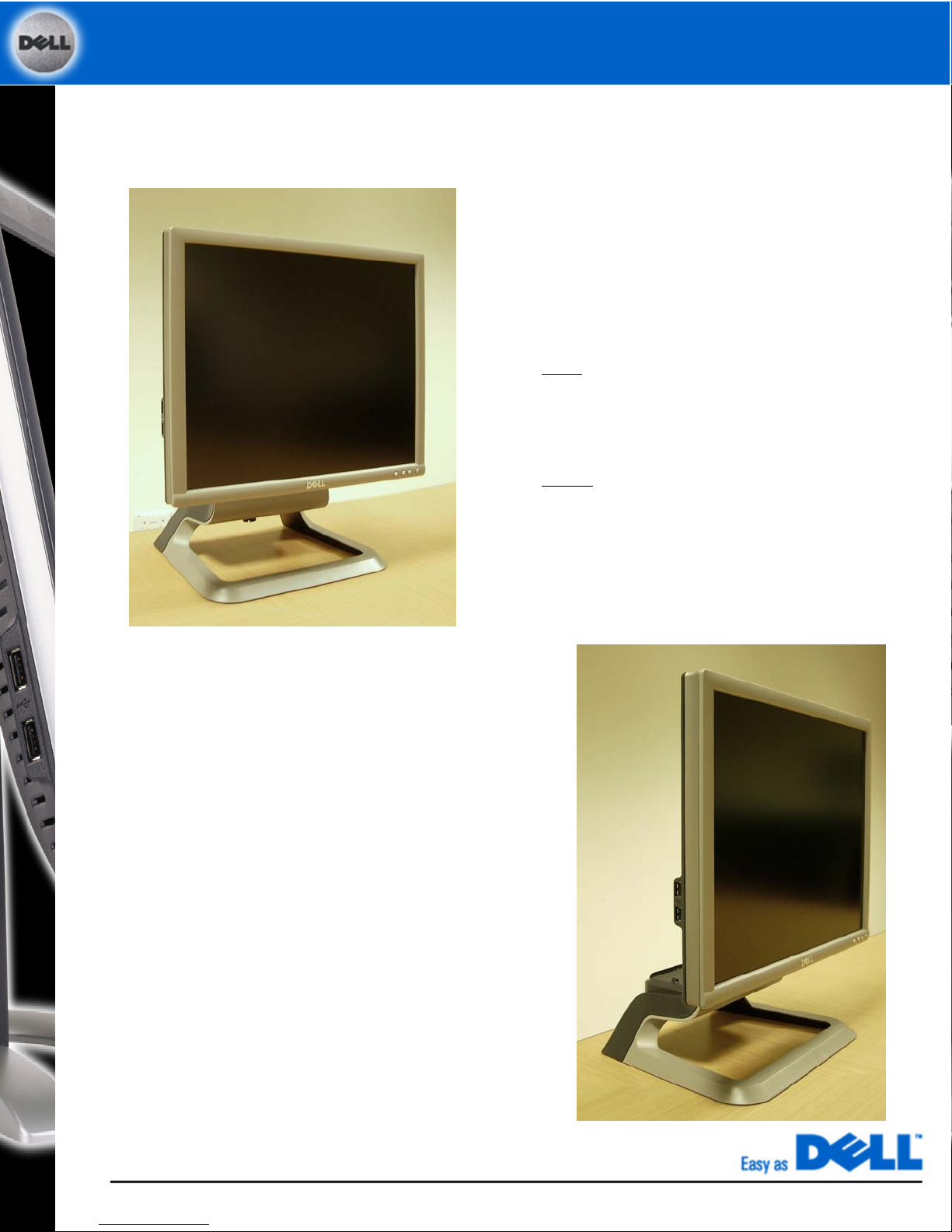

Page 4
DETAILED SPECIFICATIONS
TCO 03 Color Scheme
Stand
Twilight Gray Front Cover (including foot)
Twilight Gray Mechanism Cover
Twilight Gray Release Button w/ blue arrow
All other parts Midnight Gray
Monitor
Twilight Gray Bezel
Matte Silver logo badge
Moonlight Silver Racing Stripe
Ion Silver Buttons
All other parts same as TCO 99 color scheme
Dell and the Dell logo are trademarks of De l l Inc. Dell disclaims proprietary interest in the marks and n ames of others. Copy right 2005 Dell Inc. All rights reserved.
