Dell 1510X Product Sheet

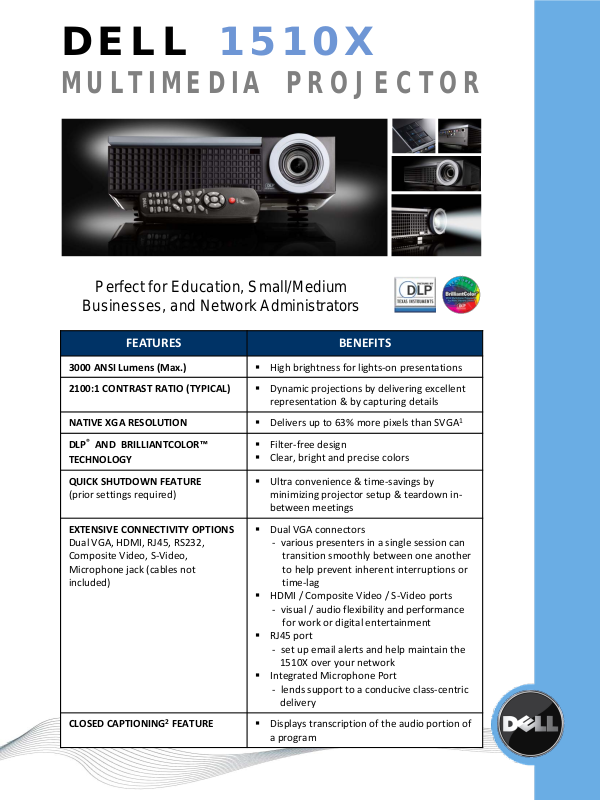

DELL 1510X
MULTIMEDIA PROJECTOR
Perfect for Education, Small/Medium
Businesses, and Network Administrators
FEATURES BENEFITS
3000 ANSI Lumens (Max.) High brightness for lights-on presentations
2100:1 CONTRAST RATIO (TYPICAL)
NATIVE XGA RESOLUTION Delivers up to 63% more pixels than SVGA
DLP®AND BRILLIANTCOLOR™
TECHNOLOGY
QUICK SHUTDOWN FEATURE
(prior settings required)
EXTENSIVE CONNECTIVITY OPTIONS
Dual VGA, HDMI, RJ45, RS232,
Composite Video, S-Video,
Microphone jack (cables not
included)
2
CLOSED CAPTIONING
FEATURE
Dynamic projections by delivering excellent
representation & by capturing details
Filter-free design
Clear, bright and precise colors
Ultra convenience & time-savings by
minimizing projector setup & teardown inbetween meetings
Dual VGA connectors
- various presenters in a single session can
transition smoothly between one another
to help prevent inherent interruptions or
time-lag
HDMI / Composite Video / S-Video ports
- visual / audio flexibility and performance
for work or digital entertainment
RJ45 port
- set up email alerts and help maintain the
1510X over your network
Integrated Microphone Port
- lends support to a conducive class-centric
delivery
Displays transcription of the audio portion of
a program
1
Why Dell Projectors?
UNCOMPROMISING VALUE
Dell projectors are designed to exacting
standards and manufactured by some of the
world’s foremost suppliers, consistently
delivering outstanding performance,quality and
reliability.
TRUSTED BRAND
Our product portfolio offers trusted value and
reliability to complement your IT infrastructure.
Firmly established as an IT partnerof choice for
leading companies across the world, Dell
invites you to extend your relationship with a
partner youknow and trust.
WORLD CLASS SERVICE
AND SUPPORT
Enjoy the exceptional service and support that
you have come to expect from the Dell brand.
We provide a single point of contact and the
peace of mind of purchasing from a stable and
reliable technologypartner.
Compute More • Consume Les s
Dell is committed to becoming one of the
greenest technology companies on the planet
through being environmentally responsible
across the entire productdevelopment process.
In line with our philosophy of
precautionary use of materials
and recycling, all currently
shipping Dell projectors are
the use of certain environmentally sensitive
materials.
For more information, please visit www.dell.com/
recycling and www.dell.com/environment.
WARRANTY
2-Year Advanced Exchange5Limited Hardware
Warranty6• 90-day Projector Bulb Limited
Hardware Warranty
SERVICE AND SUPPORT
24/7 online technical support • Toll-free
technical support (0700-1200 CST)7• Optional
NBD Advanced Exchange5Limited Hardware
Warranty6for years 3 to 5 • Optional
CompleteCare™Accidental Damage Service
1
Resolution comparison based on SVGA pixel count of
480,000 (800horizontal x 600 vertical) and XGA pixel count of
786,432(1024 horizontalx 768 vertical).
2
Closed Captioningfeature can beenabled only via Composite
/ S-Video inputs.
3
Lamp life rating is typical time for lamp lumens to diminish by
50% based on lab testing. Actual operating life will vary and
be lessunder conditions includinghigh use, temperature,dust,
orabrupt power-offenvironments.
4
Options from Dell Custom Factory Integration (CFI), Software
and Peripherals (S&P) and Customer Kits may not be RoHScompliant.
5
Replacement system or part dispatched, if necessary,
following phone-based troubleshooting, in advance of receipt
of returned defective part or system. Bulbs have a 90-day
limited hardwarewarranty. Availabilityvaries.
6
For a copy oflimited hardware warranty, write Dell USA L.P.,
Attn: Warranties,One DellWay, RoundRock, TX78682 orvisit
www.dell.com/warranty.
7
Operating hours may vary from country to country. Kindly
contact your local Dell representative for exact availability in
yourcountry.
8
CompleteCare™Accidental Damage Service excludes theft,
loss, anddamage due to fire, flood, or otheracts of nature, or
intentional damage. Customer may be required to return unit
to Dell. For complete details, visit
www.dell.com/servicecontracts.
DLP®and the DLP®logo are registered trademarks and
BrilliantColor™ and DarkChip3™ are trademarks of Texas
Instruments. Dell disclaims proprietary interest in the marks
andnames ofothers.
RoHS-compliant,
6
4
which restricts
8
DISPLAY
LIGHT VALVE Single-chip 0.55” XGA S450 DMD, DarkChip3™ technology
BRIGHTNESS 3000 ANSI Lumens (Max.)
THROW RATIO 1.6 (wide) ~ 1.92 (te le)
PROJECTION LENS F-Stop: F/2.4~2.66, Focal length: f=18.2~21.8 mm with 1.2x manual z oom lens
PROJECTION SCREEN SIZE 30.8” ~ 307” (dia gonal)
PROJECTION D ISTANCE 3.94 ft ~ 32.81 ft (1.2m ~ 10m)
LAMP Philips 225W user-replaceable lamp of up to 3000 hours3in Typical Mode and up to
4000 hours3in Eco-Mode
RESOLUTION
NO. OF PIXELS 1024 x 768 (XGA)
CONTRAST RATIO 2100:1 typical (Full On/Full Off)
DISPLAYABLE COLORS 1.07 billion colors
VIDEO COMPATIBILIT Y Composite Video/S-Video: NTSC (J, M, 4.43), PAL (B, D, G, H, I, M, N, Nc, 60), SEC AM
(B, D, G, K, K1, L)
Component Video via VGA & HDMI: 1080i/p, 720p, 576i/p, 480i/p
POWER
POWER SUPPLY Universal 100-240V AC 50-60Hz
POWER CONSUMPTION NORMAL MODE: 287W 10% @ 110Vac (Network on)
ECO-MODE: 219W 10% @ 110Vac (Network on )
POWER-SAVING MODE: <15W (Network on, Fan speed at minimum)
STANDBY MODE: <1W (Network off & VGA OUT off)
275W 10% @ 220Vac (Net work on)
212W 10% @ 220Vac (Net work on)
SOUND
AUDIO 8 watt speaker
NOISE LEVEL 35 dB(A) Normal Mode, 32 dB(A) Eco-Mode
SIZE AND WEIGHT
DIMENSIONS (W x H x D) 11.68” x 3.46” x 7.96” 0. 04” (296.5mm x 87.9mm x 202mm 1mm)
WEIGHT 5.2 lbs (2.36 k g)
COMPLIANCE
UNIFORMITY 85% Typical (Japan - JBMA)
ENVIRONMENTAL Operating te mperature: 5 C to 35 C (41 F to 95 F), Humidity: 80% max.
Storage temperature: 0 C to 60 C (32 F to 140 F), Humidity: 90% max.
Shipping temperature: -20 C to 60 C (-4 F to 140 F), Humidity: 90% max.
INPUTS
I/O CONNECTORS POWER: 1x AC power socket (3-pin - C14 inlet )
VGA INPUT: 2x 15-pin D-Sub connector (Blue), VGA-A & VGA-B, for analog RGB/
VGA OUTPUT: 1x 15-pin D-Sub connector (Black) for VGA-A loop-through
S-VIDEO INPUT: 1x standard 4-pin mini-DIN S-Video connector for Y/C signal
COMPOSITE VIDEO INPUT: 1x Yellow RC A jack for CVBS signal
HDMI INPUT: 1x HDMI connector for supporting HDMI 1.3 (HDCP compliant)
ANALOG AUDIO INPUT: 1x 3.5mm stereo mini phone jack (Blue)
VARIABLE AUDIO OUTPUT: 1x 3.5mm stereo mini phone jack (Green)
USB PORT: 1x USB slave for remote m ouse support
RS232 PORT: 1x mini-DIN 6-pin for RS232 communication
RJ45 PORT: 1x RJ45 connector for control of projector through ne twork
MICROPHONE: 1x 3.5mm stereo mini phone jack (Pink)
component input signals
& 1 pair of RCA connectors (Red/White)
PACKAGE CONTENTS
CONTENTS Carrying Case , Remote Control, 2 x AAA Battery, Powe r Cord, VGA Cable, Us er’s Guide
in CD (HTML format), Quick Start Guide, Product Information G uide.
Simplify IT at DELL.COM/Projector
