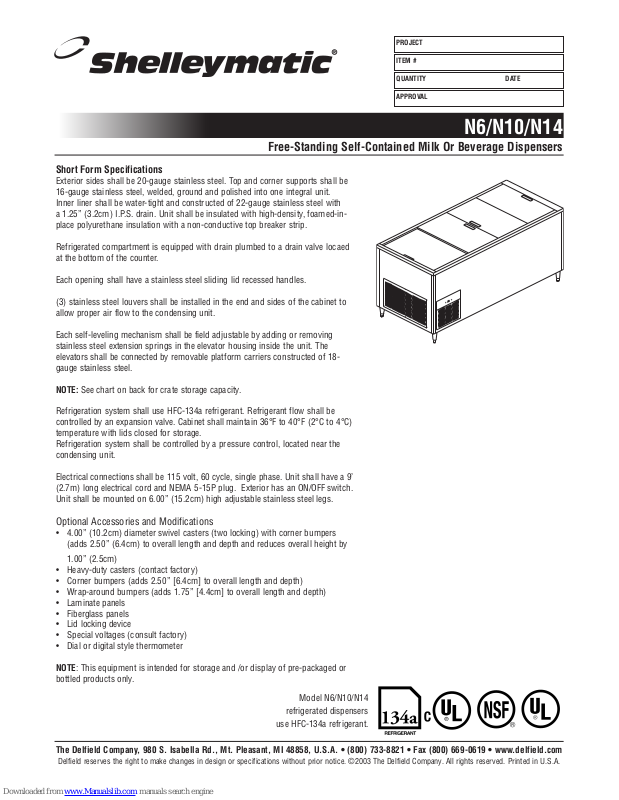

Delfield N10-1313-34, N10-1313-37, N6-1313-34, N14-1313-34, N14-1313-37 Specifications

Free-Standing Self-Contained Milk Or Beverage Dispensers

Short Form Specifications

Exterior sides shall be 20-gauge stainless steel. Top and corner supports shall be
16-gauge stainless steel, welded, ground and polished into one integral unit.
Inner liner shall be water-tight and constructed of 22-gauge stainless steel with
a 1.25” (3.2cm) I.P.S. drain. Unit shall be insulated with high-density, foamed-in­place polyurethane insulation with a non-conductive top breaker strip.

Refrigerated compartment is equipped with drain plumbed to a drain valve locaed
at the bottom of the counter.

Each opening shall have a stainless steel sliding lid recessed handles.

(3) stainless steel louvers shall be installed in the end and sides of the cabinet to
allow proper air flow to the condensing unit.

PROJECT

ITEM #

QUANTITY DATE

APPROVAL

N6/N10/N14

Each self-leveling mechanism shall be field adjustable by adding or removing
stainless steel extension springs in the elevator housing inside the unit. The
elevators shall be connected by removable platform carriers constructed of 18­gauge stainless steel.

NOTE: See chart on back for crate storage capacity.

Refrigeration system shall use HFC-134a refrigerant. Refrigerant flow shall be
controlled by an expansion valve. Cabinet shall maintain 36°F to 40°F (2°C to 4°C)
temperature with lids closed for storage.
Refrigeration system shall be controlled by a pressure control, located near the
condensing unit.

Electrical connections shall be 115 volt, 60 cycle, single phase. Unit shall have a 9’
(2.7m) long electrical cord and NEMA 5-15P plug. Exterior has an ON/OFF switch.
Unit shall be mounted on 6.00” (15.2cm) high adjustable stainless steel legs.

Optional Accessories and Modifications

• 4.00” (10.2cm) diameter swivel casters (two locking) with corner bumpers
(adds 2.50” (6.4cm) to overall length and depth and reduces overall height by

1.00” (2.5cm)

• Heavy-duty casters (contact factory)

• Corner bumpers (adds 2.50” [6.4cm] to overall length and depth)

• Wrap-around bumpers (adds 1.75” [4.4cm] to overall length and depth)

• Laminate panels

• Fiberglass panels

• Lid locking device

• Special voltages (consult factory)

• Dial or digital style thermometer

NOTE: This equipment is intended for storage and /or display of pre-packaged or
bottled products only.

The Delfield Company, 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • [phone] • Fax [phone] • www.delfield.com

Delfield reserves the right to make changes in design or specifications without prior notice. ©2003 The Delfield Company. All rights reserved. Printed in U.S.A.

Model N6/N10/N14

refrigerated dispensers

use HFC-134a refrigerant.

54.50"

138.4cm

32.00"

81.3cm

16.00"

40.6cm

D=DRAIN

19.75"

50.2cm

D

73.00"

185.4cm

32.00"

81.3cm

16.00"

40.6cm

D=DRAIN

29.12"

74.0cm

D

36.00"

91.4cm

32.00"

81.3cm

16.00"

40.6cm

D=DRAIN

10.50"

26.7cm

D

N6/N10/N14

Free-Standing Self-Contained Milk Or Beverage Dispensers

PLAN VIEW

MODEL N6-1331-34

& N6-1331-37

25.5”

64.77cm

ELEVATION VIEW

MODEL N6-1331-34

& N6-1331-37

PLAN VIEW

MODEL N10-1331-34

& N10-1331-37

34.75”

88.26cm

ELEVATION VIEW

MODEL N10-1331-34

& N10-1331-37

34.00”

86.36cm
or

37.00”

93.98cm

6.12”

15.54cm

Drain valve with

garden hose

hookup.

PLAN VIEW

MODEL N14-1331-34

& N14-1331-37

43.88”

111.45cm

ELEVATION VIEW

MODEL N14-1331-34

& N14-1331-37

Mechanical Data–Standard Unit

MODEL CRATE BTU BTU SHIP
NUMBER HEIGHT UNIT HEIGHT CAPACITY HP AMPS LOAD CAPACITY WEIGHT

N6-1313-34

N6-1313-37

N10-1313-34

N10-1313-37

N14-1313-34

N14-1313-37

The Delfield Company, 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • [phone] • Fax [phone] • www.delfield.com

Delfield reserves the right to make changes in design or specifications without prior notice. ©2003 The Delfield Company. All rights reserved. Printed in U.S.A.

34” (83.8cm)

37” (94cm)

34” (83.8cm)

37” (94cm)

34” (83.8cm)

37” (94cm)

END VIEW

ALL N6/N10/N14 MODELS

6 1/4 5.0 250 1170 382 lbs/ 173 kg

6 1/4 5.0 250 1170 402 lbs/ 182 kg

10 1/4 5.0 350 1320 545 lbs/ 247 kg

10 1/4 5.0 350 1320 565 lbs/ 256 kg

14 1/4 5.0 460 1420 650 lbs/ 295 kg

14 1/4 5.0 460 1420 670 lbs/ 304 kg

MSN6_10_14 04/03
