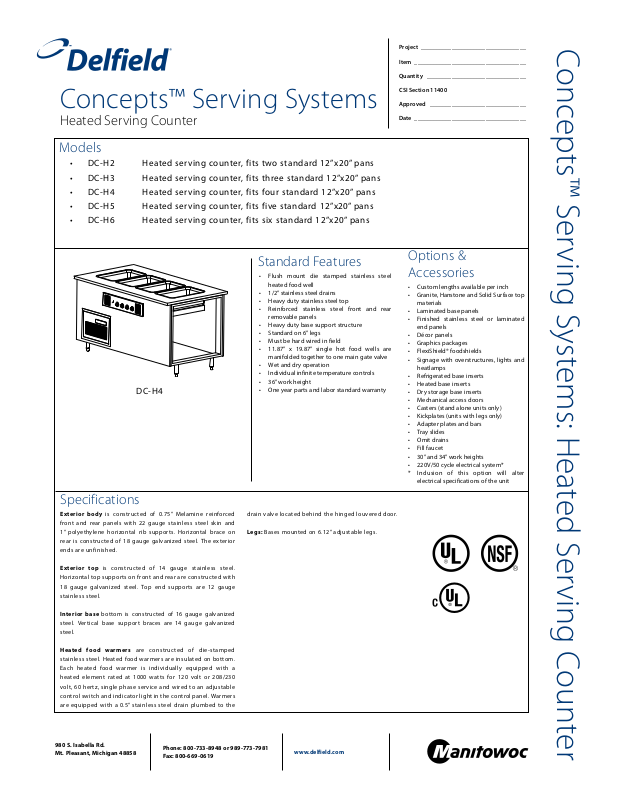

Delfield DC-H2, DC-H4, DC-H5, DC-H6 General Manual
Concepts™ Serving Systems
Heated Serving Counter
Models
DC-H 2 Heated ser ving counter, fits two standard 12”x2 0” pan s
•
•
DC-H 3 Heated ser ving counter, fits three standard 12”x20” pans
•
DC-H 4 Heated ser ving counter, fits four s tandard 12”x20” pans
•
DC-H 5 Heated ser ving counter, fits five s tandard 12”x20” pans
•
DC-H 6 Heated ser ving counter, fits six standard 12”x2 0” pan s
Project ___ ____________________ ___________
Item _________________ ___________________
Quantity _________________ _______________
CSI Sec tion 11400
Approved ____________ ___________________
Date ____ _____________________ ___________
Concepts™ Serving Systems: Heated Serving Counter
DC-H 4
Specifications
Ex terio r b ody is co nstr ucte d of 0. 75” M elam ine re infor ced
fro nt and rear p anel s wit h 22 ga uge st ainl ess st eel s kin a nd
1” po lyeth ylen e hori zont al ri b sup port s. Hor izon tal b race o n
rea r i s const ruct ed of 18 gau ge galv anize d steel . T he exte rior
end s ar e un fini shed .
Standard Features
Flush mo unt die stamp ed sta inless steel
•
heated food well
1/2” stainless s teel drains
•
Heavy dut y stainless stee l top
•
Reinfo rced stain less steel front and rea r
•
removable p anels
Heavy dut y base suppor t structure
•
Standard o n 6” legs
•
Must be hard wired in fi eld
•
11.87” x 1 9.87” si ngle hot fo od wells a re
•
manifolded together to one main gate valve
Wet and dr y operation
•
Individual infinite temperatu re controls
•
36” work height
•
One year parts and labo r standard warrant y
•
dra in v alve loc ated beh ind the hing ed l ouve red door.
Leg s: B ases mou nted on 6.12 ” adj usta ble legs.
Options &
Accessories
Custom leng ths available per inch
•
Granite, Hans tone and Solid Sur face top
•
materials
Laminated base panels
•
Finishe d sta inless stee l or lamina ted
•
end panel s
Décor pan els
•
Graphics p ackages
•
FlexiShield® foodshields
•
Signage with overstructures, lights a nd
•
heatlamps
Refrigerated base inserts
•
Heated bas e inserts
•
Dry sto rage base inser ts
•
Mechanical access doors
•
Casters (s tand alone units only)
•
Kickplate s (units with l egs only)
•
Adapter pla tes and bars
•
Tray slides
•
Omit drain s
•
Fill faucet
•
30” and 34” work heig hts
•
220V/50 c ycle electrical system*
•
Incl usion of this opt ion w ill alter
*
electrica l specifications o f the unit
Ex teri or to p is co nst ruct ed of 14 ga uge sta inl ess st eel .
Hor izon tal t op s uppor ts o n fr ont a nd re ar a re co nstr ucte d wit h
18 ga uge gal vani zed s teel . Top end sup port s ar e 12 gau ge
sta inle ss s teel .
Int erio r base bott om is co nstr ucte d of 16 ga uge g alvan ized
ste el. Ve rti cal b ase sup port bra ces ar e 14 g auge gal vani zed
ste el.
He ated fo od w arm ers ar e co nst ruc ted of di e-s tamp ed
sta inle ss steel . He ated foo d w armer s a re i nsul ated on bott om.
Eac h hea ted f ood w arme r i s ind ivid uall y equ ippe d wit h a
hea ted e leme nt rat ed at 1 000 w atts for 12 0 vol t or 20 8/23 0
vol t, 6 0 h ertz , si ngle ph ase serv ice and wir ed t o an ad justa ble
con trol switc h and indi cator ligh t in t he con trol pane l. Warm ers
are eq uipp ed with a 0. 5” s tainl ess ste el drai n plum bed to the
980 S. I sabella Rd.
Mt. Pleasa nt, Michigan 4885 8
Phone: 800 -733-8948 or 989 -773-7981
Fax: 800-669-0 619
www.delfield.co m
38.00
[97cm]
36.00
[91cm]
6.12
[16cm]
36.00
[91cm]
52.00
[132cm]
36.00
[91cm]
66.00
[168cm]
36.00
[91cm]
80.00
[203cm]
36.00
[91cm]
94.00
[239cm]
36.00
[91cm]
DC-H2 Plan View DC-H3 Plan View
DC-H4 Plan View
Heated Serving Counter
DC-H2 Elevation View DC-H3 Elevation View
DC-H5 Plan View DC-H6 Plan View
DC-H5 Elevation View DC-H6 Elevation View
DC-H4 Elevation View
All Models Right Side View
Specifications
Model Length Depth Height Watts
# of 12”x20”
Pans Held
V/Hz/Ph Amps Ship Weight
DC-H2 38.00” 36.00” 36.00” 2000 2 115/60/1 16.6 228lbs/103kg
DC-H3 52.00” 36.00” 36.00” 3000/4000 3 208230/60/1 15.0/16.0 312lbs/142kg
DC-H4 66.00” 36.00” 36.00” 4000/4800 4 208230/60/1 20.0/22.0 396lbs/180kg
DC-H5 80.00” 36.00” 36.00” 5000/6000 5 208230/60/1 24.0/27.0 480lbs/218kg
DC-H6 94.00” 36.00” 36.00” 6000/7200 6 208230/60/1 29.0/32.0 564lbs/256kg
Concepts™ Serving Systems
Deleld reserves the right to make changes to the design or specications without prior notice.
