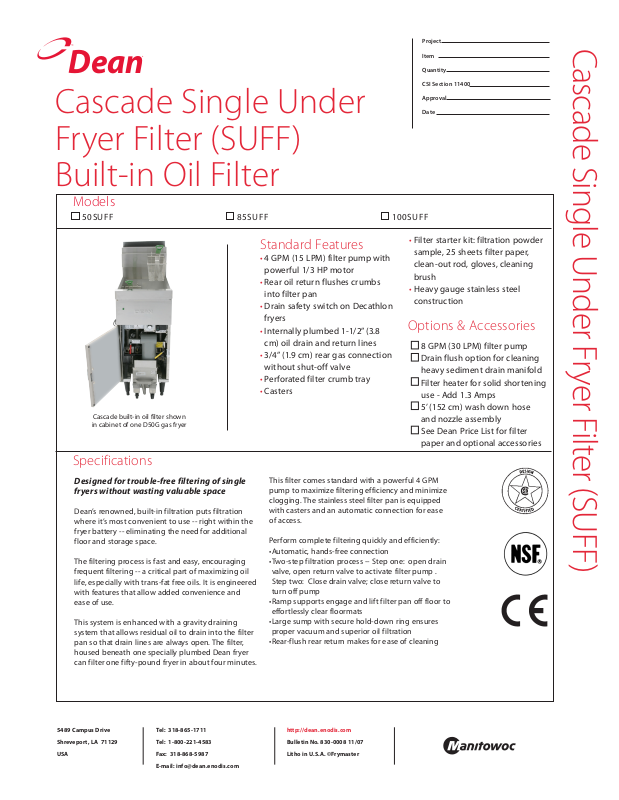

DEAN SUFF Specifications

Cascade Single Under

Dean

™

Fryer Filter (SUFF) Built-in Oil Filter

Models

5 0SUFF 8 5SUFF 1 00SUFF

Project

Item

Quantity

CSI Sec tion 11400

Approval

Date

Cascade Single Under Fryer Filter (SUFF)

Cascade built-in oil filter shown

in cabinet of one D50G gas fryer

Specifications

Designed for trouble-free filtering of single fryers without wasting valuable space

Dean’s renowned, built-in filtration puts filtration where it’s most convenient to use -- right within the fryer battery -- eliminating the need for additional floor and storage space.

The filtering process is fast and easy, encouraging frequent filtering -- a critical part of maximizing oil life, especially with trans-fat free oils. It is engineered with features that allow added convenience and ease of use.

This system is enhanced with a gravity draining system that allows residual oil to drain into the filter pan so that drain lines are always open. The filter, housed beneath one specially plumbed Dean fryer can filter one fifty-pound fryer in about four minutes.

Standard Features

• 4 GPM (15 LPM) filter pump with

powerful 1/3 HP motor

• Rear oil return flushes crumbs

into filter pan

• Drain safety switch on Decathlon

fryers

• Internally plumbed 1-1/2” (3.8

cm) oil drain and return lines

• 3/4” (1.9 cm) rear gas connection

without shut-off valve

• Perforated filter crumb tray

• Casters

This filter comes standard with a powerful 4 GPM pump to maximize filtering efficiency and minimize clogging. The stainless steel filter pan is equipped with casters and an automatic connection for ease of access.

Perform complete filtering quickly and efficiently:

•Automatic, hands-free connection

• Two-step filtration process -- Step one: open drain valve, open return valve to activate filter pump . Step two: Close drain valve; close return valve to turn off pump

• Ramp supports engage and lift filter pan off floor to effortlessly clear floormats

• Large sump with secure hold-down ring ensures proper vacuum and superior oil filtration

•Rear-flush rear return makes for ease of cleaning

• Filter starter kit: filtration powder

sample, 25 sheets filter paper, clean-out rod, gloves, cleaning brush

• Heavy gauge stainless steel

construction

Options & Accessories

8 GPM (30 LPM) filter pump Drain flush option for cleaning

heavy sediment drain manifold

Filter heater for solid shortening

use - Add 1.3 Amps

5’ (152 cm) wash down hose

and nozzle assembly

See Dean Price List for filter

paper and optional accessories

5489 Campus Drive

Shreveport, LA 71129

USA

Tel: 318-865-17 11

Tel: 1-800-221- 4583

Fax: 318-86 8-5987

E-mail: in fo@dean.enodis.com

http://dean. enodis.com

Bulletin N o. 830-0008 11/07

Litho in U.S.A. ©Frymaster

Dean

™

Cascade Single Under Fryer Filter (SUFF)

OIL RETURN

DIMENSIONS

INCHES

[MM]

10.0

[254]

2.0

[51]

CASCADE FILTER PAN

DIMENSIONS*

MO DEL MA X. OI L

50SUF F 50 lb s. ( 25 L) 8” (20 ) 34.57 ” ( 88) 11.25 ” ( 28.5) 100 (45) B 32 .5” (8 3) 36.5 ” (93) 36.5” (93)

85SUF F 85 lb s. ( 39 L) 12.5 8” (32 ) 36.2 (92) 1 1.91” (3 0.2) 110 (49) C 45” ( 114) 4 5” (11 4) 45” (1 14)

100SU FF 100 lbs. (45 L) 14.57” (37) 36.2” (92) 11.91 ” ( 30.2) 125 (57) E 3 5” (89 ) 35” (89) 35” (89)

POWER REQUIREMENTS*

(All Models): 120V/60Hz/1 Ph - 6.2A

SHORT TERM SPECIFICATION

Shall be DEAN built-in oil ﬁlter, Model #________________, Only_______” wide x_______” deep, maximum_______# oil capacity, requiring 120V/6.2A, built to ﬁt inside cabinet of one specially plumbed Dean fryer.

CA PACI TY

FI LTER D IME NSI ONS c m AP PRO XIMATE

WE IGH T L BS.

W B H SM40,

kg

A 15.5” (39) 20” (51) 22” (56)

ORDERING DATA

Please specify: Fryer and ﬁlter model numbers, SUFF available with SM40G,

FR YER D IME NSI ONS c m

SM50, D50

SM60, D60 SM80, D80 ,

18UE

SM50G, SM60G, SM80G, D50G, D60G, D80G, HD60G, HD63G, 18UE

DO NOT CURB MOUNT

* Information on SUFF ﬁlters only -- for fryer specs and power

requirements, see individual fryer spec sheets.

Mode l #________ _______

CSI Section 11400

The 85SUFF ﬁlter is completely contained inside the fryer cabinet; for total ﬂoor space required, see individual fryer spec sheets.

For ﬂoor space requirements on the 50SUFF, add approximately

4.25” (11 cm) to fryer depth.

For ﬂoor space requirements on the 85SUFF, add approximately

2.50” (6 cm) to fryer depth.

5489 Campus Drive

Shreveport, LA 71129

USA

We reserve the right to change speciﬁcations appearing in this bulletin without incurring any obligation for equipment previously or subsequently sold. Check www.frymaster.com for updates.
