Page 1
420120099
OPERA SUB 15OPERA SUB 15
ACTIVE
SUB-WOOFER
ACTIVE
SUB-WOOFER
MANUALE D’USO
USER MANUAL
BEDIENUNGSANLEITUNG
CARACTERISTIQUES TECHNIQUES
Page 2
SAFETY INSTRUCTIONS
CAUTION: TO REDUCE THE RISK OF
ELECTRICAL SHOCK, DO NOT
REMOVE THE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE;
REFER SERVICING TO QUALIFIED
PERSONNEL.
WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRICAL SHOCK. DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
This symbol, wherever it appears, alerts you to the presence of uninsulated
dangerous voltage voltage inside the enclosure - voltage that may be sufficient to
constitute a risk of shock.
This symbol wherever it appears, alerts you to important operating and
maintenance instructions in the accompanying literature. Read the manual.
DETAILED SAFETY INSTRUCTIONS:
All the safety and operation instructions should be read before the appliance is operated.
Retain instructions:
The safety and operating instructions should be retained for future reference.
Heed Warnings:
All warnings on the appliance and in the operating instructions should be adhered to
Follow instructions:
All operation and user instructions should be followed
Water and Moisture:
The appliance should not be used near water (e.g. near a bathtub, washbowl, kitchen sink, laundry tub,
in a wet basement, or near a swimming pool etc.)
Heat:
The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or
other appliance (including amplifiers) that produce heat.
Ventilation
The appliance should be situated so that its location or position does not interfere with its proper
ventilation. The appliance should not be situated to impede the flow of air through the ventilation
opening.
Power Source
The appliance should be connected to a power supply only of the type described in the operating
instructions or as marked on the appliance. In order not to jeopardize the safety of the speaker, it must
only be connected to the mains using the power cable provided. If the power cable plug does not fit
your electrical outlet, contact a qualified electrician to replace the outlet with a suitable one.
Grounding or Polarization:
Precautions should be taken so that the grounding or polarization means of an appliance is not
defeated. To prevent the risk of electrical shock, the metallic parts of the speaker must be earthed. If the
current outlet used for supplying the speaker, is equipped with an earth terminal, the speaker is
earthed by means of the power cable.
Power Cord Protection:
Power supply cords should be routed so that they are not likely to be walked on or pinched by items
placed upon or against them, paying particular attention to cords and plugs, convenience receptacles
and the point where they exit from the appliance.
Cleaning:
Do not use solvents, alcohol, benzene or volatile substances for cleaning the exterior parts.
Non-use Periods:
The power cord of the appliance should be unplugged from the outlet during lighting storms or when
left unused for a long period of time.
7
EnglishEnglishEnglish
user manualuser manual
"AVIS"
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
POUR PREVENIR TOUT RISQUE DE FEU
REPLACER UN FUSIBLE
DE MÊME CARACTERISTIQUES
CET APPAREIL DOIT ÊNTRE RELIÉ A LA TERRE
"CAUTION"
TO PREVENT ELECTRICAL SHOCK
DO NOT REMOVE COVER
TO PREVENT RISK OF FIRE
REPLACE FUSES WITH
SAME TYPE AND RATINGS
THIS APPARATUS MUST BE EARTHED
Page 3
EnglishEnglishEnglish
user manualuser manual
8
Carts, stands and accessories
The component should be used only with a cart or stand that is recommended by the manifacturer. The
Component should be moved with care.
Object and Liquid Entry
Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through
openings.
Damage Requiring Service
- The appliance should be serviced by qualified service personnel when:
- The power supply cord or the plug has been damaged; or
Objects have fallen, or liquid had been spilled into the appliance; or
- The appliance has been exposed to rain; or
- The appliance does not appear to operate normally or exhibits a marked change in
performance; or
- The appliance had been dropped, or the enclosure damaged.
Servicing:
The user should not attempt to service the appliance beyond that is described in the Operating
Instructions. All other servicing should be referred to qualified service personnel.
IMPORTANT NOTES
This manual is to be considered an integral part of the product, and must always accompany the
speaker when it changes ownership as a reference for correct installation and operation as well as for
the safety regulations.
dB Technologies will not assume any responsibility for incorrect installation of the speaker.
OPERATING PRECAUTIONS
- Do not force the amplifier incorporated in the speaker to work in overload for extended periods
of time.
- Never force the control elements (switches, controls, etc.).
CAUTION
- Make sure that the speaker is positioned in a stable and secure way in order to avoid any
dangerous conditions for persons or objects.
CONNECTION
CAUTION
- For connecting the speaker, use only qualified and experienced personnel having sufficient
technical knowledge or specific instructions for making the connections correctly and thus
preventing electrical dangers.
- To prevent the risk of electrical shock, the speaker must only be supplied from the mains after all
connections have been completed.
- Before powering up the speaker, it is advisable to re-check all the connections, making sure in
particular that there are no short circuits.
- The entire sound system must be designed and installed in compliance with the current
standards and regulations regarding electrical systems.
CAUTION
- To prevent inductive phenomena from giving rise to hum or disturbance which would jeopardize
efficient seaker operation, the cables that transmit microphone signals or line level signals
(e.g. 0 dB/V) must be screened and should not be run in the vicinity of:
1) Equipment that produces strong magnetic fields (e.g. large power supply transformers)
2) Electrical energy conductors
3) Lines that supply speakers.
Page 4
9
EnglishEnglishEnglish
user manualuser manual
FEATURES
Microprocessor
Cooling
Amplifier cooling is ensured by a fan controlled by a circuit that automatically regulates
speed in relation to any increase in temperature inside the amplifier.
The four speeds, including stand-by, optimize cooling and ensure reduced forced cooling
noise levels.
For best speaker use, always make sure the amplifier is properly ventilated and never
block the ventilation grilles.
The OPERA SUB 15 amplifier features a processor for managing and controlling the light
indicators (POWER, STATUS, SIGNAL) and the control/protection circuits to ensure
correct system operation.
DESCRIPTION
The OPERA SUB 15 speaker features an 15" woofer with an amplifier able to deliver
800W (RMS).
The subwoofer speaker is made using “BAND PASS” so high sound pressures can be
achieved in compact dimensions. Being made of poplar wood, weight is reduced and
handling is easier.

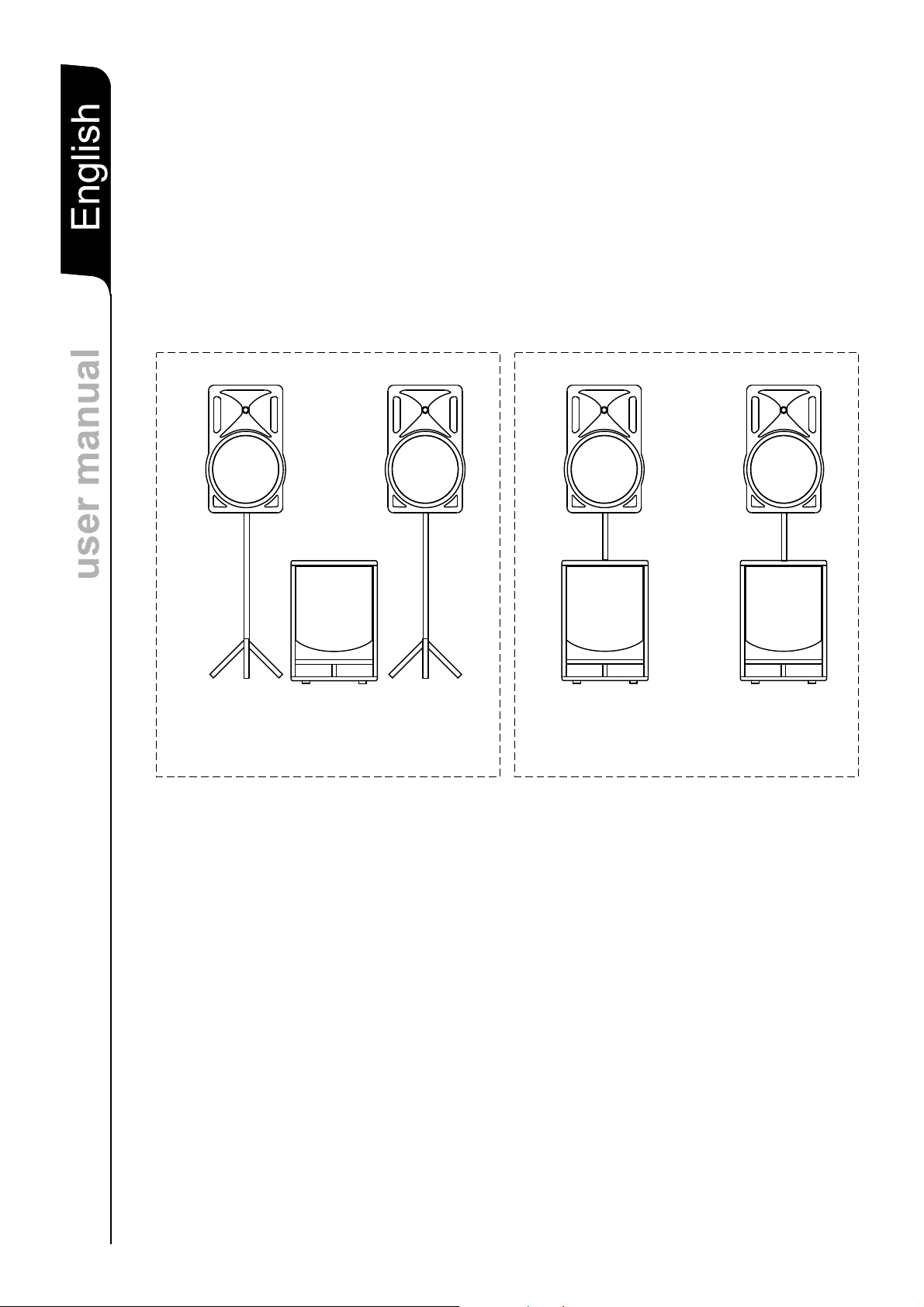

The OPERA SUB 15 diffuser is an active sub-woofer that has been designed to function in
stereo (fig. 1) and in mono (fig. 2) modes.
This sub-woofer is ideal for sounding medium-sized rooms using a pair of diffusers from the
OPERA (212-215) connected in stereo mode or for installations requiring greater sound
pressure, such as those in the open-air, two OPERA SUB 15 diffusers should be used
together with two OPERA (412- 415) diffusers connected in mono mode.

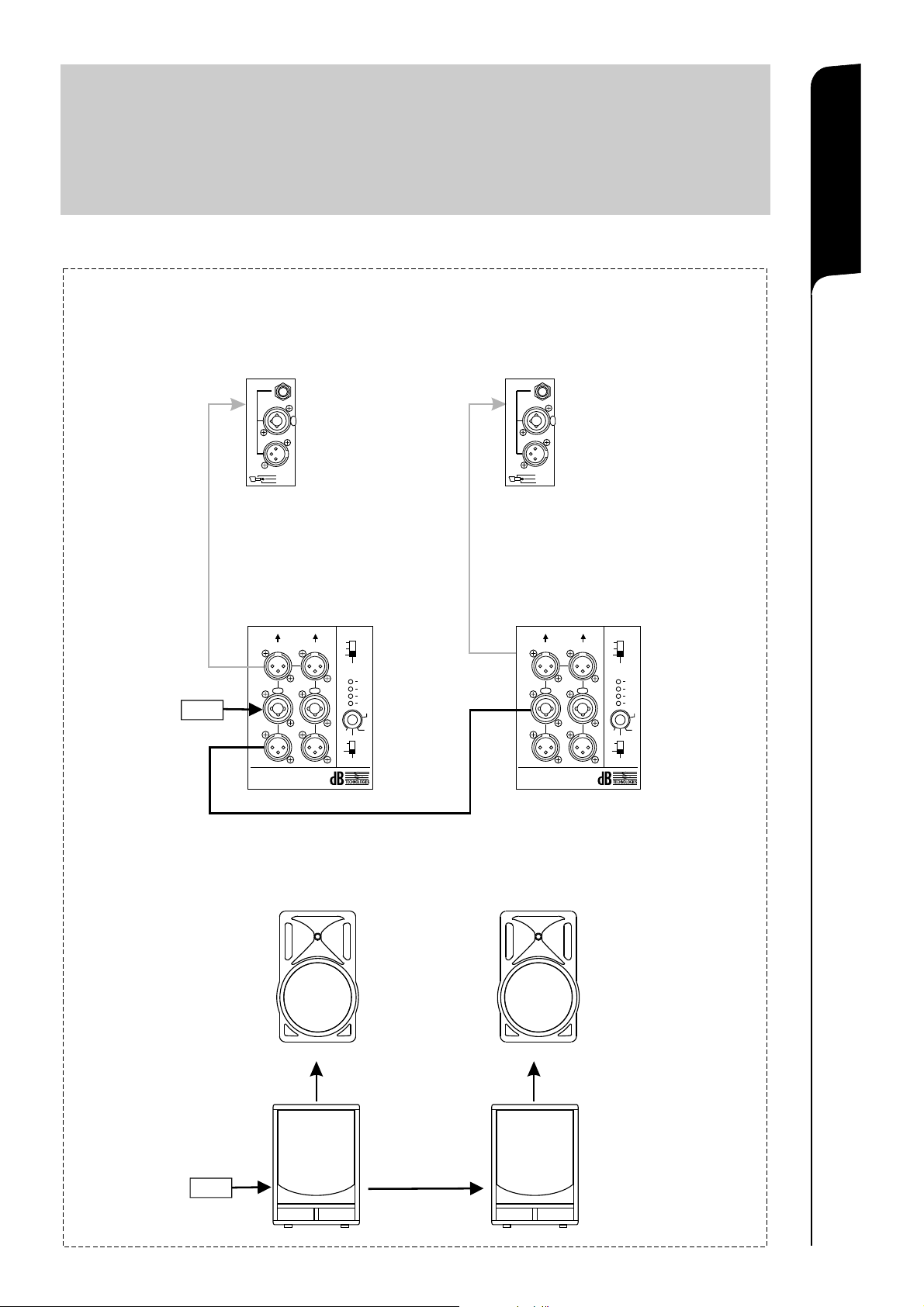

Esempio : 2 x OPERA 412/415
2 x OPERA SUB 15
FIG. 2
BB
dd

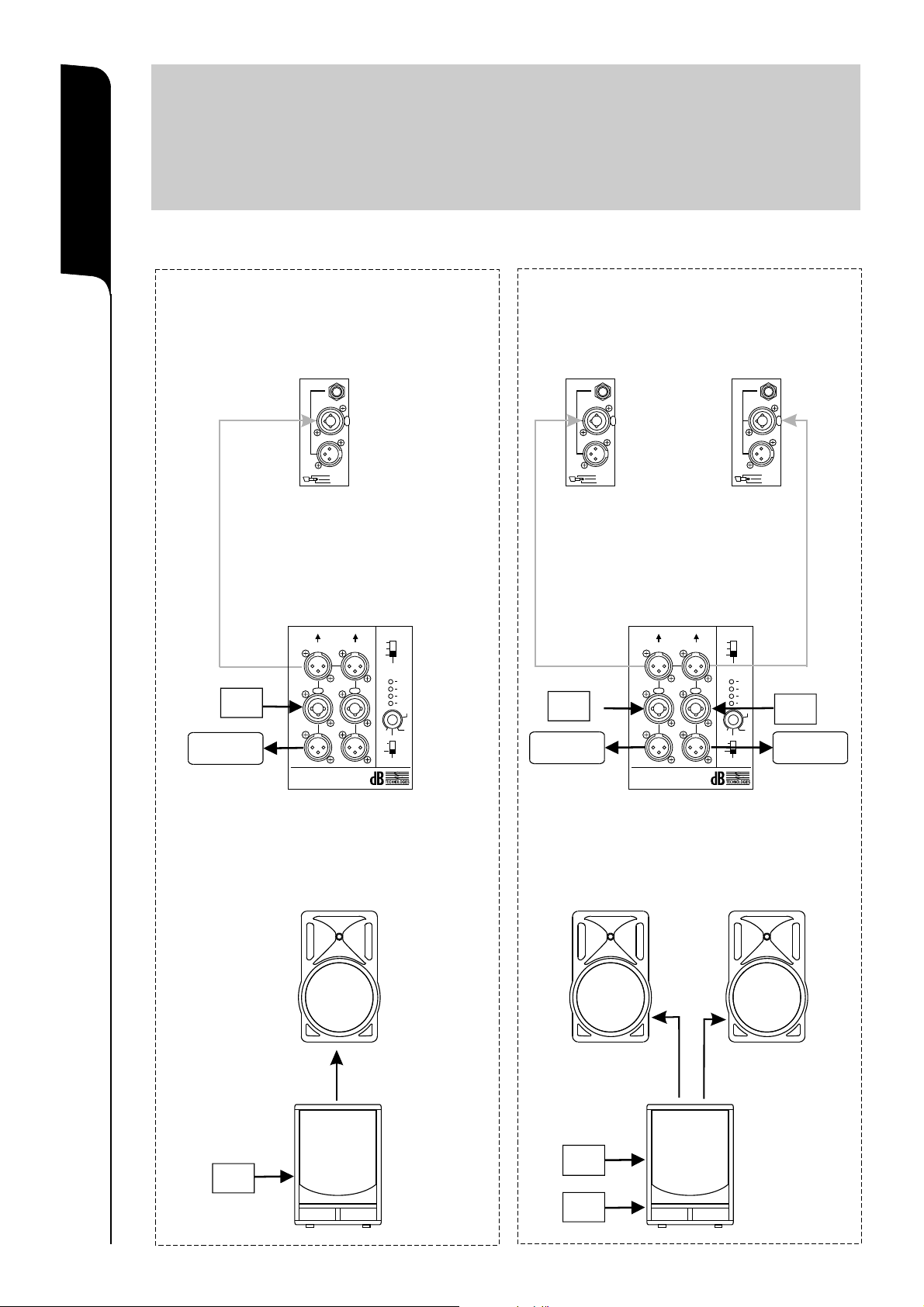

Esempio : 2 x OPERA 212/215
1 x OPERA SUB 15
FIG. 1
BB
dd
BB
dd
CUTOUTS
Thermal cutouts
Thermal cutouts trip whenever the temperature inside the amplifier overheats
(temperature >90°).
Such tripping of the thermal cutouts is indicated by the slow flashing of the "STATUS"
indicator light and by a "mute" status audio signal (see diagnostics table).
Page 5
EnglishEnglishEnglish
user manualuser manual
10
Also featured is a circuit that controls the temperature of the toroidal transformer and
protects this against even the most exasperated operating conditions. If this cutout trips,
then the equipment is being used at the limits of its characteristics.
Such tripping is indicated by the fast flashing of the "STATUS" indicator light and by the
"mute" status audio signal (see diagnostics table).
All functions restart automatically when normal operating temperature is achieved.
Restart times can be fairly long, especially when the thermal cutout of the transformer
trips because the core takes a long time to dissipate the accumulated heat.
CC/DC/RFI
The amplifier features a short-circuit cutout for each output. This cutout places the output
signal of the stage involved in "mute".
The amplifier features relays on the audio outputs. These devices protect the speakers in
case of direct current, radio disturbances, subsonic frequencies and have an anti-bump
function at amplifier switch-on.
Tripping of these cutouts is indicated by the "POWER" indicator light going off and by the
different flashing sequences of the "STATUS" indicator light (see diagnostics table).
The amplifier will start operating normally again when the cutout condition is eliminated.
Power voltage
The amplifier features a circuit that ensures correct speaker operation in case the mains
power voltage is too high.
If the power voltage exceeds a max pre-established value (+15%) for a short time (power
peak), the fault will be indicated by means of the "POWER" indicator light, which will flash
quickly for about 10 seconds (see diagnostics table).
If the power voltage stabilizes at high levels, the amplifier will become disabled.
If the power voltage drops below the minimum established value (about -20%), the fault
will be indicated by means of the "POWER" indicator light which will start flashing slowly
(see diagnostics table).
This function is also useful in case of inadequate power supply wiring.
MODULE ST
ATUS "POWER”
C INDICA
TOR LIGHT
INDICATOR LIGHT
FUN
TIONS
(green)
(yellow)
too low
Slow flashing
Of
f
Complete
too high Fast flashing
Of
f Disengaged
Amplifier On Slow flashing
In mute
r
Transforme
On
Fast flashing
In mute
S
In short circuit CC
Off 1 flash + 1 pause
In mute
Direct current DC
Of
f
1 flash + 1 p
ause In mute
s
Does not work properly Of
f
1 fla
h + 1 p
ause In mute
“STATUS" AUDIO
Power ON On
On for
5 sec. In mute for 5 sec.
Normal use
On Off Complete
Mains power volt
age
Temperature too high
ection amplifier
DIAGNOSTICS TABLE
Page 6
11
EnglishEnglishEnglish
user manualuser manual

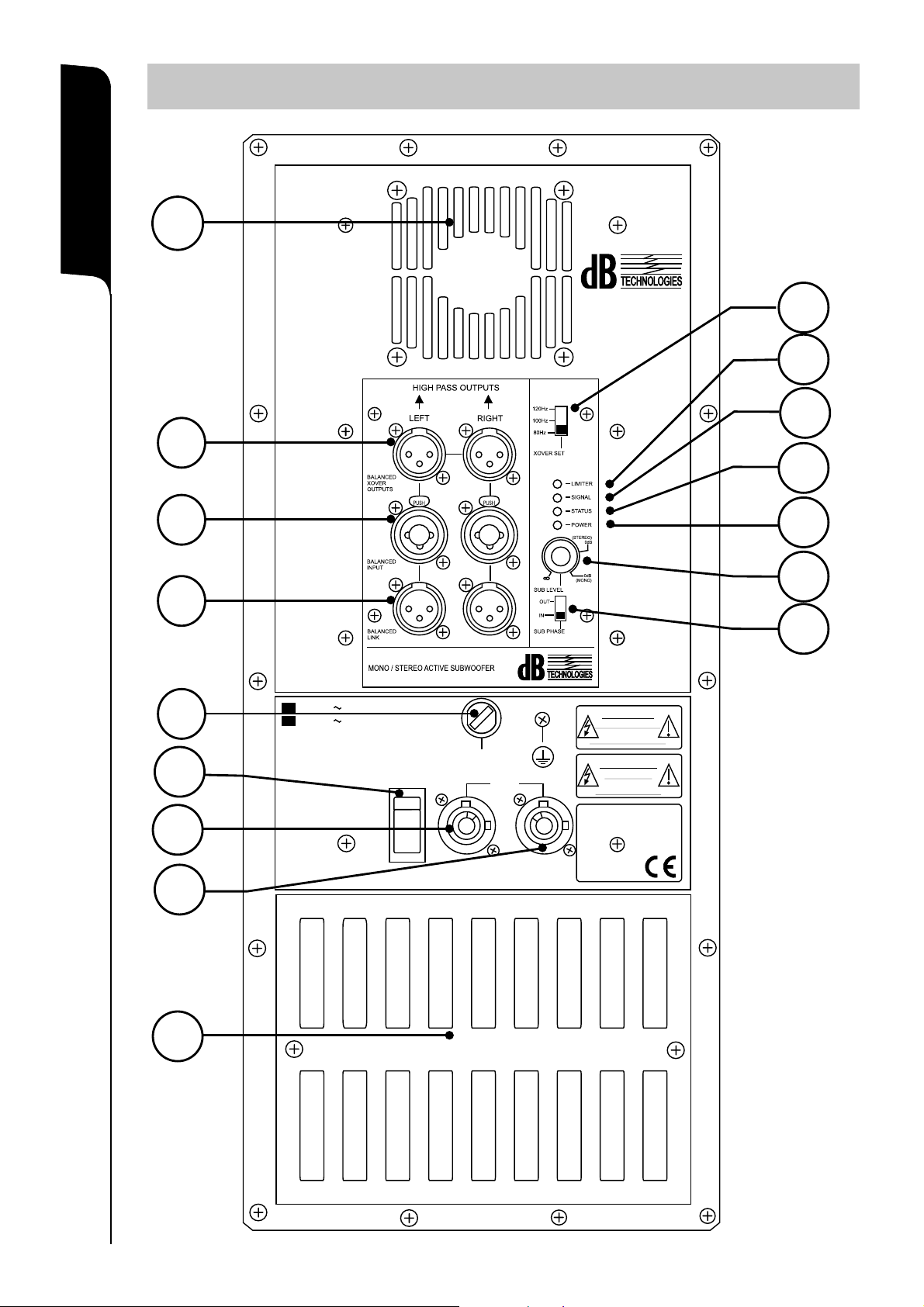

CONTROLS AND FUNCTIONS
1) "POWER" MASTER SWITCH
This switch permits turning the FL18 speaker on and of f.
2) "MAINS FUSE" FUSE CARRIER
Mains fuse housing.
3) "MAINS INPUT" POWER SOCKET
For connecting the power cable provided.
The connector used for mains connection is a POWER CON® (blue)
4) “MAINS OUTPUT LINK” RELAUNCH POWER SOCKET
For relaunching the mains power . The output is connected in p arallel with input (3)
and can be used to power another amplified speaker .
The connector uses a POWER CON® (grey)
5) COOLING GRILLE
These grilles permit cooling the amplifier during operation. Do not block accesses
and clean the grilles whenever necessary to ensure correct air circulation.
The grille on the bottom part of the amplifier features an air filter that can be
removed and cleaned.
6) " BALANCED INPUT” INPUT CONNECTORS (LEFT - RIGHT)
Balanced inputs for connecting balanced or unbalanced audio sources at level
0dBu.
The connectors are able to accept "XLR" sockets or 1/4" Jacks (6.3 mm).
7) "BALANCED LINK” OUTPUT CONNECTORS (LEFT - RIGHT)
The “XLR” connectors connected in parallel with the inputs (6) can be used to send
input audio signals to other amplified speakers.
8) ”BALANCED XOVER OUTPUTS” OUTPUT CONNECTOR (LEFT - RIGHT)
Internal crossover balanced outputs.
These signals must be sent to other OPERA type amplified speakers.
The crossover frequency can be selected by means of the “XOVER SET” switch (9).
9) “XOVER SET” CROSSOVER FREQUENCY SWITCH
This 3-position switch permits selecting the crossover frequency between the
subwoofer and the speakers connected to the XOVER outputs. Choice depends on
the type of speaker used for reproduction of mid-high frequencies.
For speakers with 12” cones, it is best to use 100Hz or 120Hz, while with 15”
speakers, 80Hz or 100Hz.
10) “SUB LEVEL” VOLUME CONTROL
This control regulates only the volume of the subwoofer. The double indication 0dB
(mono-stereo) facilitates balancing between the subwoofer and the satellites in the
stereo/mono configuration.
11) “SUB PHASE” SWITCH
This two-position switch permits turning the audio signal reproduced by the
subwoofer by 180°.
Rotation makes it easier to optimise the reproduction of the low frequencies even in
the most difficult installation situations. After completing installation, play a piece of
music and move the switch to achieve the best sound reproduction at low
frequencies.
12) “POWER” INDICATOR LIGHT
This indicator comes on green to indicate that the main power voltage is correct. In
normal operating conditions, the LED is on; if it flashes or is off, refer to the
diagnostics table to check amplifier status.
AMPLIFIER PANEL (FIG. 1)
Page 7
EnglishEnglishEnglish
12

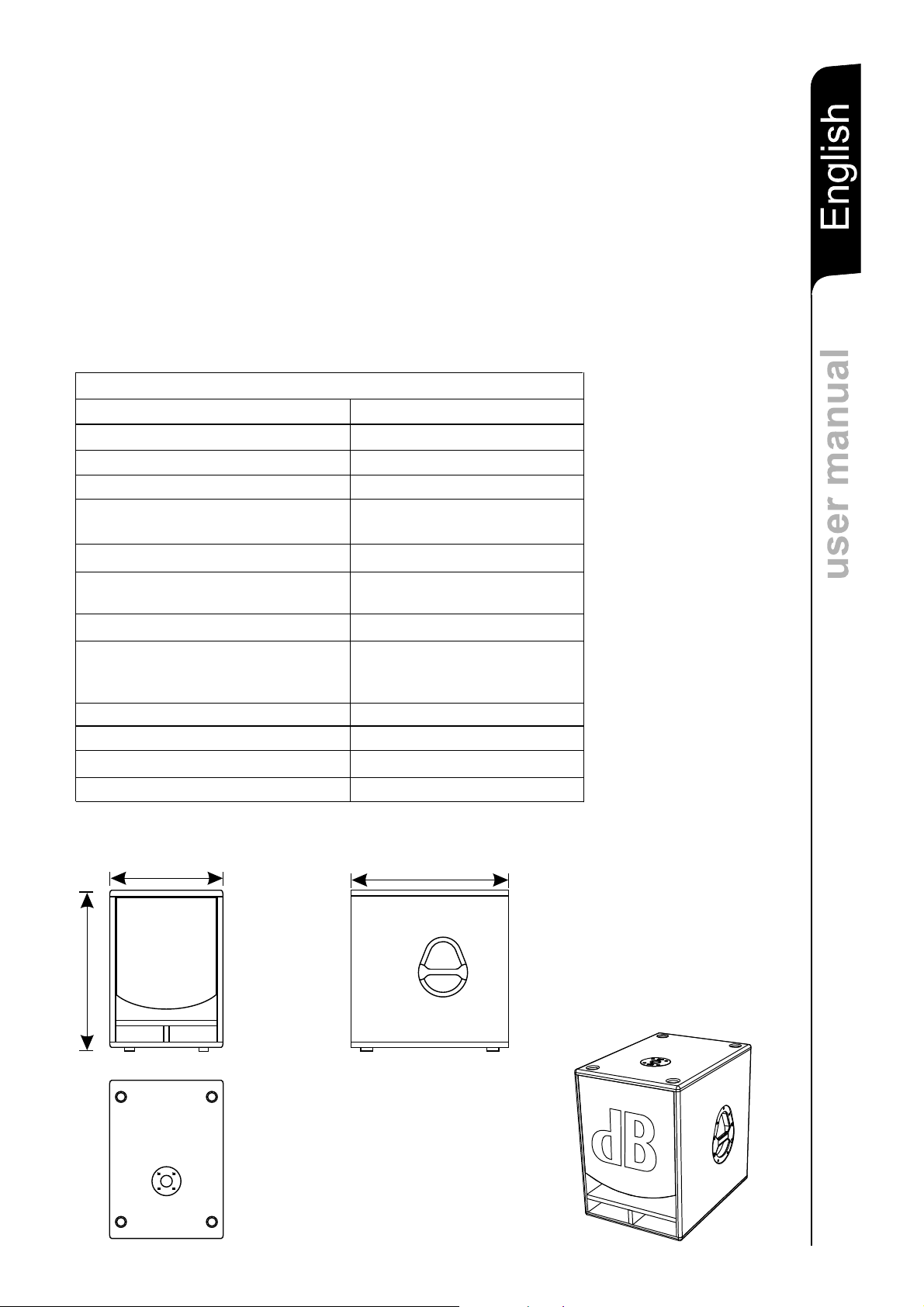

TECHNICAL SPECIFICATION
TECHNICAL DETAIL
System BAND PASS Active
Type of amplifier class H
RMS power 800W
Frequency response 40-120Hz
Crossover
Sound pressure (SPL) 133 peak
Component parts 1 woofer 15”
Input sensitivity 0 dBu (max)
Impedance input
Balanced 20Kohm
Unbalanced
Speaker shape rectangular
Dimension [LxHxP] 430x600x600mm
Weight 32Kg
80Hz -100HZ - 120Hz
12dB/oct
3” coil - aluminium basket
10Kohm
Power supply As indicated on rear panel
user manualuser manual
DIMENSIONI
430mm
600mm
BB
dd
600mm
13) “STATUS” INDICATOR LIGHT
This yellow indicator indicates amplifier status. In normal operating conditions, the
LED is off; if it flashes or is always on, refer to the diagnostics table to check
amplifier status.
14) “SIGNAL” INDICATOR LIGHT
This indicator comes on green to indicate the presence of the audio signal (at a level
of -20dB).
15) “LIMITER” INDICATOR LIGHT
This indicator comes on red to indicate that the internal limiter circuit has tripped.
This prevents amplifier distortion and protects the speakers against overloads.
Page 8
25
3
4
1
2
5
5
12
13
14
15
11
10
9
7
6
8
220-240V 50-60Hz (FUSE T 5A)
OUTPUT LINK
INPUT
Internal voltage setup
MODULE POWER
CONSUMPTION
220-240V AC MAX 15A
110-120V AC MAX 10A
900 VA MAX
110-120V 50-60Hz (FUSE T10A)
MAINS
POWER
ON
FUSE
MAINS
OPERA SUB 15OPERA SUB 15
Made in Italy
"AVIS"
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
POUR PREVENIR TOUT RISQUE DE FEU
REPLACER UN FUSIBLE
DE MÊME CARACTERISTIQUES
CET APPAREIL DOIT ÊNTRE RELIÉ A LA TERRE
"CAUTION"
TO PREVENT ELECTRICAL SHOCK
DO NOT REMOVE COVER
TO PREVENT RISK OF FIRE
REPLACE FUSES WITH
SAME TYPE AND RATINGS
THIS APPARATUS MUST BE EARTHED
MODEL : SERIAL N.
MICROPROCESSOR
CONTROL SYSTEM
FIG. 1
Page 9
26
L
N
MAINS
OUTPUT
LINK

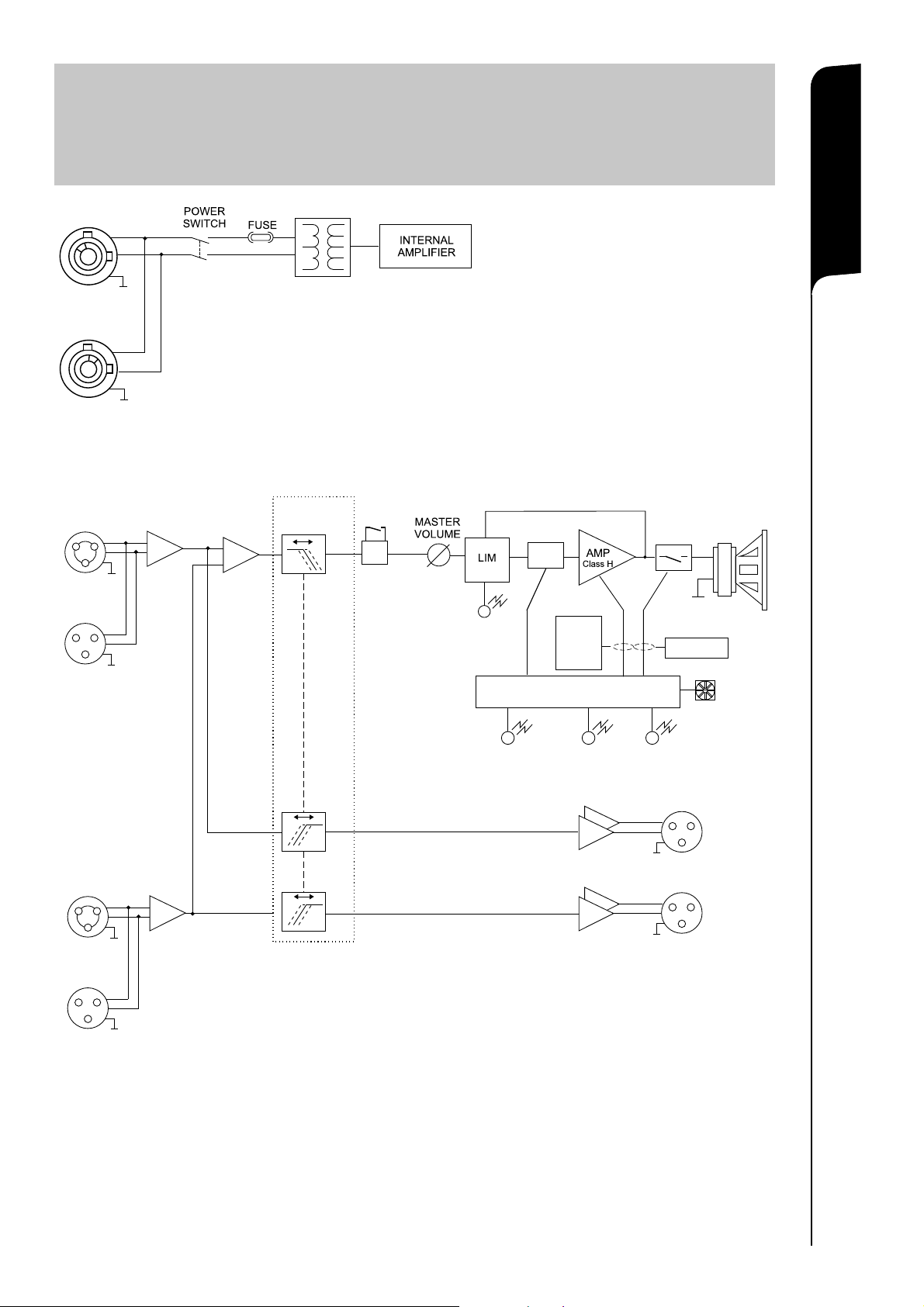

SCHEMA A BLOCCHI
BLOCK DIAGRAM
BLOCKSCHALTBILD
SCHEMAS FONCTIONNELS
mute
rele’ control
WOOFER 15”
thermal
current
voltage
sensors
SIGNAL
INDICATOR
STATUS
INDICATOR
POWER
INDICATOR
BALANCED
INPUT
LIMITER
INDICATOR
BALANCED
LINK
MICROCONTROLLER
Low-pass
filter
12dB/oct
High-pass
filter
12dB/oct
X-OVER SET
80Hz-100Hz-120Hz
BALANCED
INPUT
BALANCED
LINK
OUT PHASE
0° / 180°
LEFT
RIGHT
High-pass
filter
12dB/oct
LEFT
RIGHT
MAINS
INPUT
BALANCED
XOVER
OUTPUT
BALANCED
XOVER
OUTPUT
Page 10
(STEREO)
0dB
SUB LEVEL
LIMITER
SIGNAL
STATUS
BALANCED
INPUT
BALANCED
LINK
POWER
XOVER SET
MONO / STEREO ACTIVE SUBWOOFER
100Hz
120Hz
80Hz
BALANCED
XOVER
OUTPUTS
0dB
(MONO)
RIGHT
HIGH PASS OUTPUTS
LEFT
SUB PHASE
IN
OUT
8
PUSH PUSH
27
STEREO
FULL RANGE
OUT
OPERA SUB 15
MONO
MIXER
RIGHT
MIXER
LEFT
ACTIVE SPEAKER
ACTIVE SPEAKER
BB
dd
(STEREO)
0dB
SUB LEVEL
LIMITER
SIGNAL
STATUS
BALANCED
INPUT
BALANCED
LINK
POWER
XOVER SET
MONO / STEREO ACTIVE SUBWOOFER
100Hz
120Hz
80Hz
BALANCED
XOVER
OUTPUTS
0dB
(MONO)
RIGHT
HIGH PASS OUTPUTS
LEFT
SUB PHASE
IN
OUT
8
PUSH PUSH
BALANCED
INPUTS / LINK
1 - GND
2 - HOT
3 - COLD
PUSH
BALANCED
INPUTS / LINK
1 - GND
2 - HOT
3 - COLD
PUSH
FULL RANGE
OUT
BALANCED
INPUTS / LINK
1 - GND
2 - HOT
3 - COLD
PUSH
ACTIVE SPEAKER
OPERA SUB 15
FULL RANGE
OUT
BB
dd
MIXER
RIGHT
MIXER
LEFT
COLLEGAMENTI
CABLE CONNECTIONS
VERKABELUNG
CABLAGE
MIXER
LEFT
MIXER
LEFT
Page 11
28
MONOLINK
MIXER
OPERA SUB 15
MIXER
OPERA SUB 15
ACTIVE SPEAKESACTIVE SPEAKES
BB
dd
BB
dd
BALANCED
INPUTS / LINK
1 - GND
2 - HOT
3 - COLD
PUSH
BALANCED
INPUTS / LINK
1 - GND
2 - HOT
3 - COLD
PUSH
(STEREO)
0dB
SUB LEVEL
LIMITER
SIGNAL
STATUS
BALANCED
INPUT
BALANCED
LINK
POWER
XOVER SET
MONO / STEREO ACTIVE SUBWOOFER
100Hz
120Hz
80Hz
BALANCED
XOVER
OUTPUTS
0dB
(MONO)
RIGHT
HIGH PASS OUTPUTS
LEFT
SUB PHASE
IN
OUT
8
PUSH PUSH
(STEREO)
0dB
SUB LEVEL
LIMITER
SIGNAL
STATUS
BALANCED
INPUT
BALANCED
LINK
POWER
XOVER SET
MONO / STEREO ACTIVE SUBWOOFER
100Hz
120Hz
80Hz
BALANCED
XOVER
OUTPUTS
0dB
(MONO)
RIGHT
HIGH PASS OUTPUTS
LEFT
SUB PHASE
IN
OUT
8
PUSH PUSH
COLLEGAMENTI
CABLE CONNECTIONS
VERKABELUNG
CABLAGE
Page 12
Loading...
