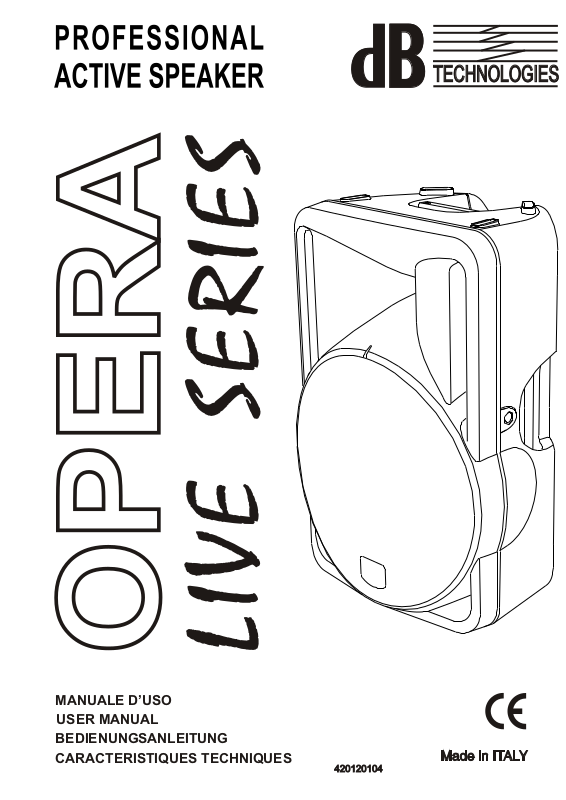

Page 1
BB
dd
TECHNOLOGIESTECHNOLOGIES
PROFESSIONAL ACTIVE SPEAKER
PROFESSIONAL ACTIVE SPEAKER
MANUALE D’USO
USER MANUAL BEDIENUNGSANLEITUNG CARACTERISTIQUES TECHNIQUES
LIVE SERIES
420120104420120104
Page 2
UTILIZZI E INSTALLAZIONI
Utilizzo in appoggio (impilato)
Utilizzo con supporto piantana
Utilizzo a pavimento (monitor)
Il kit di fissaggio con staffa è opzionale (codice WB 08)
Installazione fissa
45°
1,4mt
ItalianoItalianoItaliano
Manuale dusoManuale d’uso
5
ATTENZIONE
Non utilizzare mai le maniglie per appendere il diffusore!
Il kit di fissaggio con golfari è opzionale (codice AFL 04)
Page 3
EnglishEnglishEnglish
6
user manualuser manual
SAFETY INSTRUCTIONS
CAUTION: TO REDUCE THE RISK OF
ELECTRICAL SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE; REFER SERVICING TO QUALIFIED PERSONNEL.
WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRICAL SHOCK. DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure - voltage that may be sufficient to constitute a risk of shock.
This symbol wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. Read the manual.
DETAILED SAFETY INSTRUCTIONS:
Read these instructions
All the safety and operation instructions should be read before the apparatus is operated.
Keep these instructions
The safety and operating instructions should be retained for future reference.
Heed all warnings
All warnings on the apparatus and in the operating instructions should be adhered to
Follow all instructions:
All operation and user instructions should be followed
Water and moisture
Do not use this apparatus near water (e.g. near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool etc.)
Cleaning
Clean only with a dry cloth. Do not use solvents, alcohol, benzene or volatile substances for cleaning the exterior parts.
Ventilation
Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions. The apparatus should be situated so that its location or position does not interfere with its proper ventilation.
Heat
Do not install the apparatus near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
Grounding or Polarization
Do not defeat the safety purpose of the polarized or grounding/type plug. To prevent the risk of electrical shock, the metallic parts of the speaker must be earthed. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. Speaker shall be connected to a MAINS socket outlet with a protective earthing connection.
Power Source
The apparatus should be connected to a power supply only of the type described in the operating instructions or as marked on the apparatus. In order not to jeopardize the safety of the speaker, it must only be connected to the mains using the power cable provided. DPDT Mains Switch is used as the disconnect device located at the rear.
Power Cord Protection
Protect the power cord from being walked on or pinched particularly al plugs, convenience receptacles, and the point where they exit from the apparatus.
Accessories
Only use attachments/accessories specified by the manufacturer.
"AVIS"
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
POUR PREVENIR TOUT RISQUE DE FEU
REPLACER UN FUSIBLE
DE MÊME CARACTERISTIQUES
CET APPAREIL DOIT ÊNTRE RELIÉ A LA TERRE
"CAUTION"
TO PREVENT ELECTRICAL SHOCK
DO NOT REMOVE COVER
TO PREVENT RISK OF FIRE
REPLACE FUSES WITH
SAME TYPE AND RATINGS
THIS APPARATUS MUST BE EARTHED
Page 4
7
EnglishEnglishEnglish
user manualuser manual
Carts and stands
Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
Non-use Periods:
Object and Liquid Entry
Damage Requiring Service
Servicing:
IMPORTANT NOTES
This manual is to be considered an integral part of the product, and must always accompany the speaker when it changes ownership as a reference for correct installation and operation as well as for the safety regulations.
dB Technologies will not assume any responsibility for incorrect installation of the speaker.
OPERATING PRECAUTIONS
- Do not force the amplifier incorporated in the speaker to work in overload for extended periods of time.
- Never force the control elements (switches, controls, etc.).
CAUTION
- Make sure that the speaker is positioned in a stable and secure way in order to avoid any dangerous conditions for persons or objects.
CONNECTION
- For connecting the speaker, use only qualified and experienced personnel having sufficient technical knowledge or specific instructions for making the connections correctly and thus preventing electrical dangers.
- To prevent the risk of electrical shock, the speaker must only be supplied from the mains after all connections have been completed.
- Before powering up the speaker, it is advisable to re-check all the connections, making sure in particular that there are no short circuits.
- The entire sound system must be designed and installed in compliance with the current standards and regulations regarding electrical systems.
CAUTION
- To prevent inductive phenomena from giving rise to hum or disturbance which would jeopardize efficient speaker operation, the cables that transmit microphone signals or line level signals (e.g. 0 dB/V) must be screened and should not be run in the vicinity of:
1) Equipment that produces strong magnetic fields (e.g. large power supply transformers)
2) Electrical energy conductors
3) Lines that supply speakers.
PROTECTION SYSTEM
The speaker is equipped of a exclusive system, which protects the loudspeakers against overheating, ensuring the maximum reliability in all professional applications. In addition, a sophisticated system incorporated in the amplifier handles the limiter circuits and the protection against overheating and short circuits.
Unplug this apparatus during lightning storms or when unused for long periods of time.
Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
Refer all servicing to qualified service personnel. Servicing is required when:
- the apparatus has been damaged in any way;
- the power-supply cord or the plug has been damaged;
- the liquid had been spilled or objects have fallen into the apparatus;
- the apparatus has been exposed to rain or moisture
- the apparatus does not operate normally or exhibits a marked change in performance;
- the apparatus had been dropped.
The user should not attempt to service the apparatus beyond that is described in the Operating Instructions. All other servicing should be referred to qualified service personnel.
CAUTION
Page 5
EnglishEnglishEnglish
8
COMMANDS AND FUNCTIONS
1) “VOLUME” CONTROL
The knob regulates the diffuser's volume. This control does not affect the output “LINK” levels.
2) “INPUT SENSITIVITY” SENSITIVITY SWITCH
Position the switch in LINE to use a line level source (0 dB) or MIC to use a microphone.
3) “LIMITER-PROTECTION” INDICATOR LIGHT
The “LIMITER-PROTECTION” indicator light comes on red during start (for a few seconds) and when the internal audio limiter engages. This avoids the amplifier's distortion and protects the loudspeakers against overloads.
4) “POWER ON - READY” INDICATOR LIGHT
The “POWER ON - READY” indicator light comes on green to indicate that the amplifier is switched on and it is working properly.
6) “BALANCED INPUTS LINK” CONNECTORS
These balanced inputs can be used to connect balanced or unbalanced microphones or audio sources at line level (0dB) (eg. preamplifier, mixer, recorder, CD player, musical instrument, ...). The balanced connector is connected in parallel and can be used to send the audio signal to other amplified speakers, recorders or supplementary amplifiers.
7) POWER SWITCH “POWER”
This switch can be used to switch the diffuser on and off.
8) POWER CABLE SOCKET “MAINS”
Used for connecting the power cable supplied.
9) FUSE CARRIER “FUSE”
Mains fuse housing.
10) VOLTAGE CHANGE “VOLTAGE SELECTOR”
For changing the power voltage of the speaker (240/120V). This switch is preset and protected by the manufacturer.
The blue indicator light indicates speaker start.
AMPLIFIER PANEL (FIG. 1)
SPEAKER FRONT (FIG.2)
1) INDICATOR LIGHT
5) EQUALIZATION CONTROL
This control permits the equalization of the speaker. The "FLAT" central position permits a linear sound reproduction of the speaker. By turning the control towards “VOICE”, the response curve of the speaker highlights the mid frequencies while if the control is turned towards ”MUSIC”, the low and high frequencies are highlighted. This control does not affect the level of the output signal (link).
Page 6
9
EnglishEnglishEnglish
user manualuser manual
TECHNICAL SPECIFICATION
BALANCED INPUTS LINK
VOLTAGE SELECTOR
FUSEMAINS
INPUT SENSITIVITY
MAX
0
VOLUME
POWER
d
B
TECHNOLOGIES
MADE IN ITALY
LIVE SERIES
1 = GND 2 = HOT 3 = COLD
1 = GND 2 = HOT 3 = COLD
1 = GND 2 = HOT 3 = COLD
IMPEDANCE LINE MIC BALANCED 30KW 1K2W UNBALANCED 15KW 600W
EARTH
ON
OFF
PROTECTION
READY
-40dB MIC 0dB LINE
EQ.
MUSIC
VOICE
FLAT (NORMAL)
LIMITER
POWER ON
"AVIS"
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
POUR PREVENIR TOUT RISQUE DE FEU
REPLACER UN FUSIBLE DE MÊME CARACTERISTIQUES
CET APPAREIL DOIT ÊNTRE RELIÉ A LA TERRE
"CAUTION"
TO PREVENT ELECTRICAL SHOCK
DO NOT REMOVE COVER TO PREVENT RISK OF FIRE REPLACE FUSES WITH SAME TYPE AND RATINGS
THIS APPARATUS MUST BE EARTHED
REFLEX HOLES
HANDLE
FASTENING THE THREADED INSERT BRACKET (M10)
FASTENING THE THREADED INSERT BRACKET (M10)
FASTENING THE THREADED INSERT BRACKET (M10)
TECHNICAL FEATURES OPERA LIVE OPERA LIVE OPERA LIVE OPERA LIVE
202 205 402 405
System bi-amp bi-amp bi-amp bi-amp Amplifier type TREBLE - class AB TREBLE - class AB TREBLE - class AB TREBLEI - class AB
BASS - class H BASS - class H BASS - class H BASS - class H Power RMS 150W LF + 50W HF 150W LF + 50W HF 250W LF+50W HF 250W LF+50W HF Musical section power 300W LF + 100W HF 300W LF + 100W HF 500W LF+100W HF 500W LF+100W HF Frequency response 68 - 18.000 Hz 68 - 18.000 Hz 60 - 18.000 Hz 60 - 18.000 Hz Crossover Ft 2000 Hz Ft 2000 Hz Ft 2000 Hz Ft 2000 Hz
DR 12 dB/oct DR 12 dB/oct CD 12 dB/oct CD 12 dB/oct
W 12dB/oct W 12dB/oct W 12dB/oct W 12dB/oct Sound pressure (SPL) 120 dB max 121 dB max 128 dB max 128 dB max Loudspeakers 1 woofer 12" 1 woofer 15" 1 woofer 12” 1 woofer 15”
voice coil 2” voice coil 2” voice coil 2,5” voice coil 2,5”
1 driver 1" 1 driver 1” 1 compress. driver 1 compress. driver
1” exit-voice coil 1,5” 1” exit-voice coil 1,5” Input sensivity -40dB / 0dB (switch) -40dB / 0dB (switch) -40dB / 0dB (switch) -40dB / 0dB (switch) Impedance LINE/MIC
Balanced 30KW/1K2W 30KW/1K2W 30KW/1K2W 30KW/1K2W Unbalanced 15KW/600W 15KW/600W 15KW/600W 15KW/600W
Power supply see label box Dimension (LxHxP) 406x650x350 mm 406x650x350 mm 406x650x350mm 406x650x350 mm Weight 14,2 Kg 15,2 Kg 18,2 Kg 19,2 Kg
HANDLE
45° PLANE
AMPLIFIER
Æ 36mm PEDESTAL/BRACKET HOUSING
WOOFER
DRIVER
REFLEX HOLES
HANDLE
45° PLANE
350mm
650mm
406mm
INDICATOR LIGHT
Page 7
EnglishEnglishEnglish
10
Use with pedestal stand
Floor use (monitor)
The bracket fastening kit is optional (code WB 08)
Fixed wall installation
USES AND INSTALLATIONS
45°
1,4mt
WARNING
Never use the handles to hang the speaker!
The fastening kit with eye-bolts is optional (code AFL 04)
Supported use (stacked)
Page 8
7
d
B
TECHNOLOGIES
ON
OFF
POWER
EARTH
VOLTAGE
SELECTOR
FUSEMAINS
11 22 33
IMPEDANCE LINE MIC BALANCED 30KW 1K2W UNBALANCED 15KW 600W
MAX
0
LIMITER - PROTECTION
EQUALIZATION
MUSIC
VOICE
FLAT
1
2
3
1 = GND 2 = HOT 3 = COLD
1
2
3
1 = GND 2 = HOT 3 = COLD
-40dB MIC 0dB LINE
LIVE SERIES
1 = GND 2 = HOT 3 = COLD
BALANCED INPUTS LINK
INPUT SENSITIVITY
VOLUME
POWER ON - READY
"AVIS"
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
POUR PREVENIR TOUT RISQUE DE FEU
REPLACER UN FUSIBLE
DE MÊME CARACTERISTIQUES
CET APPAREIL DOIT ÊNTRE RELIÉ A LA TERRE
"CAUTION"
TO PREVENT ELECTRICAL SHOCK
DO NOT REMOVE COVER
TO PREVENT RISK OF FIRE
REPLACE FUSES WITH
SAME TYPE AND RATINGS
THIS APPARATUS MUST BE EARTHED
1
2
5
4
3
6
10
8
9
FIG. 1
OPERA LIVE 400 series OPERA LIVE 200 series
21
Page 9
FIG. 1
BALANCED INPUTS LINK
VOLTAGE SELECTOR
FUSEMAINS
INPUT SENSITIVITY
MAX
0
VOLUME
POWER
d
B
TECHNOLOGIES
MADE IN ITALY
LIVE SERIES
1 2 3
1
2
3
1 = GND 2 = HOT 3 = COLD
1
2
3
1 = GND 2 = HOT 3 = COLD
1 = GND 2 = HOT 3 = COLD
IMPEDANCE LINE MIC BALANCED 30KW 1K2W UNBALANCED 15KW 600W
EARTH
ON
OFF
PROTECTION
READY
-40dB MIC 0dB LINE
EQ.
MUSIC
VOICE
FLAT (NORMAL)
LIMITER
POWER ON
"AVIS"
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
POUR PREVENIR TOUT RISQUE DE FEU
REPLACER UN FUSIBLE
DE MÊME CARACTERISTIQUES
CET APPAREIL DOIT ÊNTRE RELIÉ A LA TERRE
"CAUTION"
TO PREVENT ELECTRICAL SHOCK
DO NOT REMOVE COVER
TO PREVENT RISK OF FIRE
REPLACE FUSES WITH
SAME TYPE AND RATINGS
THIS APPARATUS MUST BE EARTHED
7
1
2
5
4
3
6
8
22
9
10
Page 10
23
Anello
Gambo
Punta = Positivo/Caldo/Fase +VE
Anello = Negativo/Freddo/Fase -VE
Punta
Gambo
Punta = Segnale
Gambo=Schemo/Massa/Terra
Funzionamento sbilanciato con connettore jack 1/4” (6,3mm)
1
2
3
Ingresso
XLR - maschio
Pin 3 =Negativo/Freddo/Fase -VE
1
2
3
Uscita
XLR - femmina
1
2
3
Funzionamento sbilanciato con connettore XLR
Ingresso
XLR - maschio
Pin 2 = Positivo/Caldo/Fase +VE
Pin 1 =Schermo/Terra/Massa
1
2
3
Uscita
XLR - femmina
Pin 3 = Connesso al Pin 1
Pin 3 = Connesso al Pin 1
Funzionamento bilanciato con connettore jack 1/4” (6,3mm)
Gambo=Schemo/Massa/Terra
Punta
Funzionamento bilanciato con connettore XLR
Pin 1 =Schermo/Terra/Massa
Pin 2 = Positivo/Caldo/Fase +VE
Pin 2 = Positivo/Caldo/Fase +VE
Pin 1 =Schermo/Terra/Massa
Pin 1 =Schermo/Terra/Massa
Pin 2 = Positivo/Caldo/Fase +VE
Pin 3 =Negativo/Freddo/Fase -VE
COLLEGAMENTI - CONNECTIONS
BRANCHEMENTSANSCHLÜSSE -
Tip
Sleeve
Tip = Signal
Sleeve=Screen/Ground/Earth
Unbalanced use of stereo 1/4” jack plug
Tip
Ring
Sleeve
Tip = Positive/Hot/+VE Phase
Ring=Negative/Cold/-VE Phase
Sleeve=Screen/Ground/Earth
Balanced use of stereo 1/4” jack plug
Balanced use with XLR connectors
Input
XLR - male
Pin 2 = Positive/Hot/+VE Phase
Pin 3 =Negative/Cold/-VE Phase
Pin 1 =Screen/Ground/Earth
Output
XLR - female
Pin 2 = Positive/Hot/+VE Phase
Pin 3 =Negative/Cold/-VE Phase
Pin 1 =Screen/Ground/Earth
Unbalanced use with XLR connectors
Input
XLR - male
Pin 2 = Positive/Hot/+VE Phase
Pin 1 =Screen/Ground/Earth
Output
XLR - female
Pin 2 = Positive/Hot/+VE Phase
Pin 1 =Screen/Ground/Earth
Pin 3 = Link to Pin 1
Pin 3 = Link to Pin 1
FIG. 2
OPERA LIVE frontal box
1
Page 11
12dB/oct.
VOLUME
COMPRESSION DRIVER
SENS
-40dB / 0dB
SCHEMA A BLOCCHI
BLOCK DIAGRAM
BLOCKSCHALTBILD
DIAGRAMA EM BLOQUES
OPERA LIVE 400 series
12dB/oct.
12dB/oct.
BALANCED INPUTS LINK
L
N
MAINS
FUSE
POWER SWITCH
VOLTAGE
SELECTOR
INTERNAL AMPLIFIER
TRANSFORMER
LIMITER
PROTECTION
INDICATOR
POWER ON
READY
INDICATOR
DELAY
EQUALIZATION
WOOFER
12dB/oct.
VOLUME
DRIVER
SENS
-40dB / 0dB
OPERA LIVE 200 series
12dB/oct.
12dB/oct.
BALANCED INPUTS LINK
L
N
MAINS
FUSE
POWER SWITCH
VOLTAGE
SELECTOR
INTERNAL AMPLIFIER
TRANSFORMER
LIMITER
PROTECTION
INDICATOR
POWER ON
READY
INDICATOR
DELAY
EQUALIZATION
WOOFER
24
Page 12
AEB s.r.l.
Via Brodolini, 8 - 40056 Crespellano (Bo) - ITALIA Tel. + 39 051 969870 - Fax. + 39 051 969725 Internet: www.dbtechnologies-aeb.com E-mail: info@dbtechnologies-aeb.com
Loading...
