Sigma Series
4
www.dbtechnologies.com
Sigma S115 Sigma S118Sigma S215
Active Speakers
PA hire companies, musicians and DJs expect nothing less than professional sound and stellar performance from a prestigious European manufacturer, even
when on a tight budget. dBTechnologies lives up to these expectations with a newly developed line of affordable yet state-of-the-art powered speakers.
Called the SIGMA Series, it features new custom speaker components as well as the latest generat ion DSPs and digital power amps.
Engineered for portability
Musicians and DJs who provide their own backline need a reliable sound system that sets up in a flash and is easily tweaked without a lot of fuss. It has
to respond directly and predictably to every mix. Live acts need resilient speakers w ith lots of load handling capacity and the staying power necessary to
operate at high levels for hours on end. The rig has to deliver tight, punchy bass response that gets people dancing as well as assertive mids and a sparkling
top end. And it has to be easy to handle. The SIGMA line does all this and more.
H.E.T™ Housing
Exceptionally light and remarkably rugged Developed by dBTechnologies, H.E.T (Hypr id Enclose Technology) housings are made of premium quality multiply
wood with a hardwearing, durable, and scratch-resistant coating. Tough, rugged plast ic side panels provide excellent protection for the housing as well as
integrated grips and electr ical connectors for utmost handling convenience and safety.
Digital processing for professional sound through and through
The integrated digital sound processor allows the final touches to be made to your sound, rounding it out to a warm, natural tone with powerful bass and
sparkling high frequencies. A variety of signal processing presets allows you to achieve your perfect sound w ith the minimum of fuss. All in all, the SIGMA
series is a fully integrated range of produc ts for professional use, setting a new standard in the field of live amplification and quite unique amongst its
competitors.
digipro G2® More power to your power amp — from a world leader in technology
dBTechnologies leads the way in the field of digital amplification. Our fully integrated digipro® G2 modules were developed specifically for use in very
compact active systems, based on the innovative technology designed for our digipro® G2 power amps and used in our high- end DVA and DV X ser ies
products, which set new standards for performance from such a compact package. The digipro® G2 power amp modules are rated at more than 90%
efficient, as only digital amplification can be. That means that they have no need of built-in fans and are extremely reliable and stable in operation.
Moreover, digipro® G2 ‘s components are protected by our tried and tested built-in limiters, and our carefully designed c ircuitry ensures that the output
remains even and transparent — the most important qualities for maximum listening pleasure — even in noisy environments.
5
www.dbtechnologies.com
Sigma Series
2 x Sigma S118
1 x Sigma S115
1 x Sigma S118
1 x Sigma S115
Sigma S115
2-Way Active Speaker 15“/1.4“, 1000 W
This active 15“/ 1.4“ two-way system is musicians and DJs’ first choice
in a fullrange FOH speaker. The S115’s reach is remarkable thanks to
its asser tive midrange, prominent top end, and constant directivity at
high sound pressure levels
Specifications
15“ woofer
1.4“ titanium compr. driver, 2.8” v.c.
60°x40° CD horn
1000 W digipro®G2 power
46 – 20.000 Hz (-10dB)
Max. SPL: 133 dB
56 bit high resolution DSP
24bit 48 kHz AD converter
Line/ Mic Input/ XLR/Jack
Powercon In/out
Weight: 33 kg/72.6 lbs
Dimensions (WxHxD):
509 x 765 x 533mm / 20 x 30.1 x 20.9“
6
www.dbtechnologies.com
Active Speakers
Sigma S215
3-Way Active Speaker 2 x 15“/1.4“, 1400 W
Many venues demand high SPL and low-ranging response. However, a
fullrange enclosure is often the only viable option for some of these
applications. Loaded with two 15“ woofers designed to handle considerable loads, the S215 is the solution of choice for such scenarios.
Specifications
2x 15“ woofer
1.4“ titanium compr. driver, 2.8” v.c.
60°x40° CD horn
1400 W digipro®G2 power
42 – 20.000 Hz (-10dB)
Max. SPL: 139 dB
56 bit high resolution DSP
24bit 48 kHz AD converter
Line/ Mic Input/ XLR/Jack
Powercon In/out
Weight: 50 kg/ 110 lbs
Dimensions (WxHxD):
509 x 1215 x 533mm / 20 x 47.8 x 20.9“
Sigma S118
Active Subwoofer 18“, 1400 W
The S118 is a powerful, active 18“ subwoofer housed in a bassreflex enclosure. Designed specifically to provide low-frequency support for highperformance S115 fullrange speakers, it packs a mighty low-ranging bass
punch. S118 and S115 enclosures have the same width so they are easily
stacked to set up professional-grade PA systems.
Specifications
18“ woofer, 4” v.c.
1400 W digipro®G2 power
32Hz- 110 Hz (-10dB)
Max. SPL: 134 dB
56 bit high resolution DSP
24bit 48 kHz AD converter
Line Input XLR
X-over/ Link out
Powercon In/out
M20 pole mount
Weight: 38 kg/ 83.6 lbs
Dimensions (WxHxD):
509 x 815 x 533mm / 20 x 32 x 20.9“
7
www.dbtechnologies.com
Flexsys Series
Features
_
More power, less weight
_
Multiplex housing
_
Versatile and robust
Technology
_
digipro® - Digital Amplifier
_
SMPS
_
DSP
_
Dual Active Limiter
_
Multifunctional Housing
_
Bi-Amp
_
Asymmetrical Horn
_
Rigging Points
_
Rotatable Horn
8
www.dbtechnologies.com
Active Speakers
Flexsys – Adapts to anything!
The Flexsys line offers a tailored solution for every application, be it in the guise of a fullrange cabinet, a satellite in combination with SUB 808D, SUB 15D or
SUB 18D subwoofers, a stage monitor, or part of a permanently installed system. Equipped with the latest high-end audio features such as an on-board DSP and
bi-amped digital power amps, it is phenomenally easy to handle. Readily configurable to satisfy the individual needs of discerning musicians and DJs, Flexsys sets
performance and reliability standards for its class.
Flexsys F8 Flexsys F10 Flexsys F12 Flexsys F15
Flexsys F212 Flexsys F315
Flexsys FM12Flexsys FM10Flexsys FM8
9
www.dbtechnologies.com
Flexsys Series
Flexsys F8
2-Way Active Speaker 8“/1“ 400 W
The Flexsys F8 is a two-way mid-/high-range unit designed especially
for use in a fully active configuration w ith added subwoofers. Loaded
with an 8” woofer and a 1“ driver, it delivers clear, richly detailed
response across the midrange and top end.
Specifications
8“ woofer
1“ neodym compr. driver
90/40°x60°asym. CD horn
400 W digipro®
90 – 190 00 Hz (+/-3dB)
Max. SPL: 121 dB
24 bit 48 kHz DSP
Line / Mic input / XLR / jack
Multifunctional housing
10x M8 rigging points
Weight: 9.5 kg
Dimensions (WxHxD):
260 x 420 x 260 mm
Flexsys F10
2-Way Active Speaker 10“/1“ 400 W
The F10 not only offers the best size-to-per formance ratio, it is also
very versatile. Sporting a 10“ woofer, it can also serve as a fullrange
enclosure for smaller applications.
Specifications
10“ woofer
1“ neodym compr. driver
90/40°x60°asym. CD horn
400 W digipro®
80 – 19000 Hz (+/-3dB)
Max. SPL: 125 dB
24 bit 48 kHz DSP
Line / Mic input / XLR / jack
Multifunctional housing
12xM8 rigging points
Weight: 12 kg
Dimensions (WxHxD):
300 x 483 x 300 mm
10
www.dbtechnologies.com
Active Speakers
Flexsys F12
2-Way Active Speaker 12“/1“ 800 W
The two -way enclosure loaded with a 12“ speaker is so frequently
used for sound reinforcement applications that it has become a
de facto standard.
Specifications
12“ woofer
1“ compr. driver
90x40° asym. CD horn
800 W digipro®
75 – 19000 Hz (+/-3dB)
Max. SPL: 127 dB
24 bit 48 kHz DSP
Line / Mic input/ XLR / jack
Multifunctional housing
12xM10 rigging points
Weight: 16.5 kg
Dimensions (WxHxD):
360 x 610 x 360 mm
Flexsys F15
2-Way Active Speaker 15“/1“ 800 W
The Flexsys F15 is a great choice for rendering canned music as well
as for reinforcing electronic instruments such as keyboards. Thanks
to its rotatable high-frequency horn and integrated rigging points,
the Flexsys F15 is also an excellent fit for permanent installation.
Specifications
15“ woofer
1“ compr. driver
90x40° asym. CD horn
800 W digipro®
60 – 19000 Hz (+/-3dB)
Max. SPL: 128 dB
24 bit 48 kHz DSP
Line / Mic input/ XLR / jack
Multifunctional housing
12xM10 rigging points
Weight: 20 kg
Dimensions (WxHxD):
430 x 680 x 430 mm
www.dbtechnologies.com
Flexsys Series
FLexsys F212
2-Way Active Speaker 2x12“/1“ 1000 W
The F212 is an active two-way system with considerable reach. A very
efficient and powerful mid-/high-range unit, it was designed to be
combined w ith active subwoofers to construct high- performance PA
systems.
Specifications
2 x 12” woofer
1“ RCF neodym compr. driver
60x40° asym. CD horn
1000 W digipro®
65 – 19000 Hz (+/-3dB)
Max. SPL: 132 dB
24bit 48 kHz DSP
Line/ XLR
Clusters from 2 to 3 cabinets
12xM10 rigging points
Weight: 31.5 kg
Dimensions (WxHxD):
360 x 930 x 50 0mm
FLexsys F315
2-Way Active Speaker 15“/6,5“/1“ 1000 W
The F315 is an active three-way system designed to render the
full frequency range. Powerful and assertive, it delivers the sonic
goods without requiring an added subwoofer.
Specifications
15“ woofer
6.5” Hornloaded mid range
1“ compr. driver
90x40° CD horn
1000 W digipro®
60 – 19000 Hz (+/-3dB)
Max. SPL: 131 dB
24bit 48 kHz DSP
Line/ XLR
12xM10 rigging points
Weight: 31 kg
Dimensions (WxHxD):
440 x 880 x 500mm
12
www.dbtechnologies.com
Flexsys FM Series
Active Coaxial Stage Monitors
A revolution in live sound reinforcement, the Flexsys FM Series comprises a range of
tailored monitoring solut ions featuring innovative technologies. Housed in compact
multifunctional enclosures, these units raise the bar for intelligibility, definition, and ease
of use. They are the discerning user ’s first choice when nothing less than the best on-stage
monitoring will do.
Coaxial speakers – Remarkably resistant to feedback
These newly developed coaxial speakers deliver extraordinary sound quality that defies the
compact design of their housings. Engineered for precise direct ivity and uniform throw
patterns, they prov ide the same satisfying audio exper ience at every listening position,
with far greater resistance to feedback.
TM
(Hybrid Enclosure Technology) - Exceptionally light and remarkably rugged
H.E.T
Developed by dBTechnologies, H.E.T
wood with a hardwear ing, durable, and scratch- resistant coating.
Tough, rugged plastic side panels prov ide excellent protection for the housing as well as integrated gr ips, pole mount, and electrical connectors for utmost
safety. The enclosures may be tilted at two different angles for accurate sound-to-audience
alignment.
TM
housings are made of premium-quality multiply
handling convenience and
13
www.dbtechnologies.com
Flexsys FM Series
14
digipack™ digital amplifiers — from a world
leader in technology
Our fully integrated digipack™ modules were
developed specifically for use in very compact
active systems, based on the innovative
technology designed for our digipro® power
amps and used in our high-end DVA and DVX
series products.
The digipack™ power amp modules are rated at
more than 90% efficient, that means that they
have no need of built-in fans and are extremely
reliable and stable in operation. Moreover,
digipack™‘s components are protected by
our tried and tested built-in limiters, and our
carefully designed circuitry ensures that the
output remains even and transparent — the
most important qualities for maximum listening
pleasure — even in noisy environments.
DSP with eight presets for easy adaptation to
varying requirements
FM Series monitors feature a powerful DSP
that offers a crossover, digital multiband limiters,
phase correction, and eight variable presets
that ser ve to adapt the monitor to the varying
demands of vocalists, instrumentalists, and audio
playback applications.
Flexsys FM 8
Active Coaxial Stage Monitor 8“/1“ 200 W
Designed for small stages, the FM 8 sports an 8“ woofer that makes
it the ideal ultra compact monitor for speech and vocals. All but invisible in most venues, this inconspicuous compact monitor integrates
into every setting, and its light weight makes it so easy to tote.
Specifications
8“/1“ Coaxial speaker
200 W
Class-D digipack™
77 – 2000 0 Hz (+/-3dB)
Max. SPL 117 dB
Integrated 24 bit DSP
8 Presets
H.E.T™ housing
Two set-up angles
Integrated pole mount
Dimensions (WxHxD):
280 x 290 x 410 mm
Weight: 9,8 kg
www.dbtechnologies.com
Active Coaxial Stage Monitors
Flexsys FM 10
Active Coaxial Stage Monitor 10“/1“ 400 W
The FM 10 renders vocals with such remarkable power, dynamics, and
precision that it can serve as a compact fullrange system. This and
its extended bass response make it the ideal monitor for vocals and
keyboards.
Flexsys FM 12
Active Coaxial Stage Monitor 12“/1“ 600 W
The FM 12 is the first choice for demanding musicians and DJs who
work in loud environments. Featuring a 12“ woofer and considerable
power handling capability, it is well equipped for use as a powerful
fullrange monitor. The FM 12 packs an assert ive punch, render ing
lead vocals, guitars, electronic instruments, and playback tracks with
power and authority.
Specifications Specifications
10“/1“ Coaxial speaker
400 W
Class-D digipack™
72 – 20 000 Hz (+/-3dB)
Max. SPL 120 dB
Integrated 24 bit DSP
8 Presets
H.E.T™ housing
Two set-up angles
Integrated pole mount
Dimensions (WxHxD):
370 x 290 x 410 mm
Weight: 12,8 kg
Class-D digipack™
12“/1“ Coaxial speaker
600 W
67 – 20000 Hz (+/-3dB)
Max. SPL 126 dB
Integrated 24 bit DSP
8 Presets
H.E.T™ housing
Two set-up angles
Integrated pole mount
Dimensions (WxHxD):
450 x 290 x 410 mm
Weight: 17 kg
15
www.dbtechnologies.com
Flexsys Gala & Concert Systems
Flexsys Gala System
High dynamics, powerful low-end
GALA and CONCERT are remarkably compact systems that may be
combined and extended flexibly with diverse add- ons.
And that makes them the per fect sound reinforcement solutions
for demanding applications requiring a high-per formance system
that is easy to set up and transport even in very limited space.
Specifications
3-Way Active System
6000 W
2 x Flexsys F212
4 x SUB15 D
Flexsys Concert System
Powerful to the last row
Thanks to the remarkably compact size and extended flexibly, the
Flexsys CONCERT system is the perfect sound reinforcement solution
for applications demanding a high-performance system that is easy
to set up and transport even in very limited space.
Specifications
3-Way Active System
7600 W
2 x Flexsys F212
2 x SUB 18 D
16
www.dbtechnologies.com
Flexsys Systems
Presenter-System
3-Way Active-System
This tried-and-true satellite system consists of two F8 mid-/highrange units and one SUB 12D subwoofer. Able to deliver powerful
performance in a small and light package, it is sure to delight
entertainers and DJs.
Specifications
3-Way Active System
1200 W
2 x Flexsys F8
2 x SUB 12 D
17
www.dbtechnologies.com
Flexsys Systems
Event System
3-Way Active-System
This compact PA for club gigs comprises two F10 mid-/high-range
units and two SUB 05D subwoofers.
Specifications
3-Way Active System
1800 W
2 x Flexsys F10
2 x SUB 05 D
Band System
3-Way Active-System
This classic power pack for bands and rental companies comprises
two F12 mid-/high-range units and two SUB 15D subwoofers tweaked
to deliver high performance and offer flexible application options.
Specifications
3-Way Active System
3600 W
2 x Flexsys F12
2 x SUB 15 D
18
www.dbtechnologies.com
Active Subwoofers
The Subwoofer Company
dBTechnologies is well known for its remarkable active subwoofers with outstanding
performance, combining powerful and precise subsonic reproduction with excellent tonal
quality. The dBTechnologies’ bandpass design guarantees a well balanced reproduction
of sound but adding a few dB SPL extra, compared to regular bass-reflex designs. The result
is maximum per formance, out of a very compact and lightweight enclosure.
Active Crossover – Easy Setup
All powered subwoofers are equipped with an active crossover, which can operate in Mono
or Stereo mode, providing all combinations for applications with one or more subwoofers.
digipro® digital amplifiers – More power and less weight
With digital power amps lightening the load, toting and setting up these bins is an exercise
in convenience. This handling ease is an asset users are sure to value, particularly those
frequently tasked to set up and tear down systems for live applicat ions.
TM
(Hybrid Enclosure Technology)*
H.E.T
Exceptionally light and remarkably rugged
Developed by dBTechnologies, H.E.T
with a hardwear ing, durable, and scratch-resistant coating. Tough, rugged plastic side panels
provide excellent protection for the housing as well as integrated grips and elec trical
connectors for utmost handling convenience and safety.
TM
housings are made of premium-quality multiply wood
19
www.dbtechnologies.com
Active Subwoofers
SUB 28 D
Active 2x8“ Subwoofer
We engineered the SUB 28 D to provide low-end reinforcement for
compact satellites such as dBTechnologies L and K Series speakers.
This light and lean enclosure houses two 8“ woofers driven by a 400W
digital power amp and an onboard digital stereo x-over. Setting up
mono and stereo satellite systems is a piece of cake with this amp and
DSP on board.
Specifications
2x8” Woofer
400 W Class-D digipack™
45 Hz- 150 Hz
Max. SPL 125 dB
24 bit DSP w ith stereo X- Over
Switchable x-over frequencies
Phase Reverse
2x Line Input/ XLR
Pole Mount
Dimensions (WxHxD):
290 x 520 x 505 mm
Weight: 19,5 kg
SUB 12 D
Active 12“ Subwoofer
Equipped with a 400W digital power amp, the SUB 12 D is the perfect
complement to 8“ or 10“ speaker systems for users looking to set up
small but assertive satellite systems that deliver exceptional performance. Featuring compact dimensions and the innovative H.E.T
housing, this unit is easy to transport and set up. Connecting satellites
is an exercise in convenience thanks to an integrated digital crossover
(DSP) with adjustable frequency.
Specifications
12” Woofer
400 W Class-D digipack™
40 Hz- 150 Hz
Max. SPL 127 dB
24 bit DSP w ith stereo X- Over
Switchable x-over frequencies
Phase Reverse
2x Line Input/ XLR
Pole Mount
Dimensions (WxHxD):
390 x 515 x 500 mm
Weight: 19 kg
TM
20
www.dbtechnologies.com
SUB 05 D
Active 15“ Subwoofer
SUB 808 D
Active 18“ Subwoofer
The 500W SUB 05 D is an excellent choice for extending 10“ and 12” loudspeakers’ range. It packs the kind powerful low-end punch necessary for
contemporary sounds and pumps out plenty of SPL for live applications. The
unit connects easily and quickly courtesy of a built-in digital stereo crossover
(DSP) with adjustable frequency and a phase inversion switch. Housed in the
TM
newly developed H.E.T
enclosure featuring integrated
control features, this rugged cabinet tough enough to stand up to the
rigors of transport.
Specifications
15” Woof er
500 W Class-D digipack™
30 Hz- 150 Hz
Max. SPL 129 dB
24 bit DSP w ith stereo X- Over
Switchable x-over frequencies
Phase Reverse
2x Line Input/ XLR
Pole Mount
Dimensions (WxHxD):
490 x 515 x 610 mm
Weight: 27 kg
Sporting an 18” woofer loaded to a bandpass housing and an onboard
800W digital power amp, the SUB 808 D delivers a low-ranging bass foundation to provide precisely the low- end support 12“ and 15” speaker systems need. Such rigs are easily set up, connected and configured thanks
to the built-in digital stereo x-over (DSP) with switchable cutoff frequency,
phase reverse switch, and integrated control features. The H.E.T™ enclosure is a tough, road-wor thy housing that keeps the components inside well
protected.
Specifications
18” Woofer
800 W Class-D digipack™
30 Hz- 140 Hz
Max. SPL 130 dB
24 bit DSP w ith stereo X- Over
Switchable x-over frequencies
Phase Reverse
2x Line Input/ XLR
Pole Mount
Dimensions (WxHxD):
640 x 520 x 615 mm
Weight: 34.8 kg
www.dbtechnologies.com
Active Subwoofers
22
www.dbtechnologies.com
SUB 15D
Active 15“ Subwoofer
SUB 18D
Active 18“ Subwoofer
Loaded w ith 15” woofer and featuring band- pass cabinet, the SUB 15D
is a remarkably agile and responsive speaker system. Driven by an onboard digipro® digital power amp, this bin packs a power ful low-end
punch per fect for render ing kick drums with high SPL.
Specifications
15“ Woofer, 3” v.c.
1000 W digipro® power
SMPS with PFC
Powercon In and Out
40 – 90/120 Hz (+/-3dB)
Max. SPL: 133 dB
Stereo active x-over
2x Line input/ XLR
M20 pole mount
Weight: 32 kg
Dimensions (WxHxD):
436 x 600 x 600mm
The SUB 18D is the first- choice bass bin for users seeking powerful punch
and ultra low-end response. Fine-tuned to augment and amplify the highpower 18” woofer’s audio performance, this custom engineered bandpass enclosure outper forms conventional bass-reflex designs, achieving
higher peak levels.
Specifications
18“ Woofer, 4” v.c.
1400 W digipro® power
SMPS with PFC
Powercon In and Out
35 – 90/120 Hz (+/-3dB)
Max. SPL: 134 dB
Stereo active x-over
2x Line input/ XLR
2x M20 pole mount
Weight: 42 kg
Dimensions (WxHxD):
530 x 700 x 600mm
23
www.dbtechnologies.com
OPERA DX
Features
_
More power, less weight
Technology
_
digipro® - Digital Amplifier
_
SMPS
_
Bi-Amp
_
DSP
_
Dual Active Limiter
_
Multifunctional Housing
_
PP Housing
_
Asymmetrical Horn
_
Low-Noise-Reflex-Ports
24
www.dbtechnologies.com
Advanced Active Technology
OPERA DX
dBTechnologies has added another chapter to the celebrated Opera Series’ 12-year success story: Welcome to the new Opera DX line. Our engineers have
again succeeded in treating users to state-of-the-art features and functions unrivalled in this price range. The digipro® G2 digital power amps, DSPs and
asymmetrical horns have been tuned to deliver peerless performance. And with that, the three Opera DX 500, 700, and 900 lines provide a tailored solution
for every sound reinforcement application.
The secret to the extraordinary performance of products bearing the dBTechnologies brand is the custom design effort that went into each component.
These units outperform their rivals because almost every component was developed from the bottom up for the given product.
All components in an OPERA system are manufactured in our plants or sourced from trusted suppliers that we have relied on for many years, with dBTechnologies’ quality assurance experts rigorously monitoring the production process. Final assembly takes place at our home base in Bologna, Italy, where we
burn in speakers and put every enclosure to the test for several hours before it ships.
®
This painstaking attention to detail has made the OPERA series one of the most successful and most frequently copied speaker systems. dBTechnologies
leverages leading-edge technologies and proven manufacturing processes to continue making – in Italy rather than offshore - quality products that deliver
unmatched performance for the price.
www.dbtechnologies.com
25
OPERA DX
The Opera DX 500 line features a host of custom-designed components including DSPs, 500W amps and speakers tweaked to deliver premium audio
quality for live acts
Opera 508 DX
Loaded w ith a powerful, custom-engineered 8“ woofer, the compact
Opera 508DX enclosure is fine-tuned for warm, natural-sounding
response. It renders speech and vocals w ith great authenticity and
excels as a satellite, for example, when paired with the SUB12D
subwoofer.
Specifications
8“ Woofer
1“ Driver
80/65° x 60°asym. CD Horn
500 W digipro®
67 – 20.000 Hz (-10dB)
Max. SPL: 121 dB
24bit 48 kHz DSP
Line/ Mic input/ XLR/jack
Multifunktional housing
Dimensions (WxHxD):
300 x 484 x 284 mm
Weight: 7.9 kg
26
Opera 510 DX
This 10“ unit is fast becoming the new standard for ultra compact
fullrange speakers. Able to deliver a mighty 500W of output power,
the Opera 510 DX is the perfect mini PA for playing back music and
performing live in smaller venues.
Specifications
10“ Woofer
1“ D r ive r
80/65° x 60°asym. CD Horn
500 W digipro®
62 – 20.000 Hz (-10dB)
Max. SPL: 122 dB
24bit 48 kHz DSP
Line/ Mic input/ XLR/jack
Multifunktional housing
Dimensions (WxHxD):
343 x 553 x 304 mm
Weight: 9.8 kg
www.dbtechnologies.com
Advanced Active Technology
Opera 512 DX
This 12“ woofer/ 1“ driver combination certainly packs a potent
punch. The Opera 512 DX’s ability to render midrange and high
frequencies with such authority makes it an excellent choice for live
acts. If you need a first-rate PA system for clubs, simply deploy it with
a subwoofer such as the SUB 808D.
Specifications
12“ Woofer
1“ D r ive r
80/65° x 60°asym. CD Horn
500 W digipro®
59 – 20.000 Hz (-10dB)
Max. SPL: 126 dB
24bit 48 kHz DSP
Line/ Mic input/ XLR/jack
Multifunktional housing
Dimensions (WxHxD):
432 x 665 x 353 mm
Weight: 15.8 kg
Opera 515 DX
Loaded w ith a 15“ woofer driven by 500W power amp, the Opera 515 DX
serves up a sizable helping of bass frequencies even without an added
subwoofer. Easy to transport and set up, it of fers utmost handling convenience paired with excellent audio quality.
Specifications
15“ Woof er
1“ D r ive r
80/65° x 60°asym. CD Horn
500 W digipro®
52 – 20.000 Hz (-10dB)
Max. SPL: 126 dB
24bit 48 kHz DSP
Line/ Mic input/ XLR/jack
Multifunktional housing
Dimensions (WxHxD):
432 x 665 x 353 mm
Weight: 16.7 kg
27
www.dbtechnologies.com
OPERA DX
Opera 710 DX
Featuring a digipro®G2 power amp with 700 watts of output power,
the OPERA 710 DX was engineered to exceed expectations. Who
would have thought that such a compact speaker could provide such
amazing sound pressure, bass response, and high-definition audio?
Specifications
10“ Woof er,
1“ Driver
80/65° x 60°asym. CD Horn
700 W digipro® G2
61 – 20.000 Hz (-10dB)
Max. SPL: 127 dB
24bit 48 kHz DSP
Line/ Mic input/ XLR/jack
Multifunktional housing
Dimensions (WxHxD):
343 x 553 x 304 mm
Weight: 11.6 kg
28
www.dbtechnologies.com
Advanced Active Technology
Equipped with 700- watt digipro®G2 power amps, high-quality transducers, and modern DSPs, every 700 Series sound
system delivers the kind of stellar audio performance that sets the stage for success. And that makes it the perfect
companion for the discerning per former.
Opera 712 DX
The Opera 712 DX sets the performance standard for other 12“/1“
systems to follow. Feel free to set it up as a fullrange FOH enclosure,
pair it with subwoofers, or use it as a monitor. But whatever you do
with it, rest assured you will enjoy excellent acoustical properties,
high sound pressure levels and an impressive audio experience. The
recommended subwoofer is the SUB18D.
Specifications
12“ Woofer
1“ Driver
80/65° x 60°asym. CD Horn
700 W digipro® G2
59 – 20.000 Hz (-10dB)
Max. SPL: 128 dB
24bit 48 kHz DSP
Line/ Mic input/ XLR/jack
Multifunktional housing
Dimensions (WxHxD):
432 x 665 x 353 mm
Weight: 15.4 kg
Opera 715 DX
Loaded w ith a brawny 15“ woofer, the Opera 715 DX is the first choice
for musicians and DJs who prefer to deploy an efficient fullrange
system without an added subwoofer. It will serve you well as an FOH
speaker for club gigs and as a personal monitor on big stages.
Specifications
15“ Woof er
1“ Driver
80/65° x 60°asym. CD Horn
700 W digipro® G2
49 – 20.000 Hz (-10dB)
Max. SPL: 129 dB
24bit 48 kHz DSP
Line/ Mic input/ XLR/jack
Multifunktional housing
Dimensions (WxHxD):
432 x 665 x 353 mm
Weight: 15.4 kg
29
www.dbtechnologies.com
OPERA DX
It doesn’t get any better than this: The OPERA 900 is not only the flagship of the line, it is also the reference standard for the entire class. Its 900-watt
digipro®G2 power amp comes with a PFC switched-mode power supply and an onboard DSP. Paired with a premium woofer and a high-end driver
sporting a 1.4“ diaphragm, it packs a powerful low-frequency punch and comjures crystal-clear top end. Its range is nothing short of remarkable.
Opera 910 DX
This unit ’s awesomely assertive bass response and superior SPL surely
set a record for a 10“ fullrange speaker in this size and weight class.
Featuring a muscular digital power amp, high-quality transducers,
and a 24- bit DSP, the Opera 910 DX provides high-end audio performance for discriminating musicians and DJs.
Specifications
10“ Woofer, 3“ v.c
1“ Driver, 1.75“ v.c.
80/65° x 60°asym. CD Horn
900 W digipro® G2
60 – 20.000 Hz (-10dB)
Max. SPL: 129 dB
24bit 48 kHz DSP
Line/ Mic input/ XLR/jack
Multifunktional housing
Dimensions (WxHxD):
343 x 553 x 304 mm
Weight: 11.7 kg
30
Opera 912 DX
Tents and open-air stages demand a great deal from speakers. The
Opera 912 DX is the system of choice for such challenging venues
because it renders midrange and top- end frequencies with author ity
and assertiveness, and projects powerful yet richly detailed audio
images across considerable distances. The recommended subwoofer
is the SUB18D.
Specifications
12“ Woofer, 3“ v.c
1“ Driver, 1.75“ v.c.
80/65° x 60°asym. CD Horn
900 W digipro® G2
55 – 20.000 Hz (-10dB)
Max. SPL: 129 dB
24bit 48 kHz DSP
Line/ Mic input/ XLR/jack
Multifunktional housing
Dimensions (WxHxD):
432 x 665 x 353 mm
Weight: 18.1 kg
www.dbtechnologies.com
Advanced Active Technology
Opera 915 DX
The Opera 915 DX satisfies DJs’ demands for a fullrange system that
pumps out fat bass beats with enough authority and oomph to
send people flocking to the dance floor. Its 15“ woofer and 90 0W
digipro®G2 power amp prov ide ample audio quality and SPL in a
surprisingly portable package.
15“ Woofer, 3“ v.c
1“ Driver, 1.75“ v.c.
80/65° x 60°asym. CD Horn
900 W digipro® G2
48 – 20.000 Hz (-10dB)
Max. SPL: 129 dB
24bit 48 kHz DSP
Line/ Mic input/ XLR/jack
Multifunktional housing
Dimensions (WxHxD):
432 x 665 x 353 mm
Weight: 18.8 kg
31
www.dbtechnologies.com
Specifications
OPERA DX
OPERA Entertainer Systems
Entertainer SD
3-Way Active System
Entertainer MD
3-Way Active System
Small, compact and easy to handle.
The system for single acts and parties.
Specifications
2 x OPERA 510 DX
1x SUB 05 D
Fully digital, small in size with
a powerful low end.
Specifications
2 x OPERA 710 DX
1x SUB 15 D
Entertainer XD
3-Way Active System
Club MD
3-Way Active System
High output power, for small to medium
Live applications and DJ’s.
Specifications
2 x OPERA 712 DX
1x SUB 18 D
High output power, for small to medium
Live applications and DJ’s.
Specifications
2 x OPERA 712 DX
2 x SUB 808 D
32
www.dbtechnologies.com
OPERA Club Systems
Club XD 8
3-Way Active System
Club XD 10
3-Way Active System
Compact full range PA
for small applications of all kinds.
Specifications
2 x OPERA 510 DX
2 x SUB 12 D
Ready for Rock ´n ´Roll. Ideal
for small stages and theatres.
Specifications
2 x OPERA 710 DX
2 x SUB 15 D
Club XD 12
3-Way Active System
Club XD 15
3-Way Active System
Powerful System for Bands and DJ´s,
for clubs or small outdoor events.
Specifications
2 x OPERA 712 DX
2 x SUB 15 D
Huge sound, small footprint. For those
who need a little more. Just Great!
Specifications
2 x OPERA 915 DX
2 x SUB 18 D
33
www.dbtechnologies.com
CROMO + Series
Technology
_
digipack™ Digital Amplifer
_
Bi-Amp
_
DSP
_
Dual Active Limiter
_
Asymmetrical Horn
_
Low-Noise-Reflex-Ports
_
Multifunctional Housing
_
PP Housing
34
www.dbtechnologies.com
Active Speakers
CROMO +
The Cromo + Series offers powered loudspeakers with modern digital technology for first time users, without having to miss out on professional
features and outstanding audio performance. The Cromo Series features the ultra compact digipack digital power amplifiers, based on the successful
digipro® amp technology for maximum efficiency. The integrated digital sound processor (DSP) caters for perfect sound calibration of the individual
speaker components. All in all, true professional features, unique in its class and setting new standards in entry level speaker lines.
The compact multifunctional housing of the Cromo speaker line, with asymetrical CD horns, can be used for many different applications, such as live
events, a public address system for a singer, for monitoring purposes on stage, or for fixed installations in Bars or lounges. All Cromo models have a
microphone input on XLR and jack sockets for maximum flexibility.
Cromo 8+ Cromo 10+ Cromo 12+ Cromo 15+
35
www.dbtechnologies.com
CROMO Series
Cromo 8+
8“/1“ Active Speaker
Equipped with a 8“ woofer and a 1“ driver, it is the ideal loudspeaker
for background music or speach. The Cromo 8+ can be easily extended
to a compact system by using one of our subwoofers, such as the
SUB 12 D.
Specifications
8“ woofer
1“ d r iver
90/70° x 60°asym. CD horn
300 W digipack
68 – 20.000 Hz (-10dB)
Max. SPL: 118 dB
24bit 48 kHz DSP
Line / Mic input / XLR / jack
Multifunctional housing
Weight: 7,8 kg
Dimensions (WxHxD):
270 x 435 x 252mm
TM
Cromo 10+
10“/1“ Active Speaker
Thanks to the 10“ woofer and more power, the Cromo 10+ already
the entire frequency range. It can therefore be used as a
covers
compact PA system for vocals and accompanying instruments for
small events.
Specifications
10“ woofer
1“ d r iver
90/70° x 60°asym. CD horn
400 W digipack
65 – 20.0 00 Hz (-10dB)
Max. SPL: 121 dB
24bit 48 kHz DSP
Line / Mic input / XLR / jack
Multifunctional housing
Weight: 12 kg
Dimensions (WxHxD):
320 x 508 x 297mm
TM
36
www.dbtechnologies.com
Active Speakers
Cromo 12+
12“/1“ Active Speaker
The classic combination of a 12“ woofer and a 1“ compression driver
and due to the extended frequency range and high SPL, this speaker
can be used as a powerful full range system, for all kinds of live or
playback music.
Specifications
12“ woofer
1“ compression driver
90/70° x 60°asym. CD horn
600 W digipack
55 – 20.000 Hz (-10dB)
Max. SPL: 126 dB
24bit 48 kHz DSP
Line / Mic input / XLR / jack
Multifunctional housing
Weight: 18.5 kg
Dimensions (WxHxD):
402 x 615 x 356mm
TM
Cromo 15+
15“/1“ Active Speaker
Loaded w ith a potent 15“ woofer, the Cromo 15+ is able to deliver the
kind of powerful and compelling bass performance that makes it the
preferred fullrange speaker for bands and DJs.
Specifications
15“ Woof er
1“ compression driver
90/70° x 60°asym. CD Horn
600 W digipack™
45 – 20.000 Hz (-10dB)
Max. SPL: 128 dB
24bit 48 kHz DSP
Line/ Mic input/ XLR/jack
Multifunctional housing
Weight: 22.9 kg
Dimensions (WxHxD):
470 x 720 x 405 mm
www.dbtechnologies.com
K-Series
K70
2-Way Active Speaker 5 / Tweeter 50 W
The K-Ser ies is range of compact active speakers for versatile applications
like mobile use or fixed installations. The K70 has a multifunctional housing
with a special shaped backside for monitor use.
The K70 is equipped with a 5“ woofer and a tweeter. The integrated
amplifier provides 50W/RMS and is equipped with an integrated limiter
for maximum reliability.
Specifications
Compact 2-Way active speaker
5“ Woofer + Tweeter
50 W/RMS
100 - 16.000 Hz
Mic-/Line, XLR-Jack Input
2 x RCA Chinch Input
SPL max. 101 dB
D i m en s io n s : 170 x 270 x 18 5 m m
Weight: 3,5 kg
38
www.dbtechnologies.com
Active Speakers
K162
2-Way Active Speaker 2x 6.5“/ Tweeter 65 W
The K-Ser ies is range of compact active speakers for versatile applications
like mobile use or fixed installations. The K162 has a multifunctional
housing w ith a special shaped backside for monitor use.
Specifications
Compact 2-Way active speaker
2 x 6.5“ Woofer + Tweeter
65 W/RMS
85 - 18.000 Hz
Mic-/Line, XLR-Jack Input
2 x RCA Chinch Input
SPL max. 110 dB
D i m en s io n s : 21 0 x 35 0 x 27 0 mm
Weight: 5,5 kg
K300
2-Way Active Speaker 2x 6.5“/ 1“ 120 W
The most powerful compact cabinet in its class, the K300 is chock-full
of innovative technologies. Housed in an ultra compact enclosure, its
digipro® bi-amped digital power amp delivers high performance and
sound pressure levels. The 1“ HF driver renders midrange frequencies
with pinpoint precision, and its response is richly detailed.
The integrated DSP fur ther enhances clarity and accuracy, and protects
components using digital limiters.
Specifications
Compact 2-way active speaker cabinet
digipro® bi-amp digital power amp
80 W/RMS + 40 W/RMS
Integrated DSP 24bit / 48 kHz
2x 6,5“ Neodym-Woofer
1“ HF driver
80° x 6 0° CD Horn
70 Hz- 19 kHz
SPL Max. 118 dB
Mic/Line, XLR-Jack Input
2x RCA Chinch Input
4xM5 flying points
Dimensions: 210 x 350 x 270 mm
Weight: 5 kg
39
www.dbtechnologies.com
L160 D
40
www.dbtechnologies.com
1 x L160 D
1 x SUB 28D
Active Speakers
L160 D
Active Speaker, 2x5“, 160 W digipack
A powerful yet surprisingly light cabinet, the remarkably compact L160D of fers a variety of connection options to provide convenient sound reinforcement
for multimedia applications. Paired with a DSP, the two 5“ phase-corrected loudspeakers deliver astonishingly high sound pressure levels for their size and
an amazingly transparent and articulate sonic image. The multifunctional housing offers wall-mount fixing points for permanent installation and a pole
mount for portable use.
Specifications
2 x 5“ W o of e r, 1“ co a x ia l t w e et e r
120° x 90°
160 W digipack™
63 – 20.000 Hz (-10dB)
Max. SPL: 116 dB
24bit 48 kHz DSP
Line/ Mic Input/ XLR/Jack
RCA (Aux channel)
Multifunctional housing
Mounting accessories
4x M5 r igging points
Dimensions (WxHxD):
200 x 335 x 220 mm
Weight: 4.5 kg
TM
SN 120 WB 03
41
www.dbtechnologies.com
Opera 110 Mobile
BA T T E R Y
POWERED
42
www.dbtechnologies.com

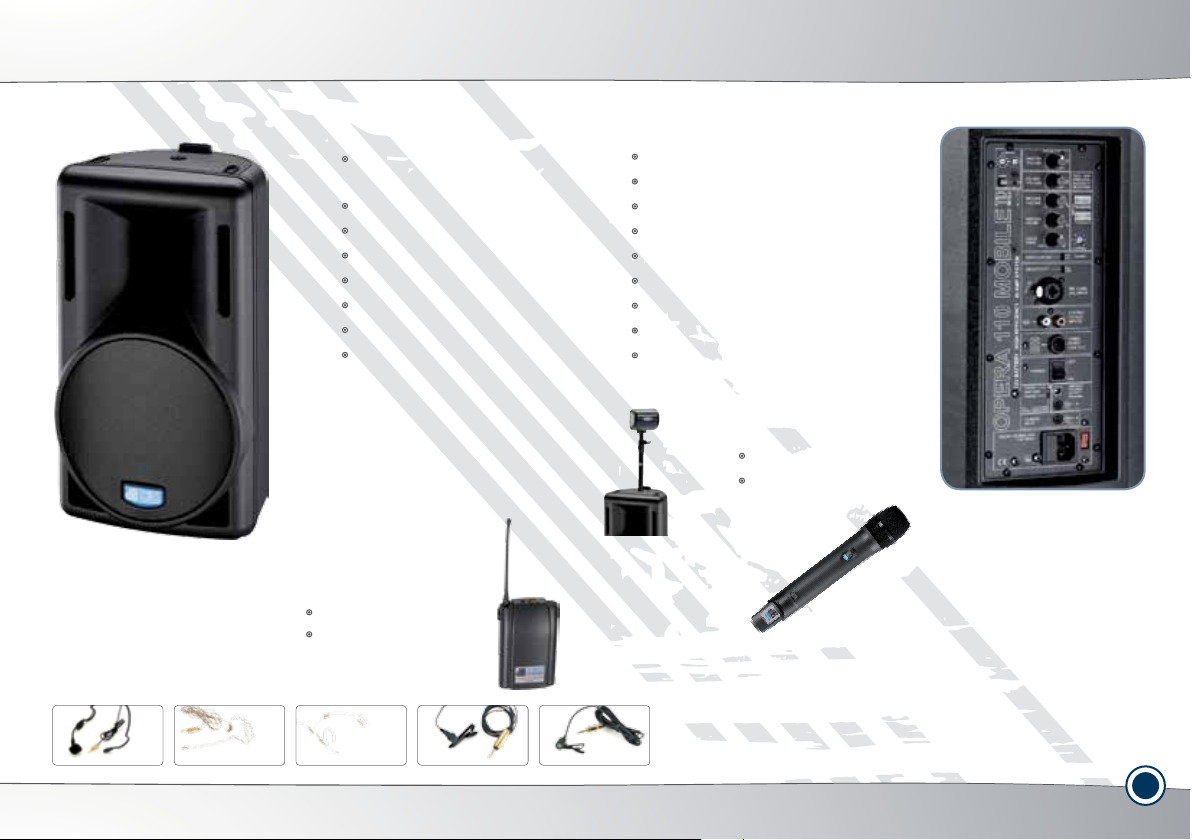

OPERA 110 Mobile
Battery Powered Active Speaker 10“/1“ 90W
The compact active OPERA 110 mobile loudspeaker with integrated mixer, optional wireless UHF
receiver, and swtichable powering through the integrated A/C, 12V or normal 230V power supply.
Maximum flexibility, easy to use with endless application possibilities.
The specially designed power amplifier with auto-sleep mode allows powering, regardless of the
volume level for up to 12 hours. There are inputs for mics, CD player, or laptop, which can be separately adjusted. For the voltage supply of a portable CD player or a slave unit, a power socket with
adjustable voltage is available on the control panel.
The specially designed power amplifier with auto-sleep mode allows powering, regardless of the
volume level for up to 12 hours. There are inputs for mics, CD player, or laptop, which can be separately adjusted. For the voltage supply of a portable CD player or a slave unit, a power socket with
adjustable voltage is available on the control panel.
Multi-Purpose
If you need several loudspeakers, you can drive as many OPERA 110 MOBILES as you like from
only one transmitter, within the possible range of the transmitter. The range of the transmitter is
between 70 and 100 m, heavily dependent on the environment. For longer distances the optional
directional antenna set RDA 950 should be used for better operating reliability. With this, distances
well above 100 m can be achieved. If the audio signal, as well as a microphone signal, applied to
the first unit (e.g. CD) is to be sent to other OPERA 110 MOBILES, this can be achieved with the MS
110 set.
The optional RMS 110 master - slave set contains a directional antenna with integral transmitter
for transmitting the complete audio signal from the first unit to other OPERA 110 MOBILES using
a second carrier frequency. For simple connection there is both a low volt output w ith adjustable
voltage between 3 - 12 volts and a mix output for 6.3 mm jack available.
Battery Powered Active Speaker
Specifications
2 way bi-amplified active
loudspeaker
12V battery or electric
10” Bass / 1” HF 90°x60°
70+20 Watt/RMS, 180 Watt/PRG
70-18000 Hz
Max. SPL: 117 dB
Integrated 16 channel UHF Diversity
Receiver with DCS
XLR/Jack-Input, adjustable
Mic-/Line Input, adjustable
Microphone presence control
Chinch input, separately adjustable
Mixed line out, 6.3mm jack
Low voltage output
with choice of 3-12V
Dynamic soft-clip limiter
Weight: 12 kg
MS110 Kit / MS110 PS
UHF directional Antenna, integrated
transmitter with 16 switchable
frequencies, for signal distribution to
further Opera Mobiles.
860 P
860P UHF pocket,
16 freq. switchable
860 M
860M UHF handheld,
16 freq. switchable
43
www.dbtechnologies.com
Arena Series
Features
_
Multiplex housing
_
Easy mounting
_
Protective cover included
_
PTC driver protection
_
Versatile and robust
Technology
_
Multifunctional Housing
_
Rigging Points
_
Rotatable Horn
44
www.dbtechnologies.com
Passive Speakers
The passive loudspeaker range ARENA offers high-quality 2-way enclosures and powerful subwoofers. This series can be used for many different mobile or fixed install applications due to its extensive configurations.
All high/mid units use a multipurpose housing made out of multilayer birch wood, offering a pole mount, 12 professional flypoints and a slanted backside for monitor applications. Due to the premium loudspeaker components, all units are able to handle high sound pressure levels.
They offer outstanding, specially designed constant directivity horns which are rotatable by 90°, thanks to the symmetrical
enclosures allows easy handling. All models are equipped with a black front grill with acoustic foam layer.
ARENA 8 ARENA 10 ARENA 12 ARENA 15
ARENA SW15 ARENA SW18
shape. The low weight of the
45
www.dbtechnologies.com
Arena Series
Arena 8
2-Way Passive Speaker 8“/1“ 200 W
The ARENA 8 is equipped with a 8“ woofer and a 1“ driver with a
rotatable 90°x70° constant directivity horn. The unit can handle
200W/RMS power and provides sound pressure levels of up to
122dB. The ARENA 8 is recommended for speech and background
music, as a very compact stage monitor or combined w ith the
ARENA SW15 subwoofer as a small PA system.
Specifications
Power (RMS): 200 W
Power (PRG): 400 W
Speakers: 8” woofer,
1.5” coil, 1” driver
Freq. response (-3dB): 100-19000 Hz
SPL max.: 122 dB
Crossover: 2100 Hz
Dispertion Angle: 90°x70°
Slope: 18 dB/Okt.
Connectors (In/Out):
2 x Neutrik Speakon®
Impedance: 8 Ohm
Rigging points: 12 x M8
Pole Mount / Handles: 35mm/ 1
WxHxD: 270 x 458 x 270 mm
Weight: 9,3 kg
46
Arena 10
2-Way Passive Speaker 10“/1“ 300 W
The 10“ woofer and the 1“ driver with rotatable 90°x70° constant
directivity horn, can handle up to 300W/RMS and are able to put out
up to 125dB spl. ARENA 10 offers a superb sound quality and can be
used as a standard fullrange enclosure (at reduced low frequency reproduction) or in combination with the ARENA SW15 subwoofer. Due
to the extensive configuration and sound performance the ARENA 10
is one of a kind.
Specifications
Power (RMS): 300 W
Power (PRG): 600 W
Speakers: 10” woofer,
2” coil, 1” driver
Freq. response (-3dB): 95-19000 Hz
SPL max.: 125 dB
Crossover: 2100 Hz
Dispertion Angle: 90°x70°
Slope: 18 dB/Okt.
Connectors (In/Out):
2 x Neutrik Speakon®
Impedance: 8 Ohm
Rigging points: 10 x M8
Pole Mount / Handles: 35mm/ 1
WxHxD: 321 x 508 x 320 mm
Weight: 12,2 kg
www.dbtechnologies.com
Passive Speakers
Arena 12
2-Way Passive Speaker 12“/1“ 400 W
A frequency response from 80Hz to 19Khz, a 12“ woofer and a highquality 1“ compression dr iver with a 90°x40° constant directivity
horn, makes the ARENA 12 the top all-rounder within the series. Up
to 127dB sound pressure level can be reached at 400W/RMS input
power. For small venues usable as a full range enclosure but also
to be driven together with ARENA SW15 or ARENA SW18 as a highprofile compact PASystem.
Specifications
Power (RMS): 400 W
Power (PRG): 800 W
Speakers: 12” woofer,
2” voice coil, 1” comp. driver, 1.4” coil
Freq. response (-3dB): 80 – 19000 Hz
SPL max.: 127 dB
Crossover: 2000 Hz
Dispertion Angle: 90°x40°
Slope: 18 dB/Okt.
Connectors (In/Out):
2 x Neutrik Speakon®
Impedance: 8 Ohm
Rigging points: 12 x M10
Pole Mount / Handles: 35mm/2
WxHxD: 379 x 631 x 378 mm
Weight: 17,8 kg
Arena 15
2-Way Passive Speaker 15“/1“ 400 W
Due to its powerful low frequency reproduction and a compression driver
with a 1.4“ voice coil the ARENA 15 is the right choice for full range applications. It convinces with a high SPL of 129dB and the low weight of only
23.7kg guarantees easy handling. Like all ARENA-Series models the ARENA
15 provides 12 professional fly-points with metalbracings. The enclosure
can be combined with ARENA SW15 and ARENA SW18 subwoofers.
Specifications
Power (RMS): 400 W
Power (PRG): 800 W
Speakers: 15” woofer,
2.5” voice coil, 1” comp. driver, 1.4” coil
Freq. response (-3dB): 80 – 19000 Hz
SPL max.: 129 dB
Crossover: 2000 Hz
Dispertion Angle: 90°x40°
Slope: 18 dB/Okt.
Connectors (In/Out):
2 x Neutrik Speakon®
Impedance: 8 Ohm
Rigging points: 12 x M10
Pole Mount / Handles: 35mm/2
WxHxD: 458 x 710 x 453 mm
Weight: 23,7 kg
www.dbtechnologies.com
Arena Features
High-quality multifunctional
housing made of 18mm
multiplex coated with a
robust black textured finish
Subwoofer‘s threaded
M20 base ready to accept
a pole mount
Subwoofer ready to accept
professional-grade casters
Professional-grade M8/M10
threaded r igging points
Protective cover included
(ARENA 8/10/12/15)
Professional mounting
accessories optionally
available
Rotatable high-frequency,
wide-dispersion horns
painstakingly engineered
for excellent performance
High-quality components
selected for ultra precise
response
48
www.dbtechnologies.com
Arena Subwoofers
Arena SW15
Passive 15“ Subwoofer
The ARENA SW15 offers a 15“ woofer with a 3“ voice coil which can
take a load up to 500W/RMS putting out an extraordinary SPL of
130dB at very powerful low end frequencies. It can be easily combined
with ARENA10 and ARENA12 high/mid units, due to the internal
passive crossover. Also possible is bi-amp operation using an external
crossover unit.
Specifications
Power (RMS): 500 W
Power (PRG): 1000 W
Speakers: 15” woofer, 3” coil
Freq . response (-3dB): 40-150 Hz
SPL max.: 130 dB
Crossover: 150 Hz Low-Cut
Slope: 12 dB/Okt.
Connectors (In/Out):
2 x Neutrik Speakon4®,
1+1- Link
Impedance: 8 Ohm
Pole Mount / Handles: M20/ 2
Dimensions (WxHxD):
470 x 600 x 600 mm
_ Weight: 34 Kg
Arena SW18
Passive 18“ Subwoofer
The 4“ voice coil of the ARENA SW18 delivers powerful and accurate
low frequency reproduction, down to 35Hz, at a maximum load
of 600W/RMS. Sound pressure levels of up to 132dB at a crossover
frequency of 150Hz, using the internal crossover make this subwoofer
the professionals choice. This woofer can be easily combined with
the ARENA satellite units, using just one external power amp.
Specifications
Power (RMS): 600 W
Power (PRG): 1200 W
Speakers: 18” woofer, 4” coil
Freq. response (-3dB): 35-150 Hz
SPL max.: 132 dB
Crossover: 150 Hz Low-Cut
Slope: 12 dB/Okt.
Connectors (In/Out):
2 x Neutrik Speakon4®,
1+1- Link
Impedance: 8 Ohm
Pole Mount / Handles: M20/ 2
Dimensions (WxHxD):
565 x 700 x 700 mm
Weight: 46 Kg
www.dbtechnologies.com
Arena Systems
ARENA System 10-15
Passive 3-way system
Specifications
2 x ARENA 10
2 x ARENA SW15,
Nomimal power rating 1600W/RMS
ARENA System 10-15 Powerpack
Passive 3-way system with Powerrack
Specifications
2x Arena 10
2x Arena SW15
1x ASX 18
1x HPA 1000
1x HPA 2800
2020 Watt
50
www.dbtechnologies.com
Passive Speakers
ARENA System 12-18
Passive 3-way system
Specifications
2 x ARENA 12
2 x ARENA SW18,
Nomimal power rating 2000W/RMS
ARENA System 12-18 Powerpack
Passive 3-way system with Powerrack
Specifications
2x Arena 12
2x Arena SW18
1x ASX 18
1x HPA 1400
1x HPA 2800
2240 W
ARENA System 12-215
Passive 3-way system
Specifications
2 x ARENA 12
4 x ARENA SW15,
Nomimal power rating 2800W/RMS
ARENA System 12-215 Powerpack
Passive 3-way system with Powerrack
Specifications
2x Arena 12
4x Arena SW15
1x DSX 2040
1x HPA 1400
1x HPA 2800
2940 W
51
www.dbtechnologies.com
HPA Amplifiers
HPA Amplifier
Professional Amplifier
dBTechnologies’ HPA series power amps deliver high performance and quality at an
astonishingly affordable price.
Designed for professional use in touring racks as well as for fixed installation, the
series comprises four Class-(HD) models that deliver 2x 510 W/RMS to 2x 1050 W/
RMS at 4 ohms. Featuring Class-(HD) technology with and weighing just 14 kg, the
flagship HPA 3100 L power amp delivers up to 3400 W/RMS output. It comes with a
PFC switched- mode power supply.
Engineered for utmost ease of use, these amps offer connection options - XLR inputs
for patching in signals as well as Speakon ports for connecting speaker systems.
What’s more, their extensive protective circuits ensure reliable, safe operation.
52
www.dbtechnologies.com
HPA 1000/1400/2800 HPA 3001L
Specifications
4 models ranging from 2x 510 W/
RMS to 2x 1200 W/RMS at 4 ohms
Class- (HD) technology to minimize
thermal load and maximize
efficiency
Fast response and dynamic sonic
image with lowest distortion
factors
Easy to configure in mono/stereo/
bridge modes
Extensive protective circuits
ensure high reliability and
operating safety
Front panel signal and clip
and protect LED indicators
Operable at 2 ohms
Speakon connectors
2 HU, 19“, low weight for
easy transportation
Switchable limiter
HPA 1000 HPA1400 HPA2800 HPA 3001L
Power output, stereo,
RMS @ 4 Ohm 2x 510 W 2x 740 W 2x 1050 W 2x 1200 W
Power output, stereo,
RMS @ 8 Ohm 2x 330 W 2x 440 W 2x 680 W 2x 800 W
Power output, bridged,
RMS @ 4 Ohm 1x 280 0 W 1x 3400 W
Power output, bridged,
RMS @ 8 Ohm 1x 1020 W 1x 1480 W 1x 2100 W 1x 2400 W
Weight: 15 kg 17 kg 21 kg 14 kg
53
www.dbtechnologies.com
Digital Controller
The DSX 2040 is a versatile digital controller well suited for use in mobile
racks as well as for fixed installat ion. Featuring two inputs and four outputs, it delivers outstanding performance in combinations with widely
usedtwo-way active stereo systems made up of subwoofers and mid-/
high-range units.
An extensive set of signal processing tools such as input compressors,
delays, 31-band graphic input EQ, and six parametric EQs for each output
lets you tune speaker systems with surgical precision to suit the givenvenue and operating conditions. Each output also features a precisiontunable digital limiter to protectspeaker components.
The integrated RS232 and USB inter faces lets you remotely manage and
control the system conveniently and quickly using a PC. With the benefit
of controller software, you can easily create presets for dBTechnologies
speakers as well as custom configurations and load theseprograms to the
DSX2040. If you like the handling convenienceof analog features, you will
love the hands-on controls.
They afford direct access to key parameters bysimply pushing a button
on the front panel. A backlit display with 2x16 characters and LED level
metersabove each input and output afford you at-a-glance insight into
the unit’s performance.
54
www.dbtechnologies.com
DSX 2040
2 in 4 Digital Controller
ASX 18
2 in 4 Active Crossover
The DSX 2040 is a versatile digital controller well suited for use in
mobile racks as well as for fixed installation. Featuring two inputs and
four outputs, it delivers outstanding performance in combinations
with widely used two-way active stereo systems made up of subwoofers
and mid-/high-range units.
Specifications
Two inputs/ four outputs
High-performance audio conver ter
Big 2x16 character LCD display and
5-segment LED meter for each channel
96 kHz/ 40 bit signal processing with
> 115 dB dynamic range
Parametric EQs for inputs and outputs
X-over section and freely configurable
signal routing
31-band graphic input EQ
Input compressors
Precision-adjustable digital
limiter for each output
30 storable presets
RS232 and USB interfaces and
software for programming and
exchanging data
PC Remote software
This active 2-way stereo crossover combines easy handling with
premium sonic performance. Crossover frequencies can be selected by inserting var ious Filter cards, choosing from 80,100,200
or 250Hz. The user inter face is located on the rear panel, giving
maximum protection in rack installations. LF and HF signal output levels are adjustable, the LF output can be switched to Mono.
Specifications
Active 2-Way Crossover
variable xover frequency
2 x XLR-/jack-Input
2 x HF-XLR-Output
2 x LF-XLR-Output
55
www.dbtechnologies.com
Wireless
56
www.dbtechnologies.com
PU 860
PU 860
Wireless UHF Microphone System
The PU860 UHF wireless system provides 16 switchable frequenc ies
and convinces with outstanding sound and improved dynamics. The
ergonomic ´one switch´ design allows easy handling. The integrated
blue LED in the transmitter indicates clearly on/off and mute status.
Handheld Transmitter 860 M
Compact transmitter 860 M
Cardioid condenser capsule
Anti-Shock-Suspension
Lightweight housing
Mic-Sensitivity switchable
On-/Off-/Mute button
LED for On and Mute status
More than 20 hours of operation
(with2 x AA Alcaline battery)
Operation w ith 2 x AA-Batterie
Pocket Transmitter 860 P
Compact transmitter 860 P
5V-phantom power
Adjustable input sensitivity
PEAK-LED
On-/Off-/Mute switch
Incl. controll-LED
More than 20 hours of operation
(with 2 x AA Alcaline battery)
Operation w ith 2 x AA-Batterie
Receiver 860 R
9,5“ UHF diversity receiver
compact and lightweight housing
16 switchable frequencies
Sym. XLR-output
57
www.dbtechnologies.com
Rental & Installation
All specifications to change without notice, error omitted. Rev. 03/2012.
58
www.dbtechnologies.com
To learn more, see the
Rental & Installation catalogue
or visit www.dbtechnologies.com
www.dbtechnologies.com
59
www.dbtechnologies.com
Loading...
