DB Technologies IG4T Users Manual

IG4T
MANUALE D’USO – Sezione 1
USER MANUAL - Section 1
BEDIENUNGSANLEITUNG - Abschnitt 1
CARACTERISTIQUES TECHNIQUES - Section 1
MANUAL DEL USUARIO - Sección 1
Le avvertenze nel presente manuale devono essere osservate congiuntamente al “MANUALE D’USO - Sezione2”.
The warnings in this manual must be observed together with the "User Manual - Section 2".
Die Warnungen in diesem Handbuch müssen in Verbindung mit der "BEDIENUNGSANLEITUNG - Abschnitt 2" beobachtet werden”.
Las advertencias del presente manual se deben tener en cuenta conjuntamente con las del “Manual del usuario” - Sección 2”.
EMI CLASSIFICATION
According to the standards EN 55103 this equipment is designed and suitable to operate in E3 (or lower E2, E1)
Electromagnetic environments.
FCC CLASS B STATEMENT ACCORDING TO TITLE 47, CHAPTER I, SUBCHAPTER A, PART 15, SUBPART B
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
WARNING
Make sure that the loudspeaker is securely installed in a stable position to avoid any injuries or damages to persons or properties. For safety reasons di not place one loudspeaker on top of another without proper fastening
systems. Before hanging the loudspeaker check all the components for damages, deformations, missing or
damaged parts that may compromise safety during installation. If you use the loudspeakers outdoor avoid spots exposed to bad weather conditions. Contact dBTechnologies for accessories to be used with the speakers. dBTechnologies will not accept any responsibility for damages caused by inappropiate accessories or additional devices.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
2
ITALIANO
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
3
Italiano
INDICE
1. INFORMAZIONI GENERALI ................................................................................................... 6
BENVENUTI! ........................................................................................................................ 6
PANORAMICA INTRODUTTIVA .......................................................................................... 6
RIFERIMENTI PER L’UTENTE ................................................................................................ 6
CARATTERISTICHE MECCANICHE ED ACUSTICHE ............................................................. 7
DIMENSIONI ............................................................................................................................................... 7
COPERTURA ACUSTICA ............................................................................................................................. 7
ACCESSORI ................................................................................................................................................. 8
CARATTERISTICHE DELLA SEZIONE DI AMPLIFICAZIONE E DI CONTROLLO ................... 9
SEZIONE DI INPUT E DI CONTROLLO ...................................................................................................... 10
SEZIONE DI ALIMENTAZIONE .................................................................................................................. 11
2. PRIMA ACCENSIONE ............................................................................................................ 12
CONTENUTO DELLA CONFEZIONE .................................................................................. 12
INSTALLAZIONE ................................................................................................................ 12
COLLEGAMENTO DEGLI INGRESSI .......................................................................................................... 12
COLLEGAMENTO DELL’ ALIMENTAZIONE ............................................................................................... 13
COLLEGAMENTO DELLE USCITE FRA PIÙ MODULI (rilancio dell’alimentazione) ................................ 14
COLLEGAMENTO DELLE USCITE FRA PIÙ MODULI (rilancio del segnale audio) ................................. 15
UTILIZZO DI UNA COPPIA DI DUE DIFFUSORI IG4T IN COLONNA ........................................................ 16
3. PANNELLO DI CONTROLLO E MENU DI SETTAGGIO ........................................................ 17

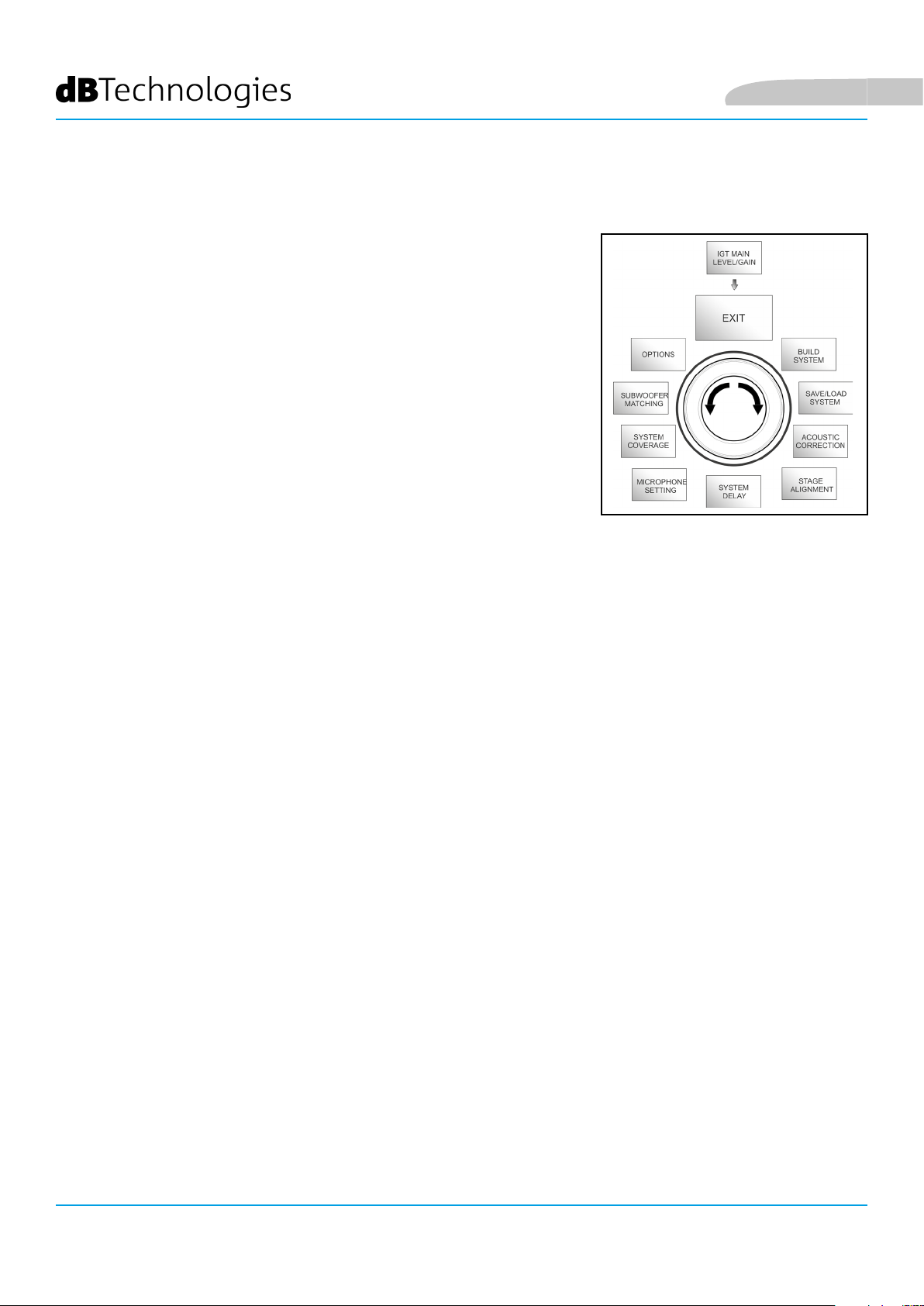

ACCESSO AI MENU ........................................................................................................... 17
IL MENU BUILD SYSTEM................................................................................................... 20
SYSTEM CHECK ........................................................................................................................................ 20
SYSTEM STRUCTURE ................................................................................................................................ 20

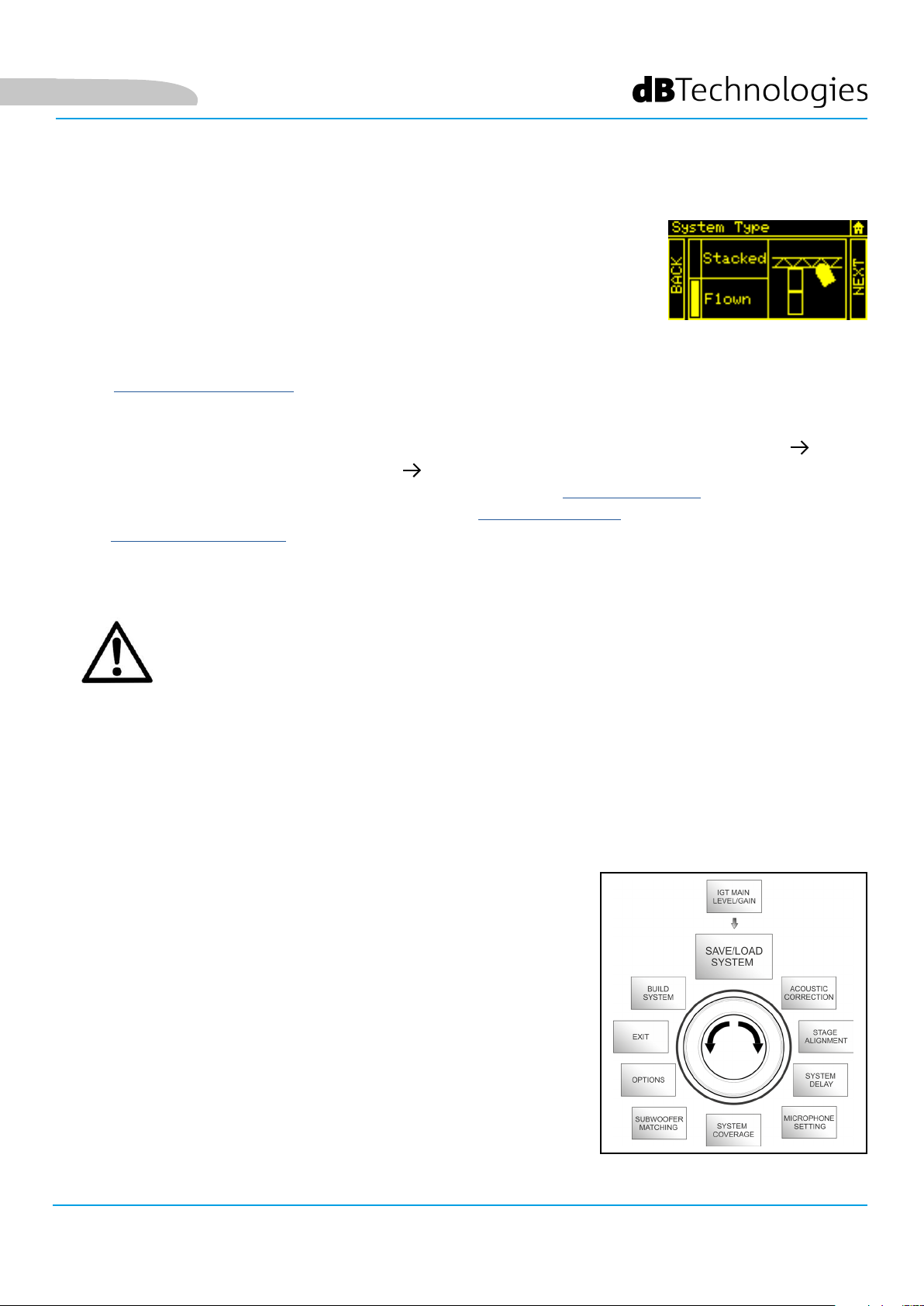

SYSTEM TYPE ........................................................................................................................................... 21
IL MENU SAVE/LOAD SYSTEM.......................................................................................... 21
IL MENU ACOUSTIC CORRECTION ................................................................................... 22
IL MENU STAGE ALIGNMENT ........................................................................................... 23
IL MENU SYSTEM DELAY .................................................................................................. 23
IL MENU MICROPHONE SETTING .................................................................................... 24

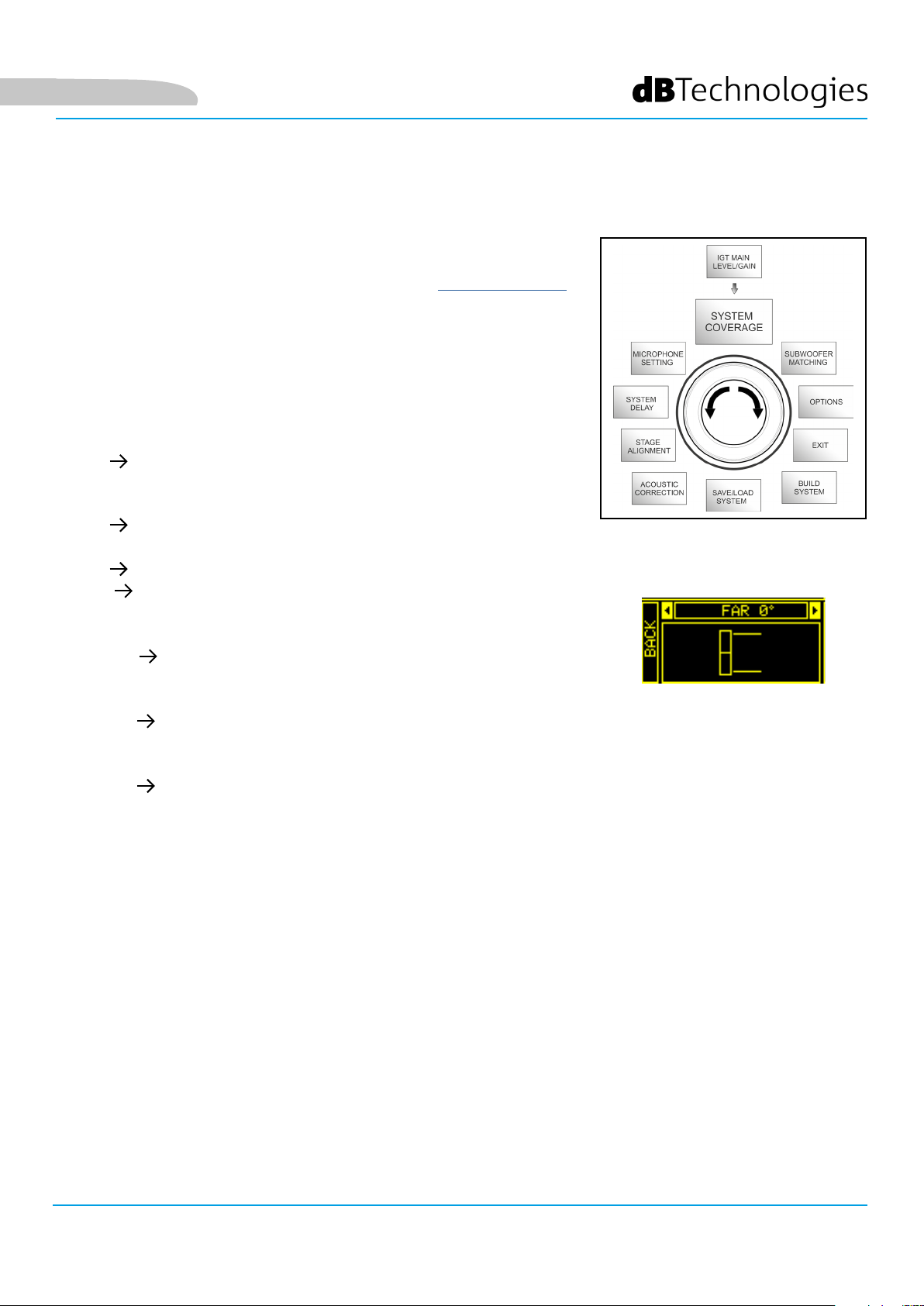

IL MENU SYSTEM COVERAGE .......................................................................................... 25
IL MENU SUBWOOFER MATCHING ................................................................................. 26
IL MENU OPTIONS ............................................................................................................ 27
PASSWORD .............................................................................................................................................. 27
CONTRAST ................................................................................................................................................ 27
STAND-BY ................................................................................................................................................. 27
RESTORE ................................................................................................................................................... 27
INFO ......................................................................................................................................................... 27
EXIT........................................................................................................................................................... 27
IL MENU EXIT .................................................................................................................... 28
4. ESEMPI DI INSTALLAZIONE ................................................................................................. 29
INSTALLAZIONE SU STATIVO ............................................................................................ 29
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
4
Italiano
INDICE
INSTALLAZIONE SU SUBWOOFER .................................................................................... 29
INSTALLAZIONE IN APPENSIONE ..................................................................................... 29
IL DIGITAL STEERING ........................................................................................................ 30
5. AGGIORNAMENTO DEL FIRMWARE .................................................................................. 31
6. RISOLUZIONE DEI PROBLEMI ............................................................................................. 32
7. SPECIFICHE TECNICHE ......................................................................................................... 34
GENERALE ................................................................................................................................................ 34
DATI ACUSTICI .......................................................................................................................................... 34
AMPLIFICATORE ....................................................................................................................................... 34
PROCESSORE ............................................................................................................................................ 35
INGRESSI ................................................................................................................................................... 35
DIMENSIONI ............................................................................................................................................. 35
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
5
Italiano

1. INFORMAZIONI GENERALI

BENVENUTI!

Grazie per aver acquistato un prodotto progettato e sviluppato in Italia da dBTechnologies! Questo diffusore attivo a 2 vie a sviluppo verticale racchiude in sé anni di esperienza ed innovazione nel campo della diffusione sonora, con l’impiego di soluzioni d’avanguardia in campo acustico, elettronico e di ricerca sui materiali.

PANORAMICA INTRODUTTIVA

Il diffusore attivo INGENIA IG4T è un diffusore attivo a 2 vie a sviluppo verticale, equipaggiato con quattro woofer da 6,5” e un driver a compressione con uscita da 1.4” (voice coil: 3”), pilotati da un amplicatore DIGIPRO
G3 da 900 W RMS di ultima generazione. Tra le caratteristiche più innovative ci sono:
un progetto accurato della tromba, con una direttività asimmetrica, specicamente pensata per
garantire ottime prestazioni di copertura acustica, che garantisce una denizione sonora senza
compromessi in diversi contesti di utilizzo indoor e outdoor.
digital steering controllato dal potente DSP interno, nell’utilizzo di 2 diffusori sovrapposti, che permette di coniugare la maggiore copertura e potenza sonora con un’accuratezza e una nitidezza senza compromessi.
l’immediato riconoscimento automatico della congurazione con 2 diffusori, grazie alla comunicazione
a infrarossi presente sulle maniglie (tecnologia EPD), alla gestione veloce e personalizzabile gestita da DSP. In questa congurazione i display OLED si orientano automaticamente. È sufciente agire sulla
sezione di controllo di uno dei due diffusori per pilotare l’intero sistema.
uno shape innovativo, con l’utilizzo di 4 woofer e 1 driver, in un cabinet che abbina robustezza,
prestazioni sonore, compattezza e maneggevolezza.
estrema versatilità, che permette di salvare e richiamare le proprie impostazioni in maniera veloce e immediata, proteggendo tutti i settaggi con una password impostabile.
RIFERIMENTI PER L’UTENTE
Per utilizzare al meglio il vostro INGENIA IG4T consigliamo di:
leggere il manuale d’uso quick start presente nella confezione e questo manuale d’uso completo in ogni sua parte e conservarlo per tutta la durata di vita del prodotto.
• registrare il prodotto sul sito http://www.dbtechnologies.com nella sezione “SUPPORTO”.
scaricare ed installare il rmware più aggiornato dal sito http://www.dbtechnologies.com nella sezione DOWNLOADS” (vedi il capitolo AGGIORNAMENTO DEL FIRMWARE).
conservare prova d’acquisto e GARANZIA (Manuale d’uso “sezione 2”).
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
6
Italiano
CARATTERISTICHE MECCANICHE ED ACUSTICHE
DIMENSIONI
L’INGENIA IG4T integra, in un cabinet di polipropilene rinforzato, del peso di 18,2 kg, quattro woofer da 6.5” e un driver a compressione con uscita da 1.4” (voice coil: 3”) con magneti al neodimio di eccezionale compattezza, peso e prestazioni. Internamente, una struttura leggera in alluminio, migliora la solidità senza aumentarne il peso. Gli ingombri di un singolo
diffusore sono: 195 x 956 x 271 mm. Le maniglie consentono un facile trasporto e lo spostamento del diffusore anche da parte di
una sola persona. Sono inne possibili diverse congurazioni, dal montaggio su stand a terra o su subwoofer, all’appensione di 2 moduli, in scenari di utilizzo live più ampi.

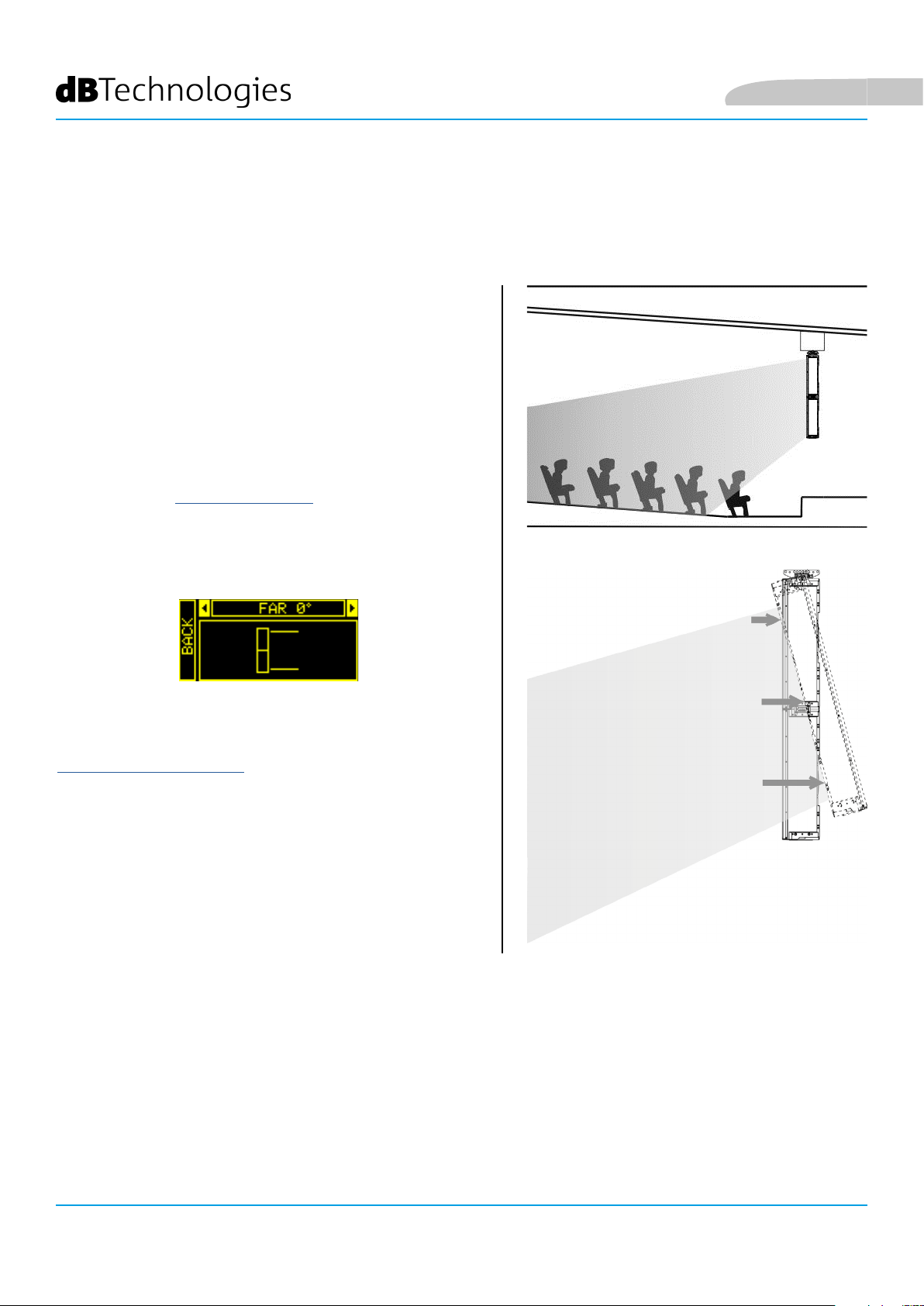

COPERTURA ACUSTICA
La particolare apertura della tromba, schematizzata in gura, garantisce una direttività totale di 110 x 90° (+20°/- 70°).
Questa copertura verticale asimmetrica garantisce ottime
prestazioni di copertura direttiva, con e senza appensione, in contesti indoor e outdoor. Utilizzando 2 moduli sovrapposti, inoltre, è possibile controllare con il digital steering (gestito automaticamente da DSP) il comportamento di ogni trasduttore per avere una direttività e resa sonora complessiva di eccezionale accuratezza ed efcacia in un ingombro
ridotto.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
7
Italiano
ACCESSORI
Per un rapido montaggio, oltre alle maniglie superiore ed inferiore, sono previsti come opzionali i seguenti
accessori:
Fly-bar DRK-IG (e accessorio TA-IG) per l’appensione verticale.
Coppia di staffe di bloccaggio LP-IG per il ssaggio di 2 moduli IG4T l’uno sull’altro.
• Stand opzionale GSA-IG per il montaggio su subwoofer.
Una borsa TC-IG4T creata appositamente e una copertura da pioggia RC-M1 (entrambe opzionali) sono disponibili per il trasporto e la protezione del prodotto.
Fly Bar DRK-IG Staffe di collegamento LP-IG
Stand GSA-IG
Per ogni ulteriore informazione si prega di consultare i manuali relativi.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
8
Italiano
CARATTERISTICHE DELLA SEZIONE DI AMPLIFICAZIONE E DI CONTROLLO
L’amplicatore digitale di ultima generazione DIGIPRO G3, in classe D, è il cuore di IG4T ed è capace di una potenza sonora di
900W RMS. Grazie a una sezione di alimentazione switching con
funzione di auto-range particolarmente efciente, il sistema è silenzioso, non necessitando di un apparato di raffreddamento attivo. Il controllo del sistema è afdato a un potente DSP dedicato che permette di settare diversi parametri, oltre a gestire automaticamente la comunicazione fra moduli, in caso di congurazione a 2 diffusori sovrapposti. In quest’ultimo caso, inoltre, il DSP può agire in controllo sia sui woofer sia sul compression driver, per ottenere un fuoco acustico direttivo accurato e congurabile (digital steering).
ATTENZIONE!
• Proteggere il modulo dall’umidità.
• Non tentare in nessun modo di aprire
l’amplicatore.
In caso di malfunzionamento, interrompere immediatamente l’alimentazione, scollegando il modulo dalla rete, e contattare un riparatore autorizzato.
Il pannello del DIGIPRO G3 è caratterizzato da:
Sezione di Input e Controllo
Sezione di Alimentazione
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
9
Italiano

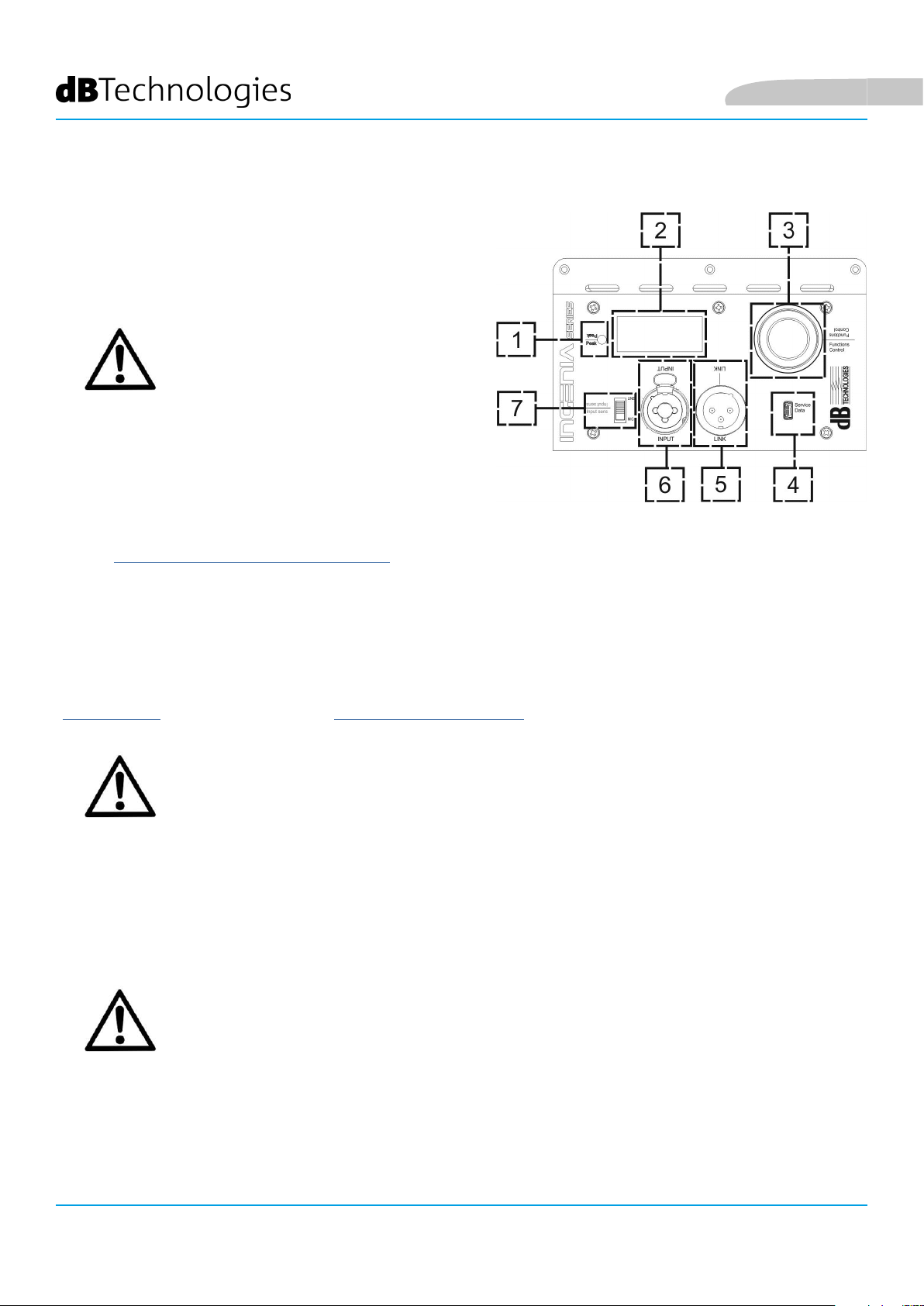

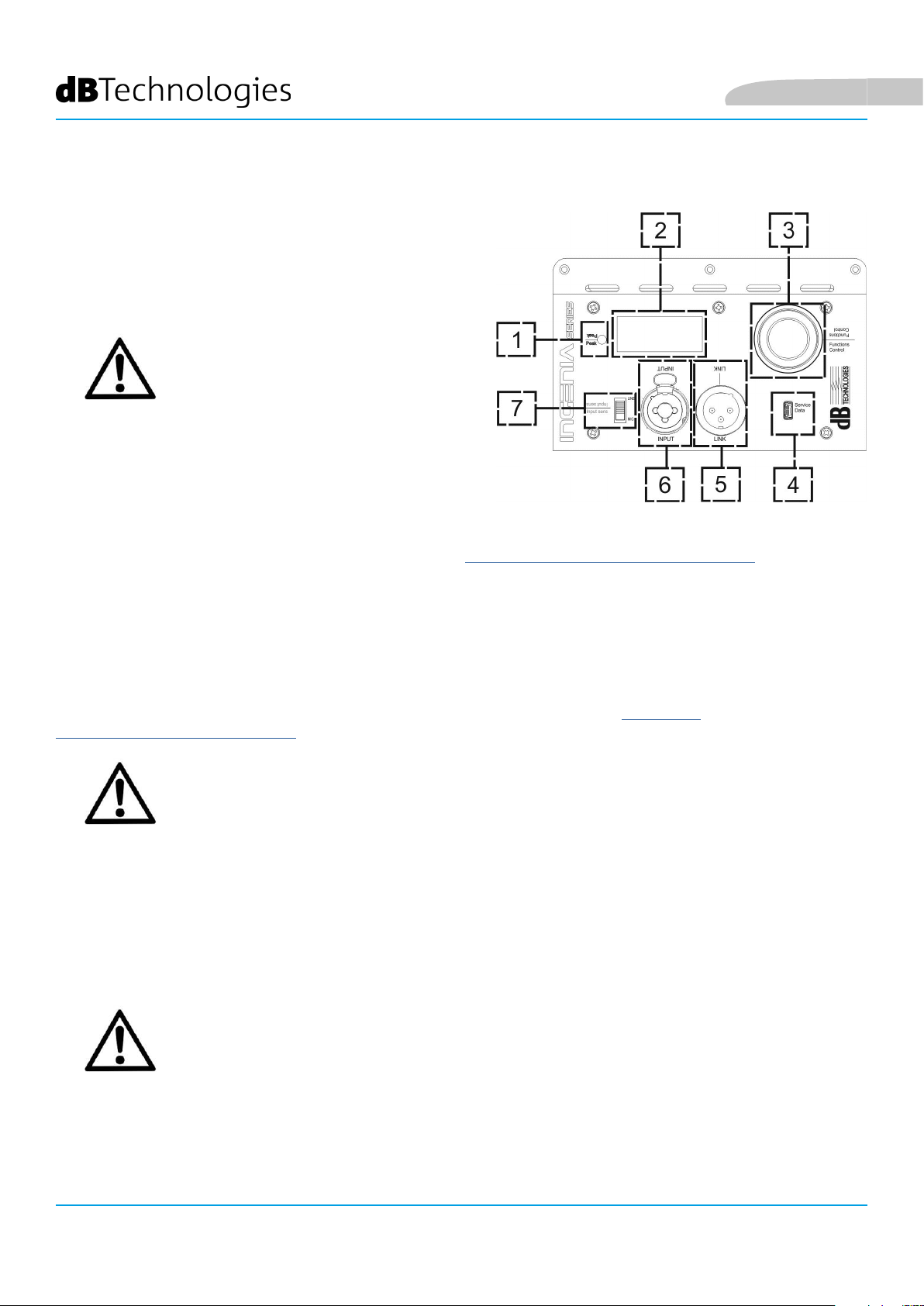

SEZIONE DI INPUT E DI CONTROLLO
1. LED DI “PEAK” Led rosso che si accende brevemente alla connessione dell’alimentazione o in caso di raggiungimento del limite di picco della distorsione del segnale
ATTENZIONE!
Non utilizzare il diffusore per un lungo periodo con il led acceso o lampeggiante, che indica un funzionamento di stress eccessivo in condizioni di distorsione.
2. DISPLAY OLED Il display si orienta automaticamente in base al controllo
con accelerometro, che riconosce se il diffusore è in posizione verticale diritta o capovolta, a seconda dell’installazione. È congurabile una funzione di regolazione di contrasto e di autospegnimento (confrontare il capitolo PANNELLO DI CONTROLLO E MENU DI SETTAGGIO).
3. PUSH ROTARY ENCODER
Il push rotary encoder permette una selezione sia rotativa (selezione di menu e valori), che a pressione (conferma della selezione effettuata).
4. USB SERVICE DATA
Tramite questa porta standard mini-USB di tipo B è possibile, tramite PC ed apposito programma, aggiornare, quando disponibile, il rmware del prodotto. Per ulteriori informazioni consultare il sito http://www.
dbtechnologies.com alla sezione “DOWNLOADS” ed il capitolo AGGIORNAMENTO DEL FIRMWARE.
ATTENZIONE!
La connessione USB SERVICE DATA deve essere utilizzata esclusivamente per aggiornamento rmware del prodotto, non connettere nessun dispositivo USB all’apparecchio, per evitare danneggiamenti o malfunzionamenti.
5. USCITA “LINK” Uscita XLR bilanciata che permette di inviare il segnale audio ad un altro diffusore
amplicato.
6. INGRESSO “INPUT” COMBO
Ingresso XLR-TR-TRS combinato del segnale audio. Permette di utilizzare un connettore XLR bilanciato,
o un ingresso jack-TS o TRS da ¼”.
ATTENZIONE!
Utilizzare solo cavi con connettori originali Neutrik® di alta qualità. L’utilizzo con connettori differenti o di scarsa qualità potrebbe compromettere la funzionalità del diffusore.
7. SELETTORE “INPUT SENS”
Selettore da utilizzare per distinguere l’ingresso di un segnale proveniente da mixer o linea (“LINE”) o l’ingresso di un segnale che provenga da un microfono (“MIC”).
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
10
Italiano

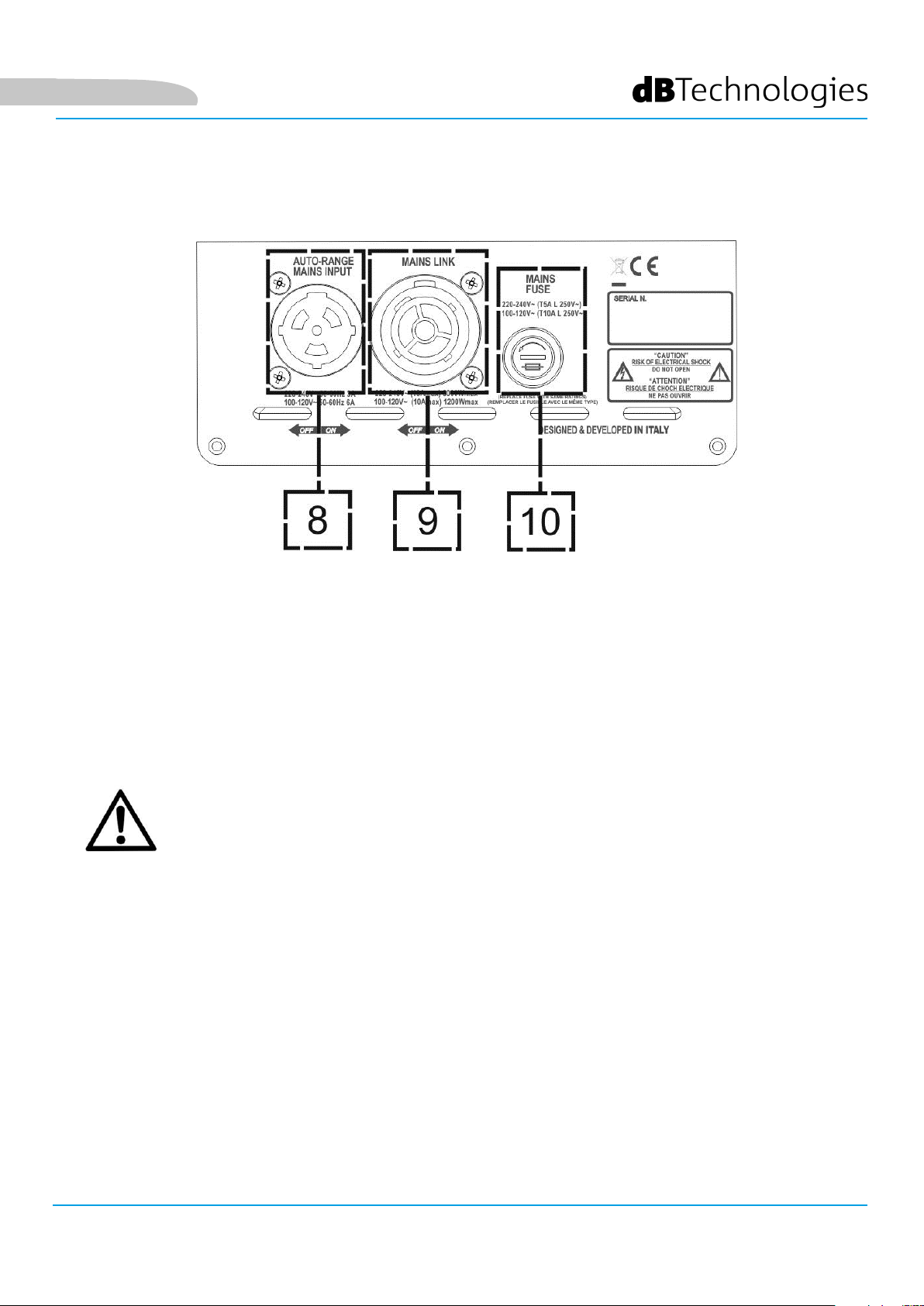

SEZIONE DI ALIMENTAZIONE
8. INGRESSO DI ALIMENTAZIONE “AUTO-RANGE MAINS INPUT” Ingresso per connettore Neutrik® powerCON TRUE1.
Permette un assorbimento di corrente no a 16 A.
9. USCITA DI RILANCIO DELL’ALIMENTAZIONE “MAINS LINK”
Grazie alla connessione garantita dal Neutrik® NAC3PX, è possibile
rilanciare l’alimentazione a un secondo modulo.
10. FUSIBILE DI PROTEZIONE “MAINS FUSE” Fusibile di rete.
ATTENZIONE!
Il diffusore viene fornito con un fusibile già montato per operare nel range 220-240 V. Se è necessario operare nel range di tensione 100-120 V:
1. Disconnettere ogni connessione, compresa l’alimentazione.
2. Attendere 5 minuti.
3. Sostituire il fusibile con quello fornito nella confezione per il range 100-120 V.
4. Utilizzare solo il cavo di alimentazione in dotazione.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
11
Italiano

2. PRIMA ACCENSIONE

CONTENUTO DELLA CONFEZIONE

Vericate, aprendo il contenuto della confezione, che il contenuto dell’imballo del diffusore INGENIA IG4T sia
completo. L’imballo contiene:
• cavo di alimentazione con connettore Neutrik® TRUE POWERCON
• INGENIA IG4T
quick start e documentazione relativa alla garanzia
• fusibile per il funzionamento nel range di tensione 100-120V
ATTENZIONE!
Il diffusore viene fornito con un fusibile già montato per operare nel range 220-240 V. Se è necessario operare nel range di tensione 100-120 V:
1. Disconnettere ogni connessione, compresa l’alimentazione.
2. Attendere 5 minuti.
3. Sostituire il fusibile con quello fornito nella confezione per il range 100-120 V.
4. Utilizzare solo il cavo di alimentazione in dotazione.

INSTALLAZIONE

COLLEGAMENTO DEGLI INGRESSI
MIXER / LINEA MICROFONO
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
12
Italiano

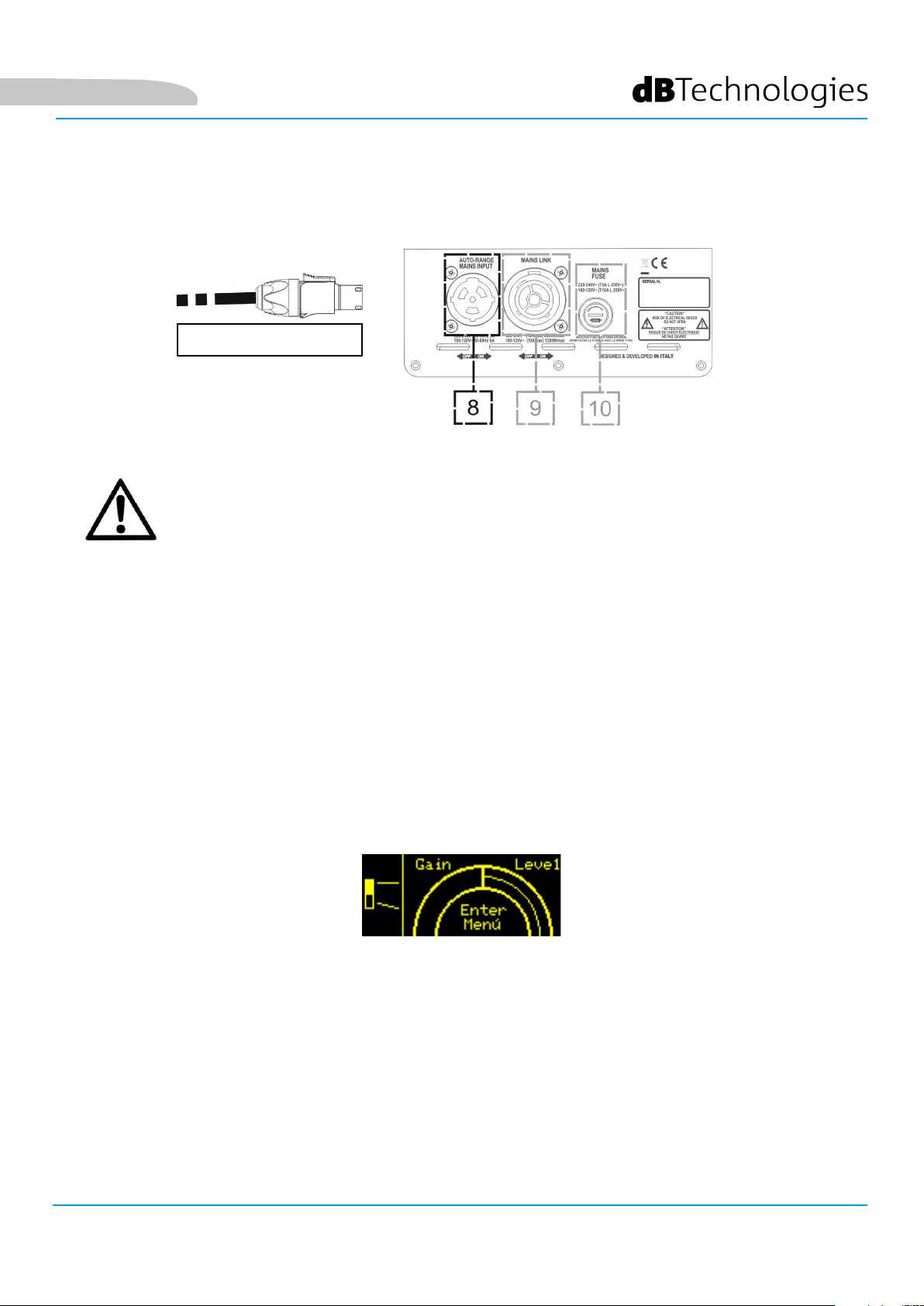

COLLEGAMENTO DELL’ ALIMENTAZIONE
ALIMENTAZIONE
ATTENZIONE!
Utilizzare solo cavi con connettori Neutrik®. Sostituire i cavi eventualmente danneggiati, per evitare malfunzionamenti ed una scarsa qualità del suono.
Collegare l’ingresso audio correttamente, selezionando la sorgente attraverso il selettore “Input sens” (6). In caso di ingresso di segnale proveniente da ingresso di linea o da un’uscita mixer impostare il selettore (7) su “LINE”, in caso di ingresso microfonico (utilizzare un microfono dinamico), impostare il selettore (7) su “MIC”. Per una veloce panoramica sui cavi audio confrontare la tabella sottostante.
• Collegare l’alimentazione connettendo il cavo POWERCON con connettore di tipo Neutrik® a “MAINS
INPUT” (8)
All’accensione il led di picco lampeggia brevemente e lo schermo OLED (2) si attiva attestandosi sulla schermata iniziale di controllo del livello e del guadagno:
Ruotare il PUSH ROTARY ENCODER (3) a sinistra o destra per regolare il guadagno del sistema ad un livello adeguato.
Vericare che il diffusore, una volta connessa correttamente ed accesa la sorgente sonora, emetta il
suono, alzando il volume in maniera progressiva
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
13
Italiano
COLLEGAMENTO DELLE USCITE FRA PIÙ MODULI (rilancio dell’alimentazione)
ALIMENTAZIONE RILANCIO
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
14
Italiano
Grazie all’utilizzo dei connettori Neutrik® powerCON TRUE1® è possibile rilanciare l’alimentazione no a una potenza totale di 3400 W (15 A), per i Paesi con tensione all’interno del range 220 - 240 V, e di 1600 W (14A), per i Paesi con tensione all’interno del range 100 – 120 V. Per collegare quindi per esempio 2 diffusori in accoppiamento (sia stacked che own), collegare il primo IG4T all’alimentazione con la connessione “MAINS INPUT” (8), collegare poi il primo al secondo (e il secondo al terzo, e coì via, tenendo in mente il limite massimo di potenza sopportabile) con un cavo di rilancio Neutrik®, connettendo l’uscita “MAINS LINK” (9) del primo IG4T all’uscita “MAINS INPUT” (8) del secondo.
ATTENZIONE!
Il valore totale rilanciabile in potenza e corrente può essere inferiore a quello nominale di targa. Questo dipende dal cavo di alimentazione del primo modulo e dal collegamento dei moduli in cascata. Tenerne conto in fase di progettazione e installazione del sistema.
COLLEGAMENTO DELLE USCITE FRA PIÙ MODULI (rilancio del segnale audio)
INGRESSO AUDIO
Per collegare 2 o più diffusori alla stessa sorgente audio, può essere utile, in diversi tipi di installazione, rilanciarne il segnale da un primo a un secondo e così via. Connettere innanzitutto una qualsiasi sorgente sonora nell’ingresso “INPUT” (6) del primo diffusore (per il differente collegamento “LINE” o “MIC” confrontare la sezione COLLEGAMENTO DEGLI INGRESSI). Collegare poi con un cavo bilanciato XLR l’uscita “LINK” (5) del primo diffusore all’ingresso “INPUT” (6) del secondo. Questa seconda operazione può essere poi ripetuta collegando diffusori per ottenere l’installazione più adeguata al
contesto.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
RILANCIO
15
Italiano
UTILIZZO DI UNA COPPIA DI DUE DIFFUSORI IG4T IN COLONNA
Per il corretto montaggio meccanico e il successivo utilizzo di due diffusori IG4T, uno sull’altro, è
necessario ricorrere ad una coppia di staffe di collegamento LP-IG. Per ogni ulteriore dettaglio consultare
le istruzioni di questo accessorio.
Una volta che i due diffusori sono correttamente montati, il riconoscimento a infrarossi presente sulle maniglie agisce automaticamente, occorre solamente effettuare il check nei menu iniziali della congurazione che sarà presentato nel seguente capitolo.
ATTENZIONE!
È possibile montare, far dialogare e riconoscere tramite le porte a infrarossi solo 2 diffusori identici.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
16
Italiano

3. PANNELLO DI CONTROLLO E MENU DI SETTAGGIO

ACCESSO AI MENU

Il push rotary encoder (3) permette sia di operare una selezione, ruotandolo, sia di operare una conferma, se premuto. Queste selezioni e conferme permettono di navigare fra i menu e i sottomenu, visibili sul display OLED (2). All’interno dei menu e dei sottomenu, la rotazione a destra o sinistra permette anche un
incremento o decremento dei valori selezionati.
SELEZIONE / DECREMENTOCONFERMA
Esempi di utilizzo del push rotary encoder
La schermata iniziale dopo l’accensione mostra il livello e il Gain delL’IG4T. È possibile proteggere tutte le
impostazioni attraverso una password. Per conoscere tutti i dettagli relativi, consultare il paragrafo Menu Options.
Una volta effettuate le impostazioni manualmente, queste rimangono memorizzate anche dopo lo spegnimento del diffusore.
Dopo circa un minuto che non ci sono selezioni o conferme, il sistema ritorna alla schermata iniziale (IG4T level/gain). Lo stesso ritorno può essere effettuato volutamente da qualsiasi punto, in 2 modi:
A. selezionando e confermando, quando presente in un sottomenu, il simbolo . B. tenendo premuto il push rotary encoder per qualche secondo.
Se i diffusori sono 2, montati correttamente uno sull’altro, il sistema li riconosce e assegna automaticamente il controllo di tutti e due all’amplicatore su cui si sta operando. In questo modo è possibile effettuare una sola regolazione valida e memorizzabile per tutto il sistema, indipendentemente dal rotary sul quale si agisce (mirroring OLED).
All’accensione dell’IG4T, il display si attesta sulla schermata iniziale, che mostra il GAIN e il livello di
segnale simulando un VU METER.
SELEZIONE / INCREMENTO
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
17
Da questa schermata, premendo il rotary push encoder, si accede ai vari menu, di cui è riportata la struttura generale nella gura sottostante.
Italiano
Struttura dei Menu
ATTENZIONE!
Il menu “SYSTEM COVERAGE” è visibile solo quando il sistema abbia riconosciuto automaticamente, attraverso le porte a infrarossi presenti sulle maniglie, che vi sono 2 diffusori sovrapposti, correttamente
installati.
Il menu “SUBWOOFER MATCHING” è visibile solo quando si sia
selezionata la presenza di un subwoofer nelle impostazioni, altrimenti non risulterà visibile, poiché non necessario all’utente.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
18
Italiano
La struttura dei menu principali può essere rappresentata circolarmente, visto che il push rotary encoder consente di scorrerla sia con rotazione a sinistra che a destra. Vedi gura sottostante.
Rappresentazione circolare dei menu
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
19

IL MENU BUILD SYSTEM

Questo menu congura automaticamente il sistema in base al numero di diffusori, alla presenza o meno di un subwoofer, alla posizione ed inclinazione dei diffusori
stessi. È composto da 3 sottomenu:
• SYSTEM CHECK
• SYSTEM STRUCTURE
• SYSTEM TYPE
Italiano
Build System Menu
Sottomenu
SYSTEM CHECK
Il sistema è in grado di rilevare, tramite la comunicazione a infrarossi (le porte di comunicazione sono sulle maniglie dei diffusori e il riconoscimento è automatico) se l’utente sta utilizzando uno o due diffusori IG4T. Una volta entrati in questa
schermata:
1. Ruotare il rotary encoder selezionando Selfcheck System e confermare la scelta premendo il push rotary encoder.
2. Dopo una breve animazione, il sistema passa automaticamente al menu successivo (SYSTEM STRUCTURE).
3. Se non è necessario effettuare questa operazione, selezionare e confermare NEXT, se è necessario
ritornare alla schermata pricipale, selezionare e confermare BACK.
SYSTEM STRUCTURE
Il menu permette di aggiornare manualmente la presenza o meno di uno o più
subwoofer nella congurazione che state utilizzando. Se è necessario aggiornare il
numero di subwoofer connessi.
1. Ruotare il rotary selezionando la voce “subwoofer” e confermarla.
2. Selezionare e confermare il numero di subwoofer che si intende utilizzare.
3. Selezionare e confermare NEXT per passare al menu successivo, selezionare e confermare BACK per ritornare al sottomenu SYSTEM CHECK.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
20
Italiano
SYSTEM TYPE
Il menu permette di aggiornare manualmente la presenza o meno di uno o più
subwoofer nella congurazione che state utilizzando. Se è necessario aggiornare il
numero di subwoofer connessi.
• Stacked
• Flown
In congurazione “Stacked” un diffusore IG4T è in appoggio su stand o uno o 2 diffusori sono in appoggio su subwoofer (confrontare il capitolo ESEMPI DI INSTALLAZIONE), in congurazione “Flown”, sono invece, sono appesi uno o due diffusori IG4T. Una volta entrati quindi nel menu SYSTEM TYPE:
Selezionare e confermare la modalità desiderata fra “Stacked” e “Flown”, selezionare e confermare NEXT per accedere alla schermata successiva (selezionare e confermare BACK per ritornare a quella precedente). A questo punto, se in precedenza il sistema ha rilevato la presenza di 2 diffusori, si accederà al menu SYSTEM
COVERAGE, e se si è selezionata la presenza di un woofer nel precedente sottomenu SYSTEM STRUCTURE, si
accederà poi al menu
SUBWOOFER MATCHING, in caso contrario (Speakers 1, Subwoofer 0) la schermata successiva sarà quella
iniziale, e la procedura sarà terminata.
ATTENZIONE!
Non installare mai il diffusore in appoggio diretto a terra, ma utilizzare sempre uno stand opzionale (non fornito) con palo standard diametro 35 mm e treppiede con piede centrale posizionato in avanti. Vericare sempre l’effettiva stabilità dell’installazione.
Il modello INGENIA IG4T in montaggio “Stacked” su stand non può ssere montato in congurazione a 2 diffusori sovrapposti, ma esclusivamente a diffusore singolo, per motivi di sicurezza.
IL MENU SAVE/LOAD SYSTEM
Questo menu permette di salvare e successivamente richiamare le
congurazioni di utilizzo del sistema. Sebbene allo spegnimento l’IG4T conservi tutte le informazioni delle ultime impostazioni effettuate, può essere molto utile avere a disposizione per contesti diversi, altrettante impostazioni salvate in precedenza, e poterle richiamare velocemente. A questo scopo l’IG4T consente di salvare e nominare 5 settaggi con
la funzione “SAVE” e di richiamarli con la funzione “RECALL”. Nel caso
sia necessario poi modicare i settaggi presenti in una delle locazioni di memoria, è possibile sovrascrivere successivamente le locazioni
precedentemente salvate.
Save/Load Menu
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
21
Italiano
Per salvare un’impostazione, dopo aver impostato i vari parametri, negli altri menu, accedere al menu
SAVE/LOAD SYSTEM e:
1. selezionare e confermare il numero di una delle locazioni di memoria, da 1 a 5.
2. selezionare e confermare “SAVE”.
3. assegnare un titolo alla locazione. È possibile utilizzare un titolo alfanumerico no a 14 lettere/cifre. Si
seleziona e quindi conferma una lettera alla volta a anco del numero di locazione. Quando si vuole terminare il titolo è sufciente confermare (senza selezionare) il carattere di spazio vuoto (_).
4. Premere “OK” alla schermata successiva.
5. Il sistema salva quindi le impostazioni nel numero di locazione col titolo prescelto.
Per richiamare un’impostazione caricandola nel sistema:
1. Selezionare e confermare la locazione di memoria desiderata.
2. Selezionare e confermare “RECALL”.
3. Premere “OK” alla schermata successiva.
4. Il sistema ha caricato le impostazioni relative alla locazione di memoria desiderata ed è ritornato alla schermata principale.
Per sovrascrivere un’impostazione su una precedente basta selezionare una locazione preesistente e selezionare e confermare “OK” alla schermata di conferma di overwrite.
IL MENU ACOUSTIC CORRECTION
In diverse occasioni può rivelarsi utile effettuare un’equalizzazione
differenziata del segnale di uscita dal diffusore.
Il DSP presente nell’IG4T gestisce anche quest’opzione.
A questo scopo accedere al menu ACOUSTIC CORRECTION e:
1. selezionare e confermare la banda di frequenza su cui occorre effettuare la correzione. È possibile agire su 3 bande:
A. LF - Low Frequency, con correzione + 3dB - 6 dB e
risoluzione da 0.5 dB
B. MF - Medium Frequency, con correzione + 0 dB - 6
dB e risoluzione da 0.5 dB
C. HF - High Frequency, con correzione + 3 dB – 6dB e
risoluzione da 0.5 dB
2. selezionare e confermare il livello di correzione desiderata.
3. se è necessario ripetere l’operazione per altre bande ritornare al punto 1, altrimenti selezionare il simbolo di home e ritornare alla selezione dei menu principali
Acoustic Correction Menu
L’acoustic correction può essere usata per migliorare l’intelleggibilità o attenuare frequenze che risultino predominanti, ma non sostituisce una corretta disposizione dei diffusori, da scegliere dopo aver valutato le caratteristiche acustiche dell’ambiente.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
22
Italiano
IL MENU STAGE ALIGNMENT
In caso di utilizzo delle IG4T in ambienti che richiedano più stadi
di amplicazione replicati a distanze diverse, si pensi ad esempio
alla copertura di un ambiente indoor particolarmente ampio e
lungo, caratterizzato da diversi ostacoli acustici, è possibile ritardare appositamente il segnale in uscita dai diffusori, in modo che l’ascoltatore non percepisca che un unico fronte d’onda apparente in qualsiasi punto della sala. In questo caso è utile un settaggio equivalente in termini di tempo/distanza.
1. selezionare e confermare il campo “DISTANCE”.
2. selezionare e conferm are il valore desiderato di distanza con range 0-15 m e risoluzione di 20 cm.
3. Ritornare alla schermata iniziale selezionando il simbolo “HOME”.
Stage Alignment Menu
IL MENU SYSTEM DELAY
In caso di utilizzo delle IG4T in ambienti che richiedano più stadi di
amplicazione replicati a distanze diverse, si pensi ad esempio alla copertura di un ambiente indoor particolarmente ampio e lungo, caratterizzato da diversi ostacoli acustici, è possibile ritardare appositamente il segnale in uscita dai diffusori, in modo che
l’ascoltatore non percepisca che un unico fronte d’onda apparente in
qualsiasi punto della sala. In questo caso è utile un settaggio equivalente in termini di tempo/distanza.
Per effettuare questo tipo di regolazione, dopo aver effettuato l’accesso al
menu SYSTEM DELAY:
1. selezionare e confermare il campo “DELAY”.
2. 2. selezionare e confermare il valore di ritardo desiderato con range
0-126 ms in termini di tempo o 0-43,7 m / 0-143,4 ft (piedi) in termini
di distanzaRitornare alla schermata iniziale selezionando il simbolo “HOME”.
3. 3. Ritornare alla schermata iniziale selezionando il simbolo “HOME”.
System Delay Menu
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
23
Settaggio per ambienti ampi e lunghi
IL MENU MICROPHONE SETTING
L’IG4T permette l’ingresso di un microfono dinamico (quindi privo di alimentazione phantom) con connettore XLR. Nel contesto di utilizzo di questa sorgente, può essere utile applicare un ltraggio al segnale per eliminare frequenze indesiderate (con un ltro passa-alto con frequenza di taglio regolabile). Oppure può rendersi necessario intervenire (con un ltro notch o elimina-banda con centro banda selezionabile) per evitare un feedback (o effetto Larsen). Per effettuare una o entrambe queste regolazioni, dopo aver effettuato l’accesso al menu MICROPHONE SETTING:
Italiano
1. selezionare e confermare HP lter (ltro passa-alto).
2. selezionare e confermare il valore di frequenza di taglio del ltro
passa-alto, con range variabile 50 Hz – 200 Hz e risoluzione 10 Hz (selezionare il valore “None” se si intende disattivare il ltro) .
3. selezionare e confermare “Antifeedback” (ltro anti-feedback o anti­effetto Larsen).
4. selezionare e confermare il valore di frequenza di centro banda, con range variabile 260 Hz – 15000 Hz e risoluzione di 10 Hz (selezionare il valore “None” se si intende disattivare il ltro).
5. Ritornare alla schermata iniziale selezionando il simbolo “HOME”.
Microphone Setting Menu
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
24
Italiano
IL MENU SYSTEM COVERAGE
Per le funzionalità di questo menu, visibile solamente se nella fase di SYSTEM CHECK il sistema ha riconosciuto automaticamente 2 diffusori,
confrontare anche il paragrafo “DIGITAL STEERING” nella sezione “ESEMPI DI INSTALLAZIONE”.
Questo menu consente di modicare il fascio dell’onda emessa e la copertura acustica relativa quando siano stati riconosciuti 2 diffusori montati l’uno sull’altro correttamente e correttamente riconosciuti dal DSP, basandosi su preset già memorizzati che si possono selezionare e quindi
confermare:
UP +10° per un’installazione con necessità di copertura acustica
dal basso verso l’alto.
UP +5° per dirigere il fronte d’onda con un’inclinazione media
verso l’alto.
UP +2.5° per dirigere il fronte d’onda con una leggera inclinazione
verso l’alto.
FAR 0° quando i diffusori devono arrivare il più lontano possibile,
in una situazione in cui siano installati frontalmente all’auditorio all’altezza degli spettatori.
DOWN -2.5° per dirigere il fronte d’onda con una leggera
inclinazione verso il basso.
DOWN -5° da utilizzare per inclinare la copertura acustica verso
il basso (ad esempio pubblico non molto distante dai diffusiori e installazione in appensione).
DOWN -10° per una direttività con la maggior angolazione
possibile verso il basso (ad esempio con un pubblico vicino e un’installazione in appensione).
System Coverage Menu
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
25
IL MENU SUBWOOFER MATCHING
Questo menu è visibile esclusivamente se in precedenza, nel sottomenu
BUILD SYSTEM SYSTEM STRUCTURE si è selezionata la presenza almeno
di un subwoofer. Inoltre, in questo caso, l’accesso a questo menu avviene
automaticamente dopo aver effettuato i settaggi di “SYSTEM TYPE” per completare le impostazioni generali di sistema. Il menu consente
innanzitutto di identicare il subwoofer utilizzato, poi di decidere se utilizzare la sua frequenza di crossover, o impostare una frequenza selezionabile in base al modello (range massimo 70-120 Hz con risoluzione 5 Hz). Questa scelta dipende dal tipo di collegamento fra subwoofer e diffusore, come mostrato nell’illustrazione sotto. Il menu fornisce anche il
suggerimento per il delay da impostare nel subwoofer. Per effettuare
la scelta della frequenza di crossover, dopo essere entrati nel menu
SUBWOOFER MATCHING:
1. selezionare e confermare il tipo di subwoofer associato nell’impianto.
2. selezionare e confermare HpFilter e selezionare e confermare la
frequenza di crossover desiderata .
3. vericare per i settaggi dell’impianto qual è il valore di delay consigliato per il subwoofer nel campo SubDelay.
4. selezionare “BACK” o “HOME” per ritornare rispettivamente alla scelta dei menu o alla schermata principale.
Italiano
Subwoofer Matching Menu
COLLEGAMENTO DIRETTO
In caso di COLLEGAMENTO DIRETTO, impostare il valore di HP desiderato sull’IG4T e disabilitare il ltro HP sul subwoofer, in caso di collegamento XOVER DAL SUBWOOFER, settare opportunamente il parametro di frequenza di crossover “SubXover” nel menu SUBWOOFER MATCHING dell’INGENIA IG4T.
XOVER DAL SUBWOOFER
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
26
Italiano
IL MENU OPTIONS
PASSWORD
1. ON/OFF (selezionare e confermare se si desidera attivare/disattivare una protezione
delle impostazioni con password).
2. PASSWORD (possibilità, con selezione e conferma, di immettere una password alfanumerica no a 6 cifre/caratteri).
Per sbloccare il sistema in caso di smarrimento
(ON/OFF e scelta del codice)
SUPERUSER PASSWORD
della password: Q2R5D9.
Options Menu
CONTRAST
1. Selezionare e confermare per regolare il contrasto del display OLED con un’accentuazione
della luminosità da 0 a 100% e risoluzione del 5%.
STAND-BY
1. ON/OFF (selezionare e confermare se si desidera attivare/disattivare uno stand-by a tempo del pannello di controllo).
2. PASSWORD (possibilità, con selezione e conferma, di immettere un valore temporale dpo il quale il pannello di controllo entra in stand-by, variabile fra 0’:10’’ – 10’:00 e risoluzione di 10’’).
(ON/OFF dello spegnimento automatico e scelta dell’intervallo di tempo)
RESTORE
1. Selezionare e confermare per attivare un restore alle impostazioni originarie di fabbrica.
INFO
1. Selezionare e confermare per visualizzare le informazioni sull’ultima versione rmware caricata.
EXIT
1. Selezionare e confermare per uscire dal menu OPTIONS.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
27
IL MENU EXIT
Questo menu permette, quando selezionato e confermato, di ritornare
alla schermata iniziale dell’IG4T.
Italiano
Exit Menu
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
28
Italiano

4. ESEMPI DI INSTALLAZIONE

Per utilizzare 2 diffusori l’uno sull’altro, occorre servirsi dell’accessorio opzionale LP-IG. Per ogni ulteriore informazione, fare riferimento alle istruzioni di questo accessorio.
Vericare sempre che le maniglie, che permettono la comunicazione a infrarossi, siano prive di ostacoli nell’installazione per la comunicazione a infrarossi, evitare di coprirle e rimuovere eventuale polvere o sporcizia che si possa depositare su di esse.

INSTALLAZIONE SU STATIVO

L’INGENIA IG4T è installabile in congurazione sia stereo che mono su stativo a
treppiede opzionale standard con palo di diametro 35 mm.
ATTENZIONE!
Utilizzare uno stand dimensionato opportunamente con il piede centrale in avanti per assicurare una stabilità adeguata.
Non è possibile installare 2 INGENIA IG4T sullo stesso stand per motivi di stabilità.

INSTALLAZIONE SU SUBWOOFER

Tramite installazione con l’accessorio GSA-IG, è possibile utilizzare i diffusori montati su subwoofer. In questo modo si può ottenere un sistema estremamente compatto e potente su tutte le frequenze acustiche con installazione a terra. Seguire le istruzioni relative alla congurazione del subwoofer relativa alla sezione
SUBWOOFER MATCHING una volta completata l’installazione.
INSTALLAZIONE IN APPENSIONE
In congurazione own, si considera l’appensione dei 2 diffusori IG4T, in cui il ssaggio ad un dispositivo di palco apposito (come un’americana) è possibile tramite l’apposito FLYBAR DRK-IG opzionale. In appensione, è utilissimo utilizzare i rilanci sia di alimentazione, sia di segnale, per ottenere una riduzione della complessità dei collegamenti, come mostrato nella sezione “PRIMA ACCENSIONE”.
ATTENZIONE!
In contesti di utilizzo all’aperto, ancorare il diffusore per evitare oscillazioni dovute agli agenti atmosferici e al vento.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
29
IL DIGITAL STEERING
Il digital steering è una tecnologia che può essere
opportunamente adottata per direzionare la copertura
acustica di due diffusori sovrapposti, modicandola in base
alle esigenze del contesto di utilizzo e dell’installazione. Il
DSP dell’INGENIA IG4T può agire su ogni singolo trasduttore (compression driver o woofer che sia) intervenendo con ritardi differenziati di emissione del segnale. In questo
modo il fronte d’onda acustica di 2 diffusori sovrapposti
può essere considerato equivalente a quello di un unico diffusore angolato, come mostrato in gura. In fase di setup,
al riconoscimento automatico della presenza di 2 diffusori
tramite le porte a infrarossi presenti sulle maniglie, l’IG4T permette di modicare la copertura acustica tramite un apposito menu SYSTEM COVERAGE (altrimenti invisibile se il diffusore è in congurazione singola):
Italiano
Platea
Per ogni informazione ulteriore fare riferimento alla sezione
IL MENU SYSTEM COVERAGE.
Inclinazione
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
30
Italiano

5. AGGIORNAMENTO DEL FIRMWARE

È molto importante mantenere aggiornato il rmware del prodotto, per garantirne una piena funzionalità. Controllare periodicamente il sito http://www.dbtechnologies.com nella sezione “DOWNLOADS”. Una volta che si
sia vericata la presenza di una versione di rmware nuova:
1. Scaricare l’USB BURNER MANAGER nella sezione “SOFTWARE & CONTROLLER”.
2. Scaricare il le .zip dell’ultimo rmware nella sezione “DOWNLOADS” relativa all’INGENIA IG4T.
3. Nella schermata dell’USB BURNER MANAGER, in alto a destra, selezionare “File Opening”.
4. Selezionare il le del rmware precedentemente scaricato (vericando la correttezza in base al proprio
sistema operativo).
5. Cliccare UPDATE.
ATTENZIONE!
Aggiornando il rmware non è garantita la presenza delle vecchie impostazioni salvate alla successiva accensione del prodotto.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
31

6. RISOLUZIONE DEI PROBLEMI

Il diffusore non si accende:
1. Vericare la corretta presenza dell’alimentazione a monte dell’impianto.
2. Vericare che il cavo di alimentazione con connettore Neutrik® powerCON TRUE1® sia correttamente inserito.
Il diffusore si accende ma non emette nessun suono:
1. Vericare che i collegamenti in ingresso del segnale audio siano correttamente effettuati con cavi con con connettori Neutrik®.
2. Vericare che i cavi utilizzati non siano danneggiati.
3. Vericare che il mixer o la sorgente audio sia accesa e mostri chiaramente la presenza di segnale in uscita al diffusore.
4. Vericare che il livello del guadagno nella schermata iniziale sia impostato a un valore adeguato.
Italiano
Il diffusore risulta collegato, ma il pannello di controllo appare totalmente spento, schermo OLED compreso:
1. Ruotare il push rotary encoder per riattivare un’eventuale situazione di stand-by del display precedentemente inserita.
2. Vericare che il cavo di alimentazione con connettore Neutrik® powerCON TRUE1® sia correttamente inserito.
3. Vericare che non manchi l’alimentazione a monte dell’impianto.
Il diffusore emette un suono distorto:
1. Regolare per primo il volume della sorgente, poi portare il guadagno di ingresso dell’IG4T a un valore adeguato.
2. Vericare che i cavi utilizzati non siano danneggiati, nel qual caso sostituirli (un cavo danneggiato può
portare a perdita o alterazione del segnale).
3. Vericare le impostazioni dei menu che inuiscono sul contenuto in frequenza del segnale in uscita e in particolare:
a) ACOUSTIC CORRECTION b) MICROPHONE SETTING se in ingresso è collegato un microfono
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
32
Italiano
Il sistema non riconosce 2 diffusori sovrapposti, e nella schermata SYSTEM STRUCTURE compare 1 solo speaker:
1. Vericare di aver montato correttamente i 2 diffusori, uno sull’altro, con quello superiore capovolto, e di aver utilizzato e ssato correttamente le staffe di collegamento LP-IG come da istruzioni di questo
accessorio.
2. Vericare che le maniglie superiori e inferiori dei diffusori, che contengono le porte di comunicazione a
infrarossi, non siano in nessun modo coperte.
Eseguire nuovamente la procedura di “Selfcheck System” all’interno di SYSTEM CHECK, come mostrato nel paragrafo relativo.
Non è possibile modicare le impostazioni dei vari menu del pannello di controllo, pur essendo il diffusore
chiaramente acceso:
1. Vericare l’eventuale presenza di una password di blocco precedentemente impostata.
2. Vericare la funzionalità in rotazione e pressione del push rotary encoder.
Il diffusore emette un suono ritardato rispetto alla sorgente:
1. Vericare le impostazioni dei menu che inuiscono sul ritardo del segnale audio e in particolare:
a) STAGE ALIGNMENT b) SYSTEM DELAY
Il display non permette di vedere chiaramente le impostazioni dei menu:
1. Accedere al menu relativo alla regolazione della luminosità del display OPTIONS CONTRAST (vedi le informazioni relative alla sezione IL MENU OPTIONS).
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
33

7. SPECIFICHE TECNICHE

GENERALE

Italiano
Tipologia:

DATI ACUSTICI

Risposta in frequenza [-10dB]:
Risposta in frequenza [-6dB]:
Max SPL:
HF compression diver (uscita):
HF Voice Coil:
Tipologia HF:
Direttività:
Frequenza di crossover:
Diffusore attivo a 2 vie a sviluppo verticale
74 - 20.000 Hz
88 – 19200 Hz
132 dB
1.4”
3” (Titanio)
Compression driver al neodimio
Verticale asimmetrica
1100 Hz
Copertura (HxV):
LF:
LF Voice coil:
Tipologia LF:
110° x 90° (+20°/-70°)
4 x 6.5”
1.5”
Neodimio
AMPLIFICATORE
Tipologia:
Classe di amplicazione:
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
34
Digipro® G3
Classe D
Italiano
Potenza di amplicazione RMS:
Potenza di picco:
Interfaccia:
Display autorotativo:
Riconoscimento della posizione:
Controllo in mirroring (per 2 diffusori con controllo IR):
PROCESSORE
Controller interno:
Convertitore A/D D/A:
Impostazioni:
900 W
1800 W
Push rotary encoder + OLED display
EPD
DSP 56 bit
24 bit/48 kHz
Impostazioni di utilizzo di fabbrica e personalizzabili, salvabili e
richiamabili
Limiter:
INGRESSI
Ingressi:
Uscite:
USB:
DIMENSIONI
Materiale:
Griglia:
Predisposizione per y-bar:
Peak, RMS, Termico
1x Combo (XLR/Jack) bilanciato/sbilanciato
1x XLR link OUT
Mini USB di tipo B
Polipropilene PP rinforzato
Piena / Viti nascoste
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
35
Italiano
Maniglie:
Montaggio su palo:
Larghezza:
Altezza:
Profondità:
Peso:
1 superiore / 1 inferiore con interfaccia IR
Sì, 36 mm
195 mm
956 mm
271 mm
18,2 kg
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
36
Italiano
Caratteristiche, speciche e aspetto dei prodotti sono soggetti a possibili cambiamenti senza previa comunicazione. dBTechnologies si riserva il diritto di apportare cambiamenti o miglioramenti nel design o nelle lavorazioni senza assumersi l’obbligo di cambiare o migliorare anche i prodotti precedentemente realizzati.
A.E.B. Industriale Srl
Via Brodolini, 8
Località Crespellano
40053 VALSAMOGGIA
BOLOGNA (ITALIA)
Tel +39 051 969870
Fax +39 051 969725
www.dbtechnologies.com
info@dbtechnologies-aeb.com
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
37
English
INDEX
1. GENERAL INFORMATIONS ....................................................................................................40
WELCOME! .........................................................................................................................40
PRELIMINARY OVERVIEW ..................................................................................................40
USER REFERENCES ..............................................................................................................40
MECHANICAL AND ACOUSTIC CHARACTERISTICS ............................................................41
DIMENSIONS .............................................................................................................................................. 41
ACOUSTIC COVERAGE ............................................................................................................................... 41
ACCESSORIES ............................................................................................................................................. 42
CHARACTERISTICS OF THE AMPLIFICATION AND CONTROL SECTION ............................43
INPUT AND CONTROL SECTION ................................................................................................................ 44
POWER SUPPLY SECTION .......................................................................................................................... 45
2. FIRST SWITCH-ON ..................................................................................................................46
PACKAGE CONTENTS ..........................................................................................................46
INSTALLATION .....................................................................................................................46
CONNECTING THE INPUTS ........................................................................................................................ 46
CONNECTING THE POWER SUPPLY .......................................................................................................... 47
CONNECTING OUTPUTS BETWEEN MULTIPLE MODULES (power supply linking) ................................. 48
CONNECTING OUTPUTS BETWEEN MULTIPLE MODULES (audio signal linking) .................................. 49
USE OF A PAIR OF STACKED IG4T SPEAKERS .......................................................................................... 50
3. CONTROL PANEL AND SETTING MENUS .............................................................................51
ACCESSING THE MENUS .....................................................................................................51
BUILD SYSTEM MENU ........................................................................................................54
SYSTEM CHECK .......................................................................................................................................... 54
SYSTEM STRUCTURE .................................................................................................................................. 54
SYSTEM TYPE ............................................................................................................................................. 55
SAVE/LOAD SYSTEM MENU ...............................................................................................55
ACOUSTIC CORRECTION MENU .........................................................................................56
STAGE ALIGNMENT MENU .................................................................................................57
SYSTEM DELAY MENU ........................................................................................................57
MICROPHONE SETTING MENU ..........................................................................................58
SYSTEM COVERAGE MENU ................................................................................................59
SUBWOOFER MATCHING MENU .......................................................................................60
OPTIONS MENU ..................................................................................................................61
PASSWORD ................................................................................................................................................ 61
CONTRAST .................................................................................................................................................. 61
STAND-BY ................................................................................................................................................... 61
RESTORE ..................................................................................................................................................... 61
INFO ........................................................................................................................................................... 61
EXIT............................................................................................................................................................. 61
EXIT MENU ..........................................................................................................................62
4. INSTALLATION EXAMPLES ....................................................................................................63
INSTALLATION ON STAND ..................................................................................................63
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
38
English
INDEX
INSTALLATION ON SUBWOOFER .......................................................................................63
FLOWN INSTALLATION .......................................................................................................63
DIGITAL STEERING ..............................................................................................................64
5. UPDATING THE FIRMWARE ..................................................................................................65
6. TROUBLESHOOTING ..............................................................................................................66
7. TECHNICAL SPECIFICATIONS ................................................................................................68
GENERAL .................................................................................................................................................... 68
ACOUSTIC DATA ......................................................................................................................................... 68
AMPLIFIER .................................................................................................................................................. 68
PROCESSOR ................................................................................................................................................ 69
INPUTS........................................................................................................................................................ 69
DIMENSIONS .............................................................................................................................................. 69
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
39
English

1. GENERAL INFORMATIONS

WELCOME!

Thank you for purchasing a product designed and developed in Italy by dBTechnologies! This vertical 2-way active
speaker is the result of years of experience and research on speakers, with the use of innovative solutions in the eld of acoustics, electronics and research on materials.

PRELIMINARY OVERVIEW

INGENIA IG4T is a vertical 2-way speaker, equipped with four 6.5” woofers and one 1.4” compression driver exit (voice coil: 3”), controlled by a latest generation 900 W RMS DIGIPRO G3 amplier. Its most innovative
characteristics include:
an accurate design of the horn, featuring an asymmetric directivity, specically designed to provide
excellent acoustic coverage, ensuring an uncompromising sound denition in different indoor and
outdoor applications.
digital steering controlled by the powerful internal DSP, with the use of 2 stacked speakers, allowing to combine wider coverage and greater sound power with uncompromising accuracy and clarity.
immediate automatic detection of the 2-speaker conguration, thanks to the infra-red communication
system installed on the handles (EPD technology) and to the fast, customizable, DSP-controlled management. In this conguration the OLED displays orientate automatically. Just operating the
control section of one of the two speakers allows to drive the whole system.
an innovative shape, with the use of 4 woofers and 1 driver, in a cabinet combining ruggedness, sound
performances, compactness and easy handling.
extreme versatility, allowing to quickly and easily save and recall one’s settings, protecting them with a settable password.

USER REFERENCES

To get the most from your INGENIA IG4T we recommend that you:
thoroughly read the quick start user manual you will nd in the package and this manual, and keep it throughout the product life.
register the product on the site http://www.dbtechnologies.com, in the “SUPPORT” section.
download and install the latest rmware from the Web site http://www.dbtechnologies.com, in the DOWNLOADS” section (see chapter UPDATING THE FIRMWARE).
keep the proof of purchase and the WARRANTY (User manual - section 2).
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
40
English

MECHANICAL AND ACOUSTIC CHARACTERISTICS

DIMENSIONS

INGENIA IG4T integrates, in a reinforced polypropylene cabinet weighing 18.2 kg, four 6.5” woofers and a one 1.4” compression driver exit (voice coil: 3”) with neodymium magnets featuring exceptional compactness, weight and performances. A
lightweight aluminium internal structure improves the unit’s solidity without increasing its weight. The dimensions of each individual speaker are: 195 x 956 x 271 mm. The handles allow to easily transport it; the unit can be displaced by a single
person. The system allows different congurations, from the installation on a stand on the ground or on a subwoofer, to the own installation of 2 modules, for more complex live usage
scenarios.

ACOUSTIC COVERAGE

The special opening of the horn, outlined in the gure, ensures a total directivity of 110 x 90° (+20°/- 70°). This
asymmetric vertical coverage ensures excellent directive
coverage, with and without own installation, in indoor and outdoor contexts. Using 2 stacked modules, in addition, allows to control through the digital steering (automatically managed by DSP) the behaviour of each transducer, ensuring
exceptionally accurate and effective directivity and overall
sound performance, with compact dimensions.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
41
English

ACCESSORIES

The following optional accessories are available for quick installation, in addition to the upper and lower handles:
Fly-bar DRK-IG (and the optional TA-IG) for vertical own installation.
• LP-IG locking bracket pair allowing to fasten 2 stacked IG4T modules.
• Optional GSA-IG stand for installation on subwoofer.
A specially designed bag (TC-IG4T) and a rain cover (RC-M1) (both optional) are available for speaker transport and protection.
Fly Bar DRK-IG LP-IG Locking Bracket
GSA-IG stand
For further information please refer to the relevant manuals.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
42
English

CHARACTERISTICS OF THE AMPLIFICATION AND CONTROL SECTION

The D-class latest generation digital amplier DIGIPRO G3 is the
core of IG4T and can provide a sound power of 900W RMS. Thanks to a switching power supply section featuring a
particularly efcient auto-range function, the system is quiet, as it requires no active cooling system. The system is controlled by a powerful DSP, allowing to dene different parameters, as well
as to automatically manage the communication between the
modules, in case of conguration with 2 stacked speakers. In the latter case, in addition, the DSP can control both the woofers and the compression driver, allowing to achieve an accurate and congurable directive sound focus (digital steering).
ATTENTION!
Protect the module from humidity.
Never try to open the amplier.
In case of malfunction, immediately cut
off the power supply, by disconnecting the module from the mains, then contact an authorised repairman.
CONTROL SECTION
AMPLIFIER INPUT AND
The DIGIPRO G3 panel consists of:
• INPUT AND CONTROL SECTION
• POWER SUPPLY SECTION
SECTION
POWER SUPPLY
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
43
English

INPUT AND CONTROL SECTION

1. “PEAK” LED
A red LED that briey lights up when the power supply is
connected or if the signal distortion reaches its peak limit.
ATTENTION!
Never use the speaker for a prolonged time while the limiter LED is on or blinking, indicating the equipment is running under excessive stress conditions with distorted sound.
2. OLED DISPLAY The display automatically orientates according to the
accelerometer control, detecting whether the speaker has been installed straight vertically or ipped. The user can congure a contrast adjustment and automatic power-off function (see
chapter CONTROL PANEL AND SETTING MENUS).
3. PUSH ROTARY ENCODER
The push rotary encoder allows both a rotary selection (selection of menus and values), and a push selection (selection conrmation).
4. USB SERVICE DATA
This standard mini-USB B port allows to update the product rmware, when available, using a PC and a specially developed program. For further information, please refer to the Web site http://www.dbtechnologies.com in the
DOWNLOADS” section and to chapter UPDATING THE FIRMWARE)
ATTENTION!
The USB SERVICE DATA connection must only be used to update the product rmware; never connect any USB device to the equipment, to avoid possible damages or malfunctions.
5. “LINK” OUTPUT
Balanced “XLR” output, allowing to send the input audio signal to another amplied speaker.
6. “INPUT” COMBO INPUT
Combined XLR-TR-TRS audio signal input. It allows to use a balanced XLR connector, or a ¼” TS or TRS jack input.
ATTENTION!
Only use cables equipped with high-quality Neutrik® original connectors. Using different or poor-quality connectors might affect the speaker operation.
7. “INPUT SENS” SELECTOR
A selector allowing to set whether the incoming signal comes from a mixer/a line (“LINE”) or from a microphone (“MIC”).
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
44
English

POWER SUPPLY SECTION

8. “AUTO-RANGE MAINS INPUT” POWER SUPPLY INPUT Input for Neutrik® powerCON TRUE1 connector. It allows a maximum power absorption of 16 A.
9. “MAINS LINK” POWER SUPPLY LINKING OUTPUT The connection provided by Neutrik® NAC3PX allows to link the power supply to a second module.
10. “MAINS FUSE” PROTECTION FUSE Mains fuse
ATTENTION!
The speaker is supplied equipped with a pre-installed fuse designed to operate within the 220-240 V range. If the system must operate within the 100-120 V range:
1. Disconnect all connections, including the power supply one
2. Wait 5 minutes.
3. Replace the fuse with the one included in the package for the 100-120 V range.
4. Only use the provided power cord.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
45
English

2. FIRST SWITCH-ON

PACKAGE CONTENTS

Open the package and check that the INGENIA IG4T speaker packaging contains all the items included in the supply. The packaging includes:
• power cord with connector Neutrik® TRUE POWERCON
• INGENIA IG4T
quick start and warranty-related documents
• fuse to be installed if the system is to operate within the 100-120V range
ATTENTION!
The speaker is supplied equipped with a pre-installed fuse designed to operate within the 220-240 V range. If the system must operate within the 100-120 V range:
1. Disconnect all connections, including the power supply one
2. Wait 5 minutes.
3. Replace the fuse with the one included in the package for the 100-120 V range.
4. Only use the provided power cord.

INSTALLATION

CONNECTING THE INPUTS

MIXER / LINE MICROPHONE
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
46
English

CONNECTING THE POWER SUPPLY

POWER SUPPLY
ATTENTION!
Only use cables equipped with high-quality Neutrik® original connectors. Replace any damaged cables, to avoid malfunctions and poor sound quality.
To properly install the INGENIA IG4T speaker:
Properly connect the audio input, using the “Input sens” (6) selector to set the source. If the input
signal comes from a line or from a mixer output set the selector (7) to “LINE”; if the input signal comes from a microphone (use a dynamic microphone), set the selector (7) to “MIC”. For a brief overview of
audio cables please refer to the table below.
Connect the power supply, connecting the cable equipped with Neutrik® TRUE POWERCON connector
to “MAINS INPUT” (8)
At switch-on the peak LED blinks briey and the OLED screen (2) activates, displaying the initial level and gain control screen:
Turn the PUSH ROTARY ENCODER (3) to the left or to the right to adjust the system gain to an appropriate level.
Check that, once the source has been properly connected and switched on, the speaker outputs the
sound, progressively increasing the volume.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
47
English

CONNECTING OUTPUTS BETWEEN MULTIPLE MODULES (power supply linking)

POWER SUPPLY LINK
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
48
English
The use of Neutrik® powerCON TRUE1® connectors allows to link the power supply up to a total power of 3400
W (15 A), for the countries where voltage is within the 220 - 240 V range, and of 1600 W (14A), for the countries where voltage is within the 100 – 120 V range. As a consequence, to connect for example 2 coupled speakers (both stacked and own), connect the rst IG4T to the power supply using the “MAINS INPUT” (8) connection, then connect the rst one to the second one (and the second one to the third one, and so on, taking into account the maximum power limit) using a link cable with Neutrik® connector, connecting the “MAINS LINK” (9) output of the rst IG4T to the “MAINS INPUT” (8) output of the second one.
ATTENZIONE!
The total power and current value that can be linked may be lower than the rated one. This depends on the power cord of the rst module and on the cascade connection of the modules. Take this issue into account when designing and installing the system.

CONNECTING OUTPUTS BETWEEN MULTIPLE MODULES (audio signal linking)

AUDIO INPUT
To connect 2 or more speakers to the same audio source, it may be useful, in some installation congurations, to link the signal from the rst one to a second one and so on. First of all connect a sound source of any type to the “INPUT” input (6) of the rst speaker (for the “LINE” or “MIC” connection, which is different, please refer to section CONNECTING THE INPUTS). Using a balanced XLR cable, then, connect the “LINK” output (5) of the rst speaker to the “INPUT” input (6) of the second one. This second operation can then be repeated to connect other speakers, to get the installation layout that is the most appropriate for the context.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
LINK
49
English

USE OF A PAIR OF STACKED IG4T SPEAKERS

To properly couple and then use two stacked IG4T speakers, you need a pair of LP-IG connecting brackets. For
further details please refer to the instructions of this accessory.
Once the two speakers are properly mounted, the infra-red detection system installed on the handles activates automatically; the user will just have to run the check in the initial conguration menus, that will be discussed in
the next chapter.
ATTENTION!
Only 2 identical speakers can be installed, interconnected and detected through the infra-red ports.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
50
English

3. CONTROL PANEL AND SETTING MENUS

ACCESSING THE MENUS

The push rotary encoder (3) allows the user both to perform a selection by turning it and to conrm a selection by pressing it. These operations allow to navigate the menus and sub-menus available on the OLED display (2). Inside the menus and sub-menus, turning the encoder to the right or to the left also allows to increase or decrease the
selected values.
SELECT / DECREASECONFIRM
Push rotary encoder use examples
The initial screen at switch-off displays the IG4t level and gain. All settings can be protected by a password.
Once manually performed, the settings remain stored even after the speaker has been switched off.
After approximately one minute has elapsed since the last selection or conrmation, the system returns to the initial screen (IG4T level/gain). The user can also return to the initial screen from any point, in 2 ways:
a. by selecting and conrming, when existing in a sub-menu, the symbol b. by holding the push rotary encoder pressed for a few seconds
If the speakers are 2 and installed in a stacked conguration, the system detects them and automatically assigns the control of both to the amplier which is being operated. This allows to perform an adjustment that will apply and can be stored for the whole system, irrespective of the rotary that is being operated (mirroring OLED) .
At switch-on, the IG4T display shows the initial screen, indicating the GAIN and the signal level,
simulating a VU METER.
SELECT / INCREASE
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
51
English
From this screen, pressing the rotary push encoder allows to access the different menus, whose general structure is shown in the gure.
The Structure of Menus
ATTENTION!
The “SYSTEM COVERAGE” menu is only displayed when the menu has automatically detected, through the infra-red ports installed on the handles, that there are 2 stacked speakers, properly installed.
The “SUBWOOFER MATCHING” menu is only displayed when the presence of a subwoofer has been selected in the settings, otherwise it shall not be displayed, as it is unnecessary to the user.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
52
English
The main menu structure can be represented in a circular form, as the push rotary encoder allows to browse the
menus by rotating it both to the left and to the right.
Circular form representation
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
53

BUILD SYSTEM MENU

This menu automatically congures the system according to the number of speakers, to the presence or absence of a subwoofer, as well as to the location
and inclination of the speakers. It consists of 3 sub­menus:
• SYSTEM CHECK
• SYSTEM STRUCTURE
• SYSTEM TYPE
English
Build System Menu
Sub-menus

SYSTEM CHECK

The system can detect, through infra-red communication (the communication ports are installed on the speaker handles and detection is automatic) whether the user is
using one or two IG4T speakers. After accessing this screen:
1. Turn the rotary encoder selecting Selfcheck System, then conrm the choice by pressing the push rotary encoder.
2. After a short animation, the system automatically switches to the next menu (SYSTEM STRUCTURE).
3. If this operation doesn’t need to be performed, select and conrm NEXT; if you need to return to the main
screen, select and conrm BACK

SYSTEM STRUCTURE

The menu allows to manually update the conguration of the system in use,
adding or removing one or more subwoofers. If you need to update the number of connected subwoofers:
1. turn the rotary encoder, select the “subwoofer” item and conrm it
2. select and conrm the number of subwoofers you want to use
3. select and conrm NEXT to switch to the next menu; select and conrm BACK to return to the SYSTEM
CHECK sub-menu
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
54
English

SYSTEM TYPE

The system types available when using the IG4T are 2:
• Stacked
• Flown
In the “Stacked” conguration an IG4T speaker rests on a stand, or one or 2 speakers rest on a subwoofer (see
chapter INSTALLATION EXAMPLES); in the “Flown” conguration, instead, one or two IG4T speakers are hanging.
After accessing the SYSTEM TYPE menu, then:
Select and conrm the desired mode, choosing between “Stacked” and “Flown”; select and conrm NEXT to access the next screen (select and conrm BACK to return to the previous one). Now, if the system has previously detected the presence of 2 speakers, it will switch to the SYSTEM COVERAGE menu, and if the
presence of a woofer has been selected in the previous SYSTEM STRUCTURE sub-menu, it will then switch to the SUBWOOFER MATCHING menu; should that not be the case (Speakers 1, Subwoofer 0) the next screen will
be the initial one, and the procedure will end.
ATTENTION!
Never install the speaker directly resting on the ground, but always use an optional stand (not included in the supply) with a standard pole having a diameter of 35 mm and a tripod with the central foot forward. Always check that the installation is actually stable.
When “Stacked” on a stand, the INGENIA IG4T cannot be mounted in the conguration with 2 speakers stacked, but only in a single speaker conguration, for safety reasons.

SAVE/LOAD SYSTEM MENU

This menu allows to save and then recall the system usage congurations.
Even though at switch-off the IG4T retains all the information about the
latest settings, it may be useful to have at one’s disposal, for different contexts, a previously saved batch of appropriate settings, and to be able to quickly reload them. To this purpose, IG4T allows to save and rename 5 batches of settings, using the “SAVE” function, and to recall them using the
“RECALL” function. Should you later have to edit the settings stored in one
of the memory slots, you can later overwrite the previously saved slots.
Save/Load System Menu
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
55
English
To save a batch of settings, after setting the different parameters in the other menus, access the SAVE/LOAD
SYSTEM menu and:
1. Select and conrm the number of one of the memory slots, from 1 to 5,
2. Select and conrm “SAVE”.
3. Assign a title to the slot. You can only use an alphanumeric title consisting of up to 14 letters/digits. Select and
conrm one letter at a time next to the slot number. To end the title just conrm (without selecting) the blank space character (_).
4. Press “OK” at the next screen
5. The system then saves the settings in the slot number with the chosen title
To recall a batch of settings, loading it into the system:
1. Select and conrm the desired memory slot
2. Select and conrm “RECALL”.
3. Press “OK” at the next screen
4. The system has loaded the settings associated with the desired memory slot and has returned to the main screen
To overwrite a previous batch of settings with a new one just select a pre-existing slot, then select and conrm “OK” in the overwrite conrmation screen.

ACOUSTIC CORRECTION MENU

In various cases it may be useful to perform a differentiated equalisation of
the speaker output signal. The DSP installed in the IG4T also manages this option.
To this purpose access the ACOUSTIC CORRECTION menu and:
1. Select and conrm the frequency band to which the correction must be applied. You can operate on 3 bands:
A. LF - Low Frequency, with + 3dB - 6 dB correction
and 0.5 dB resolution
B. MF - Medium Frequency, with + 0 dB - 6 dB
correction and 0.5 dB resolution
C. HF - High Frequency, with + 3 dB – 6dB and 0.5 dB
resolution
2. Select and conrm the desired correction level
3. If the operation needs to be repeated for other bands return to point 1., otherwise select the home symbol and return to the main menu selection
Acoustic Correction Menu
Acoustic correction can be used to improve intelligibility or attenuate any predominating frequencies, but it is not a replacement for a proper arrangement of the speakers, to be chosen after assessing the acoustic characteristics of the environment
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
56
English

STAGE ALIGNMENT MENU

In a live scenario with different sources of amplication, like guitar ampliers on the stage, or natural sound sources like a battery, you can virtually “align” the IG4T speakers, specifying the distance of the sources in question, in metres or feet. This will allow to obtain a single acoustic wavefront without any delays, in all the live scenarios where this is required. The DSP will automatically delay the IG4T signal output, increasing the performance effectiveness. To this purpose, after accessing
the STAGE ALIGNMENT menu:
1. Select and conrm the “DISTANCE” eld
2. Select and conrm the desired distance value, with a range of 0-15 m and a resolution of 20 cm.
3. Return to the initial screen by selecting the “HOME” symbol
Stage Alignment Menu

SYSTEM DELAY MENU

If the IG4T speakers are used in environments requiring multiple amplication stages replicated at different distances - for example when they need to cover a particularly wide and long indoor environment, with various sound obstacles, the signal output by the speaker can be appropriately delayed, to ensure that the listener only perceives a single apparent wavefront, at any point in the room. In this case an equivalent
setting in terms of time/distance can be useful.
To this purpose, after accessing the SYSTEM DELAY menu:
1. Select and conrm the “DELAY” eld
2. Select and conrm the desired delay value, with a range of 0-126 ms in
terms of time or of 0-43.7 m / 0-143.4 ft (feet) in terms of distance
3. Return to the initial screen by selecting the “HOME” symbol
System Delay Menu
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
57
Wide indoor environment setting

MICROPHONE SETTING MENU

IG4T allows to input a dynamic microphone (and thus without phantom power supply), using an XLR connector. When using this source, it may be useful to apply a ltering to the signal to cut any unwanted frequencies (by a high-pass lter with adjustable cut frequency). Or it may be necessary to intervene (by a notch or band-stop lter with selectable band centre) to prevent any feedback (or Larsen effect). To perform one of these settings, or both of them, after accessing the MICROPHONE SETTING menu:
English
1. Select and conrm HP lter (high-pass lter)
2. Select and conrm the value of the high-pass lter cut frequency, with
a range of 50 Hz – 200 Hz and a resolution of 10 Hz (select the “None” value if you wish to disable the lter)
3. Select and conrm “Antifeedback” (anti-feedback or anti-Larsen effect lter)
4. Select and conrm the value of the band centre frequency, with a range of 260 Hz – 15000 Hz and a resolution of 10 Hz (select the “None” value if you wish to disable the lter)
5. Return to the initial screen by selecting the “HOME” symbol
Microphone Setting Menu
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
58
English

SYSTEM COVERAGE MENU

For information about the functions contained in this menu, only
displayed if during SYSTEM CHECK the system has automatically
detected 2 speakers, also refer to paragraph “DIGITAL STEERING” in the
“INSTALLATION EXAMPLES” section. This menu allows to modify the beam of the emitted wave and the relevant acoustic coverage when the system
has detected 2 speakers properly installed in a stacked conguration and properly recognised by the DSP, on the basis of pre-sets already stored that can be selected and then conrmed:
UP +10° for an installation requiring an acoustic coverage from the bottom up, with mounting on stand or subwoofer and with as
much inclination as possible.
UP +5° to orientate the wavefront with a medium upward
inclination, with mounting on stand or subwoofer
UP +2.5° to get an acoustic coverage with a slight upward inclination.
FAR 0° when you want a coverage getting as far as possible,
when speakers are installed in front of the auditorium, at the height
of the audience.
DOWN -2.5° to be used to orientate the acoustic coverage
slightly downward (for example with the public not very far from the speakers and own installation).
DOWN -5° for a directivity with a medium downward inclination (for example with public close to the speakers and own installation).
DOWN -10° to incline the acoustic coverage as downward as possible (public very close to the speakers and own installation).
System Coverage Menu
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
59

SUBWOOFER MATCHING MENU

This menu is only displayed if the presence of at least one subwoofer has
previously been selected, in the BUILD SYSTEM SYSTEM STRUCTURE sub­menu. In addition, in this case, this menu is accessed automatically after the “SYSTEM TYPE” settings have been performed, to complete the general system settings. First of all, the menu allows to identify the subwoofer in use, then to decide whether to use its crossover frequency or to set a frequency depending on the model (maximum range 70-120 Hz with a resolution of 5 Hz). This choice depends on the type of subwoofer-speaker connection, as shown in the gure below. The menu also suggests the delay to be set in the subwoofer. To choose the crossover frequency, after
accessing the SUBWOOFER MATCHING menu:
1. Select and conrm the type of associated subwoofer in the system
2. Select and conrm HpFilter, then select and conrm the desired
crossover frequency
3. According to the system settings, verify the delay value recommended for the subwoofer in the SubDelay eld
4. Select “BACK” or “HOME” to respectively return to the menu selection or to the main screen
English
Subwoofer Matching Menu
DIRECT LINK
In case of DIRECT CONNECTION, set the desired HP value on IG4T and disable the HP lter on the subwoofer; in case of XOVER connection FROM THE SUBWOOFER, appropriately set the crossover frequency parameter “SubXover” in the SUBWOOFER MATCHING menu of INGENIA IG4T.
XOVER FROM SUBWOOFER
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
60
English

OPTIONS MENU

PASSWORD

1. ON/OFF (select and conrm whether you wish to enable/disable the password-protection
of settings).
2. PASSWORD (by selecting and conrming this item you can specify an alphanumeric password, consisting of up to 6 digits/characters).
If you forget the password, use the code: Q2R5D9
(ON/OFF and code selection)
SUPERUSER PASSWORD
to unlock the system.
Options Menu

CONTRAST

1. Select and conrm to adjust the OLED display contrast, with an increase in brightness ranging between 0 and 100% and a resolution of 5%.

STAND-BY

1. ON/OFF (select and conrm whether you wish to enable/disable the timed stand-by of the control panel).
2. PASSWORD (by selecting and conrming this item you can specify a time period after which the control panels switches to stand-by mode, ranging between 0’:10’’ – 10’:00 and with a resolution of 10’’).
(Enabling/disabling of automatic power-off and choice of the time period)

RESTORE

1. Select and conrm to restore the factory settings.

INFO

1. Select and conrm to display the information about the latest rmware version loaded into the system.

EXIT

1. Select and conrm to exit the OPTIONS menu.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
61

EXIT MENU

When selected and conrmed, this menu allows to return to the initial
screen of IG4T.
English
Exit Menu
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
62
English

4. INSTALLATION EXAMPLES

To use 2 stacked speakers, you need the optional LP-IG accessory. For further information, please refer to the instructions of this accessory.
Always check that the handles, allowing the infra-red communication, are not obstructed; never cover them and remove any dust or dirt
deposits.

INSTALLATION ON STAND

INGENIA IG4T can be installed in both stereo and mono conguration on an optional standard tripod stand, with a pole having a diameter of 35 mm.
ATTENTION!
Use an appropriately sized stand with the central foot forward to ensure proper stability.
For stability reasons, you cannot install 2 INGENIA IG4T systems on the same stand

INSTALLATION ON SUBWOOFER

Using the GSA-IG accessory during the installation, you can use the speakers mounted on subwoofer. This allows to get an extremely compact system, with great output power over the whole range of sound frequencies, installed on the ground. Once the installation is completed, follow the subwoofer conguration
instructions in the SUBWOOFER MATCHING section.

FLOWN INSTALLATION

In the own conguration, the 2 IG4T speakers are hung and fastened to a special stage device (like a stand) through the special optional DRK-IG FLY-BAR. When the speakers are in a own conguration, it is very advisable to use both power supply and signal linking, to reduce the complexity of connections, as shown in the “FIRST
SWITCH-ON” section.
ATTENTION!
When used outdoors, anchor the speaker to prevent any oscillations due to atmospheric agents and wind.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
63

DIGITAL STEERING

Digital steering is a technology that can be suitably adopted
to orientate the acoustic coverage of two stacked speakers,
modifying it according to the usage context and installation. The DSP of INGENIA IG4T may operate on each individual
transducer (whether compression driver or woofer), with
differentiated signal output delays. This way the acoustic
wavefront of 2 stacked speakers can be regarded as equivalent to that of a single angled speaker, as shown in the gure. In the setup stage, when it automatically detects the presence
of 2 speakers through the infra-red ports installed on the
handles, IG4T allows to modify the acoustic coverage through a specic menu, SYSTEM COVERAGE (not displayed if the speaker is in a single conguration):
English
For any further information please refer to the section
SYSTEM COVERAGE MENU.
Hall
Inclination
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
64
English

5. UPDATING THE FIRMWARE

It is very important that you keep the product rmware always up-to-date, to ensure its full functionality. Periodically check the Web site http://www.dbtechnologies.com, in the “DOWNLOADS” section. Once you verify that a new rmware version is available:
1. Download the USB BURNER MANAGER in the “SOFTWARE & CONTROLLER” section, then install it following the relevant instructions
2. Download the .zip le of the latest rmware in the “DOWNLOADS” section for INGENIA IG4T
3. In the top right section of the USB BURNER MANAGER screen, select “File Opening”
4. Select the previously downloaded rmware le (verifying that it is appropriate for your operating system)
5. Click UPDATE
ATTENTION!
When the rmware is updated the presence of the old saved settings at the next switch-on is not guaranteed.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
65

6. TROUBLESHOOTING

The speaker doesn’t turn on:
1. Check that the power supply upstream of the system is working properly.
2. Verify that the power cord equipped with Neutrik® powerCON TRUE1® connector is properly plugged.
The speaker turns on but it doesn’t output any sound:
1. Verify that the audio signal input connections have been performed properly, using cables equipped with Neutrik® connectors.
2. Check that the cables in use are not damaged.
3. Check that the mixer or the audio source are on and that they clearly indicate the presence of an output signal to the speaker.
4. Verify that the gain level in the initial screen is set to an appropriate value.
English
The speaker is connected, but the control panel is off, including the OLED screen:
1. Turn the push rotary encoder to exit any previously activated display standby.
2. Verify that the power cord equipped with Neutrik® powerCON TRUE1® connectors is properly plugged.
3. Check that the power supply upstream of the system is not cut off.
The speaker outputs a distorted sound:
1. Adjust the source volume rst, then set the IG4T input gain to an appropriate value.
2. Check that the cables in use are not damaged; should that be the case, replace them (a damaged cable
may result in a signal loss or alteration).
3. Verify the menu settings affecting the frequency content of the output signal and in particular:
a) ACOUSTIC CORRECTION b) MICROPHONE SETTING if a microphone is connected to the input
The system doesn’t detect 2 stacked speakers, and only 1 speaker is displayed in the SYSTEM STRUCTURE screen:
1. Verify that you properly mounted the 2 speakers, stacked, with the upper one ipped, and that you used and properly fastened the LP-IG connecting brackets as described in the instructions of this accessory.
2. Verify that the upper and lower handles of the speakers, containing the infra-red communication ports, are not covered in any way.
3. Repeat the “Selfcheck System” procedure in SYSTEM CHECK, as described in the relevant paragraph.
The settings of the different menus in the control panel cannot be modied, though the speaker is clearly on:
1. Verify if any lock password has previously been set.
2. Verify that the push rotary encoder operates properly when rotated and pressed.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
66
English
There is a delay in the sound output of the speaker, with respect to that of the source:
1. Verify the menu settings affecting the delay of the audio signal and in particular:
a) STAGE ALIGNMENT b) SYSTEM DELAY
The display doesn’t clearly show the menu settings:
1. Access the menu allowing to adjust the display brightness, OPTIONS CONTRAST (see the relevant information in the OPTIONS MENU paragraph).
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
67

7. TECHNICAL SPECIFICATIONS

GENERAL

English
Type:

ACOUSTIC DATA

Frequency Response [-10dB]:
Frequency Response [-6dB]:
Max SPL:
HF compression driver (exit):
HF Voice Coil:
HF Type:
Directivity:
Crossover Frequency:
Vertical 2-way speaker
74 - 20.000 Hz
88 – 19200 Hz
132 dB
1.4”
3” (Titanium)
Neodymium compression driver
Vertical asymmetric
1100 Hz
Coverage (HxV):
LF:
LF Voice coil:
LF Type:
110° x 90° (+20°/-70°)
4 x 6.5”
1.5”
Neodymium

AMPLIFIER

Type:
Amplication class:
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
68
Digipro® G3
D class
English
RMS amplication power:
Peak power:
Interface:
Automatic rotation display:
Position detection:
Mirroring control (for 2 speakers with IR control):

PROCESSOR

Internal controller:
A/D D/A Converter:
Settings:
900 W
1800 W
Push rotary encoder + OLED display
Yes
EPD
Yes
DSP 56 bit
24 bit/48 kHz
Factory settings and customisable settings that can be saved and recalled
Limiter:

INPUTS

Inputs:
Outputs:
USB:

DIMENSIONS

Material:
Grid:
Ready for y-bar:
Peak, RMS, Thermal
1x Combo (XLR/Jack) balanced/unbalanced
1x XLR link OUT
Mini US, B type
Reinforced PP Polypropylene
Full / Hidden screws
Yes
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
69
English
Handles:
Installation on pole:
Width:
Height:
Depth:
Weight:
1 upper / 1 lower with IR interface
Yes, 36 mm
195 mm
956 mm
271 mm
18,2 kg
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
70
English
Features, specication and appearance of products are subject to change without notice. dBTechnologies reserves the right to make changes or improvements in design or manufacturing without assuming any obligation to change or improve products previously manufactured.
A.E.B. Industriale Srl
Via Brodolini, 8
Località Crespellano
40053 VALSAMOGGIA
BOLOGNA (ITALIA)
Tel +39 051 969870
Fax +39 051 969725
www.dbtechnologies.com
info@dbtechnologies-aeb.com
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
71
Deutsch
INHALTSVERZEICHNIS
1. ALLGEMEINE INFORMATIONEN ...........................................................................................74
WILLKOMMEN! ..................................................................................................................74
EINFÜHRENDE ÜBERSICHT.................................................................................................74
HINWEISE FÜR DEN BENUTZER .........................................................................................74
MECHANISCHE UND AKUSTISCHE MERKMALE ................................................................75
ABMESSUNGEN .......................................................................................................................................... 75
AKUSTISCHES BESCHALLUNGSFELD ......................................................................................................... 75
ZUBEHÖR ................................................................................................................................................... 76
MERKMALE DER VERSTÄRKER- UND STEUERSEKTION ....................................................77
INPUT AND CONTROL SECTION ................................................................................................................ 78
NETZTEIL .................................................................................................................................................... 79
2. ERSTE INBETRIEBNAHME .....................................................................................................80
VERPACKUNGSINHALT .......................................................................................................80
INSTALLATION .....................................................................................................................80
ANSCHLUSS DER EINGÄNGE ..................................................................................................................... 80
ANSCHLUSS DER STROMVERSORGUNG ................................................................................................... 81
ANSCHLUSS DER AUSGÄNGE UNTER MEHREREN MODULEN (Durchschleifen der Stromversorgung) 82
ANSCHLUSS DER AUSGÄNGE UNTER MEHREREN MODULEN (Durchschleifen des Audiosignals) ....... 83
VERWENDUNG VON ZWEI ÜBERLAGERTEN LAUTSPRECHERN IG4T .................................................... 84
3. BEDIENTAFEL UND EINSTELLUNGS-MENÜ .........................................................................85
AUFRUF DES MENÜS ..........................................................................................................85
MENÜ BUILD SYSTEM ........................................................................................................88
SYSTEM CHECK .......................................................................................................................................... 88
SYSTEM STRUCTURE .................................................................................................................................. 88
SYSTEM TYPE ............................................................................................................................................. 89
MENÜ SAVE/LOAD SYSTEM ...............................................................................................89
MENÜ ACOUSTIC CORRECTION .........................................................................................90
MENÜ STAGE ALIGNMENT .................................................................................................91
MENÜ SYSTEM DELAY ........................................................................................................91
MENÜ MICROPHONE SETTING ..........................................................................................92
MENÜ SYSTEM COVERAGE ................................................................................................93
MENÜ SUBWOOFER MATCHING .......................................................................................94
MENÜ OPTIONS ..................................................................................................................95
PASSWORD ................................................................................................................................................ 95
CONTRAST .................................................................................................................................................. 95
STAND-BY ................................................................................................................................................... 95
RESTORE ..................................................................................................................................................... 95
INFO ........................................................................................................................................................... 95
EXIT............................................................................................................................................................. 95
MENÜ EXIT ..........................................................................................................................96
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
72
Deutsch
INHALTSVERZEICHNIS
4. INSTALLATIONSBEISPIELE .....................................................................................................97
INSTALLATION AUF STATIV .................................................................................................97
INSTALLATION AUF SUBWOOFER ......................................................................................97
HÄNGE- INSTALLATION ......................................................................................................97
DIGITAL STEERING ..............................................................................................................98
5. AKTUALISIERUNG DER FIRMWARE .....................................................................................99
6. TROUBLESHOOTING ............................................................................................................100
7. TECHNISCHE DATEN ............................................................................................................102
ALLGEMEINES .......................................................................................................................................... 102
AKUSTISCHE DATEN ................................................................................................................................. 102
VERSTÄRKER ........................................................................................................................................... 102
PROZESSOR .............................................................................................................................................. 103
EINGÄNGE ................................................................................................................................................ 103
ABMESSUNGEN ........................................................................................................................................ 103
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
73
Deutsch

1. ALLGEMEINE INFORMATIONEN

WILLKOMMEN!

Dank für den Erwerb eines in Italien von dBTechnologies geplanten und entwickelten Produkts! Dieser aktive,
vertikale 2-Wege-Lautsprecher birgt in sich jahrelange Erfahrung auf dem Gebiet Tonwiedergabe unter
Anwendung innovativer Lösungen auf dem Gebiet der Akustik, der Elektronik und Materialforschung.

EINFÜHRENDE ÜBERSICHT

Der aktive Lautsprecher INGENIA IG4T ist ein aktiver, vertikaler 2-Wege- Lautsprecher mit 4 St. 6,5”- Woofern und 1 St. 1.4” (Ausgang)- Kompressionstreiber (Schwingspule: 3”), gesteuert durch einen Verstärker DIGIPRO G3
neuester Generation mit 900 W RMS Leistung. Unter den innovativsten Merkmalen sind zu nennen:
eine sorgfältige Auslegung der Trompete mit asymmetrischer Richtung, spezisch entwickelt zur
Gewährleistung eines optimalen Beschallungsfelds zur sicheren Erzielung einer kompromisslosen Klangqualität in unterschiedlichen Anwendungsbereichen in Innenräumen und im Freien.
Digital steering, gesteuert durch den leistungsstarken eingebauten DSP-Prozessor bei Verwendung von 2 überlagerten Lautsprechern, so dass ein größeres Beschallungsfeld und höhere Klangleistung bei
kompromissloser Genauigkeit und Klarheit erzielt werden.
Automatisches Erkennen der Konguration mit 2 Lautsprechern dank der Infrarot- Kommunikation an
den Griffen (EPD-Technologie) und der schnellen, personalisierbaren Steuerung mittels DSP. In dieser Konguration richten sich die OLED- Displays automatisch aus. Es müssen nur die Bedienelemente eines der beiden Lautsprecher bedient werden, um das gesamte System anzusteuern.
Innovatives Shape mit 4 Woofern und 1 Driver in einem Gehäuse, das Robustheit mit Klangleistung, Kompaktheit und Handlichkeit verbindet.
Äußerste Vielseitigkeit, die es gestattet, die persönlichen Einstellungen schnell und unmittelbar zu speichern und alle Einstellungen durch die Eingabe eines Passworts zu schützen.

HINWEISE FÜR DEN BENUTZER

Um Ihren INGENIA IG4T auf bestmögliche Weise verwenden zu können, empfehlen wir:
Die in der Verpackung enthaltene Quickstart- Betriebsanleitung und diese vollständige Betriebsanleitung ausführlich zu lesen und während der gesamten Standzeit des Produkts zu
verwahren
• Das Produkt anzumelden auf der Website http://www.dbtechnologies.com in der Sektion “SUPPORT
• Die aktuellste Version der Firmware herunterzuladen und zu installieren von der Website http://www. dbtechnologies.com in der Sektion “FIRMWARE” (siehe Kapitel AKTUALISIERUNG DER FIRMWARE)
Den Kaufbeleg aufzubewahren und der GARANTIE (BEDIENUNGSANLEITUNG - Abschnitt 2)
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
74
Deutsch

MECHANISCHE UND AKUSTISCHE MERKMALE

ABMESSUNGEN

INGENIA IG4T enthält in einem verstärkten Polypropylengehäuse mit 18,2 kg Gewicht vier 6.5”-Woofer und einen 1.4” (Ausgang)­Kompressionstreiber (Schwingspule: 3”) mit Neodym-Magneten hervorragender Eigenschaften in Bezug auf Kompaktheit, Gewicht und Leistung. Eine interne, leichte Struktur aus Aluminium verbessert zusätzlich die Solidität, ohne das Gewicht
zu steigern. Die Abmessungen eines einzelnen Lautsprechers sind: 195 x 956 x 271 mm. Die Griffe gestatten leichten Transport und Verlagerung des Lautsprechers auch durch eine einzelne
Person. Darüber hinaus sind verschiedene Kongurationen möglich, von der Montage auf Bodenständer oder auf Subwoofer, bis zum Anhängen von 2 Modulen bei Live- Einsatz in weitläugeren Umgebungen.

AKUSTISCHES BESCHALLUNGSFELD

Die besondere Öffnungsweite der Trompete, die in der Abbildung schematisch dargestellt ist, gewährleistet ein Gesamt- Beschallungsfeld von 110 x 90° (+20°/- 70°). Dieses asymmetrische vertikale Beschallungsfeld gewährleistet ausgezeichnete Richtung mit oder ohne Anhängen sowohl in Innenräumen als auch im Freien. Bei Verwendung
von 2 überlagerten Modulen besteht darüber hinaus die
Möglichkeit, anhand des Digital Steering (automatisch über DSP gesteuert) das Verhalten des Wandlers zu beeinussen,
um ein Richtverhalten und eine Klangausbeute von
außerordentlich hoher Genauigkeit und Wirksamkeit bei mäßigen Abmessungen zu erzielen.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
75
Deutsch

ZUBEHÖR

Für die rasche Montage sind neben den Griffen oben und unten die folgenden Zubehörteile vorgesehen:
Fly-bar DRK-IG (und optionaler TA-IG) für vertikale Aufhängung
• Paar Befestigungsbügel LP-IG für die Befestigung von 2 übereinander gestapelten Modulen IG4T .
Optionaler Ständer GSA-IG für die Montage auf Subwoofer
• Für den Transport und den Schutz des Lautsprechers stehen eine spezielle Tasche TC-IG4T und eine
Regenschutzabdeckung zur Verfügung RC-M1 (beide als Optionen).
Fly Bar DRK-IG LP-IG
Ständer GSA-IG
Für weitere Informationen wenden Sie sich bitte an die zuständigen Handbüchern.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
76
Deutsch

MERKMALE DER VERSTÄRKER- UND STEUERSEKTION

Der Digitalverstärker neuester Generation DIGIPRO G3 der
Klasse D bildet den Kern des IG4T und liefert eine Klangleistung von 900W RMS.
Dank des Switching- Netzgeräts mit besonders wirksamer Auto­Range-Funktion ist das Gerät geräuscharm und benötigt keinen
aktiven Kühlapparat.
Die Steuerung des Systems erfolgt durch einen spezischen DSP­Prozessor, der das Einstellen verschiedener Parameter gestattet,
sowie die automatische Steuerung der Kommunikation
zwischen den Modulen bei Kongurationen mit 2 überlagerten
Lautsprechern. In diesem letzteren Fall kann der DSP-Prozessor
sowohl die Woofer als auch den Kompressionsdriver ansteuern, um eine genauere, kongurierbare akustische Richtwirkung zu erzielen (Digital Steering).
STEUERSEKTION
EINGANGS- UND
ACHTUNG!
Das Modul muss vor Feuchtigkeit geschützt werden
Es darf keinesfalls versucht werden, den Verstärker zu öffnen
Bei Funktionsstörungen sofort die Stromversorgung unterbrechen, indem der Netzstecker des Moduls abgezogen wird. Dann Kontakt mit einer autorisierten Reparaturwerkstatt aufnehmen
Das Bedienfeld des DIGIPRO G3 ist charakterisiert durch:
• EINGANGS- UND STEUERSEKTION
• NETZTEIL
VERSTÄRKER
NETZEIL
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
77
Deutsch

INPUT AND CONTROL SECTION

1. LED “PEAK”
Rote Led, die beim Anschluss der Stromversorgung
oder bei Erreichen des Spitzenwerts der Signalverzerrung
aueuchtet
ACHTUNG!
Den Lautsprecher nicht längere Zeit bei eingeschalteter oder blinkender Led betreiben, die einen Betrieb unter übermäßig hoher Belastung bei Verzerrungen anzeigt.
2. DISPLAY OLED Das Display richtet sich automatisch aufgrund der
Beschleunigungs-Überwachung aus, die erkennt, ob der Lautsprecher aufrecht oder kopfüber installiert wurde. Es besteht die Möglichkeit, eine Kontrastregelfunktion und eine Selbstabschaltungs-Funktion zu kongurieren (siehe Kap. BEDIENTAFEL UND EINSTELLUNGS-MENÜ).
3. PUSH ROTARY ENCODER
Der Push Rotary Encoder gestattet die Auswahl sowohl durch Drehen (Auswahl Menü und Werte) als auch durch Druck (Bestätigung der getätigten Auswahl).
4. USB SERVICE DATA Anhand dieses Mini USB-Standard- Ports kann mithilfe eines PC’s und einem entsprechenden Programm von Fall zu Fall das Updaten der Firmware des Produkts vorgenommen werden. Weitere Informationen stehen zur Verfügung auf der Website http://www.dbtechnologies.com in der Sektion “FIRMWARE” und Kapitel
AKTUALISIERUNG DER FIRMWARE).
ACHTUNG!
Der Anschluss USB SERVICE DATA darf ausschließlich zum Updaten der Firmware des Produkts verwendet werden. Keine USB-Einheiten am Gerät anschließen, da andernfalls Schäden oder Funktionsstörungen auftreten können.
5. AUSGANG “LINK”
Symmetrischer Ausgang XLR, der es gestattet, das Audio-Signal an einen weiteren Lautsprecher mit Verstärker zu
senden.
6. EINGANG “INPUT” COMBI Kombinierter Eingang XLR-TR-TRS des Audio-Signals. Gestattet die Verwendung eines symmetrischen Steckers XLR oder einer Steckbuchse TS oder TRS zu ¼”.
ACHTUNG!
Ausschließlich Kabel mit hochwertigen Originalsteckern Neutrik® verwenden. Die Verwendung anderer oder qualitativ minderwertiger Stecker könnte die Funktionstüchtigkeit des Lautsprechers beeinträchtigen.
7. WAHLSCHALTER “INPUT SENS”
Dieser Wahlschalter dient zur Unterscheidung zwischen einem vom Mixer oder der Leitung kommenden (“LINE”) und einem vom Mikrofon kommenden Signal (“MIC”).
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
78
Deutsch

NETZTEIL

8. VERSORGUNGSEINGANG “AUTO-RANGE MAINS INPUT” Eingang für Stecker Neutrik® powerCON TRUE1. Gestattet eine Stromaufnahme bis zu 16 A.
9. AUSGANG ZUM DURCHSCHLEIFEN DER VERSORGUNGSSPANNUNG “MAINS LINK”
Dank der Verbindung mit Stecker Neutrik® NAC3PX besteht die Möglichkeit, die Spannungsversorgung
zu einem zweiten Modul durchzuschleifen.
10. SCHMELZSICHERUNG “MAINS FUSE” Netzsicherung
ACHTUNG!
Der Lautsprecher wird mit bereits eingesetzter Sicherung für den Betrieb mit 220-240 V ausgeliefert. Wenn das Gerät mit 100-120 V Spannung versorgt werden soll:
1. Alle Anschlüsse lösen, einschließlich der Stromversorgung
2. 5 Minuten abwarten
3. Die Sicherung durch die mitgelieferte Sicherung für Spannungsbereich 100-120V ersetzen
4. Ausschließlich das mitgelieferte Versorgungskabel verwenden.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
79
Deutsch

2. ERSTE INBETRIEBNAHME

VERPACKUNGSINHALT

Beim Öffnen der Verpackung des Lautsprechers INGENIA IG4T kontrollieren, dass der Inhalt vollständig ist. Die Verpackung enthält:
• Versorgungskabel mit Stecker Neutrik® TRUE POWERCON
• INGENIA IG4T
• Quick-Start-Anleitung und Garantie-Unterlagen
• Schmelzsicherung für Betrieb mit 100-120V Spannung
ACHTUNG!
Der Lautsprecher wird mit bereits eingesetzter Sicherung für den Betrieb mit 220-240 V ausgeliefert. Wenn das Gerät mit 100-120 V Spannung versorgt werden soll:
1. Alle Anschlüsse lösen, einschließlich der Stromversorgung
2. 5 Minuten abwarten
3. Die Sicherung durch die mitgelieferte Sicherung für Spannungsbereich 100-120V ersetzen
4. Ausschließlich das mitgelieferte Versorgungskabel verwenden.

INSTALLATION

ANSCHLUSS DER EINGÄNGE

MIXER / LINE MIKROPHON
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
80
Deutsch

ANSCHLUSS DER STROMVERSORGUNG

STROMVERSORGUNG
ACHTUNG!
Ausschließlich Kabel mit Stecker Neutrik® verwenden Eventuell beschädigte Kabel müssen ersetzt werden, um Funktionsstörungen und schlechte Tonqualität zu vermeiden.
Zur korrekten Installation des Lautsprechers INGENIA IG4T ist wie folgt vorzugehen:
Den Audio-Eingang korrekt anschließen und die Tonquelle anhand des Wahlschalters “Input sens”
(6) einstellen. Bei Eingang eines Leitungssignals oder eines Signals vom Ausgang eines Mixers, den Wahlschalter (7) auf “LINE” stellen, bei Eingang von einem Mikrofon (dynamisches Mikrofon verwenden), den Wahlschalter (7) auf “MIC” stellen. Eine rasche Übersicht über die handelsüblichen
Kabel für Audio-Anschlüsse bietet die nachstehende Tabelle.
Die Stromversorgung anschließen, indem das Kabel mit Stecker Neutrik® Typ TRUE POWERCON in den
Anschluss “MAINS INPUT” (8) eingesteckt wird.
Beim Einschalten blinkt die Schaltspitzen-Led kurz und das Display OLED (2) wird aktiviert und zeigt den Anfangsbildschirm zur Kontrolle des Pegels und des Gains an:
Den Schalter PUSH ROTARY ENCODER (3) nach links oder rechts drehen, um den Gain des Systems auf einen ausreichenden Pegel einzustellen.
Kontrollieren, dass der Lautsprecher nach korrektem Anschluss und Einschalten der Tonquelle den
Klang wiedergibt. Dabei die Lautstärke langsam steigern.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
81
Deutsch

ANSCHLUSS DER AUSGÄNGE UNTER MEHREREN MODULEN

(Durchschleifen der Stromversorgung)

STROMVERSORGUNG
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
LINK
82
Deutsch
Dank der Verwendung der Stecker Neutrik® powerCON TRUE1® kann die Stromversorgung bis zu einer
Gesamtleistung von 3400 W (15 A) in Ländern mit Spannungsbereich 220 - 240 V, bzw. von 1600 W (14A) in Ländern mit Spannungsbereich 100 – 120 V durchgeschleift werden. Um beispielsweise 2 gekoppelte Lautsprecher anzuschließen (sowohl stacked als auch own), den ersten IG4T an der Stromversorgung über den Anschluss “MAINS INPUT” (8) anschließen, und dann den ersten Lautsprecher anhand eines Durchschleifkabels Neutrik® mit dem zweiten (und den zweiten mit dem dritten u.s.f.) verbinden, wobei die maximal zulässige Leistung berücksichtigt werden muss. Anhand des Kabels den Ausgang “MAINS LINK” (9) des ersten IG4T mit dem Ausgang “MAINS INPUT” (8) des zweiten Lautsprechers verbinden.
ACHTUNG!
Die Summe der Durchschleifbaren leistungen und Ströme muss unter dem auf dem Typenschild angegebenen nennwert liegen. Dieser Wert ist vom Versorgungskabel des ersten Moduls und von der Kaskadenschaltung der Module abhängig. diese Werte müssen bei Auslegung und Installation des Systems berücksichtigt werden.
ANSCHLUSS DER AUSGÄNGE UNTER MEHREREN MODULEN (Durchschleifen des Audiosignals)
INPUT
Zum Anschluss von 2 oder mehr Lautsprechern an der gleichen Tonquelle kann es bei verschiedenen Installationsarten hilfreich sein, das Signal von einem ersten auf einen zweiten Lautsprecher u.s.f. durchzuschleifen. Zunächst eine beliebige Tonquelle an den Eingang “INPUT” (6) des ersten Lautsprechers anschließen (bezüglich des unterschiedlichen Anschlusses von “LINE” oder “MIC” siehe Abschnitt ANSCHLUSS
DER EINGÄNGE). Dann mit einem symmetrischen Kabel XLR den Ausgang “LINK” (5) des ersten Lautsprechers
an den Eingang “INPUT” (6) des zweiten anschließen. Dieser zweite Vorgang kann dann zum Anschluss weiterer Lautsprecher wiederholt werden, bis der für die Umgebung am besten geeignete Aufbau erreicht ist.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
LINK
83
Deutsch

VERWENDUNG VON ZWEI ÜBERLAGERTEN LAUTSPRECHERN IG4T

Zur korrekten Montage und Verwendung von zwei übereinander angeordneten Lautsprechern IG4T ist ein Verbindungsbügel IP-IG erforderlich Alle weiteren Angaben sind der Anleitung dieses Zubehörteils zu entnehmen.
Nachdem die beiden Lautsprecher korrekt montiert wurden, ist die Infrarot- Erkennung an den Griffen automatisch wirksam. Es muss lediglich in den Anfangs- Kongurationsmenüs das Checken vorgenommen werden, wie im folgenden Kapitel beschrieben.
ACHTUNG!
Die Infrarot- Ports gestatten Montage, Dialog und Erkennung nur bei 2 identischen Lautsprechern .
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
84
Deutsch

3. BEDIENTAFEL UND EINSTELLUNGS-MENÜ

AUFRUF DES MENÜS

Der Push Rotary Encoder (3) gestattet sowohl die Auswahl durch Drehen als auch die Bestätigung durch Drücken. Diese Auswahl- und Bestätigungsfunktionen gestatten die Navigation in den Menüs und Submenüs, die am OLED­Display (2) angezeigt werden. Innerhalb der Menüs und Submenüs gestattet das Drehen des Schalters nach links oder rechts auch das Erhöhen oder Verringern der angewählten Werte.
SELEKTIEREN / ABNEHMENBESTÄTIGEN
SELEKTIEREN / ZUNEHMEN
Der Anfangsbildschirm nach dem Einschalten zeigt den Pegel und den Gain des IG4T an. Alle Einstellungen können durch ein Passwort geschützt werden.
Nachdem die Einstellungen von Hand vorgenommen wurden, bleiben diese auch nach dem Abschalten des Lautsprechers gespeichert.
Wenn ca. eine Minute lang keine Auswahl oder Bestätigung vorgenommen wird, schaltet das System automatisch wieder auf den Anfangsbildschirm zurück (IG4T level/gain). Dieser Rücksprung kann zu jeder Zeit auf 2 Arten auch bewusst vorgenommen werden:
a. Durch Anwahl und Bestätigung des folgenden Symbols, sofern im Submenü vorhanden b. Durch gedrückt Halten des Push Rotary Encoders für die Dauer von einigen Sekunden
Wenn 2 Lautsprecher korrekt übereinander montiert wurden werden sie vom System erkannt und ordnet automatisch die Ansteuerung beider dem Verstärker zu, auf den zugegriffen wird. Auf diese Weise kann eine einzelne Einstellung vorgenommen und gespeichert werden, die für das ganze System gültig ist, unabhängig davon, welcher Rotary betätigt wird (mirroring OLED)
Beim Einschalten des IG4T zeigt das Display den Anfangsbildschirm an, der GAIN und Signalpegel durch
Simulieren eines VU METER anzeigt.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
85
Deutsch
Durch Drücken des Rotary Push Encoders können in diesem Bildschirm die verschiedenen Menüs aufgerufen
werden, deren generelle Struktur in der Abbildung dargestellt ist.
die Struktur der Menüs
ACHTUNG!
Das Menü “SYSTEM COVERAGE” kann nur angezeigt werden, wenn das System automatisch anhand der Infrarot-Ports an den Griffen erkannt hat, dass 2 überlagerte und korrekt installierte Lautsprecher vorhanden
sind.
Das Menü “SUBWOOFER MATCHING” kann nur angezeigt werden, wenn
das Vorhandensein eines Subwoofers eingegeben wurde. Andernfalls wird das Menü nicht angezeigt, weil der Anwender es nicht benötigt.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
86
Deutsch
Die Struktur der Hauptmenüs kann in Form eines Kreises dargestellt werden, da der Push Rotary Encoder das Durchblättern durch Drehen sowohl nach links als auch nach rechts gestattet.
Kreisform
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
87

MENÜ BUILD SYSTEM

Dieses Menü konguriert das System automatisch aufgrund der Anzahl Lautsprecher, des Vorhandenseins oder Fehlens eines Subwoofers, der Lage und Neigung
der Lautsprecher selbst. Es besteht aus 3 Submenüs:
• SYSTEM CHECK
• SYSTEM STRUCTURE
• SYSTEM TYPE
Deutsch
Build System Menü
Sub-menüs

SYSTEM CHECK

Das System ist in der Lage anhand der Infrarot- Kommunikation (die Kommunikations-Ports benden sich an den Griffen der Lautsprecher und die Erkennung erfolgt automatisch) festzustellen, ob der Benutzer einen oder zwei
Lautsprecher IG4T verwendet. Nach dem Aufruf dieses Bildschirms:
1. Durch Drehen des Rotary Encoders das Selfcheck System anwählen und die Auswahl durch Drücken des
Rotary Encoders bestätigen.
2. Nach einer kurzen Animation schaltet das System automatisch auf das nächste Menü weiter (SYSTEM STRUCTURE).
3. Sofern dieser Vorgang nicht benötigt wird, die Position NEXT anwählen und bestätigen. Wenn der Hauptbildschirm wieder aufgerufen werden soll, muss dagegen BACK angewählt und bestätigt werden.

SYSTEM STRUCTURE

Das Menü gestattet es, von Hand das Vorhandensein eines oder mehrerer Subwoofer in der verwendeten Konguration einzugeben. Wenn die Zahl der angeschlossenen
Subwoofer berichtigt werden soll:
1. Den Rotary Encoder auf “Subwoofer” einstellen und bestätigen
2. Die Anzahl der zu verwendenden Subwoofer anwählen und bestätigen
3. Zum Weiterschalten auf das nächste Menü, die Position NEXT anwählen und bestätigen. Zum Rücksprung
in das Submenü SYSTEM CHECK ist BACK anzuwählen und zu bestätigen.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
88
Deutsch

SYSTEM TYPE

Die bei Verwendung von IG4T vorgesehenen System-Typen sind 2:
• Stacked
• Flown
In der Konguration “Stacked” lagert ein Verstärker IG4T auf einem Ständer oder 1 oder 2 Verstärker lagern auf Subwoofer (siehe Kapitel INSTALLATIONSBEISPIELE). In der Konguration “Flown” sind ein oder zwei Lautsprecher IG4T dagegen aufgehängt. Nach Aufruf des Menüs SYSTEM TYPE:
Die gewünschte Modalität “Stacked” oder “Flown” anwählen und bestätigen. Durch Anwahl und Bestätigung von NEXT wird auf den nächsten Bildschirm weitergeschaltet (durch Anwahl und Bestätigung von BACK erfolgt das Rückschalten auf den vorherigen Bildschirm). Wenn das System zuvor das Vorhandensein von 2 Lautsprechern festgestellt hat, wird nun das Menü SYSTEM COVERAGE aufgerufen und wenn das
Vorhandensein eines Woofers im vorherigen Submenü SYSTEM STRUCTURE eingegeben wurde, wird dann das Menü SUBWOOFER MATCHING angezeigt, andernfalls (Speakers 1, Subwoofer 0) wird wieder Anfangsbildschirm angezeigt und der Vorgang ist damit beendet.
ACHTUNG!
Den Lautsprecher keinesfalls direkt auf dem Boden aufstellen. Es muss immer ein Ständer (nicht mitgeliefert) mit einer Standardstange Durchmesser 35 mm und ein Stativ mit nach vorn gerichtetem mittlerem Fuß eingesetzt werden. Stets die effektive Stabilität der Installation kontrollieren.
Das Modell INGENIA IG4T in der Anordnung “Stacked” auf Ständer kann aus Sicherheitsgründen nicht mit 2 überlagerten Lautsprechern montiert werden, sondern ausschließlich mit einem einzelnen Lautsprecher.

MENÜ SAVE/LOAD SYSTEM

Dieses Menü gestattet das Speichern und das spätere Abrufen der Einsatz-Kongurationen des Systems. Obgleich im IG4T beim Abschalten alle vorgenommenen Einstellungen gespeichert bleiben, kann es sehr sinnvoll sein, für unterschiedliche Umgebungsbedingungen ebenso viele unterschiedliche Einstellungen zu speichern, um sie bei Bedarf dann rasch
abrufen zu können. Zu diesem Zweck gestattet der IG4T das Speichern und die Benennung von 5 Einstellungen mit der Funktion “SAVE” und deren Abruf anhand der Funktion “RECALL”. Wenn eine der gespeicherten
Einstellungen geändert werden muss, können die bereits gespeicherten
Einstellungen überschrieben werden.
Save/Load System Menü
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
89
Deutsch
Zum Speichern einer Einstellung, nach Eingabe der verschiedenen Parameter in den anderen Menüs schließlich
das Menü SAVE/LOAD SYSTEM aufrufen und:
1. Die Nummer einer der gespeicherten Einstellungen mit der Nummer 1 bis 5 anwählen und bestätigen
2. Die Funktion “SAVE” anwählen und bestätigen.
3. Der neuen Einstellung einen Titel zuweisen. Der Titel ist alphanumerisch und umfasst 14 Buchstaben/Ziffern.
Neben der Nummer des Speicherplatzes wird ein Buchstabe nach dem anderen eingegeben und bestätigt. Wenn der Titel beendet ist, lediglich den Unterstreichungsstrich (_) bestätigen (ohne Anwahl).
4. Im nächsten Bildschirm “OK” drücken
5. Das System speichert nun die Einstellungen im angegebenen Speicherplatz mit dem eingegebenen Titel.
Zum Aufruf und Laden einer solchen Einstellung im System:
1. Den gewünschten Speicherplatz anwählen und bestätigen
2. Die Funktion “RECALL” anwählen und bestätigen.
3. Im nächsten Bildschirm “OK” drücken
4. Das System hat nun die Einstellungen aus dem angegebenen Speicherplatz geladen und schaltet auf den Hauptbildschirm zurück
Zum Überschreiben einer vorhandenen Einstellung den entsprechenden Speicherplatz anwählen und dann im Bildschirm Overwrite OK anwählen und bestätigen.

MENÜ ACOUSTIC CORRECTION

Es kann bei verschiedenen Gelegenheiten sinnvoll sein, eine
differenzierte Entzerrung des Ausgangssignals des Lautsprechers vorzunehmen. Der im IG4T eingebaute DSP-Prozessor verwaltet auch diese Option. Zu diesem Zweck muss das Menü ACOUSTIC CORRECTION aufgerufen werden. Dann:
1. Das zu korrigierende Frequenzband anwählen und bestätigen. Es
sind 3 Frequenzbänder möglich:
A. LF - Low Frequency, mit Korrekturspanne + 3dB - 6 dB und Auösung 0.5 dB B. MF - Medium Frequency, mit Korrekturspanne + 0 dB - 6 dB und Auösung 0.5 dB C. HF - High Frequency, mit Korrekturspanne + 3 dB - 6 dB und Auösung 0.5 dB
2. Den gewünschten Korrekturbereich anwählen und bestätigen
3. Falls es notwendig ist, den Vorgang auf den anderen Frequenzbändern zu
wiederholen, wieder bei Punkt 1 beginnen, andernfalls das Symbol “Home” anwählen und wieder zur Hauptmenü- Auswahl zurückkehren.
Acoustic Correction Menü
Die Funktion Acoustic Correction kann genutzt werden, um die Verständlichkeit zu verbessern oder dominierende Frequenzen zu dämpfen, kann jedoch keinesfalls die korrekte Anordnung der Lautsprecher ersetzen, die gewählt werden muss, nachdem die akustischen Merkmale der jeweiligen Umgebung beurteilt wurden
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
90
Deutsch

MENÜ STAGE ALIGNMENT

In eine Live-Situation mit mehreren Verstärkerquellen, wie beispielsweise Gitarrenverstärker auf der Bühne, oder natürliche Tonquellen wie beispielsweise ein Schlagzeug, können die Lautsprecher IG4T virtuell “geuchtet” werden, indem die Entfernung dieser Tonquellen in Meter oder Fuß angegeben wird. Auf diese Weise kann in allen Live- Situationen, wo dies notwendig ist, eine einzelne Schallwellenquelle ohne Nachhallen
erzielt werden. Der DSP verzögert den Signalausgang der IG4T automatisch
und verbessert damit die Efzienz und die Leistung der Wiedergabe.
Zur Vornahme einer solchen Regelung ist nach Aufruf des Menüs STAGE ALIGNMENT wie folgt vorzugehen:
1. Das Feld “DISTANCE” anwählen und bestätigen
2. Den gewünschten Entfernungswert innerhalb einer Spanne von 0-15 m
mit einer Auösung von 20 cm anwählen und bestätigen.
3. Durch Anwählen des Symbols “HOME” auf den Anfangsbildschirm zurückschalten.
Stage Alignment Menü

MENÜ SYSTEM DELAY

Bei Einsatz der IG4T in Umgebungen, die den Einsatz mehrerer Verstärkerstufen in unterschiedlichen Entfernungen erforderlich machen. Beispielsweise kann in einem besonders großen und
langgestreckten Innenraum mit verschiedenen akustischen Hindernissen
das Ausgangssignal der Lautsprecher bewusst so verzögert werden,
dass der Zuhörer in jedem Punkt des Raums nur eine scheinbar einzige
Schallwellenquelle wahrnimmt. In diesem Fall ist eine gleichwertige
Einstellung Zeit/Entfernung sinnvoll.
Zur Vornahme einer solchen Regelung ist nach Aufruf des Menüs SYSTEM DELAY wie folgt vorzugehen:
1. Das Feld “DELAY” anwählen und bestätigen.
2. Den gewünschten Verzögerungswert als Zeitwert zwischen 0 und 126
ms bzw. als Entfernung in einem Bereich von 0 -43,7 m / 0-143,4 ft (Fuß) einstellen.
3. Durch Anwählen des Symbols “HOME” auf den Anfangsbildschirm zurückschalten.
System Delay Menü
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
91
großen Innenraum

MENÜ MICROPHONE SETTING

Der IG4T gestattet einen dynamischen Mikrofon-Eingang (ohne Phantom­Versorgung) über den Stecker XLR. Im Rahmen der Verwendung dieser Quell kann es sinnvoll sein, das Signal zu ltern, um unerwünschte Frequenzen zu beseitigen (durch einen Hochpasslter mit regelbarer Ausblendfrequenz). Es kann aber auch notwendig sein, einen Notch-Filters oder einem Bandlöschlter mit wählbarer Bandmitte einzusetzen, um ein unerwünschtes Feedback (Larsen-Effekt) zu vermeiden. Zur Vornahme
einer oder beider genannten Regelungen ist nach Aufruf des Menüs MICROPHONE SETTING wie folgt vorzugehen:
Deutsch
1. Die Position HP Filter (Hochpasslter) anwählen und bestätigen
2. Den Wert der Ausblendfrequenz des Hochpasslters innerhalb
einer Spanne von 50 Hz – 200 Hz mit Auösung 10 Hz anwählen und bestätigen (wenn der Filter abgeschaltet werden soll, “None” anwählen und bestätigen).
3. Die Position “Antifeedback” anwählen und bestätigen (Filter gegen Feedback bzw. Filter gegen Larsen-Effekt).
4. Den Frequenzwert der Bandmitte innerhalb einer Spanne von 260 Hz – 15000 Hz mit Auösung 10 Hz anwählen und bestätigen (wenn der Filter abgeschaltet werden soll, “None” anwählen und bestätigen)
5. Durch Anwählen des Symbols “HOME” auf den Anfangsbildschirm zurückschalten
Microphone Setting Menü
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
92
Deutsch

MENÜ SYSTEM COVERAGE

Die Funktionen dieses Menüs, das nur angezeigt wird, wenn das System
in der Phase SYSTEM CHECK automatisch das Vorhandensein von 2
Lautsprechern erkannt hat, sind auch dem Abschnitt “DIGITAL STEERING
in der Sektion “INSTALLATIONSBEISPIELE” zu entnehmen. Dieses Menü
gestattet es, aufgrund bereits gespeicherter Voreinstellungen, die abgerufen und bestätigt werden können, das abgestrahlte Wellenbündel und das entsprechende Beschallungsfeld zu ändern, wenn vom DSP 2
korrekt übereinander montierte Lautsprecher erkannt wurden:
UP +10° bei einer Installation, wo das Beschallungsfeld von
unten nach oben gerichtet sein soll, bei Montage auf Ständer oder Subwoofer und maximal zulässiger Neigung.
UP +5° zur Ausrichtung der Wellenfront mit mittlerer Neigung nach oben bei Installation auf Ständer oder Subwoofer.
UP +2.5° zur leichten Neigung des Beschallungsfelds nach oben.
FAR 0° wenn das Beschallungsfeld so weit wie möglich reichen soll wenn die Lautsprecher frontal auf der Höhe der Zuschauer installiert sind.
DOWN -2.5° ist zu verwenden, um das Beschallungsfeld leicht
nach unten zu richten (beispielsweise wenn das Publikum nicht weit von den Lautsprechern entfernt ist und bei Hänge- Installation).
DOWN -5° für eine mittelstarke Neigung nach unten (beispielsweise wenn das Publikum nicht weit von den Lautsprechern entfernt ist und bei Hänge- Installation).
DOWN -10° für weitestgehend nach unten gerichtete Beschallung (bei sehr nahem Publikum und Hänge-Installation).
System Coverage Menü
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
93

MENÜ SUBWOOFER MATCHING

Dieses Menü wird nur angezeigt, wenn vorher im Submenü BUILD SYSTEM
SYSTEM STRUCTURE das Vorhandensein mindestens eines Subwoofers angegeben wurde. In diesem Fall erfolgt der Aufruf dieses Menüs
automatisch nach Eingabe der Einstellungen “SYSTEM TYPE”, zwecks Vervollständigung der generellen Einstellungen des Systems. Das Menü gestattet in erster Linie die Identizierung des eingesetzten Subwoofers und dann die Entscheidung, ob dessen Crossover-Frequenz verwendet oder eine je nach Modell einstellbare Frequenz eingegeben werden soll (maximale Spanne 70-120 Hz mit 5 Hz Auösung). Diese Wahl ist von der Art des Anschlusses zwischen Subwoofer und Lautsprecher abhängig,
wie in der nachstehenden Abbildung dargestellt. Das Menü liefert auch Vorschlags-Wert für die Einstellung des Delays im Subwoofer. Zur Anwahl
der Crossover-Frequenz nach Aufruf des Menüs SUBWOOFER MATCHING:
Deutsch
1. Den in der Anlage zugeordneten Subwoofer-Typ anwählen und bestätigen.
2. Den Hp-Filter anwählen und bestätigen, und dann die gewünschte Crossover-Frequenz anwählen und bestätigen.
3. Zur Einstellung der Anlage kontrollieren, welcher Delay-Wert für den Subwoofer im Feld SubDelay empfohlen wird.
4. Zur Rückkehr zur Menü-Auswahl bzw. zum Hauptbildschirm jeweils die
Funktionen “BACK” oder “HOME” anwählen.
Subwoofer Matching Menü
DIREKTEN ANSCHLUSSES XOVER-Anschlusses
Im Fall des DIREKTEN ANSCHLUSSES, den gewünschten HP-Wert am IG4T einstellen und den HP-Filter des Subwoofers abschalten. Im Fall des XOVER- Anschlusses am SUBWOOFER, die Crossover-Frequenz “SubXover” im Menue SUBWOOFER MATCHING des INGENIA IG4T entsprechend einstellen.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
94
Deutsch

MENÜ OPTIONS

PASSWORD

1. ON/OFF (anwählen und bestätigen, ob die Einstellungen durch ein Passwort geschützt
werden sollen oder nicht )
1. PASSWORD (durch entsprechende Anwahl und Bestätigung kann ein alphanumerisches, bis zu 6-stelliges Passwort eingegeben werden)
Sollten Sie das Passwort vergessen haben,
benutzen Sie zur Freigabe des Systems den Code
(ON/OFF und Wahl des Passworts)
SUPERUSER PASSWORD
Q2R5D9
Options Menü

CONTRAST

1. Den Kontrast des OLED- Displays mit Helligkeit im Bereich 0 bis 100% und Auösung von 5% anwählen und bestätigen

STAND-BY

1. ON/OFF ON/OFF (anwählen und bestätigen, wenn ein zeitabhängiger Standby des Bedienfelds gewünscht wird).
2. STAND-BY (Möglichkeit der Anwahl und Bestätigung eines Zeitwerts, nach dessen Ablauf die Steuertafel auf Standby geschaltet wird. Der Wert ist variabel zwischen 0 Min.10
Sek und 10 Min.00 und Auösung 10 Sek.).
(ON/OFF des automatischen Abschaltens und Auswahl des Zeitintervalls)

RESTORE

1. Anwählen und bestätigen zur Wiederherstellung der ursprünglichen, fabrikseitigen Einstellungen.

INFO

1. Anwählen und bestätigen zur Anzeige der Informationen über die letzte geladene Firmware-Version.

EXIT

1. Anwählen und bestätigen zum Verlassen des Menüs OPTIONS.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
95

MENÜ EXIT

Durch Anwahl und Bestätigung dieser Funktion erfolgt der Rücksprung
zur Anfangsseite des IG4T.
Deutsch
Exit Menü
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
96
Deutsch

4. INSTALLATIONSBEISPIELE

Zur Verwendung von 2 überlagerten Lautsprechers ist das optionale Zubehörteil LP-IG erforderlich. Alle weiteren Angaben sind der Anleitung dieses Zubehörteils zu entnehmen.
Stets kontrollieren, dass bei der Installation die Infrarot-Kommunikation der Griffe nicht behindert wird. Die Griffe dürfen nicht bedeckt werden und eventuelle Staub- und Schmutzablagerungen müssen entfernt werden.

INSTALLATION AUF STATIV

Der Lautsprecher INGENIA IG4T kann sowohl in Mono- als auch in Stereo-
Konguration auf einem optionalen, standardmäßigen Dreibein-Stativ mit
Stangendurchmesser 35 mm installiert werden.
ACHTUNG!
Einen entsprechend dimensionierten Ständer mit nach vorn gerichtetem mittlerem Fuß verwenden, um ausreichende Stabilität zu gewährleisten.
Aus Gründen der Stabilität ist es nicht möglich, 2 INGENIA IG4T auf dem gleichen Ständer zu montieren.

INSTALLATION AUF SUBWOOFER

Unter Verwendung des Zubehörteils GSA-IG können die Lautsprecher auf
Subwoofern montiert werden. Aus diese Weise lässt sich ein äußerst kompaktes und auf allen Klangfrequenzen leistungsstarkes System mit Installation am Boden zusammenstellen. Nach erfolgter Installation zur Konguration des Subwoofers
den die Anweisungen im Abschnitt SUBWOOFER MATCHING befolgen.

HÄNGE- INSTALLATION

In der Konguration Flown werden 2 Lautsprecher IG4T an einer entsprechenden Bühnenvorrichtung (Gitterträger) anhand der optionalen FLY-BAR (DRK-IG) hängend montiert. Bei Hänge-Installation ist es äußerst sinnvoll, sowohl die Stromversorgng als auch die Signalleitung durchzuschleifen, um die Komplexität der Anschlüsse zu reduzieren, wie im Abschnitt “INBETRIENAHME” dargestellt.
ACHTUNG!
Bei Verwendung im Freien muss der Lautsprecher verankert werden, um Schwankungen infolge von Wettereinüssen und Wind zu vermeiden.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
97

DIGITAL STEERING

Digital Steering ist eine Technologie, die zur Richtung des
Beschallungsfelds von zwei überlagerten Lautsprechern herangezogen und je nach Erfordernissen der jeweiligen
Anwendung und Installation abgeändert werden kann.
Der DSP-Prozessor des INGENIA IG4T kann jeden Wandler
(Compression Driver oder Woofer) einzeln ansteuern und
die Abgabe des Signals gezielt und differenziert verzögern. Auf diese Weise kann die Wellenfront von 2 überlagerten
Lautsprechern als gleichwertig mit derjenigen eines einzelnen, geneigten Lautsprechers betrachtet werden, wie in der Abbildung dargestellt. Während der Setup-Phase gestattet der
IG4T nach dem automatischen Erkennen von 2 Lautsprechern dank der Infrarot-Ports an den Griffen die Änderung des Beschallungsfelds anhand des Menüs SYSTEM COVERAGE
(kann nicht angezeigt werden, wenn nur ein Lautsprecher installiert ist):
Deutsch
Halle
Weiter Informationen sind dem Abschnitt MENÜ SYSTEM COVERAGE zu entnehmen.
Neigung
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
98
Deutsch

5. AKTUALISIERUNG DER FIRMWARE

Es ist sehr wichtig, dass die Firmware des Produkts auf dem aktuellen Stand gehalten wird, um den vollen Funktionsumfang zu gewährleisten. Daher in regelmäßigen Abständen die Website http://www.dbtechnologies.
com in der Sektion “FIRMWARE” kontrollieren. Wenn das Vorhandensein einer neuen Firmware-Version festgestellt wird:
1. Den USB BURNER MANAGER in der Sektion “FIRMWARE” herunterladen und aufgrund der entsprechenden Anweisungen installieren.
2. Die Zip- Datei der letzten Firmware-Version in der Sektion “FIRMWARE” für INGENIA IG4T herunterladen.
3. In der Bildschirmseite USB BURNER MANAGER rechts oben die Position “File Opening” anwählen.
4. Die zuvor heruntergeladene Firmware-Datei anwählen (Korrektheit aufgrund des eigenen Betriebssystems
kontrollieren).
5. Auf UPDATE klicken
Der USB BURNER MANAGER installiert nun die neue Firmware des Produkts, die somit auf dem neuesten Stand ist.
ACHTUNG!
Bei Aktualisierung der Firmware ist beim nächsten Einschalten des Produkts nicht gewährleistet, dass die alten Einstellungen erhalten geblieben sind.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
99

6. TROUBLESHOOTING

Der Lautsprecher lässt sich nicht einschalten:
1. Kontrollieren, dass die Anlage korrekt mit Spannung versorgt wird.
2. Kontrollieren, dass das Versorgungskabel mit Stecker Neutrik® powerCON TRUE1® korrekt eingesteckt ist.
Der Lautsprecher lässt sich einschalten, gibt jedoch keinen Ton ab:
1. Kontrollieren, dass die Anschlüsse des eingehenden Audiosignals korrekt mit Kabeln und Steckern Neutrik® vorgenommen wurden.
2. Kontrollieren, dass die verwendeten Kabel nicht beschädigt sind.
3. Kontrollieren dass der Mixer oder die Tonquelle eingeschaltet sind und dass das Anstehen eines Audiosignals am Ausgang des Lautsprechers eindeutig angezeigt wird.
4. Kontrollieren dass der Gain-Pegel im Anfangsbildschirm auf einen geeigneten Wert eingestellt ist.
Deutsch
Der Lautsprecher ist angeschlossen, aber die Steuertafel ist vollkommen ausgeschaltet, einschließlich OLED-
Display:
1. Den Push Rotary Encoder drehen, um einen eventuell vorher eingeschalteten Standby- Zustand des Displays zurück zu stellen.
2. Kontrollieren, dass das Versorgungskabel mit Steckern Neutrik® powerCON TRUE1® korrekt eingesteckt ist
3. Kontrollieren, dass der Anlage vorgeschaltete Stromversorgung nicht unterbrochen ist.
Der Lautsprecher gibt einen verzerrten Ton ab:
1. Zunächst die Lautstärke der Tonquelle regeln, dann den Eingangs-Gain des IG4T auf einen angemessenen Wert einstellen
2. Kontrollieren, dass die verwendeten Kabel nicht beschädigt sind (ein beschädigtes Kabel kann zu Verlust
oder Verzerrung des Signals führen).
3. Die Einstellungen der Menüs kontrollieren, die auf die Frequenz des Ausgangssignals einwirken, und zwar:
a) ACOUSTIC CORRECTION b) MICROPHONE SETTING wenn am Eingang ein Mikrofon angeschlossen ist
Das System erkennt nicht, dass 2 überlagerte Lautsprecher angeschlossen sind. Im Bildschirm SYSTEM
STRUCTURE erscheint nur 1 Lautsprecher:
1. Kontrollieren, dass die beiden Lautsprecher korrekt übereinander montiert wurden, wobei der obere Lautsprecher kopfüber gestellt werden muss, und dass die Verbindungsbügel LP-IG korrekt befestigt wurden, wie in der Anleitung zu diesem Zubehörteil angegeben.
2. Kontrollieren dass die unteren und oberen Griffe der Lautsprecher, die die Infrarot­Kommunikationsports enthalten, in keiner Weise bedeckt sind.
3. Nochmals den Ablauf “Selfcheck System” innerhalb des SYSTEM CHECK ausführen, wie im entsprechenden Abschnitt beschrieben.
INGENIA IG4T REV. 1.0 Cod. 420120235 REV. 1.0
100
Loading...
