Installation and Operating Instructions
WHISPER Series, TYPHOON C & T-Series
Swimming Pool Pumps
WARNING: Failure to follow these instructions and comply with all applicable
codes may cause serious bodily injury and/or property damage.
The installation of this product should be carried out by a person knowledgable
in swimming pool plumbing requirements following the installation instructions
provided in this manual.
Please pass these instructions on to the operator of this equipment.
T
yphoon
®
2
Congratulations on the purchase of a quality product from the Davey Water
Products range of Pool and Spa Equipment. You are assured of many
years of reliable and super efficient performance from your Davey Whisper/
Typhoon swimming pool pump.
Read these instructions in their entirety before switching on this pump. If
you are uncertain as to any of these installation and operating instructions
please contact your Davey dealer or the appropriate Davey office as listed
on the back of this document.
The Davey Whisper and Tyhoon pool pumps have been designed to
circulate swimming pool and spa water in conditions set out in the
Australian Standard for swimming pool water quality AS 3633 or equivalent.
They should not be used for any other purpose without first consulting your
Davey Dealer or the Davey Customer Service Centre.
Every Davey product is thoroughly water tested against a number of flow,
pressure, voltage, current and mechanical performance parameters.
Davey’s advanced pump manufacturing technology provides reliable and
efficient pumping performance that lasts and lasts.
Note: The pump is not intended for use by young children or
infirm persons without supervision. Please ensure that young
children are supervised to ensure that they do not play with
the pump.
3
General
The purpose of these instructions is to ensure the correct installation and
best performance of our pumps.
These are single cell centrifugal pumps with built-in filter elements,
especially designed for prefiltering and recirculation of water in swimming
pools.
They are designed to operate with clean water at a maximum temperature
of 35°C. All materials used are of top quality; they are subjected to strict,
controls and verified to extremely demanding standards.

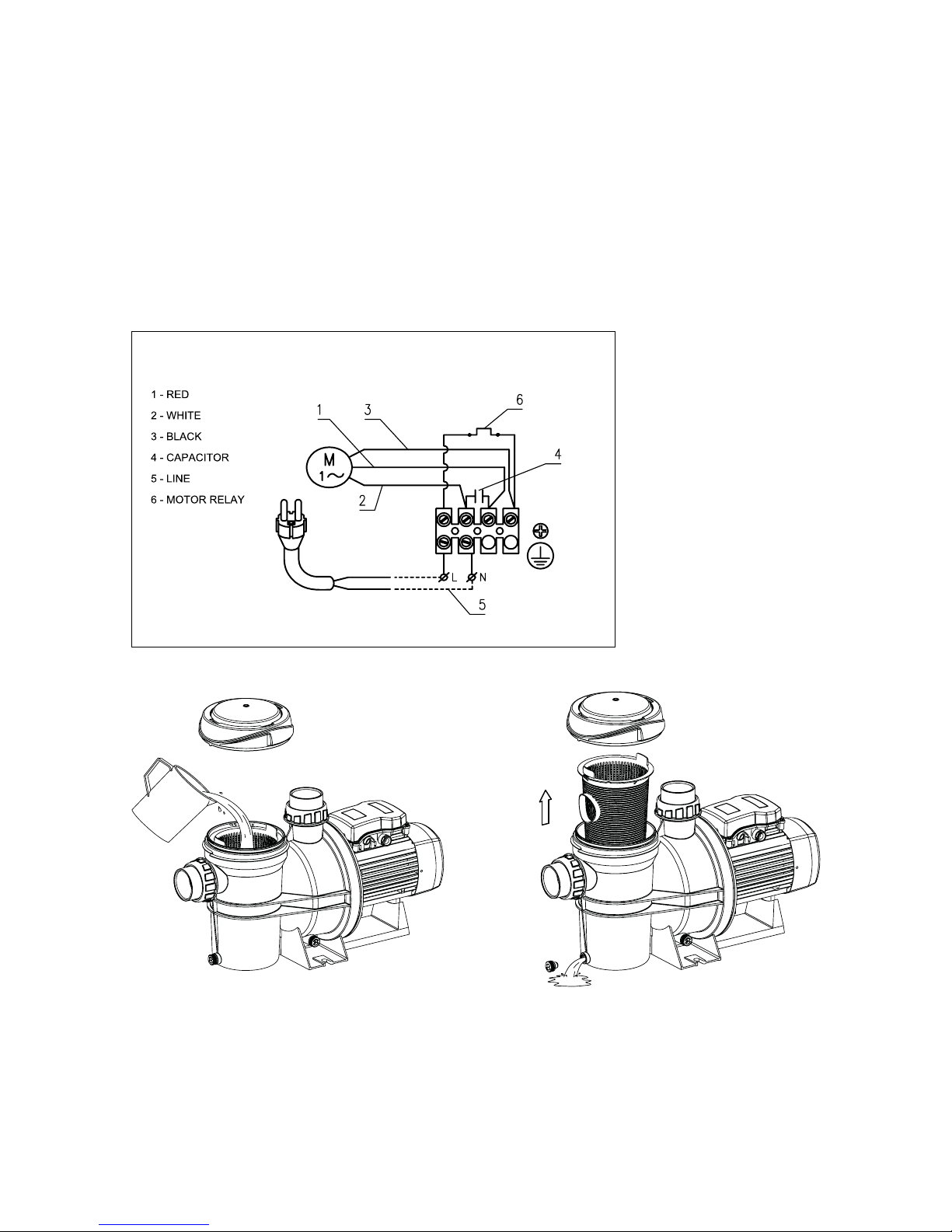

Correct compliance with the installation and operation instructions, and with
the electrical connection diagrams, will prevent motor overloads and the
consequences of all types that could otherwise result, consequences for
which we decline all responsibility.
Installation
The installation of our electric pumps is only permitted in
swimming pools or ponds that meet DIN standards VDE 0100
part 702/11.82. In case of doubt, inquire with an expert.
The pump should be installed as near as possible to water level, in
horizontal position, in order to obtain a minimum suction path and reduce
head losses.
It is not advisable to install the pump at more than 3 m geometrical height
from water level.
Independently of the geometrical height and the power of the model
chosen, self-priming times may be up to 10 min.
The pump must be fixed on a firm base, with screws of 6 or 8 mm diameter,
through the prepared holes in the foot.
The pump should be protected from possible flooding and receive dry
ventilation. The pump is to be installed in a manner consistent with the
National Wiring Rules.
