Spa Water Treatment
Recommended Chemical Values
Chlorine......................... |
1.5 - 3.0 PPM ( Parts Per Million ) |
pH.................................. |
7.4 - 7.6 |
Total alkalinity ................ |
100 - 120 PPM |
It is important to maintain your spa water chemistry to the above values to ensure a healthy experience both for you as bathers and for your spa pool equipment.
PH
This is a measure of how acid or alkaline the spa water is (below 7.0 is acid, above 7.0 is alkaline). Low pH will cause corrosion of any metalwork in the water (element, thermostat pockets). High pH will cause scale formation and cloudy water.
Total Alkalinity
This is a measure of how resistant your spa water is to change of pH. A low TA (0 - 80 ppm) will allow the pH to fluctuate rapidly normally to the acid end and will make it very hard to correct the pH back to the ideal range.
Chlorine
Levels of sanitiser are important to prevent the build up of bacteria, and algae in the pool water. Chlorine is not the only sanitiser available to do this. Other sanitisers are Bromine, Ozone.
Damage to the element, thermostat pockets and associated metalwork due to the poor maintenance of water chemistry is not covered by warranty.
N376 |
Pb RoHS |
|
COMPLIANT |
Davey Water Products Pty Ltd |
|
|
||
Me mb er of th e GUD Group |
Interstate Offices |
|||
ABN 18 066 327 517 |
||||
Sydney • Brisbane • Adelaide |
||||
|
|
|||
Head Office and Manufacturing |
Perth • Townsville |
|||
|
|
|||
6 Lakeview Drive, |
|
|
||
Scoresby, Australia 3179 |
|
|
||
Ph: |
+61 3 9730 9222 |
Davey Water Products |
||
|
|
|||
Fax: |
+61 3 9753 4100 |
– New Zealand |
||
Website: |
davey.com.au |
7 Rockridge Avenue, |
||
|
|
Penrose, Auckland 1061 |
||
Customer Service Centre |
Ph: |
+64 9 570 9135 |
||
Ph: |
1300 2 DAVEY (1300 232 839) |
Fax: |
+64 9 527 7654 |
|
Fax: |
1300 304 850 |
Website: daveynz.co.nz |
||
E-mail: |
sales@davey.com.au |
E-mail: |
sales@daveynz.co.nz |
|
|
1- |
International |
pdf.GuideUserSP1200 Q916320NumberPartBooklet |
|
|
||
6 Lakeview Drive, |
|
|
Scoresby, Australia 3179 |
|
|
Ph: |
+61 3 9730 9121 |
|
Fax: |
+61 3 9753 4248 |
|
E-mail: |
export@davey.com.au |
|
Davey Spa – New Zealand |
|
|
2 Rothwell Avenue, |
|
|
North Harbour, Auckland 0632 |
|
|
Ph: |
+64 9 415 8622 |
|
Fax: |
+64 9 415 8621 |
|
Website: daveyspa.co.nz |
|
|
E-mail: |
service@daveyspa.co.nz |
|
23rd 2009November 9Version
User’s Guide
Models:
SP1200-35 (1ph / 3ph)
SP1200-45, SP1200-60
(1ph only)
Contents
1 |
Basic Operation.......................................................................................................................................... |
Pg 1 |
1.1 |
- Basic Operation..................................................................................................................... |
Pg 1 |
1.2 |
- SP1200 Touchpad.................................................................................................................. |
Pg 1 |
1.3 |
- LED Indicators......................................................................................................................... |
Pg 2 |
1.4 |
- Pump Selection Page............................................................................................................. |
Pg 3 |
2 |
User Guide Quick Reference............................ .......................................................................................... |
Pg 4 |
3 |
Pump Operation......................................................................................................................................... |
Pg 6 |
3.1 |
- Pump 1(Two speed, no 24HR circulation pump fitted)............................................................ |
Pg 6 |
3.2 |
- Clean up cycle...................................................................................................................... |
Pg 6 |
3.3 |
- Pump 1 (Two speed, 24HR circulation pump fitted)................................................................ |
Pg 7 |
3.4 |
- Pump 1A & 1B (Single speed pumps, no 24hr circulation pump fitted).................................. |
Pg 8 |
3.5 |
- Pump 1A & 1B (Single speed pumps, 24hr circulation pump fitted........................................ |
Pg 8 |
3.6 |
- 24Hr circulation pump on/off.................................................................................................. |
Pg 9 |
4 |
Auxillary on/off............................................................................................................................................. |
Pg 9 |
5 |
Spa Power Variable Speed Blower (SPVSB)................................................................................................... |
Pg 9 |
5.1 |
- Adjustable speed mode(SPVSB).............................................................................................. |
Pg 9 |
6 |
Spa Power Variable Colour Light (SPVCL)..................................................................................................... |
Pg 10 |
6.1 |
- Adjustable light intensity mode............................................................................................... |
Pg 10 |
6.2 |
- Light effect mode................................................................................................................... |
Pg 11 |
6.2.1 |
- Adjusting the light effect mode speed................................................................. |
Pg 11 |
7 |
Menu Structure............................................................................................................................................ |
Pg 12 |
7.1 |
Main Menu ................................................................................................................................................. |
Pg 13 |
7.2 |
- Set temp................................................................................................................................. |
Pg 14 |
7.3 |
- User timer................................................................................................................................ |
Pg 15 |
7.4 |
- Clock...................................................................................................................................... |
Pg 15 |
7.4.1 |
- Setting the clock.................................................................................................. |
Pg 16 |
7.5 |
- User Alarm.............................................................................................................................. |
Pg 17 |
7.5.1 |
- Configuring a user alarm..................................................................................... |
Pg 17 |
7.5.2 |
- Disabling a user alarm......................................................................................... |
Pg 18 |
7.6 |
- Sleep timer............................................................................................................................. |
Pg 19 |
7.6.1 |
- Configuring a sleep time...................................................................................... |
Pg 19 |
7.6.2 |
- Disabling a sleep time period.............................................................................. |
Pg 21 |
7.6.3 |
- Plumbing Purge.................................................................................................... |
Pg 21 |
7.7 |
- Maintenance Timers............................................................................................................... |
Pg 21 |
7.7.1 |
- Maintenance timer configuration......................................................................... |
Pg 22 |
7.7.2 |
- Acknowledging a maintenance timer.................................................................. |
Pg 22 |
7.7.3 |
- Configuring a maintenance timer........................................................................ |
Pg 23 |
7.7.4 |
- Disabling a maintenance timer............................................................................ |
Pg 23 |
7.8 |
- Miscellaneous Options Submenu........................................................................................... |
Pg 24 |
7.8.1 |
- Key clicks on/off.................................................................................................... |
Pg 24 |
7.8.2 |
- Main display......................................................................................................... |
Pg 25 |
7.8.3 |
- Changing main display........................................................................................ |
Pg 25 |
7.8.4 |
- Panel colour and intensity..................................................................................... |
Pg 25 |
7.8.5 |
- Changing the touch pad back light colour.......................................................... |
Pg 25 |
7.8.6 |
- Changing the touch pad back light intensity....................................................... |
Pg 25 |
7.8.7 |
- Panel and pool light synchronisation (on/off)........................................................ |
Pg 26 |
7.8.8 |
- Enabling/disabling light synchronisation................................................................ |
Pg 26 |
7.9 |
- Advanced Options Submenu................................................................................................. |
Pg 26 |
7.9.1 |
- Heat Control......................................................................................................... |
Pg 27 |
7.9.2 |
- Changing heat control setting............................................................................. |
Pg 27 |
7.9.3 |
- High heat offset.................................................................................................... |
Pg 27 |
7.9.4 |
- Changing high heat offset setting........................................................................ |
Pg 28 |
7.9.5 |
- Auto filtration/Sanitising (n/a for 24hr circ models)................................................ |
Pg 28 |
7.9.6 |
- Adjusting the filtration time................................................................................... |
Pg 28 |
7.9.7 |
- Adjusting the filtration period................................................................................ |
Pg 28 |
7.10 |
- Load factory Defaults............................................................................................................. |
Pg 29 |
7.10.1 |
- Restoring factory defaults..................................................................................... |
Pg 29 |
8 |
Additional Features..................................................................................................................................... |
Pg 30 |
8.1 |
- Touch pad key lock................................................................................................................ |
Pg 30 |
8.2 |
- Activating the key lock............................................................................................................ |
Pg 30 |
8.3 |
- Disabling key lock................................................................................................................... |
Pg 30 |
8.4 |
- Adjusting Touch pad LCD Contrast......................................................................................... |
Pg 30 |
8.5 |
- Display Reversing.................................................................................................................... |
Pg 31 |
8.6 |
- Language Selection............................................................................................................... |
Pg 31 |
9 |
Self Diagnostic Error Codes......................................................................................................................... |
Pg 32 |
Error 5 (“OVER TEMP”) Over Temperature This error indicates that one of the digital temperature sensors in either the heater or pool has detected a temperature of 45ºC or more. This may not be a problem with the SP1200. It may be caused by excessive pump use in hot weather or pump failure. Turn off the spa and allow time for the water to cool then manually push the Light Level, Light Effect Mode, Pump 1A and Pump 2A buttons simultaneously. If there is still a problem then contact your spa pool supplier.
Error 6 (“THERMAL CUT OUT”) - Thermal Cut Out Tripped This error indicates that the safety electromechanical over temperature cut out on the heater has operated. This is not necessarily a problem with the SP1200. It may have occurred from an air lock around the element, high temperatures during shipping, or pump failure. This automatic cut out will only reset once the element has cooled below about 38ºC. The unit must then be reset before it will resume operation by manually pushing the Light Level, Light Effect Mode, Pump 1A and Pump 2A buttons simultaneously. If there is still a problem then contact your spa pool supplier.
Error 7 (“STUCK RELAY”) - Stuck Relay
This error indicates a problem with the heater control circuitry inside the unit. Contact your spa pool supplier.
Error 8 (“NO TEMP DATA”) - No Temperature Data This error indicates a problem with the digital temperature sensor in the heater or pool wall. The sensor may have become disconnected or damaged. Try to reset the spa. If there is still a problem then contact your spa pool supplier.
Error 9 (“CLOCK FAULT”) Real Time Clock Failure This error indicates a problem with the real time clock within the SP1200. Try to reset the spa. If there is still a problem then contact your spa pool supplier.
Warnings
Warning 1 (“TEMP SENSOR FAILURE”) - Temperature sensor failure This warning indicates that one of the two digital temperature sensors in either the heater or pool is no longer functioning correctly. The spa is able to continue operating using the other sensor, however there is probably a fault. Contact your spa pool supplier.
If this warning appears when first commissioned it maybe that the controller needs to be set back to factory default. To set load factory defaults see page 29.
Safety Notes
Before using ensure that the spa pool has been connected to a suitable weather protected outlet socket, equipped with a double pole isolating switch, which is of the correct rating and complies with the local wiring regulations.
When installing, refer to your local wiring code. In particular refer to ECP2 & ECP25 (AS/NZ) and EN60364-4-1 & EN60364- 7-1 (EU). The system must be installed in such a way that live parts are not accessible by a person in the pool. If a supply cord is not fitted the system must be permanently connected to fixed wiring through a 30mA or less RCD.
It is recommended that the steel reinforcing in any concrete base on which the pool is sitting be equipotential bonded to the earth conductor in the supply to the spa. This is to protect against the possibility of low voltage shocks caused by differential earth voltages. Refer to AS/NZS3000:2000 Sections 5.8 & 7.2 or EN 60364.
This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure they do not play with the appliance.
Page 33
9 Self-Diagnostic Error Codes
The Spa Power 1200 controller has extensive self diagnostic capabilities. In the event of a problem it will indicate a warning or error according to the nature of the problem. The spa will continue operating if a warning is produced but user intervention or service is required for errors.
Errors
When in an error state the alarm can be silenced by pressing the SCROLL button. The alarm will automatically silence after four minutes.
Error 1 (“PRIME FAILED”) Water Prime Failed
Prime failed is a special case. This is not necessarily a problem with the SP1200 itself, but indicates that no water is being detected in the heater housing. On a push of the DOWN button the main pump will run for 10 seconds to try to get water to the heater. If successful normal operation will resume. If unsuccessful, the error will be indicated on the display again. Note: When this error occurs you will also be given the option to run the SP1200 in demo mode, this feature is not intended for end users. If you inadvertently enter demo mode, reset the spa to start over.
With any Error 3-8, spa operation will stop and not continue until the controller is reset. The controller can only be reset by pushing the Light Level, Light Effect Mode, Pump 1A and Pump 2A buttons simultaneously. The controller will remain in an error condition even when reset at mains power, controller will only continue normal operation after the Light Level, Light Effect Mode, Pump 1A and Pump 2A buttons are pushed simultaneously (see below).
OC
36.75
Mon, 12:00PM
Set temp 37.00
Error 3 (“STUCK BUTTON”) - Stuck Button This error indicates that one or more of the touch pad buttons is stuck or has been held down for more than one minute. This may be caused by the pool cover pressing on the touch pad or by water getting into the touch pad or by damage to the touch pad itself. Try to reset the spa. If there is still a problem then contact your spa pool supplier.
Error 4 (“NO WATER SENSOR”) - No Water Sensor This error indicates a problem with the optical water sensor in the heater. The problem may be caused by the sensor being disconnected or by damage to the sensor. Try to reset the spa. If there is still a problem then contact your spa pool supplier.
1 Introduction
Congratulations on choosing Spa-Quip’s top of the line Spa Power control system. This controller offers a large range of possible accessories, a user friendly touchpad and superior components. It makes use of the latest electronics, display and sensor technology to provide you with the most sophisticated controller in its class.
1.1 Basic Operation
The SP1200 touch pad features a large display consisting of four numerical digits and two lines of text. The display typically shows three quantities - Current pool temperature, Set (Target) pool temperature and clock (weekday and time). By default the current pool temperature is displayed on the numerical digits leaving the clock and set temperature on the two lines of text. This configuration may be changed by the user if a different layout is preferred.
Whenever a touch pad button is pressed the two lines of text will temporarily describe the newly selected state. Likewise when the controller is busy performing a task, text will be displayed to explain what is happening (examples include sleeping, purging pumps and water priming). Each of these messages and the associated function is described in the following sections.
1.2 SP1200 Touchpad
|
Ozone LED |
Heater LED |
||||
|
Sleep LED |
|
Auto LED / Water LED |
|||
Light Level |
|
|
|
OC |
Light Effect Mode |
|
|
|
|
||||
Pump 2A |
|
|
36.75 |
Pump 1A |
||
|
||||||
Mon, |
12:00PM |
|||||
|
|
|||||
Pump 2B |
Set temp 37.00 |
Pump 1B |
||||
|
|
|
|
|||
|
|
|
|
|
Aux |
|
Variable Speed Blower |
|
|
|
|
|
|
(SPVSB) |
|
|
|
|
|
|
|
Down |
Up |
|
Scroll
Page 32 |
Page 1 |
1.3 LED Indicators
Auto (Non-24HR circ model) This LED is green when automatic control is enabled and off when pump 1 is under manual control. In automatic mode pump 1 runs as required to heat the pool and ensure minimum filtration times are met. If the indicator is blinking it means that the water sensor is not detecting any water in the heater housing. If no water is being detected the LCD Display will also show “WATER PRIMING, PLEASE WAIT”.
Water (24HR circ model) This LED is green when water is detected. If the indicator is blinking it means that the water sensor is not detecting any water in the heater housing. If no water is being detected the LCD Display will also show “WATER PRIMING, PLEASE WAIT”.
Auto Icon/ Water Icon
Heater This LED shows when the heater is on. The heater will turn on and off as required whenever the pump is running. The LED is red when the heater is on high and orange when on low. The low setting is used for load shedding to keep the total controller load within safe limits while still providing some heating effort.
Heater Icon
Sleep This LED is on whenever the controller is within a designated sleep period. When the controller is asleep the LED is green but the LED colour will change to orange if manually awoken. During the sleep state the LCD Display will also show “SLEEPING, PRESS ANY KEY”.
Sleep Icon
Ozone This LED is green whenever the ozonator (if fitted) is on. Pressing any touch pad button may automatically turn off the ozonator (depending on installer configuration). If this occurs, the ozonator will not switch back on until approximately 30 minutes after the last touch pad button press.
Ozone Icon
8.5 Display Reversing
The display can be reversed so it can be read from inside or outside of the spa pool, the display will revert back to default state after 30 minutes of inactivity.
To reverse the display press the UP and DOWN buttons simultaneously
To restore the display press the UP and DOWN buttons again.
Default Display Orientation Reversed Display Orientation
36 75. |
OC |
75 |
. |
36 |
OC |
|
|
||||
|
|
|
|
||
Mon, 12:00PM |
Mon, |
12:00PM |
|||
Set temp 37.00 |
Set temp 37.00 |
8.6 Language Selection
The SP1200 spa controller can be set to display English (default), French, German, Spanish, Dutch &
Japanese.
To select language press and hold the DOWN button for 4 seconds.
Use the UP or DOWN buttons to select language then press the SCROLL button to set.
- - - -
ENGLISH
( ) (SET ( )
Scroll to SET
Page 2 |
Page 31 |
8 Additional Features
8.1 Touch Pad Key Lock
The SP1200 touch pad buttons can be locked to prevent unauthorised people from using the spa or modifying set up options. While the key lock is active button presses are ignored, however the LCD Display will temporarily show “KEYS LOCKED” to alert the user that the key lock is engaged.
8.2 Activating The Key Lock
To activate the key lock press and hold down the DOWN, SET and UP buttons together. While you are doing this, the LCD Display will show “HOLD KEYS TO ACTIVATE LOCK”. You will need to hold the buttons down for approximately three seconds before the lock is activated. At this point the touch pad will beep and show “KEYS LOCKED”.
8.3 Disabling The Key Lock |
Push 1 |
|
Once the key lock has been activated a button press sequence |
|
|
is required to disable it. Press each of the buttons listed in the |
Push 2 |
|
unlock sequence, one at a time. The touch pad will beep and |
||
|
||
temporarily display “KEYS UNLOCKED” once the sequence is |
|
|
correctly entered. If you loose your place or incorrectly enter |
Push 3 |
|
one of the buttons start over from the first step. |
||
|
||
Unlock sequence: DOWN, SCROLL, DOWN, UP, SCROLL. |
Push 4 |
|
|
||
Note: If the controller is switched off while the key lock is active, |
|
|
the key lock will not be restored when power is reapplied. |
Push 5 |
|
|
||
8.4 Adjusting Touch Pad LCD Contrast |
|
The touch pad LCD contrast/brightness can be manually adjusted if the display appears too dark or light.
To adjust the contrast, follow these steps:
1)Press and hold down the LIGHT button. This will cycle the light intensity as usual, however you must keep the button held down before proceeding with the following steps.
2)With the LIGHT button held down, press the UP or DOWN buttons to darken or lighten the contrast as required. Hold down either button for automatic key press repeat. As you press the UP and DOWN buttons no key clicks or display changes will occur - this is normal.
3)Once you have finished adjusting the contrast release the LIGHT button and the new setting will be saved.
1.4 Pump Selection Page
Before reading the following user guide please take note of your pump type then refer to the page stated to learn how to operate your spa pool controller. Use the table below to determine which pump type you have on your spa.
|
|
OC |
|
|
Pump 2A |
36.75 |
Pump 1A |
||
Mon, |
12:00PM |
|||
|
|
|||
Pump 2B |
Set temp 37.00 |
Pump 1B |
||
|
|
Push |
(Pump 1A) 4 times and match the display on your touch pad |
|
|
||||
|
|
to the column in the table below, then refer to the specified section. |
|
||||
Option 1 |
|
Option 2 |
|
Option 3 |
|
Option 4 |
|
36 75. |
OC |
36 75. |
OC |
36 75. |
OC |
. |
OC |
|
|
|
36 75 |
|
|||
PUMP LOW |
|
PUMP LOW |
|
PUMP ON |
|
PUMP ON |
|
36 75. |
OC |
36 75. |
OC |
36 75. |
OC |
36 75. |
OC |
|
|
|
|
||||
PUMP OFF |
|
PUMP OFF |
|
PUMP OFF |
|
PUMP OFF |
|
36 75. |
OC |
|
|
36 75. |
OC |
|
|
|
|
|
|
|
|
||
PUMP AUTO |
|
|
|
PUMP AUTO |
|
|
|
SEE SECTIONS SEE SECTIONS SEE SECTIONS SEE SECTIONS 2.1.1(page 4) 2.1.2(page 4) 2.1.3(page 4) 2.1.4(page 4) 3.1 (page 6) 3.3 (page 7) 3.4 (page 8) 3.5 (page 8)
Page 30 |
Page 3 |
Section 2.0
User’s Guide Quick Reference
2.1 Pump 1 Operation
2.1.1 Two Speed (no 24hr circulation pump)
Pump 1A button: Push to change pump mode (PUMP AUTO, MANUAL ON ,MANUAL OFF)
Pump 1B button: Push to change pump speed (LOW, HIGH)
2.1.2 Two Speed (24hr circulation pump fitted)
Pump 1A button: Push to turn pump ON/OFF
Pump 1B button: Push to change pump speed (LOW, HIGH)
2.1.3 Single Speed (no 24hr circulation pump)
Pump 1A button: Push to change pump mode (PUMP AUTO, MANUAL ON ,MANUAL OFF)
Pump 1B button: Push to turn ON/OFF additional pump (if fitted)
2.1.4 Single Speed (24hr circulation pump fitted)
Pump 1A button: Push button to turn pump ON/OFF
Pump 1B button: Push to turn ON/OFF additional pump (if fitted)

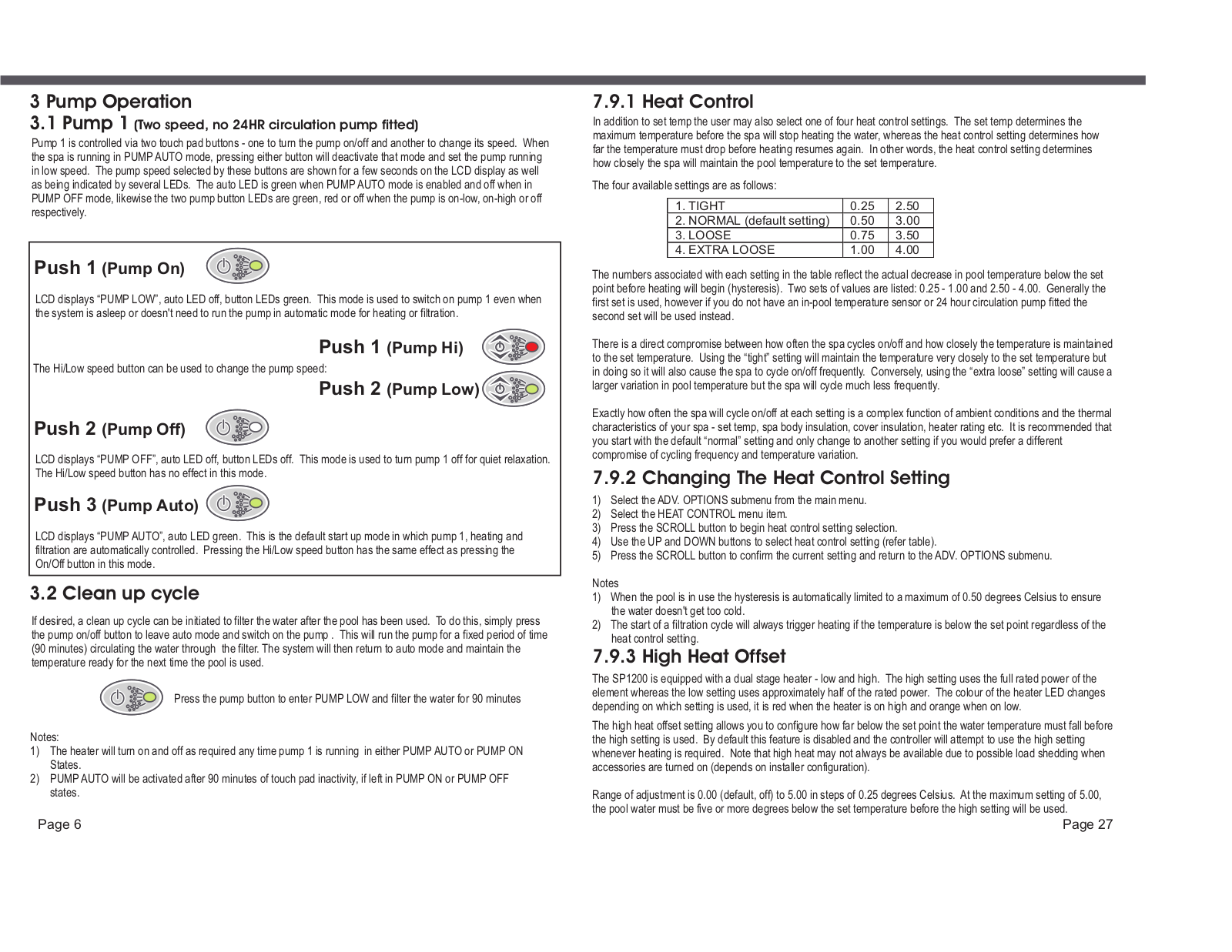

For more detailed information please see section 3.
2.2 Pump 2 Operation
2.2.1 Single Speed Pump
Pump 2A button: Push to turn ON/OFF additional pump (if fitted)
Pump 2B button: Push to turn ON/OFF additional pump (if fitted)
2.2.2 Two Speed Pump
Pump 2A button: Push to turn pump ON/OFF
Pump 1B button: Push to change pump speed (LOW, HIGH)
For more detailed information please see section 3.
2.3 Aux (Pump, Blower, Light)
Push button to turn Aux output ON/OFF
For more detailed information please see section 4.

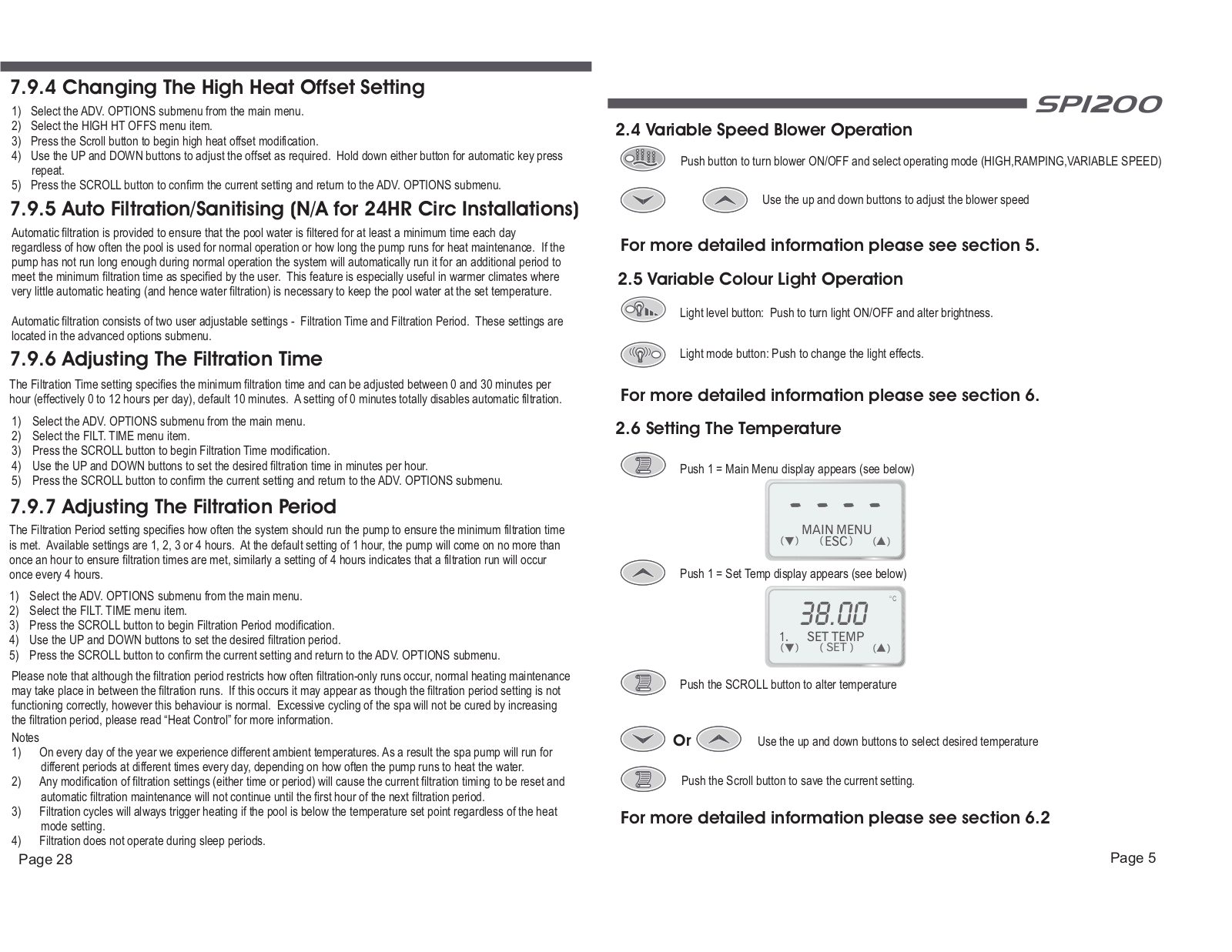

7.10 Load Factory Default Settings
The load defaults option provides a way of restoring all factory default settings. These include obvious set up parameters such as set temperature and sleep times but also settings such as preferred light mode, light effect speeds and blower speed will be restored to their factory defaults. Only use this option if you are absolutely sure it is necessary.
7.10.1 Restoring Factory Defaults
1)Select the LD. DEFAULTS item from the main menu.(see below for details)
2)Press the SCROLL button. Note that the confirmation prompt uses a very short timeout (approximately three seconds) and as such you will have to execute the following steps relatively quickly.
3)Press the UP or DOWN button to select “YES”.
4)Press the SCROLL button to load the defaults. The display will temporarily show “DEFAULTS LOADED” to confirm that defaults have been loaded.

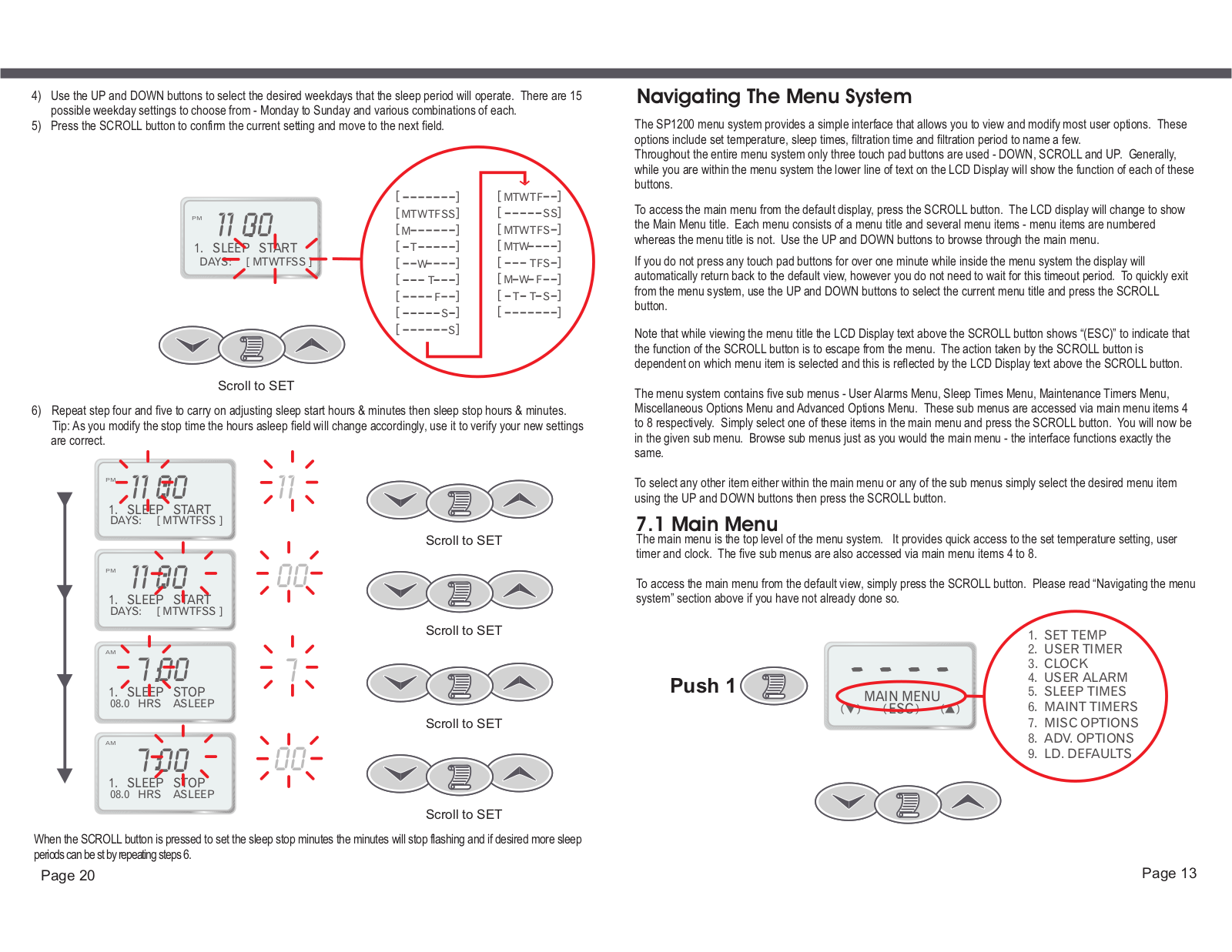

Select MAIN menu then push UP button nine times |
|
1. SET TEMP |
||
|
- - - - |
2. USER TIMER |
||
|
3. CLOCK |
|||
|
|
|
|
|
Push 9 |
|
|
|
4. USER ALARM |
9. LD. DEFAULTS |
5. SLEEP TIMES |
|||
|
6. MAINT TIMERS |
|||
|
( ) |
(SET) |
( ) |
|
|
7. MISC OPTIONS |
|||
|
|
|
|
|
|
|
|
|
8. ADV. OPTIONS |
|
|
|
|
9. LD. DEFAULTS |
|
- - - - |
|
||
|
ARE YOU SURE? |
[ NO ] |
||
|
( ) |
[NO] |
( ) |
|
[YES]
Scroll to SET
Notes
1)After the defaults have been loaded, it takes approximately 10 seconds for the controller to save them. Do not turn off the power before this period elapses.
2)The clock hour, minute and weekday will not be reset when you load the defaults
Page 4 |
Page 29 |
