DATECS ITBM, Linea TAB Mini User Manual

Download
1 DATECS
User Manual
Linea TAB Mini
CONTENTS
Legal Notice............................................................................................................................................. 3
Compatibility ............................................................................................................................................ 3
Linea TAB Mini ........................................................................................................................................ 5
Overview.................................................................................................................................................. 6
Technical Data......................................................................................................................................... 7
Box Contents ........................................................................................................................................... 9
Getting Started ...................................................................................................................................... 10
Buttons overview ................................................................................................................................... 11
Front side view ................................................................................................................................. 11
Back side view.................................................................................................................................. 12
Attaching device .................................................................................................................................... 13
Operation modes ................................................................................................................................... 14
Charging Battery.................................................................................................................................... 14
Charging Modes .................................................................................................................................... 14
Barcode Scanning ................................................................................................................................. 15
Using the 1D barcode scanner:........................................................................................................ 15
Using the 2D barcode scanner:........................................................................................................ 16
Card Reading ........................................................................................................................................ 17
Contactless Card Reading..................................................................................................................... 18
2

Legal Notice

“Made for iPad” mean that an electronic accesory has been designed to connect specifically to iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible fort he operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accesory with iPad may affect wireless performance.

Compatibility

Made for
iPad mini with Retina display
iPad mini 3
iPad mini 4
iPad Air
iPad Air 2
9.7-inch iPad Pro
12.9-inch iPad Pro
iPad are trademarks of Apple Inc., registered in the U.S. and other countries. Lightning is a trademark of Apple Inc.
3
FCC Notice
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
No changes shall be made to the equipment without the manufacturer’s permission as this may void the user’s authority to operate the equipment
Exposure to Radio Frequency (RF) Signals
The LineaTab mini, incorporating the iPad, has been tested and meets applicable limits for radio frequency (RF) exposure. Specific Absorption Rate (SAR) refers to the rate at which the body absorbs RF energy. The SAR limit is 1.6 watts per kilogram averaged over 1 gram of tissue. During testing, the iPad devices, incorporated within the LineaTab mini, are set to their highest transmission levels and placed in positions that simulate use near the body. Cases with metal parts may change the RF performance of the device, including its compliance with RF exposure guidelines, in a manner that has not been tested or certified.
The LineaTab mini complies with the FCC safety requirements for RF exposure in accordance with FCC rule part §2.1093 and KDB447498 D01 for portable use conditions.
The LineaTab mini, incorporating the iPad, must not be co-located or operated in conjunction with any other antenna or transmitter.
4

Linea TAB Mini

Model Description
Linea TAB Mini MSR Linea TAB Mini with 3-Track mag-stripe reader
Linea TAB Mini EMSR
Linea TAB Mini MSR 2D
Linea TAB Mini EMSR 2D
Linea TAB Mini MSR 2D/BT
Linea TAB Mini EMSR 2D/BT
Linea TAB Mini MSR 2D/ BT/RFID Linea TAB Mini EMSR 2D/ BT/RFID
Linea TAB Mini with Secure Encrypting MSR Module Linea TAB Mini with 3-Track mag-stripe reader and 1D/2D barcode scanner Linea TAB Mini with with Secure Encrypting MSR Module and 2D barcode reader Linea TAB Mini with 3-Track mag-stripe reader, 1D/2D and Bluetooth® Linea TAB Mini with Secure Encrypting MSR Module, 1D/2D and Bluetooth® Linea TAB Mini with 3-Track mag-stripe reader, 1D/2D/Bluetooth® and RFID reader Linea TAB Mini with Secure Encrypting MSR Module, 1D/2D/Bluetooth® and RFID reader
Table 1
5

Overview

Linea TAB Mini allows mobile workers to convert their iPad Mini handset into a powerful point-of-sale solution. The Linea TAB Mini includes optional 1D or 2D barcode scanner, 3-tracks magnetic stripe reader, RFID reader and a rechargeable battery extender in a very compact and durable protective case.
Features:
Battery: Rechargeable Li-ion Battery - 1100 mAh, charging via USB or DATECS Power Station.
Magnetic Card Reader – 3-Track Head: Swipe Speed: Minimum of 1.97 in/sec MTBF: 1 million swipes Bidirectional reading capabilities
Barcode Scanner: Single / Multi-scan mode 2D – EM2049 Image sensor 752x480 CMOS 2D – MDI-3000 Image sensor 752x480, Scan rate: Up to 60fps
Indicators: Visual: 2 LEDs for device and battery status Audio: Electromagnetic Buzzer
I/O Connectors: 9-pin lightning connector 10-pin female Mini-B USB connector for charging and synchronization
Contactless indications: Four LEDs
6
Magnetic Card
Secure Magnetic
Contactless Card
Contactless Card
for payment
Supported Barcode
`

Technical Data

Processor
Reader
(option)
Card Reader
(option)
Reader
(option)
Reader
applications
(option)
Barcode Reader
(option)
Types
Battery
Connectivity
Device compatibility
Buttons
LED indication
Audio Indication
32-bit ARMTM CortexTM - M3 based Microcontroller
• 3-track bi-directional reading
• ISO 7810, 7811 and 7813
• PCI PTS 3.x certified
• DUKPT and Fixed Key Management
• 3DES-112, AES-128, AES-256 encryption algorithms
ISO/IEC 14443 Type-A/MIFARE:
- MIFARE MINI
- MIFARE CLASSIC-1K, MIFARE CLASSIC-4K
- MIFARE ULTRALIGHT, ULTRALIGHT-C
- MIFARE PLUS 2K/4K
- MIFARE DESFire
- and others
ISO/IEC 14443 Type-B:
- supports most of the cards
ISO/IEC 15693:
- supports most of the cards
• AMEX ExpressPay MagStripe and EMV
• Discover ZIP and D-PAS
• MasterCard PayPass MagStripe and M/Chip
• VISA PayWave MSD and qVSDC
• Opticon MDI3100* - image sensor 752x480 CMOS, High Performance 2D Imager Scan Engine
• Newland EM2049 – image sensor 752x480 CMOS, High Performance 2D Imager Scan Engine
• 2D* Imager Supported Symbologies:
JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar(RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey Postal codes: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200/EC0-140), Maxi Code(mode 2~5), MicroPDF41, QR & Micro-QR Code, PDF417
Rechargeable Li-Ion Battery 3.7V / 1100 mAh
• Apple 9 pin connector
• Pass-through sync through mini USB
• BT 2.0 Class 2 (option)
- SPP - Serial Port Profile
• External serial port
Apple iPad mini with Retina display, iPad mini 3, iPad mini 4, iPad Air, iPad Air 2,
9.7-inch iPad Pro, 12.9-inch iPad Pro
1 scan button
• 2 LEDs for battery and device status
• 4 LEDs for contactless payment transactions
Electro - Magnetic Buzzer
7
Dimensions
Accessories
`
Certifications
Weight, g
(LxWxH), mm
Environmental
Power supply
CE, FCC, PCI PTS 3.x, Apple® MFi
140 with battery and 2D barcode reader (without iPad mini)
103 x 88 x 23.5
• Operating: -10oC to +40oC / 5% to 90% RH
• Storage: -20oC to +50oC / 5% to 90% RH
• 5V through mini USB
• 5V through single or 5 station charger
• Single station charger - SC-1
• 5 stations charger - GC-5
• Holster
* Specifications subject to change without notice.
Table 2
8

Box Contents

Your Linea Tab Mini comes with the following items listed below:

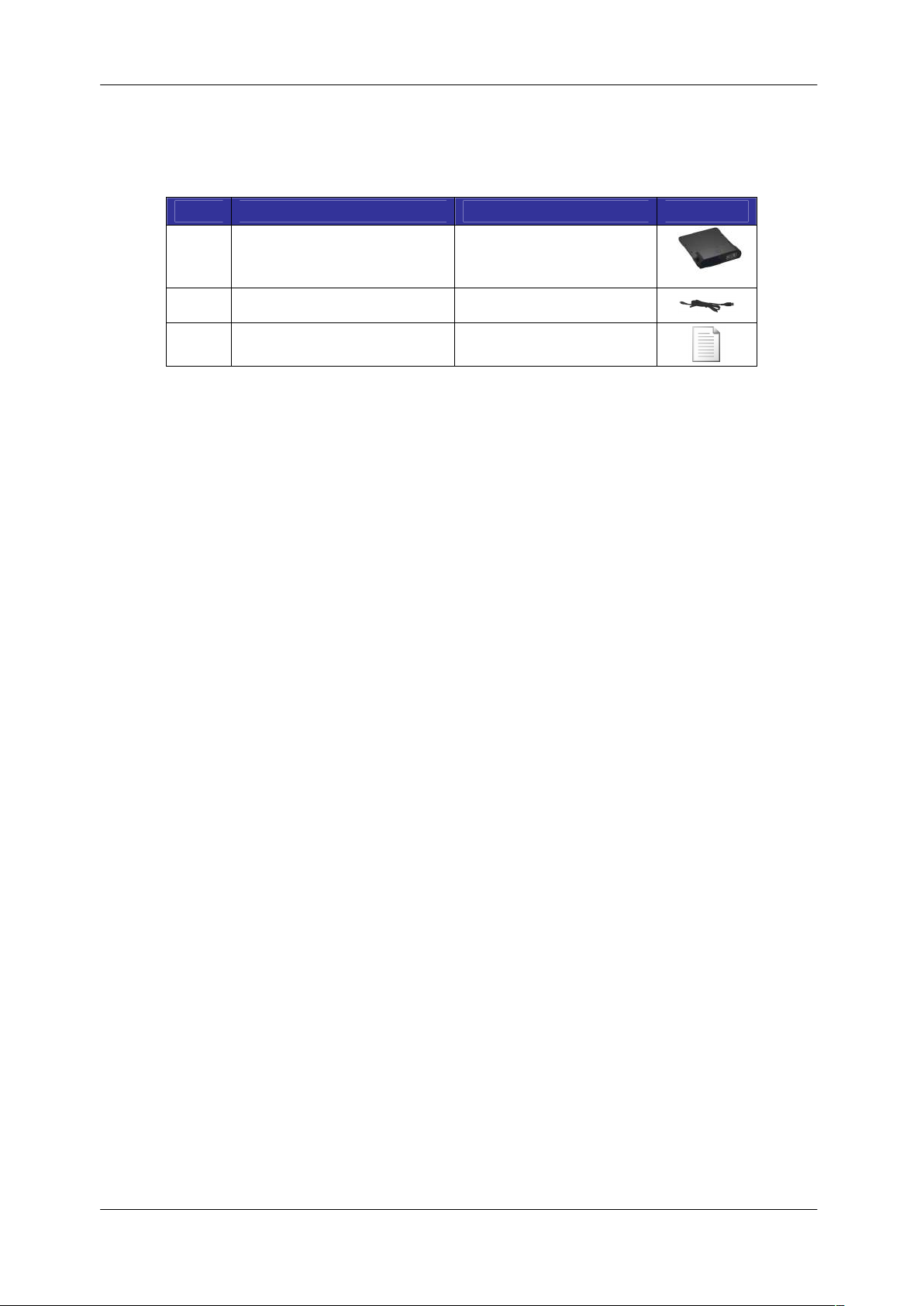

Item Part Number Descriptions Image
1 Linea TAB Mini
Linea TAB Mini / Scanner
2 USB A to mini USB B USB Sync cable
Linea TAB Mini User
3
Manual
User's manual
*Bulk Shipments may ship without cables and manuals in each box.
Table 3
9

Getting Started

information onto your iPad Mini. Before using your Linea TAB Mini the battery should be properly charged. The following Quick Start guide will help to get your Linea TAB Mini ready for use.
Step What to do Purpose
The Linea TAB Mini allows you to scan barcode and capture Magnetic Strip
Quick Start:
Where to find more
information
Fully charge your Linea
1
TAB Mini as recommended.
2 Install Software.
3
Attach device to Linea TAB Mini
The battery pack should be fully charged before use to ensure long battery life.
Barcode Scanning & Card Reading requires software to be installed onto your iPad Mini
Connecting your Linea TAB Mini and iPad Mini
Table 4
Charging Battery, Page
14.
Please contact your distributor
Attaching device, Page
13.
10
Scan Button connector
9-pin lightning connector
Controls
Charging Lamellas Scan engine
Battery charging LED
Device status LED
`

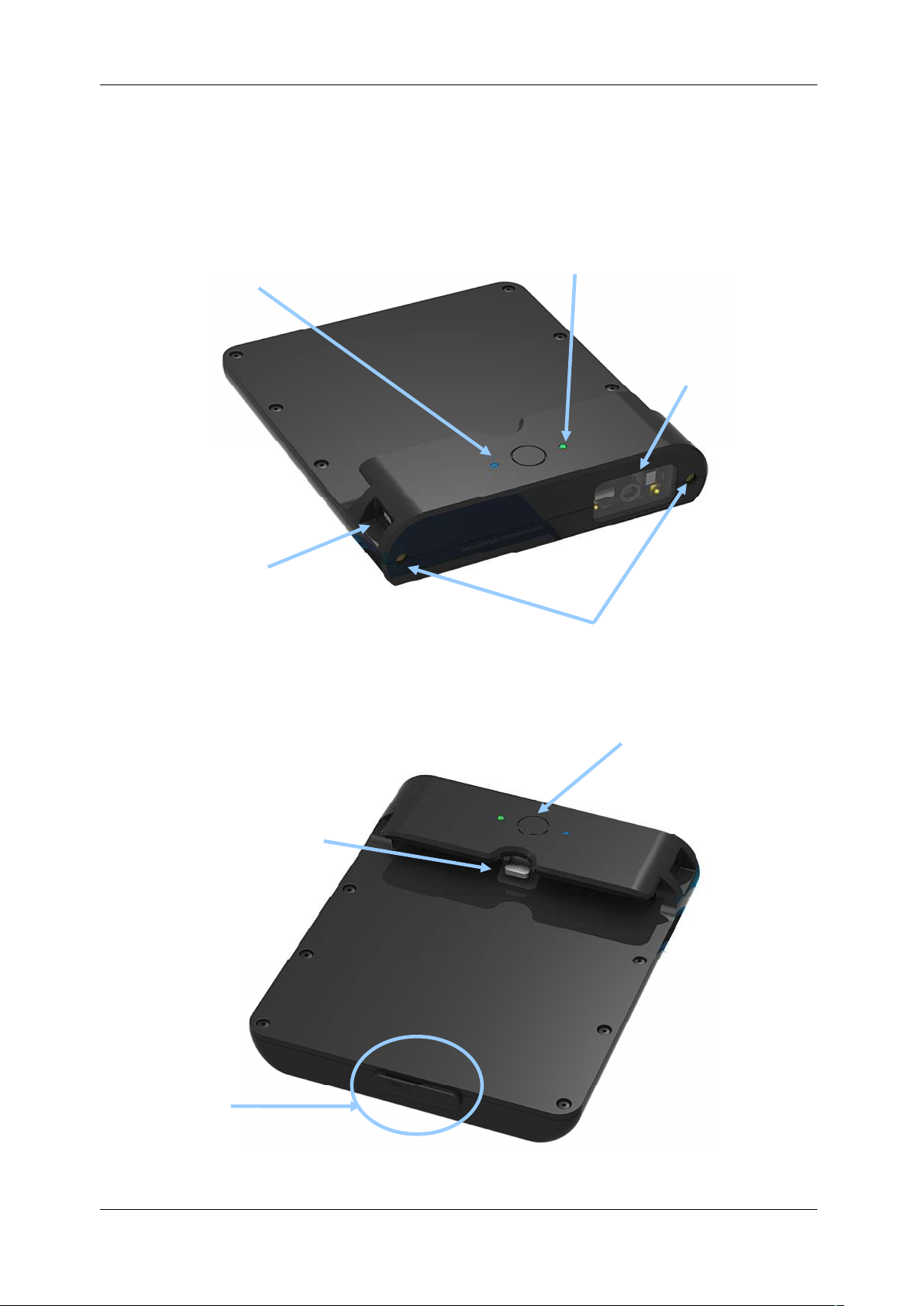

Buttons overview

Front side view

Volume
10-pin mini USB
connector
External RS
11
Four LEDs for Contactless status Magnetic Stripe Reader
`

Back side view

12

Attaching device

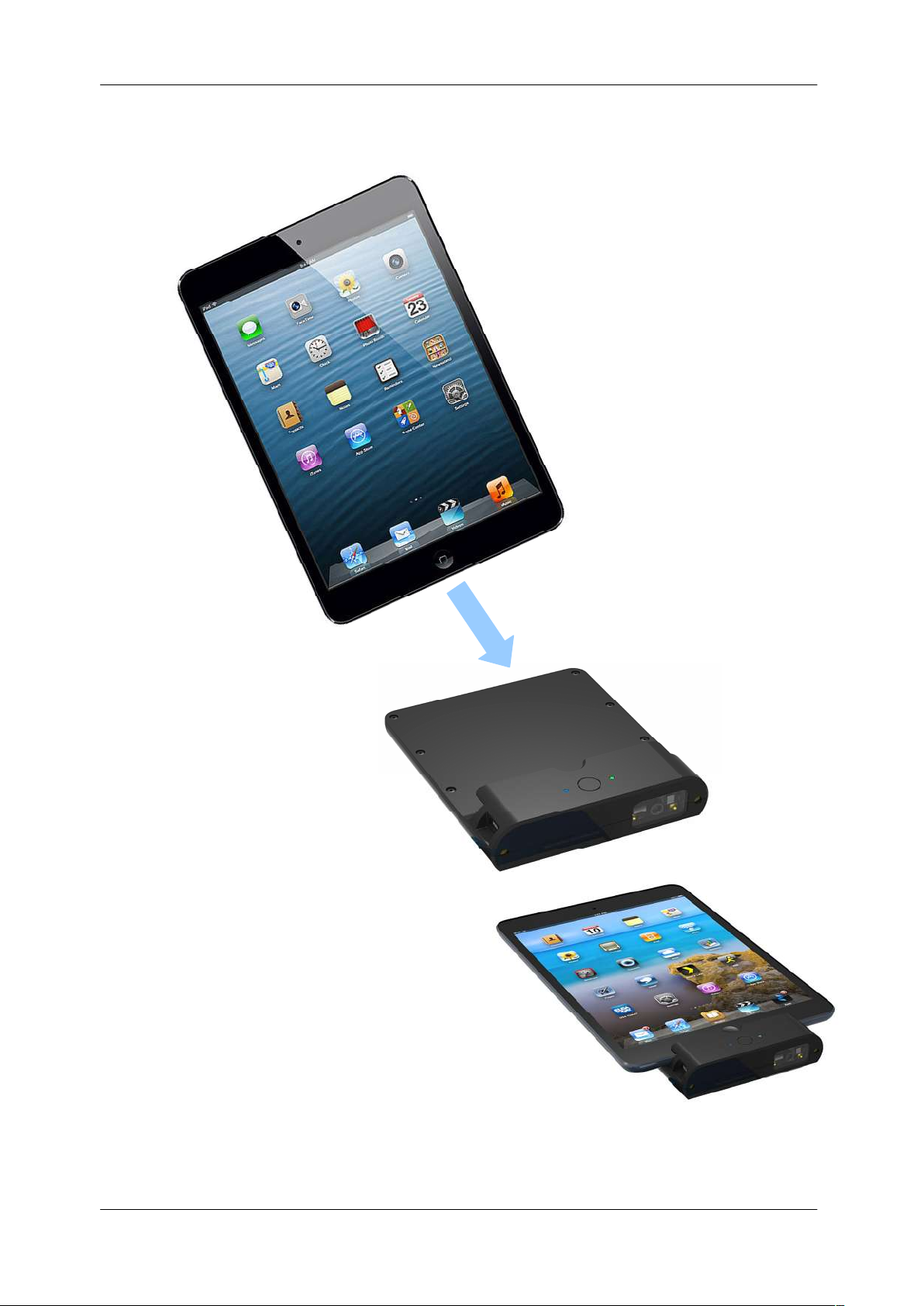

Slide iPad mini to the 9-pin lightning connector of the Linea TAB Mini
13

Operation modes

Active mode - While iPad Mini is inserted. While the Linea TAB Mini application is active.
Sleep mode - While iPad Mini is removed (after ~10sec). When iPad Mini On/Off button is pressed (after ~10sec).
When iPad Mini “Auto-Lock” function is activated (after ~10sec).

Charging Battery

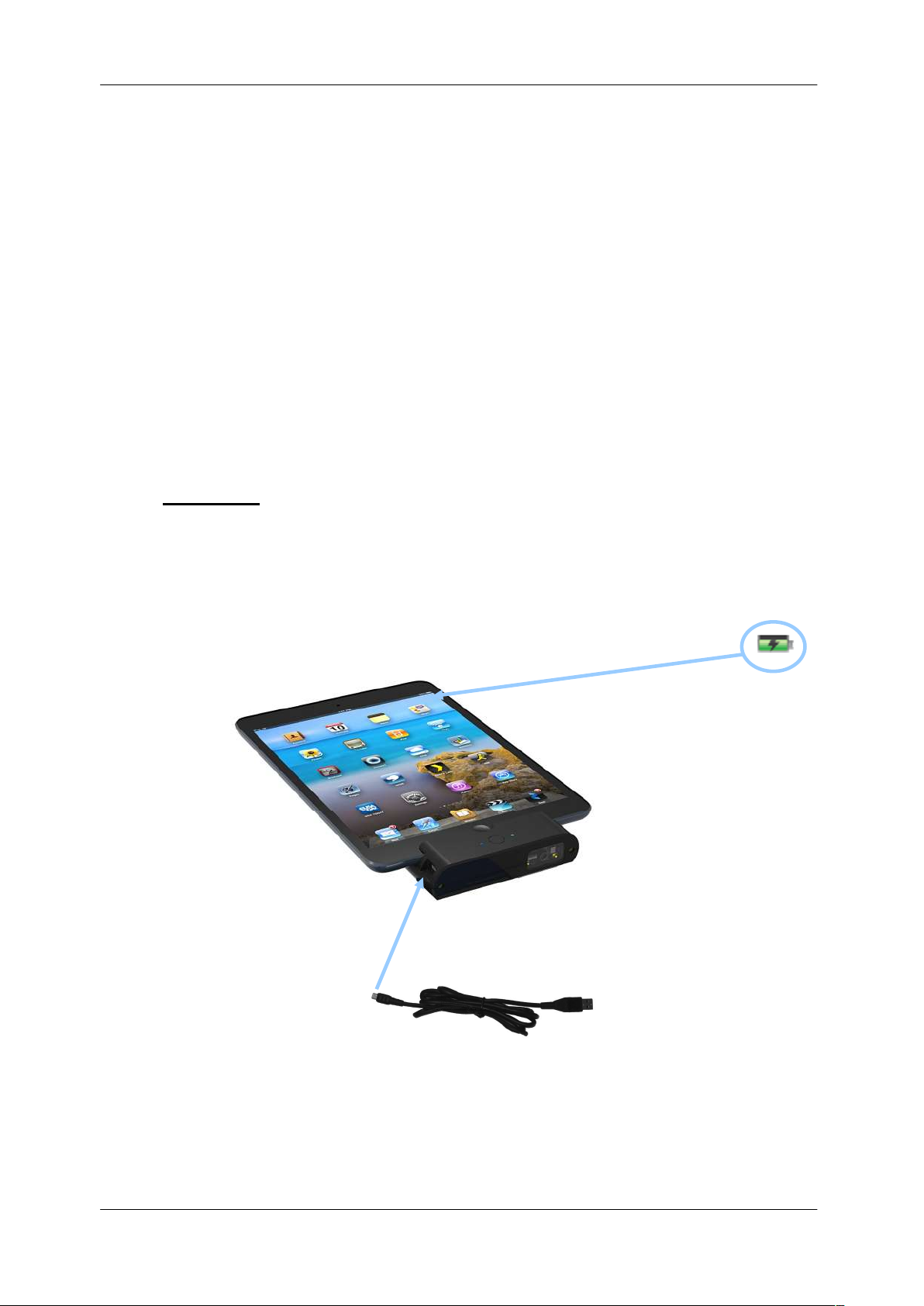

The Linea TAB Mini uses a 1100mAh Lithium-Ion rechargeable battery pack. Before first use, the battery pack should be charged for at least (4) hours. Linea TAB Mini can be charged via USB port or DATECS Power Station. When the Linea TAB Mini charging is started, automatically starts the charging of the inserted inside the cradle iPad Mini.
WARNING: To prevent electrical damage to the Linea TAB Mini and/or battery
pack, please use approved USB to Mini USB cables only!
Linea TAB Mini has one battery status LED:
- The green LED is blinking – Linea TAB Mini is charging
- Continuous light Green LED – Linea TAB Mini is charged

Charging Modes

- Enable pass-through sync (enable sync between iPad Mini and PC with charge)
- Enable 1A USB charging (use this setting with 2A adapter or high-power USB HUB)
14
Scan Button
of the barcode size
`

Barcode Scanning

Using the 1D barcode scanner:

The Linea TAB Mini 1D uses a scan engine that supports one-dimensional (1D) barcode symbols. The effective reading distance of the barcode reader varies depending on the barcode size.
Scanning 1D Barcodes:

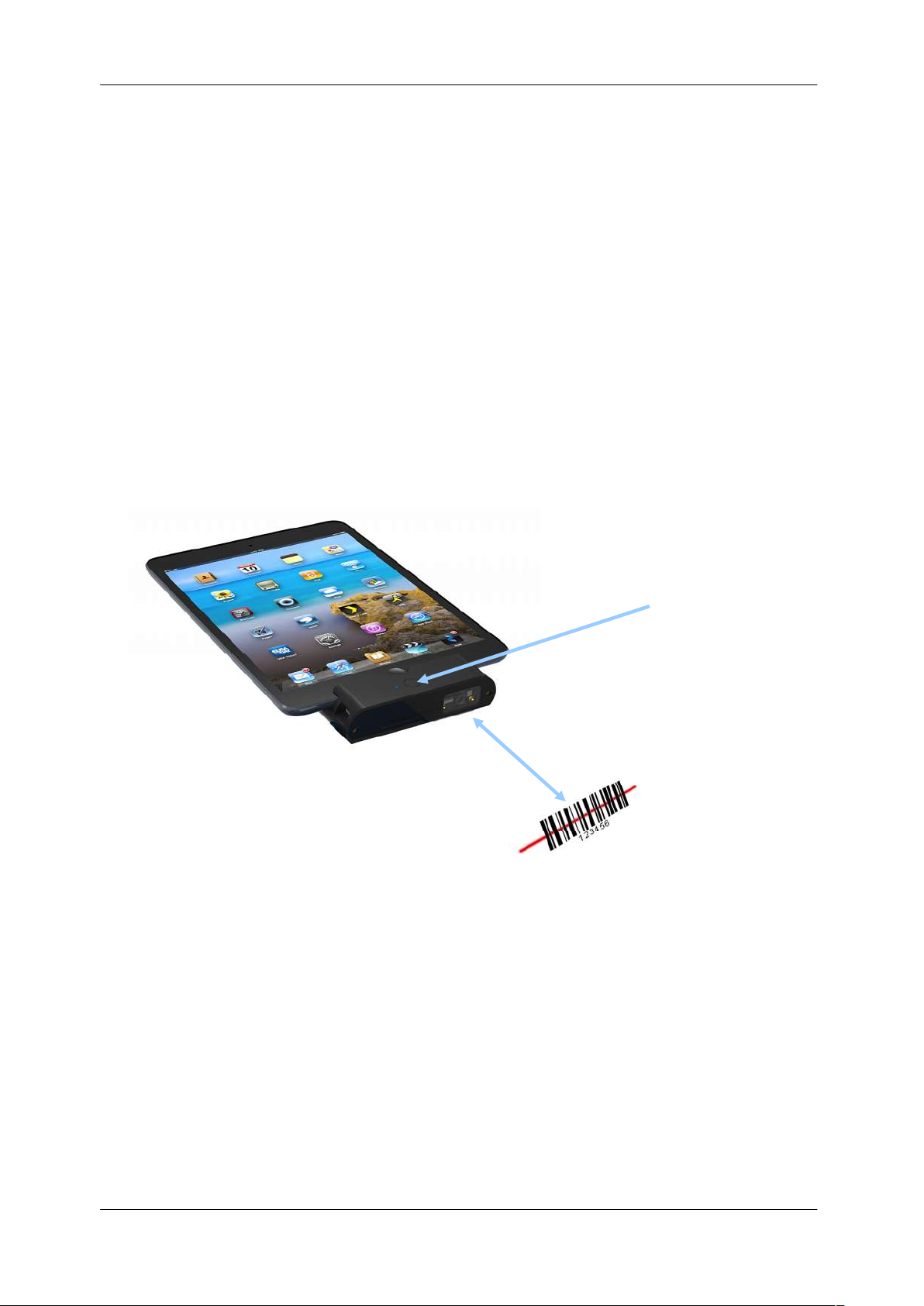

To scan a 1D barcode, first activate the scanner. Then position the scanning head as close as possible to the barcode label so that the scan line crosses both ends of the barcode as shown on the figure below.
Slowly pull back the unit, while increasing the distance between the barcode and scanning head, until the barcode has been read by the scanner.
Reading distance is depend
Linea TAB Mini supports different types of scan:
- Single Scan
- Multi Scan
15

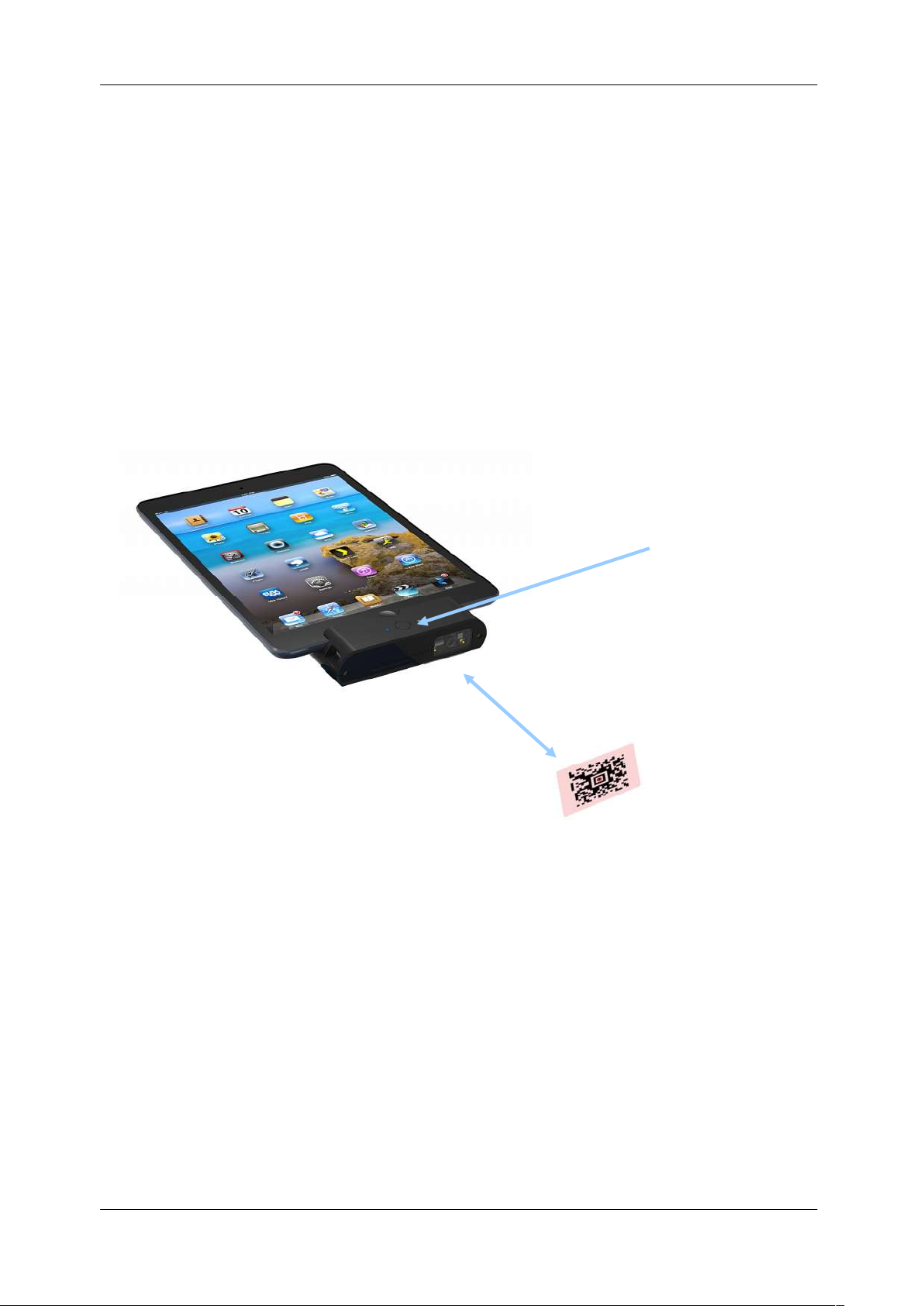

Scan Button
of the barcode size
`

Using the 2D barcode scanner:

The Linea TAB Mini 2D uses a scan engines that supports one-dimensional (1D) and two-dimensional (2D) barcode symbols. The effective reading distance of the barcode reader varies depending on the barcode size.
Scanning 2D Barcodes:
To scan a 2D barcode fist activate the scanner. Then position the scanning head to the center of the barcode by aiming with the red laser beam and the illumination box is over the outer edges of the barcode, as shown in the figure below.
Slowly pull back the unit, while increasing the distance between the barcode and the scanning head, until the barcode has been read by the scanner.
Reading distance is depend
Linea TAB Mini supports different types of scan:
- Single Scan
- Multi Scan
16
Swipe direction
`

Card Reading

Reading Magnetic Stripes:

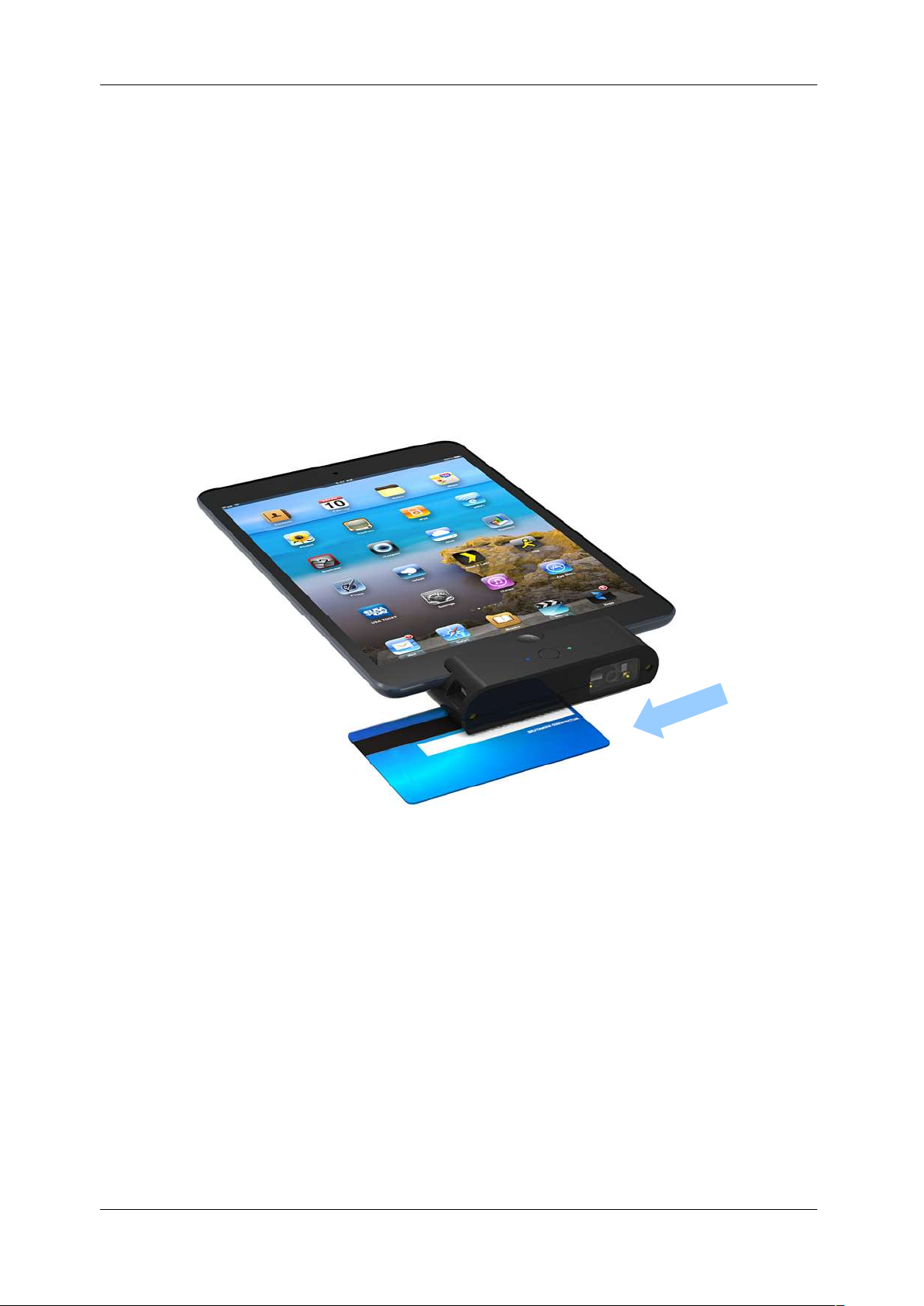

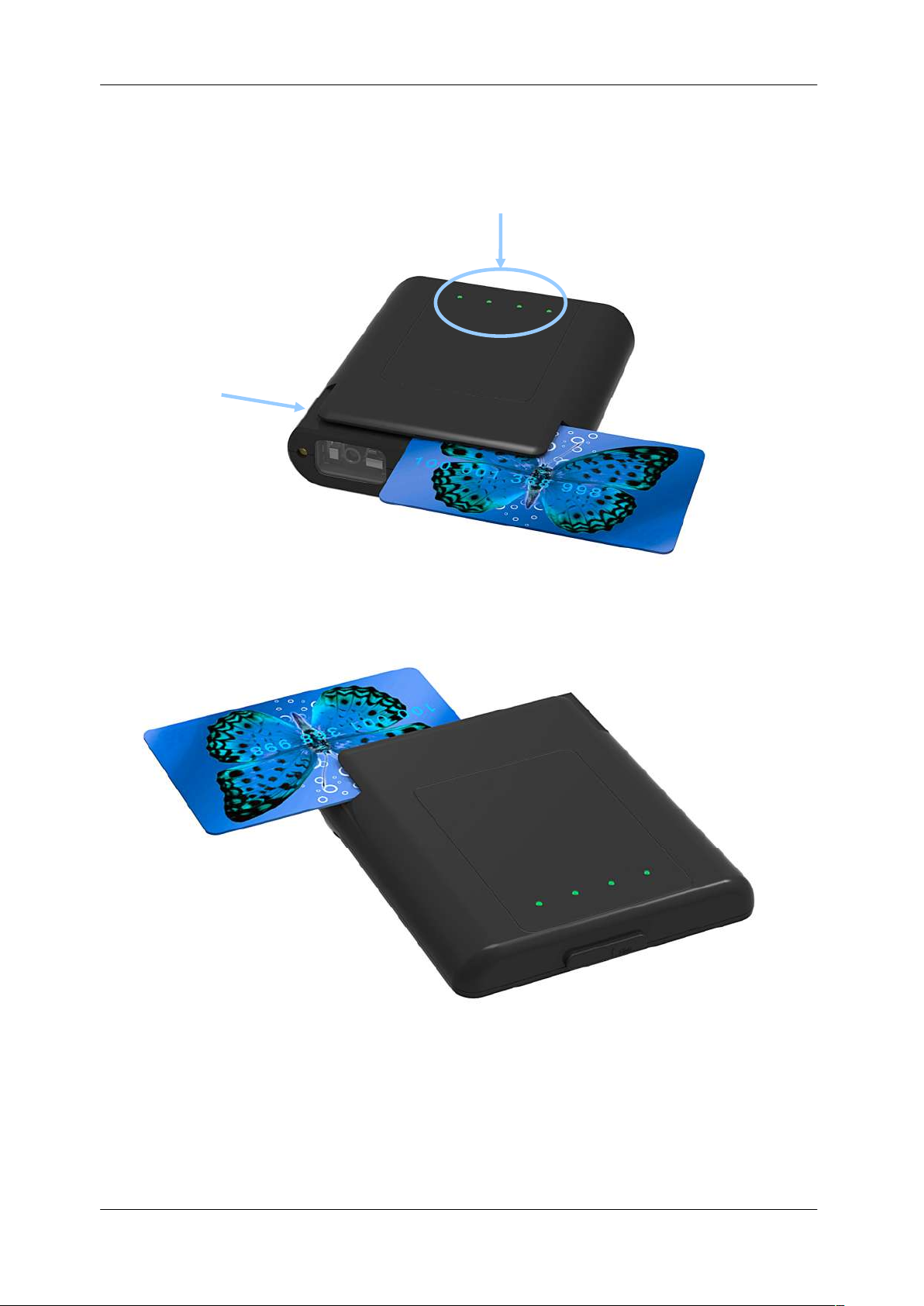

The Linea TAB Mini has a built-in magnetic card reader. The card reader incorporates a (3) track magnetic read head, requiring a single swipe to read field data from all three tracks.
The magnetic reading head faces up, towards the top of the bottom cover of the cradle. When swiping the card into the reader, the magnetic stripe must be facing down, as shown in the figure below. Keep the edge of the card flat on the inner base of the reader to ensure that the magnetic stripe passes over the reading head evenly.
17
Contactless Reader
`

Contactless Card Reading

In order to use the RFID card reading function, special software must be used. Please contact your distributor in order to get the latest demo application and SDK.

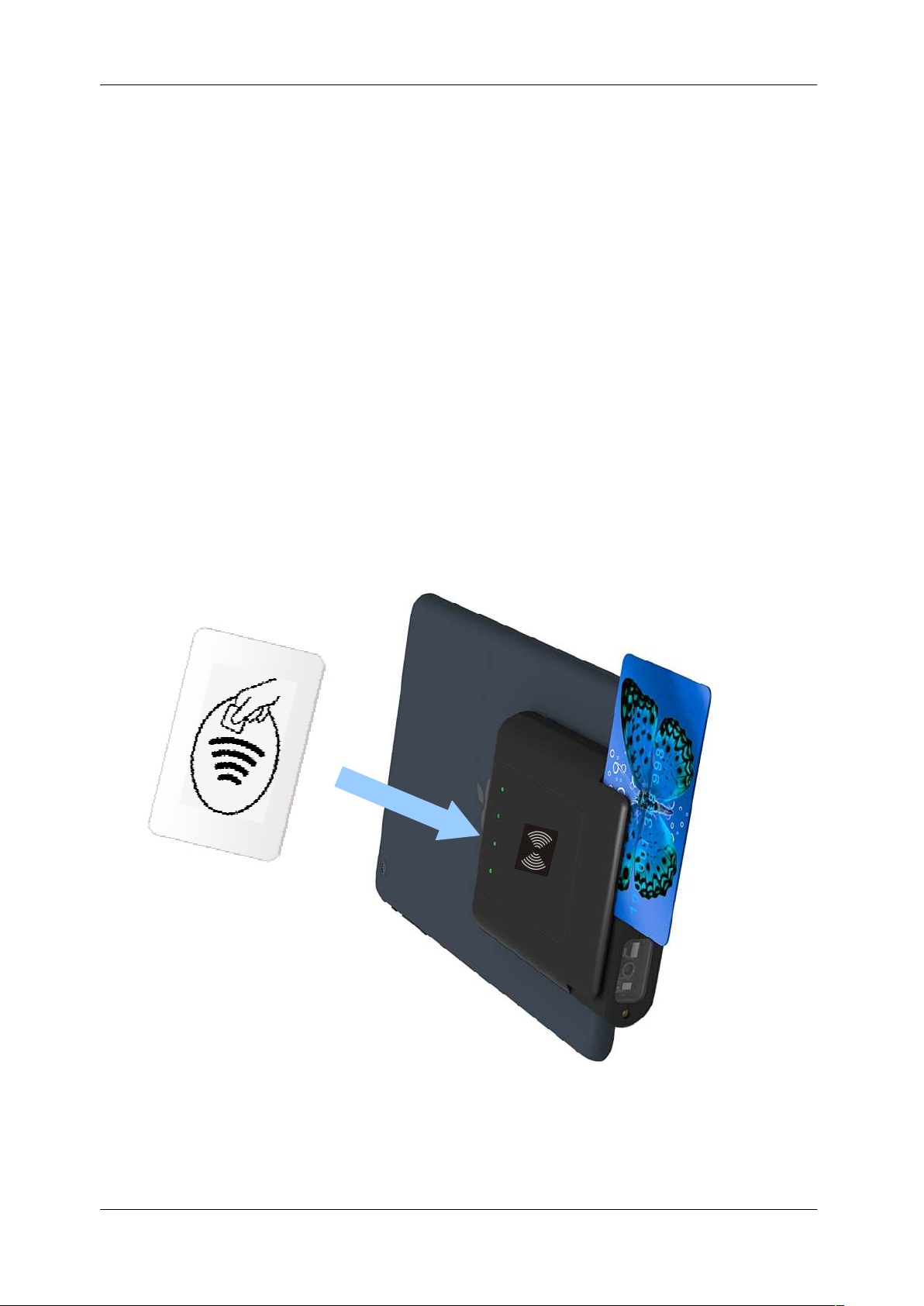

Place the card on the shown spot and press the reading RFID card button on the application. The data will be sent from the Linea TAB Mini RFID reader to the Apple Device.
18
