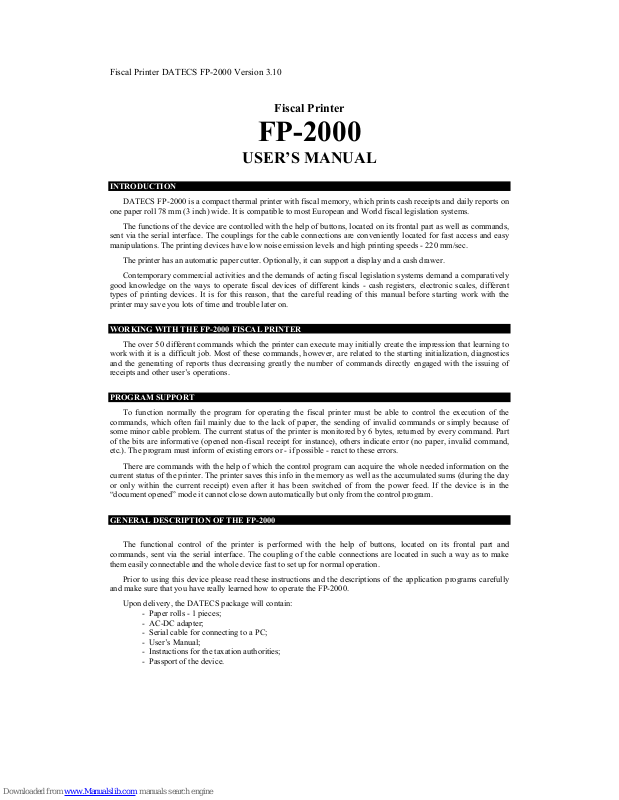

Fiscal Printer DATECS FP-2000 Version 3.10

Fiscal Printer

FP-2000

USER’S MANUAL

INTRODUCTION

DATECS FP-2000 is a compact thermal printer with fiscal memory, which prints cash receipts and daily reports on

one paper roll 78 mm (3 inch) wide. It is compatible to most European and World fiscal legislation systems.

The functions of the device are controlled with the help of buttons, located on its frontal part as well as commands,
sent via the serial interface. The couplings for the cable connections are conveniently located for fast access and easy
manipulations. The printing devices have low noise emission levels and high printing speeds - 220 mm/sec.

The printer has an automatic paper cutter. Optionally, it can support a display and a cash drawer.

Contemporary commercial activities and the demands of acting fiscal legislation systems demand a comparatively
good knowled ge on the ways to operate fiscal devices of different kinds - cash registers, electronic scales, different
types of printing devices. It is for this reason, that the careful reading of this manual before starting work with the
printer may save you lots of time and trouble later on.

WORKING WITH THE FP-2000 FISCAL PRINTER

The over 50 different commands which the printer can execute may initially create the impression that learning to
work with it is a difficult job. Most of these commands, however, are related to the starting initialization, diagnostics
and the generating of reports thus decreasing greatly the number of commands directly engaged with the issuing of
receipts and other user’s operations.

PROGRAM SUPPORT

To function normally the program for operating the fiscal printer must be able to control the execution of the
commands, which often fail mainly due to the lack of paper, the sending of invalid commands or simply because of
some minor cable problem. The current status of the printer is monitored by 6 bytes, returned by every command. Part
of the bits are informative (opened non-fiscal receipt for instance), others indicate error (no paper, invalid command,
etc.). The program must inform of existing errors or - if possible - react to these errors.

There are commands with the help of which the control program can acquire the whole needed information on the
current status of the printer. The printer saves this info in the memory as well as the accumulated sums (during the day
or only within the current receipt) even after it has been swit ched of from the power feed. If the device is in the
“document opened” mode it cannot close down automatically but only from the control program.

GENERAL DESCRIPTION OF THE FP-2000

The functional control of the printer is performed with the help of buttons, located on its frontal part and
commands, sent via the serial interface. The coupling of the cable connections are located in such a way as to make
them easily connectable and the whole device fast to set up for normal operation.

Prior to using this device please read these instructions and the descriptions of the application programs carefully
and make sure that you have really learned how to operate the FP-2000.

Upon delivery, the DATECS package will contain:

- Paper rolls - 1 pieces;

- AC-DC adapter;

- Serial cable for connecting to a PC;

- User’s Manual;

- Instructions for the taxation authorities;

- Passport of the device.

Fiscal Printer DATECS FP-2000 Version 3.10

CONTROL PANEL INDICATORS AND BUTTONS

“Power” indicator

Lights in green when the printer is on and does not execute commands. When the light is out this is an indication
that the printer is “engaged” with a command.

“Error” indicator

Activated continuously when there is no paper in the device and blinks at the overheating of one/both printing
devices. Goes out when the error is cleared.

“Feed” button

Moves the cash receipts paper roll forward. When the button is holded down while power on, the printer generates
and prints out diagnostic information on paper roll.

DIP SWITCHES

Switch OFF ON

1

Select RS232 speed

2

Select RS232 speed

3

Select RS232 speed

4

Normal mode “Transparent display” mode

5

Automatic paper cutting off Automatic paper cutting on

5

Half cut Full cut

6

Not used

7

Not used

THE PROGRAM INTERFACE

Version 3.10 xx, where xx is the code of the country, where the device will operate:

EN - England
BG - Bulgaria
UA - The Ukraine
LT - Lithuania
RO - Romania
SR - Serbia
MC - Macedonia
BD - Bangladesh
AL - Albania

INTRODUCTION

The fiscal device operates under the control of an application program, with which it communicates via the RS232
serial, USB Device or LAN connection. The device executes a previously set of wrapped commands, arranged
according to the type of the operations which have to be executed. The application program does not have a direct
access to the resources of the fiscal device although it can detect data connected with the status of the fiscal device and
the fiscal memory.

The fiscal device performs the following types of operations:

 Saves the serial number of the fiscal device and the number of the fiscal memory;
 Saves fiscal parameters, like the tax registration number, the date of entering into exploitation, etc.;
 Saves information on the owner - name and address, etc.;
 Saves the daily turnover in the fiscal memory and generates a daily report;
 Generates reports on concluded sales and the content of the fiscal memory;
 Sends data to the application program.

Fiscal Printer DATECS FP-2000 Version 3.10

TAXATION CATEGORIES AND CALCULATION OF VAT

Each concluded sale can be related to a certain taxation category (VAT) defining a tax rate, applicable to the base
price used for the formation of the sale price. The fiscal printer can operate with a maximum of 9 taxation categories,
which are most often indicated with the first letters of the language of the country, where the fiscal printer is used-in the
case of Albania these letters are A, B, C, D, E, F, G, H and I.

Each of the first 8 taxation groups (except ‘A’) has a set tax rate (in percent) which is expressed by a number not
greater than 99.00 and by no more than two digits after the decimal point. Group ‘A’ is tax exempt.

Part of the four standard categories may be forbidden by using Enabled parameter in the 83 (53H) command. The
commands for registering sales expect these four letters as a parameter.

FUNCTION MODES OF THE FISCAL DEVICE

The fiscal device has two functional modes:

1. The training mode. The device is not fiscalized and all data needed for its normal functioning are

entered and saved in the fiscal memory with the exception of the tax registration number of the owner. Fiscal
receipts can be opened and closed but they always bear the inscription that they are not fiscal. Daily financial
reports (Z-reports) can be generated but they are not written to the fiscal memory. Nothing is writing in
electronic journal.

2. Normal mode. The device is fiscalized and the tax registration number of the owner is saved in the fiscal

memory. All fiscal rules apply.

STATUS OF THE FISCAL DEVICE

The status of the fiscal device can differ. Shifting from one to another condition is not always possible. The control
of the printer and the shifting between the different functions - when this is possible - is executed by the application
program Host (PC), which must relate to the included protocol. If this protocol is not applied correctly the printer might
enter into an undesirable status or to skip a given functional status, leading to an ERROR.

A) INITIAL STATUS

This is the functional status in which the date and the time are set, the number of the fiscal memory is entered as
well as the serial.

THE ABOVE-DESCRIBED OPERATIONS ARE PERFORMED PRIOR TO SELLING THE DEVICE TO
THE CLIENT ONLY BY AN AUTHORISED SERVICE SPECIALIST!

The following commands must be performed in the order in which they ar e presented: 61 (3DH) and 91 (5BH).

B) STATUS AFTER THE FORMATTING OF THE FISCAL MEMORY

This is the state in which the name of the currency is entered, the number of the digits after the decimal point and
the tax rates. After performing these operations the fiscal printer is ready for delivery to the future operator (owner).
This is also the status in which the device is kept in the warehouse of the manufacturer.

Command 83 (53H) is sent to the printer.

C) TRAINING MODE

The fiscal printer is in this status prior to fiscalization. Receipts can be issued but it must be born in mind that they
will bear the mark “non-fiscal”. The generation of a daily fiscal report is possible but it will not be saved into the fiscal
memory. Nothing is writing in electronic journal. A tax registration number is entered but not into the fiscal memory
and is subject to change. The clearing of the memory does not cause an entry in the fiscal memory. The clock may be
set arbitrarily. To enter this mode, command 98 (62H) must be sent.

D) A FISCALIZED PRINTER

In this functional status fiscal receipts may be issued and they will be marked “fiscal”. The Z-report is registered in
the fiscal memory and the setting of the date is possible only ahead in relation to the last entry in the fiscal memory.
Everything is writing in electronic journal. The tax registration number is registered in the FM and cannot be changed
from this point on. It is possible temporary to enter training mode using command 122.

The tax registration number of the owner of the device must be known prior to fiscalization. Command 98 (62H)
after which the command 72 (48H) must be executed.

Fiscal Printer DATECS FP-2000 Version 3.10

E) IRRECOVERABLE ERROR IN THE FISCAL PRINTER

This is the status of the printer when a serious technical or logical mistake has occurred as well as in case of fiscal
memory failure. After switching ON the device in this mode a bold sign “FATAL ERROR: 4” appears. The printer
does not perform commands for opening fiscal receipts as well as documents, which save data entries into the fiscal
memory. Only diagnostic commands and periodic reports can be executed. Clearing the RAM and placing a new fiscal
memory module must be performed because the module used before the error is now switched to the READ ONLY
mode. ALL THESE OPERATIONS MUST BE PERFORMED BY AN AUTHORIZED SERVICE SPECIALIST.

The events, which can bring the printer to this state, are:

- Impossibility to make a correct entry in the fiscal memory;

- Invalid control sum, tax number, serial number, reg. No. of the fiscal memory or some of the entries which
contain the tax rates.

- Unidentified format of the fiscal memory module;

- If during the fiscal memory check up (immediately after switch ON) more than three invalid control sums
from a daily report fiscal entry are found.

The current status of the device is coded in a field 6 bytes long which is sent within each message of the fiscal

printer. Description of each byte in this field:

Byte 0: General purpose

0.7 Reserved

0.6 # Electronic Journal Error

0.5 General error - OR of all errors marked with ‘#’

0.4 Failure in printing mechanism

0.3 Display is disconnected

0.2 The clock needs setting

0.1 # Code of incoming command is invalid

0.0 # Incoming data has syntax error

Byte 1: General purpose

1.7 Reserved

1.6 Not used

1.5 Printer cover is opened

1.4 # RAM failure after power ON

1.3 RAM backup battery low

1.2 # Operational memory was cleared

1.1 # Command cannot be performed in the current fiscal mode

1.0 If during command some of the fields for the sums overflow. Status 1.1 will also be set and the

command will not cause changes to the data in the printer.

Byte 2: General purpose

2.7 Reserved

2.6 Exchange fiscal receipt open

2.5 Non-fiscal receipt has been opened

2.4 Journal near end

2.3 A fiscal receipt has been opened (Both normal or exchange)

2.2 Journal paper end

2.1 Paper near end - both journal and receipt paper rolls.

2.0 # No paper - valid for both paper rolls. If the flag is raised during a print-related command it will be

rejected and the status of the printer will remain unchanged.

Byte 3: The status of the configuration keys

3.7 Reserved

3.6 SW2 state. Selects serial speed.

3.5 SW3 state. Selects serial speed.

3.4 SW4 state. Enables the “transparent display” mode.

3.3 SW5 state. Automatically cutting of the receipt.

3.2 SW6 state. Half or Full cut.

3.1 SW7 state. Not used.

3.0 SW8 state. Not used.

Byte 4: The fiscal memory

4.7 Reserved

4.6 Fiscal memory number programmed

Fiscal Printer DATECS FP-2000 Version 3.10

4.5 OR of all mistakes marked by ‘*’ from bytes 4 and 5.

4.4 * Fiscal memory is full.

4.3 There is place for not more than 50 entries in the FM.

4.2 Serial number programmed

4.1 VAT registration number programmed

4.0 * Error writing to fiscal memory

Byte 5: The fiscal memory

5.7 Reserved

5.6 Training mode

5.5 Fiscal memory read error

5.4 VAT rates have been entered at least once

5.3 The printer is in the fiscal mode

5.2 Last fiscal closure not OK

5.1 The fiscal memory has been formatted

5.0 * The fiscal memory is in the “read-only” mode

POWER SUPPLY CUT-OFF

The status of the printer at each particular moment is reflected in the so-called “status bytes”. The application

program must get information on the status of the printer when switched ON after a power cut-off. This is performed
by the commands 76 (4AH) and 103 (67H).

The application program must make a decision on the future behaviour of the printer depending on its current
status. It is guaranteed that the fiscal memory will not be affected by the power failure as well as that all accumulated
sums in the operational memory of the device will be valid. If the power cut-off has occurred during a printing session,
when switched ON, again the printer will print a line containing the text “* POWER DROP *” in an expanded bold
type and will th en complet e the print.

ISSUING FISCAL AND NON-FISCAL RECEIPTS

A) NON-FISCAL RECEIPTS

The receipt is first opened, a text is then printed and the receipt is closed. The commands 38 (26H) are used, an
indefinite number of times the command 42 (2AH) and 39 (27H).

B) FISCAL RECEIPTS

A fiscal receipt is first opened, the sales are registered, payment is performed and the receipt is finally closed.

The following commands are used: 48 (30H), 49 (31H), 51 (33H), 52 (34H), 53 (35H), 54 (36H) and 56 (38H). At
the end of the day a daily financial report and clear are performed in order to enter and save the accumulated
information in the fiscal memory. The function is started with the command 69 (45H).

GENERATING REPORTS

Reports are generated singularly by the fiscal printer upon receiving the respective command from the PC. In these
reports the user’s program will not add any changes to the appearance and content of the reports, i.e., they appear
exactly as they have been defined in the fiscal printer. The following commands are used for the generation of reports:

50 (32H) Report on changes in tax rates and decimal points

69 (45H) Daily financial report (X or Z)

79 (4FH) / 95 (5FH) Short financial report from date to date /from number to number of the respective fiscal

entries

94 (4EH) / 73 (49H) Detailed financial report from date to date /from number to number of the respective fiscal

entries

120 (78H) Electronic journal reports.

LOW LEVEL PROTOCOL

A) PROTOCOL TYPE - MASTER (HOST) / SLAVE

The fiscal printer performs the commands sent by the Host and returns messages, which depend on the result.

The fiscal printer cannot instigate asynchronous communications itself. Only responses to commands from the Host
are sent to the Host. These messages are either wrapped or single byte control codes. The fiscal printer maintains the

Fiscal Printer DATECS FP-2000 Version 3.10

communication via the RS232 serial connection at baud rates of 1200, 2400, 4800, 9600, 19200, 38400, 57600 and
115200 bps, 8N1. The baud rate is set by adjusting the configuration switches SW1, SW2 and SW3:

Sw1 Sw2 Sw3 Speed

0 0 0 1200 bps
0 0 1 2400 bps
0 1 0 4800 bps
0 1 1 9600 bps
1 0 0 19200 bps
1 0 1 38400 bps
1 1 0 57600 bps
1 1 1 115200 bps

B) NON-WRAPPED MESSAGES - TIME-OUT

When the transmitting of messages from the Host is normal, Slave answers not later than 60 ms either with a
wrapped message or with a 1 byte code. Host must have 500 ms of time-out for receiving a message from Slave. If
there is no message during this period of time the Host will transmit the message again with the same sequenc e number
and the same command. After several unsuccessful attempts Host must indicate that there is either no connection to the
fiscal printer or there is a hardware fault.

Non-wrapped messages consist of one byte and they are:

A) NAK 15H

This code is sent by Slave when an error in the control sum or the form of the received message is found. When
Host receives a NAK it must again send a message with the same sequence number.

B) SYN 16H

This code is sent by Slave upon receiving a command which needs longer processing time. SYN is sent every 60
ms until the wrapped message is not ready for transmitting.

C) WRAPPED MESSAGES

a) Host to printer (Send)

<01><LEN><SEQ><CMD><DATA><05><BCC><03>

b) Printer to Host (Receive)

<01><LEN><SEQ><CMD><DATA><04><STATUS><05><BCC><03>

Where:

<01> Preamble.

1 byte long. Value: 01H.

<LEN> Number of bytes from <01> preamble (excluded) to <05> (included) plus the fixed offset of

20H. Length: 1 byte. Value: 20H - FFH.

<SEQ> Sequence number of the frame.

Length : 1 byte. Value: 20H – FFH.
The fiscal printer saves the same <SEQ> in the return message. If the FP gets a message with
the same <SEQ> as the last message received it will not perform any operation, but will
repeat the last sent message.

<CMD> The code of the command.

Length: 1 byte. Value: 20H - 7FH.
The fiscal printer saves the same <CMD> in the return message. If the printer receives a non­existing code it returns a wrapped message with zero length in the data field and sets the
respective status bit.

<DATA> Data.

Length: 0-218 bytes for Host to printer, 0-213 bytes for Printer to Host. Value: 20H – FFH.
The format and length of the field for storing data d epends on the command. If the command
has no data the length of this field is zero. If there is a syntax error the respective status bit is
established in the data and a wrapped message is returned with zero field length.

<04> Separator (only for printer-to-Host massages)

Length: 1 byte. Value: 04H.

<STATUS> The field with the current status of the fiscal device.

Length: 6 bytes. Value: 80H-FFH.

<05> Postamble

Length: 1 byte. Value:05H.

Fiscal Printer DATECS FP-2000 Version 3.10

<BCC> Control sum (0000H-FFFFH)

Length: 4 bytes. Value of each byte: 30H-3FH.
The sum includes between <01> preamble (excluded) to <05>. Each digit from the two bytes
is sent after 30H is added to it. For example the sum 1AE3H is presented as 31H, 3AH, 3EH,
33H.

<03> Terminator

Length: 1 byte. Value: 03H.

MESSAGE COMPOSITION, SYNTAX, AND MEANINGS

a) The data field depends on the command.

b) The parameters sent to the printer may be separated with a comma and/or may have a fixed length.

c) The comma between the parameters shows that it is mandatory.

d) When the parameters are closed by <> they are mandatory although the brackets themselves are not present in
the message. When a given parameter is closed in [ ] it is not mandatory - the bracket themselves are also not present in
the message. When parameters are separated by ‘|’ symbol, only one of them may present in the input data.

The symbols with ADCII codes under 32 (20H) have special meanings and their use is explained whenever
necessary. If such a symbol has to be sent for some reason (for example in an ESCAPE-command to the display) it
must be preceded by 16 (10H) with an added offset 40H.

Example: when we write 2500, 100, Text for the data field then in that field there will be 2D 32 35 30 2C 31 30 30
2C 54 65 78 74 where each hexadecimal digit is an ASCII value.

LIST OF FISCAL COMMANDS - FUNCTIONAL ARRANGEMENT

This section contains a list of the fiscal printer commands arranged in groups depending on their functions:

INITIALIZATION

24H (36) Set LAN Settings
29H (41) Write settings to flash
2BH (43) Setting header, footer and printing options
3DH (61) Setting date and time
48H (72) Fiscalization
53H (83) Setting the multiplier, decimal points and VAT rates.
55H (85) Programming additional payment types.
5BH (91) Programming the manufacturer’s serial number and fiscal memory number.
62H (98) Programming VAT registration number
65H (101) Programming operator’s password
66H (102) Programming operator’s name
6BH (107) Programming or reading articles
73H (115) Loading the graphic logo
7AH (122) Enable/disable training mode

SALES

26H (38) Opening a non-fiscal receipt
27H (39) Closing a non-fiscal receipt
2AH (42) Printing a non-fiscal free text
30H (48) Opening a fiscal receipt
31H (49) Registering a sale
33H (51) Subtotal
34H (52) Registering and displaying a sale
35H (53) Total (payment).
36H (54) Printing a free fiscal text
38H (56) Closing a fiscal receipt
3AH (58) Registering an programmed item sale
3CH (60 Cancel receipt
54H (84) Printing a bar code
6DH (109) Printing a duplicate receipt

DAILY CLOSURE

Fiscal Printer DATECS FP-2000 Version 3.10

45H (69) Daily financial report (fiscal closure)

REPORTS

32H (50) Report on changed tax rates and decimal points through the period
49H (73) Detailed report of the fiscal memory (from number to number)
5EH (94) Detailed report of the fiscal memory (from date to date)
4FH (79) Short report of the fiscal memory (from date to date)
5FH (95) Short report of the fiscal memory (from number to number)
69H (105) Operator’s report
6FH (111) Items report
78H (120) Electronic Journal Support

INFORMATION TO HOST

3EH (62) Reads the date and the time
40H (64) Information on the last fiscal entry
41H (65) Information on daily taxation
44H (68) Number of free entries in the fiscal memory
4AH (74) Receiving the status bytes
4CH (76) Status of the fiscal transaction
56H (86) Reading date of last fiscal memory record
5AH (90) Reading diagnostic information
61H (97) Reading the VAT rates
63H (99) Reading VAT registration number
67H (103) Information on the current receipt
6EH (110) Receiving information on the sums arranged according to the type of payments
70H (112) Receiving information on the operator
71H (113) Receiving information on the last printed document
72H (114) Receiving information on a fiscal entry or selected period
74H (116) Read fiscal memory block
77H (119) Read and print monthly report

PRINTER CONTROL COMMANDS

2CH (44) Advance paper
2DH (45) Cut paper
5CH (92) Print separator line

DISPLAY

21H (33) Clearing the display
23H (35) Showing a text (lower line)
2FH (47) Showing a text (upper line).
3FH (63) Showing the date and the hour.
64H (100) Display - full control.

OTHER

46H (70) Service cash-in and cash-out
47H (71) Printing diagnostic information
50H (80) Sound signal
59H (89) Programming the manufacturing test area
6AH (106) Drawer kick-out

SERVICE COMMANDS

76H (118) Read code memory (firmware) block
7FH (127) Service RAM reset

DETAILED DESCRIPTION OF THE COMMANDS

21H (33) CLEARING THE DISPLAY

Data field: No data
Response: None

Fiscal Printer DATECS FP-2000 Version 3.10

A clear display command is sent. If a fiscal receipt is opened and SW4 is OFF only the lower line is cleared.

23H (35) TEXT ON THE LOWER LINE OF THE DISPLAY

Data field: <Text>
Response: None

Text A text of up to 20 symbols sent directly to the display. Prior to this a command for positioning

and clearing the lower line is sent automatically from the printer.

24H (36) SET LAN SETTINGS

Data field: [<IPAddr>,<SubnetMask>,<TCPPort>,<DefGateway>[,<MACAddr>]]
Response: [<IPAddr>,<SubnetMask>,<TCPPort>,<DefGateway>,<MACAddr>]

IPAddr 4 numbers up to 255 separated with dot, represented device IP address.
SubnetMask 4 numbers up to 255 separated with dot, represented device Subnet mask.
TCPPort 4 numbers up to 255 separated with dot, represented device IP port.
DefGateway 4 numbers up to 255 separated with dot, represented device Default Gateway.
MACAddr Up to 8 hexadecimals symbols represented device MAC address. Works only with service

jumper!!!

If there no data field returns current settings.

26H (38) OPENING A NON-FISCAL RECEIPT.

Data field: None
Response: NFReceipt

NFreceipt The number of non-fiscal receipts since last daily closure on (4 bytes).

The FP performs the following actions:

• Prints the header and the tax registration number of the seller

• Prints operator number and name

• A response is send which contains NFreceipt

The command is not permitted if:

• The fiscal memory has not been formatted

• There is an opened fiscal receipt

• There is an opened non-fiscal receipt

• The clock is not set

27H (39) CLOSING A NON-FISCAL RECEIPT.

Data field: None
Response: NFReceipt

NFreceipt The number of non-fiscal receipts since last daily closure on (4 bytes).

The FP performs the following actions:

- Prints the footer

- The date and hour of the document are printed

If the S1.1 flag is raised the command is not executed because there is no opened non-fiscal receipt.

29H (41) SET MEMORY SWITCHES

Data field: [<Switches>]
Response: None

Switches 8 bytes with value ‘0’ or ‘1’ – the configuration switches.

The command writes to flash memory the switches value, graphics logo, barcode height, print darkness and default
drawer pulse length. Aft er RAM reset they are restored with the saved values.

If the switches parameter is not present , then the old switches are kept.

Fiscal Printer DATECS FP-2000 Version 3.10

Switch OFF ON

1

Select RS232 speed

2

Select RS232 speed

3

Select RS232 speed

4

Normal mode “Transparent display” mode

5

Automatic paper cutting off Automatic paper cutting on

5

Half cut Full cut

6

Not used

7

Not used

Sw1 Sw2 Sw3 Speed

0 0 0 1200 bps
0 0 1 2400 bps
0 1 0 4800 bps
0 1 1 9600 bps
1 0 0 19200 bps
1 0 1 38400 bps
1 1 0 57600 bps
1 1 1 115200 bps

2AH (42) PRINTING OF A FREE NON-FISCAL TEXT

Data field: Text
Response: None

Text A text of 40 symbols (at most). The symbols after 40 are cut off.

If S1.1 is raised there is no non-fiscal receipt opened and the text is not printed.

2BH (43) SETTING HEADER, FOOTERS AND PRINTING OPTIONS

Data field: <Item><Text>
Response: None or current settings in case of Item = ‘I’

Footer consists of 2 lines of text printed at the end of each receipt. It is automatically centered.

Item One symbol having the following meaning:

“0” to “7” 0 to 5 are the HEADER lines, 6 and 7 are the FOOTER lines.
“B” Set bar code height in pixels (0.125 mm). Possible values from 24 (3 mm) to 240 (30 mm).

The barcode is printed with command 84 (54H).

“C” Permission/rejection of the automatic cutting of paper after each receipt. After switching

ON, the performance of printer is defined in accordance with the setting of the switch SW5.

“D” Set print darkness. Possible values:

‘1’: Very low
‘2’: Low
‘3’: Normal
‘4’: Dark
‘5’: Very dark

“E” Enable / disable the printing of the total in EUR when executing the first payment

command (53) in the fiscal receipt. By default this option is forbidden. Optionally the
command programs the exchange rate EUR / LEKI. Data syntax:

<Enable>[,Rate]

Enable Flag disable / enable printing. One symbol: ‘0’ or ‘1’.
Rate Exchange rate. Floating point number with up to 8 significant digits and 5 decimals. If this

field missing, the old value is used. If the value is 0.00000, then nothing is printed
independent on the value of Enable flag.

“L” Permission/rejection and height of graphic logo of the printing of graphic logo immediately

before the header. This logo is defined with command 115 (73H).

“T” Enable / disable printing of accumulated VAT values in a non-invoice type fiscal receipt.
“X” Enable / disable automatic cash drawer pulse in commands 53 (35H) and 70 (46H).

Fiscal Printer DATECS FP-2000 Version 3.10

“I” Gives us the option to read values, set earlier with command 43. After the letter “I” only

one more symbol follows which coincides with some of the above.

Text A text string:

 If <Item> is from ‘0’to ‘7’ - the text of the header / footer line (up to 48 symbols). ‘0’ to ‘5’ are

header lines (set using command 98), ‘6’ and ‘7’ are footer lines.

 If <Item> = ‘B’ - A number – the height of bar code in pixels.
 If <Item> = ‘C’ - One symbol value ‘0’ or ‘1’, where “0” forbids and “1” permits the automatic

cutting of the receipt.

 If <Item> = ‘D’ - The print darkness (1 to 5).
 If <Item> = ‘E’ – Returns Enable,Rate, where Enable is Disable / enable flag and Rate is current

exchange rata EUR / LEKI.

 If <Item> = ‘L’ Syntax <Enabled>,<Height>

Enabled ‘0’ or ‘1’, where ‘1’ means, that logo printing is enabled.
Height Graphics logo height in lines (0.125 mm). A number from 8 to 96.

 If <Item> = ‘T’ – One symbol: ‘0’ or ‘1’, where ‘0’ disables and ‘1’ enables printing of accumulated

VAT values in a non-invoice type fiscal receipt.

 If <Item> = ‘X’ – One symbol: ‘0’ or ‘1’, where ‘1’ disables and ‘0’ enables automatic cash drawer

pulse in commands 53 (35H) and 70 (46H).

2CH (44) ADVANCING PAPER

Data field: [Lines[,Option]]
Response: None

Lines Advancing paper measured in lines. The programmed line count cannot be greater than 99 (1 or 2

bytes). If the parameter is not there the default setting is 1 line.

Option Defines which paper to be advanced:

“0” No effect
“1” The receipt paper roll is advanced

If the second parameter is missing the default setting is t o ad vance only the receipt paper roll.

2DH (45) CUTTING OFF PRINTED DOCUMENTS

Data field: None
Response: Result

Result The result from the execution of the command:

“P” Successful cut off
“F” The automatic cutter has blocked.

The command causes the cutting off of the printed, ready document. It must be considered that the program must
advance the paper with at least two lines or the document will not be cut off correctly. If the printer is in the “automatic
cut off” mode it positions the paper itself and the command becomes redundant.

When the printing mechanism blocks for some reason, the paper roll must be taken out of the cutter mechanism and
the command must be executed again. This will position the blade in the extreme right-end of the mechanism.

2F(47) DISPLAYING A TEXT ON THE UPPER LINE OF THE DISPLAY

Data field: Text
Response: None

Text A text of up to 20 symbols which is sent directly to the display. Prior to this a command for the

positioning and clearing of the upper line. If a fiscal receipt is opened and SW4 is OFF the
command is rejected.

30H(48) OPENING A FISCAL CLIENT’S RECEIPT

Data field: <OpCode>,<OpPwd>,<TillNum>[,<Invoice><Num>]
Response: FReceipt

OpCode Operator’s number (1 to 16)

OpPwd Operator’s password (4 to 8 digits)

Fiscal Printer DATECS FP-2000 Version 3.10

TillNum Till number (0 to 5 digits)

Invoice One symbol with value “I”. If present, the receipt has an invoice reference.

Num One integer from 0 to 100000000 – the invoice number.

FReceipt The number of all fiscal receipts since last fiscal closure (4 bytes).

The FP performs the following actions:

• Prints the header

• Prints the tax registration number

• Prints the number and name of the operator

• Sends receipt counts

The command will not be successful if:

• There is an opened fiscal or non-fiscal receipt

• The maximum number of receipts, as fixed for the day, has already been issued

• The fiscal memory is full

• The fiscal memory is damaged

• The op erators password is not correct

• No tax registration number available

• Wrong operator password

• The clock needs setting

After entering three wrong operator’s passwords the printer blocks and must be switched off and ON again to
restart operating.

31H(49) REGISTRATION OF SALES

Data field: <L1>[<Lf><L2>] <Tab><TaxCd>[<Exch>]<[Sign]Price>[*<Quan>][,Perc|;Abs]
Response: None

L1 A text of up to 30 bytes containing one line of description of the sale.

Lf One byte, containing 0Ah.

L2 An optional text of up to 30 bytes containing a second line describing the sale.

Tab One byte containing 09h.

TaxCd One byte containing the letter which indicates the type of the tax. There is a restriction, depending

on the parameter EnabledTaxes which is set using command 83 (53H).

Exch One byte – the symbol ‘^’. If present, this is an exchange (turn back) operation.

Sign One byte with a value of ‘+’ or ‘-’.

Price This is a singular price and it consists of 8 meaningful digits.

Quan A non-mandatory parameter setting the quantity of the items for sale. By default this is 1.000.The

length of this parameter is 8 meaningful digits (not more than 3 after the decimal point). The
result Price*Quan is rounded up to the set number of digits and cannot be longer than 8
meaningful digits.

Perc This is also a non-mandatory parameter which sets the value of the discount or surcharge

(depending on the symbol) in percent over the currently performed sale. Possible values are
between - 99.00% and 99.00%, where up to 2 decimal places are acceptable.

Abs A non-mandatory parameters which sets the value of discount or mark up directly as sum (not as

percent). Only one of the parameters Perc or Abs may be used in the command!

The FP performs the following actions:

• The text, describing the sale is printed out together with the price and the code of the discount or
surcharge. If there is a set quantity the information on it is printed out too.

• The price of the items sold is accumulated to the sums already stored in the operational memory. In
case of memory overflow the value of the respective bites of the status field will be set.

• If there is a discount or a surcharge it is printed out on a separate line and is then added to a specially
maintained registers in the printer. The values for the day are printed out together with the daily
financial report.

The exchange operation must be with value <= of the accumulated sum for this tax group in the receipt. After

the first exchange command, all other registration commands in this receipt must be of exchange type.

Exchange commands didn’t allow using of discount or mark up.

The command will not be executed when:

• No fiscal receipt has been opened

• The maximum number of sales for on e receipt have already been performed (500)

Fiscal Printer DATECS FP-2000 Version 3.10

• The 35H command has been successfully executed

• The sum for some of the tax groups has become negative

• An exchange after normal sold items

32H (50) TAX RATES ENTERED DURING THE ACCOUNTED PERIOD

Data field: [<Start>,<End>]
Response: Data

Start The starting date for the period - DDMMYY/6 bytes/
End The end date for the period - DDMMYY /6 bytes/
Data 1 byte:

‘F’ if no tax rates for the period have been found or in case of error
‘PBB,CC,DD,EE,FF,GG,HH,II,DDMMYY’ if rates have been found, where ‘P’ means ‘PASS’ after which

the active rates are listed out as well as the date of their entry. If there are unused groups (Enabled field in command

83) for them instead of a rate in percent a ‘DT’ is returned (Disabled tax).

When Start and End are entered the comma is mandatory. In case the data field is empty only information on the

last entered rates is returned.

The command prints a report on the changes made in the decimal points and tax rates during the selected period.

33H(51) SUBTOTAL

Data field: <Print><Display>[,Perc|;Abs]
Response: Subtotal,TaxA,TaxB,TaxC,TaxD,TaxE,TaxF,TaxG,TaxH,TaxI

Print One byte, which if ‘1’ the sum of the subtotal will be printed out.
Display One byte which if ‘1’ the sum of the subtotal will appear on display.
Perc A non-mandatory parameter, which shows the value of discount or surcharge in percent over the

sum accumulated so far.

Abs A non-mandatory parameter, which shows the value of discount as absolute value (up to 8 digits).

Only one of the parameters Perc and Abs is permitted in the command line.

Subtotal Sum of subtotal.
TaxX The sum over tax group A, B, C, D, E, F, G, H and I (VAT exempt) - 10 bytes each field

The sum of all sales registered in the fiscal receipt is calculated. If necessary, the sum may be printed out and/or
brought out on display. The calculated total sum and the accumulated separate sums for each tax group are returned to
the PC. If a discount or surcharge is entered, it is printed out on a separate line and the accumulated sums over the
different tax groups are respectively corrected.

34H(52) REGISTRATION AND DISPLAY

Data field: [Line]]<Tab><TaxCd>[<Exch>]<[Sign]Price>[*Quan][,Perc|;Abs]
Response: None

Line A 20 byte string containing text, which describes the sale.

Tab One byte containing 09h

TaxCd One byte containing letter that indicates the tax group (‘A’, ‘B’, ‘C’, ‘D’, ‘E’, ‘F’, ‘G’, ‘H’ and

’I’). There is a restriction, which depends on disabled taxes (command 83).

Exch One byte – the symbol ‘^’. If present, this is an exchange (turn back) operation.

Sign One byte with a value of or ‘-’ (if void is needed).

Price This is the price - up to 8 valid digits

Quan This is a non-mandatory parameter setting the quantity of the items sold. By default its value is

1000 and its length - 8 valid digits.

Perc This is a non-mandatory parameter showing the value of surcharge and discount (depending on

the sign) in percent over the current sale. Possible values are between -99.00% to 99.00%.

Abs This is a non-mandatory parameter which sets the value of discount or surcharge (depending on

the sign) over the currently performed sale. Up to 8 significant digits. Only one of the parameters
Perc and Abs allowed.

The fiscal printer will:

- Print out the text describing the sale together with the price and the code of the tax group.

- The price of the item sold is added to the accumulated sums in the registries of operational memory. In
case of overflow, the respective bits of status bytes are set.

Fiscal Printer DATECS FP-2000 Version 3.10

- If there is a surcharge or discount made on the sum, it is printed out on a separate line and is added to

registries, specially reserved in the printer. The daily accumulated sums are printed out together with the
daily financial report.

The price of the item is shown on the upper line of display and its description - on the lower.
The exchange operation must be with value <= of the accumulated sum for this tax group in the receipt. After

the first exchange command, all other registration commands in this receipt must be of exchange type.

Exchange commands didn’t allow using of discount or mark up.

The command will not be executed successfully if:

• No fiscal memory has been opened

• The maximum possible number of sales have already been performed

• The command 53 (34H) has been successfully executed

• The sum under some of the tax groups has become negative

35H(53) CALCULATION OF A TOTAL

Data field: [<Line1>][<Lf><Line2>]<Tab>[[<PaidMode>]<[Sign]Amount>]
Resonse: <PaidCode><Amount>

Line1 A text of up to 30 bytes containing the first line
Lf One byte containing 0Ah
Line2 A text of up to 30 bytes containing the second line
Tab One byte containing 09h
PaidMode A non-mandatory code indicating the terms of payment. It may have the following values:

‘P’ Payment in cash
‘N’ Payment via credit
‘C’ Payment in cheques
‘D’ Payment with a debit card

‘I’ Programmable payment 1
‘J’ Programmable payment 2
‘K’ Programmable payment 3
‘L’ Programmable payment 4

Depending on the code, the sums are accumulated in different registers and are printed in the daily report.

Sign One byte with a value ‘+’ indicating the Amount (the sum which has to be tendered)
Amount The sum tendered (up to 10 meaningful symbols)
PaidCode One byte - resulting from the execution of the command

‘F’ Error
‘E’ The calculated sub-total sum is negative. Payment is withheld and Amount will

contain a negative sub-total.

‘D’ If the paid sum is less than the sum on the receipt. The residual sum due for

payment is returned to Amount

‘R’ When the paid sum is greater than the su m on the receipt. A message “CHANGE”

will be printed out and the change will be returned to Amount.

‘I’ An error has occurred because the sum under one of the tax groups is negative. The

current subtotal is returned to Amount.

Amount Up to 9 digits with a sign. Depends on PaidCode.

This command starts the calculation of the sums from fiscal receipt, the printing of the sum with a special font and

showing the result on display. An additional text may also be printed.

When the command has been successfully executed a further command for opening a cash drawer is activated. If

there is no more data after the symbol <Tab>, the printer will automatically pay out the whole available sum in cash.

The command will not be successful if:

• No fiscal receipt has been opened,

• The accumulated sum is negative,

• If some of the accumulated sums under taxation (tax group) is negative.

After the successful completion of the command, fiscal printer will not perform the commands 49 and 51 within the

opened receipt, although it can still perform command 53.

Note: The codes of error ‘E’ and ‘I’ will never appear in this version of the printer because commands 49 and 52

(registering a sale) do not accept negative sums.

36H(54) PRINTING A FREE FISCAL TEXT

Fiscal Printer DATECS FP-2000 Version 3.10

Data field: Text
Response: None

Text Up to 40 bytes text

A fiscal receipt must be opened because in the opposite case the text will not be printed and the S1.1. flag is raised.

If the text is longer than 40 symbols the redundant letters are cut off.

38H(56) CLOSING A FISCAL RECEIPT

Data field: No data
Response: FReceipt

FReceipt The number of all fiscal receipts since last fiscal closure (4 bytes).

The accumulated sums from the fiscal receipt are added to the daily sums in the registries of the operational

memory.

The command will not be successful if:

• No fiscal receipt has been opened,

• Command 53 (35h) has failed,

• The sum paid in command 53 is less than the total sum of the fiscal receipt.

3AH (58) REGISTERING THE SALE OF A PROGRAMMED ITEM

Data field: [<Display>][<Exch>]<[Sign]PLU[*Quan>][,Perc|;Abs][#]
Response: None

Display One optional byte with value of ‘D’. If present, the article name and sum is displayed.
Exch One byte – the symbol ‘^’. If present, this is an exchange (turn back) operation.
Sign One byte with a value of ‘-’
PLU The individual number of the item - a whole number between 1 and 999999999 (not more than 9

digits).

Quan A non-mandatory parameter setting the quantity of the items for sale with a default value of

1.000. Length cannot be longer than 8 meaningful digits (not more than 3 after the decimal point).
The resulting singular price (*Quan) is rounded up to the set number of digits after the decimal
point and also cannot be greater than 8 meaningful digits.

Perc A non-mandatory parameter showing the value of surcharge or discount (depending on the

symbol) in percent over the current sale. Possible values are between -99.00% to 99.00%. Up to 2
digits after the decimal point are acceptable.

Abs This is a non-mandatory parameter which sets the value of discount or surcharge (depending on

the sign) over the current sale. Up to 8 significant digits. Only one of the parameters Perc and Abs
allowed.

The fiscal printer performs the following operations:

• The name, price and tax group of the item is read from items list, programmed in the printer.

• Prints out the name of the item, selected quantity and singular price. The second printed line contains

the final price together with the letter, designating the tax group from which the sale will be performed.
The registries for accumulated sums and item quantities are updated.

• The price of the item is added to the accumulated sums in the registries of operational memory. In case
of overflow, the respective bytes from the status field will be set.

• If there is a discount or surcharge, it is printed out on a separate line and is added in specially selected
registries in the printer. The values from the whole day will be printed together with the daily financial
report.

The price of the item is shown on the upper line of display and its description - on the lower.
The exchange operation must be with value <= of the accumulated sum for this tax group in the receipt. After

the first exchange command, all other registration commands in this receipt must be of exchange type.

Exchange commands didn’t allow using of discount or mark up.

The command will not be successful if:

• No item has been programmed under the given number,

• No fiscal receipt has been opened,

• The maximum number of sales for one receipt (380) has already been registered.

• The command 35h has been successfully executed.

Fiscal Printer DATECS FP-2000 Version 3.10

• The sum under one or more of the tax groups has turned out negative.

3CH (60) CANCEL FISCAL RECEIPT

Data field: None
Response: None

The command cancels an open fiscal receipt. All sales in the receipt are discarded. The message "==
CANCELLED ==" is printed and then the receipt is closed as non-fiscal. The command is not permitted, if command
53 (Total) is already executed for this receipt.

3DH(61) SETTING THE CLOCK - DATE AND TIME

Data field: <DD-MM-YY><space>HH:MM[:SS]>
Response: None

You cannot set a date, which is earlier than the date of the last entry into the fiscal memory of device and the
capacity of this memory includes the year 2099. After RESET of memory, this command must be executed –
otherwise, the normal functioning of device cannot be resumed. The printer’s real-time clock must always be set
correctly.

3EH (62) READING CURRENT DATE AND HOUR

Data field: None
Response: <DD-MM-YY><Space><HH:MM:SS>

3FH (63) DISPLAYING THE DATE AND HOUR

Data field: None
Response: None

Current date and time are displayed on lower line using the format: DD-MM-YY HH:MM:SS.

40H (64) LAST FISCAL CLOSURE DETAILS

Data field: None
Response: ErrorCode[Rec,TotA,TotB,TotC,TotD,TotE,TotF,TotG,TotH,TotI,Date]

ErrCode Exit code:

‘P’ Successful command. Data present after ‘,’ symbol.
‘F’ Can’t read last record. No data present.

Rec Receipt count

TotX VAT group total (12 bytes with sign each field).

Date Closure date in format DDMMYY.

The command returns the accumulated sums by VAT groups for the last fiscal closure.

41H (65) DAILY TOTALS

Data field: None
Response: TotA,TotB,TotC,TotD,TotE,TotF,TotG,TotH,TotI

TotX VAT group total (12 bytes with sign each field).

The command returns the accumulated sums by VAT groups for the day.

44H (68) THE NUMBER OF FREE FIELDS IN THE FISCAL MEMORY

Data field: None
Response: Logical,Physical

Logical The number of logical locations for fiscal entries (4 bytes)

Physical Not used. Repeats the value of Logical.

Fiscal Printer DATECS FP-2000 Version 3.10

The number of free fields in the fiscal memory, reserved for saving information from the daily report.

45H (69) DAILY FINANCIAL REPORT

Data field: [<Option>[N][A]]
Response: Response: Closure,Total,TotA,TotB,TotC,TotD,TotE,TotF,TotG,TotH,TotI

Option A non-mandatory parameter controlling the type of generated report.

‘0’ A Z-report (Daily report with writing to fiscal memory and clearing the daily registers).
‘2’ A X-report (Daily report without writing to fiscal memory and clearing the daily

registers)..

N The presence of this symbol at the end of the data cancels the option to clear the data accumulated

on the operators during a Z-report.

A The presence of this symbol at the end of the data cancels the option to clear the data about sold

article quantities during a Z-report.

Closure Fiscal closure (Daily report) number – 4 bytes.

Total Total

TotX VAT group total (12 bytes with sign each field).

46H (70) INTERNAL DEBITING AND CREDITING (SERVICE IN AND OUT)

Data field: [<Amount>]
Response: ExitCode,CashSum,ServIn,ServOut

Amount The sum, which will be registered (up to 9 bytes). Depending on the sign of the digit, this sum is

interpreted either as credit or debit (serveIn or serveOut).

ExitCode One byte:

‘P’ The order has been completed. If the ordered sum is not 0, the printer will print an

interior receipt for registering the operation.

‘F’ The order has been canceled. This happens if:

- The cash sum available is less than the ordered interior credit (serveIn),

- There is an opened fiscal and non-fiscal receipt.

CashSum Available cash. Apart from this command, the sum grows after each payment in cash.

ServIn The sum from all commands “Interior credit”

ServOut The sum from all commands “Interior debit”

Changes the content of the cash availability register. Depending on the sign of the sum in question, it is
accumulated in the register for interior debit-credit. The information is not saved in the fiscal memory of device and is
accessible until the performance of the daily closure. It is printed out at the command 69 (45h) and at the generation of
the daily report without closure from the printer itself. At successful completion of this command, the drawer “kick­out” function is automatically activated.

47H (71) PRINTING DIAGNOSTIC INFORMATION

Data field: None
Response: None

The command initiates the generation of an interior receipt containing diagnostic information as follows:

- Prints the date and version of the employed software,

- Prints the control sum of the employed firmware,

- Prints the serial port’s band rate,

- Prints out the status of memory switches,

- Prints emergency time after power supply cut-off,

- Prints the number, date and hour of the last reset of the RAM (if there is such),

- Prints the current temperature of the two printer heads,

- Prints the overall number of fields in the fiscal memory and the number of the free fields,

- Prints the current date and hour.

The command will not be executed when there is an open receipt in progress or when the paper roll has finished. It
may also be activated by pressing the <FEED> button while power on for less than 2 seconds.

48H (72) FISCALIZATION

Data field: <Serial>

Fiscal Printer DATECS FP-2000 Version 3.10

Response: ErrCode

Serial The serial number of device - it must be the number entered with command 5Bh. Status 5.3 is

used to verify whether the command has been successfully executed.

ErrCode Error or ‘P’ code when the action has been successful.

The command will not be executed (and an error code will be set) if:

‘1’ The serial number is invalid,
‘2’ The printer has been fiscalized,
‘3’ No serial number has been programmed,
‘4’ The serial number is different from the one programmed,
‘5’ There is an opened receipt in progress,
‘6’ There are some already issued fiscal receipts or the 70(46h) command has been executed after the last daily

report with closure,

‘7’ No tax rates have been entered into the memory of device,
‘8’ The tax registration number consists only of zeros,
‘9’ The clock needs setting.

Fiscalization of device must be performed and after successful execution of the command, the returning of printer
to a “non-fiscalized” mode becomes impossible.

The tax number and current VAT rates is entered in the fiscal memory, together with the current date and hour. All
registries are cleared (to zero) after which the printer opens the first fiscal receipt, marks the moment of fiscalization on
this receipt and closes it.

49H (73) DETAILED FISCAL MEMORY REPORT BY CLOSURE NUMBER

Data field: <Start>,<End>
Response: None

Start The number of the starting fiscal entry - 4 bytes

End The number of the ending fiscal entry - 4 bytes

The command leads to the printing of a detailed report of the fiscal memory from on e selected number to another.

4AH (74) READING THE STATUS OPTIONS

Data field: [Option]
Response: <S0><S1><S2><S3><S4><S5>

Option One byte with the following meanings:

‘W’ All printer buffers must be printed out first.
‘X’ The status is returned immediately (default).

Sn Status byte n.

4CH (76) STATUS OF THE FISCAL TRANSACTION

Data field: [Option]
Repsonse: Open,Items,Amount[,Tender]

Option =’T’ If the parameter has been selected the command will return the information on the current

state of the sum due for payment by the client.

Open One byte which is ‘1’ if a fiscal or a non-fiscal receipt has been opened (which it is can be

understood from the status bytes) and ‘0’ if there is no opened receipt.

Items The number of sales registered on the on the current or last fiscal receipt - 4 bytes.

Amount The sum from the last fiscal receipt - 9 bytes with a sign.

Tender The sum tendered against the current or the last receipt - 9 bytes with a sign (Only if Option is

present).

The command supports the PC application’s ability to monitor the status and if needed to restore and complete am
already started fiscal operation which has been interrupted on emergency or out of time - for example as a result of a
power failure.

4FH (79) SHORT PERIODICAL FISCAL REPORT

Fiscal Printer DATECS FP-2000 Version 3.10

Data field: <Start>,<End>

or
<Period>

Response: None

Start Starting date - 6 bytes (DDMMYY)

End End date - 6 bytes (DDMMYY)

Period Used to print monthly or annual periodical report.

For monthly report – 4 bytes expected with format MMYY
For annual report – 2 bytes expected with for mat YY.

This command prints out a short financial report on the period between two selected dates or on the selected month
or year.

50H (80) SOUND SIGNAL

Data field: [<SoundData>]
Response: None

This command is used for making (beeping) a sequence of sounds with a certain frequency and duration. The data
is in format, similar to the one used for writing notes and can be of any length up to 218 bytes. The first invalid
character cancels the command. If the input string is empty, the one sound signal with frequency 2 kHz and duration
300 ms is emitted. SoundData format is a sequence of the following subcommands:

• Notes of the scale: One latine letter with value from ‘A’ to ‘G’.
‘C’ - Do
‘D’ - Re
‘E’ - Mi
‘F’ - Fa
‘G’ - Sol
‘A’ - La
‘B’ – Si

If immediately after the note comes character ‘#’, then the note is higher in pitch by a semitone (sharp). If

immediately after the note comes character ‘&’, then the note is lower in pitch by a semitone (flat).

• Pause: Character space (ASCII 20h).

After a note or pause there can be one or a few bytes, which specify the duration. Valid are characters from

‘0’ to ‘5’, they have the following meaning:

‘0’ basic duration of a note/pause
‘1’ basic duration * 2
‘2’ basic duration * 4
‘3’ basic duration * 8
‘4’ basic duration * 16
‘5’ basic duration * 32
If there are a few durations one after another they are summed up.

• Going to higher scale: character ‘+’.

• Going to lower scale: character ‘-‘.

• Specifying tempo: character ‘^’, followed by a number. The number specifies the percentage: duration of

notes and intervals to basic duration. Values:

‘1’ 200 %
‘2’ 175 %
‘3’ 140 %
‘4’ 120 %
‘5’ 100 %
‘6’ 80 %
‘7’ 60 %
‘8’ 50 %
‘9’ 40 %

• Return to scale 1 (it is default). Character ‘@’. Tone ‘La’ in it is 440 Hz.

53H (83) SETTING THE MULTIPLIER, DECIMALS AND ENABLED TAXES

Data fields: [Multiplier,Decimals,Enabled,TaxB,TaxC,TaxD,TaxE,TaxF,TaxG,TaxH,TaxI]
Response: Multiplier,Decimals,Enabled,TaxB,TaxC,TaxD,TaxE,TaxF,TaxG,TaxH,TaxI

Fiscal Printer DATECS FP-2000 Version 3.10

Multiplier A multiplier between 0 and 3 which shows the degree of 10 before multiplying it times the input

or output value (at present deactivated and out of use).

Decimals One byte with a value 0 or 2 and shows the exact place of the decimal point.
Enabled 8 bytes with value ‘0’ or ‘1’, corresponding to VAT groups ‘B’, ‘C’, ‘D’, ‘E, ‘F’, ‘G’,’H’ and ‘I’

in this order. ‘0’ means disabled VAT group, ‘1’ – enabled VAT group. VAT group 'A' is always
enabled.

TaxX The VAT rate for the corresponding VAT group in % with up to 2 decimals (0.00 to 99.00).

If nothing is entered in the data field, the FP returns the currently valid values. Even when only one of the

parameters must be changed, the rest must be entered too.

The fiscal memory has a fixed capacity for a set number of entries, and for that reason the command can be
performed not more than 19 times after the fiscalization. Before the fiscalization the data are hold in RAM only and
may be changed without limitations. The command may be executed only before the first fiscal receipt for the day.

54H (84) PRINTING A BAR CODE

Data field: <Type>,<Data>
Response: Result

Type Barcode type. 1 byte with possible value:

‘1’ EAN8 bar code. Data contains only digits and is 7 bytes long. The check sum is automatically

calculated and printed.

‘2’ EAN13 bar code. Data contains only digits and is 12 bytes long. The check sum is automatically

calculated and printed.

‘3’ Code128 bar code. Data contains symbols with ASCII codes between 32 and 127. Data length is

between 15 and 30 symbols (depends on the content – the maximum length is if all symbol are
digits). The check sum is automatically calculated and printed.

‘4’ Interleaved 2 of 5 (ITF) bar code without control sum.
‘5’ Interleaved 2 of 5 (ITF) bar code with control sum.

Result One byte:

‘P’ No error.
‘F’ Name longer than 30 bytes.

The command prints a bar code. Printing a bar code is permitted only in an opened fiscal or non-fiscal receipt. The
barcode is centered. If data length or content is not valid, nothing is printed and “Syntax error” status bit is set.

55H (85) DIFINE ADDITIONAL PAYMENT TYPES NAME

Data field: Option[,Name]
Response: Result|Name

Option:

‘I’ Additional payment 1
‘J’ Additional payment 2
‘K’ Additional payment 3
‘L’ Additional payment 4

Name Name (comment text) of the payment. Up to 30 bytes. If not present, the current name is returned.

Result One byte:

‘P’ No error.
‘F’ Name longer than 30 bytes.

The command defines the comment text, printed before the additional (programmable) payments. The

command is not permitted after the first fiscal receipt for the day.

56H (86) GET LATEST FISCAL MEMORY RECORD DATE

Data field: No data
Response: Date

Date Date of last (latest) record in the fiscal memory in format:

Fiscal Printer DATECS FP-2000 Version 3.10

DD-MM-YYYY

59H (89) PROGRAMMING THE PRODUCTION TEST AREA

Data field: <Test>
Response: Result,Free

Test One byte. If ‘T’ an entry into the fiscal memory is done - otherwise there will be no ‘save’

performed and only the parameters will be returned.

Result One byte:

‘P’ No error
‘F’ Error

Free The number of the free blocks left for saving such entries - 4 bytes.

The command is executed for testing the fiscal memory.

Test block for entries into the fiscal memory: 55h,AAh,33h,CCh,5Ah, A5h,3Ch,C3h

If- and when- the S1.1 flag has been raised the fiscal memory has not been formatted or is in the READONLY
mode.

5AH (90) RETURNS DIAGONSTIC INFORMATION

Data field: <Calc>
Response: <Name>,<FwRev><Sp><FwDate><Sp><FwTime>,<Chk>,<Sw>,<Ser>,<FM>

Calc If ’1’ the control sum of the fiscal memory is calculated - 1 byte.

Name Name of the printer (the string “ FP2000”).

FwRev The version of the software program - 4 bytes.

Sp Space - 1 byte.

FwDate The date of the software program DDMmmmYY - 8 bytes.

Sp Space - 1 byte.

FwTime Hour of the software program HHMM - 4 bytes.

Chk The EPROM control sum - a 4 bytes string in the hexadecimal code. For example if the control

sum is 214Ah it will be presented as 32h, 31h, 34h, 42h

Sw The configuration switches from Sw1 to Sw4 - a 4 bytes string with ‘0’ or ‘1’.

Ser The serial number - 8 bytes.

FM Number of the fiscal module - 8 bytes.

5BH (91) PROGRAMMING THE SERIAL NUMBER AND FISCAL MEMORY NUMBER

Data field: <SerialNum>,<FiscalNum>
Response: Result,CountryStr

SerialNum The serial number. 10 symbols – 2 letters and 8 digits.

FiscalNum The fiscal memory number. 10 symbols – all digits.

Result One byte. ‘P’ - OK; ‘F’ - errors.

CountryStr The name of the country. For example: “ALBANIA”

The command is permitted only in service mode and is performed by the manufacturer of the printer. The printer is
handed over to the owner with the serial number and fiscal memory number.

If Result = ‘F’ and the S1.1 flag is raised the command has not been successful because either the fiscal memory
has not been formatted or the serial number has already been entered.

5CH (92) PRINT SEPARATOR LINE

Data field: <Type>
Response: None

Type The t ype of the separator line. One symbol with possible value:

‘1’ 48 times the symbol ‘-‘.
‘2’ 24 times the sequence ‘-‘ and ‘ ‘.
‘3’ 48 times the symbol ‘=‘.

The command prints a separator line using the full paper width. Permitted in a fiscal or non-fiscal receipt only,

Fiscal Printer DATECS FP-2000 Version 3.10

5EH (94) DETAILED FISCAL MEMORY REPORT BY CLOSURE DATE

Data field: <Start>,<End>

or
<Period>

Response: None

Start The starting date of the selected fiscal entry - 6 bytes DDMMYY

End Ending date of the fiscal entry - 6 bytes DDMMYY

Period Used to print monthly or annual periodical report.

For monthly report – 4 bytes expected with format MMYY
For annual report – 2 bytes expected with for mat YY.

This command prints out a detailed financial report on the period between two selected dates or on the selected
month or year.

5FH (95) SHORT FISCAL MEMORY REPORT BY CLOSURE NUMBER

Data field: <Start>,<End>
Response: None

Start Starting number of the fiscal entry

End End number of fiscal entry

The command starts the calculation and the printing of a short periodic financial report.

61H (97) READING THE SET TAX RATES

Data field: None
Response: TaxB,TaxC,TaxD,TaxE,TaxF,TaxG,TaxH,TaxI

TaxB Current tax rate B

TaxC Current tax rate C

TaxD Current tax rate D

TaxE Current tax rate E

TaxF Current tax rate F

TaxG Current tax rate G

TaxH Current tax rate H

TaxI Current tax rate I

62H (98) SETTING THE TAX REGISTRATION NUMBER

Data field: <TaxNo>
Response: None

TaxNo The tax registration number as a text (from 8 to 14 bytes).

The command changes the tax registration. Before fiscalization this data are hold in RAM only, so they can be
changed unlimited times.

The fiscalization writes the current data set using this command to the fiscal memory.

63H (99) READING THE TAX REGISTRATION NUMBER

Data field: None
Response: TaxNo

TaxNot The tax registration number as a text.

64H (100) SHOWING TEXT ON DISPLAY

Data field: Text
Response: None

Fiscal Printer DATECS FP-2000 Version 3.10

Text A text of no more than 40 symbols sent for displaying. If symbols with ASCII codes smaller than

20h (control symbols) they are increased with 40h and are preceded by 10h.

Example: To send 1Bh, 4Bh, 00h the data field will have to contain 10h, 5Bh, 10h, 40h.

65H (101) SETTING THE OPERATOR’S PASSWORD

Data field: <OpCode>,<OldPwd>,<NewPwd>
Response: None

OpCode Operator’s code (1 to 16)

OldPwd Old password (4 to 8 digits)

NewPwd New password (4 to 8 digits)

Sets one of the 16 operator’s passwords, which will be demanded upon opening a fiscal receipt. After three
erroneous password entries, the printer will block, it must then be switched OFF and ON again to continue operating.

After initialization or reset of the operational memory, all 16 passwords are “0000”.

66H (102) ENTERING OPERATOR’S NAME

Data field: <OpCode>,<Pwd>,<OpName>
Response: None

OpCode Operator’s code (1 to 16)

Pwd Password (4 to 8 digits)

OpName Name of the operator (up to 24 symbols)

Enters one of the 16 operator names. The number and the name of the operator are printed at the beginning of each
fiscal (clients) receipt. After three erroneous password entries the printer will block, it must then be switched OFF and
ON again to continue operating. After initialization or reset of the operational memory all 16 passwords locations are
empty.

67H (103) INFORMATION ON THE CURRENT RECEIPT

Data field: None
Response: CanVd,TaxA,TaxB,TaxC,TaxD,TaxE,TaxF,TaxG,TaxH,TaxI

CanVd Possible/impossible return (sale registration with a negative sign) [‘0’ / ’1’]

TaxX The sum accumulated for each VAT group (9 digits with sign each field)

The command offers information on sums accumulated so far under the different tax groups and whether it is
possible to return the registered items sold.

68H (105) OPERATOR’S REPORT

Data field: None
Response: None

Information on the sales, performed by the operators, is printed out where for each separate operator the following
data is printed out: name, individual number, number of fiscal receipts, discharges made, surcharge, sum adjustments
and accumulated total sums.

6AH (106) DRAWER KICK OUT

Data field: [<mSec>]
Response: None

mSec The length of the impulse in milliseconds (5-100)

Sends an impulse for opening the cash drawer. This parameter sets a new value for the length of the impulse, which
is stored in the memory of the printer. If this parameter is skipped, the last entered value remains valid. After memory
RESET a value of 15 ms is set.

6BH (107) DEFINING AND READING ITEMS

Fiscal Printer DATECS FP-2000 Version 3.10

Data field: <Option>[Parameters]
Response: ErrorCode[,Data]

Option One byte, defining the type of th e selected operation. Depending on this, the command might - or

might not - demand the entering of additional parameters. The possible values are: ‘I’, ‘P’, ‘D’,
‘A’, ‘C’, ‘R’, ‘F’, ‘L’, ‘N’, ’X’, ’f’, ‘l’, ‘n’, ‘x’.

ErrorCode One byte, showing the result from the operation and having the following meaning:

- ‘P’ Successful command

- ‘F’ Unsuccessful command

Parameters Data on the command - described in detail further on.

SUBCOMMANDS (depending on Option):

- ‘I’ Article information

Syntax: <I>
Returns: <Total>,<Prog>,<Len>

Total Total programmable article count (10000 for this printer).
Progr Programmed article count.
Len Maximal article name length (36 for this printer).

- ‘P’ Programming an item
Syntax: <P><TaxGr><PLU>,<Group>,<SPrice>,[<Replace>]<Quantity>,<Name>

TaxGr Tax group. One byte (‘A’, ‘B’, ‘C’, ‘D’, ‘E, ‘F’, ‘G’, ‘H’ or ‘P’).
PLU Number of the item (1 to 999999999)
Group Article group (1 – 99).
SPrice Singular price - up to 8 meaningful digits.
Replace A non-mandatory parameter – one byte with value ‘A’. Changes the meaning of the

next parameter (Quantity).

Quantity A number with up to 3 decimals – the available quantity of the article. If Replace is

present, then th e available quantity is replaced with this parameter, otherwise it is
added to the old value (if the article is already programmed, of course). Every sale
command of this article will decrease this value.

Name Name of the item - up to 36 bytes.

Up to 10000 different items may be programmed and the command will be rejected if a similar item has already
been programmed in the memory of printer and sales of this item have been registered. An item with zero accumulated
sums is subject to change. The numb er of the free items is returned after an ErrorCode parameter.

- ‘A’ Change the quantity of an item
Syntax: <A><PLU>,<Quantity>

PLU Article number (1 to 999999999).
Quantity Quantity correction - a floating-point number with 3 decimal places. Positive

number increases the available quantity, negative decreases it.

Changing the quantity is possible, if the article is programmed.

- ‘C’ Change the price of an item
Syntax: <C><PLU>,<Sprice>

PLU Article number (1 to 999999999).
SPrice Singular price - up to 8 meaningful digits.

Changing the price is possible, if the article is programmed and no sales of this article are made in the fiscal receipt

(if a fiscal receipt is open).

- ‘D’ Deleting an item
Syntax: <D><A | PLU | PLU1, PLU2>

A Delete all items with non-zero accumulated sums.
PLU Deletes article with selected number if there are no accumulated sums.
PLU1,PLU2 Deletes the articles within a set inter val which do not have accumulated sums.

- ‘R’ Reading Item data
Syntax: <R><PLU>

PLU Item number. 9 digits.

Returns: <P><PLU>,<TaxGr>,<Group>,<SPrice>,<Total>,<Sold>,<Available>,<Name>

PLU Individual number of the item. 9 digits (000000001 to 999999999)
TaxGr Tax group - 1 byte
Group Article group. 2 digits (01 - 99).

Fiscal Printer DATECS FP-2000 Version 3.10

SPrice Singular price. A floating-point number – decimal places depend on the count set

using command 83 (53h).

Total Accumulated sum for this article.
Sold Accumulated quantity - a floating-point number with 3 decimal places.
Available Available quantity of this article.
Name The name of the item. Up to 36 symbols.

If the item cannot be found, one ‘F’ byte is returned.

- ‘F’ Returning the data on the first found programmed item.
Syntax: <F>[<PLU>]

If the parameter PLU is present, then the first programmed article with number greater than or equal to PLU is

returned. If missing, PLU=1 is assumed. The returned data is similar to the subcommand ‘R’.

- ‘L’ Returning the data on the programmed item with the greatest number.
Syntax: <L>[<PLU>]

If the parameter PLU is present, then the first programmed article with number lower than or equal to PLU is

returned. If missing, PLU=999999999 is assumed. The returned data is similar to the subcommand ‘R’.

- ‘N’ Returning the data on the next found programmed item. Depending of the starting subcommand (‘F’

or ‘L’), the articles are enumerated in ascending or descending order.

Syntax: <N>

The returned data is similar to the subcommand ‘R’.

The last three commands are used to receive a list of programmed items. The subcommand ’F’ or ‘L’ is followed

by ‘N’ until the response ‘F’ comes. This means that the process of reading has ended with the last available item.

- ‘f’ Returning the data on the first sold item.
Syntax: <f>[<PLU>]

If the parameter PLU is present, then the first sold article with number greater than or equal to PLU is returned. If

missing, PLU=1 is assumed. The returned data is similar to the subcommand ‘R’.

- ‘l’ Returning the data on the sold item with the greatest number.
Syntax: <l>[<PLU>]

If the parameter PLU is present, then the first sold article with number lower than or equal to PLU is returned. If

missing, PLU=999999999 is assumed. The returned data is similar to the subcommand ‘R’.

- ‘n’ Returning the data on the next found sold item. Depending of the starting subcommand (‘f’ or ‘l’), the

articles are enumerated in ascending or descending order.

Syntax: <n>

The returned data is similar to the subcommand ‘R’.

The last three commands are used to receive a list of sold items. The subcommand ’f’ or ‘l’ is followed by ‘n’ until

the response ‘F’ comes. This means that the process of reading has ended with the last available item.

- ‘X’ Returning the data on the first free item.

Syntax: <X>[<PLU>]
Returns: PLU

If the parameter PLU is present, then the first free (not programmed) article with number greater than or equal to

PLU is returned. If missing, PLU=1 is assumed.

- ‘x’ Returning the data on the last free item.
Syntax: <x>[<PLU>]
Returns: PLU

If the parameter PLU is present, then the first free (not programmed) article with number lower than or equal to

PLU is returned. If missing, PLU=999999999 is assumed.

6DH (109) PRINTING A DUPLICATE RECEIPT

Data field: <Count>
Response: None

Count Number of duplicate receipts (only a value of 1 or 2 is accepted!).

The command initiates the printing of a copy of the last closed receipt containing registered sales. Immediately

after the tax registration number the inscription “ DUPLICATE” is printed out in bold letters.

The printer will refuse to print a second copy of a receipt.

Fiscal Printer DATECS FP-2000 Version 3.10

6EH (110) ADDITIONAL DAILY INFORMATION (PAYMENT INFO)

Data field: None
Response: Cash,Credit,Debit,Cheque,Pay1,Pay2,Pay3,Pay4,Closure,FReceipt,CReceipt

Cash Paid in cash
Credit Payment credited
Debit Paid with a debit card
Cheque Paid with a cheque
PayX Paid with one of the additional payment types (‘I’, ’J’, ’K’, ’L’).
Closure Current (last) fiscal entry
Receipt Number of the next fiscal receipt
FReceipt Number of the next fiscal receipt
CReceipt Number of the next exchange receipt

Returns information on the distribution of the daily sum accordin g to the terms of payment used.

6FH (111) ITEMS REPORT

Data field: <Option>[<Start>,<End>[,<Group>]]
Reponse: None

Option Defines the type of information under print. Possible values:

- ‘S’ Only sold items are printed out. The data on these items include: the individual number,

VAT group, group, name, single price, sold quantity and total sum for the day.

- ‘P’ All programmed items are printed out, containing their number, VAT group, group,

name, sold quantity, available quantity and single price.

Start First article number (PLU) printed. PLUs less than this are not included in the report. Default: 1.
End Last article number (PLU) printed. PLUs greater than this are not included in the report. Default:

999999999.

Group A number from 1 to 99. If present, only articles from this group are printed, otherwise all articles

are printed.

Items are arranged according to their individual numbers. When a Z-report is printed, then the accumulated sums

are cleared, if the parameter ‘A’ is not present in the command line.

70H (112) READING INFORMATION ON THE OPERATOR

Data field: Operator
Response: NReceipts,Total,TotalC,Discount,Surcharge,Void,Name[,Password]

Operator Number of the operator (1 to 16)
NReceipts Number of all receipts
Total Number of registered sales and total accumulated sum, separated by a ‘;’
Discount Number of discounts and total number of discounts, separated by a ‘;’
Surcharge Number of surcharges and total number of surcharges made, separated by a ‘;’
Void Number of voids (and corrections of sums) and their total sum, separated by a ‘;’
Name Name of the operator
Password Password of the operator (only in service mode)

The command leads to the reading of the available information, which will be printed out in the operator’s report.

The sums are returned as floating-point numbers incorporating the currently set number of decimal places.

71H (113) READING THE NUMBER OF THE LAST PRINTED DOCUMENT

Data field: None
Response: DocNum

DocNum The number of th e last issued document (7 di gits)

72H (114) INFORMATION ON THE FISCAL ENTRY OR A FISCAL PERIOD

Data field: <Record>[,<Type>[,Record1]]
Response: ErrorCode,Data

Fiscal Printer DATECS FP-2000 Version 3.10

Record Start number of the fiscal memory record.
Type The t ype of the information d emanded.
Record1 Optional end number of fiscal memory record for Type ‘1’, ‘2’ and ‘3’. For all other

subcommands this field is empty.

ErrorCode One byte with a value of:

• ’P’ Valid data found

• ‘F’ Wrong control sum (Data is invalid)

• ‘E’ The selected entry is empty

Data Returned data.

Type

Data for mat

“0” DecRecord,Decimals,Enabled,RateA,RateB,RateC,RateD,DateTime
“1” ClosCnt,RecCnt,TotA,TotB,TotC,TotD,TotE,TotF,TotG,TotH,TotI
“2” ClosCnt,RecCnt,NetA,NetB,NotC,NetD,NetE,NetF,NetG,NetH,NetI
“3” ClosCnt,RecCnt,TaxA,TaxB,TaxC,TaxD,TaxE,TaxF,TaxG,TaxH,TaxI
“4” Closure,DecRecord,ResetRecord,DateTime
“5” Decimals,Enabled,RateB,RateC,RateD,RateE,RateF,RateG,RateH,RateI,DateTime
“6” DateTime

Closure Z-report record number
DecRecord Fiscal memory decimals record number.
Decimals Decimals
Enabled Enabled taxes mask
RateX VAT rate (in %)
DateTime Date and time in format DD-MM-YY hh:mm:ss
ClosCnt Closure count for the p eriod
RecCnt Fiscal receipt count for the period
TotX Accumulated turnover sum for the period
TotExcX Accumulated turnover sum from exchanges for the period
NetX Accumulated net sum for the period
NetExcX Accumulated net sum from exchanges for the period
TaxX Accumulated VAT sum for the period
TaxExcX Accumulated VAT sum from exchanges for the period

The command returns information on the different tax groups for each separate entry or a selected period of time.

Periodic references for longer time periods may take a few seconds to process.

Depending on Type, different information is returned:
“0” Information on the active decimals and VAT rates record for the Z-report with number Record

“1” Information on the accumulated turnover sums
“2” Information on the accumulated net sums
“3” Information on the accumulated VAT sums
“4” Information on the active decimals and VAT rates record for the Z-report with number Record
“5” Information on the decimals and VAT rates record with number Record
“6” Information on reset record with number Record

73H (115) PROGRAMMING A GRAPHIC LOGO

Data field: <RowNum>,<Data>

or R<RowNum>

Response: None

or <Data>

R If the letter is present at the beginning of the command, then the command returns the data of the

corresponding line.

RowNum Shows the line, which is being programmed - a number between 0 and 95
Data Graphic data. Two symbols for each byte of information are entered in the hexadecimal code

(Two symbols for every byte). The length of the data is up to 54 bytes, and if they are less, an
automatic addition of “00” follows.

This command offers the option to define a graphic logo with dimensions 72 x 12 mm (432 x 96 dots) designed by

the user themselves. The printing of this logo is activated with command 43. It is printed out immediately before the

Fiscal Printer DATECS FP-2000 Version 3.10

HEADER - at the beginning of each fiscal or non-fiscal receipt. In order to define the whole logo, the command must
be executed 96 times - once for each line. After RESET of memory, default logo is active.

74H (116) READ FISCAL MEMORY BLOCK

Data field: <Address>,<Bytes>
Response: Data

Address Starting address in the fiscal memory in hexadecimal representation (up to 5 hexadecimal digits).

From 00000 to 1FFFF for 1 Mbit fiscal memory.

Bytes Block length. From 1 to 64.
Data The data, read from the fiscal memory in hexadecimal form (2 symbols for each data byte).

This command offers the option to read directly a block of data from the fiscal memory. It is possible to read the

whole fiscal memory, sending the command many times with different start addresses.

76H (118) READ CODE MEMORY BLOCK

Data field: <Address>,<Bytes>
Response: Data

Address Starting address in the code memory in hexadecimal representation (up to 5 hexadecimal digits).

From 00000 to 2FFFF.

Bytes Block length. From 1 to 64.
Data The data, read from the code memory in hexadecimal form (2 symbols for each data byte).

The value (Address+Bytes) may not be greater than 30000h (for example Address=2FFF0 and Bytes=17 is

wrong).

This command offers the option to read directly a block of data from the code memory (firmware). It is possible to

read the whole code memory, sending the command many times with different start addresses.

The command is permitted only when the service jumper is placed on the main board of the printer

77H (119) READ AND PRINT MONTHLY REPORT

Data field: <Option>[,<Data>]
Response: Answer

Option One byte, which selects the required action. Possible values:

‘F’ Get the first monthly report line (the header). Data contains 4 digits – the month in format

MMYY (without the century, 20 assumed).
‘N’ Get the next monthly report line (Z-report data or control sum) . Data field is empty.
‘P’ Prints the monthly report. Data contains 32 hexadecimal digits – the MD5 control sum of the

report data. If the control sum is correct, the report is printed.

Answer Contains returned data or the letter ‘F’ if not successful, or monthly report data line.

The command must be used as follows:

- Send once command with option ‘F’ and the required month and year.

- Send command with option ‘N’ until Answer ‘F’ is returned.

- Send command with option ‘P’ and the control sum. The control sum can be calculated, or the string of

the last Answer before ‘F’ can be used. The monthly report is printed.

When calculating the MD5 control sum, the bytes CR (0Dh) and LF (0Ah) must be added to the end of the line in

this order (the answer does not contain these symbols, only pure text).

All this command sequence must be sent without switching the printer off!

78H (120) ELECTRONIC JOURNAL SUPPORT

Data field: <Cmd>[,<Data>]
Response: RespData

Cmd A letter, selecting the desired action. Data and RespData depends on Cmd.

‘I’ Electronic journal information. Data field is empty. RespData Syntax:

<Num>,<Cnt>,<Line>,<TotLines>,<FreeLines>,<TotLines>

Fiscal Printer DATECS FP-2000 Version 3.10

Num Journal number
Cnt Last Z-report
Line Last written line number.
TotLines Total written journal lines.
FreeLines Free lines count in el. journal.
TotLines Total lines count in el. Journal

If Cmd is ‘F’, ‘PL’ or ‘PS’ Data field syntax is:

[<EJReportType>[,<Period>]]

EJReportType

‘F’ Full journal report (info and lines) for every receipt in current period.
‘L’ Only lines for every receipt in current period.
‘I’ Only info for every receipt in current period.
Period syntax is:
[<D>]ZReceipt1[,[ZReceipt2]][,ZReceipt3,RReceipt2]
If Period is empty, the period is entire Electronic Journal.
D if there is ‘D’ ZReceipt1 or/and ZReceipt2 are DATE TIME in format

YY[MM[DD[hh[mm]]]]. Only YY of ZReceipt1 is needed, the other fields are
01010000,YY12312359 i.e. it can be done Year, Month, Day, Hour or Minute journal

report without typing second field.

ZReceipt1 If only this parameter is present, the period will be only for that ZReceipt

(without any other receipts). If there is comma after ZReceipt1 the period will
be from that ZReceipt till end of the Electronic Journal (with all receipts (R and
X) in it).

ZReceipt2 The period will be from ZReceipt1 to ZReceipt2 ZReceipts (with all receipts (R

and X) in it).

ZReceipt3 and RReceipt2 The period will be from ZReceipt1 ZReceipt and ZReceipt2

RReceipt to ZReceipt3 ZReceipt and RReceipt2 RReceipt
(with all receipts (R and X) in it).

‘F’ Get first journal line in period. RespData Syntax:

‘F’ or ‘P,<Text>’

‘F’ No journal line found

‘P’ Journal line successfully read

Text The journal line, ready to be stored in a file.
‘N’ Get next j ournal line. Data field is empty. RespData is the same as ‘F’ subcommand.

‘PL’ Print journal using normal font size. If Data field is empty device print electronic journal starting

from the last ZReport, than all journal lines in current Z day. If Data present it will work like ‘F’

subcommand, but period will be printed, not downloaded.
‘PS’ Print journal using half-height font size. If Data field is empty device print electronic journal

starting from the last ZReport, than all journal lines in current Z day. If Data present it will work

like ‘F’ subcommand, but period will be printed, not downloaded.
‘CL’ Continue ‘PL’ or ‘PS’ without Data (start with the first non-printed receipt) using normal font

size. Data must be empty.
‘CS’ Continue ‘PL’ or ‘PS’ without Data (start with the first non-printed receipt) using half-height

font size. Data must be empty.

7AH (122) ENABLE / DISABLE TRAINING MODE

Data field: [<NewMode>]
Response: OldMode

NewMode One byte with possible value ‘0’ or ‘1’:

‘0’ Disable training mode.
‘1’ Enable training mode.

OldMode The value before executing the command. One byte with possible value ‘0’ or ‘1’:

‘0’ Disable training mode.
‘1’ Enable training mode.

Fiscal Printer DATECS FP-2000 Version 3.10

This command switches training mode on and off. If executed without parameters, the curren setting is returned

only.

The command must be executed after Z-report, before the first fiscal receipt for the day.
Before the fiscalisation the printer is unconditionally in training mode.

7FH (127) RAM RESET

Data field: None
Response: None

The command clears the operational memory of the printer (like the CMOS error). After executing it, the clock

must be set with command 61, which writes a “CMOS error” record in the fiscal memory with this date and time.

The command is permitted only when the service jumper is placed on the main board of the printer.
There is place for 100 records in the fiscal memory.

APPENDIX 1

FP-2000 CHARACTER SET

0_ 1_ 2_ 3_ 4_ 5_ 6_ 7_ 8_ 9_ A_ B_ C_ D_ E_ F_

_0

0 @ P ` P € ° Ŕ Đ ŕ đ

_1

! 1 A Q a Q ‘ ˇ ± Á Ń á ń

_2

“ 2 B R b R ‘ ’ ˘ ˛ Â Ň â ň

_3

# 3 C S c S ƒ “ Ł ł Ă Ó ă ó

_4

$ 4 D T d T „ ” ¤ ´ Ä Ô ä ô

_5

% 5 E U e u … • Ą µ Ĺ Ő ĺ ő

_6

& 6 F V f v † – | ¶ Ć Ö ć ö

_7

‘ 7 G W g w ‡ — § · Ç × ç ÷

_8

( 8 H X h x ˜ ¨ ¸ Č Ř č ř

_9

) 9 I Y I y ‰ ™ © ą É Ů é ŭ

_A

* : J Z j z Š š Ş ş Ę Ú ę ú

_B

+ ; K [ k { ‹ › « » Ë Ű ë ű

_C

, < L \ l | Ś ś ¬ Ľ Ě Ü ě ü

_D

- = M ] m } Ť ť - ˝ Í Ý í ý

_E

. > N ^ n ~ Ž ž ® ľ Î Ţ î ţ

_F

/ ? O _ o Ź ź Ż ż Ď ß ð

APPENDIX 2

LIST OF FISCAL COMMANDS - IN ASCENDING ORDER

HEX DEC Function

21h (33) Clear the display
23h (35) Show text on lower line of display
24h (36) Set LAN Settings
26h (38) Open non-fiscal receipt

Fiscal Printer DATECS FP-2000 Version 3.10

27h (39) Close non-fiscal receipt

29h (41) Write current settings to flash memory
2Ah (42) Print non-fiscal free text
2Bh (43) Set header, footer and printing options
2Ch (44) Advance paper
2Dh (45) Paper cut

2Fh (47) Show text on upper line of display
30h (48) Open fiscal receipt (invoice)
31h (49) Register sale
32h (50) Tax rates set during selected period
33h (51) Subtotal
34h (52) Register sale and show on display
35h (53) Calculate total (Payment command)
36h (54) Print free fiscal text

38h (56) Close fiscal receipt
3Ah (58) Sell a programmed article
3Ch (60) Cancel receipt
3Dh (61) Set date and time
3Eh (62) Get current date and time

3Fh (63) Show date and time on display

40h (64) Info on last fiscal entry

41h (65) Info on daily accumulated sums

44h (68) Number of free fields in fiscal memory

45h (69) Daily financial report with/without writing to fiscal memory

46h (70) Internal debiting/crediting

47h (71) Print diagnostic info

48h (72) Fiscalization

49h (73) Detailed report of the fiscal memory selected by number of entry
4Ah (74) Read status bytes
4Ch (76) Status of the fiscal transaction

4Fh (79) Short report of the fiscal memory selected by date of entry

50h (80) Sound Signal

53h (83) Set multiplier, decimals and enabled taxes

54h (84) Print bar code

55h (85) Program additional payment types

56h (86) Get last fiscal memory record date

59h (89) Program production test area
5Ah (90) Return diagnostic info
5Bh (91) Program serial number and fiscal memory number
5Dh (92) Print separator line
5Eh (94) Detailed of fiscal memory (selected by date of entry)

5Fh (95) Short report of fiscal memory (selected by entry number)

61h (97) Return tax rates

62h (98) Set tax registration number

63h (99) Return tax registration number

64h (100) Show free text on display

65h (101) Set operator’s password

66h (102) Enter operator’s name

67h (103) Info on current receipt

69h (105) Operator report
6Ah (106) Drawer kick-out
6Bh (107) Define items and items info
6Dh (109) Print duplicate receipt
6Eh (110) Info on accumulated sums (different payment types)

6Fh (111) Report on programmed items

70h (112) Reading info on operator

71h (113) Read the number of the last printed document

72h (114) Read info on fiscal entry or period

Fiscal Printer DATECS FP-2000 Version 3.10

73h (115) Program graphic logo

74h (116) Read fiscal memory block

76h (118) Read code (firmware) memory block

77h (119) Read and print monthly report

78h (120) Electronic Journal Support
7Ah (122) Enable/disable training mode

7Fh (127) Service RAM reset
