Single Channel Full Frame 4:2:2
Time Base Corrector
with 4-way Distribution Amplifier
Make copies of your video without noticeable signal loss or noise. Now
you can correct an unstable video source before you make copies. The
TBC-1000 is a digital full frame synchronizer that replaces all sync
signals from the source. The result is clean transfers and clear copies.
With a built-in four output distribution amplifier for audio and video,
you can quickly make multiple copies with professional results.
• Re-generates all the sync signals to stabilize the video
• Frame Synchronization with full frame memory
• Built-in four output distribution amplifier for stereo audio,
composite and Y/C video
• Wide bandwidth, Y/C in 4.5 MHz, composite in 3.5 MHz
• Low Noise, S/N ratio >50dB
• 8-bit video resolution, 4:2:2 sampling rate
• PAL/NTSC system auto detect
Installation Diagram

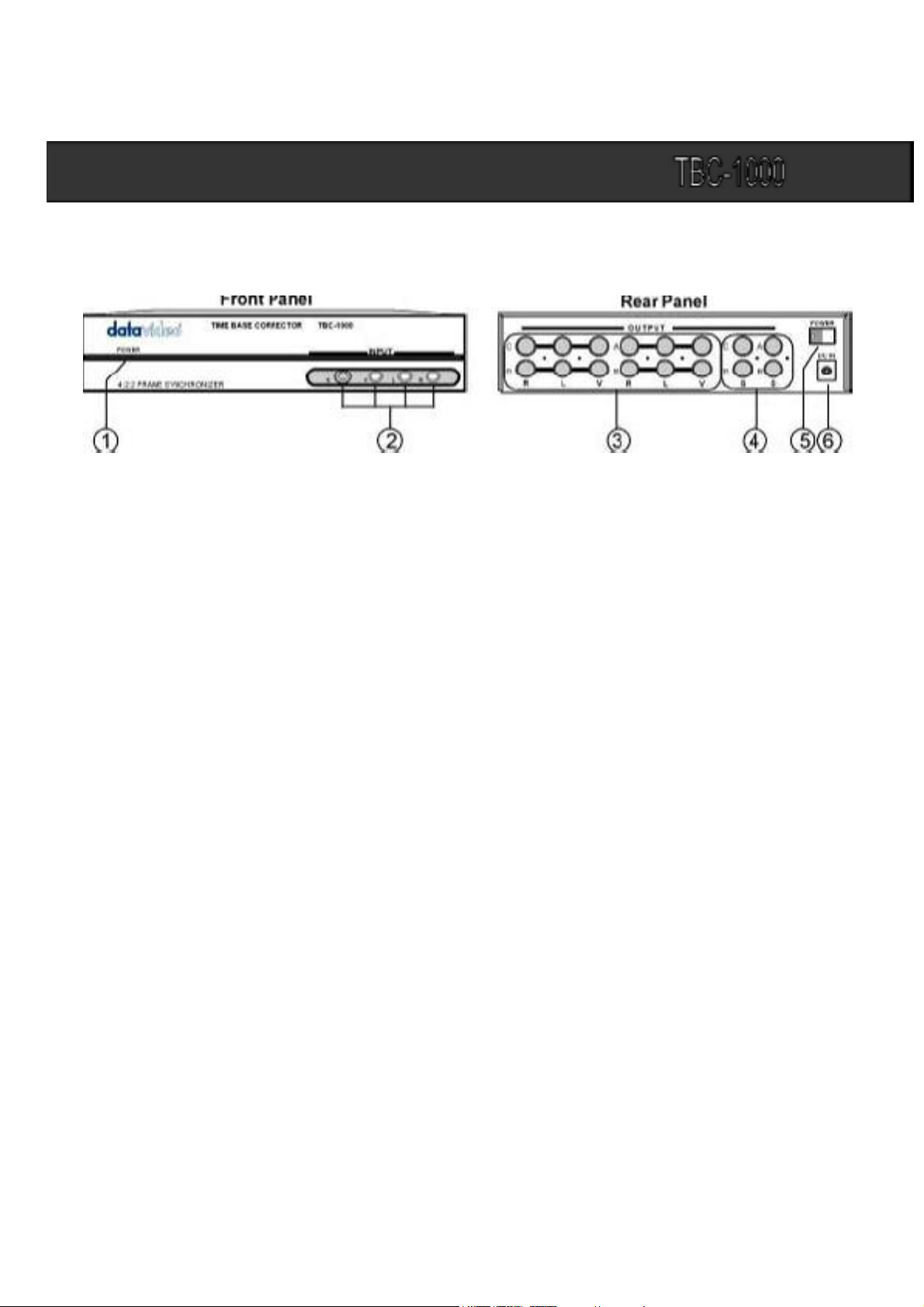

Front and Rear Panel Connection
1. Power LED, LED will light up when power is on.
2. Stereo Audio, S(Y/C) video, and Composite video input jacks.
3. Stereo Audio and Composite video input jacks.
4. S(Y/C) video output jacks.
5. Power ON/OFF Switch.
6. DC 12V power input jack.
Operation
1. Install the equipment as shown in the installation diagram.
2. Turn the power switch on VCRs and TBC-1000. TBC-1000 power
LED will light up.
3. Set all recording VCRs to record mode.
4. Playback the source VCR for video recording.
Specifications
INPUTS
1 S(Y/C) Video & 1 Composite Y/C in: 4—pin 75 ohm DIN connector
Video Source Composite Video Out: 75 ohm RCA
connector, Level: 1.0 Vp-p
1 Stereo Audio Source Stereo Audio RCA Connector
Impedance: 100Kohm
OUTPUTS
4 S(Y/C) Video Source & Y/C out: 4—pin 75 ohm DIN connector
4 Composite Video Source Composite Video Out: 75 ohm RCA
connector, Level: 1.0 Vp-p/ unity
4 Stereo Audio Source Stereo Audio RCA Connector,
Impedance: 1K ohm, Level: unity
GENERAL
Frequency Response S-Video 4.5 MHz +/- 3dB
DG,DP +/-2%, 1
S/N Ratio >50 dB
Component YUV 4:2:2 8-bit, Y: 13.5 MHz
Output Level Unity +/-0.5dB
Correction Range Single Channel full frame TBC
Video System PAL/NTSC system auto detect
Power Requirement DC 9V 1A
Ambient Temperature 32° -131° F (0° -55° C)
Ambient Humidity Less than 90%
Dimension 210 m/m (W) x 210 m/m (D) x 55 m/m (H)
Accessories RCA/RCA and S-Video/S-Video cables
