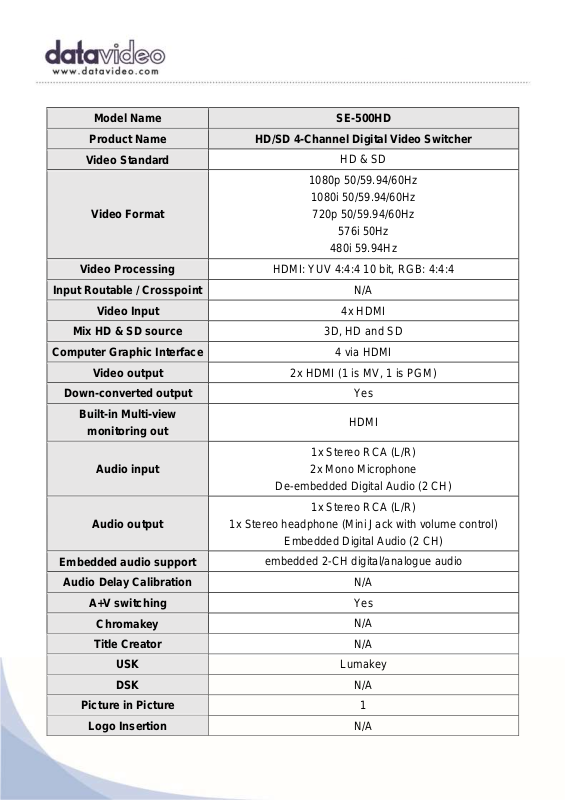

Datavideo SE-500HD Specifications

Model Name

SE-500HD

Product Name

HD/SD 4-Channel Digital Video Switcher

Video Standard

HD & SD

Video Format

1080p 50/59.94/60Hz

1080i 50/59.94/60Hz

720p 50/59.94/60Hz

576i 50Hz

480i 59.94Hz

Video Processing

HDMI: YUV 4:4:4 10 bit, RGB: 4:4:4

Input Routable / Crosspoint

N/A

Video Input

4x HDMI

Mix HD & SD source

3D, HD and SD

Computer Graphic Interface

4 via HDMI

Video output

2x HDMI (1 is MV, 1 is PGM)

Down-converted output

Yes

Built-in Multi-view

monitoring out

HDMI

Audio input

1x Stereo RCA (L/R)

2x Mono Microphone

De-embedded Digital Audio (2 CH)

Audio output

1x Stereo RCA (L/R)

1x Stereo headphone (Mini Jack with volume control)

Embedded Digital Audio (2 CH)

Embedded audio support

embedded 2-CH digital/analogue audio

Audio Delay Calibration

N/A

A+V switching

Yes

Chromakey

N/A

Title Creator

N/A

USK

Lumakey

DSK

N/A

Picture in Picture

1

Logo Insertion

N/A

Still Store

N/A

Effects

FTB, Cut, Wipe with border

Transition Preview

N/A

Sync / Reference In/Out

Built-in Genlock (internal)

Tally Output

1x D-sub 15pin, dual color

PC Remote Control

N/A

Built-in Audio Mixer

4 channels

Chassis

Unibody

Power

DC 12V

Accessory

CB-46/47/50 (30/50/100m)
