Datavideo SE-1200MU Instruction Manual

1

Table of Contents

FCC Compliance Statement ............................................................................................................................... 5

Warnings and Precautions ................................................................................................................................. 5

Warranty ............................................................................................................................................................ 6

Standard Warranty ......................................................................................................................................... 6

Two Year Warranty ........................................................................................................................................ 6

Disposal .............................................................................................................................................................. 6

Chapter 1 Introduction ..................................................................................................................................... 7

1.1 Features ............................................................................................................................................... 7

1.2 System Diagram................................................................................................................................... 8

Chapter 2 Hardware Connections .................................................................................................................... 9

2.1 Front Panel .......................................................................................................................................... 9

2.2 Rear Panel ........................................................................................................................................... 9

Chapter 3 Network Setup ............................................................................................................................... 11

3.1 Initial SE-1200 MU Setup with a Windows Computer ...................................................................... 11

3.2 Installing the SE-1200 MU Controller Software to a Windows Computer ....................................... 12

3.2.1 Router Based DHCP Setup ............................................................................................................. 13

3.2.2 How to control the SE-1200 MU from another building or city ................................................ 14

3.2.3 Setting the Target IP Address with the Controller Software ..................................................... 15

Chapter 4 SE-1200 MU Video Setup ............................................................................................................... 17

4.1 SE-1200 MU Multi View Output ........................................................................................................ 17

4.2 Setting the Video Outputs ................................................................................................................. 18

4.3 Setting the Video Standard ............................................................................................................... 18

4.4 SE-1200 MU Video Layers ................................................................................................................. 19

Chapter 5 Video Connection Setup ................................................................................................................ 21

5.1 Inputs – Setup ................................................................................................................................... 21

5.1.1 Crosspoint .................................................................................................................................. 21

5.1.2 Source Labels ............................................................................................................................. 21

5.2 Setting up the SE-1200 MU Video Stream Based Multi View ........................................................... 21

5.2.1 Preparing the SE-1200 MU Stream Output ................................................................................... 22

5.2.2 VLC Media Player - Stream Caching ........................................................................................... 23

5.2.3 Port Forwarding for the SE-1200 MU ............................................................................................ 23

Chapter 6 PC Control Panel ............................................................................................................................ 24

6.1 Sources Panel .................................................................................................................................... 24

2

6.1.1 AUX BUS ..................................................................................................................................... 24

6.1.2 PROGRAM .................................................................................................................................. 24

6.1.3 PRESET ........................................................................................................................................ 24

6.2 TRANSITION CONTROLS Panel ............................................................................................................... 24

6.2.1 Previewing a Selected Transition/Wipe ........................................................................................ 24

6.2.2 Rev and Nrm (NORM) / Rv (REV) Buttons ..................................................................................... 25

6.2.3 Key 1 & Key 2 PRIORITY Key Function ........................................................................................... 25

6.3 Transition Effects ............................................................................................................................... 25

6.3.1 CUTTING between Sources ............................................................................................................ 25

6.3.2 Mixing between Sources ............................................................................................................... 26

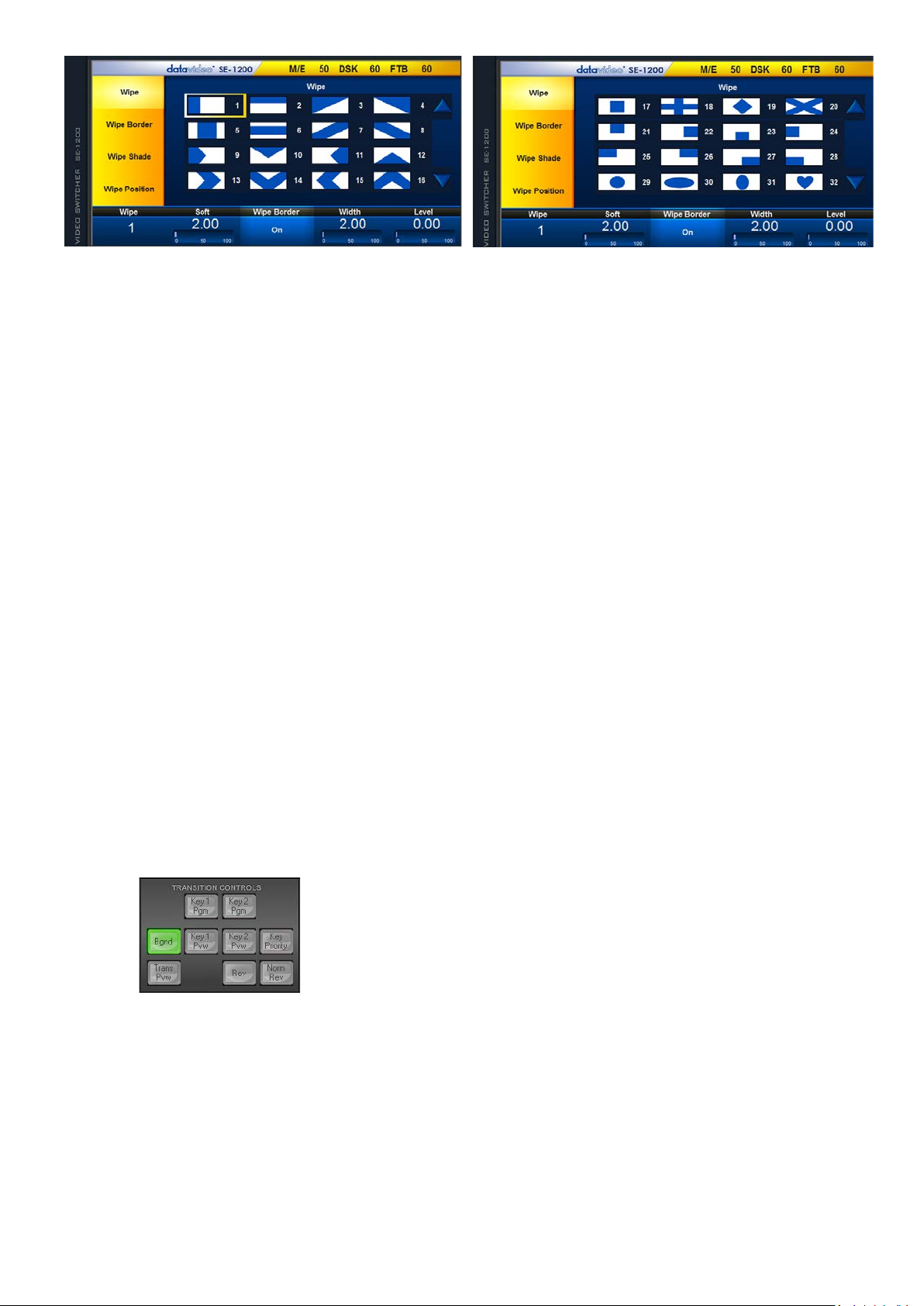

6.3.3 Wiping between Sources ............................................................................................................... 27

6.3.4 Clip between Sources (Stinger Transition) ................................................................................. 28

6.4 FTB Key Function ............................................................................................................................... 30

6.4.1 Enable ............................................................................................................................................ 30

6.4.2 FTB ................................................................................................................................................. 30

6.5 DSK TRANS Panel ............................................................................................................................... 30

Chapter 7 Applications ................................................................................................................................... 32

7.1 Luma Key - Quick DSK 1 Setup .......................................................................................................... 32

7.1.1 Keyer Control ................................................................................................................................. 33

7.1.2 Keyer Matte ................................................................................................................................... 34

7.2 Linear key - Quick DSK 2 Setup .......................................................................................................... 34

7.3 Picture in Picture (PinP) Function ..................................................................................................... 36

7.3.1 PIP Position .................................................................................................................................... 37

7.3.2 PIP Border ...................................................................................................................................... 37

7.3.3 PIP Crop ......................................................................................................................................... 38

7.4 Bus MATTE Setup .............................................................................................................................. 38

7.5 Clips – Quick Setup ............................................................................................................................ 40

Chapter 8 CHROMA Key Functions ................................................................................................................. 42

8.1 Overview ........................................................................................................................................... 42

8.2 Chroma Matte ................................................................................................................................... 43

8.3 Chroma Key Ctrl................................................................................................................................. 44

8.4 Color Spill ........................................................................................................................................... 44

8.5 Chroma Key - Setup ........................................................................................................................... 45

8.6 Key MASK Function ........................................................................................................................... 46

3

Chapter 9 Freezing a Video Input for Stills Capture ....................................................................................... 48

9.1 Stills – Grab and Save ........................................................................................................................ 48

9.2 Assigning a Saved Still Image to an Input Channel ........................................................................... 49

9.3 Exporting and Importing Stills ........................................................................................................... 50

Chapter 10 USER Memory Functions ........................................................................................................... 52

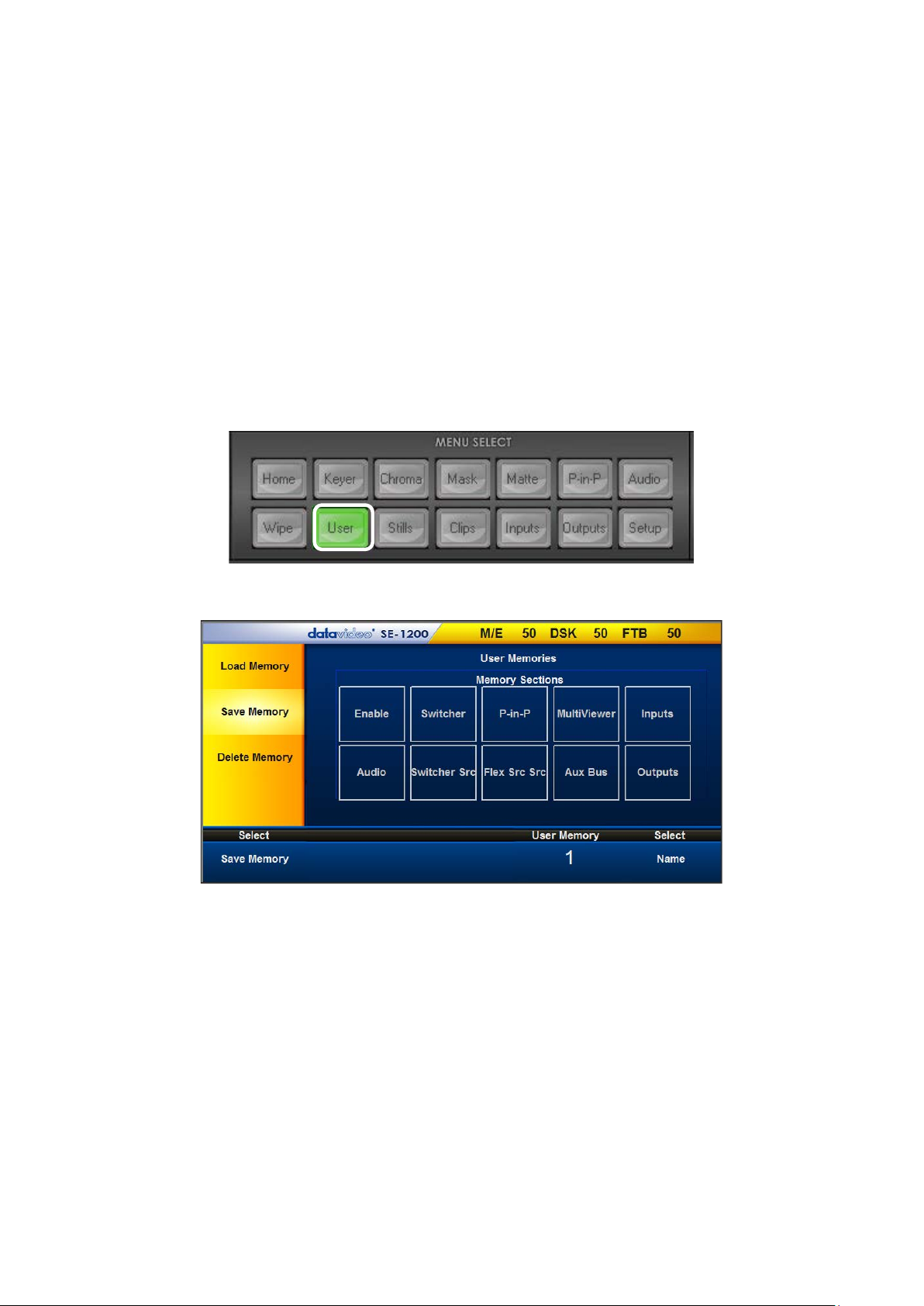

10.1 Saving the Current Settings to a User Memory Slot ......................................................................... 52

10.2 Labelling an Existing User Memory Slot ............................................................................................ 53

10.3 Loading a Previously Saved User Setup ............................................................................................ 54

10.4 Deleting a User Setup ........................................................................................................................ 55

10.5 Exporting and Importing User Setups ............................................................................................... 55

Chapter 11 Appendices ................................................................................................................................. 57

Appendix 1: Audio ........................................................................................................................................ 57

Appendix 2: GPI Out ..................................................................................................................................... 58

Appendix 3: Tally Outputs ............................................................................................................................ 59

Appendix 4: Firmware Upgrade ................................................................................................................... 60

Appendix 5: How to Connect RMC-260 to SE-1200 MU .............................................................................. 61

Appendix 6: Dimensions ............................................................................................................................... 63

Appendix 7: Specifications ........................................................................................................................... 64

Service and Support ......................................................................................................................................... 66

Disclaimer of Product and Services

The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to
give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this
manual, from time to time, may not be correct or may be incomplete. This manual may contain typing errors, omissions or
incorrect information. Datavideo Technologies always recommend that you double check the information in this document for
accuracy before making any purchase decision or using the product. Datavideo Technologies is not responsible for any omissions
or errors, or for any subsequent loss or damage caused by using the information contained within this manual. Further advice on
the content of this manual or on the product can be obtained by contacting your local Datavideo Office or dealer.

4

FCC Compliance Statement

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired

operation.

Warnings and Precautions

1. Read all of these warnings and save them for later reference.

2. Follow all warnings and instructions marked on this unit.

3. Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp

cloth for cleaning.

4. Do not use this unit in or near water.

5. Do not place this unit on an unstable cart, stand, or table. The unit may fall, causing serious damage.

6. Slots and openings on the cabinet top, back, and bottom are provided for ventilation. To ensure safe

and reliable operation of this unit, and to protect it from overheating, do not block or cover these
openings. Do not place this unit on a bed, sofa, rug, or similar surface, as the ventilation openings on
the bottom of the cabinet will be blocked. This unit should never be placed near or over a heat register
or radiator. This unit should not be placed in a built-in installation unless proper ventilation is provided.

7. This product should only be operated from the type of power source indicated on the marking label of

the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or
your local power company.

8. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will be

walked on, rolled over, or otherwise stressed.

9. If an extension cord must be used with this unit, make sure that the total of the ampere ratings on the

products plugged into the extension cord do not exceed the extension cord rating.

10. Make sure that the total amperes of all the units that are plugged into a single wall outlet do not

exceed 15 amperes.

11. Never push objects of any kind into this unit through the cabinet ventilation slots, as they may touch

dangerous voltage points or short out parts that could result in risk of fire or electric shock. Never spill
liquid of any kind onto or into this unit.

12. Except as specifically explained elsewhere in this manual, do not attempt to service this product

yourself. Opening or removing covers that are marked “Do Not Remove” may expose you to dangerous
voltage points or other risks, and will void your warranty. Refer all service issues to qualified service
personnel.

13. Unplug this product from the wall outlet and refer to qualified service personnel under the following

conditions:

3. When the power cord is damaged or frayed;

4. When liquid has spilled into the unit;

5. When the product has been exposed to rain or water;

6. When the product does not operate normally under normal operating conditions. Adjust only those

controls that are covered by the operating instructions in this manual; improper adjustment of other

5

controls may result in damage to the unit and may often require extensive work by a qualified

For EU Customers only - WEEE Marking

This symbol on the product indicates that it will not be treated as household waste. It
must be handed over to the applicable take back scheme for the recycling of Waste
Electrical and Electronic Equipment. For more detailed information about the

technician to restore the unit to normal operation;

7. When the product has been dropped or the cabinet has been damaged;

8. When the product exhibits a distinct change in performance, indicating a need for service.

Warranty

Standard Warranty

• Datavideo equipment is guaranteed against any manufacturing defects for one year from the date

of purchase.

• The original purchase invoice or other documentary evidence should be supplied at the time of any

request for repair under warranty.

• Damage caused by accident, misuse, unauthorized repairs, sand, grit or water is not covered by this

warranty.

• All mail or transportation costs including insurance are at the expense of the owner.

• All other claims of any nature are not covered.

• Cables & batteries are not covered under warranty.

• Warranty only valid within the country or region of purchase.

• Your statutory rights are not affected.

Two Year Warranty

• All Datavideo products purchased after 01-Oct.-2008 qualify for a free one

year extension to the standard Warranty, providing the product is
registered with Datavideo within 30 days of purchase. For information on
how to register please visit www.datavideo.com or contact your local
Datavideo office or authorized Distributors

• Certain parts with limited lifetime expectancy such as LCD Panels, DVD Drives, Hard Drives are only

covered for the first 10,000 hours, or 1 year (whichever comes first).

Any second year warranty claims must be made to your local Datavideo office or one of its authorized
Distributors before the extended warranty expires.

Disposal

recycling of this product, please contact your local Datavideo office.

6

Chapter 1 Introduction

The Datavideo SE-1200 MU is a small, cost-effective, HD digital video switcher with easy-to-use
professional features. The SE-1200 MU can be controlled over a network and can even display a multi view
over the same network connection. This allows the SE-1200 MU operator to have the option of working in
a different room, or a different building, or even a different city!

The SE-1200 MU switcher offers four HD SDI and two HDMI inputs. Supported video formats include
1080i/50, 1080i/59.94, 1080i/60, 720p/50, 720p/59.94 and 720p/60. Output options include; two user
assignable HD SDI and two HDMI outputs. These user defined output options can be set up to provide
Clean Preview, Clean Program, Program with DSK overlay, Preview Out or Multi-view as well as Inputs 1~6.
The SDI or HDMI outputs can be taken to other Datavideo products (separate purchase) such as the HDR­70 HD recorder, TLM-170G HD monitor and can also be streamed to web based viewers using the
Datavideo NVS-25 Video Streaming Server.

The SE-1200 MU also features two analogue balanced XLR audio inputs for connecting an external audio
mixer such as the Datavideo AM-100 or AD-200. Tally and RJ-45 connections allow the switcher to be
connected to a Windows PC as well as providing tally light indications to crew and on screen talent via
Datavideo’s ITC-100 talkback system.

The SE-1200 MU is also capable of HD Chroma Key, Luma Key, Down Stream Key, Picture In Picture, up to
32 Wipe transitions and user defined still frame stores. In addition, it also allows the user to connect an
external physical switcher keyboard controller such as Datavideo’s RMC-260. It really is a small, powerful,
HD video switcher!

1.1 Features

Video

• 6 video inputs (SDI x 4 + HDMI x 2)

• Flexible Mix/Effects Processor with

- HD Chroma Key / Linear / Luma Key

- Picture-In-Picture

- Wipe Generator with 32 wipe patterns including circle and heart wipes plus Border & Softness

Controls

- Traditional Mix & Cut Transitions

- User defined Down Stream Key for use with external CG text overlay

- Full M/E Preview function

• Assignable Outputs (SDI & HDMI)

• Cross Point Assignment (XPT)

Audio

• 2 audio inputs (XLR x 2 for connecting external audio source to be embedded in SDI video signal)

Control

• PC control and setup available over a standard RJ-45 IP connection

• Tally output compatible with Datavideo ITC-100 talk back system

• GPI Output

• Supports physical switcher keyboard controller such as RMC-260

7

1.2 System Diagram

8

Chapter 2 Hardware Connections

Video IN

ideo Input set is comprised of four SDI connectors and two HDMI

Video OUT

including Program,

Audio Input

GPI

2.1 Front Panel

Power ON /OFF switch

2.2 Rear Panel

The SE-1200 MU is equipped with six video input channels.

V
ports.

HDMI 1 and the two SDI outputs can be used for monitoring video
in a number of different configurations
Preview and or Multi-view. See Section 4.2.
HDMI 2: Multi-view Output ONLY

Note: Both HDMI output ports operate at 1080i, 1080p or 720p
depending on the chosen video standard.

Supports two XLR Balanced Audio Input channels.

GPI output connection for basic control of other externally­connected devices.

9

Ethernet Ports

For connection of the Main Unit to the PC such that the SE-1200

RS-232

TALLY Output

DC IN

Grounding Terminal

MU can be remotely controlled on a graphical user interface.

For remote control interface such as RMC-260.

The SE-1200 MU Tally Output Port provides bi-colour tally
information (Red and Amber); Red indicates On-Air and Amber
indicates next camera source.

Connect the supplied 12V / 19W PSU to this socket. The
connection can be secured by screwing the outer fastening ring of
the DC In plug to the socket.

When connecting this unit to any other component, make sure
that it is properly grounded by connecting this terminal to an
appropriate point. When connecting, use the socket and be sure to

use wire with a cross-sectional area of at least 1.0 mm2.

10

Chapter 3 Network Setup

3.1 Initial SE-1200 MU Setup with a Windows Computer

The SE-1200 MU switcher is not supplied with a traditional hardware based control panel. Instead it is
controlled using a software user interface installed on your Windows-based computer. When new from
the factory the unit will initially have a static IP address of 192.168.100.101. The unit can be directly
connected to a Windows-based computer using an RJ-45 ethernet cable. The following set up should allow
you to initially configure the unit before moving it to an existing DHCP / LAN network.

• An RJ-45 ethernet cable.

• Windows 7/8/10 laptop or PC.

• The Datavideo SE-1200 MU controller

software.

Instructions

1. First connect the SE-1200 MU and the Windows computer together using an RJ-45 ethernet cable.

2. Turn on the Windows computer and set it to static IP set up within the Windows Network and

Sharing Centre.
In our example the computer is given the following IP settings so that the computer matches the
same IP range as the switcher.

3. Now install the supplied SE-1200 MU controller software to the computer.

11

3.2 Installing the SE-1200 MU Controller Software to a Windows Computer

The SE-1200 MU can be connected to a simple IP network and controlled using Windows-based software. If
you have not already set up the SE-1200 MU with a computer then please follow the instructions on the
previous page.

The SE-1200 MU comes with an accessory software CD. If this CD has been lost or has not been supplied
then please download the latest software from the Datavideo SE-1200 MU web page. See:

www.datavideo.com

The install executable file [.exe] will be called SE1200 Control v.x.x.x.x
The v.x.x.x.x represents the latest version number.

Double click this .exe file then follow the on screen install wizard prompts.

Once installed launch the SE-1200 MU controller software.

The SE-1200 MU controller software has a built-in IP finder, which is designed for PC with multiple Ethernet
cards or DHCP network environment. Please note IP finder can only find devices that are on the same
network domain as the PC. If you cannot remember your device IP, please contact your local Datavideo
distributor for assistance as there is currently no reset function for network settings. Upon launch of the
SE-1200 MU controller software, you will be prompted to select one Ethernet Interface Card.

Once selected, click OK to start the scanning process.

If the SE-1200 MU control software cannot find the SE-1200 MU device, the software will continuously
prompt you for an appropriate interface card. Again, please make sure the selected interface card is on the
same network domain as the SE-1200 MU device.

Once the SE-1200 MU device is found, the software will connect with the switcher hardware over the IP set
up described on the previous page.

12

As the program buttons are clicked the SE-1200 MU program output and multi view output will show
changes.

3.2.1 Router Based DHCP Setup

The computer software can also access and control the SE-1200 MU over an existing TCP/IP LAN type
network. In order to initially set up the SE-1200 MU, you may need the assistance of your local I.T.
specialist to help with the network settings. To help guide you, we have included a simplified network set
up example below, further advice may be available through your dealer locally or your Datavideo regional
office.

To create this simple dedicated SE-1200 MU IP network you will need:

• An IP router which can assign/give IP

addresses.

• Two RJ-45 patch leads.

• Windows 7/8/10 laptop or PC.

• The IP router Administrator login and

password.

• The Datavideo SE-1200

MU controller software.

13

Instructions

1. First connect the router to the SE-1200 MU and the Windows computer using two RJ-45 patch leads.

2. Turn on the Windows computer and set it to DHCP setup within the Windows Network and Sharing

Centre.

3. Now click the Windows start button and run the CMD prompt window.

4. At the command line > : _ type IPCONFIG and press enter.

5. The DEFAULT GATEWAY number displayed should be the router’s current IP address.

6. Enter the DEFAULT GATEWAY IP address into the address bar of the computer’s web browser.

7. The web browser should display the login window for the router. Enter the router’s login and/or

password.
The login details may be written on a sticker on the router itself or noted in the manual for the router.

8. Once logged into the router we need to change the router to supply IP addresses in the

192.168.100.xxx range. Use the router’s LAN Setup or Configure LAN option to set the router’s IP
address as 192.168.100.1 and click save / apply.

9. Now reboot the router and power ON the SE-1200 MU.

10. Log into the router again using the web browser and the router’s new IP address 192.168.100.1

11. Use the router’s LAN Setup or Configure LAN option again, within this option there should be another

option called Address Reservation or Client List.

12. The two devices connected to the router should be listed here, the computer and the SE-1200 MU.

13. The computer, because it is set for DHCP, will already have an IP address automatically assigned to it in

this list.

14. The SE-1200 MU may only show its MAC address (1E:ED:19:27:1A:B3). Copy and Paste the SE-1200

MU’s MAC address into the MAC address reservation box. Now enter the following IP address

192.168.100.101 into the reservation box next to the SE-1200 MU’s MAC address.

15. The router should now give the IP address 192.168.100.101 to the SE-1200 MU when it is connected to

the router.

16. Click save / apply then reboot the router again.

17. Close the web browser and CMD windows.

18. Now install the supplied SE-1200 MU control software to the computer.

3.2.2 How to control the SE-1200 MU from another building or city

Once you are familiar with the SE-1200 MU you may want to control the switcher from another building or
even a different city. This requires certain internet and network access that may not already be present at
both sites.

Note: It is best to discuss your planned SE-1200 MU set up beforehand with your local I.T. or network
support manager as this process will involve ‘opening’ or ‘forwarding’ TCP/IP ports.

To create this dedicated SE-1200 MU IP set up you will need:

• Two sites with internet access. We will call these site A and site B.

• Site A will have the same SE-1200 MU set up as Section 3.1 but with no local computer connected.

• Site B will have a Windows 7/8/10 computer connected to the internet with VLC Player and the

Controller software.

• Port 5000 will allow streaming of the SE-1200 MU multi view from site A to VLC Player at site B.

14

• Incoming commands on Ports 5003 and 5004 at Site A will be port forwarded to the internal

private IP address of Datavideo SE-1200 MU at site A to allow control from site B.

• The Public IP address for site A needs to be discovered, this will be used as the Target IP address

for both VLC player and the SE-1200 MU Controller software at site B.

3.2.3 Setting the Target IP Address with the Controller Software

Click Setup in the MENU SELECT panel and the current IP Network settings are shown alongside the
software version.

15

If the network settings are wrong then you may not be able to control the SE-1200 MU. Always keep a note
of the last IP settings used and change these settings carefully to avoid problems.

Target IP address – This IP address is the location on the local network, or the internet, where the software
can talk to the SE-1200 MU. By clicking on Target IP address you can enter a new address, once entered
click Save Setup. The next time the software controller is opened, it will try to contact the switcher on this
new Target IP address.

Network – This option in the yellow menu column allows you to change the network options on the SE­1200 MU. When delivered from the factory the default static IP settings should be:

Set up: Static (a manually set IP address that does not change even after power cycling the SE-1200
MU unit)

IP address: 192.168.100.101
Subnet Mask: 255.255.255.0
Gateway: 192.168.100.1

DHCP set up - If the IP set up method is changed to DHCP then each time the SE-1200 MU is started, it may

be given a different IP address by the network. Only use this method if you know how to find the SE-1200
MU on the internal IP network. A device on the network (usually a router or server) will automatically give
a spare or fixed IP address to the SE-1200 MU. The other settings such as IP address, Subnet Mask and
Gateway may appear blank within the controller software as these would be automatically set by network
router/DHCP server.

16

Chapter 4 SE-1200 MU Video Setup

4.1 SE-1200 MU Multi View Output

The SE-1200 MU multi view output can be supplied locally, from either the HDMI1 or SDI outputs 1 and 2
on the units rear panel, see section 2.2 (Chapter 2). The multi view can also be streamed over a
LAN/internet connection, see section 3.2.2 (Chapter 3).

The default multi view output, when new, is from HDMI output 1. This HDMI output operates at 1080P,
720P or 1080i depending on the video standard chosen, see section 4.3 (Chapter 4).

The Multi view shows monitoring images for Preview (PVW), Program (PGM), Inputs 1~6, as well as SDI
outputs 1 and 2.

The SE-1200 MU can also show audio level bars overlaid on the Program image within the multi view. This
confirms if analogue XLR audio input is being received and embedded to the selected Program output(s).

A Red tally indication box is shown around the selected Program source(s). This video image is also seen at
the switchers selected Program output(s). A Green tally indication box is shown around the selected
Preview source. This will be the image source to be mixed to, wiped in, or cut to next depending on the
user’s preference.

Images SDI out 1 and SDI out 2 confirm what is being sent from those SDI outputs. These outputs can be
configured differently by the user, see section 5.2.1 (Chapter 5).

17

4.2 Setting the Video Outputs

SDI 1 Factory default – Program out

1: Multiview

2: PGM Out

3: PVW Out

4: PGM DSK1

5: PVW DSK1

6: Clean PGM

7: Clean PVW

8: Input 1

9: Input 2

10: Input 3

11: Input 4

12: Input 5

13: Input 6

These rear panel video outputs are initially set as follows when shipped from the factory.

SDI 2 Factory default – Program out
HDMI 1 Factory default – Multi view output

Each of the outputs can be reconfigured to one of the settings below by using the menu option Outputs

HDMI 2 Factory default – Multi view output

Note: Ensure at least one output is left set as Multi View so the Main Menu can still be accessed.

4.3 Setting the Video Standard

The SE-1200 MU video standard can be
changed by using the menu path SETUP >
STANDARD.

The SE-1200 MU is initially set up for the
1920 x 1080 i50 or i60 video standard when
shipped from the factory depending on your
country’s video standard.

As with most HD video switchers, the SE­1200 MU will expect all video inputs to be
operating at the same video standard as the
switcher itself. If a connected device is
supplying a different video format/standard then the switcher may not display the video for that input.
Change the source equipment settings to match the switcher’s video standard or vice versa.

The SE-1200 MU can support the following HD video standards: 1080i/50, 1080i/59.94, 1080i/60 and
720p/50, 720p/59.94, 720p/60.

18

4.4 SE-1200 MU Video Layers

The SE-1200 MU has four dedicated keyers, Key1, Key2, DSK1 and DSK2. All four

by the user

for an example of keyer

The SE-1200 MU is a High Definition Digital Video Switcher and as well as mixing video sources and
embedding analogue audio, it has additional functions such as Picture in Picture (PIP), Chroma Key, Luma
Key and Down Stream Key (DSK).

Before attempting to use the SE-1200 MU’s PIP, Chroma, Luma and Down Stream Keying functions, it may
help to first understand the order of the video layers at the SE-1200 MU Program outputs.

The background video layer is used for transitioning between Preview and Program sources. This layer also
includes any selected wipe transitions. This layer can be hidden or partly hidden by the PiP, Keyer or DSK
video layers in front of it.

The Key 1 and Key 2 layers can be used for PiP, Chroma, Linear or Luma Key applications. The KEY video
signal (foreground) is shown in this layer and the FILL video signal is displayed in the background video
layer. If set up incorrectly, these key layers can stop the video behind being displayed.

The Picture in Picture (PiP) feature of the Key 1 & Key 2 layers can be used for displaying a smaller
secondary image in front of the background video layer. This smaller PiP image can be resized, cropped,
repositioned and even keyed by the user to avoid an important part of the background video layer being
covered by it.

keyers can be active simultaneously. Key 1 and Key2 can be set as Upstream or
Downstream keyers.

The Layer priority, or order, of Key 1 and Key 2 can also be changed
using the Priority button in the Transitions Control area. DSK 1 & DSK 2 can only be
used as Downstream keyers. See the diagram above
layering with the SE-1200 MU.

The Down Stream Key layers (DSK 1 & DSK 2) are placed on top of all the previous layers. These layers are
typically used with Character Generator inputs for displaying titles, graphics, lower thirds, clocks and logos.
Datavideo offer several Character Generator products (additional purchase) such as TC-200, CG-250, CG­350 and CG-500. If set up incorrectly these DSK layers can also stop the video layers behind them being
displayed properly.

19

Note: Where possible, prepare and position the upper video layers in advance of the live production
starting to avoid appearing on the program output incorrectly. These can be saved as user setups in the
shot box area of the software control interface for quick and easy recall.

Copyright: Most broadcast networks have guidelines and advice on the use of video, images, music, logos
and on screen text so it is best to check beforehand when planning a production. Do not use copyright
protected content until you have the relevant permissions. Information on royalty free video, images and
music is widely available. Please speak with your local dealer or seek professional advice.

20

Chapter 5 Video Connection Setup

The physical input sources can be swapped

5.1 Inputs – Setup

5.1.1 Crosspoint

around within the SE-1200 MU by using the cross
point section of the Inputs menu.

Click a crosspoint (lower row) then click again on
the required input (upper row) to link them. The
example above shows inputs 2 and 3 swapped.

5.1.2 Source Labels The multi view source labels can be changed. First click Inputs menu then choose the input you wish to name. Then use the pop up keyboard to edit the selected input name. Press Enter to store the change, the

new Multi view label should now be displayed.

Note: The label will accept up to 16 characters but only the first 10 are displayed.

A Freeze option is provided for use when you wish to grab and save a still image from a selected input, see

Stills – Grab and Save section.

A ProcAmp option is provided for adjustment of an input’s white, black or chroma level. It may be easier or
better to adjust an incoming image at the source equipment, please seek advice before changing these
settings.

5.2 Setting up the SE-1200 MU Video Stream Based Multi View

The SE-1200 MU is able to send, or stream, its multi view image over the same IP network connection used
for controlling the switcher. This allows the user to see the multi view on the same computer that is
remotely controlling the switcher.

21

This streamed multi view can then be viewed using a third party software application called VLC Media
Player, version 2.1.5 or later is recommended. To download the latest free version of VLC Media Player
please visit http://www.videolan.org/

5.2.1 Preparing the SE-1200 MU Stream Output First click the OUTPUTS menu button in the SE-1200 MU software control interface. Then select the STREAMER option in the yellow menu panel on the left hand side. The user can now select the size of the

multi view being streamed. Options are Full, Half, Quarter and Sixth.

By choosing HALF instead of FULL you are using less bandwidth to support the multi view stream being
sent across the IP network.

Reducing the size of the multi view stream may also help overcome delay/latency issues over the network.
Click Stream Start then open VLC Media Player on the computer. Click Media on the VLC menu bar and
navigate to the Open Network streaming settings.

Enter the stream URL as tcp://192.168.100.101:5000 and click Play. The Multi view stream will now be
displayed in the VLC window.

Note: The streamed SE-1200 MU multi view is video only, no audio is sent over this IP connection.

22

5.2.2 VLC Media Player - Stream Caching

The stream caching feature within VLC media

is there to allow enough time for the data

may be unacceptable but this value can be changed

Note: The VLC caching value and multi view stream size are also related to latency. Reducing the SE-1200
MU streamer size may also help reduce the multi view delay or latency across the IP network. The quality

The VLC media player window (with SE-1200 MU multi view) can be displayed on a second computer
monitor using the Windows extended desktop feature. The main computer screen can then be used for the

PC monitor 1 – SE-1200 MU Control software

PC monitor 2 – Streamed Multi view on VLC

player
being received to be converted to a stable or
smooth video feed.

The default caching value is a 1000ms (milliseconds)
or 1 second. This delay behind the live performance

and the delay reduced.

If sending the stream over an office network or
LAN, this caching value can be reduced to around

50ms. If the video in the multi view is unstable then
slowly increase this caching value in 50 or 100ms
steps until you have a smooth video feed.

of the multi view image will also be affected by these settings.

SE-1200 MU control panel software.

5.2.3 Port Forwarding for the SE-1200 MU

So that the SE-1200 MU Multi view stream can be seen and the unit can be controlled over the internet (or
beyond the default gateway), certain ‘ports’ should be opened on your network firewall or gateway device.

TCP port 5000 is used for the VLC based multi view stream. Ports 5003 and 5004 are used for controlling
the switcher. These three ports should be forwarded to the SE-1200 MU internal private IP address.

Your local network administrator or I.T. support should be able to help you with this. For further
information please see Chapter 3 Network Setup.

23

Chapter 6 PC Control Panel

6.1 Sources Panel

This panel on the SE-1200 MU control software consists of three identical rows of buttons and is used to
assign sources or select images for Program or Preset outputs. The buttons are labelled from left to right as

Black, sources 1 to 6, and Bkg.

6.1.1 AUX BUS

This row of buttons is typically used to assign sources for the setup of the PIP, Linear, Chroma and Luma
Keyer functions. If a keyer or PIP function is active/ON then the selected AUX button will be backlit red.

6.1.2 PROGRAM

This row of buttons is typically used to select sources or images for the SE-1200 MU main Program output.
The currently selected source being sent to the Program output will be backlit Red. Simple cuts between
sources can be performed on this row by clicking on the source number required for the next shot.

6.1.3 PRESET

This row of buttons is typically used to select sources or images for the SE-1200 MU Preview output. The
currently selected source will be backlit Green. The selected button on the Preset row will change from
Green to Yellow during Preview-Program transitioning using T-Bar.

6.2 TRANSITION CONTROLS Panel

6.2.1 Previewing a Selected Transition/Wipe

It is possible to see, or test the effect, of a selected transition in the Preview output before applying it to
the Program output. In our example below we want to test a selected wipe. Input 1 is being sent to
Program and Input 2 in Preview will be shown next.

24

Using the TRANSITION CONTROLS panel click to select the Trans Pvw button (back lit green is ON). Next

1. Each button press on the Program row will cause an instant clean cut to the selected source.

select and apply the transition or wipe that you would like to test on the Preview monitor.

You may also notice that the Preview Monitor changes to show the currently selected Program source
(Input 1). Do not worry, the selected Preset source (Input 2) has not changed. Click the Auto button
(TRANSITION panel) or move the T-Bar manually to preview the selected transition. You will now see the
previewed transition between input 1 and input 2 using the selected wipe. Importantly this is only shown
on the Multi view and Preview outputs but has not been shown on the Program output.

NOTE: Remember to disable the Trans Pvw button before attempting to use the selected transition on
the live Program output.

6.2.2 Rev and Nrm (NORM) / Rv (REV) Buttons

When the Rev and Nrm / Rv buttons are both OFF, the selected WIPE transition will operate in its default
direction only.

When the Nrm / Rv button is ON, the selected WIPE transition
will automatically switch directions as each transition is
completed.

The Rev button will switch on and off automatically

to indicate the direction of the next transition.
When the Rev button is ON then the selected transition will
operate in the reverse direction only.

6.2.3 Key 1 & Key 2 PRIORITY Key Function

The PRIORITY button toggles the layer order or priority of Key 1 & Key 2.

When Key 1 and Key 2 are both active in Preview (or Program),
they may overlap each other on the screen. Using the Priority
Button you can change the order of these keyers. The button acts
in a toggle on/off way, i.e. Key1 over Key2 or Key2 over Key1.

NOTE: It is best to check and change the Priority of Key 1 and Key

2 when they are initially active on the Preview monitor/output.

6.3 Transition Effects

The SE-1200 MU allows the user options for cutting or transitioning between the selected preset and
program video sources.

6.3.1 CUTTING between Sources

Cutting between sources is a clean switch from the current Program video to the next source image. This
can be achieved in two ways:

(Active selection is backlit red)

25

2. Selecting the next source on the lower Preset row of buttons and then pressing the Cut button.

In order to mix between two video sources, first ensure the Background Transition

Pressing Mix will select a mix transition to use when moving from the current

To change the rate of transition for the Auto button, press

M/E Trans

value is small then the transition will

happen quickly. If this value is larger, then the transition

The timing of a Mix transition can also be manually decided when moving the T-

6.3.2 Mixing between Sources

or Bgnd button is ON / backlit green in the transition controls area of the user
interface.

video source on the Program row to the selected next source on the Preset row.

the Home menu button and change the
duration value in frames.

If this M/E Trans

will take longer to complete.

Bar or completed over a set duration when using the AUTO button.

26

6.3.3 Wiping between Sources

In order to wipe between two video sources first ensure the Background Transition

Clicking Wipe will select the current wipe transition in use when moving from the
current video source on the Program row to the selected next source on the Preset

To change the rate of transition for the Auto button press

M/E Trans

value is small then the transition will

happen quickly. If this value is larger, then the transition

The timing of a Wipe transition can also be manually decided when moving the T-

If the current wipe pattern needs to be changed

then click on the required wipe pattern or enter its

Each wipe pattern consists of blue and white colours. The white represents the current Program image (A)

or Bgnd button is ON / backlit green in the transition controls area of the user
interface.

row.

the Home menu button and change the
duration value in frames.

If this M/E Trans

will take longer to complete.

Bar or completed over a set duration when using the AUTO button.

6.3.3.1 Choosing a different wipe pattern

first select Wipe from the MENU SELECT area and

wipe number.

and the blue represents the WIPE-IN image (B). There are a total of 32 WIPE presets offered by the SE­1200 MU as shown below.

27

Options in the yellow menu column

Options in the lower blue row

a wipe pattern to be selected by

allows the user to blend the leading and

trailing limits of the border to remove the hard

A low value results in a solid edge border

value results in a thin border and a high value

sets how far the wipe has travelled or where

In order to enable clip transition between two video sources

area of the user

6.3.3.2 Wipe border options

Wipe allows a wipe pattern to be selected by
clicking on the required wipe pattern in the
selection pane.

Wipe Border allows the user to choose the colour
of the border from a palette window.

Wipe Shade allows the user to choose the
shadow colour of the border from a palette or

assign a video source.

Wipe Position allows the user to adjust the centre

position of some wipes (e.g Circle & Elipse).

Wipe allows
entering the required wipe number.

Soft

edge.
and a high value gives a soft diffused border.

Wipe Border switches the border effect on or off.

Width changes the size of the border effect. A low

gives a wide border.

Level
it is displayed in the video area.

6.3.4 Clip between Sources (Stinger Transition)

first ensure the Background Transition or Bgnd button is ON /
backlit green in the transition controls
interface.

28

Clicking on the Clips button on the

MENU SELECT panel will open a menu

screen (shown below) that allows the
user to select the current clip transition
to use when moving from the current

To load the clip, simply click on

”. The clip is always

loaded to input 6 so anything

A Delete Clip function is

Progress Dialog on Clip Load gives the user an idea
Clicking Clip will select the current wipe transition in use

video source on the Program row to the
selected next source on the Preset row.

the Clip option and then select
“Load Clip

loaded to input 6 before will be
replaced by the clip.

available in the clip menu.

where the load is currently at. It can be cancelled at any
stage even before the load is complete.

when moving from the current video source on the
Program row to the selected next source on the Preset
row.

29

To change the rate of transition for the Auto button

press the Home menu button and change the M/E

happen quickly. If this value is larger, then the

The timing of a Clip transition can also be manually decided when moving

Trans duration value in frames.

If this M/E Trans value is small then the transition will

transition will take longer to complete.

the T-Bar or completed over a set duration when using the AUTO button.

6.4 FTB Key Function

6.4.1 Enable

Enable the Fade to Black function.

6.4.2 FTB

Fade to Black, this button fades the current video program source to
black. When clicked again, it acts in reverse from complete black to the
currently selected program video source.

6.5 DSK TRANS Panel

This panel is used to turn only the DownStream Keyers on or off. This can be done to
show the chosen keyer in the Preview video output for configuration before live on-air
use.

30

The labelled DSK 1 (Pgm/Pvw) or DSK 2 (Pgm/Pvw) buttons can be off or on. When a
selected DSK button is green it is on and the active DSK result is seen in the multi view
Preview video image.

Each DSK button has an LED above it. This LED can also be off or on (Green). When the
selected DSK LED is on the active DSK settings are seen in the multi view Program
video image and at the Program outputs.

With the selected DSK already active in the Preview output press either the Cut or Auto button. Using the
Cut button will apply the current DSK settings to the live Program output immediately. Using the Auto
button will bring in the current DSK with a gentle mix or fade type transition. If the DSK LED is on the
program or preview outputs, clicking the AUTO button again will cancel the DSK with a fade out or mix
transition.

To understand the relationship between the DSK button and the LED above, try the example set up with
DSK 1 in section 7.1, the subsequent chapter.

31

Chapter 7 Applications

Step 1: Choose the Keyer Bus that you wish

Step 2: Choose the type of Keyer you want to

Step 3: Select the foreground video source to

on the

Step 4: To see the current keying effect on the

7.1 Luma Key - Quick DSK 1 Setup

Note: The DSK 1 and DSK 2 keyers can only be used for Linear or Luma keying. Chroma keying is not

supported on DSK 1 and DSK 2.

In this example, we are supplying the SE-1200 MU with an HD-SDI live video signal to input 2, this is
selected on the Program row. We have also assigned a STILL image, with white text on a black background,
to input 6. This still image, selected on the Aux Bus row, will be used for Luma keying the static white text
over the live video from input 2.

to use. In our example, we will click the DSK 1
button on the AUX BUSES panel.

use. In our example, we will click the Luma
button on the KEYER CONTROLS panel.

DSK OFF

PVW ACTIVE

be keyed.
In our example, we want to use a still source
on input 6. Click input 6 on the Aux Bus Row
so it is backlit Green.

We have also chosen button 2
Program and Preview rows as our live
background video.

Multi view Preview image only click on the
DSK 1 PVW button in the DSK TRANS panel so
it becomes backlit green.

32

Step 5: To adjust the Luma key settings. Click

the Keyer button in the MENU SELECT panel

Keyer Control

Step 6: Once you are happy with the settings

of the key, you can take it to the program

AUTO TRANS

ACTIVE ON PGM

Lift: Adjusts the dark/black areas in the key image.

and the menu screen will appear as shown on
the left here.

The options in the blue bar along the bottom
of the Screen will allow you to calibrate for a
white or black key using the Lift, Gain, Opacity
and Invert Functions. The

section (7.1.1) will explain the effects of Lift,

Gain, Opacity and Invert.

output with a fade transition. To do this, click
the Auto button in the DSK TRANS panel.

7.1.1 Keyer Control

Gain: Adjusts the light/white areas in the key

image.

Opacity: Adjusts how transparent the overall
foreground key image is.

Invert: Reverses the effect of the current Luma
Key settings. If you can see the background video

through the dark areas of the key image, then
enabling Invert would make the background
video seen through only the light/white areas
instead.

33

7.1.2 Keyer Matte

1. The Colour Palette allows selection of a colour for the Keyer Matte.

2. Click on the Colour Palette and the crosshair will move to display the currently selected colour where

the mouse pointer was located. The selected colour RGB values will also be shown to the right.

3. The Luma value determines how bright or dark the selected colour or hue is. The Luma can be

adjusted by clicking on the Luma value and using the pop up keypad to enter the new value.

4. The Sat or Saturation value moves the crosshair from the center of the colour palette to the outer

edge. The Sat value can be adjusted by clicking on the Sat value and using the pop up keypad. If the
Hue angle is set to 180 degrees then the Sat value determines how much Cyan is in the matte.

5. The Hue parameter moves the crosshair around the colour palette in the clockwise or anti-clockwise

direction. The Hue value or angle can be adjusted by clicking on the Hue value and using the pop up
keypad.

Certain colour hues can be found at certain angles on the colour palette. For example, Red is 0
degrees (12 o’clock position), Green is approximately 120 degrees (4 o’clock position) and Blue is
approximately 240 degrees (8 o’clock position).

For Luma key purposes using zero values for Luma, Sat and Hue will allow a black keyer matte to be
chosen as above.

A white keyer matte can be created from Luma 100%, Sat zero and Hue zero.

7.2 Linear key - Quick DSK 2 Setup

Note: The DSK 1 and DSK 2 keyers can only be used for Linear or Luma keying. Chroma keying is not

supported on DSK 1 and DSK 2.

In this downstream keying example, we are supplying the SE-1200 MU with a live video signal on input 2,
this is selected on the Program and Preview rows. We have also connected a CG-350 Character Generator
(separate purchase) which is supplying separate KEY and FILL signals to inputs 5 and 6. These two CG-350
inputs will be used for Linear keying the CG- text and graphics over the live video from input 2.

34

Step 1: Choose the DSK Keyer channel that you wish

to use. In our example, we clicked the DSK 2 button

Step 2: We then choose the Lin or Linear and Split
Step 3: The Split button is backlit green, select the CG

Step 5: To see the current keying effect on the Multi

Step 6: To adjust the Luma key settings. Click the

d the

will explain the

on the AUX BUSES panel.

buttons from the KEYER CONTROLS panel to select a
linear key.
Note: If the DSK input only has one source (FILL) for
keying, press Self key button. In our example the DSK
input has two sources for Fill and Key, so we select the

Split button instead.

key source on the AUX BUS Row (input 5).

Step 4: Click Split button again, now backlit yellow,

this time select the CG Fill source on AUX BUS Row
(input 6).

DSK OFF

PVW ACTIVE

view Preview image only click on the DSK 2 PVW
button in the DSK TRANS panel so it becomes backlit
green.

Keyer button in the MENU SELECT panel an
menu screen will appear as shown on the left here.

The options in the blue bar along the bottom of the
Screen will allow you to calibrate for a white or black
key using the Lift, Gain, Opacity and Invert Functions.
The Keyer Control section (7.1.1)
effects of Lift, Gain, Opacity and Invert.

35

Step 7: Once you are happy with the settings of the
key you can take it to the program output with a fade

transition. To do this click the Auto button in the DSK

AUTO TRANS

ACTIVE ON PGM

Step 1: Choose the desired Keyer channel from Key 1

Step 2: Select the Key 2 effect by clicking the P-in-P

Step 3: Turn the Key 2 PIP effect on in the Multi view

Step 4: Select the PiP image source on the AUX BUS

the chosen Preview image before being taken to

TRANS panel.

7.3 Picture in Picture (PinP) Function

The SE-1200 MU has an optional PiP function which can be sized, rotated, positioned and cropped. The PiP
window can also have a user-defined coloured border too. To configure a PiP window please follow the
steps below.

or Key 2 on the Aux Bus panel. For our example we
will use the Key 2 button for our PIP image.

button (backlit green) in the Keyer Controls panel.

Preview output by clicking the Key 2 PVW button
(backlit green) in the Transition Controls panel.

row of the SOURCES panel. This will be shown over

Program/air with the next mix or wipe transition.

36

Step 5: Click the P-in-P button (backlit green) on the

MENU SELECT panel to enter the Picture in Picture

Step 6: PiP options displayed in the yellow menu area:

The sections below will

describe how Position, Border and Crop can be

• Click and hold the joystick circle then drag the joystick circle in the desired

allows the PiP to be moved in the X & Y

functions.

Position, Border and Crop.

adjusted.

7.3.1 PIP Position

Values are shown along the bottom of the screen.
The X and Y values change the location of the PiP image.

• The X value moves the image left and right.

• The Y value moves the image up and down.

• The Z value adjusts the image size. Where the value 1.0 makes the PiP occupy the whole screen (100%),

and 0.5 reduces the PiP size to half screen (50%).

direction.

• Left-mouse button Joystick dragging

directions.

• Right-mouse button Joystick dragging to the left and right resizes the PIP (Z

value).

• Click the FINE button to enable/disable fine adjustment in smaller/slower steps.

• Click the NORM button to return the selected PIP image to the factory default

position and size values as shown above. The Norm button default for Z value
(size) is 0.40 or 40%.

7.3.2 PIP Border

The PIP Border options and values are currently shown along the bottom of the display below.

37

The Left, Right, Top and Bottom edge values of the
crop can be adjusted individually or together using

Click on a single value to adjust just

Luma, Sat, Hue and Size values define the PIP border.

1. The Luma value determines how bright or dark the selected colour or hue is. The Luma value can

be adjusted by the Luma Function keypad.

2. The Sat or Saturation value moves the crosshair from the center of the colour palette to the outer

edge. The Sat value can be adjusted using the Sat Function keypad.

3. The Hue parameter moves the crosshair around the colour palette in the clockwise or anti-

clockwise direction. The Hue value/angle can be adjusted using the Hue Function dial.

4. Size defines the width or thickness of the colour border surrounding the selected PiP. The Size value

can be adjusted using the Size Function Keypad. Increasing the value makes the border thicker but
less of the selected PiP image will be seen.

7.3.3 PIP Crop

The PiP Crop values are displayed along the bottom of the screen as shown below.

the Size value.
that edge of the PIP.

Size value evenly crops all edges of the selected PIP
at the same time and to the same value.

7.4 Bus MATTE Setup

Sometimes it is useful to be able to switch away from live video to a full screen, colour Matte rather than
Black. For this reason a Bkg button is provided on the SE-1200 MU’s Aux, Program and Preset bus rows.

38

The Matte option on the MENU SELECT panel allows the user to configure the matte image.

1. Click the Matte button on the MENU SELECT panel.

2. The Bus Matte parameters are shown in a row at the bottom of the screen.

3. The circular Colour Palette allows selection of a colour for the Bus Matte.

4. Click anywhere on the Colour Palette to move the crosshair and display the currently selected Hue or

colour. The RGB values for the selected colour are then shown on the right.

5. The Luma value determines how light or dark the selected colour or hue is. Click on the Luma value

and enter a new value. A small percentage value will make the colour dark and a larger value will make
the colour brighter.

6. The Sat or Saturation value moves the crosshair from the center of the colour palette to the outer

edge of the circle. The Sat value can be finely adjusted by clicking on the Sat value and entering a new
value. If the Hue angle is set to 180 degrees (6 o’clock position) then the Sat value determines how
much Cyan is in the matte.

7. The Hue value moves the crosshair around the colour palette in a clockwise or anti-clockwise

39

direction. The Hue value/angle can be finely adjusted by clicking the Hue value and entering a new

Click Setup from the MENU SELECT

To import a clip from the computer

Caution: The PC Control App can now do the conversion from bmp/png/jpg to SE-1200 MU format .pic

value.

Certain colour hues can be found at certain angles on the colour palette. For example, Red is 0 degrees
(12 o’clock position), Green is approx. 120 degrees (4 o’clock position) and Blue is approx. 240 degrees (8
o’clock position).

7.5 Clips – Quick Setup

The Clip function allows the user of the SE-1200 MU to add a clip between sources. Before this can be done,
the clip (a series of bmp/png files) has to be imported into the SE-1200 MU.

area and select Import-Export from
the yellow menu options.

into the SE-1200 MU select Import
Clip.

files. All you need is to give the PC control APP a starting file location and it will give the PC control APP an
idea where to start linking all images up into a sequential animation file.

40

Importing Clips

Select “Import C

lip” will open a file
browser window. Browse to the
directory where your clip files are
saved and then select the file at the
zeroth location, in our example on the

Click open to start the clip import. If

format, they will be automatically

After the conversion, the clip import

. After the import is

complete, the progress dialog will be

: The Clip Conversion and Clip Import have progress dialogs that show progress & number of frames

right, the file name is AE­TEST_00000.png.

your files are not the SE-1200 MU’s .pic

converted to .pic format by the SE­1200 MU PC Control APP first.

will then start

automatically closed.

Note

done. These dialogs also have a cancel button which allows the user to cancel the import at any stage. If
the import is cancelled, then the partially imported data will be deleted.

41

Chapter 8 CHROMA Key Functions

8.1 Overview

The Chroma Key feature of the SE-1200 MU is
easy to use. Typical Blue and Green screen
studios can be quickly incorporated into an SE­1200 MU production.

The following is a quick overview of Chroma Key
basics.

The camera, backdrop and lighting all play an
important role in producing the optimal
Chroma Key result. Although the SE-1200 MU is
equipped with excellent keying controls, it is
best to start with a good keyable image.

A good foreground image helps produce a good key

Three chip/Three sensor camera

We strongly recommend the use of a three chip or three sensor camera for Chroma Key shooting. If the
camera has three chips or sensors then this usually means good colour separation within the camera. The
optics on these cameras are usually better too. The extra image clarity and the good colour separation help
improve the quality of the subsequent keying with the camera’s output.

White Balance the Camera

White Balance is extremely important after setting up a chroma key studio. The camera must be correctly
white balanced to minimize the subject picking up any colour cast (green or blue) from the
background. Of course the white balance settings will vary according to the type of lighting you are
using, but neutral whites and good skin tone colour are the all-important targets.

To set the white balance you will need a white reference card (or a sheet of white paper). Focus the
camera on the reference card and light it evenly using the main light. Set the camera’s iris / aperture so
that the card is correctly exposed. Use the Auto White Balance (AWB) function, or set the white balance
manually so that the card appears white. If you are in any doubt about how to white balance your camera,

please refer to your Camera’s instruction manual for more details.

Lighting

Lighting of your chosen green or blue backdrop is extremely important; the more even the lighting on the
backdrop the better the finished result. Lighting setups for the foreground subject will vary according to
the effect that you want. For chroma keying backdrops, balanced even lighting, with no hotspots or
shadow areas is the aim. The easiest way to achieve balanced Chroma key lighting is with a lighting setup
that looks similar to this:

42

In the diagram, you will see that we recommend a minimum of four lights and we keep the subject more
than 1m away from the backdrop. It is always easier to get more even lighting if the subject is farther
away from the backdrop (no shadows). The foreground lighting on the subject will also vary according
to the effect that you are looking for.

8.2 Chroma Matte

This matte sets the center of colour
range that will be used for keying.

The Chroma Matte parameters and the
values are shown along the bottom of the
display below.

The Hue can be changed by clicking on
and dragging the crosshair around the
colour palette with the mouse pointer.
The Hue value can also be finely adjusted

by clicking the Hue degree value in the lower bar and entering the required number.

Certain colour hues can be found at certain angles on the colour palette. For example, Red is 0 degrees (12
o’clock position), Green is around 120 degrees (4 o’clock position) and Blue is approx. 240 degrees (8
o’clock position). Secondary colours such as, Yellow at 60 degrees, Cyan at 180 degrees and Violet at 300
degrees.

The Luma value relates to how bright or dark the selected key colour or hue is. The Luma value can be
adjusted by clicking the Luma Function value and entering a new value. The Bgnd Suppress or Background
Suppress Control is used to remove the Luma (brightness) of the background from the final image. If the
Chroma Key Output is showing Light Edges, then the Bgnd suppress can be used to suppress any

43

background Luma that is showing through on these edges.

The Opacity setting affects how transparent the foreground Chroma matte is.

8.3 Chroma Key Ctrl

The Chroma Key Ctrl parameters and
values are shown along the bottom of the
display. Two colour palettes, Main and
Chroma, are shown in the diagram.

The Main palette corresponds to values of
Key Acceptance and Key Lift. The Chroma
palette corresponds to the Color Spill
settings.

Key Acceptance is represented on the

Main Palette as a sector or area covering a range of hues or colours that closely match the background

colour to be keyed as set in Chroma Matte. The user can start with a value of 120 degrees and this value
can be fine-tuned up or down using the Key Acceptance depending on the setup of the green or blue
screen studio.

Key Lift is represented on the Main Palette as a line extending from the center point in the direction of
the Key Acceptance sector. This value affects the performance of the Chroma key in dark or black areas. If
the dark areas of the video are becoming too transparent, then applying more Key Lift may help
depending on the setup of the green or blue screen studio. This value can be fine-tuned up or down by
changing the Key Lift value.

Key Gain affects the performance of the Chroma key in light or white areas. If the light areas of the video
are becoming too transparent then applying more Key Gain may help depending on the setup of the
green or blue screen studio. This value can be fine-tuned up or down by changing the Key Gain value.

8.4 Color Spill

The Color Spill parameters and values are
shown along the bottom of the display
below. These settings are used to
control/remove any unwanted Chroma or
colour Spill from the background onto the
foreground subject. There are two sectors
drawn on the Chroma palette, one
represents the wider Chroma Acceptance
range and the narrower Chroma Suppress
range.

Chroma Acceptance sets the amount of the available colour range or space that should be Chroma
suppressed. Usually starting with a large value of 120 degrees should produce reasonable results. This

value can then be fine-tuned up or down using the Chroma Acceptance value depending on the setup of
your green or blue screen studio.

44

Chroma Suppress, when set to 0%, removes the hues or colours that lie only on the same axis as the

Step 1: Choose a Chroma Key channel (Key 1 or

Step 2: Choose the type of Keyer you want to

Step 3: Select the foreground video source with

but would eventually replace the background

Chroma Matte Hue angle. This setting has the effect of removing Background colour spill, but keeping the
underlying hue. When set to 100% then all the Chroma values that are ‘captured’ within the Chroma
Acceptance Angle are suppressed to greyscale – i.e. they have their Chroma removed. Usually starting with
a value of 50% should produce reasonable results. This value can then be fine-tuned up or down using the

Chroma Suppress value depending on the setup of your green or blue screen studio.

Saving the Chroma Key Setup. Remember to save your current user setup. In this way, several Chroma

Key setups can be saved to different user memory slots, thus allowing you to switch from a Blue screen
setup to a Green screen setup instantly.

8.5 Chroma Key - Setup

The SE-1200 MU offers two Chroma key channels in the Key 1 and Key 2 Aux buses. In the example below
we will show you the steps for setting up the Chroma key.

Key 2). In our example, we use Key 1 button in
the AUX BUSES panel area.

use in KEYER CONTROLS panel.

In our example, we have clicked the Chroma
button on the KEYER CONTROLS panel.

the subject or talent to be keyed. In our
example, we want to use a green screen source
connected to Input 1 on the Aux Bus Row.

We have also chosen a background video source
to key in to this, from Input 2 on the Program
row.

The Preset source does not matter at this stage

video if a transition or cut is completed.

45

Step 4: The Chroma key effect with the current

settings may already be shown in the Preview

Step 5: To quickly adjust the active Chroma key.

1. To configure the Mask function, click the

output. If it is not shown you can switch the
preview on by clicking the Key 1 PVW button so
it is back lit green in the Transition Controls
panel.

Click Chroma button in the MENU SELECT
panel. Fine tune the key using Chroma Key
Ctrl and Color Spill options as described in
previous sections (8.3 and 8.4).

Once you are happy with the Chroma key
settings click the Auto button in the Transition
panel to make the key active in the Program
output.

8.6 Key MASK Function

A simple rectangular garbage mask can be quickly created within the SE-1200 MU. This Mask feature can
be used when the Chroma key or Luma key modes are active.

Note: This mask’s edges are fully transparent during the keying process. This can be helpful if the blue or
green backdrop in a chroma key set up does not occupy the whole foreground shot. It is also helpful if only
a small area of the foreground image is being Luma keyed, say a whiteboard or blackboard. Each mask
value is based on a percentage of the screen width or height, thus 0% indicates no mask edge and 50%
means masking to half of the screen area from the selected outside edge.

MASK button on the MENU SELECT panel.

46

2. The Mask parameters are displayed along the

bottom of the screen.

In our example, shown on the left, we have

edges only. These edges will be

A mask reduces the foreground area

can work

3. The Left, Right, Top & Bottom values allow

the user to set the inside Left, Right, Top &
Bottom edges of the keyer mask.

brought in the mask on the left, right and
bottom
automatically keyed out leaving just the light
centre area to be manually Luma or Chroma
keyed.

Note:
that an on screen actor/presenter
within.

47

Chapter 9 Freezing a Video Input for Stills Capture

1. Click the Inputs button on the MENU SELECT

2. Six video input channel selection buttons will be

3. The Freeze parameters will then be displayed

option and then select

.

the video is

located at the bottom right of

Once finished remember to turn the

Freeze function off by selecting Live mode

This feature freezes a selected video Input (channels 1 to 6) in order for the user to capture a Still image.
Usually a new SD card should allow 1000+ frames of available space. The input to be frozen is best
displayed on the Program monitor by first selecting it on the Program source row. The video can then
be displayed for the user to freeze the image at the right point.

panel.

displayed. Click on the input channel button
that you wish to Freeze.

along the bottom row of the screen.

Click on the Live Mode
the Freeze option from the pop up menu list
When Freeze is clicked here
immediately frozen at that point in time.

4. The Freeze Mode

the screen can be set to a full Frame or one

Field. In most cases Frame should be used.

Note:

again.

9.1 Stills – Grab and Save

On the previous page we learned how to Freeze a video input so we are now ready to Grab and Save that
frozen image.

1. The input that has been frozen ready for capture is best displayed on the Program monitor by

selecting it on the Program source row. The video can then be displayed for the user to freeze
the image at the right point.

48

2. Click the Stills button in the MENU

SELECT panel.

3. Click Grab and Save from the yellow

on the left of the

images can be stored

4. Click the Still value in the bottom row of

options and enter the stills number for

image you are about to

this is an empty

memory position otherwise the existing

to capture the freeze

’s Program

menu column
currently stored image matrix.

Up to 1000+
within the SE-1200 MU.

the new
capture.

Note: Make sure

saved still could be overwritten and lost.

5. Click Grab Still

image from the SE-1200 MU
output into working memory.

6. Now click Save Still to move the captured image into the chosen Stills matrix number. The stills

matrix will update and display a small thumbnail of the captured image at the chosen stills number.

Note: Remember to turn the Freeze function off after you have finished using it. To do this change
the frozen input channel from Freeze back to Live. See previous page.

9.2 Assigning a Saved Still Image to an Input Channel

In the previous two pages we covered how to freeze a live input for capturing into the Stills matrix on the
SE-1200 MU. Now we want to use that previously saved still image in our next production.

1. Using the Preset source row select the input channel to be used for displaying the saved still image.

This will also place that input channel onto the Preview window in the SE-1200 MU Multi view. Do
not worry if at this stage it is still currently showing live or no images.

2. Next click the Stills button on the MENU SELECT panel.

49

Click Setup from the MENU SELECT

3. Click Still Load in the yellow options area on the left.

4. Change the Still Buf option in the lower row of options to match the desired bus channel that you

wish to use to display the still image. In our example we have chosen Input 1.

5. Now select the required saved still within the stills matrix. Use the up and down triangle buttons on

the right to scroll through the matrix if necessary. Empty memory points will appear as blue thumbnail
boxes without a number. Alternatively enter the Still value and then click Load Still.

6. The input channel will now display only the selected still image. To change the still to another

follow step 5 again. To return the input channel to live video again see Chapter 9.

9.3 Exporting and Importing Stills

A previously saved SE-1200 MU still image can be exported from the Switcher to the User’s computer. This
Still file can then be imported into another SE-1200 MU switcher or used in other ways such as event
marketing or disc authoring. This can be useful if creatively branding productions the same way.

area and select Import-Export from
the yellow menu options.

50

To import a Still picture file from the

MU select

MU to the computer select

Caution: When importing or exporting make sure the correct

Still picture files when exported from

are stored on the

Exported Still picture files can be found

For each image exported, there will be two files, a thumbnail picture ending .mini and the full screen

1200 MU by pasting the files into the

1200 MU will do the conversion to .pic first, then import the .pic

computer into the SE-1200
Import Still.

To export an existing Still file from the
SE-1200
Export then Export Still.

the switcher
computer within the following folders.

C: > Datavideo > se1200 >
user_data > …

Still number is used.

in the export based stills folder (see
opposite).

image ending .pic. These files can be then imported to another SE­Import based stills folder on the second SE-1200 MU.

Importing Stills

For import type of bmp/png/jpg, the SE­files.

51

Chapter 10 USER Memory Functions

The USER memory function allows you to Save and Load user setups within the SE-1200 MU. If you have
standard configurations for your productions then this feature allows you to quickly re-configure the SE­1200 MU after someone else has used it. Up to 1000 User Setups can be stored within the SE-1200 MU,
numbered from 0 to 999.

Note: User 0 is the DEFAULT USER preset. By changing User 0 you change the default start-up configuration
of the SE-1200 MU.

10.1 Saving the Current Settings to a User Memory Slot

1. First set up and configure the SE-1200 MU with the settings that you would like to keep for future

use.

2. Click the User button on the MENU SELECT panel.

3. Click Save Memory and the screen below will appear.

4. Click User Memory to set the user memory slot value to which the user setup will be saved. Be

careful to choose a User number which is not already in use, otherwise an existing memory slot will
be over written.

5. Click Name to label the current user memory slot.

Note: The label can accept up to 16 characters but only the first 10 are displayed.

6. Click Save Memory to store the setup to the assigned user memory slot.

52

10.2 Labelling an Existing User Memory Slot

In order to easily identify the stored User setup, the User memory slot can be labelled for future
reference.

1. Click the User button on the MENU SELECT panel.

2. Select the required User memory slot that you wish to label.

3. Click Name in the lower row menu options an on-screen keyboard will be displayed. Enter a label

name for the selected user memory slot. The label text can be up to 16 characters long but only the

first 10 letters will be displayed.

Note: If there are more than 16 User Setups stored in the SE-1200 MU, then use the up/down
arrows to browse through all user memory slots. The user memory slots are displayed in numerical
order; empty positions will have no number.

53

10.3 Loading a Previously Saved User Setup

To load a previously saved SE-1200 MU Setup, simply click the LOAD

Enter the number of the required User setup and then click Enter.

There are two ways to load a previously saved user setup.

1. USER/SHOT BOX Panel

button on the USER/SHOT BOX panel and an on-screen number pad will
open.

Note: If the required user setup is one of the first 8 memory slots, then
simply click the corresponding button on the USER / SHOT BOX panel.

2. A second way to do the same thing is to enter the “USER” option on the “MENU SELECT” panel.

The screen then displays up to 16 user memory slots at a time. Click on a user memory slot and the
selected user slot will have a yellow border.

Note: User 0 is the DEFAULT USER preset. By changing User 0 you change the default start-up
configuration of the SE-1200 MU.

54

Click Load Memory in the lower options row to load the selected user memory slot.

10.4 Deleting a User Setup

Warning: Be careful, deleted user set ups cannot be restored.

1. Click on Delete Memory from the yellow menu column on the left of the User menu screen.

2. Select the User-defined setup to be deleted from User Memory slot matrix. Be careful to select

only the User memory slot to be deleted.

3. To confirm deletion of the selected User Memory click Delete Memory located at the bottom of the

screen.

10.5 Exporting and Importing User Setups

A previously saved SE-1200 MU User memory can be exported from the unit to the User’s computer. This
User file can then be imported into another SE-1200 MU switcher. In this way another SE-1200 MU can
quickly be prepared for the same user with a known set up. A similar process can also be followed for
importing and exporting still images with SE-1200 MU.

55

Click Setup from the MENU

SELECT area and select Import-

from the yellow menu

To import a User file from the

an existing User file

MU to the

are stored on the computer in the following

Prepared User files to be imported should be first

on the computer (see opposite). Then follow

Export

options.

computer to the SE-1200 MU
select Import User.
To export
from the SE-1200
computer, select Export then
Export User.

The User files when exported from the SE-1200 MU

folders.

C: > Datavideo > se1200 > user_data > …

Exported User files can be found in the export
based mems folder (see opposite).

copied and pasted into the Import based mems
folder
the Import User process within the SE-1200 MU
Control software.

56

Chapter 11 Appendices

Appendix 1: Audio

The SE-1200 MU can only accept external
audio using the analogue XLR inputs on the
rear panel. Ideally a master audio mixer
should be used alongside the SE-1200 MU. A
Datavideo AM-100 audio mixer or AD-200
audio delay unit could be considered.

Changing the Audio Mode option from
Analog to OFF will mute the incoming XLR
audio from the external master audio mixer.

The Audio sub-options for SDI and HDMI
allow the user to individually turn ON/OFF
the audio at the SDI 1, SDI 2 and HDMI 1 outputs.

Audio Level relates to the preferred audio standard for the user. A choice of SMPTE or EBU is given.

Note: Audio is not supplied with the IP streamed multi view. Local SDI and HDMI outputs can provide the

audio.

57

Appendix 2: GPI Out

The SE-1200 MU can control external recorder/playback devices via simple contact closure GPI switch.

The GPI interface is a 3.5mm Jack Socket which is situated on the rear panel of the SE-1200 MU.
Contact closure between the Outer and Inner contacts on the jack plug will trigger a user selected event.
Power is supplied by the SE-1200 MU and is less than 5V DC.

This GPI socket can also be used as a socket to trigger record or playback events with other equipment
such as the Datavideo HDR-70 recorder.

SAFETY FIRST The cabling required needs to be designed specifically to connect the SE-1200 MU to the
chosen record or playback device as they are not all the same. The cabling required can be made by
yourself or a competent technician. Please speak with your Dealer or local Datavideo office to get further
help and advice.

Outputs Menu

This allows the user to perform GPI
configuration.

After turning On the GPI Enable, select the GPI
Mode, which is either set as Level or Pulse. The
GPI signal Width can also be configured by
setting a value (1~9).

The GPI out can then be assigned to one of the
inputs 1~4 under Source. When the selected
channel/source is taken to the Program output
the GPI signal is triggered. A GPI Delay can be
set between 0 and 99.

This feature could be used to trigger playback from units such as the Datavideo NVP-20 or HRS-30 or HDR-
60/70.

58

Appendix 3: Tally Outputs

Pin No.

Signal Name

Input/Output

Description of Signal

1

Program 1

Open collector output

Tally output of input video Program 1

2

Program 5

Open collector output

Tally output of input video Program 5

3

Preview 1

Open collector output

Tally output of input video Preview 1

4

RCOM (GND)

Ground

Ground

5

Program 4

Open collector output

Tally output of input video Program 4

6

Program 2

Open collector output

Tally output of input video Program 2

7

Program 6

Open collector output

Tally output of input video Program 6

8

Preview 2

Open collector output

Tally output of input video Preview 2

9

GND

Ground

Ground

10

Preview 5

Open collector output

Tally output of input video Preview 5

11

Program 3

Open collector output

Tally output of input video Program 3

12

Preview 6

Open collector output

Tally output of input video Preview 6

13

Preview 3

Open collector output

Tally output of input video Preview 3

14

YCOM (GND)

Ground

Ground

15

Preview 4

Open collector output

Tally output of input video Preview 4

The SE-1200 MU has a D-sub 15 pin female tally output port. These connections
provide bi-colour tally information to a number of other Datavideo products,
such as the ITC-100 eight channel talkback system and the TLM range of LCD
Monitors. The ports are open collector ports and as such do not provide power
to tally light circuits.

The pin outputs are defined as follows:

59

Appendix 4: Firmware Upgrade

From time to time Datavideo may release new firmware to either add new SE-1200 MU features or to fix
user reported bugs in the current switcher firmware. Customers can update the switcher firmware
themselves if they wish, or they can contact their local supplier or Datavideo office for assistance, should
they prefer this method.

This page describes the firmware update process, and it should take approximately 15 minutes total time
to complete.

Once started the update process should not be interrupted in any way as this could result in a non-
responsive unit.

As well as a working SE-1200 MU switcher you may need:

 A Windows 7/8/10 PC/Laptop
 The latest Control Panel program for the mixer. This can be obtained from your local Datavideo

office/supplier.

 A simple router IP network/Static IP set up, see example on Section 3.2.1.

Firmware Update Procedure

1. Install the latest SE-1200 MU Control Panel program on the Windows PC/Laptop.

2. Locate the Ethernet port on the rear panel of the SE-1200 MU and connect the Ethernet port to the

router.

3. Open the SE-1200 MU Control Panel program.

4. Locate and click the Setup button in the MENU SELECT Panel.

5. Click the Software Upgrade option in the yellow menu column.

6. Click the Upgrade Processor option in the lower menu row, the upgrading notification will appear.

7. Wait for the SE-1200 MU to complete the upgrade process, the upgrade notification will disappear.

8. Restart the SE-1200 MU device. Note: The update may reset the IP address to the factory defaults,

see Section 3.2.1.

9. Restart the SE-1200 MU Control Panel program on the Windows PC/Laptop.

10. Go to the Setup Menu again to confirm the FW version has updated and that control is still working.

11. Once control is working, load a USER memory to quickly return to your preferred SE-1200 MU

setup.

60

Appendix 5: How to Connect RMC-260 to SE-1200 MU

RMC-260

SE-1200MU

The user is allowed to connect a physical switcher controller keyboard to the SE-1200 MU. An example of
the controller keyboard is the RMC-260, which communicates with the SE-1200 MU using RS-232 interface.
The diagram below illustrates the physical connection between the two devices.

The table below provides details of RS-232 PIN definition on the device end, which is a female connector.

The user may establish the RS-232 connection between RMC-260 and SE-1200 MU using a male-to-male
cable with the wiring scheme as depicted in the diagram below.

61

Note: All panel buttons will be backlit in white LED light after the RMC-260 is powered ON. As soon as
the RS-232 connection is established, buttons will be backlit in its state color LED light. After the RS-232
connection is disconnected, it takes approximately 2-3 seconds for the RMC-260 panel buttons to return
to white color.

62

Appendix 6: Dimensions

All measurements in millimetres (mm)

63

Appendix 7: Specifications

Total Outputs

2 HDMI (Ver 1.3a) + 2 SDI

SDI Video Input

4 (1080i / 720p)

2 x HDMI (RGB/YUV)
1080i / 720p

SDI Audio Output (PGM output)

2CH

Analog Audio Input

2CH XLR

Internal Frame Synchronizers

6 All Inputs

HDMI (720P -> 720P ; 1080i->1080i ; 1080P->1080P)
SDI (720P -> 720P ; 1080i->1080i)

Audio Indicator on Multi view

Y (output 2CH)

Tally Out

Y

GPI

Y (Level / Pulse Trigger selectable)

Software Updates

Ethernet

Standards

1080i/50, 1080i/59.94, 1080i/60
720p/50, 720p/59.94, 720p/60

SDI Compliance

SMPTE 292M (SDI output /PGM out)

Video Sampling

4:2:2 10 bit

Colour Precision

4:2:2 10 bit

Colour Space

4:2:2 YUV

1280 x 720 59.94Hz 50Hz (720P)
1920 x 1080 59.94Hz 50Hz (1080p & 1080i)

Processing

Colourspace Conversion

Hardware based real time

Processing Delay

< 1 frame

selectable audio follow video
master gain control

Connections

Total Video Inputs 2 HDMI (Ver1.3a) + 4 SDI

HDMI Video Input

PGM Out HDMI / SDI

Multi view Out

PROGRAM (w/ DSK)
Clean PROGRAM

Output can select any of input source

PREVIEW (w/o DSK)
MULTISCREEN
Input 1~4

HD Format Support

HDMI Input Resolutions for Computers

Audio Mixer

Extras

Downstream Keyers 1

Linear/Luma Keyers 3 (M/E Keyer, PIP, DSK)

Chroma Keyers 2 (M/E Keyer & PIP)

Pattern Generators Colour Bar

PIP 1

64

XPT Y

Total 24 Stills on Internal SD Card

Frame Store

One dedicated still buffer, one dedicated freeze buffer.
Also, any Input can be used as Frame store.
3 Still frames stored in local frame buffers for instant access

Control Panel Compatibility Use PC via Ethernet; Control panel

Input Voltage 12V

Power Consumption 23W

Control Protocol DVIP

Operating Temperature 0°C to 50°C

Humidity 10% to 80%

Multi View Monitoring

2 (PGM, PVW)

Number of Windows

+6 (Inputs 1-4, Stills & Freeze)
+2 Output windows (SDI1, SDI2)

Routable Windows Y (Follow XPT)

Tally Y

Windows Source Labels Y

65

Service and Support

66
