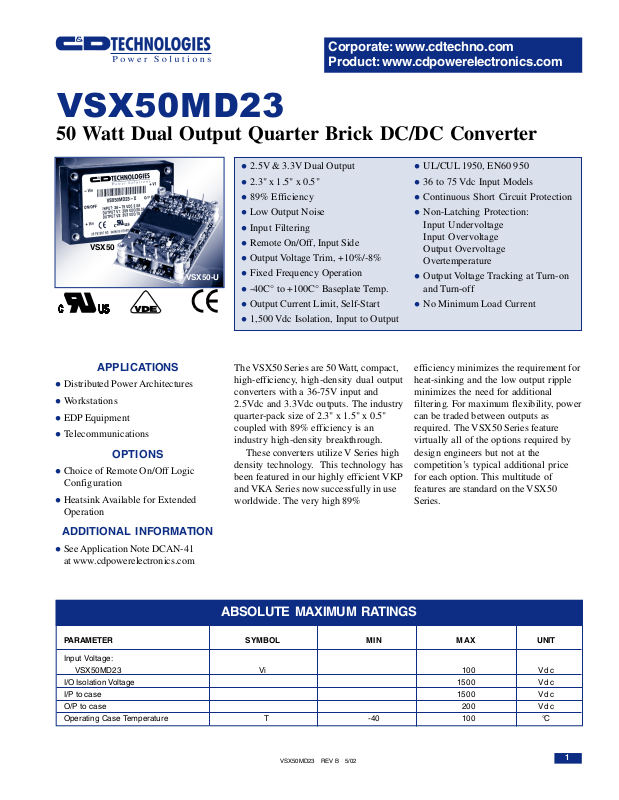

Page 1
Corporate: www.cdtechno.com Product: www.cdpowerelectronics.com
VSX50MD23
50 Watt Dual Output Quarter Brick DC/DC Converter
VSX50
VSX50-U
APPLICATIONS
Distributed Power Architectures
Workstations
EDP Equipment
Telecommunications
OPTIONS
Choice of Remote On/Off Logic
Configuration
Heatsink Available for Extended
Operation
2.5V & 3.3V Dual Output
2.3" x 1.5" x 0.5"
89% Efficiency
Low Output Noise
Remote On/Off, Input Side
Output Voltage Trim, +10%/-8%
Fixed Frequency Operation
-40C° to +100C° Baseplate Temp.
Output Current Limit, Self-Start
1,500 Vdc Isolation, Input to Output
The VSX50 Series are 50 Watt, compact, high-efficiency, high-density dual output converters with a 36-75V input and
2.5Vdc and 3.3Vdc outputs. The industry quarter-pack size of 2.3" x 1.5" x 0.5" coupled with 89% efficiency is an industry high-density breakthrough. These converters utilize V Series high density technology. This technology has been featured in our highly efficient VKP and VKA Series now successfully in use worldwide. The very high 89%
UL/CUL 1950, EN60 950
36 to 75 Vdc Input Models
Continuous Short Circuit Protection
Non-Latching Protection:
Input Undervoltage Input Overvoltage Output Overvoltage Overtemperature
Output Voltage Tracking at Turn-on
and Turn-off
No Minimum Load Current
efficiency minimizes the requirement for heat-sinking and the low output ripple minimizes the need for additional filtering. For maximum flexibility, power can be traded between outputs as required. The VSX50 Series feature virtually all of the options required by design engineers but not at the competition’s typical additional price for each option. This multitude of features are standard on the VSX50 Series.
ADDITIONAL INFORMATION
See Application Note DCAN-41
at www.cdpowerelectronics.com
ABSOLUTE MAXIMUM RATINGS
PARAMETER SYMBOL MIN MAX UNIT
Input Voltage:
VSX50MD23 Vi 100 Vd c
I/O Isolation Voltage 1500 Vdc
I/P to case 1500 Vdc
O/P to case 200 Vdc
Operating Case Temperature T -40 100 °C
Product: www.cdpowerelectronics.com
VSX50MD23 REV B 5/02
1
Page 2
SPECIFICATIONS, ALL MODELS
Specifications are at T
PARAMETER SYMBOL MIN TYP MAX UNITS
INPUT
Voltage Range 36 48 75 VDC Input Reflected Ripple Current Peak - Peak 325 mA Maximum Input Current Vin = 30V, Pout 50W 2 A No Load Input Current 60 mA On/Off Activated Input Current 25 mA Input Undervoltage Lockout
INPUT
Turn On 30 33 36 VDC Turn Off 27 30 33 VDC Input Overvoltage Lockout Turn Off 76 80 84 VDC Turn On 74.5 78.5 82.5 VDC
PARAMETER CONDITIONS MIN TYP MAX UNITS
Output Power 50 Watts Output Efficiency Io1=10A, Io2=7.5A 88 % Set Point Voltage V1 (2.5V) Io1=10A 2.460 2.5 2.530 VDC V2 (3.3V) Io2=7.5A 3.290 3.3 3.360 VDC Output Current Total Module Output V1 (2.5V) Power Should Not 0 20 A V2 (3.3V) Exceed 50 Watts 0 15 A Output Ripple And Noise Voltage 100 MHz BW V1 (2.5V) 60 mV V2 (3.3V) 80 mV Output Adjust Range Both Outputs Will Adjust -8 +10 %
Output Temperature Drift 0.02 0.05 % /°C Line Regulation VIN = 36 to 75 0.10 0.20 %
Load Regulation V1 (2.5V) I1= 0 to 20A, I2=0A 4 % of Nom V2 (3.3V) I1=0A, I2=0 to 15.15A 2.5 % of Nom Load Cross Regulation V1 (2.5V) I1= 0A, I2=0 to 15.15A 1.5 % of Nom V2 (3.3V) I1=0 to 20A, I2=0A 3.5 % of Nom Output Current Limit Inception V1 (2.5V) 21.0 24.0 28.0 A V2 (3.3V) 16.0 17.5 22.0 A Short Circuit Current V1 (2.5V) 19.0 23.0 28.0 A V2 (3.3V) 14.0 18.0 22.0 A Output Overvoltage Set Point (Non-latching independent control loop) V1 (2.5V) 2.70 2.90 3.25 VDC V2 (3.3V) 3.60 3.90 4.30 VDC Transient Response (∆Ιο/t=0.2A/µsec either Settling Time output) Load change of 40% 100 µsec
OUTPUT Under any conditions, the voltage of V1 will always be greater or equal to that of V2.
Peak Deviation of Ιο max at any operating 4 %
Switching Frequency 330 KHz
= +40°C nominal input voltage unless otherwise specified.
CASE
at the Same Time and
by the Same %
I1=10A, I2=7.5A
load up to Ιο max and Pο max
P-P
P-P
Product: www.cdpowerelectronics.com
VSX50MD23 REV B 5/02
2
Page 3
PARAMETER SYMBOL MIN TYP MAX UNITS
ISOLATION SPECIFICATIONS
Input to Output 1500 V Input to Case 1500 VDC Output to Case 200 VDC Resistance Input to Output 10 M Capacitance Input to Output 1000 pF Leakage Current V
FEATURE SPECIFICATIONS
Remote On/Off (open collector equivalent, signal referenced to –V
terminal)
IN
VSX50MD23 Preferred Logic (negative) Logic Low – Module On Logic High – Module Off VSX50MD23-1 Optional Logic (Positive) Logic Low – Module Off Logic High – Module On
GENERAL
Turn On Time From Application of V From Remote On/Off Activation steady state) 3 4 mSecs Weight
VSX50MD23, VSX50MD23-1 67 Grams VSX50MD23-U, VSX50MD23-1U 44 Grams
TEMPERATURE
Operation /Specification Case -40 +100 ° C Storage Case -55 +125 ° C Shutdown Case +105 +115 +125 ° C Shutdown (Hysteresis) 10 ° C Thermal Impedance Free Air 12.2 ° C/Watt (Case to Ambient)
IN
= 240VAC, 60Hz 90 µA, rms
ISO
Von/off Low 0 0.4 VDC Von/off High 2 Open Collector VDC
Ιon/off 200 µ A
(VO within 1% of 7 10 mSecs
DC
Product: www.cdpowerelectronics.com
VSX50MD23 REV B 5/02
3
Page 4

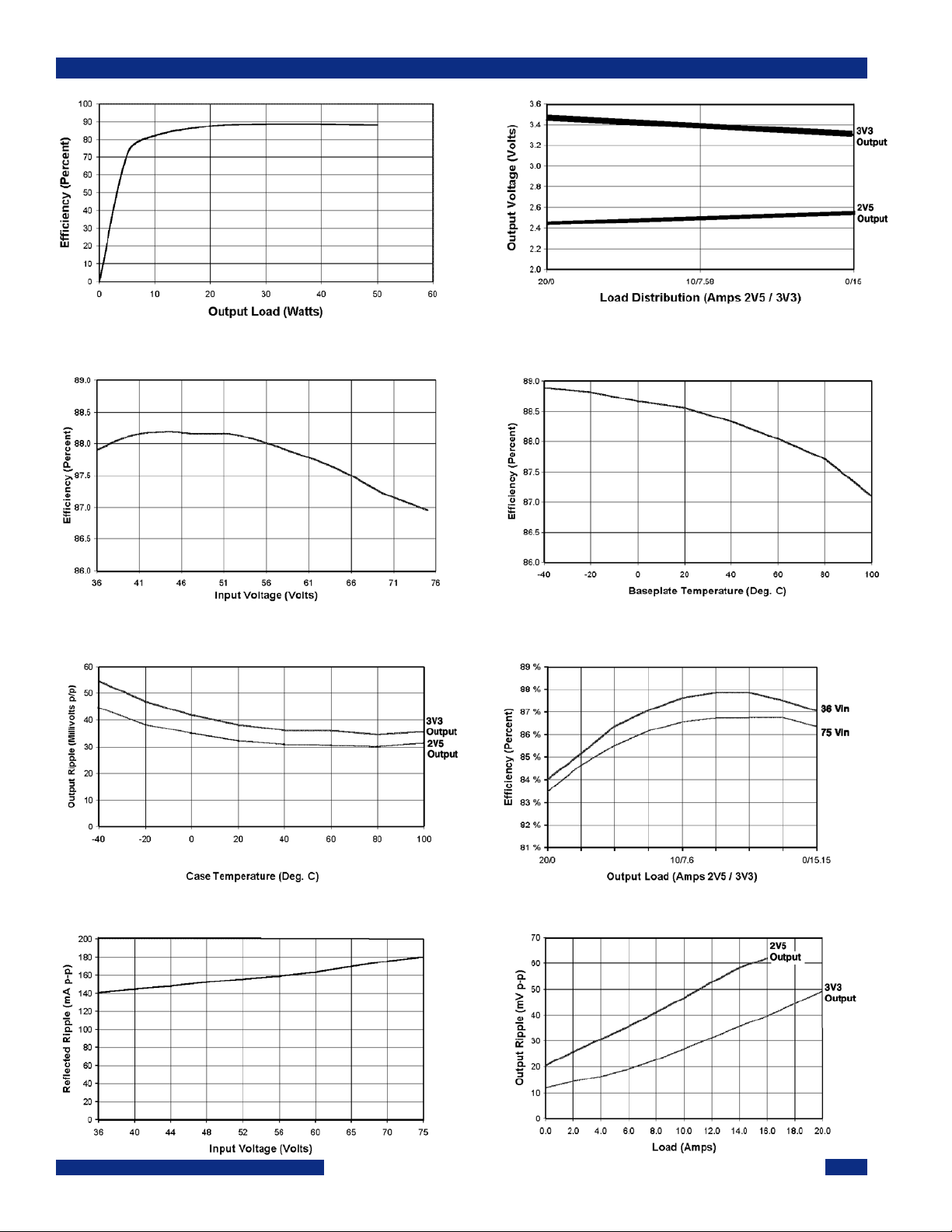

GRAPHS
EFFICIENCY VS. OUTPUT LOAD LOAD REGULATION VS. LOAD DISTRIBUTION
EFFICIENCY VS. INPUT VOLTAGE
OUTPUT VOLTAGE RIPPLE VS. TEMPERATURE AT FULL LOAD
EFFICIENCY VS. BASEPLATE TEMPERATURE
FULL LOAD EFFICIENCY VS. LOAD DISTRIBUTION
REFLECTED RIPPLE VS. INPUT VOLTAGE
Product: www.cdpowerelectronics.com
OUTPUT RIPPLE VS. LOAD
VSX50MD23 REV B 5/02
4
Page 5
Dimensions are in inches (millimeters). Tolerances: x.xx in. + 0.02 in.
x.xxx in.
+0.01 in.

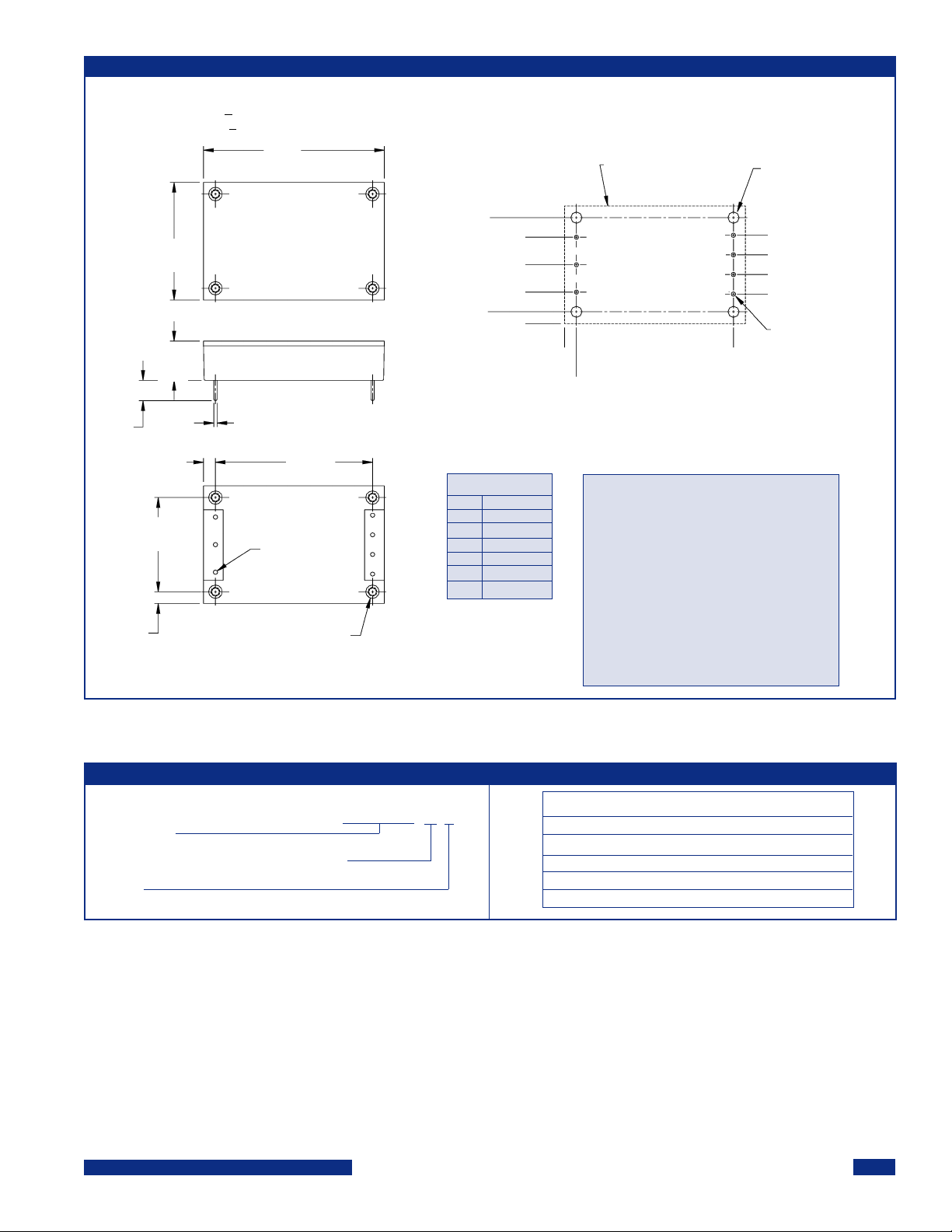

MECHANICAL
.145
(3.68)
(3.81)
.150
1.50
(38.10)
.50
(12.70)
.150
(3.81)
1.200
(30.48)
2.30
(58.42)
0.040 (1.02) 7 PLACES
2.000
(50.80)
PIN 1
M3 THREAD
4 PLACES
.600
(15.24)
.350
(8.89)
.000
.350
(8.89)
.600
(15.24)
.750
(19.05)
Pinout Key
1 +Vin 2 On/Off 3-Vin 4 +2.5 Vout 5 O/P RTN 6 Trim 7 +3.3 Vout
CASE OUTLINE
7
6
5
4
2.000
(50.80)
.150
1
2
3
(3.81)
.000
RECOMMENDED PCB HOLE PATTERN
(VIEW OF PCB, THROUGH UNIT)
NOTES:
1. Marked with: specific model ordered, date
code, job code.
2. MATERIAL: Units are encapsulated in a low thermal resistance molding compound which has excellent chemical resistance and electrical properties in high humidity environments and over a wide operating temperature range. The encapsulant and outer shell of the unit have UL94V-0 ratings. Lead material is solder plated to allow ease of solderability.
3. IMPORTANT: When utilizing the PEM nuts for board mounting, it is required to follow guidelines in application note DCAN-41 available on the web at www.cdpowerelectronics.com.
0.144 (3.66) 4 PLACES
.375 (9.53)
.125 (3.18)
.125 (3.18)
.375 (9.53)
0.051 (1.30) 7 PLACES
ORDERING INFORMATION
To Find Model Number
VSX50MD23 - 1 U
Device Family
VSX50MD23 (Quarter Brick, 50 Watt DC/DC) Logic: No Number = Preferred Logic (Negative); 1 = Optional Logic (Positive) Package No Letter = Encapsulated; U = Unencapsulated
Power Electronics Division, United States
3400 E Britannia Drive, Tucson, Arizona 85706
Tel: 800.547.2537 Fax: 520.295.4160
Any data, prices, descriptions or specifications presented herein are subject to revision by C&D Technologies, Inc. without notice. While such information is believed to be accurate as indicated herein, C&D Technologies, Inc. makes no warranty and hereby disclaims all warranties, express or implied, with regard to the accuracy or completeness of such information. Further, because the product(s) featured herein may be used under conditions beyond its control, C&D Technologies, Inc. hereby disclaims all warranties, either express or implied, concerning the fitness or suitability of such product(s) for any particular use or in any specific application or arising from any course of dealing or usage of trade. The user is solely responsible for determining the suitability of the product(s) featured herein for user’s intended purpose and in user’s specific application. C&D Technologies, Inc. does not warrant or recommend that any of its products be used in any life support or aviation or aerospace applications.
Product: www.cdpowerelectronics.com
VSX50MD23 REV B 5/02
Tel: +44 (0)1908 615232 Fax: +44 (0)1908 617545
Model Numbers
VSX50MD23
VSX50MD23-U
VSX50MD23-1
VSX50MD23-1U
C&D Technologies, (NCL)
Milton Keynes MK14 5BU UK
5
