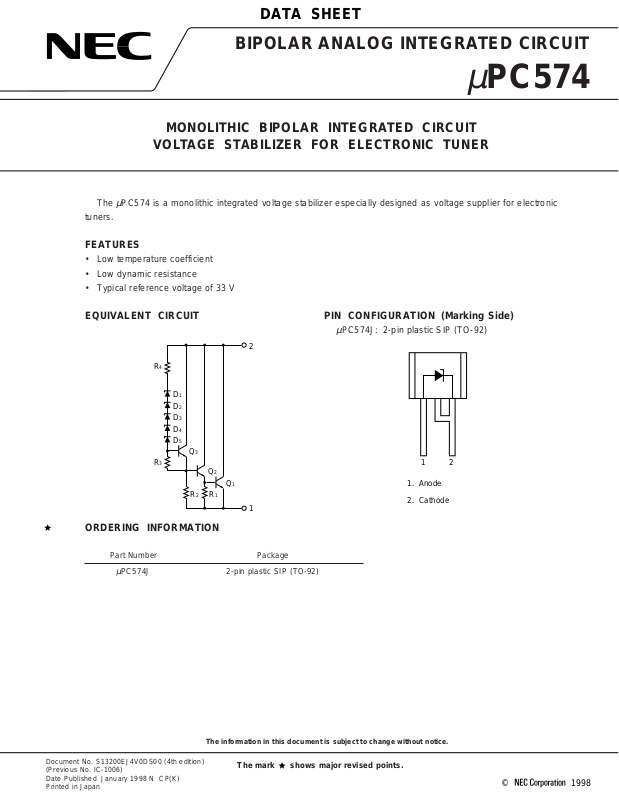

Page 1
DATA SHEET
BIPOLAR ANALOG INTEGRATED CIRCUIT
µ
PC574
MONOLITHIC BIPOLAR INTEGRATED CIRCUIT
VOLTAGE STABILIZER FOR ELECTRONIC TUNER
The µPC574 is a monolithic integrated voltage stabilizer especially designed as voltage supplier for electronic
tuners.
FEATURES
• Low temperature coefficient
• Low dynamic resistance
• Typical reference voltage of 33 V
EQUIVALENT CIRCUIT PIN CONFIGURATION (Marking Side)
µ
PC574J: 2-pin plastic SIP (TO-92)
2
R4
D1
D2
D3
D4
D5
Q
3
R3
Q2
R2 R1
Q1
1. Anode
2. Cathode
1
21
ORDERING INFORMATION
Part Number Package
µ
PC574J 2-pin plastic SIP (TO-92)
Document No. S13200EJ4V0DS00 (4th edition)
(Previous No. IC-1006)
Date Published January 1998 N CP(K)
Printed in Japan
The information in this document is subject to change without notice.
The mark shows major revised points.
©
1998
Page 2
ABSOLUTE MAXIMUM RATINGS (TA = 25°C, unless otherwise specified.)
Parameter Symbol Ratings Unit
Zener Current IZ 10 mA
Power Dissipation PD 200 (TA = 75°C) mW
Operating Ambient Temperature Range TA –20 to +75 °C
Storage Temperature Range Tstg –40 to +125 °C
Caution Exposure to Absolute Maximum Ratings for extended periods may affect device reliability;
exceeding the ratings could cause permanent damage. The parameters apply independently. The
device should be operated within the limits specified under DC and AC Characteristics.
ELECTRICAL CHARACTERISTICS (TA = 25°C, unless otherwise specified.)
Parameter Symbol Conditions MIN. TYP. MAX. Unit
Stabilized Voltage VZ IZ = 5 mA 31 35 V
Stabilized Voltage Temperature
Drift
Dynamic Resistance rZ IZ = 5 mA, f = 1 kHz, IAC = 0.5 mA 10 25 Ω
∆
VZ/∆TIZ = 5 mA, TA = –20 to +75°C –1.0 0 +1.0 mV/°C
µ
PC574
2
Page 3
TYPICAL CHARACTERISTIC (TA = 25°C, unless otherwise specified.)
µ
PC574
Power Dissipation vs.
Ambient Temperature
Free Air
400
300
200
- Power Dissipation - mW
D
100
P
–20 0 25 50 75
A
- Operating Ambient Temperature - °C
T
Stabilized Voltage Temperature
Drift vs. Zener Current
+4
+3
+2
+1
0
–1
–2
–3
–4
/ T - Stabilized Voltage Temperature Drift - mV/°C
Z
0246810
V
∆∆
I
Z
- Zener Current - mA
Dynamic Resistance vs.
Zener Current
80
60
40
I
Z
20
IAC =
10
f = 1 kHz
10
8
6
- Dynamic Resistance - Ω
Z
4
r
2
0246810
Z
- Zener Current - mA
I
Stabilized Voltage Variation
vs. Time
+80
+60
+40
+20
0
–20
–40
–60
- Stabilized Voltage Variation - mV
Z
–80
V
∆
0 5 10 15
IZ = 5 mA
XY – Recoder
+
–
V
20304050
s. min.
t - Time
Free Air
Z
= 5 mA
I
Z
= 33.11 V
V
REF
1 5 10 20 30
Stabilized Voltage Variation &
Supply Voltage Variation vs.
Zener Current
+1.0
Reference IZ = 5 mA
+0.8
+0.6
+0.4
+0.2
R
S
I
Z
A
2
V
V
B
574J
Z
V
1
= 20 kΩ
S
R
= 10 kΩ
S
R
0
–0.2
VZ = VZ (IZ) – VZ (5)
–0.4
–0.6
) × 100 - Stabilized Voltage Variation - %
Z
–0.8
/V
Z
–1.0
∆
0246810
( V
I
Z
- Zener Current - mA
∆
TA = –20 °C
T
A
= +25 °C
T
A
= +75 °C
+30
+20
+10
0
–10
–20
- Supply Voltage Variation - V
–30
B
∆
V
3
Page 4
MEASURING CIRCUITS
(i) Measuring Circuit for Stabilized Voltage VZ
IZ = 5 mA
A
µ
PC574
R
B
E
B
(ii) Measuring Circuit for Dynamic Resistance rZ
IZ
A
PC574
µ
2
1
RB
EB
C
0.1 F
µ
PC574
µ
VV1
2
1
+
µ
50 F
IAC =
I
Z
10
100 Ω
VV2
V
Digital Volt Meter
f = 1 kHz
VZ
IZ
0.5 mA
VV1
5 mA
rZ =
VV
1
0.5 mA
4
Page 5
TYPICAL APPLICATION
µ
PC574
i
2
V
i
PC574
µ
1
AchR
C
15 kΩ 15 kΩ 15 kΩ 15 kΩ Channel setting
Bch Ych Zch
Variable resistor
in case of Ych ONto tuning diodes (VARACTOR)
5
Page 6
PACKAGE DRAWING
2 PIN PLASTIC SIP (TO-92)
A N
M
12
K
Q
µ
PC574
Y
H
F G
NOTE
Each lead centerline is located within 0.25 mm (0.01 inch) of
its true position (T.P.) at maximum material condition.
J
M
V
ITEM MILLIMETERS INCHES
A
F
G
H
J
K
M
N
Q
U
V
Y 15.0±0.7
U
5.2 MAX.
0.5±0.1
0.25
2.54
1.33 MAX.
1.8 MIN.
5.5 MAX.
4.2 MAX.
8.0 MAX.
2.8 MAX.
0.5±0.1
0.205 MAX.
+0.004
0.02
–0.005
0.01
0.1
0.053 MAX.
0.07 MIN.
0.217 MAX.
0.166 MAX.
0.315 MAX.
0.111 MAX.
+0.004
0.02
–0.005
+0.028
0.591
–0.029
P2J-254B-1
6
Page 7
µ
PC574
RECOMMENDED SOLDERING CONDITIONS
When soldering this product, it is highly recommended to observe the conditions as shown below. If other soldering
processes are used, or if the soldering is performed under different conditions, please make sure to consult with our
sales offices.
For more details, refer to our document “SEMICONDUCTOR DEVICE MOUNTING TECHNOLOGY MANUAL”
(C10535E).
Through-hole device
µ
PC574J: 2-pin plastic SIP (TO-92)
Process Conditions
Wave soldering Solder temperature: 260°C or below,
(only to leads) Flow time: 10 seconds or less.
Partial heating method Pin temperature: 300°C or below,
Heat time: 3 seconds or less (per each lead.)
Caution For through-hole device, the wave soldering process must be applied only to leads, and make
sure that the package body does not get jet soldered.
7
