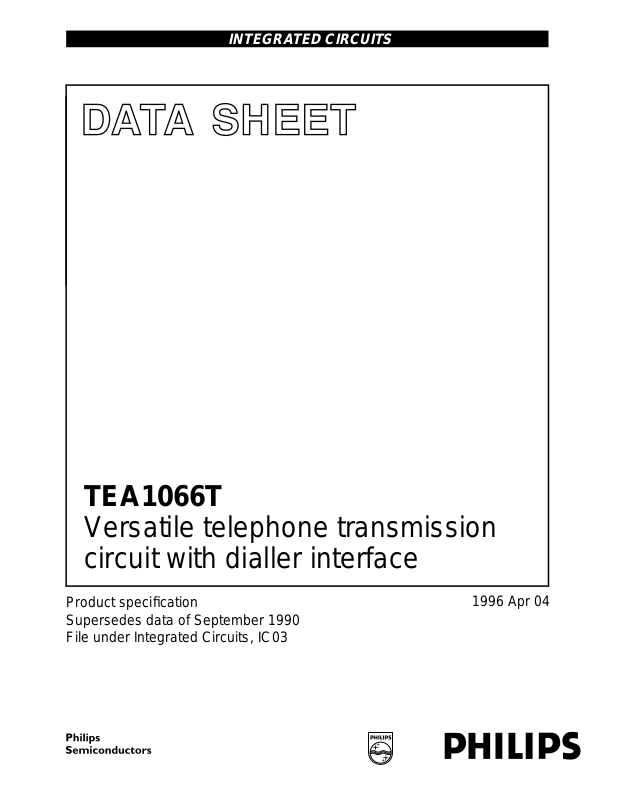

INTEGRATED CIRCUITS

DATA SH EET

TEA1066T

Versatile telephone transmission circuit with dialler interface

Product speciﬁcation Supersedes data of September 1990 File under Integrated Circuits, IC03

1996 Apr 04

Page 2

Philips Semiconductors Product speciﬁcation

Versatile telephone transmission circuit

TEA1066T

with dialler interface

FEATURES

• Voltage regulator with adjustable static resistance

• Provides supply for external circuitry

• Symmetrical low-impedance inputs for dynamic and

magnetic microphones

• Symmetrical high-impedance inputs for piezoelectric microphone

• Asymmetrical high-impedance input for electret microphone

• Dual-tone multi-frequency (DTMF) signal input with confidence tone

• Mute input for pulse or DTMF dialling

• Power down input for pulse dial or register recall

QUICK REFERENCE DATA

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V I I

line CC

line voltage I line current normal operation 10 − 140 mA internal supply current power down input LOW − 0.96 1.3 mA

supply voltage for peripherals I

voltage gain range for microphone ampliﬁer

low impedance inputs (pins 7 and 9) 44 − 60 dB high impedance inputs (pins 8 and 10) 30 − 46 dB receiving amplifier 17 − 39 dB

amb

operating ambient temperature −25 − +75 °C

Line loss compensation

∆G V R

exch

gain control 5.5 5.9 6.3 dB exchange supply voltage 24 − 60 V exchange feeding bridge resistance 400 − 1000 Ω

• Receiving amplifier for magnetic, dynamic or piezoelectric earpieces

• Large gain setting range on microphone and earpiece amplifiers

• Line loss compensation facility, line current dependent (microphone and earpiece amplifiers)

• Gain control adaptable to exchange supply

• DC line voltage adjustment facility.

GENERAL DESCRIPTION

The TEA1066T is a bipolar integrated circuit that performs all speech and line interface functions required in fully electronic telephone sets. The circuit performs electronic switching between dialling and speech.

= 15 mA 4.25 4.45 4.65 V

line

power down input HIGH − 55 82 µA

= 15 mA; MUTE

line

2.8 3.05 − V

input HIGH; Ip= 1.2 mA I

= 15 mA; MUTE

line

2.5 − − V

input HIGH; Ip= 1.7 mA

ORDERING INFORMATION

TYPE

NUMBER

TEA1066T SO20

NAME DESCRIPTION VERSION

plastic small outline package; 20 leads; body width 7.5 mm SOT163-1

1996 Apr 04 2

PACKAGE

Page 3

Philips Semiconductors Product speciﬁcation

Fig.1 Block diagram.

The blocks marked ‘dB’ are attenuators.

handbook, full pagewidth

MEA009 - 1

SUPPLY AND REFERENCE

AGC

CIRCUIT

SLPESTABAGCREGV

CURRENT

REFERENCE

18 1912

17 1

6 5 4

11 20

MICL+ MICH+ MICH−

MICL−

DTMF

MUTE

TEA1066T

GAR

GAS1

GAS2

QR+ QR−

Versatile telephone transmission circuit with dialler interface

BLOCK DIAGRAM

TEA1066T

1996 Apr 04 3

Page 4

Philips Semiconductors Product speciﬁcation

Fig.2 Pin configuration.

handbook, halfpage

1 2 3 4 5 6 7 8 9

20 19 18 17 16 15 14 13 12 11

MBH120

TEA1066T

GAS1 GAS2

QR− QR+

GAR

MICL−

MICH−

MICL+

SLPE AGC

REG V

DTMF

MUTE

STAB

MICH+

Versatile telephone transmission circuit with dialler interface

PINNING

SYMBOL PIN DESCRIPTION

LN 1 positive line terminal GAS1 2 gain adjustment transmitting

ampliﬁer

GAS2 3 gain adjustment transmitting

ampliﬁer QR− 4 inverting output receiving ampliﬁer QR+ 5 non-inverting output receiving

ampliﬁer GAR 6 gain adjustment receiving ampliﬁer MICL− 7 inverting microphone input, low

impedance MICH− 8 inverting microphone input, high

impedance MICL+ 9 non-inverting microphone input, low

impedance MICH+ 10 non-inverting microphone input,

high impedance STAB 11 current stabilizer V

IR 13 receiving ampliﬁer input PD 14 power-down input DTMF 15 dual-tone multi-frequency input MUTE 16 mute input V

REG 18 voltage regulator decoupling AGC 19 automatic gain control input SLPE 20 slope (DC resistance) adjustment

FUNCTIONAL DESCRIPTION Supplies: VCC, LN, SLPE, REG and STAB

Power for the TEA1066T and its peripheral circuits is usually obtained from the telephone line. The TEA1066T develops its own supply voltage at V voltage drop. The supply voltage VCC may also be used to supply external peripheral circuits, e.g. dialling and control circuits.

The supply has to be decoupled by connecting a smoothing capacitor between VCC and VEE; the internal voltage regulator has to be decoupled by a capacitor from REG to VEE. An internal current stabilizer is set by a resistor of 3.6 kΩ between STAB and VEE.

12 negative line terminal

17 supply voltage decoupling

and regulates its

TEA1066T

The DC current flowing into the set is determined by the exchange supply voltage (V resistance (R (R

) and the DC voltage on the subscriber set

line

), the DC resistance of the telephone line

exch

(see Fig.7). If the line current I

exceeds the current ICC+ 0.5 mA

line

required by the circuit itself (approximately 1 mA) plus the current Ip required by the peripheral circuits connected to VCC, then the voltage regulator diverts the excess current via LN.

), the feeding bridge

exch

1996 Apr 04 4

Page 5

Philips Semiconductors Product speciﬁcation

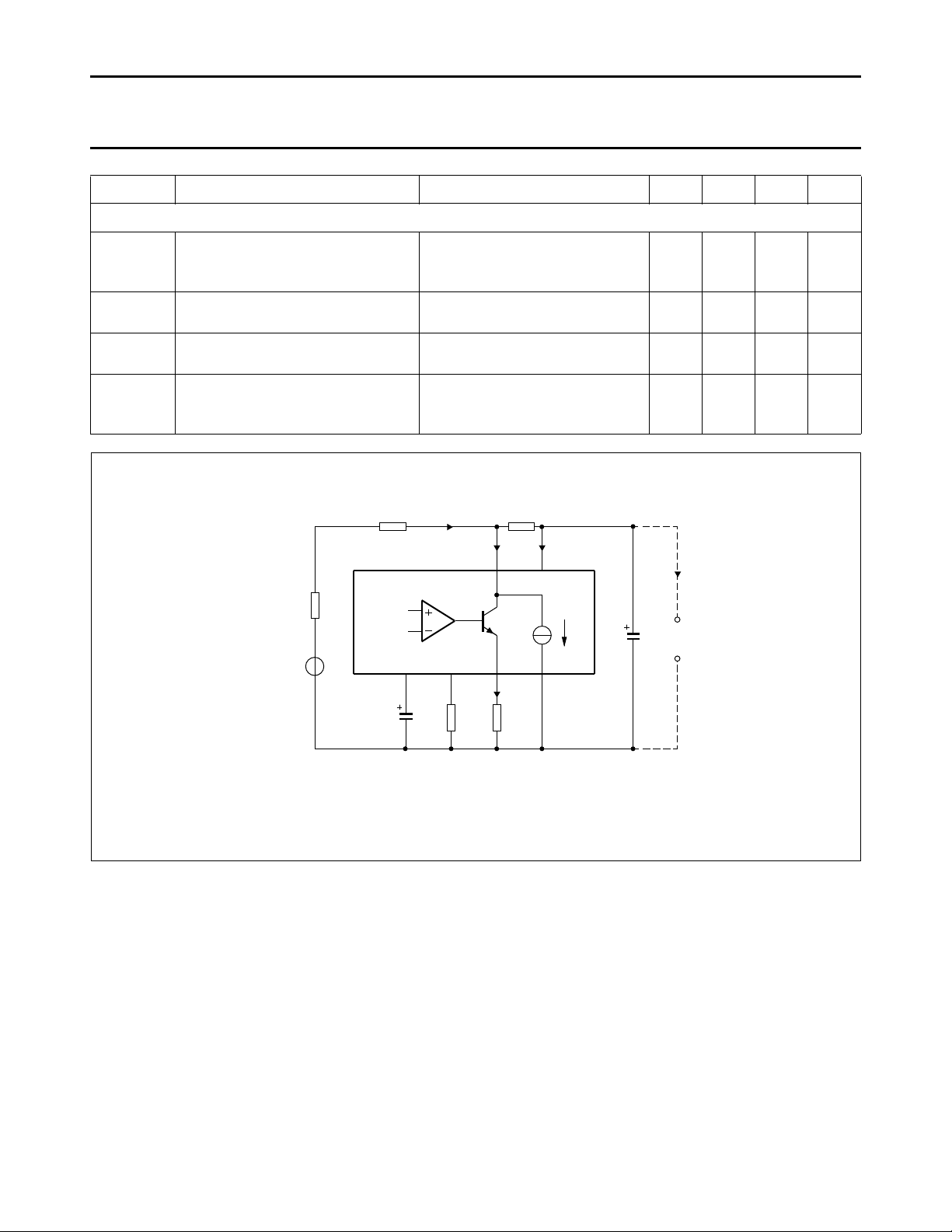

Fig.3 Equivalent impedance circuit.

Rp= 17.5kΩ Leq= C3× R9 × R

handbook, halfpage

REG

MBA454

ref

R9 20 Ω

4.7 µF C1100 µF

Versatile telephone transmission circuit with dialler interface

The voltage regulator adjusts the average voltage on LN to:

VLN= V

where V compensated reference voltage of 4.2 V and R9 is an external resistor connected between SLPE and VEE.

The preferred value for R9 is 20 Ω. Changing the value of R9 will also affect microphone gain, DTMF gain, gain control characteristics, side-tone level and the maximum output swing on LN.

Under normal conditions, when I the static behaviour of the circuit is that of a 4.2 V regulator diode with an internal resistance equal to that of R9. In the audio frequency range, the dynamic impedance is largely determined by R1 (see Fig.3).

+ I

ref

+ (I

ref

is an internally generated temperature

ref

× R9

SLPE

− ICC− 0.5 × 10−3A − Ip) × R9

line

>> ICC+ 0.5 mA + Ip,

SLPE

TEA1066T

and > 3 V, this being the minimum supply voltage for most CMOS circuits, including voltage drop for an enable diode. If MUTE is LOW, the available current is further reduced when the receiving amplifier is driven.

Microphone inputs MICL+, MICH+, MICL− and MICH− and ampliﬁcation adjustment connections GAS1 and GAS2

The TEA1066T has symmetrical microphone inputs. The MICL+ and MICL− inputs are intended for low-sensitivity, low-impedance dynamic or magnetic microphones. The input impedance is 8.2 kΩ (2 × 4.1 kΩ) and its voltage gain is typically 52 dB. The MICH+ and MICH− inputs are intended for a piezoelectric microphone or an electret microphone with a built-in FET source follower. Its input impedance is 40.8 kΩ (2 × 20.4 kΩ) and its voltage gain is typical 38 dB.

The arrangements with the microphone types mentioned are shown in Fig.9.

The internal reference voltage can be adjusted by means of an external resistor RVA. This resistor, connected between LN and REG (pins 1 and 18), will decrease the internal reference voltage; when connected between REG and SLPE (pins 18 and 20) it will increase the internal reference voltage.

Current Ip, available from VCC for supplying peripheral circuits, depends on external components and on the line current. Figure 8 shows this current for VCC> 2.2 V

The gain of the microphone amplifier in both types can be adjusted over a range of ±8 dB to suit the sensitivity of the transducer used. The gain is proportional to external resistor R7 connected between GAS1 and GAS2.

An external capacitor C6 of 100 pF between GAS1 and SLPE is required to ensure stability. A larger value may be chosen to obtain a first-order low-pass filter. The cut-off frequency corresponds with the time constant R7 × C6.

Mute input MUTE

A HIGH level at MUTE enables the DTMF input and inhibits the microphone inputs and the receiving amplifier; a LOW level or an open circuit has the reverse effect. Switching the mute input will cause negligible clicks at the earpiece outputs and on the line.

Dual-tone multi frequency input DTMF

When the DTMF input is enabled, dialling tones may be sent onto the line. The voltage gain from DTMF to LN is typically 25.5 dB and varies with R7 in the same way as the gain of the microphone amplifier. The signalling tones can be heard in the earpiece at a low level (confidence tone).

Receiving ampliﬁer: IR, QR+, QR− and GAR

The receiving amplifier has one input IR and two complementary outputs, a non-inverting output QR+ and an inverting output QR−.

1996 Apr 04 5

Page 6

Philips Semiconductors Product speciﬁcation

× R1 R3 R8//Z

bal

[ ]+( )=

( )⁄ Z

lineZline

R1+( )⁄=

Versatile telephone transmission circuit with dialler interface

These outputs may be used for single-ended or for differential drive, depending on the sensitivity and type of earpiece used (see Fig.10). Gain from IR to QR+ is typically 25 dB. This will be sufficient for low-impedance magnetic or dynamic earpieces, which are suited for single-ended drive. By using both outputs (differential drive), the gain is increased by 6 dB and differential drive becomes possible. This feature can be used when the earpiece impedance exceeds 450 Ω (high-impedance dynamic, magnetic or piezoelectric earpieces).

The output voltage of the receiving amplifier is specified for continuous-wave drive. The maximum output voltage will be higher under speech conditions, where the ratio of peak to RMS value is higher.

The receiving amplifier gain can be adjusted over a range of ±8 dB to suit the sensitivity of the transducer used. The gain is set by the external resistor R4 connected between GAR and QR+.

Two external capacitors, C4 = 100 pF and C7 = 10 × C4 = 1 nF, are necessary to ensure stability. A larger value of C4 may be chosen to obtain a first-order, low-pass filter. The ‘cut-off’ frequency corresponds with the time constant R4 × C4.

Automatic gain control input AGC

Automatic line loss compensation is obtained by connecting a resistor R6 between AGC and VEE. This automatic gain control varies the microphone amplifier gain and the receiving amplifier gain in accordance with the DC line current.

The control range is 6 dB. This corresponds with a line length of 5 km for a 0.5 mm diameter copper twisted-pair cable with a DC resistance of 176 Ω/km and an average attenuation of 1.2 dB/km.

Resistor R6 should be chosen in accordance with the exchange supply voltage and its feeding bridge resistance (see Fig.11 and Table 1). Different values of R6 give the same ratio of line currents for start and end of the control range.

If automatic line loss compensation is not required, AGC may be left open. The amplifiers then all give their maximum gain as specified.

Power-down input PD

During pulse dialling or register recall (timed loop break) the telephone line is interrupted, as a consequence it provides no supply for the transmission circuit and the peripherals connected to VCC. These gaps have to be

TEA1066T

bridged by the charge in the smoothing capacitor C1. The requirements on this capacitor are relaxed by applying a HIGH level to the PD input during the time of the loop break, which reduces the supply current from typically 1 mA to typically 55 µA.

A HIGH level at PD further disconnects the capacitor at REG, with the effect that the voltage stabilizer will have no switch-on delay after line interruptions. This results in no contribution of the IC to the current waveform during pulse dialling or register recall. When this facility is not required PD may be left open.

Side-tone suppression

Suppression of the transmitted signal in the earpiece is obtained by the anti-side-tone network consisting of R1//Z compensation is obtained when the following conditions are fulfilled:

R9 R2 Z

If fixed values are chosen for R1, R2, R3, and R9, then condition (1) will always be fulfilled, provided that R8//Z suppression, condition (2) has to be fulfilled, resulting in:

Z k = (R8/R1).

Scale factor k (dependent on the value of R8) must be chosen to meet the following criteria:

1. Compatibility with a standard capacitor from the E6 or

2. Z

3. Z In practice, Z

type; consequently, an average value has to be chosen for Z with which Z

Example: The balanced line impedance Z the optimum suppression is preset can be calculated by:

Assume Z 5 km line of 0.5 mm diameter, copper, twisted-pair cable matched to 600 Ω (176 Ω/km; 38 nF/km). When k = 0.64, then R8 = 390 Ω; Z

The anti-side-tone network for the TEA1060 family shown in Fig.4 attenuates the signal received from the line by 32 dB before it enters the receiving amplifier.

, R2, R3, R8, R9 and Z

line

balZbal

= (R8/R1) Z

bal

E12 range for Z

. The suppression further depends on the accuracy

bal

R8+

 < R3. To obtain optimum side-tone

bal

= k × Z

line

bal

//R8 << R3

bal

+ R8 >> R9.

bal

varies greatly with line length and cable

line

/k equals the average line impedance.

bal

= 210 Ω + (1265 Ω/140 nF), representing a

line

= 130 Ω + (820 Ω//220 nF).

bal

(see Fig.14). Maximum

bal

, where k is a scale factor:

line

 at which

bal

(1) (2)

1996 Apr 04 6

Page 7

Philips Semiconductors Product speciﬁcation

Fig.4 Equivalent circuit of TEA1060 family anti-side-tone bridge.

handbook, full pagewidth

MSA500 - 1

SLPE

line

bal

R1 R2

Fig.5 Equivalent circuit of an anti-side-tone network in a Wheatstone bridge configuration.

handbook, full pagewidth

MSA501 - 1

SLPE

line

bal

Versatile telephone transmission circuit with dialler interface

The attenuation is almost constant over the whole audio frequency range. Figure 5 shows a conventional Wheatstone bridge anti-side-tone circuit that can be used as an alternative. Both bridge types can be used with either resistive or complex set impedances.

The anti-side-tone network as used in the standard application (see Fig.13) attenuates the signal from the line

TEA1066T

with 32 dB. The attenuation is nearly flat over the audio-frequency range.

Instead of the previously-described special TEA1066 bridge, the conventional Wheatstone bridge configuration can be used as an alternative anti-side-tone circuit. Both bridge types can be used with either a resistive set impedance or a complex set impedance.

1996 Apr 04 7

Page 8

Philips Semiconductors Product speciﬁcation

Versatile telephone transmission circuit

TEA1066T

with dialler interface

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

LN(R)

LN(RM)

line

tot

stg

amb

Notes

1. Mostly dependent on the maximum required T

2. Calculated for the maximum ambient temperature specified, T 125 °C.

positive continuous line voltage − 12 V repetitive line voltage during switch-on or

− 13.2 V

line interruption repetitive peak line voltage for a 1 ms pulse

per 5 s

R9 = 20 Ω; R10 = 13 Ω; (Fig.10)

− 28 V

line current R9= 20 Ω; note 1 − 140 mA voltage on any other pin VEE− 0.7 VCC+ 0.7 V total power dissipation R9= 20 Ω; note 2 − 555 mW IC storage temperature −40 +125 °C operating ambient temperature −25 +75 °C junction temperature − 125 °C

and on the voltage between LN and SLPE (see Fig.6).

amb

= 75 °C and a maximum junction temperature of

amb

THERMAL CHARACTERISTICS

SYMBOL PARAMETER VALUE UNIT

th j-a

thermal resistance from junction to ambient in free air mounted on glass epoxy

90 K/W

board 41 × 19 × 1.5 mm

1996 Apr 04 8

Page 9

Philips Semiconductors Product speciﬁcation

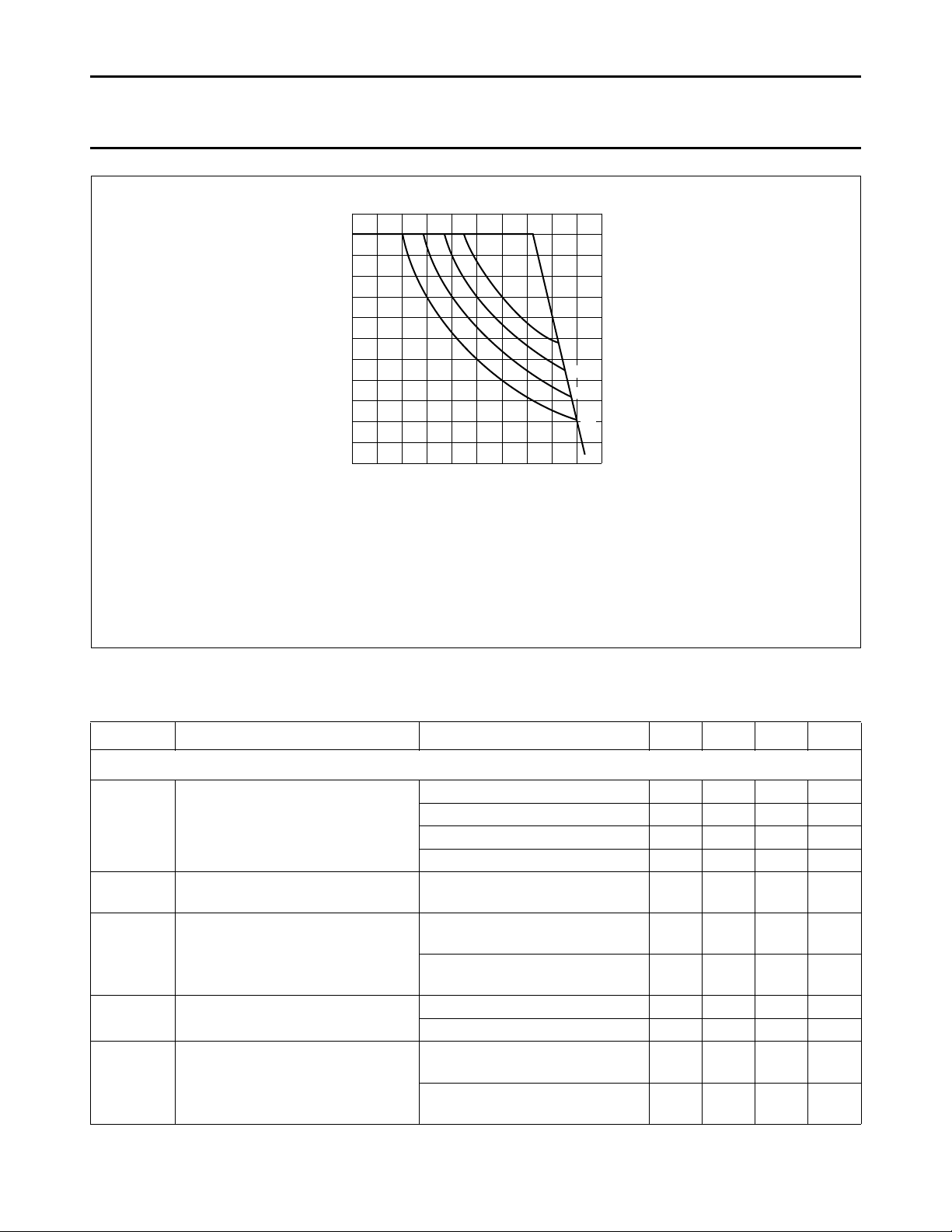

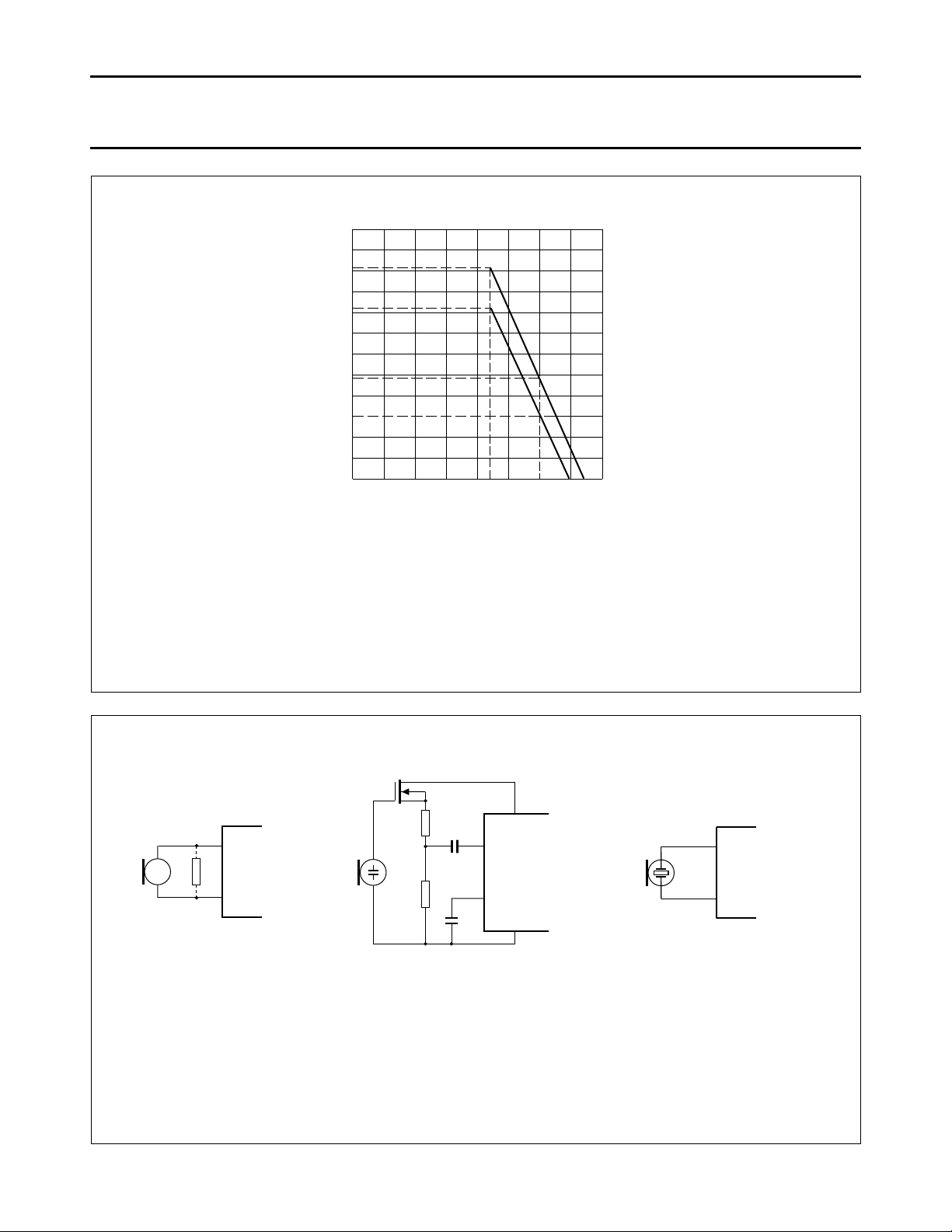

Fig.6 Safe operating area.

handbook, halfpage

2 12

150

110

MBH125

4 6 8 10

130

LN

(mA)

(1)

(2)

(3)

(4)

VLN − V

SLPE

(V)

(1) T

amb

= 45 °C; P

tot

= 888 mW.

(2) T

amb

= 55 °C; P

tot

= 777 mW.

(3) T

amb

= 65 °C; P

tot

= 666 mW.

(4) T

amb

= 75 °C; P

tot

= 555 mW.

Versatile telephone transmission circuit with dialler interface

TEA1066T

CHARACTERISTICS

= 10 to 100 mA; VEE= 0 V; f = 800 Hz; R9 = 20 Ω; T

line

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supplies: LN and VCC (pins 1 and 17)

∆VLN/∆T voltage drop variation with

voltage drop over circuit between LN and V

temperature

voltage drop over circuit between LN and VEE with external resistor R

supply current PD = LOW; VCC= 2.8 V − 0.96 1.30 mA

supply voltage available for peripheral circuits

1996 Apr 04 9

= 25 °C; unless otherwise speciﬁed.

amb

line

RVA= R1-18 = 68 kΩ I

line

RVA= R18-20 = 39 kΩ

= 5 mA 3.95 4.25 4.55 V = 15 mA 4.25 4.45 4.65 V = 100 mA 5.40 6.10 6.70 V = 140 mA − − 7.50 V = 15 mA −4 −2 0 mV/K

= 15 mA;

3.50 3.80 4.05 V

4.70 5 5.30 V

PD = HIGH; VCC= 2.8 V − 55 82 µA I

= 15 mA; MUTE = HIGH;

line

Ip= 0 mA I

line

= 15 mA; MUTE = HIGH;

3.50 3.75 − V

2.80 3.05 − V

Ip= 1.2 mA

Page 10

Philips Semiconductors Product speciﬁcation

Versatile telephone transmission circuit

TEA1066T

with dialler interface

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Microphone inputs MICL+ and MICL−; MICH+ and MICH−

Zi input impedance

MICL+ (pin 9); MICL− (pin 7) 3.3 4.1 4.9 kΩ

MICH+ (pin 10); MICH− (pin 8) 16.5 20.4 24.5 kΩ CMRR common mode rejection ratio − 82 − dB G

∆G

Dual-tone multi-frequency input DTMF (pin 15)

Zi input impedance 16.8 20.7 24.6 kΩ G

∆G

Gain adjustment connections GAS1 and GAS2 (pins 2 and 3)

∆G

voltage gain I

= 15 mA; R7 = 68 Ω

line

MICL+/MICL− to LN 51 52 53 dB

MICH+/MICH− to LN 37 38 39 dB

gain variation with frequency at

with respect to 800 Hz −0.5 ±0.2 +0.5 dB

f = 300 Hz and 3400 Hz gain variation with temperature at

= −25 °C and +75 °C

amb

voltage gain from DTMF to LN I gain variation with frequency at

= 50 mA; with respect to

line

− ±0.2 − dB

800 Hz

= 15 mA; R7= 68 kΩ 24.5 25.5 26.5 dB

line

with respect to 800 Hz −0.5 ±0.2 +0.5 dB

f = 300 Hz and 3400 Hz gain variation with temperature at

= −25 °C and +75 °C

amb

gain variation with R7, transmitting

= 50 mA; with respect

line

to 25 °C

− ±0.2 − dB

−8 − +8 dB

ampliﬁer

Transmitting ampliﬁer output LN (pin 1)

LN(rms)

no(rms)

output voltage (RMS value) I

noise output voltage (RMS value) I

= 15 mA; THD = 2% 1.9 2.3 − V

line

= 15 mA; THD = 10% − 2.6 − V

line

= 15 mA; R7 = 68 kΩ;

line

− −70 − dBmp microphone inputs open; psophometrically weighted (P53 curve)

Receiving ampliﬁer input IR (pin 13)

Z

 input impedance 17 21 25 kΩ

Receiving ampliﬁer outputs QR+ and QR− (pins 5 and 4) Zo output impedance single-ended − 4 − Ω

voltage gain from IR to QR+ or QR− I

= 15 mA; R4 = 100 kΩ

line

single-ended; RL= 300 Ω 24 25 26 dB differential; RL= 600 Ω 30 31 32 dB

∆G

gain variation with frequency at

with respect to 800 Hz −0.5 ±0.2 +0.5 dB

f = 300 Hz and 3400 Hz

∆G

gain variation with temperature at T

= −25 °C and +75 °C

amb

= 50 mA; with respect to

line

25 °C

− ±0.2 − dB

1996 Apr 04 10

Page 11

Philips Semiconductors Product speciﬁcation

Versatile telephone transmission circuit

TEA1066T

with dialler interface

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

o(rms)

no(rms)

Gain adjustment GAR (pin 6)

∆G

output voltage (RMS value) sine-wave drive; I

Ip= 0 mA; THD = 2%; R4 = 100 kΩ

single-ended; RL= 150 Ω 0.30 0.38 − V single-ended; RL= 450 Ω 0.40 0.52 − V differential; CL= 47 nF;

= 100 Ω; f = 3400 Hz

series

noise output voltage (RMS value) I

= 15 mA; R4 = 100 kΩ;

line

pin 13 (IR) open; psophometrically weighted (P53 curve)

single-ended; RL= 300 Ω − 50 − µV differential; RL= 600 Ω − 100 − µV

gain variation with R4 connected between pin 6 and pin 5 receiving ampliﬁer

= 15 mA;

line

0.80 1.0 − V

−8 − +8 dB

MUTE input (pin 16)

MUTE

∆G

HIGH level input voltage 1.50 − V LOW level input voltage − − 0.3 V input current − 5 10 µA voltage gain reduction between

MICL+ (pin 9) and MICL− (pin 7) to LN (pin 1)

voltage gain from DTMF to QR+ or QR−

Power-down input PD (pin 14)

HIGH level input voltage 1.5 − V LOW level input voltage − − 0.3 V input current in power-down

condition

MUTE = HIGH − 70 − dB

MUTE = HIGH; R4 = 100 kΩ;

−21 −19 −17 dB single-ended; RL= 300 Ω

− 5 10 µA

1996 Apr 04 11

Page 12

Philips Semiconductors Product speciﬁcation

Fig.7 Supply arrangement.

handbook, full pagewidth

MBH123

SLPESTABREG

1 17

20 1218 11

TEA1066T

SLPE

peripheral

circuits

0.5 mA

SLPE

+ 0.5 mA

line

exch

line

C3 R5 R9

Versatile telephone transmission circuit

TEA1066T

with dialler interface

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Automatic gain control input AGC (pin 19)

∆G

line(H)

line(L)

∆G

gain control range from IR to QR+/QR− and from MIC+/MIC− to

= 70 mA; R6 = 110 kΩ

line

between AGC and V

LN highest line current for maximum

gain

R6 = 110 kΩ between AGC and V

lowest line current for minimum gain R6 = 110 kΩ between AGC and

voltage gain variation between I

= 35 mA; R6 = 110 kΩ

line

between AGC and V

= 15 mA and

line

−5.5 −5.9 −6.3 dB

− 23 − mA

− 61 − mA

−1.0 −1.5 −2.0 dB

1996 Apr 04 12

Page 13

Philips Semiconductors Product speciﬁcation

Fig.8 Typical current Ip available from VCC for external (peripheral) circuitry with VCC> 2.2 V and VCC> 3 V.

Curves (1) and (3) are valid when the receiving amplifier is not driven or when MUTE = HIGH. Curves (2) and (4) are valid when MUTE = LOW and the receiving amplifier is driven, V

o(rms)

= 150 mV, RL= 150 Ω (asymmetrical). I

line

= 15 mA; VLN= 4.45 V; R1 = 620 Ω and R9 = 20 Ω. (1) Ip= 2.55 mA. (2) Ip= 2.1 mA. (3) Ip= 1.2 mA. (4) Ip= 0.75 mA.

handbook, halfpage

0 1

(1)

(2)

(3)

(4)

p

(mA)

2 4

VCC (V)

MBH124

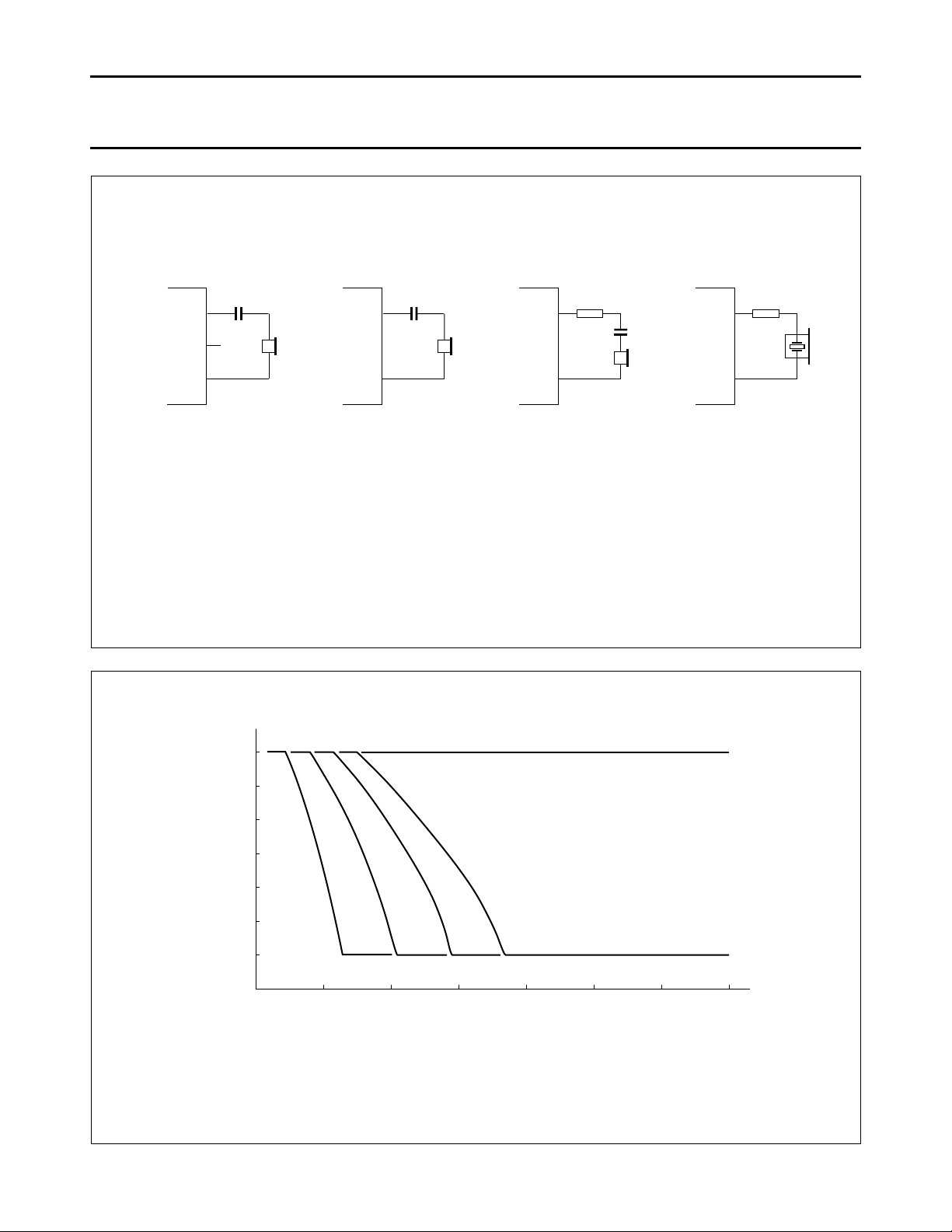

Fig.9 Alternative microphone arrangements.

(1) May be connected to lower the terminating impedance.

a. Magnetic or dynamic

microphone.

b. Electret microphone. c. piezoelectric microphone.

handbook, full pagewidth

MBH121

MICH+

MICH−

(1)

MICH−

MICH+

MICL−

MICL+

Versatile telephone transmission circuit with dialler interface

TEA1066T

1996 Apr 04 13

Page 14

Philips Semiconductors Product speciﬁcation

Fig.10 Alternative receiver arrangements.

a. Dynamic earpiece

with less than 450 Ω

impedance.

b. Dynamic earpiece with

more than 450 Ω

impedance.

c. Magnetic earpiece with more than 450 Ω

impedance.

d. piezoelectric

earpiece.

handbook, full pagewidth

(1)

MBH122

(2)

QR+

QR−

QR+

QR−

QR+

QR−

QR+

QR−

(1) May be connected to prevent distortion (inductive load). (2) Required to increase the phase margin (capacitive load).

Fig.11 Variation of gain with line current, with R6 as a parameter.

handbook, full pagewidth

MBH126

−6

−4

−2

140120100806040200

78.7 kΩ48.7 kΩ

110 kΩ 140 kΩ

R6 =

∞

line

(mA)

∆G

v

(dB)

R9 = 20 Ω.

Versatile telephone transmission circuit with dialler interface

TEA1066T

1996 Apr 04 14

Page 15

Philips Semiconductors Product speciﬁcation

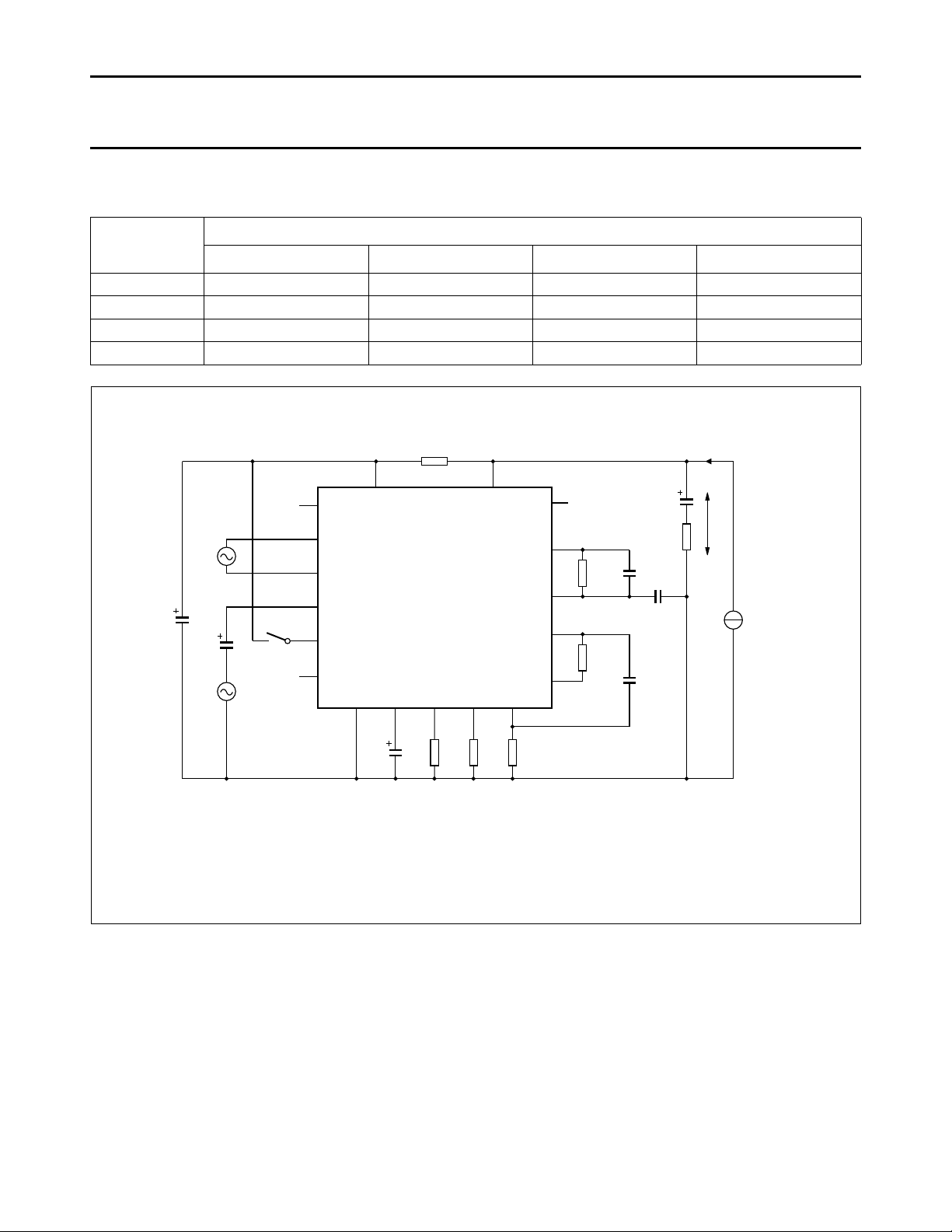

Fig.12 Test circuit for defining voltage gain of MICL+, MICL−, MICH+ and MICH− DTMF inputs.

Voltage gain is defined as: Gv= 20 log Vo/Vi. For measuring the gain from MICL+, MICL− or MICH+ and MICH−, the MUTE input should be LOW or open; for measuring the DTMF input, MUTE should be HIGH. Inputs not under test should be open.

handbook, full pagewidth

line

MBH127

R5

3.6 kΩ

R9 20 Ω

SLPESTABAGCREG

12 18 1119

GAS2

GAS1

R7 68 kΩ

R4 100 kΩ

C4 100 pF

C7 1 nF

C6

100 pF

100 µF

600 Ω

17 1

620 Ω

10 to 140 mA

10 µF

100 µF

7, 8

9, 10

MICL+/MICH+

MICL−/MICH−

DTMF

MUTE

TEA1066T

QR+

GAR

QR−

C3

4.7 µF

Versatile telephone transmission circuit

TEA1066T

with dialler interface

Table 1 Values of resistor R6 for optimum line loss compensation, for various usual values of exchange supply

voltage V

(V)

exch

24 61.9 48.7 X X 36 100 78.7 68 60.4 48 140 110 93.1 82 60 X X 120 102

and exchange feeding bridge resistance R

exch

= 400 Ω R

exch

= 600 Ω R

exch

; R9 = 20 Ω

exch

R6 (kΩ)

= 800 Ω R

exch

= 1000 Ω

1996 Apr 04 15

Page 16

Philips Semiconductors Product speciﬁcation

Fig.13 Test circuit for defining voltage gain of the receiving amplifier.

Voltage gain is defined as: Gv= 20 log Vo/Vi.

handbook, full pagewidth

MBH128

C6 100 pF

17 1

line

10 to 140 mA

C4 100 pF

C7 1 nF

R5

3.6 kΩ

R9 20 Ω

R4 100 kΩ

100 µF

600 Ω

620 Ω

10 µF

100 µF

C3

4.7 µF

SLPESTABAGCREG

12 18 1119

GAS2

GAS1

7, 8

9, 10

MICL+/MICH+

MICL−/MICH−

DTMF

MUTE

TEA1066T

QR+

GAR

QR−

Versatile telephone transmission circuit with dialler interface

TEA1066T

1996 Apr 04 16

Page 17

Philips Semiconductors Product speciﬁcation

Typical application of the TEA1066, shown with a piezoelectric earpiece and DTMF dialling. The bridge to the left and R10 limit the current into the circuit and the voltage across the circuit during line transients. Pulse dialling or register recall require a different protection arrangement.

handbook, full pagewidth

MBH129

SLPE GAS1 GAS2

100 pF

390 Ω

MICL−/MICH−

MICL+/MICH+

GAR

QR+

QR−

7, 8

9, 10

C4

100 pF

100 nF

1 17

2 3

REG

AGC

STAB

C3

4.7 µF

R5

3.6 kΩ

LN V

620 Ω

R9

20 Ω

DTMF

MUTE

1 nF

BZW14

(2x)

BAS11

(2x)

R11

R3

3.92 kΩ

R2 130 kΩ

R10 13 Ω

bal

TEA1066T

C1

100 µF

from dial

and control circuits

telephone

line

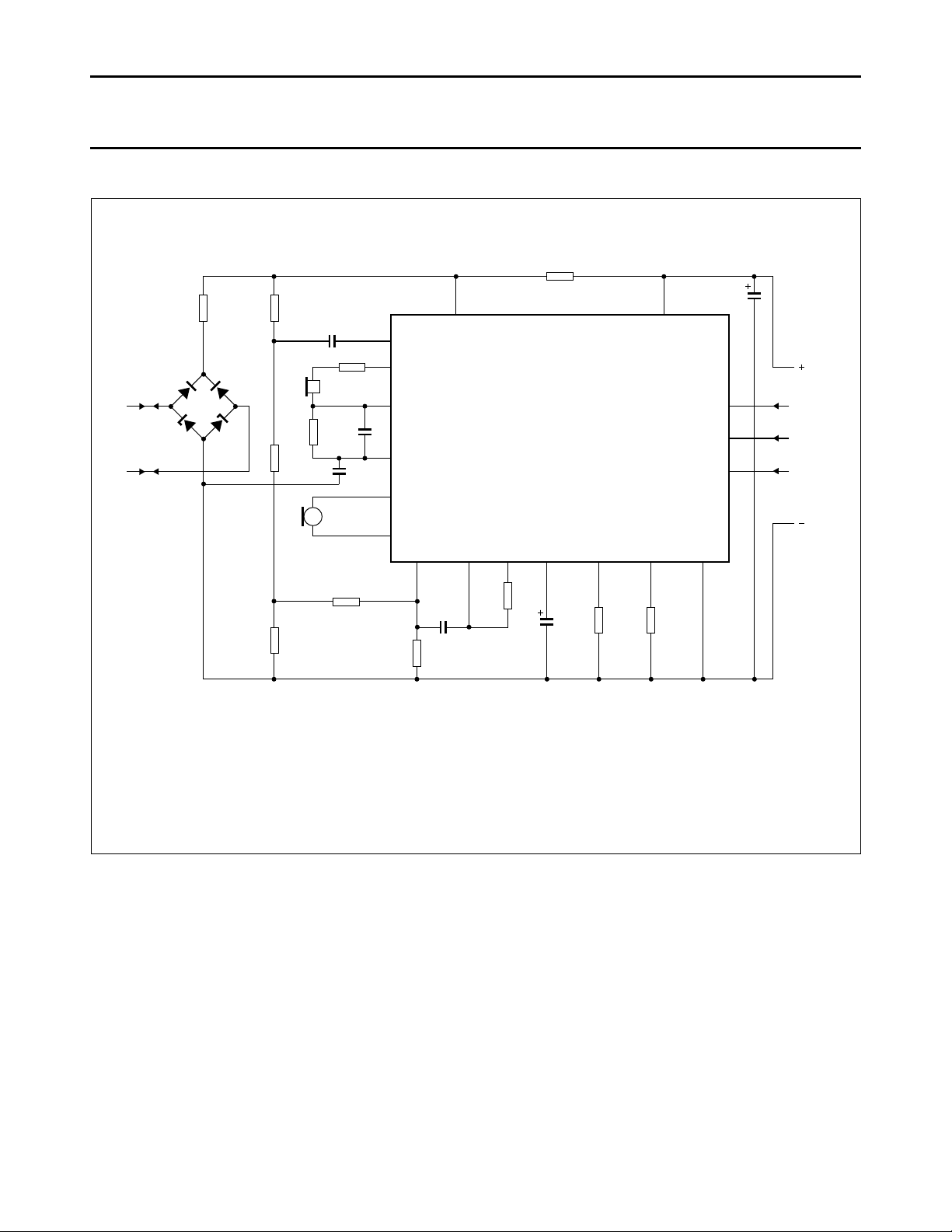

Fig.14 Application diagram.

Versatile telephone transmission circuit with dialler interface

APPLICATION INFORMATION

TEA1066T

1996 Apr 04 17

Page 18

Philips Semiconductors Product speciﬁcation

handbook, full pagewidth

MEA008 - 1

telephone

line

cradle

contact

TEA1066T

LN V

DTMF TONE MUTE

DP/FLO

PCD3310

BSN254A

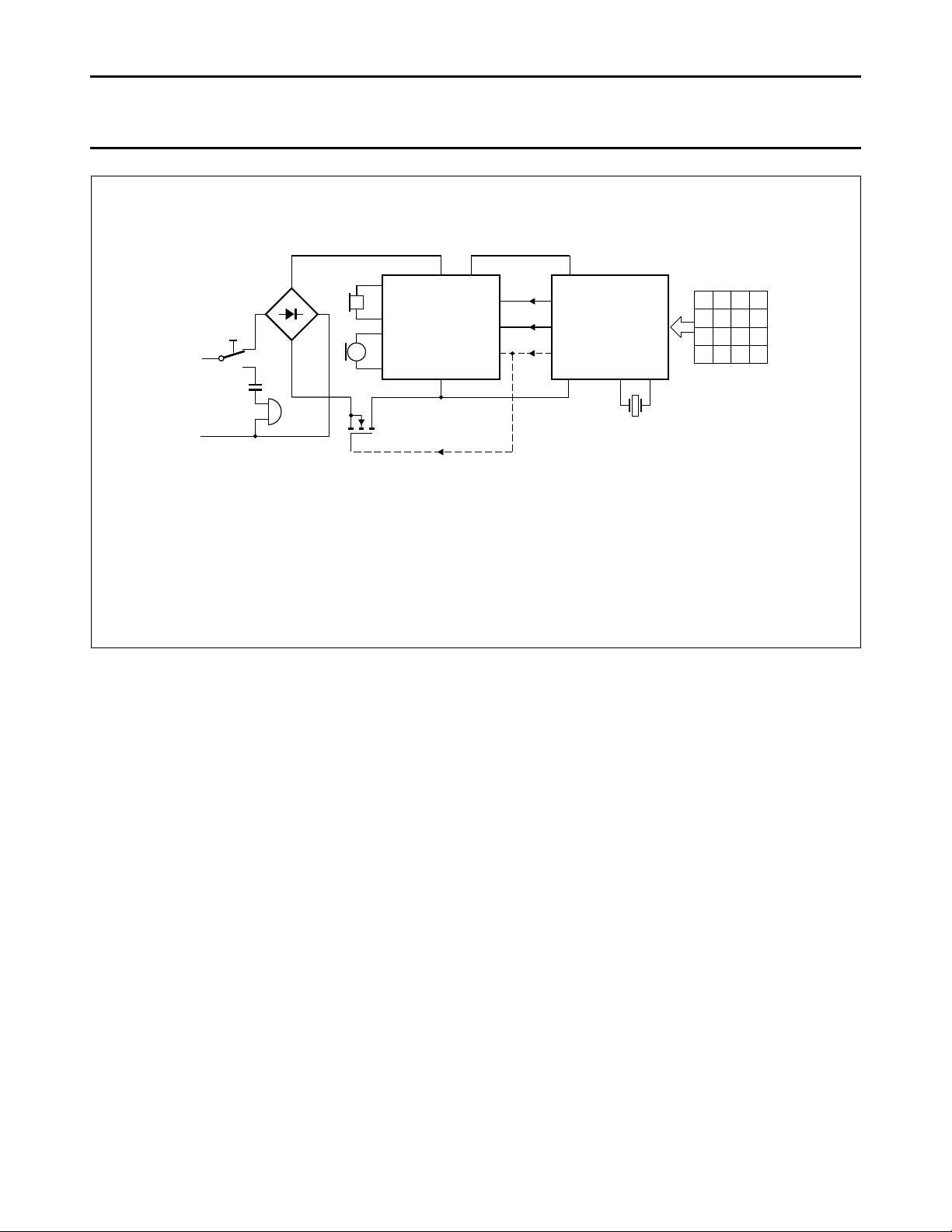

Fig.15 DTMF pulse set with CMOS PCD3310 dialling circuit.

The dashed lines show an optional flash (register recall by timed loop break).

Versatile telephone transmission circuit with dialler interface

TEA1066T

1996 Apr 04 18

Page 19

Philips Semiconductors Product speciﬁcation

UNIT

max.

A2A3b

c D

(1)E(1) (1)

e H

L L

ywv θ

REFERENCES

OUTLINE VERSION

EUROPEAN

PROJECTION

ISSUE DATE

IEC JEDEC EIAJ

inches

2.65

0.30

0.10

2.45

2.25

0.49

0.36

0.32

0.23

13.0

12.6

7.6

7.4

1.27

10.65

10.00

1.1

1.0

0.9

0.4

8 0

o o

0.25 0.1

DIMENSIONS (inch dimensions are derived from the original mm dimensions)

Note

1. Plastic or metal protrusions of 0.15 mm maximum per side are not included.

1.1

0.4

SOT163-1

92-11-17 95-01-24

w M

detail X

0.25

075E04 MS-013AC

pin 1 index

0.10

0.012

0.004

0.096

0.089

0.019

0.014

0.013

0.009

0.51

0.49

0.30

0.29

0.050

1.4

0.055

0.42

0.39

0.043

0.039

0.035

0.016

0.01

0.25

0.01

0.004

0.043

0.016

0.01

0 5 10 mm

scale

v M

(A )

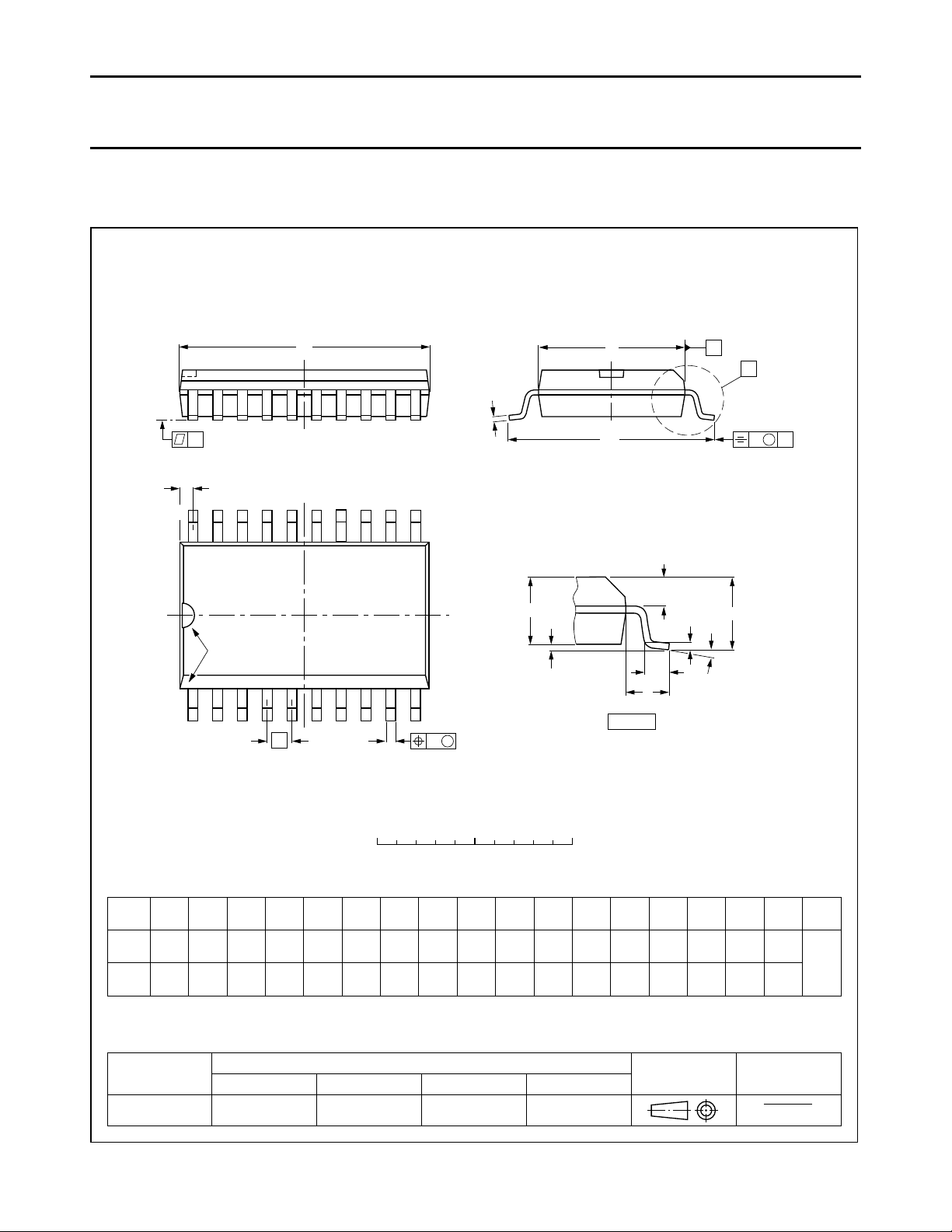

SO20: plastic small outline package; 20 leads; body width 7.5 mm

SOT163-1

Versatile telephone transmission circuit with dialler interface

PACKAGE OUTLINE

TEA1066T

1996 Apr 04 19

Page 20

Philips Semiconductors Product speciﬁcation

Versatile telephone transmission circuit with dialler interface

SOLDERING Introduction

There is no soldering method that is ideal for all IC packages. Wave soldering is often preferred when through-hole and surface mounted components are mixed on one printed-circuit board. However, wave soldering is not always suitable for surface mounted ICs, or for printed-circuits with high population densities. In these situations reflow soldering is often used.

This text gives a very brief insight to a complex technology. A more in-depth account of soldering ICs can be found in our

“IC Package Databook”

Reﬂow soldering

Reflow soldering techniques are suitable for all SO packages.

Reflow soldering requires solder paste (a suspension of fine solder particles, flux and binding agent) to be applied to the printed-circuit board by screen printing, stencilling or pressure-syringe dispensing before package placement.

Several techniques exist for reflowing; for example, thermal conduction by heated belt. Dwell times vary between 50 and 300 seconds depending on heating method. Typical reflow temperatures range from 215 to 250 °C.

Preheating is necessary to dry the paste and evaporate the binding agent. Preheating duration: 45 minutes at 45 °C.

(order code 9398 652 90011).

TEA1066T

Wave soldering

Wave soldering techniques can be used for all SO packages if the following conditions are observed:

• A double-wave (a turbulent wave with high upward pressure followed by a smooth laminar wave) soldering technique should be used.

• The longitudinal axis of the package footprint must be parallel to the solder flow.

• The package footprint must incorporate solder thieves at the downstream end.

During placement and before soldering, the package must be fixed with a droplet of adhesive. The adhesive can be applied by screen printing, pin transfer or syringe dispensing. The package can be soldered after the adhesive is cured.

Maximum permissible solder temperature is 260 °C, and maximum duration of package immersion in solder is 10 seconds, if cooled to less than 150 °C within 6 seconds. Typical dwell time is 4 seconds at 250 °C.

A mildly-activated flux will eliminate the need for removal of corrosive residues in most applications.

Repairing soldered joints

Fix the component by first soldering two diagonallyopposite end leads. Use only a low voltage soldering iron (less than 24 V) applied to the flat part of the lead. Contact time must be limited to 10 seconds at up to 300 °C. When using a dedicated tool, all other leads can be soldered in one operation within 2 to 5 seconds between 270 and 320 °C.

1996 Apr 04 20

Page 21

Philips Semiconductors Product speciﬁcation

Versatile telephone transmission circuit

TEA1066T

with dialler interface

DEFINITIONS

Data sheet status

Objective speciﬁcation This data sheet contains target or goal speciﬁcations for product development. Preliminary speciﬁcation This data sheet contains preliminary data; supplementary data may be published later. Product speciﬁcation This data sheet contains ﬁnal product speciﬁcations.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or at any other conditions above those given in the Characteristics sections of the speciﬁcation is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the speciﬁcation.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Philips customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such improper use or sale.

1996 Apr 04 21

Page 22

Philips Semiconductors Product speciﬁcation

Versatile telephone transmission circuit with dialler interface

NOTES

TEA1066T

1996 Apr 04 22

Page 23

Philips Semiconductors Product speciﬁcation

Versatile telephone transmission circuit with dialler interface

NOTES

TEA1066T

1996 Apr 04 23

Page 24

Philips Semiconductors – a worldwide company

Argentina: see South America Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. (02) 805 4455, Fax. (02) 805 4466

Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,

Tel. (01) 60 101-1256, Fax. (01) 60 101-1250

Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211,

Volodarski Str. 6, 220050 MINSK, Tel. (172) 200 733, Fax. (172) 200 773

Belgium: see The Netherlands Brazil: see South America Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,

51 James Bourchier Blvd., 1407 SOFIA, Tel. (359) 2 689 211, Fax. (359) 2 689 102

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS:

Tel. (800) 234-7381, Fax. (708) 296-8556

Chile: see South America China/Hong Kong: 501 Hong Kong Industrial Technology Centre,

72 Tat Chee Avenue, Kowloon Tong, HONG KONG, Tel. (852) 2319 7888, Fax. (852) 2319 7700

Colombia: see South America Czech Republic: see Austria Denmark: Prags Boulevard 80, PB 1919, DK-2300

COPENHAGEN S, Tel. (032) 88 2636, Fax. (031) 57 1949

Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. (358) 0-615 800, Fax. (358) 0-61580 920

France: 4 Rue du Port-aux-Vins, BP317,

92156 SURESNES Cedex, Tel. (01) 4099 6161, Fax. (01) 4099 6427

Germany: P.O. Box 10 51 40, 20035 HAMBURG,

Tel. (040) 23 53 60, Fax. (040) 23 53 63 00

Greece: No. 15, 25th March Street, GR 17778 TAVROS,

Tel. (01) 4894 339/4894 911, Fax. (01) 4814 240

Hungary: see Austria India: Philips INDIA Ltd, Shivsagar Estate, A Block,

Dr. Annie Besant Rd. Worli, BOMBAY 400 018 Tel. (022) 4938 541, Fax. (022) 4938 722

Indonesia: see Singapore Ireland: Newstead, Clonskeagh, DUBLIN 14,

Tel. (01) 7640 000, Fax. (01) 7640 200

Israel: RAPAC Electronics, 7 Kehilat Saloniki St, TEL AVIV 61180,

Tel. (03) 645 04 44, Fax. (03) 648 10 07

Italy: PHILIPS SEMICONDUCTORS,

Piazza IV Novembre 3, 20124 MILANO, Tel. (0039) 2 6752 2531, Fax. (0039) 2 6752 2557

Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku,

TOKYO 108, Tel. (03) 3740 5130, Fax. (03) 3740 5077

Korea: Philips House, 260-199 Itaewon-dong,

Yongsan-ku, SEOUL, Tel. (02) 709-1412, Fax. (02) 709-1415

Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA,

SELANGOR, Tel. (03) 750 5214, Fax. (03) 757 4880

Mexico: 5900 Gateway East, Suite 200, EL PASO,

TEXAS 79905, Tel. 9-5(800) 234-7831, Fax. (708) 296-8556

Middle East: see Italy Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. (040) 2783749, Fax. (040) 2788399

New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. (09) 849-4160, Fax. (09) 849-7811

Norway: Box 1, Manglerud 0612, OSLO,

Tel. (022) 74 8000, Fax. (022) 74 8341

Philippines: PHILIPS SEMICONDUCTORS PHILIPPINES Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI, Metro MANILA, Tel. (63) 2 816 6380, Fax. (63) 2 817 3474

Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,

Tel. (022) 612 2831, Fax. (022) 612 2327

Portugal: see Spain Romania: see Italy Singapore: Lorong 1, Toa Payoh, SINGAPORE 1231,

Tel. (65) 350 2000, Fax. (65) 251 6500

Slovakia: see Austria Slovenia: see Italy South Africa: S.A. PHILIPS Pty Ltd.,

195-215 Main Road Martindale, 2092 JOHANNESBURG, P.O. Box 7430 Johannesburg 2000, Tel. (011) 470-5911, Fax. (011) 470-5494

South America: Rua do Rocio 220 - 5th floor, Suite 51,

CEP: 04552-903-SÃO PAULO-SP, Brazil, P.O. Box 7383 (01064-970), Tel. (011) 821-2333, Fax. (011) 829-1849

Spain: Balmes 22, 08007 BARCELONA,

Tel. (03) 301 6312, Fax. (03) 301 4107

Sweden: Kottbygatan 7, Akalla. S-16485 STOCKHOLM,

Tel. (0) 8-632 2000, Fax. (0) 8-632 2745

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,

Tel. (01) 488 2211, Fax. (01) 481 77 30

Taiwan: PHILIPS TAIWAN Ltd., 23-30F, 66,

Chung Hsiao West Road, Sec. 1, P.O. Box 22978, TAIPEI 100, Tel. (886) 2 382 4443, Fax. (886) 2 382 4444

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,

209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260, Tel. (66) 2 745-4090, Fax. (66) 2 398-0793

Turkey: Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,

Tel. (0212) 279 2770, Fax. (0212) 282 6707

Ukraine: PHILIPS UKRAINE,

2A Akademika Koroleva str., Office 165, 252148 KIEV, Tel.380-44-4760297, Fax. 380-44-4766991

United Kingdom: Philips Semiconductors LTD.,

276 Bath Road, Hayes, MIDDLESEX UB3 5BX, Tel. (0181) 730-5000, Fax. (0181) 754-8421

United States: 811 East Arques Avenue, SUNNYVALE,

CA 94088-3409, Tel. (800) 234-7381, Fax. (708) 296-8556

Uruguay: see South America Vietnam: see Singapore Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. (381) 11 825 344, Fax. (359) 211 635 777

Internet: http://www.semiconductors.philips.com/ps/ For all other countries apply to: Philips Semiconductors,

Marketing & Sales Communications, Building BE-p, P.O. Box 218, 5600 MD EINDHOVEN, The Netherlands, Fax. +31-40-2724825

All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license under patent- or other industrial or intellectual property rights.

Printed in The Netherlands

417021/10/02/pp24 Date of release: 1996 Apr 04 Document order number: 9397 750 00783

Datasheet TEA1066T Datasheet (Philips)

Specifications and Main Features

Frequently Asked Questions

User Manual

FEATURES

QUICK REFERENCE DATA

GENERAL DESCRIPTION

ORDERING INFORMATION

BLOCK DIAGRAM

PINNING

Mute input MUTE

Dual-tone multi frequency input DTMF

Automatic gain control input AGC

Power-down input PD

Side-tone suppression

LIMITING VALUES

THERMAL CHARACTERISTICS

CHARACTERISTICS

APPLICATION INFORMATION

SOT163-1

PACKAGE OUTLINE

DEFINITIONS

LIFE SUPPORT APPLICATIONS
