INTEGRATED CIRCUITS

DATA SH EET

TEA1039

Control circuit for switched-mode power supply

Product speciﬁcation File under Integrated Circuits, IC02

August 1982

Page 2

Philips Semiconductors Product speciﬁcation

Control circuit for switched-mode power supply TEA1039

GENERAL DESCRIPTION

The TEA1039 is a bipolar integrated circuit intended for the control of a switched-mode power supply. Together with an external error amplifier and a voltage regulator (e.g. a regulator diode) it forms a complete control system. The circuit is capable of directly driving the SMPS power transistor in small SMPS systems.

It has the following features:

• Suited for frequency and duty factor regulation.

• Suited for flyback converters and forward converters.

• Wide frequency range.

• Adjustable input sensitivity.

• Adjustable minimum frequency or maximum duty factor limit.

• Adjustable overcurrent protection limit.

• Supply voltage out-of-range protection.

• Slow-start facility.

QUICK REFERENCE DATA

Supply voltage V Supply current I Output pulse repetition frequency range f Output current LOW I Operating ambient temperature range T

PACKAGE OUTLINE

9-lead SIL; plastic (SOT-110B); SOT110-1; 1996 November 18.

CC o OL

amb

nom. 14 V max. 13 mA

1 Hz to 100 kHz

max. 1 A

−25 to +125 °C

August 1982 2

Page 3

Philips Semiconductors Product speciﬁcation

Control circuit for switched-mode power supply

TEA1039

August 1982 3

Fig.1 Block diagram.

Page 4

Philips Semiconductors Product speciﬁcation

Control circuit for switched-mode power supply TEA1039

PINNING

1 CM overcurrent protection input 2 LIM limit setting input 3 FB feedback input 4 RX external resistor connection 5 CX external capacitor connection 6 M mode input 7V 8 Q output 9V

common

positive supply connection

Fig.2 Pinning diagram.

FUNCTIONAL DESCRIPTION

The TEA1039 produces pulses to drive the transistor in a switched-mode power supply. These pulses may be varied either in frequency (frequency regulation mode) or in width (duty factor regulation mode).

The usual arrangement is such that the transistor in the SMPS is ON when the output of the TEA1039 is HIGH, i.e. when the open-collector output transistor is OFF. The duty factor of the SMPS is the time that the output of the TEA1039 is HIGH divided by the pulse repetition time.

Supply V

(pin 9)

The circuit is usually supplied from the SMPS that it regulates. It may be supplied either from its primary d.c. voltage or from its output voltage. In the latter case an auxiliary starting supply is necessary.

The circuit has an internal V

out-of-range protection. In

the frequency regulation mode the oscillator is stopped; in the duty factor regulation mode the duty factor is made zero. When the supply voltage returns within its range, the circuit is started with the slow-start procedure.

When the circuit is supplied from the SMPS itself, the out-of-range protection also provides an effective protection against any interruption in the feedback loop.

Mode input M (pin 6) The circuit works in the frequency regulation mode when

the mode input M is connected to ground (V

, pin 7). In

this mode the circuit produces output pulses of a constant width but with a variable pulse repetition time.

The circuit works in the duty factor regulation mode when the mode input M is left open. In this mode the circuit produces output pulses with a variable width but with a constant pulse repetition time.

Oscillator resistor and capacitor connections RX and CX (pins 4 and 5)

The output pulse repetition frequency is set by an oscillator whose frequency is determined by an external capacitor C5 connected between the CX connection (pin 5) and ground (V

, pin 7), and an external resistor R4connected

between the RX connection (pin 4) and ground. The capacitor C5 is charged by an internal current source, whose current level is determined by the resistor R4. In the frequency regulation mode these two external

August 1982 4

Page 5

Philips Semiconductors Product speciﬁcation

Control circuit for switched-mode power supply TEA1039

components determine the minimum frequency; in the duty factor regulation mode they determine the working frequency (see Fig.4). The output pulse repetition frequency varies less than 1% with the supply voltage over the supply voltage range.

In the frequency regulation mode the output is LOW from the start of the cycle until the voltage on the capacitor reaches 2 V. The capacitor is further charged until its voltage reaches the voltage on either the feedback input FB or the limit setting input LIM, provided it has exceeded 2,2 V. As soon as the capacitor voltage reaches 5,9 V the capacitor is discharged rapidly to 1,3 V and a new cycle is initiated (see Figs 5 and 6).

For voltages on the FB and LIM inputs lower than 2,2 V, the capacitor is charged until this voltage is reached; this sets an internal maximum frequency limit.

In the duty factor regulation mode the capacitor is charged from 1,3 V to 5,9 V and discharged again at a constant rate. The output is HIGH until the voltage on the capacitor exceeds the voltage on the feedback input FB; it becomes HIGH again after discharge of the capacitor (see Figs 7 and 8). An internal maximum limit is set to the duty factor of the SMPS by the discharging time of the capacitor.

Feedback input FB (pin 3) The feedback input compares the input current with an

internal current source whose current level is set by the external resistor R4. In the frequency regulation mode, the higher the voltage on the FB input, the longer the external capacitor C5 is charged, and the lower the frequency will be. In the duty factor regulation mode external capacitor C5 is charged and discharged at a constant rate, the voltage on the FB input now determines the moment that the output will become LOW. The higher the voltage on the FB input, the longer the output remains HIGH, and the higher the duty factor of the SMPS.

Limit setting input LIM (pin 2) In the frequency regulation mode this input sets the

minimum frequency, in the duty factor regulation mode it sets the maximum duty factor of the SMPS. The limit is set by an external resistor R2 connected from the LIM input to ground (pin 7) and by an internal current source, whose current level is determined by external resistor R4.

A slow-start procedure is obtained by connecting a capacitor between the LIM input and ground. In the frequency regulation mode the frequency slowly decreases from f factor regulation mode the duty factor slowly increases from zero to the working duty factor.

Overcurrent protection input CM (pin 1) A voltage on the CM input exceeding 0,37 V causes an

immediate termination of the output pulse. In the duty factor regulation mode the circuit starts again with the slow-start procedure.

Output Q (pin 8) The output is an open-collector n-p-n transistor, only

capable of sinking current. It requires an external resistor to drive a n-p-n transistor in the SMPS (see Figs 9 and 10).

The output is protected by two diodes, one to ground and one to the supply.

At high output currents the dissipation in the output transistor may necessitate a heatsink. See the power derating curve (Fig.3).

to the working frequency. In the duty

max

August 1982 5

Page 6

Philips Semiconductors Product speciﬁcation

Control circuit for switched-mode power supply TEA1039

RATINGS

Limiting values in accordance with the Absolute Maximum System (IEC 134)

Supply voltage range, voltage source V Supply current range, current source I Input voltage range, all inputs V Input current range, all inputs I Output voltage range V Output current range

output transistor ON I

output transistor OFF I Storage temperature range T Operating ambient temperature range (see Fig.3) T Power dissipation (see Fig.3) P

8-7

8 8

stg amb tot

−0,3 to +20 V

−30 to +30 mA

−0,3 to +6V

−5 to +5mA

−0,3 to +20 V

0 to 1 A

−100 to + 50 mA

−55 to + 150 °C

−25 to + 125 °C

max. 2 W

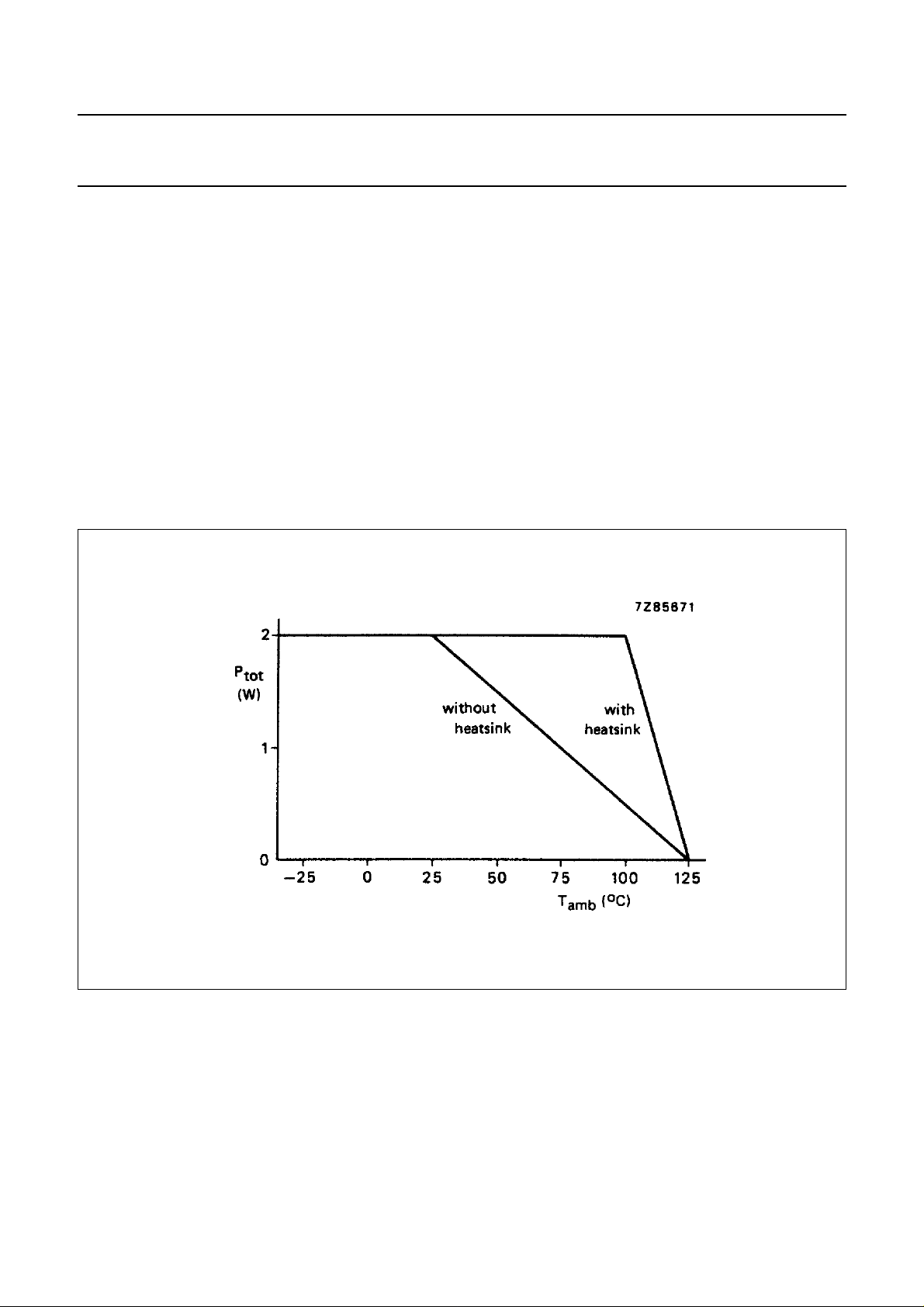

Fig.3 Power derating curve.

August 1982 6

Page 7

Philips Semiconductors Product speciﬁcation

Control circuit for switched-mode power supply TEA1039

CHARACTERISTICS

= 14 V; T

= 25 °C unless otherwise speciﬁed

amb

SYMBOL MIN. TYP. MAX. UNIT

Supply V

(pin 9)

Supply voltage, operating V Supply current

at VCC= 11 V I

= 20 V I

at V

variation with temperature

Supply voltage, internally limited

at ICC= 30 mA V

variation with temperature ∆V Low supply threshold voltage V

variation with temperature ∆V High supply threshold voltage V

variation with temperature ∆V Feedback input FB (pin 3) Input voltage for duty factor = 0;

M input open V Internal reference current −I Internal resistor R

Limit setting input LIM (pin 2) Threshold voltage V

Internal reference current −I Overcurrent protection input CM (pin 1) Threshold voltage V

variation with temperature ∆V Propagation delay, CM input to output t

CC CC

ICCICC⁄∆

------------------------ T∆

/∆T − 18 − mV/K

CCmin

/∆T −−5−mV/K

CCmax

/∆T − 10 − mV/K

3-7

2-7

LIM

1-7

/∆T − 0,2 − mV/K

1-7

PHL

11 14 20 V

− 7,5 11 mA

− 912mA

−−0,3 − %/K

23,5 − 28,5 V

91011V

21 23 24,6 V

0 − 0,3 V

− 0,5I

− mA

− 130 − kΩ

− 1 − V

− 0,25I

− mA

300 370 420 mV

− 500 − ns

August 1982 7

Page 8

Philips Semiconductors Product speciﬁcation

Control circuit for switched-mode power supply TEA1039

SYMBOL MIN. TYP. MAX. UNIT

Oscillator connections RX and CX (pins 4 and 5)

Voltage at RX connection

at −I4= 0,15 to 1 mA V variation with temperature ∆V

Lower sawtooth level V

4-7

/∆T − 2,1 − mV/K

4-7

Threshold voltage for output H to L

transition in F mode V

Threshold voltage for maximum

frequency in F mode V

Higher sawtooth level V

FM HS

Internal capacitor charging current,

CX connection −I

Oscillator frequency (output pulse

repetition frequency) f

Minimum frequency in F mode,

initial deviation ∆f/f −10 − 10 % variation with temperature

ff⁄∆

---------- -

T∆

Maximum frequency in F mode,

initial deviation ∆f/f −20 −+20 % variation with temperature

ff⁄∆

---------- -

T∆

Output LOW time in F mode,

initial deviation ∆t/t −25 −+25 % variation with temperature

tt⁄∆

---------- -

T∆

Pulse repetition frequency in D mode,

initial deviation ∆f/f −10 − 10 % variation with temperature

ff⁄∆

---------- -

T∆

Minimum output LOW time in D mode

at C

= 3,6 nF t

variation with temperature

OLmin

tt⁄∆

---------- -

T∆

6,2 7,2 8,1 V

− 1,3 − V

− 2 − V

− 2,2 − V

− 5,9 − V

− 0,25I

1 − 10

− mA

− 0,034 − %/K

−−0,16 − %/K

− 0,2 − %/K

− 0,034 − %/K

− 1 −µs

− 0,2 − %/K

Output Q (pin 8) Output voltage LOW at I

= 100 mA V

variation with temperature ∆V

Output voltage LOW at I

= 1 A V

variation with temperature ∆V

August 1982 8

8-7

/∆T − 1,5 − mV/K

8-7

/∆T −−1,4 − mV/K

8-7

− 0,8 1,2 V

− 1,7 2,1 V

Page 9

Philips Semiconductors Product speciﬁcation

Control circuit for switched-mode power supply TEA1039

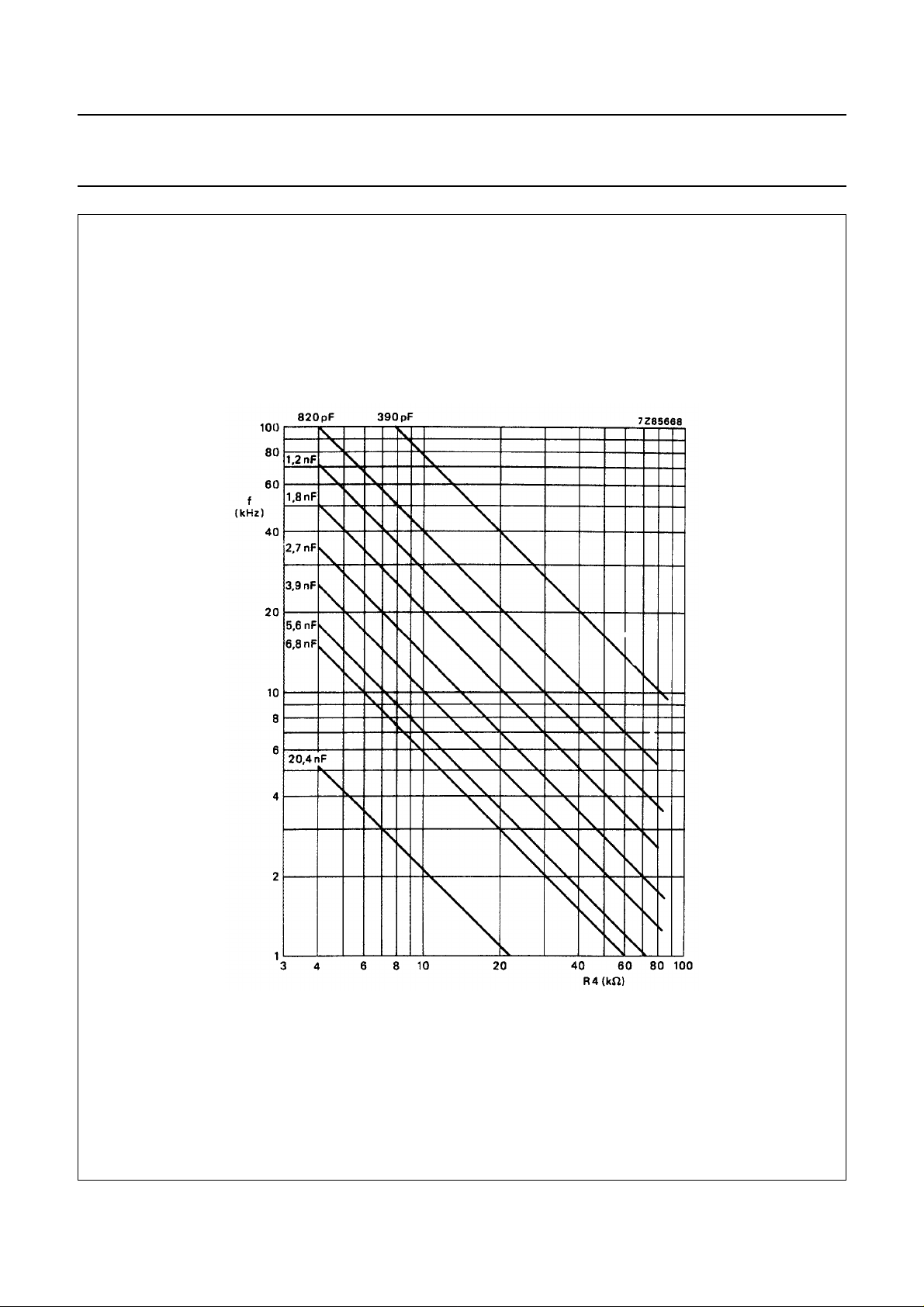

Fig.4 Minimum pulse repetition frequency in the frequency regulation mode, and working pulse repetition

frequency in the duty factor regulation mode, as a function of external resistor R4 connected between RX and ground with external capacitor C5 connected between CX and ground as a parameter.

August 1982 9

Page 10

Philips Semiconductors Product speciﬁcation

Control circuit for switched-mode power supply TEA1039

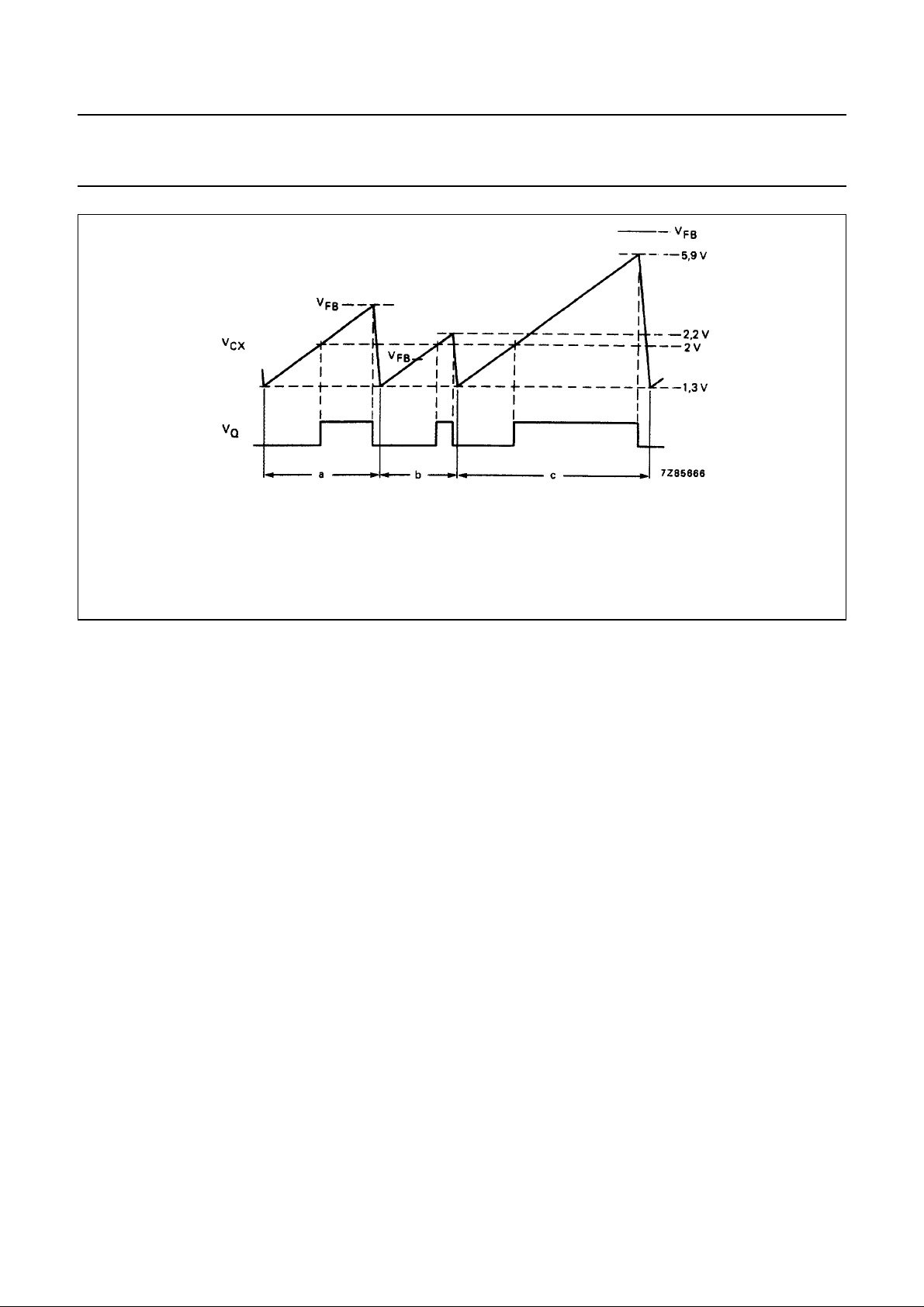

Fig.5 Timing diagram for the frequency regulation mode showing the voltage on external capacitor C5

connected between CX and ground and the output voltage as a function of time for three combinations of input signals.a: The voltages on inputs FB or LIM are between 2,2 V and 5,9 V. The circuit is in its normal regulation mode.b: The voltage on input FB or input LIM is lower than 2,2 V. The circuit works at its maximum frequency.c: The voltages on inputs FB and LIM are higher than 5,9 V. The circuit works at its minimum frequency.

August 1982 10

Page 11

Philips Semiconductors Product speciﬁcation

Control circuit for switched-mode power supply TEA1039

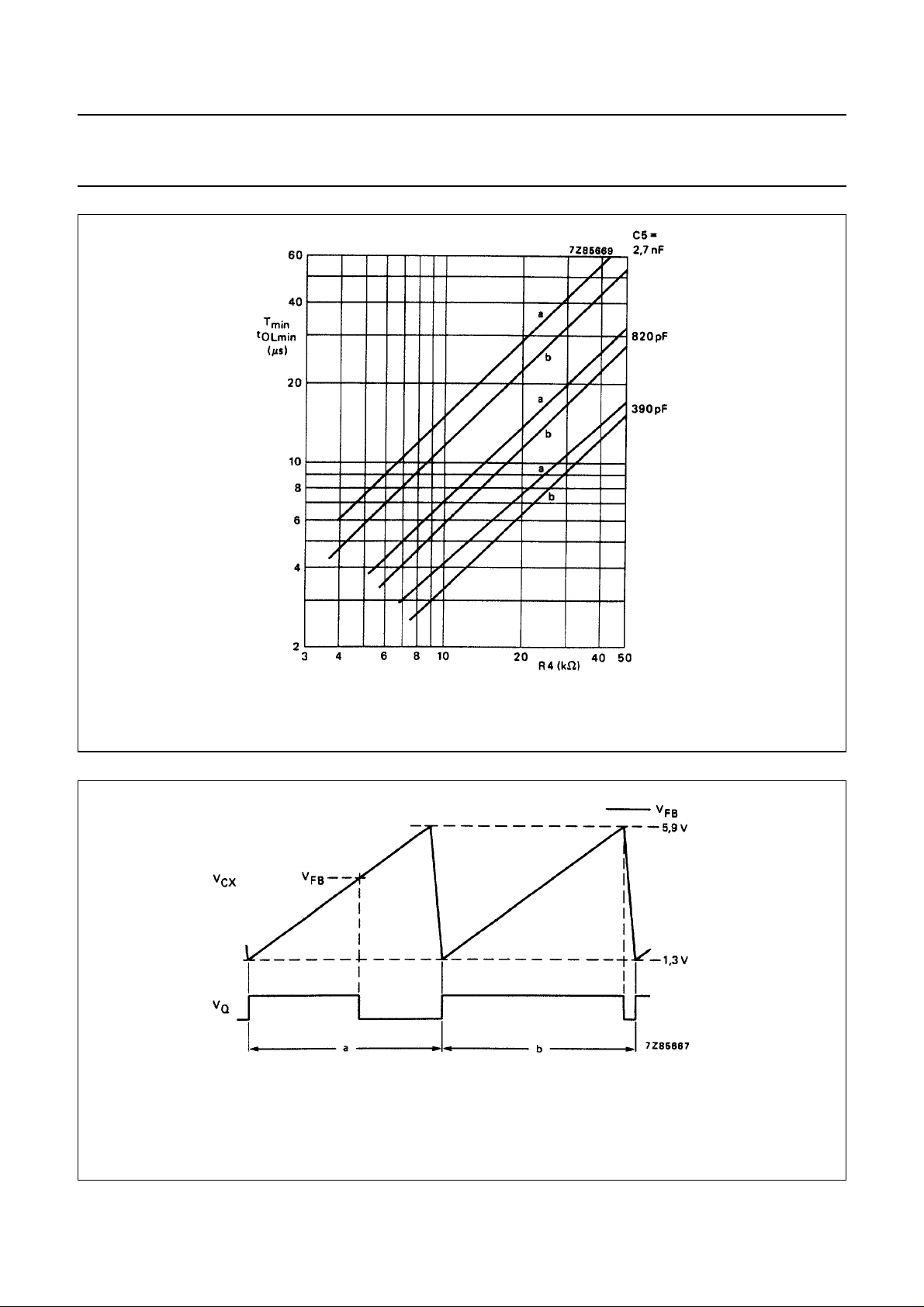

Fig.6 Minimum output pulse repetition time T

(curves a) and minimum output LOW time t

min

OLmin

(curves b) in the frequency regulation mode as a function of external resistor R4 connected between RX and ground with external capacitor C5 connected between CX and ground as a parameter.

Fig.7 Timing diagram for the duty factor regulation mode showing the voltage on external capacitor C5

connected between CX and ground and the output voltage as a function of time for two combinations of input signals.a:The voltages on inputs FB or LIM are below 5,9 V. The circuit is in its normal regulation range.b:The voltages on inputs FB and LIM are higher than 5,9 V. The circuit produces its minimum output LOW time, giving the maximum duty factor of the SMPS.

August 1982 11

Page 12

Philips Semiconductors Product speciﬁcation

Control circuit for switched-mode power supply TEA1039

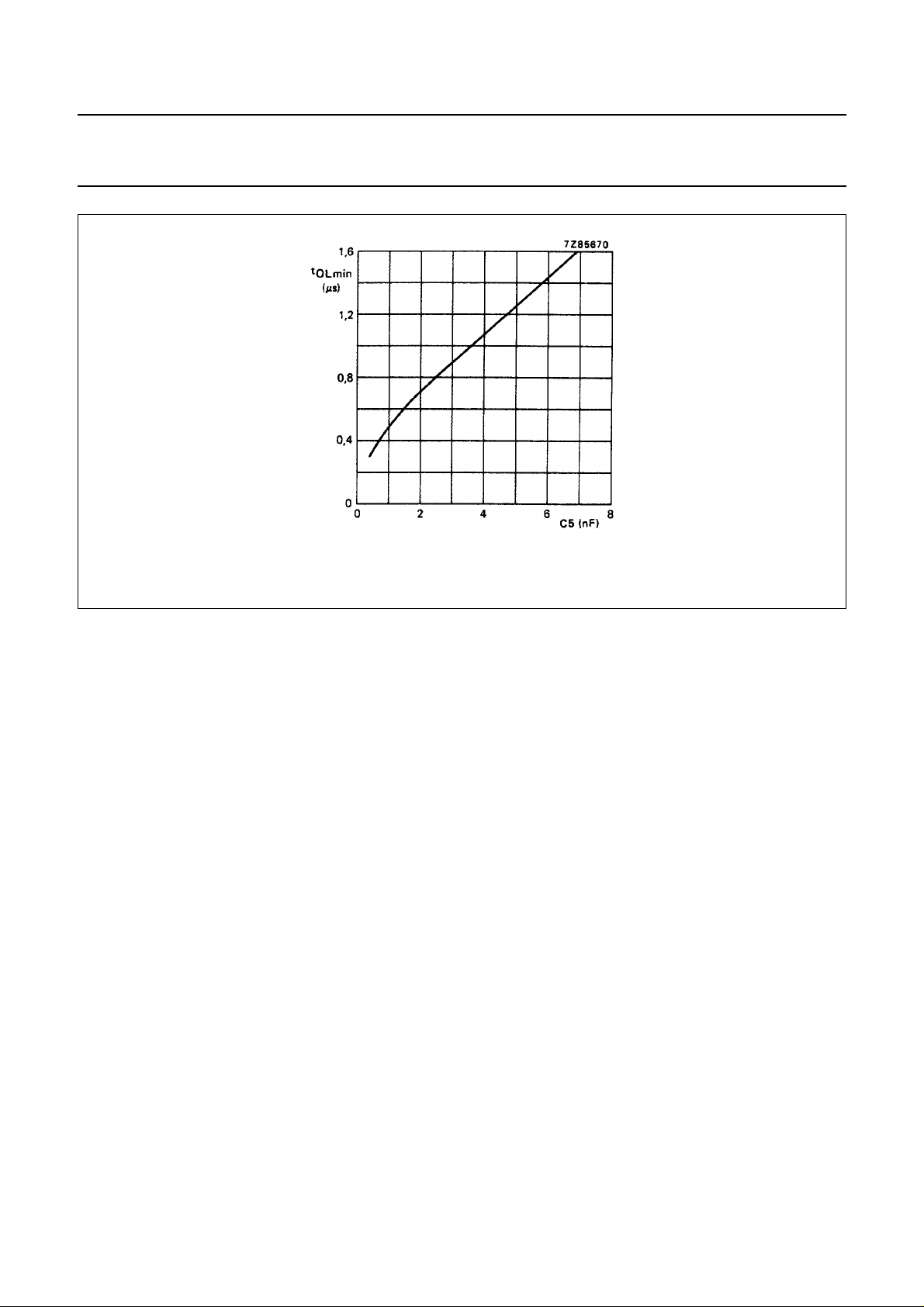

Fig.8 Minimum output LOW time t

connected between CX and ground. In this mode the minimum output LOW time is independent of R4 for values of R4 between 4 kΩ and 80 kΩ.

in the duty factor regulation mode as a function of external capacitor C5

OLmin

August 1982 12

Page 13

August 1982 13

Philips Semiconductors Product speciﬁcation

Control circuit for switched-mode power

supply

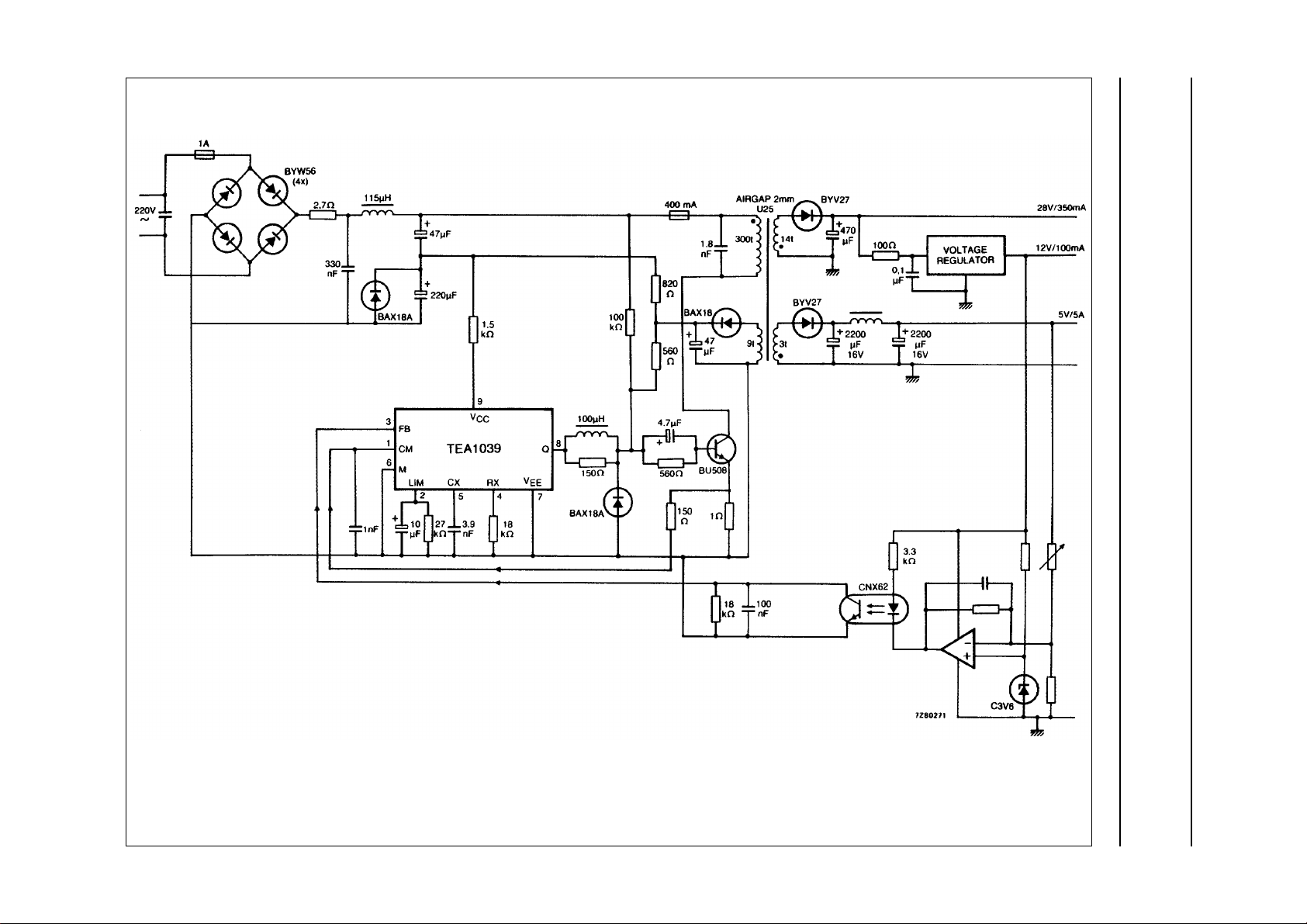

Fig.9 Typical application of the TEA1039 in a variable-frequency flyback converter switched-mode power supply. An optocoupler CNX62 is

used for voltage separation.

APPLICATION INFORMATION SUPPLIED ON REQUEST.

TEA1039

Page 14

August 1982 14

Philips Semiconductors Product speciﬁcation

Control circuit for switched-mode power

supply

Fig.10 Typical application of the TEA1039 in a fixed-frequency, variable duty factor forward converter switched-mode power supply.

An optocoupler CNX62 is used for voltage separation.

APPLICATION INFORMATION SUPPLIED ON REQUEST.

TEA1039

Page 15

Philips Semiconductors Product speciﬁcation

Control circuit for switched-mode power supply TEA1039

PACKAGE OUTLINE

SIL9MPF: plastic single in-line medium power package with fin; 9 leads

pin 1 index

SOT110-1

seating plane

0 5 10 mm

scale

DIMENSIONS (mm are the original dimensions)

UNIT

18.5

17.8

max.

3.7

8.7

8.0

15.8

15.4

0.67

0.50

1.40

1.14

bcD

1.40

1.14

0.48

0.38

21.8

21.4

(1)

21.4

20.7

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

OUTLINE VERSION

IEC JEDEC EIAJ

REFERENCES

SOT110-1

w M

(1)

eLPP

6.48

6.20

2.54

3.9

3.4

(1)

0.25

max.

1.0

2.75

2.50

3.4

3.2

1.75

15.1

1.55

14.9

EUROPEAN

PROJECTION

q1q

5.9

4.4

5.7

4.2

ISSUE DATE

92-11-17 95-02-25

August 1982 15

Page 16

Philips Semiconductors Product speciﬁcation

Control circuit for switched-mode power supply TEA1039

SOLDERING Introduction

There is no soldering method that is ideal for all IC packages. Wave soldering is often preferred when through-hole and surface mounted components are mixed on one printed-circuit board. However, wave soldering is not always suitable for surface mounted ICs, or for printed-circuits with high population densities. In these situations reflow soldering is often used.

This text gives a very brief insight to a complex technology. A more in-depth account of soldering ICs can be found in our

“IC Package Databook”

Soldering by dipping or by wave

The maximum permissible temperature of the solder is 260 °C; solder at this temperature must not be in contact with the joint for more than 5 seconds. The total contact time of successive solder waves must not exceed 5 seconds.

The device may be mounted up to the seating plane, but the temperature of the plastic body must not exceed the specified maximum storage temperature (T be necessary immediately after soldering to keep the temperature within the permissible limit.

(order code 9398 652 90011).

). If the printed-circuit board has been pre-heated, forced cooling may

stg max

Repairing soldered joints

Apply a low voltage soldering iron (less than 24 V) to the lead(s) of the package, below the seating plane or not more than 2 mm above it. If the temperature of the soldering iron bit is less than 300 °C it may remain in contact for up to 10 seconds. If the bit temperature is between 300 and 400 °C, contact may be up to 5 seconds.

DEFINITIONS

Data sheet status

Objective speciﬁcation This data sheet contains target or goal speciﬁcations for product development. Preliminary speciﬁcation This data sheet contains preliminary data; supplementary data may be published later. Product speciﬁcation This data sheet contains ﬁnal product speciﬁcations.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or at any other conditions above those given in the Characteristics sections of the speciﬁcation is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the speciﬁcation.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Philips customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such improper use or sale.

August 1982 16
