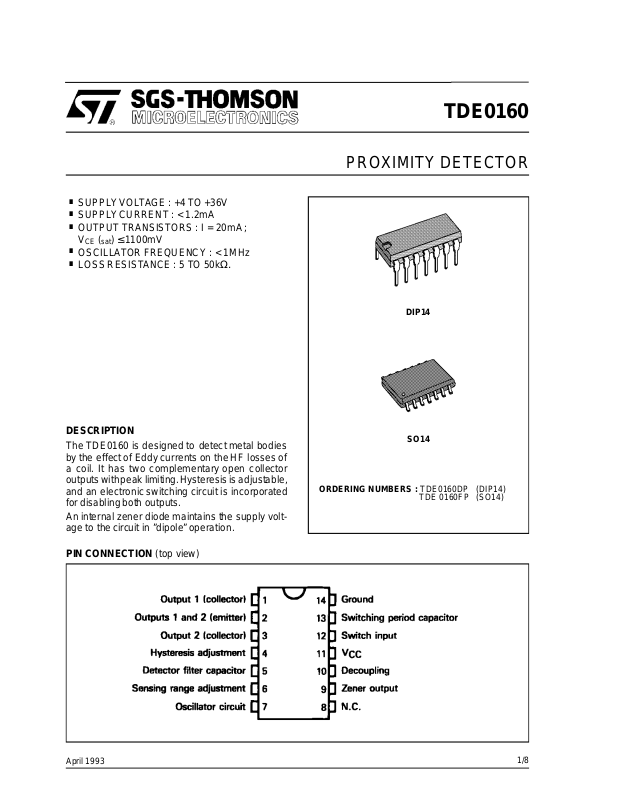

Page 1
.
SUPPLYVOLTAGE: +4TO+36V
.
SUPPLYCURRENT: <1.2mA
.
OUTPUTTRANSISTORS: I = 20mA;
V
.
OSCILLATORFREQUENCY : < 1MHz
.
LOSSRESISTANCE: 5 TO 50kΩ.
CE(sat
) ≤ 1100mV
TDE0160
PROXIMITYDETECTOR
DIP14
DESCRIPTION
The TDE0160 is designed to detect metal bodies
by the effect of Eddy currents on theHF lossesof
a coil. It has two complementary open collector
outputswithpeak limiting.Hysteresisis adjustable,
and an electronicswitching circuit is incorporated
for disabling both outputs.
An internal zener diodemaintains the supply voltage to the circuit in ”dipole” operation.
PIN CONNECTION (top view)
SO14
ORDERING NUMBERS : TDE0160DP (DIP14)
TDE 0160FP (SO14)
April 1993
1/8
Page 2
TDE0160
SCHEMATICDIAGRAM
ABSOLUTE MAXIMUM RATINGS
Symbol Parameter Value Unit
V
CC
V
O*
I
O(I1-I3
I
Z
T
T
oper
T
stg
* Internal peak limiting to protect againsttransient voltage surges.
SupplyVoltage 36 V
Output Voltage* 36 V
) Output Current (I1-I3)40mA
Zener Current 40 mA
JunctionTemperature + 150 °C
j
Ambient Temperature Range – 25 to + 85 °C
Storage Temperature Range – 65 to + 150 °C
2/8
Page 3
TDE0160
ELECTRICAL CHARACTERISTICS
= +25oC unlessotherwise specified
T
amb
Symbol Parameter Min. Typ. Max. Unit
V
V
I
R
f
* See characteristic curves
Supply Voltage Pin 11 4 36 V
CC
Zener Voltage (IZ= 20mA) Pins 9-11 3 4 V
Z
Supply Current Pin 11 1.2 mA
CC
– Limiting (I = 0.1mA) Pin 1 or 3 42 V
– Output Transistor SaturationVoltage Pin 1 or 3
orI3= +20mA)
(I
1
0.9 1.1 V
– Output Transistor Leakage Current (V = +30V) Pin 1 or 3 2 µA
– Switching Threshold Pin 12 90 110 130 mV
Negative Resistance*
n
(5kΩ <R
< 50kΩ, f = 100kHz, RS=0)
H
R
n=RH
– Inherent Hysteresis (R2=0) 1 2 %
– Programmed Hysteresis (H < 15%) R
Oscillation Frequency 1 MHz
osc
s
Rs+ R
H
– Switching Frequency (with matched oscillatorcircuit) 750 Hz
– Switching Time-delay 0.5 C
– Switching Response Time (C
= 10nF ; VCC= +20V) 10 µs
d
(µF) s
d
%
SWITCHING OPERATION
V
exceedsICO, whereICO=
If I
C
(ref)
R
d
the switch
cuts off the output transistors and tests the value
of current I
, withtime constant0.5 Cd.
C
On powerup the internalstart system cuts offthe
outputtransistorsuntilV
reachesavaluepermit-
CC
ting normal operationof thecircuit.
3/8
Page 4
TDE0160
4/8
MILD STEEL
Page 5
TYPICALAPPLICATION DIAGRAMS
TDE0160
a) b)
C
a:
:1nF
C
f
C
d:
C
o:
L
o:
R
d:
R
H:
R
s:
R
L:
:20V
V
CC
≈1MHz
f
o
e
mean
Φ coil: 14mm
Core COFELEC432FP
Turns : 47
Strandedwire :15 x 5/100
c)
10nF
10nF
390pF
65µH to1MHz
10kΩ
15kΩ
3kΩ
2.5kΩ
=2.5mm
5/8
Page 6
TDE0160
SO14PACKAGE MECHANICAL DATA
DIM.
MIN. TYP. MAX. MIN. TYP. MAX.
A 1.75 0.069
a1 0.1 0.25 0.004 0.009
a2 1.6 0.063
b 0.35 0.46 0.014 0.018
b1 0.19 0.25 0.007 0.010
C 0.5 0.020
c1 45 (typ.)
D 8.55 8.75 0.336 0.344
E 5.8 6.2 0.228 0.244
e 1.27 0.050
e3 7.62 0.300
F 3.8 4.0 0.15 0.157
L 0.4 1.27 0.016 0.050
M 0.68 0.027
mm inch
S 8 (max.)
6/8
Page 7
DIP14PACKAGE MECHANICAL DATA
TDE0160
DIM.
MIN. TYP. MAX. MIN. TYP. MAX.
a1 0.51 0.020
B 1.39 1.65 0.055 0.065
b 0.5 0.020
b1 0.25 0.010
D 20 0.787
E 8.5 0.335
e 2.54 0.100
e3 15.24 0.600
F 7.1 0.280
I 5.1 0.201
L 3.3 0.130
mm inch
Z 1.27 2.54 0.050 0.100
7/8
Page 8
TDE0160
Information furnishedis believed to be accurateand reliable. However, SGS-THOMSON Microelectronics assumes no responsibility for the
consequences of use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No
license is granted by implicationor otherwise under any patentor patent rights of SGS-THOMSON Microelectronics. Specifications mentioned
in this publication are subject to change without notice. This publication supersedes and replaces all information previously supplied.
SGS-THOMSON Microelectronics productsarenot authorizedfor useas critical componentsin life support devices or systems withoutexpress
written approval of SGS-THOMSON Microelectronics.
1994 SGS-THOMSON Microelectronics - AllRights Reserved
Australia - Brazil - France -Germany - Hong Kong - Italy - Japan - Korea - Malaysia - Malta - Morocco - The Netherlands - Singapore -
SGS-THOMSON Microelectronics GROUP OF COMPANIES
Spain - Sweden - Switzerland - Taiwan - Thaliand - United Kingdom - U.S.A.
8/8
