INTEGRATED CIRCUITS

DATA SH EET

TDA6107Q

Triple video output amplifier

Product specification
Supersedes data of 1999 Jun 18
File under Integrated Circuits, IC02

1999 Oct 26

Philips Semiconductors Product specification

Triple video output amplifier TDA6107Q

FEATURES

• Typical bandwidth of 5.5 MHz for an output signal of

• Black-Current Stabilization (BCS) circuit

• Thermal protection.

60 V (p-p)

• High slew rate of 900 V/µs

• No external components required

• Very simple application

• Single supply voltage of 200 V

• Internal reference voltage of 2.5 V

• Fixed gain of 50

GENERAL DESCRIPTION

The TDA6107Q includes three video output amplifiers in
oneplasticDIL-bent-SIL9-pinmediumpower(DBS9MPF)
package (SOT111-1), using high-voltage DMOS
technology, and is intended to drive the three cathodes of
a colour CRT directly. To obtain maximum performance,
the amplifier should be used with black-current control.

ORDERING INFORMATION

TYPE

NUMBER

NAME DESCRIPTION VERSION

PACKAGE

TDA6107Q DBS9MPF plastic DIL-bent-SIL medium power package with fin; 9 leads SOT111-1

BLOCK DIAGRAM

handbook, full pagewidth

V

DD

6

f

3×

MIRROR 5

CASCODE 1

CASCODE 2

V

1×

9, 8, 7

4

MGK278

oc(3),

V

oc(2),

V

oc(1)

5

I

o(m)

MIRROR 1

TDA6107Q

MIRROR 4

CURRENT

SOURCE

1×

THERMAL

PROTECTION

CIRCUIT

V

,

i(1)

1, 2, 3

V

,

i(2)

V

i(3)

R

i
R

a

VIP

REFERENCE

MIRROR 3

DIFFERENTIAL

STAGE

R

3×

MIRROR 2

Fig.1 Block diagram (one amplifier shown).

1999 Oct 26 2

Philips Semiconductors Product specification

Triple video output amplifier TDA6107Q

PINNING

SYMBOL PIN DESCRIPTION

V

i(1)

V

i(2)

V

i(3)

GND 4 ground (fin)
I

om

V

DD

V

oc(3)

V

oc(2)

V

oc(1)

1 inverting input 1
2 inverting input 2
3 inverting input 3

5 black-current measurement output
6 supply voltage
7 cathode output 3
8 cathode output 2
9 cathode output 1

handbook, halfpage

V
V
V

V

i(1)

V

i(2)

V

i(3)

GND

I

om

V

DD
oc(3)
oc(2)
oc(1)

1
2
3
4
5

TDA6107Q

6
7
8
9

MGK277

Fig.2 Pin configuration.

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134); voltages measured with respect to pin 4 (ground);
currents as specified in Fig.1; unless otherwise specified.

SYMBOL PARAMETER MIN. MAX. UNIT

V
V
V
V
T
T
V

DD
i
o(m)
o(c)
stg
j
es

supply voltage 0 250 V
input voltage at pins 1 to 3 0 12 V
measurement output voltage 0 6 V
cathode output voltage 0 V

DD

V
storage temperature −55 +150 °C
junction temperature −20 +150 °C
electrostatic handling

Human Body Model (HBM) − 2000 V
Machine Model (MM) − 300 V

HANDLING

Inputs and outputs are protected against electrostatic discharge in normal handling. However, to be totally safe, it is
desirable to take normal precautions appropriate to handling MOS devices (see

“Handling MOS Devices”

).

QUALITY SPECIFICATION

Quality specification

“SNW-FQ-611 part D”

is applicable and can be found in the

The handbook can be ordered using the code 9397 750 00192.

1999 Oct 26 3

“Quality reference Handbook”

.

Philips Semiconductors Product specification

Triple video output amplifier TDA6107Q

THERMAL CHARACTERISTICS

SYMBOL PARAMETER CONDITIONS VALUE UNIT

R

th(j-a)

R

th(j-fin)

R

th(h-a)

Note

1. An external heatsink is necessary.

thermal resistance from junction to ambient 56 K/W
thermal resistance from junction to fin note 1 11 K/W
thermal resistance from heatsink to ambient 18 K/W

Thermal protection

handbook, halfpage

8

P

tot

(W)

6

4

2

0

−40

(1) Infinite heatsink.
(2) No heatsink.

(1)

(2)

0

40 80 160120

T

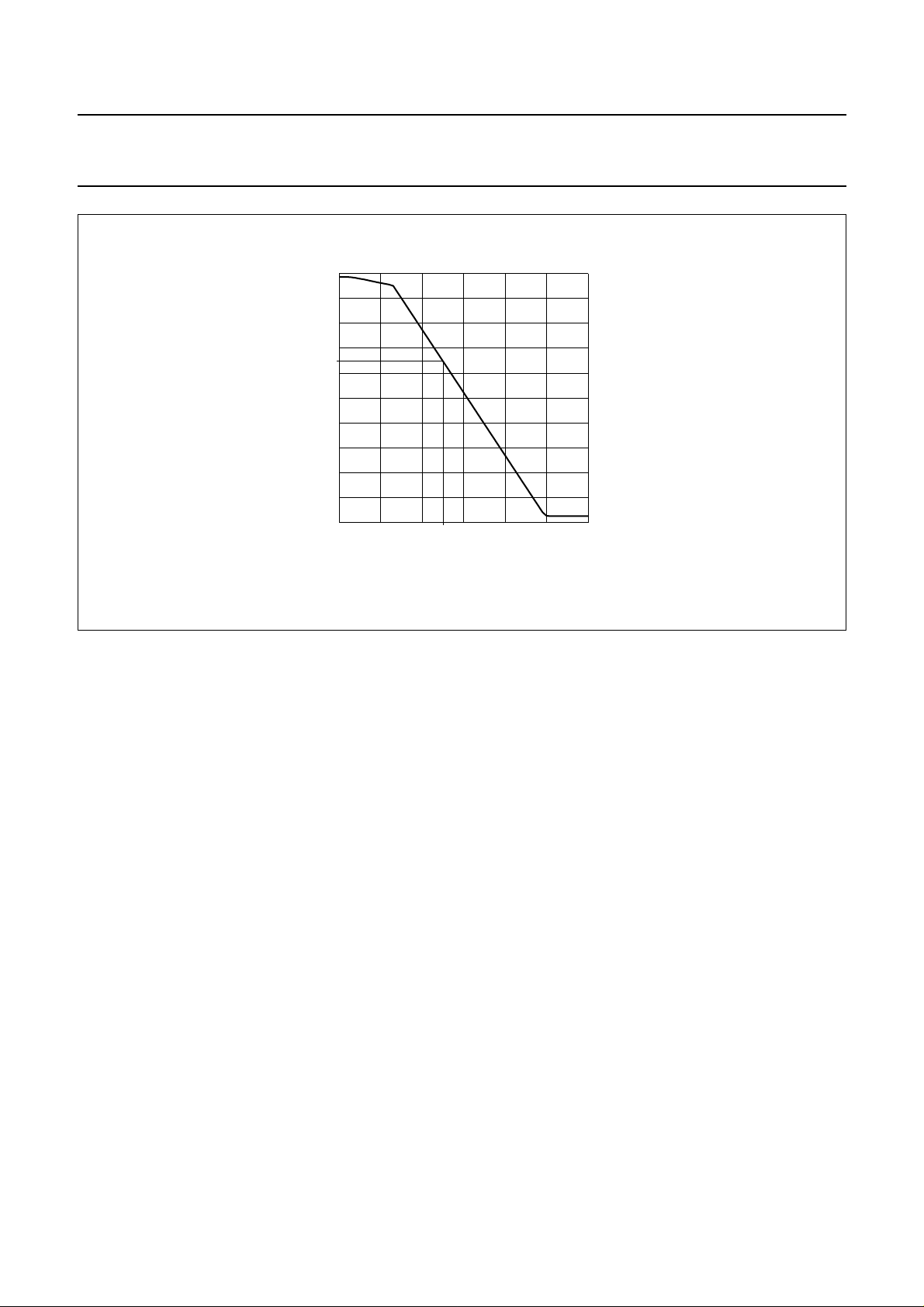

Fig.3 Power derating curves.

MBH989

amb

(°C)

The internal thermal protection circuit gives a decrease of
the slew rate at high temperatures: 10% decrease at
130 °C and 30% decrease at 145 °C (typical values on the
spot of the thermal protection circuit).

handbook, halfpage

outputs

5 K/W

thermal protection circuit

6 K/W

fin

MGK279

Fig.4 Equivalent thermal resistance network.

1999 Oct 26 4

Philips Semiconductors Product specification

Triple video output amplifier TDA6107Q

CHARACTERISTICS

Operating range: Tj= −20 to +150 °C; VDD= 180 to 210 V. Test conditions: T
V

o(c1)=Vo(c2)=Vo(c3)

=1⁄2VDD; CL= 10 pF (CL consists of parasitic and cathode capacitance); R

(measured in test circuit of Fig.8); unless otherwise specified.

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

I

q

V

ref(int)

quiescent supply current 5.9 6.9 7.9 mA
internal reference voltage

(input stage)

R

i

input resistance − 3.6 − kΩ
G gain of amplifier 47.5 51.0 55.0
∆G gain difference −2.5 0 +2.5
V

O(c)

nominal output voltage at

Ii=0µA 116 129 142 V

pins 7, 8 and 9 (DC value)
∆V

O(c)(offset)

differential nominal output

Ii=0µA − 05V
offset voltage between
pins 7 and 8, 8 and 9 and
9 and 7 (DC value)

∆V

o(c)(T)

output voltage temperature
drift at pins 7, 8 and 9

∆V

o(c)(T)(offset)

differential output offset
voltage temperature drift
between pins 7 and 8,
8 and 9 and 7 and 9

I

o(m)(offset)

∆I

/∆I

o(m)

offsetcurrentofmeasurement
output

linearity of current transfer −100 µA<I

o(c)

I

=0µA;

o(c)

1.5V<Vi< 5.5 V;

3V<V

o(m)

<6V

< 100 µA;

o(c)

1.5V<Vi< 5.5 V;

3V<V

o(m)

<6V

at CRT discharge;

= 1 mA;

I

o(c)

1.5V<Vi< 5.5 V;

I

o(c)(max)

maximum peak output current

3V<V

50V<V

< 5.4 V

o(m)

o(c)<VDD

− 50 V − 20 − mA

(pins 7, 8 and 9)

V

o(c)(min)

minimum output voltage

Vi= 7.0 V; note 1 −−10 V
(pins 7, 8 and 9)

V

o(c)(max)

maximum output voltage

Vi= 1.0 V; note 1 VDD− 15 −−V
(pins 7, 8 and 9)

B

S

small signal bandwidth

V

= 60 V (p-p) − 5.5 − MHz

o(c)

(pins 7, 8 and 9)

B

L

large signal bandwidth

V

= 100 V (p-p) − 4.5 − MHz

o(c)

(pins 7, 8 and 9)

=25°C; VDD= 200 V;

amb

= 18 K/W

th(h-a)

− 2.5 − V

−−10 − mV/K

− 0 − mV/K

−50 − +50 µA

0.9 1.0 1.1

− 1.0 −

1999 Oct 26 5

Philips Semiconductors Product specification

Triple video output amplifier TDA6107Q

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

t

Pco

∆t

Pco

t

o(r)

t

o(f)

t

st

SR slew rate between

O

v

PSRR power supply rejection ratio f < 50 kHz; note 2 − 55 − dB

α

ct(DC)

cathode output propagation
time 50% input to 50% output
(pins 7, 8 and 9)

difference in cathode output
propagationtime 50% input to
50% output (pins 7 and 8,
7 and 9 and 8 and 9)

cathode output rise time
10% output to 90% output
(pins 7, 8 and 9)

cathode output fall time
90% output to 10% output
(pins 7, 8 and 9)

settling time 50% input to
99% < output < 101%
(pins 7, 8 and 9)

50Vto(V

DD

− 50 V)

(pins 7, 8 and 9)
cathode output voltage

overshoot (pins 7, 8 and 9)

DC crosstalk between
channels

V

= 100 V (p-p) square

o(c)(

wave; f <1 MHz;

tr=tf=40ns

(pins 1, 2 and 3);

see Figs 6 and 7

V

= 100 V (p-p) square

o(c)

wave; f < 1 MHz;

tr=tf=40ns

(pins 1, 2 and 3)

V

= 50 to 150 V square

o(c)

wave; f < 1 MHz; tf=40ns

(pins 1, 2 and 3); see Fig.6

V

= 150 to 50 V square

o(c)

wave; f < 1 MHz; tr=40ns

(pins 1, 2 and 3); see Fig.7

V

= 100 V (p-p) square

o(c)

wave; f < 1 MHz;

tr=tf=40ns

(pins 1, 2 and 3);

see Figs 6 and 7

Vi= 4 V (p-p) square wave;

f < 1 MHz; tr=tf=40ns

(pins 1, 2 and 3)

V

= 100 V (p-p) square

o(c)

wave; f < 1 MHz;

tr=tf=40ns

(pins 1, 2 and 3);

see Figs 6 and 7

− 60 − ns

−10 0 +10 ns

67 91 113 ns

67 91 113 ns

−−350 ns

− 900 − V/µs

− 2 − %

− 50 − dB

Notes

1. See also Fig.5 for the typical DC-to-DC transfer of VIto V

O(c)

.

2. The ratio of the change in supply voltage to the change in input voltage when there is no change in output voltage.

1999 Oct 26 6

Philips Semiconductors Product specification

Triple video output amplifier TDA6107Q

200

handbook, halfpage

V

o(c)

(V)

160

129

120

80

40

0

0

2.5

2

46

Fig.5 Typical DC-to-DC transfer of VIto V

MBH988

V

(V)

i

O(c)

.

1999 Oct 26 7

Philips Semiconductors Product specification

Triple video output amplifier TDA6107Q

4.04

V

i

(V)

3.08

2.12

t

st

Ov (in %)

150
140

V

o(c)

(V)

100

60
50

t

o(r)

t

Pco

t

151

149

t

MGK280

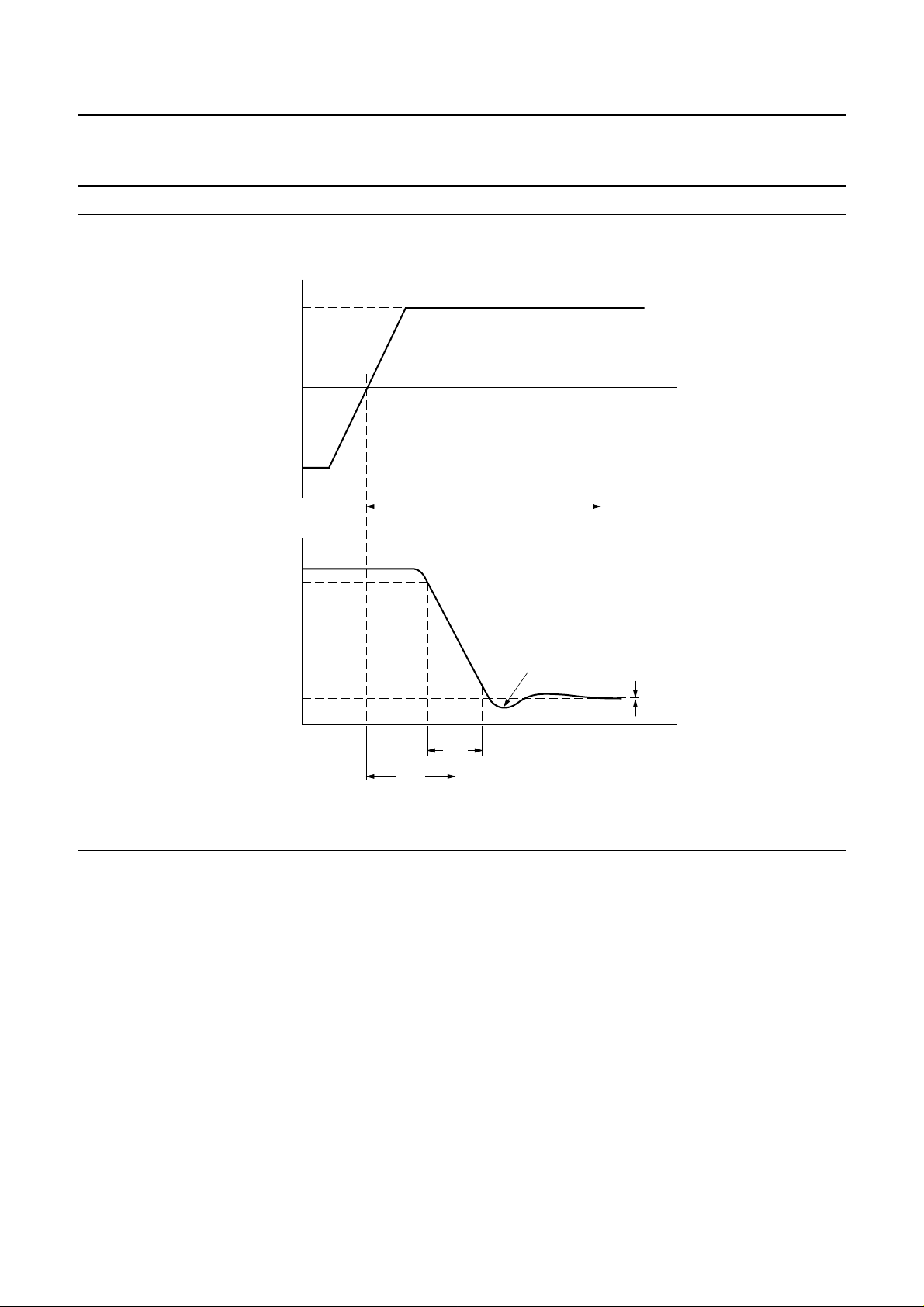

Fig.6 Output voltage (pins 7, 8 and 9) rising edge as a function of the AC input signal.

1999 Oct 26 8

Philips Semiconductors Product specification

Triple video output amplifier TDA6107Q

4.04

V

i

(V)

3.08

2.12

t

st

150
140

V

o(c)

(V)

100

Ov (in %)

60
50

t

o(f)

t

Pco

t

51

49

t

MGK281

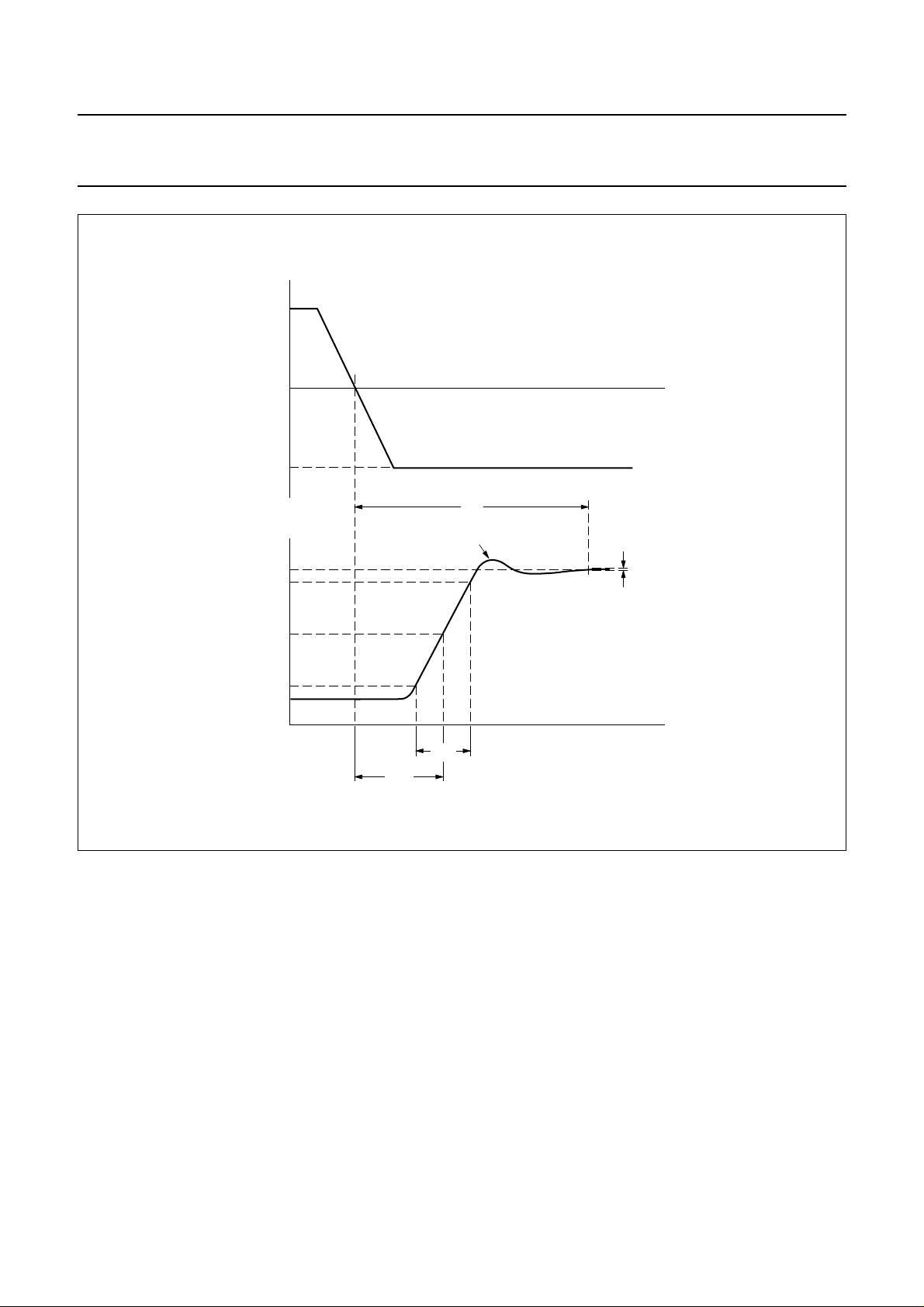

Fig.7 Output voltage (pins 7, 8 and 9) falling edge as a function of the AC input signal.

1999 Oct 26 9

Philips Semiconductors Product specification

Triple video output amplifier TDA6107Q

External flashover protection

For sufficient flashover protection it is necessary to apply
an external diode and 100 Ω resistor for each channel.
See application note

of TDA6107Q/N1”

“Application and Product description

(report number AN96072).

To limit the diode current an external 1 kΩ carbon
high-voltage resistor in series with the external diode and
a 2 kV spark gap are needed (for this resistor value, the
CRT has to be connected to the main PCB).

VDD must be decoupled to GND:

1. With a capacitor >20 nF with good HF behaviour
(e.g. foil); this capacitor must be placed as close as
possible to pins 6 and 4, but definitely within 5 mm.

2. With a capacitor >3.3 µF on the picture tube base
print.

Switch-off behaviour

The switch-off behaviour of the TDA6107Q is controllable.
This is due to the fact that the output pins of the
TDA6107Q are still under control of the input pins for low
power supply voltages (approximately 30 V and higher).

Bandwidth

The addition of the flash resistor produces a decreased
bandwidth and increases rise and fall times.

Dissipation

Regarding dissipation, distinction must first be made
between static dissipation (independent of frequency) and
dynamic dissipation (proportional to frequency).

The static dissipation of the TDA6107Q is due to voltage
supply currents and load currents in the feedback network
and CRT.

The static dissipation P

P

stat

V

DDIDD

stat

3V

O(c)IO(c)

equals:

××+×=

Where:

= supply voltage

V

DD

IDD= supply current
V

= DC value of cathode voltage

O(c)

I

= DC value of cathode current.

O(c)

The dynamic dissipation P

P

3VDDCLC

dyn

equals:

dyn

+()f

int

V

i

o(c)(p-p)

δ×××××=

Where:

= load capacitance

C

L

C

= internal load capacitance (≈4 pF)

int

fi= input frequency
V

= output voltage (peak-to-peak value)

o(c)(p-p)

δ = non-blanking duty cycle.

The IC must be mounted on the picture tube base print to
minimize the load capacitance CL.

1999 Oct 26 10

Philips Semiconductors Product specification

Triple video output amplifier TDA6107Q

TEST AND APPLICATION INFORMATION

handbook, full pagewidth

V

i(1)

V

i(2)

V

i(3)

C1

22 µF

C2

22 nF

C3

22 µF

C4

22 nF

C5

22 µF

C6

22 nF

V

DD

J1

R

i

1

R

a

J2

R

i

2

R

a

J3

R

i

3

R

a

VIP

REFERENCE

R

f

1

R

f

V

2

R

f

V

3

6

V

of

V

9

oc(1)

I

om

C9

3.2 pF

of

V

8

oc(2)

I

om

C12

3.2 pF

of

V

7

oc(3)

I

om

C15

3.2 pF

5

TDA6107Q

4

20 nFC710 µF

C10

6.8 pF

C11
136 pF

C13

6.8 pF

C14
136 pF

C16

6.8 pF

C17
136 pF

V

o(m)

4 V

C8

R1
2 MΩ

probe 1

R2
100 kΩ

R3
2 MΩ

probe 2

R4
100 kΩ

R5
2 MΩ

probe 3

R6
100 kΩ

Current sources J1, J2 and J3 are to be tuned so that V

of pins 9, 8 and 7 is set to 100 V.

o(c)

Fig.8 Test circuit.

1999 Oct 26 11

MGK282

Philips Semiconductors Product specification

Triple video output amplifier TDA6107Q

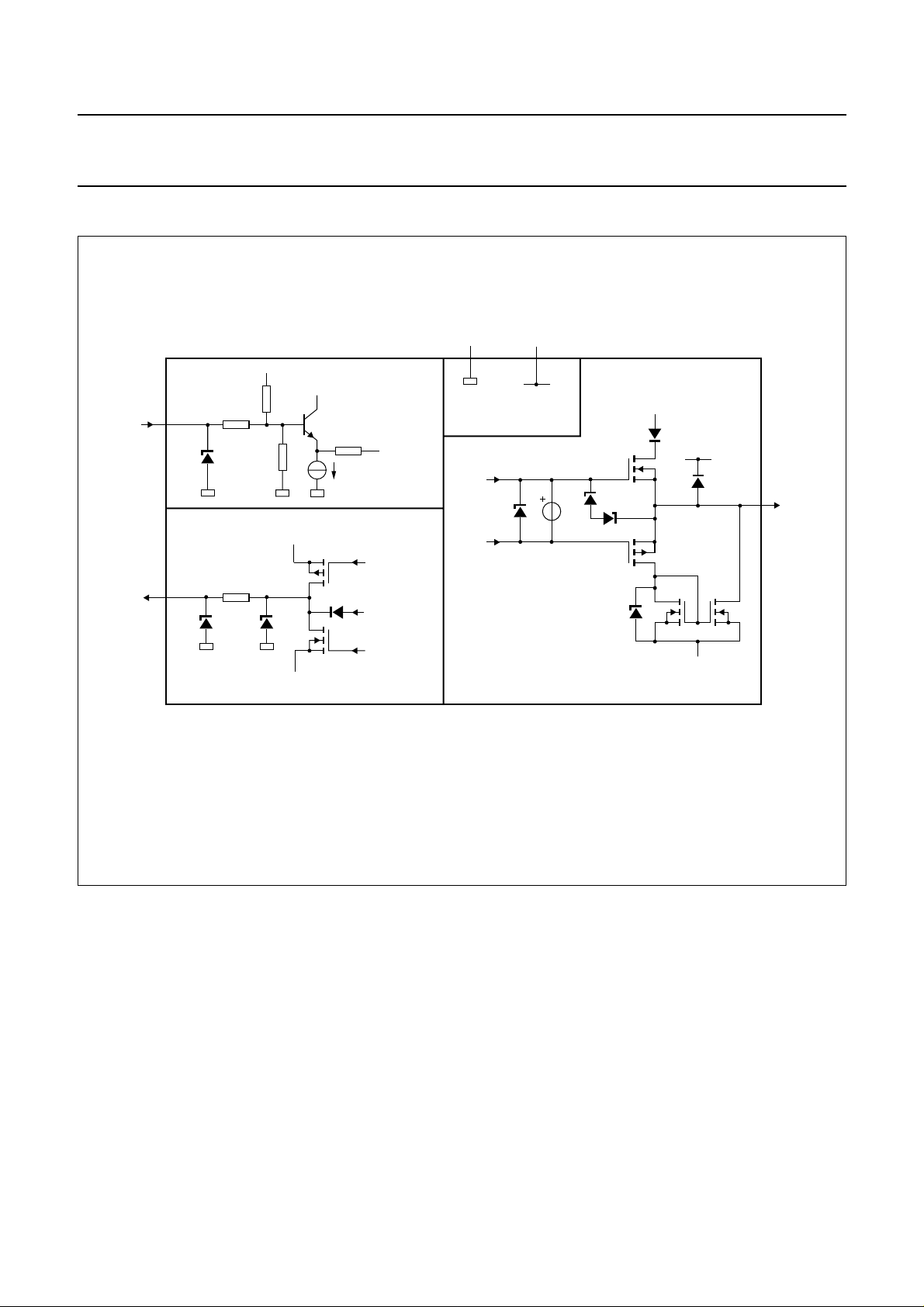

INTERNAL CIRCUITRY

handbook, full pagewidth

1, 2, 3

5

esd

to black current

measurement circuit

6.8 Vesd

to black current

measurement circuit

to cascode

stage

from
control
circuit

from black
current
measurement
circuit

from
control
circuit

GND

46

V

DD

TDA6107Q

(1)

from
input

circuit

esd

from
input

circuit

measurement circuit

esd

V

bias

esd

esd

to black current

to black current

measurement circuit

flash

7, 8, 9

MGK283

(1) All pins have an energy protection for positive or negative overstress situations.

Fig.9 Internal pin configuration.

1999 Oct 26 12

Philips Semiconductors Product specification

Triple video output amplifier TDA6107Q

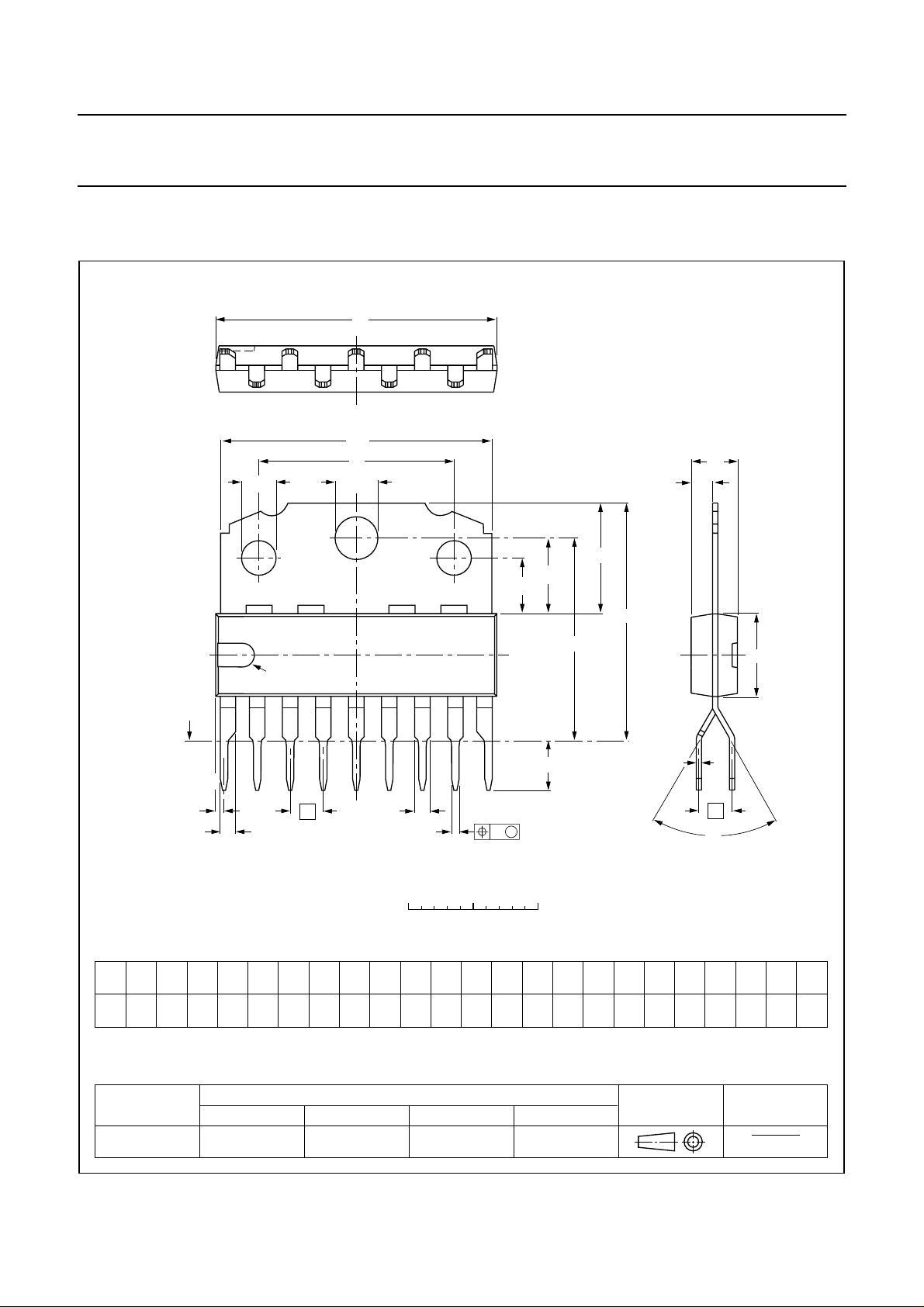

PACKAGE OUTLINE

DBS9MPF: plastic DIL-bent-SIL medium power package with fin; 9 leads

D

D

1

q

P

pin 1 index

P

1

q

2

q

1

SOT111-1

A

2

Q

A

3

A

A

4

E

seating plane

19

Z

b

e

2

b

b

1

0 5 10 mm

scale

DIMENSIONS (mm are the original dimensions)

A

UNIT A A

mm

2

max. max.

18.5

3.7

17.8

8.7

8.0

b

bcD

A

3

4

15.5

1.40

15.1

1.14

b

1

2

0.67

1.40

0.50

1.14

0.48

0.38

(1)

21.8

21.4

(1)

D

E

12

21.4

6.48

20.7

6.20

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

OUTLINE

VERSION

IEC JEDEC EIAJ

REFERENCES

SOT111-1

L

w M

eLPP

2.54

e

2.54

3.9

3.4

2.75

2.50

1

3.4

1.75

3.2

1.55

Q

c

q

q

1

15.1

4.4

14.9

4.2

EUROPEAN

PROJECTION

e

2

θ

q

w

2

5.9

0.25

5.7

ISSUE DATE

92-11-17
95-03-11

Z

1.0

(1)

θ

o

65

o

55

1999 Oct 26 13

Philips Semiconductors Product specification

Triple video output amplifier TDA6107Q

SOLDERING
Introduction to soldering through-hole mount

packages

This text gives a brief insight to wave, dip and manual
soldering.Amorein-depthaccountofsolderingICscan be
found in our

Packages”

Wave soldering is the preferred method for mounting of
through-hole mount IC packages on a printed-circuit
board.

Soldering by dipping or by solder wave

The maximum permissible temperature of the solder is
260 °C; solder at this temperature must not be in contact
with the joints for more than 5 seconds.

Suitability of through-hole mount IC packages for dipping and wave soldering methods

DBS, DIP, HDIP, SDIP, SIL suitable suitable

Note

1. For SDIP packages, the longitudinal axis must be parallel to the transport direction of the printed-circuit board.

“Data Handbook IC26; Integrated Circuit

(document order number 9398 652 90011).

PACKAGE

Thetotalcontacttimeof successive solder waves must not
exceed 5 seconds.

The device may be mounted up to the seating plane, but
the temperature of the plastic body must not exceed the
specified maximum storage temperature (T
printed-circuit board has been pre-heated, forced cooling
may be necessary immediately after soldering to keep the
temperature within the permissible limit.

Manual soldering

Apply the soldering iron (24 V or less) to the lead(s) of the
package, either below the seating plane or not more than
2 mm above it. If the temperature of the soldering iron bit
is less than 300 °C it may remain in contact for up to
10 seconds. If the bit temperature is between
300 and 400 °C, contact may be up to 5 seconds.

SOLDERING METHOD

DIPPING WAVE

(1)

stg(max)

). If the

DEFINITIONS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

1999 Oct 26 14

Philips Semiconductors Product specification

Triple video output amplifier TDA6107Q

NOTES

1999 Oct 26 15

Philips Semiconductors – a w orldwide compan y

Argentina: see South America
Australia: 3 Figtree Drive, HOMEBUSH, NSW 2140,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: see South America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone], Fax. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Sydhavnsgade 23, 1780 COPENHAGEN V,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]
France: 51 Rue Carnot, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]

Hungary: see Austria
India: Philips INDIA Ltd, Band Box Building, 2nd floor,

254-D, Dr. Annie Besant Road, Worli, MUMBAI 400 025,
Tel. [phone], Fax. [phone]

Indonesia: PT Philips DevelopmentCorporation, SemiconductorsDivision,
Gedung Philips, Jl. Buncit Raya Kav.99-100, JAKARTA 12510,
Tel. [phone] ext. 2501, Fax. [phone]

Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. [phone], Fax. [phone]

Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,
TEL AVIV 61180, Tel. [phone], Fax. [phone]

Italy: PHILIPSSEMICONDUCTORS, Via Casati, 23 - 20052 MONZA (MI),
Tel. [phone], Fax [phone]

Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku,
TOKYO 108-8507, Tel. [phone], Fax. [phone]

Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
Tel. [phone], Fax. [phone]

Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. [phone], Fax. [phone]

Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. [phone], Fax [phone]

Middle East: see Italy

Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]
Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]

Pakistan: see Singapore
Philippines: Philips Semiconductors Philippines Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Al.Jerozolimskie 195 B, 02-222 WARSAW,
Tel. [phone], Fax. [phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax. [phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 319762,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 58088 Newville 2114,
Tel. [phone], Fax. [phone]

South America: Al. Vicente Pinzon, 173, 6th floor,
04547-130 SÃO PAULO, SP, Brazil,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone] Fax. [phone]

Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Yukari Dudullu, Org. San. Blg., 2.Cad. Nr. 28 81260 Umraniye,
ISTANBUL, Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax. [phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone], Fax. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

For all other countries apply to: Philips Semiconductors,
International Marketing & Sales Communications, Building BE-p, P.O. Box 218,
5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

© Philips Electronics N.V. SCA
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of anyquotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

1999

Internet: http://www.semiconductors.philips.com

68

Printed in The Netherlands 545004/200/04/pp16 Date of release: 1999 Oct 26 Document order number: 9397 750 06485
