INTEGRATED CIRCUITS

DATA SH EET

TDA5630BT

9 V VHF and UHF mixer/oscillator
for TV and VCR cable tuners

Product specification
Supersedes data of 1995 Mar 20
File under Integrated Circuits, IC02

1996 Jun 06

Philips Semiconductors Product specification

9 V VHF and UHF mixer/oscillator for TV
and VCR cable tuners

FEATURES

• Balanced mixer with a common emitter input for band A
(single input)

• 2-pin oscillator for band A

• Balanced mixer with a common base input for band C

• 3-pin oscillator for band C

• Local oscillator buffer output for external prescaler

• SAW filter preamplifier with a low output impedance to

drive a SAW filter

• Band gap voltage stabilizer for oscillator stability

• Electronic band switch.

APPLICATIONS

• Cable tuners for TV and VCR
(switched concept for VHF)

• Recommended RF bands for Europe:

48.25 to 105.25 MHz, 112.25 to 294.25 MHz and

471.25 to 855.25 MHz

• Recommended RF bands for the USA:

55.25 to 133.25 MHz, 139.25 to 361.25 MHz and

367.25 to 801.25 MHz.

TDA5630BT

GENERAL DESCRIPTION

The TDA5630BT is a monolithic integrated circuit that
performs VHF and UHF mixer/oscillator functions in TV
and VCR cable tuners. With a proper oscillator application
and by using a switchable inductor to split the VHF band
into two sub-bands, the full VHF/UHF TV bands can be
covered. This low-power mixer/oscillator requires a power
supply of 9 V and is available in a very small package.

The device gives the designer the capability to design an
economical and physically small cable tuner.

The tuner development time can be drastically reduced by
using this device.

Frequency bands are determined by the external tank
circuit. They can be adapted to various standards.

QUICK REFERENCE DATA

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

P

I

P

f

RF

G

v

NF noise figure band A − 7.5 − dB

V

o

Note

1. The limits are related to the tank circuits used in Fig.11 and the intermediate frequency. Frequency bands may be

adjusted by the choice of external components.

ORDERING INFORMATION

TYPE

NUMBER

TDA5630BT SO16

supply voltage − 9.0 − V
supply current − 48 − mA
frequency range (picture carrier) RF input; band A; note 1 45 − 470 MHz

RF input; band C; note 1 430 − 860 MHz

voltage gain band A − 25 − dB

band C − 36 − dB

band C − 9.0 − dB

output voltage to get 1% cross
modulation in channel

NAME DESCRIPTION VERSION

plastic small outline package; 16 leads; body width 3.9 mm

band A − 118 − dBµV
band C − 120 − dBµV

PACKAGE

SOT109-1

1996 Jun 06 2

Philips Semiconductors Product specification

9 V VHF and UHF mixer/oscillator for TV
and VCR cable tuners

BLOCK DIAGRAM

handbook, full pagewidth

band A oscillator

tuned circuit

BAND A

OSCILLATOR

band C oscillator

tuned circuit

BAND C

OSCILLATOR

MIXERMIXER

111213151416

TDA5630BT

IF outputsGND

IF

AMPLIFIER

ELECTRONIC

BAND SWITCH

TDA5630BT

910

BAND A

STAGE

band A input local oscillator

BAND C

STAGE

band C inputs

3214 76

RF

GND

LOCAL

OSCILLATOR

AMPLIFIER

amplifier outputs

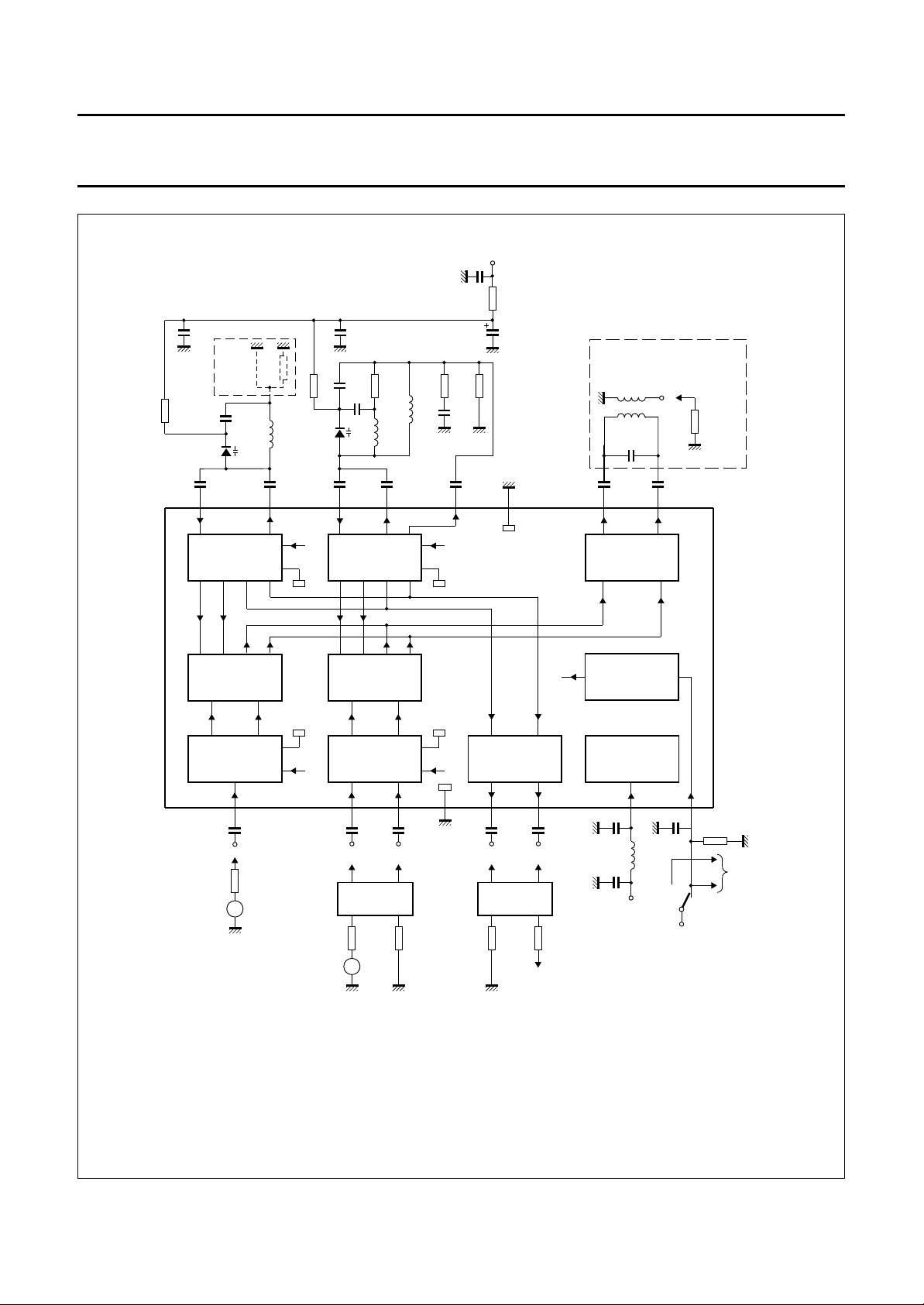

Fig.1 Block diagram.

DC 

STABILIZER

5 8

V band switch

P

MBE319

input

1996 Jun 06 3

Philips Semiconductors Product specification

9 V VHF and UHF mixer/oscillator for TV
and VCR cable tuners

PINNING

SYMBOL PIN DESCRIPTION

CIN1 1 band C input 1
CIN2 2 band C input 2
RFGND 3 ground for RF inputs
AIN 4 band A input
V

P

LOOUT1 6 local oscillator amplifier output 1
LOOUT2 7 local oscillator amplifier output 2
BS 8 band switch input
IFOUT1 9 IF amplifier output 1
IFOUT2 10 IF amplifier output 2
GND 11 ground (0 V)
COSCOC1 12 band C oscillator output collector 1
COSCOC2 13 band C oscillator output collector 2
AOSCOC 14 band A oscillator output collector
COSCIB 15 band C oscillator input base
AOSCIB 16 band A oscillator input base

5 supply voltage

handbook, halfpage

1
2

CIN2

AIN

V

BS

3
4
5

P

6
7
8

TDA5630BT

RFGND

LOOUT1
LOOUT2

Fig.2 Pin configuration.

TDA5630BT

16

AOSCIBCIN1

15

COSCIB

14

AOSCOC

13

COSCOC2

12

COSCOC1

11

GND

10

IFOUT2

9

IFOUT1



MBE318

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

SYMBOL PARAMETER MIN. MAX. UNIT

V

P

V

SW

I

O

t

s(max)

T

stg

T

amb

T

j

supply voltage −0.3 +10.5 V
switching voltage 0 10.5 V
output current of each pin referenced to ground −−10 mA
maximum short-circuit time (all pins) − 10 s
IC storage temperature −55 +150 °C
operating ambient temperature −10 +70 °C
junction temperature − 150 °C

THERMAL CHARACTERISTICS

SYMBOL PARAMETER VALUE UNIT

R

th j-a

thermal resistance from junction to ambient in free air 115 K/W

HANDLING

Human body model: the IC withstands 2000 V in accordance with the UZW-B0/FQ-A302 specification equivalent to the
MIL-STD-883C category B (2000 V)
(stress reference pins RFGND, GND and V

short-circuited together).

P

Machine model: the IC withstands 200 V in accordance with the UZW-B0/FQ-B302 specification
(issue date: Nov 6th, 1990)
(stress reference pins RFGND, GND and VP short-circuited together).

1996 Jun 06 4

Philips Semiconductors Product specification

9 V VHF and UHF mixer/oscillator for TV

TDA5630BT

and VCR cable tuners

CHARACTERISTICS

V

=9V; T

P

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supply

V

P

I

P

V

SW

I

SW

Band A mixer including IF amplifier

f

RF

f

max

G

v

NF noise figure f

V

o

V

i

g

os

g

i

C

i

Band A oscillator

f

osc

f

shift

f

drift

=25°C; measured in circuit of Fig.11; unless otherwise specified.

amb

supply voltage 8.1 9.0 9.9 V
supply current 35 48 55 mA
switching voltage band A 0 − 1.1 V

band C 3.0 − 5.0 V

switching current band A −−2µA

band C −−10 µA

frequency range note 1; Vt= 0.45 to 28 V 45 − 300 MHz
maximum frequency note 1 − 470 − MHz
voltage gain fRF= 50 MHz; see Fig.3; note 2 22.5 25 27.5 dB

= 300 MHz; see Fig.3; note 2 22.5 25 27.5 dB

f

RF

= 470 MHz; see Fig.3; note 2 − 25 − dB

f

RF

= 50 MHz; see Figs 4 and 5 − 7.5 8.5 dB

RF

= 180 MHz; see Figs 4 and 5 − 910dB

f

RF

= 300 MHz; see Fig.5 − 10.5 11.5 dB

f

RF

output voltage causing 1% cross modulation in channel;

115 118 − dBµV

fRF= 300 MHz; see Fig.6

input voltage causing 10 kHz pulling in channel;

− 104 − dBµV

fRF= 300 MHz; note 3

optimum source
conductance for noise figure

fRF=50MHz − 0.5 − mS

= 180 MHz − 1.1 − mS

f

RF

input conductance fRF= 50 MHz; see Fig.12; note 4 − 0.26 − mS

= 180 MHz; see Fig.12; note 4 − 0.35 − mS

f

RF

input capacitance fRF= 50 to 180 MHz; see Fig.12; note 4 − 2 − pF

frequency range note 5; Vt= 0.45 to 28 V 80 − 336 MHz
frequency shift ∆VP= 10%; note 6 −−200 kHz
frequency drift ∆T=25°C with no compensation;

−−500 kHz

NP0 capacitors; note 7
5 s to 15 min after switch on; with no

− 500 950 kHz

compensation; NP0 capacitors; note 8
5 s to 15 min after switch on; with

− 200 300 kHz

compensation; note 9

1996 Jun 06 5

Philips Semiconductors Product specification

9 V VHF and UHF mixer/oscillator for TV

TDA5630BT

and VCR cable tuners

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Band C mixer including IF amplifier; measurements using hybrid; note 10

f

RF

G

v

NF noise figure not corrected for image

V

o

V

i

Z

i

frequency range Vt= 0.45 to 28 V; note 1 430 − 860 MHz
voltage gain fRF= 430 MHz; see Fig.7; note 2 33 36 39 dB

= 860 MHz; see Fig.7; note 2 33 36 39 dB

f

RF

fRF= 430 MHz; see Fig.8 − 910dB

= 860 MHz; see Fig.8 − 11 12 dB

f

RF

output voltage causing 1% cross modulation in channel

f

= 430 MHz; see Fig.9 116 120 − dBµV

RF

= 860 MHz; see Fig.9 116 120 − dBµV

f

RF

input voltage causing 10 kHz pulling in channel;

− 84 − dBµV

fRF= 860 MHz; note 3
causing N + 5 - 1 MHz pulling;

= 820 MHz; see Fig.10

f

RF

− 63 − dBµV

input impedance (RS+jLSω)RS at fRF= 430 MHz; see Fig.13; note 4 − 40 −Ω

at fRF= 860 MHz; see Fig.13; note 4 − 53 −Ω

R

S

at fRF= 430 to 860 MHz; see Fig.13;

L

S

− 9 − nH

note 4

Band C oscillator

f
f
f

osc
shift
drift

frequency range note 5; Vt= 0.45 to 28 V 470 − 900 MHz
frequency shift ∆VP= 10%; note 6 −−400 kHz
frequency drift ∆T=25°C with no compensation;

IF amplifier

s

22

Z

o

output reflection coefficient magnitude; see Fig.14; note 4 −−10 − dB

output impedance
(RS+jLSω)

−−2.5 MHz

NP0 capacitors; note 7
5 s to 15 min after switch on; with no

− 1000 1300 kHz

compensation; NP0 capacitors; note 8
5 s to 15 min after switch on; with

− 550 950 kHz

compensation; note 9

phase; see Fig.14; note 4 − 9 −

o

RS; see Fig.14; note 4 − 95 −Ω

; see Fig.14; note 4 − 45 − nH

L

S

1996 Jun 06 6

Philips Semiconductors Product specification

9 V VHF and UHF mixer/oscillator for TV

TDA5630BT

and VCR cable tuners

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

LO output; R

Y

o

V

o

SRF spurious signal on LO output

SHD LO signal harmonics with

Notes to the characteristics

1. The RF frequency range is defined by the oscillator frequency range and the intermediate frequency.

2. The gain is defined as the transducer gain (measured in Fig.11) plus the voltage transformation ratio of L6 to L7

(10 : 2, 15.4 dB including transformer loss).

3. The input level causing 10 kHz frequency detuning at the LO output. f

4. All s-parameters are referred to a 50 Ω system.

5. Limits are related to the tank circuits used in Fig.11. Frequency bands may be adjusted by the choice of external

components.

6. The frequency shift is defined as the change in oscillator frequency when the supply voltage varies from

VP= 9 to 8.1 V or from VP= 9 to 9.9 V.

7. The frequency drift is defined as the change in oscillator frequency when the ambient temperature varies from

T

amb

8. Switch on drift with no compensation is defined as the change of oscillator frequency between 5 s and 15 min after

switch on. All capacitors are NP0.

9. Switch on drift with compensation is defined as the change of oscillator frequency between 5 s and 15 min after

switch on. C5 to C11 are N750; C1, C2 and C4 are N470.

10. The values have been corrected for hybrid and cable losses. The symmetrical output impedance of the hybrid is

100 Ω.

11. Measured with RF input voltage:

a) RF voltage = 120 dBµV at fRF< 180 MHz.
b) RF voltage = 107.5 dBµV at 180 MHz < fRF< 225 MHz.
c) RF voltage = 97 dBµV at 225 MHz < fRF< 860 MHz.

= 100 Ω

L

output admittance
(GP+jCPω)

f

= 80 MHz; see Fig.15; note 4 − 2.5 − mS

osc

− 0.9 − pF

f

= 900 MHz; see Fig.15; note 4 − 3.5 − mS

osc

− 0.7 − pF

output voltage RL= 100 Ω; Vt= 0.45 to 28 V 83 91 100 dBµV

note 11 −−−10 dBc
with respect to LO output
signal

−−−10 dBc

respect to LO signal

osc=fRF

+ 33.4 MHz.

=25to0°C or from 25 to 50 °C. With no compensation, all capacitors are NP0.

1996 Jun 06 7

Philips Semiconductors Product specification

9 V VHF and UHF mixer/oscillator for TV
and VCR cable tuners

handbook, full pagewidth

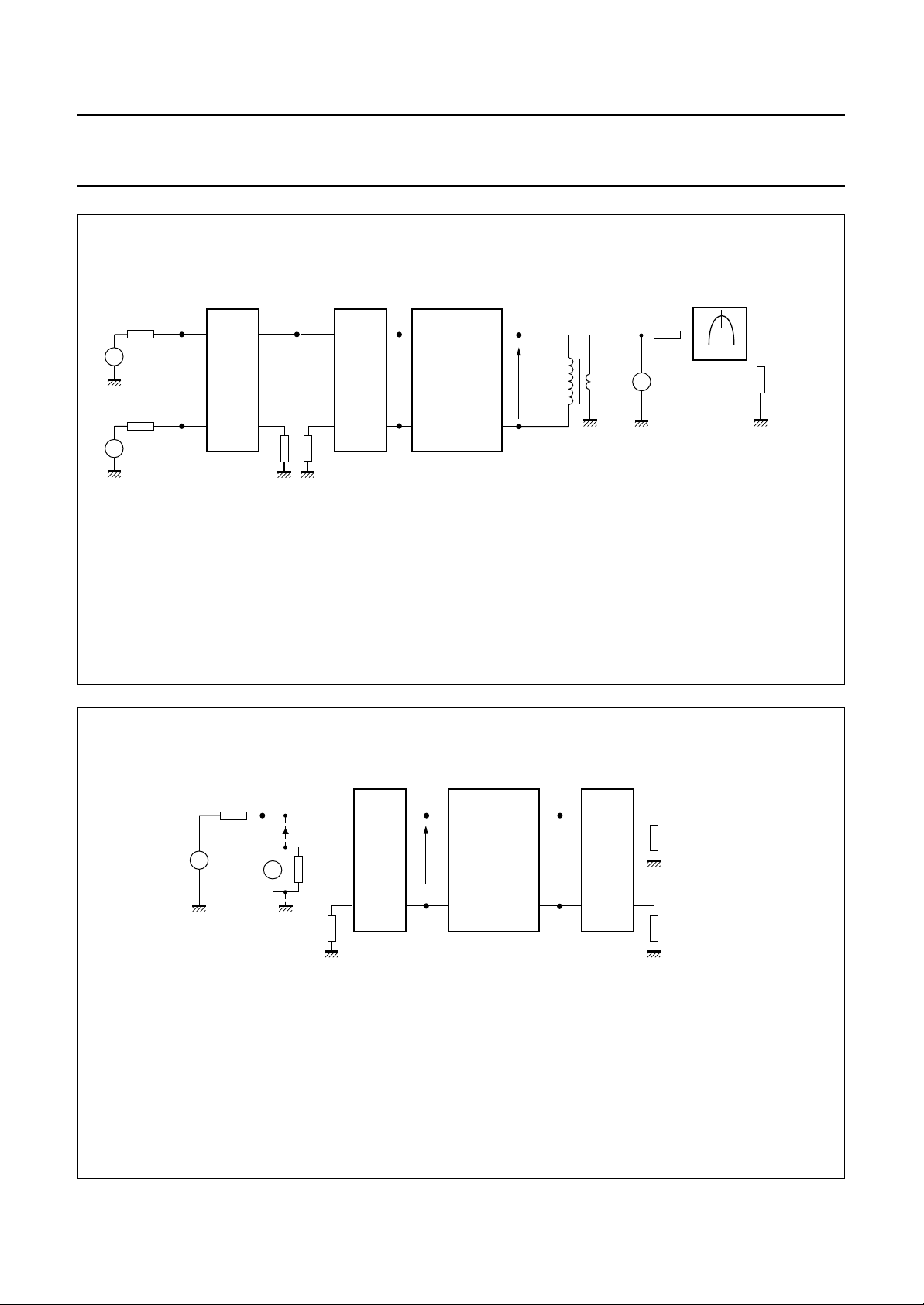

Zin(AIN) >>50 Ω Vi=2×V
Vi=V
Vo=V’

G

meas

=20log

v

+ 6dB.

+ 15.4dB (transformer ratio N1/N2 = 5 and transformer loss).

meas



V

o



-----­V



i

e

50 Ω

meas

V

meas

.

signal
source

V

RMS

voltmeter

50 Ω

AIN

V

i

D.U.T.

GND

IF

out

IF

out

TDA5630BT

TR

V

o

2 x 5
turns

2
turns

N1/N2 = 5

V'

meas

spectrum

analyzer

50 Ω

MGD264

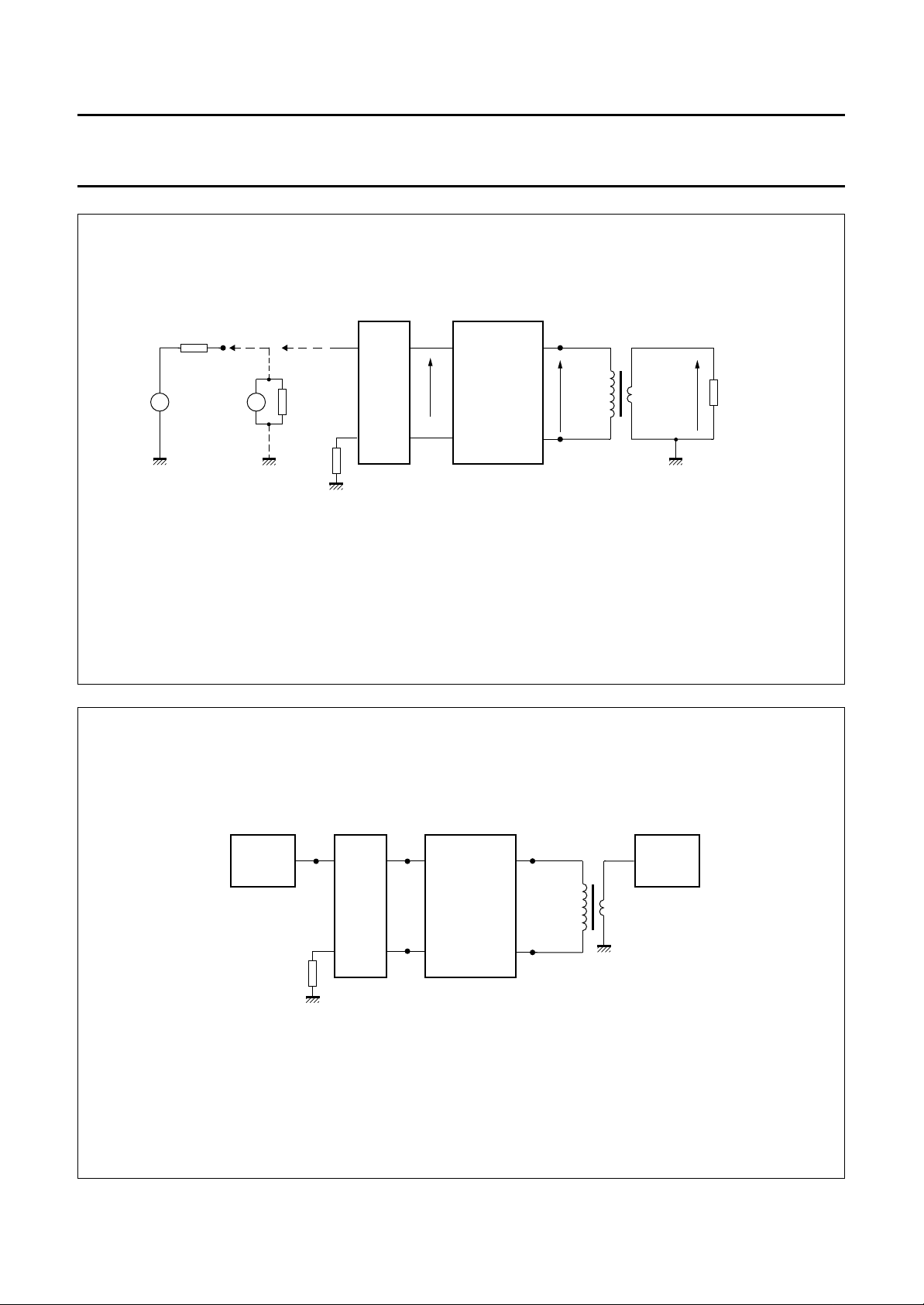

Fig.3 Gain measurement in band A.

handbook, full pagewidth

C1

BNC BNC

L1 C2

(a) For fRF= 50MHz:

mixer A frequency response measured= 57 MHz, loss = 0 dB
image suppression = 16 dB
C1 = 9 pF
C2=15pF
L1 = 7 turns (diameter = 5.5 mm, wire diameter = 0.5 mm)
l1 = semi rigid cable (RIM): 5 cm long

(semi rigid cable (RIM); 33 dB/100 m; 50 Ω; 96 pF/m).

I1

RIM-RIM

(a) (b)

C4

I3

I2

RIM-RIM

PCB

MBE286 - 1

PCB

C3

plug plug

(b) For fRF= 150 MHz:

mixer A frequency response measured = 150.3 MHz, loss = 1.3 dB
image suppression = 13 dB
C3 = 5 pF
C4=25pF
l2 = semi rigid cable (RIM): 30 cm long
l3 = semi rigid cable (RIM): 5 cm long

(semi rigid cable (RIM); 33 dB/100 m; 50 Ω; 96 pF/m).

Fig.4 Input circuit for optimum noise figure in band A.

1996 Jun 06 8

Philips Semiconductors Product specification

9 V VHF and UHF mixer/oscillator for TV
and VCR cable tuners

handbook, full pagewidth

NOISE

SOURCE

BNC RIM

INPUT

CIRCUIT

(see Fig. 5)

AIN

GND

IFOUT1

D.U.T.

IFOUT2

2 x 5
turns

N1/N2 = 5

MBH046

TR

TDA5630BT

NOISE

METER

2
turns

(1) NF = NF

− loss (input circuit) dB.

meas

Fig.5 Noise figure measurement in band A.

handbook, full pagewidth

e

e

V

meas=Vo

Wanted output signal at f
We measure the level of the unwanted signal Vou causing 0.3% AM modulation in the wanted output signal; f
Vou=V

meas

f

= 338.9 MHz.

osc

Filter characteristics: fc= 38.9 MHz; f

unwanted

signal

source

50 Ω

AM = 30%

u

w

−15.4 dB (transformer ratio N1/N2 = 5 and transformer loss).

+ 15.4 dB.

1 kHz

50 Ω

wanted

signal

source

AC

HYBRID

BD

50

Ω

= 300 MHz: Vow=104 dBµV (V

RFW

= 1.2 MHz; f

−3dBBW

AIN

GND

meas

−30dBBW

IFOUT1

D.U.T.

IFOUT2

= 88.6 dBµV).

= 2.64 MHz.

V

o

2 x 5
turns

N1/N2 = 5

2
turns

18 dB

attenuator

V

RMS

voltmeter

V

meas

= 305.5 MHz.

RFU

FILTER

38.9 MHz

modulation
analyzer

50 Ω

MBH047

Fig.6 Cross modulation measurement in band A.

1996 Jun 06 9

Philips Semiconductors Product specification

9 V VHF and UHF mixer/oscillator for TV
and VCR cable tuners

i

50 Ω

V

signal
source

meas

V

RMS

voltmeter

50 Ω

50 Ω

AC

HYBRID

BD

V

i

handbook, full pagewidth

e

Loss of the hybrid: 1 dB.
Vi=V
Vo=V’

G

meas

=20log

v

meas

− loss of the hybrid.
+ 15.4 dB (transformer ratio N1/N2 = 5 and transformer loss).



V



-----­V



o

CIN1

CIN2

IFOUT1

D.U.T.

IFOUT2

TDA5630BT

TR

V

o

2 x 5
turns

2
turns

N1/N2 = 5

V'

meas

spectrum

analyzer

50 Ω

MBH048

handbook, full pagewidth

Loss of the hybrid: 1 dB.
NF = NF

− loss of the hybrid.

meas

NOISE

SOURCE

50 Ω

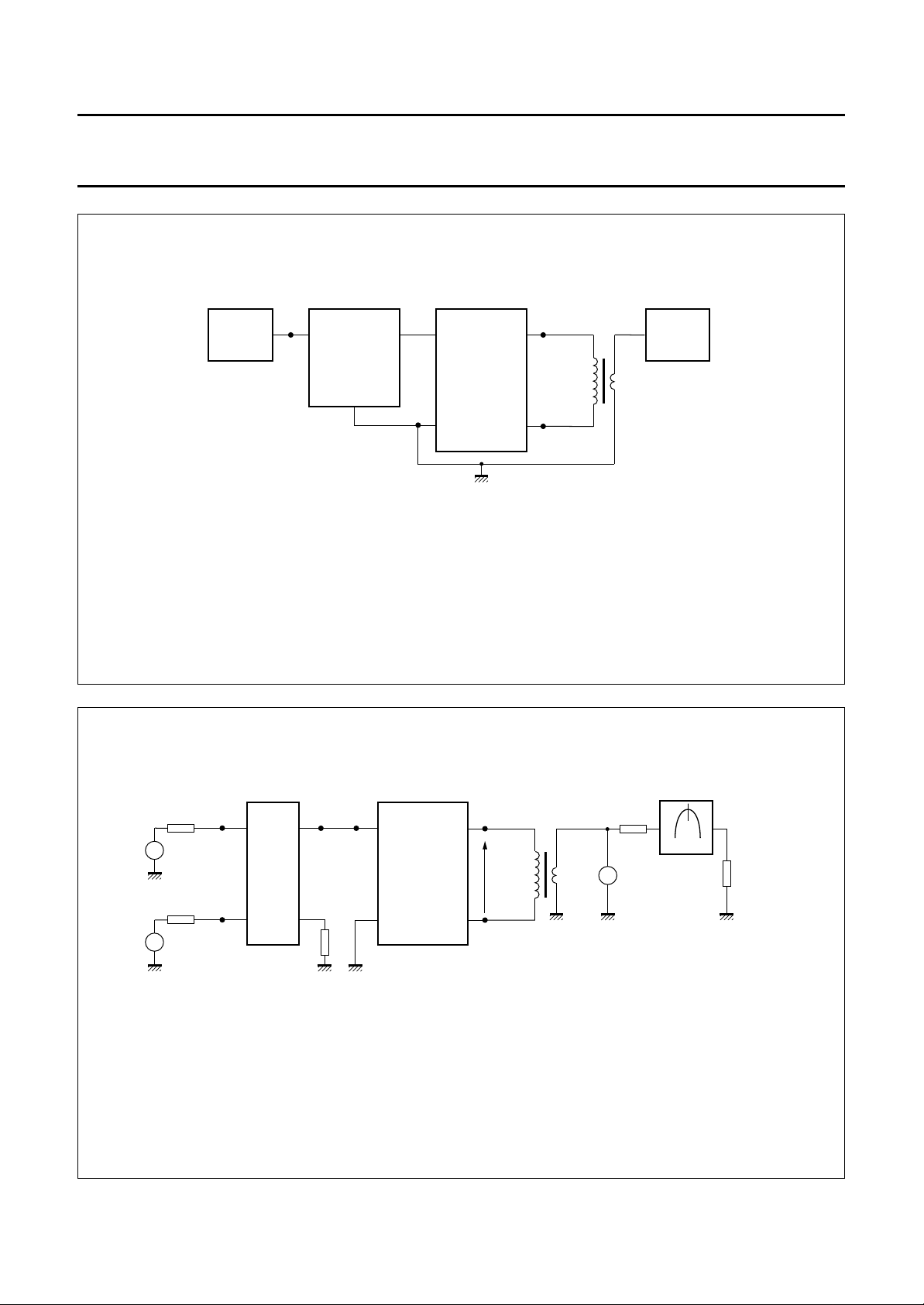

Fig.7 Gain measurement in band C.

AC

HYBRID

BD

CIN1

CIN2

IFOUT1

D.U.T.

IFOUT2

2 x 5
turns

N1/N2 = 5

TR

NOISE

METER

2
turns

MBH049

Fig.8 Noise figure measurement in band C.

1996 Jun 06 10

Philips Semiconductors Product specification

9 V VHF and UHF mixer/oscillator for TV
and VCR cable tuners

handbook, full pagewidth

e

e

V

meas=Vo

Wanted output signal at f
We measure the level of the unwanted output signal Vou causing 0.3% AM modulation in the wanted output signal.
Vou=V
f

RFU=fRFW

Filter characteristics: fc= 38.9 MHz; f

unwanted

signal

source

50 Ω

AM = 30%

u

50 Ω

w

wanted
source

−15.4 dB (transformer ratio N1/N2 = 5 and transformer loss).

+ 15.4 dB.

meas

+ 5.5 MHz; f

1 kHz

signal

AC

HYBRID

BD

50

Ω

: Vow= 108 dBµV, V

RFW

+ 38.9 MHz.

osc=fRF

−3dBBW

AC

HYBRID

BD

50

Ω

meas

= 1.2 MHz; f

= 92.6 dBµV.

−30dBBW

IFOUT1

CIN1

D.U.T.

IFOUT2

CIN2

= 2.64 MHz.

V

o

2 x 5

turns

2
turns

N1/N2 = 5

attenuator

V

RMS

voltmeter

18 dB

V

meas

TDA5630BT

FILTER

38.9 MHz

modulation
analyzer

50 Ω

MBH050

Fig.9 Cross modulation measurement in band C.

handbook, full pagewidth

Loss of the hybrid: 1 dB.
f

= 781 MHz. This wanted signal is not used during the measurement.

RFW

f

= 819.9 MHz.

osc

f

= 820 MHz = f

RFU

We measure the level of the unwanted signal Viu causing FM sidebands 30 dB below the oscillator carrier at the LO output.
Viu=V

unwanted
signal
source

e

RFW

− loss of the hybrid.

meas

50 Ω

u

V

meas

V

+5×8 MHz − 1 MHz.

50 Ω

50 Ω

AC

HYBRID

BD

CIN1

V

i

CIN2

LO1

D.U.T.

LO2

AC

HYBRID

BD

50 Ω

spectrum
analyzer

50 Ω

MBH051

Fig.10 N + 5 − 1 MHz pulling measurement in band C.

1996 Jun 06 11

Philips Semiconductors Product specification

9 V VHF and UHF mixer/oscillator for TV
and VCR cable tuners

handbook, full pagewidth

R2

OSCILLATOR

C26

C2

R3 R12 R4

C3

L3

D2

BAND C

L2

R1

C5 or C9

C25

or R6

(1)

C7 or C11

BAND A

OSCILLATOR

short-
circuit

or C4

or D3

R6

(1)

C1

(1)

L1

(1)

or L4

D1

(1)

(1)

C29

R7

C28

C30

TDA5630BT

TDA5630BT

V

t

MEASUREMENT

NETWORK

IF output

(2)

L7

(2)

L6

(2)

C24

C22C10C8C6

111213151416

C23

IF

AMPLIFIER

50 Ω

910

spectrum

analyser

MIXERMIXER

OSCILLATOR

AMPLIFIER

3214 76

C19 C20

ANZAC-183-4

50

Ω

LOCAL

HYBRID

50 Ω
output

50 Ω

BAND A

STAGE

BAND C

STAGE

C12 C13C16

HYBRID

ANZAC-183-4

50 Ω 50 Ω

(1) There are two applications for the band A oscillator:

- from 80 to 216 MHz: the band A tank circuit is built with C1, D1, L1, C5 and C7. R6 is a short-circuit.

- from 180 to 506 MHz: the band A tank circuit is built with R6, C4, D3, L4, C9 and C11.

(2) L6, L7 and C24 are only required for measurement purposes; they are not used in a tuner.

ELECTRONIC

BAND SWITCH

DC 

STABILIZER

5 8

C17

L5

C18

9 V

R10

C21

AC

5 V

MBE320

to

pre-stages

Fig.11 Measurement circuit.

1996 Jun 06 12

Philips Semiconductors Product specification

9 V VHF and UHF mixer/oscillator for TV
and VCR cable tuners

Component values for measurement circuit
Table 1 Capacitors (all SMD and NP0 except C28)

COMPONENT VALUE

C1 82 pF
C2 5.6 pF
C3 100 pF
C4 150 pF
C5 2.2 pF
C6 1 pF
C7 2.2 pF
C8 1 pF
C9 1.8 pF
C10 2.2 pF
C11 3.9 pF
C12 1 nF
C13 1 nF
C16 1 nF
C17 1.5 nF
C18 1.5 nF
C19 1 nF
C20 1 nF
C21 1.5 nF
C22 1 nF
C23 1 nF
C24 18 pF
C25 1.5 nF
C26 1.5 nF
C28 1 µF; 40 V electrolytic
C29 1.5 nF
C30 0.56 pF

TDA5630BT

Table 3 Diodes and IC

COMPONENT VALUE

D1 BB911
D2 BB405 or BB215
D3 BB909 or BB219
IC TDA5630BT

Table 4 Coils (wire size 0.4 mm)

COMPONENT VALUE

L1 7.5 turns; diameter 3 mm
L2 2.5 turns; diameter 3 mm
L3 1.5 turns; diameter 2.5 mm
L4 1.5 turns; diameter 4 mm
L5 4.7 µH; choke coil

Table 5 Transformers; note 1

COMPONENT VALUE

L6 2 × 5 turns
L7 2 turns

Note

1. Coil type: TOKO 7 kN; material: 113 kN; screw core
03-0093; pot core 04-0026.

Table 2 Resistors (all SMD)

COMPONENT VALUE

R1 47 kΩ
R2 22 kΩ
R3 2.2 kΩ
R4 22 kΩ
R6 22 Ω
R7 1 kΩ
R12 470 Ω

1996 Jun 06 13

Philips Semiconductors Product specification

9 V VHF and UHF mixer/oscillator for TV
and VCR cable tuners

handbook, full pagewidth

2

5

10

∞

10

5

2

TDA5630BT

1

0.5

0.2

0.20.512510

200 MHz

0.5

40 MHz

– j

0

+ j

0.2

handbook, full pagewidth

1

MBH055

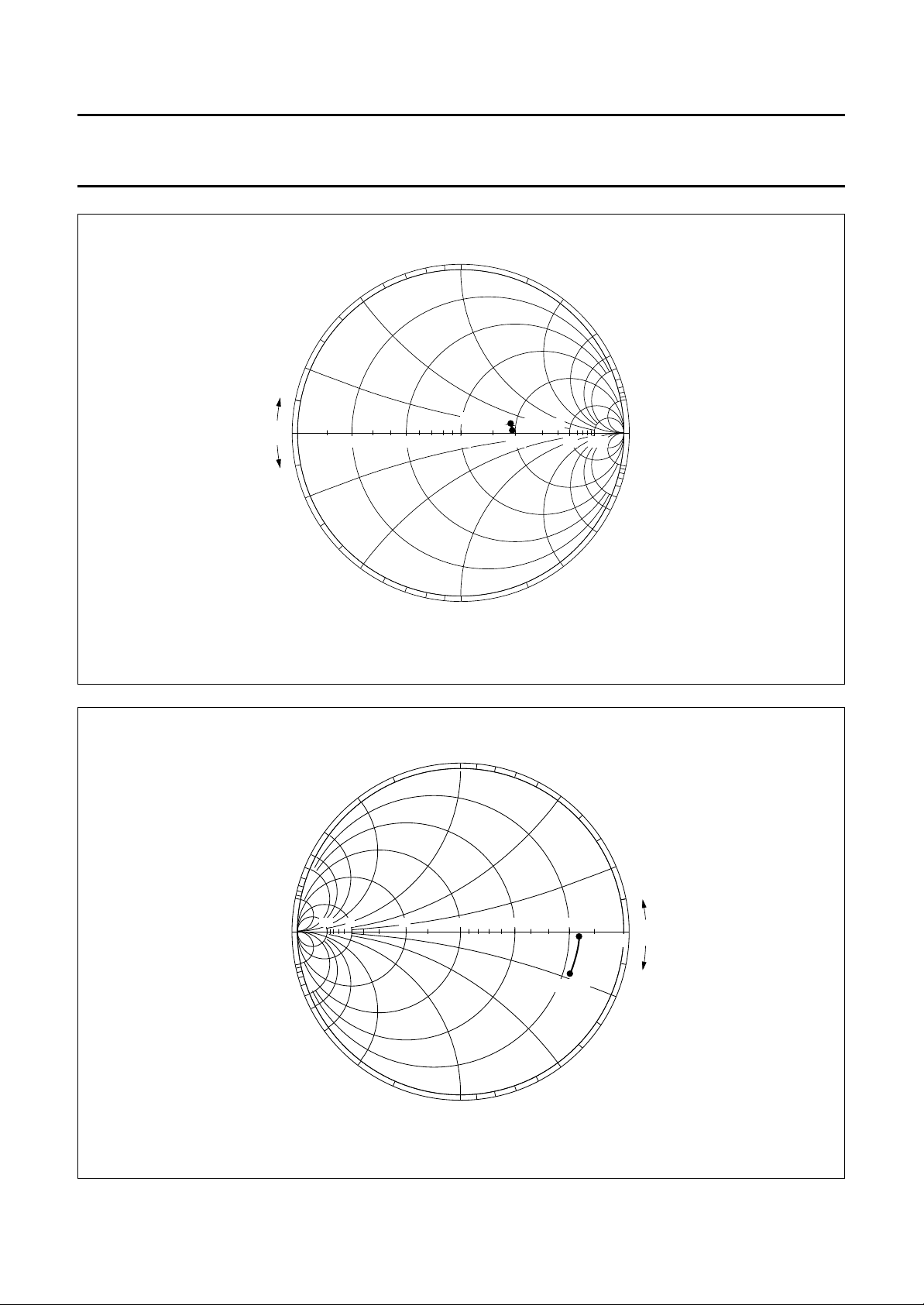

Fig.12 Input admittance (s11) of the band A mixer input (40 to 200 MHz); Y0= 20 mS.

1

0.5

0.2

430 MHz

+ j

0

– j

0.2

0.5 10.2 1052

860 MHz

2

5

10

∞

10

5

0.5

Fig.13 Input impedance (s11) of the band C mixer input (430 to 860 MHz); Z0=50Ω.

1996 Jun 06 14

2

1

MBH054

Philips Semiconductors Product specification

9 V VHF and UHF mixer/oscillator for TV
and VCR cable tuners

handbook, full pagewidth

0.5

0.2

+ j

0

– j

0.2

0.5

0.5 10.2 1025

1

45 MHz

25 MHz

TDA5630BT

2

5

10

∞

10

5

2

handbook, full pagewidth

1

MCD523

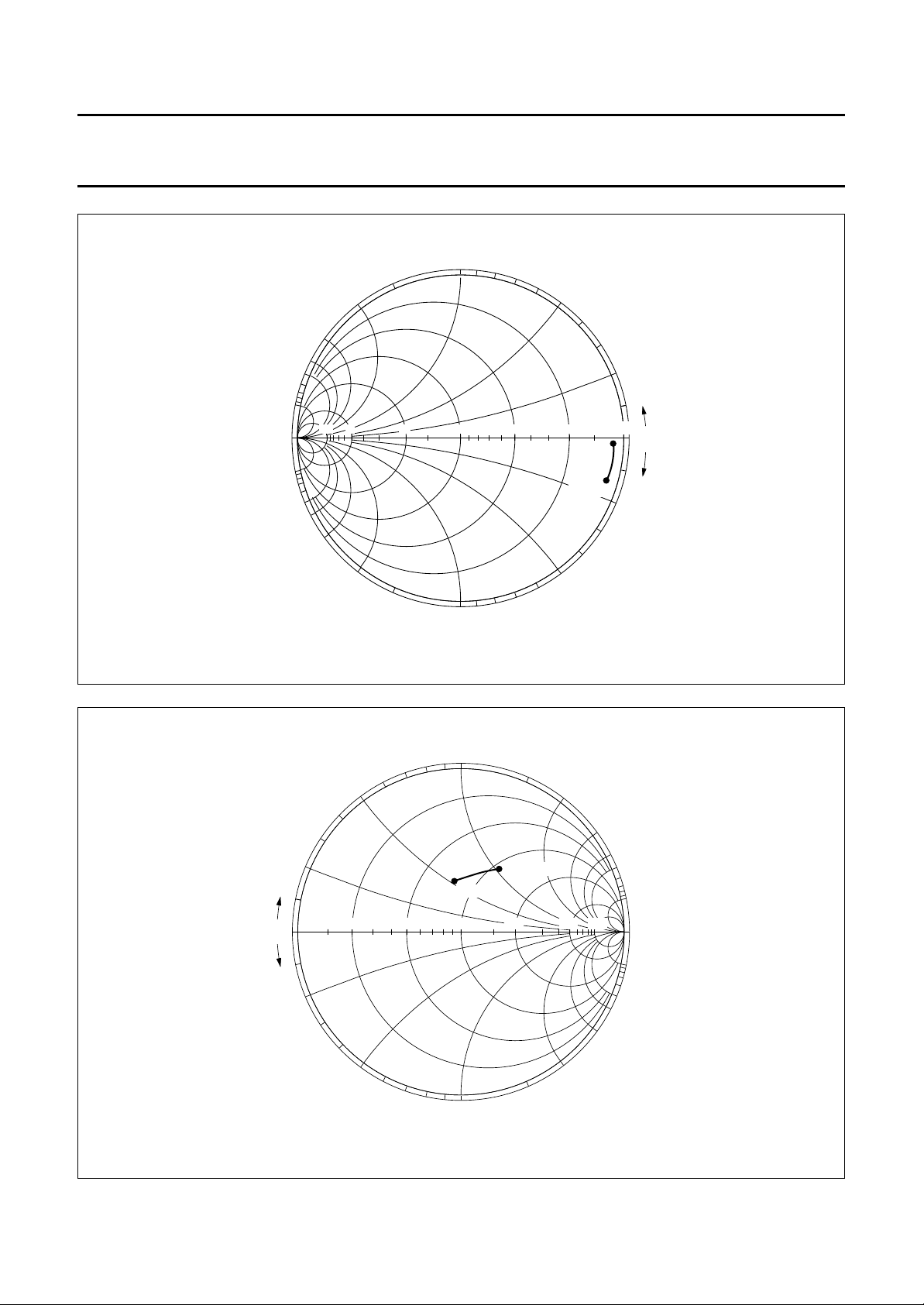

Fig.14 Output impedance (s22) of the IF amplifier (25 to 45 MHz); Z0=50Ω.

1

2

5

10

∞

10

5

0.5

0.20.512510

900 MHz

80 MHz

0.2

– j

0

+ j

0.2

2

1

Fig.15 Output admittance (s22) of the LO output (80 to 900 MHz); Y0= 20 mS.

1996 Jun 06 15

0.5

MBH056

Philips Semiconductors Product specification

9 V VHF and UHF mixer/oscillator for TV

TDA5630BT

and VCR cable tuners

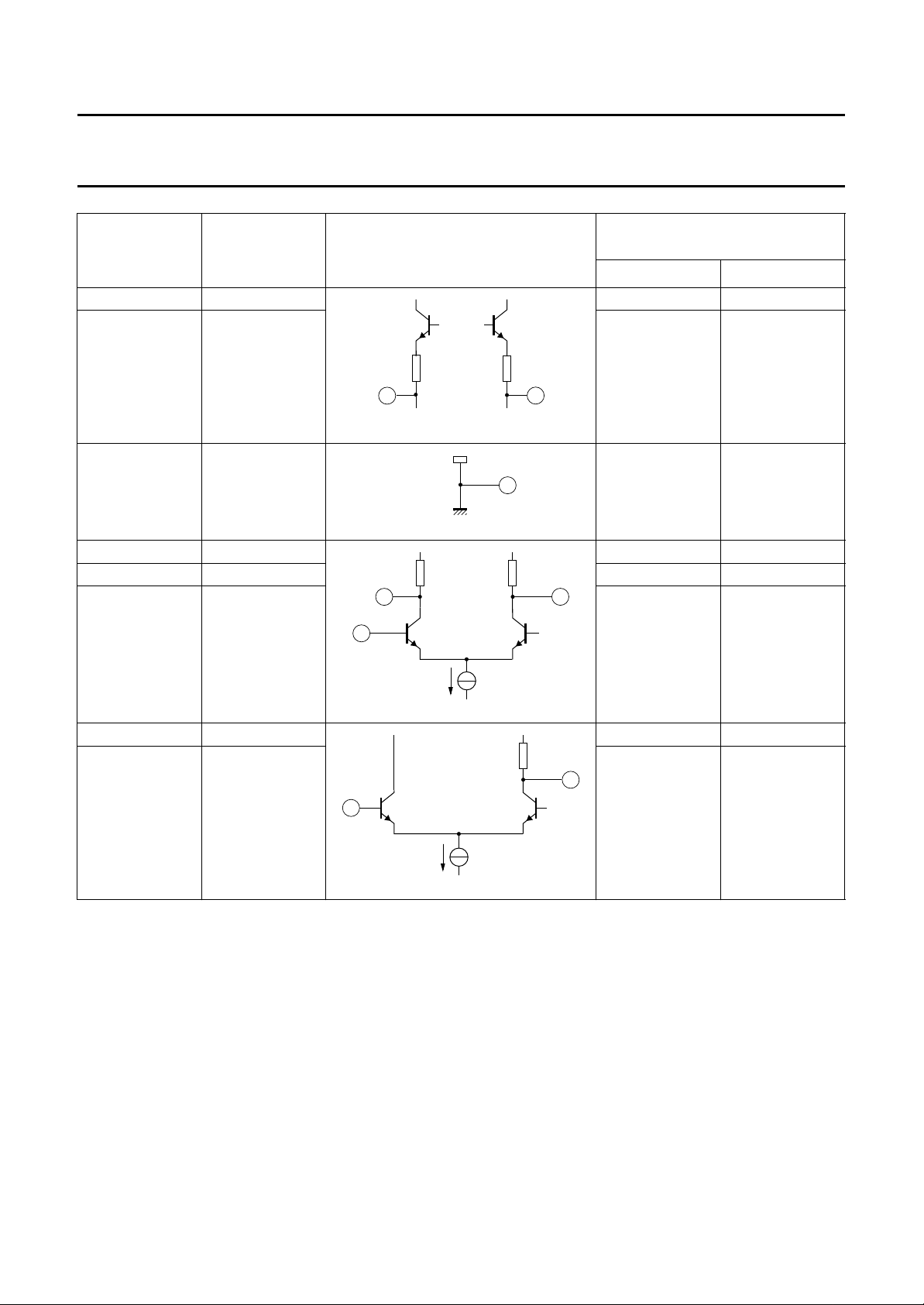

INTERNAL PIN CONFIGURATION

AVERAGE DC VOLTAGE IN (V)

SYMBOL PIN DESCRIPTION

CIN1 1 NR
CIN2 2 NR

1

2

MGD604

RFGND 3 0.0 0.0

3

MGD605

AIN 4 2.2 NR

4

measured in circuit of Fig.11

BAND A BAND C

(1)
(1)

2.2

2.2

(1)

MGD606

V

P

5 supply voltage 9.0 9.0
LOOUT1 6 7.3 7.3
LOOUT2 7 7.3 7.3

6 7

MGD607

BS 8 0.0 5.0

8

MGD608

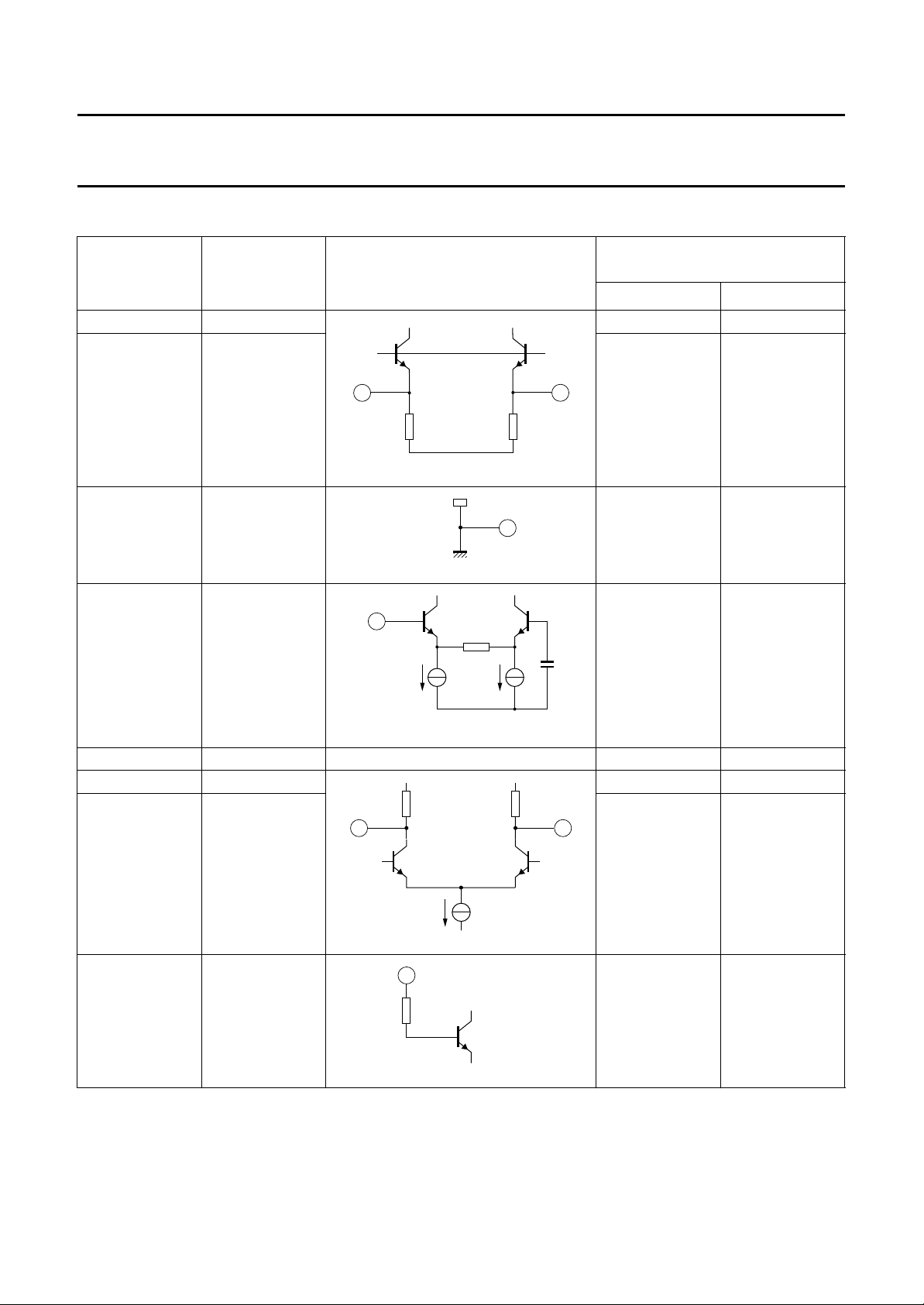

1996 Jun 06 16

Philips Semiconductors Product specification

9 V VHF and UHF mixer/oscillator for TV

TDA5630BT

and VCR cable tuners

AVERAGE DC VOLTAGE IN (V)

SYMBOL PIN DESCRIPTION

IFOUT1 9 4.0 4.0
IFOUT2 10 4.0 4.0

9

MGD609

10

GND 11 0 0

11

MGD610

COSCOC1 12 NR
COSCOC2 13 NR
COSCIB 15 NR

12

13

measured in circuit of Fig.11

BAND A BAND C

(1)
(1)
(1)

4.4

4.4

2.3

15

MGD611

AOSCOC 14 4.0 NR
AOSCIB 16 2.2 NR

14

16

MGD612

Note

1. NR = not relevant.

(1)
(1)

1996 Jun 06 17

Philips Semiconductors Product specification

9 V VHF and UHF mixer/oscillator for TV
and VCR cable tuners

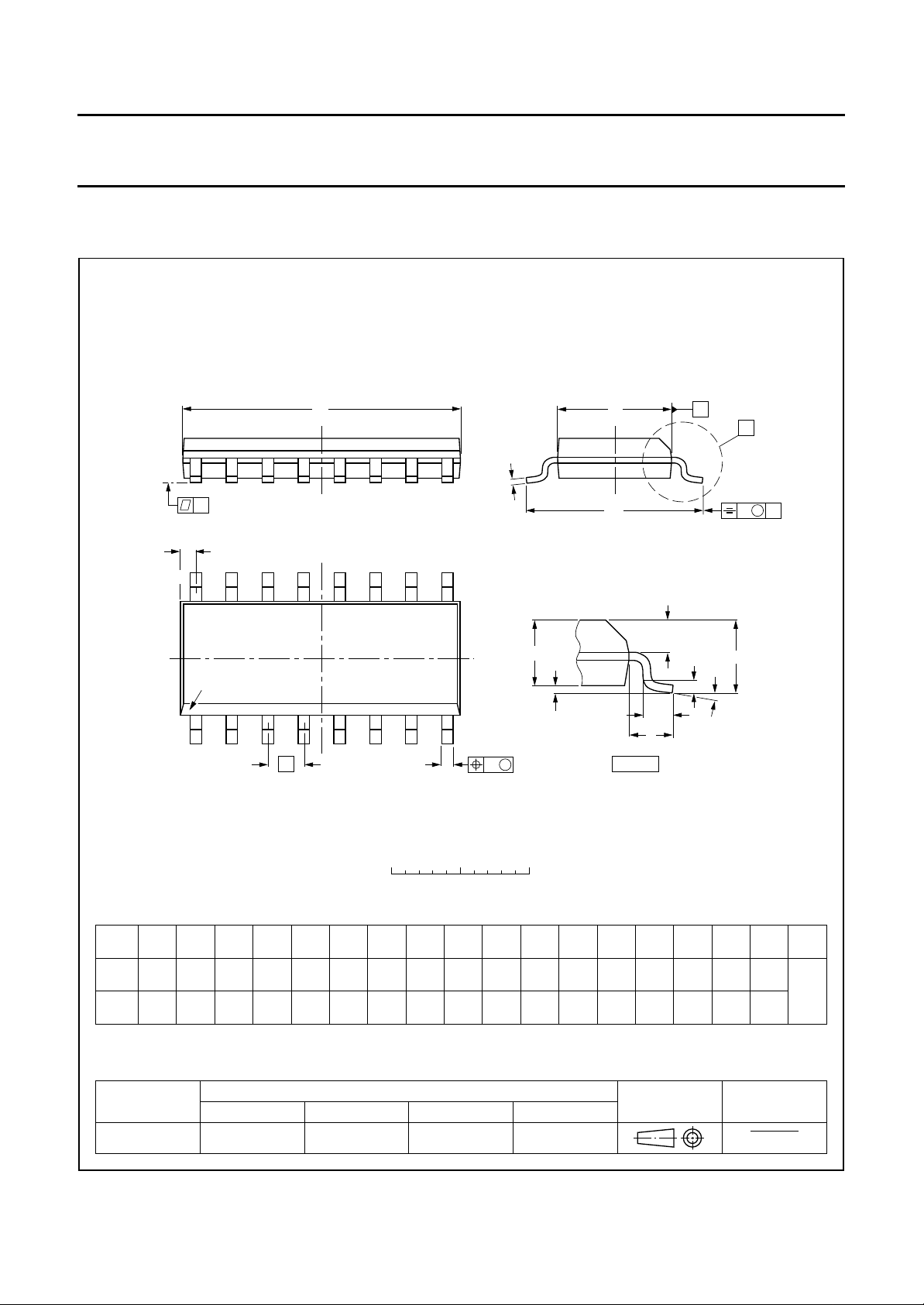

PACKAGE OUTLINE

SO16: plastic small outline package; 16 leads; body width 3.9 mm

D

c

y

Z

16

9

TDA5630BT

SOT109-1

E

H

E

A

X

v M

A

pin 1 index

1

e

0 2.5 5 mm

DIMENSIONS (inch dimensions are derived from the original mm dimensions)

mm

A

max.

1.75

0.069

A1A2A

0.25

1.45

0.10

1.25

0.0098

0.057

0.0039

0.049

0.25

0.01

b

3

p

0.49

0.25

0.36

0.19

0.0098

0.019

0.0075

0.014

UNIT

inches

Note

1. Plastic or metal protrusions of 0.15 mm maximum per side are not included.

(1)E(1) (1)

cD

10.0

9.8

0.39

0.38

8

b

p

scale

eHELLpQZywv θ

4.0

1.27

3.8

0.16

0.050

0.15

w M

6.2

5.8

0.24

0.23

A

2

1.05

0.041

Q

A

1

detail X

1.0

0.7

0.4

0.6

0.028

0.039

0.020

0.016

(A )

L

p

L

0.25 0.1

0.25

0.01

0.01 0.004

A

3

θ

0.7

0.3

0.028

0.012

o

8

o

0

OUTLINE

VERSION

SOT109-1

IEC JEDEC EIAJ

076E07S MS-012AC

REFERENCES

1996 Jun 06 18

EUROPEAN

PROJECTION

ISSUE DATE

91-08-13
95-01-23

Philips Semiconductors Product specification

9 V VHF and UHF mixer/oscillator for TV
and VCR cable tuners

SOLDERING
Introduction

There is no soldering method that is ideal for all IC
packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
situations reflow soldering is often used.

This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our

“IC Package Databook”

Reflow soldering

Reflow soldering techniques are suitable for all SO
packages.

Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.

(order code 9398 652 90011).

TDA5630BT

During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.

Maximum permissible solder temperature is 260 °C, and
maximum duration of package immersion in solder is
10 seconds, if cooled to less than 150 °C within
6 seconds. Typical dwell time is 4 seconds at 250 °C.

A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.

Repairing soldered joints

Fix the component by first soldering two diagonally­opposite end leads. Use only a low voltage soldering iron
(less than 24 V) applied to the flat part of the lead. Contact
time must be limited to 10 seconds at up to 300 °C. When
using a dedicated tool, all other leads can be soldered in
one operation within 2 to 5 seconds between
270 and 320 °C.

Several techniques exist for reflowing; for example,
thermal conduction by heated belt. Dwell times vary
between 50 and 300 seconds depending on heating
method. Typical reflow temperatures range from
215 to 250 °C.

Preheating is necessary to dry the paste and evaporate
the binding agent. Preheating duration: 45 minutes at
45 °C.

Wave soldering

Wave soldering techniques can be used for all SO
packages if the following conditions are observed:

• A double-wave (a turbulent wave with high upward
pressure followed by a smooth laminar wave) soldering
technique should be used.

• The longitudinal axis of the package footprint must be
parallel to the solder flow.

• The package footprint must incorporate solder thieves at
the downstream end.

1996 Jun 06 19

Philips Semiconductors Product specification

9 V VHF and UHF mixer/oscillator for TV

TDA5630BT

and VCR cable tuners

DEFINITIONS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

1996 Jun 06 20

Philips Semiconductors Product specification

9 V VHF and UHF mixer/oscillator for TV
and VCR cable tuners

NOTES

TDA5630BT

1996 Jun 06 21

Philips Semiconductors Product specification

9 V VHF and UHF mixer/oscillator for TV
and VCR cable tuners

NOTES

TDA5630BT

1996 Jun 06 22

Philips Semiconductors Product specification

9 V VHF and UHF mixer/oscillator for TV
and VCR cable tuners

NOTES

TDA5630BT

1996 Jun 06 23

Philips Semiconductors – a worldwide company

Argentina: see South America
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: see South America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone], Fax. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Prags Boulevard 80, PB 1919, DK-2300 COPENHAGEN S,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]
France: 4 Rue du Port-aux-Vins, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]
Greece: No. 15, 25th March Street, GR 17778 TAVROS,

Tel. [phone], Fax. [phone]

Hungary: see Austria
India: Philips INDIA Ltd, Shivsagar Estate, A Block, Dr. Annie Besant Rd.

Worli, MUMBAI 400 018, Tel. [phone], Fax. [phone]

Indonesia: see Singapore
Ireland: Newstead, Clonskeagh, DUBLIN 14,

Tel. [phone], Fax. [phone]
Israel: RAPAC Electronics, 7 Kehilat Saloniki St, TEL AVIV 61180,

Tel. [phone], Fax. [phone]
Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,

20124 MILANO, Tel. [phone], Fax. [phone]
Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku, TOKYO 108,

Tel. [phone], Fax. [phone]
Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,

Tel. [phone], Fax. [phone]
Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,

Tel. [phone], Fax. [phone]
Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,

Tel. [phone], Fax. [phone]

Middle East: see Italy

Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]
Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]
Philippines: Philips Semiconductors Philippines Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. [phone], Fax. [phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax. [phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 1231,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 7430 Johannesburg 2000,
Tel. [phone], Fax. [phone]

South America: Rua do Rocio 220 - 5th floor, Suite 51,
CEP: 04552-903-SÃO PAULO-SP, Brazil, P.O. Box 7383 (01064-970),
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone], Fax. [phone]

Taiwan: PHILIPS TAIWAN Ltd., 23-30F, 66,
Chung Hsiao West Road, Sec. 1, P.O. Box 22978,
TAIPEI 100, Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,
Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 2A Akademika Koroleva str., Office 165,
252148 KIEV, Tel. [phone]/1642, Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax. [phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone], Fax. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

For all other countries apply to: Philips Semiconductors, Marketing & Sales Communications,
Building BE-p, P.O. Box 218, 5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

© Philips Electronics N.V. 1996 SCA49
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

Printed in The Netherlands 537021/50/02/pp24 Date of release: 1996 Jun 06 Document order number: 9397 750 00893

Internet: http://www.semiconductors.philips.com/ps/
(1) ADDRESS CONTENT SOURCE June 6, 1996
