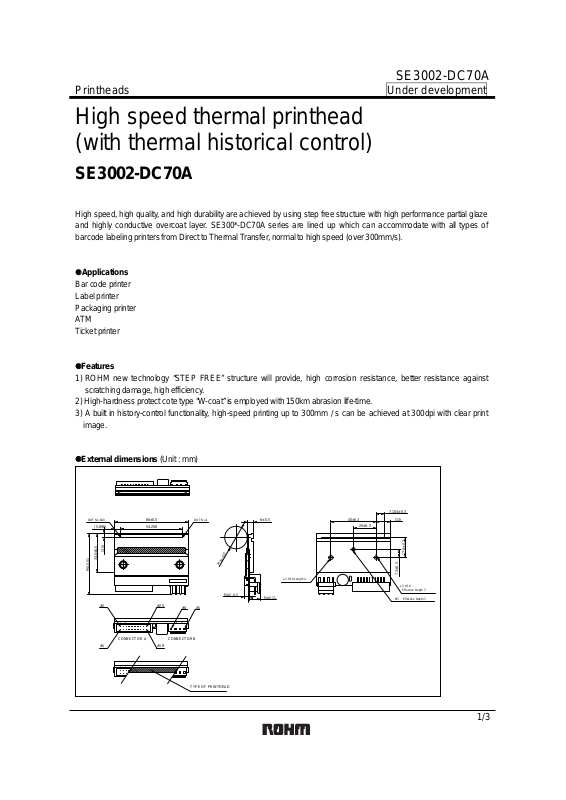

Page 1
SE3002-DC70A
Printheads Under development
High speed thermal printhead
(with thermal historical control)
SE3002-DC70A
High speed, high quality, and high durability are achieved by using step free structure with high performance partial glaze
and highly conductive overcoat la yer. SE300*-DC70A series are lined up which can accommodate with all types of
barcode labeling printers from Direct to Thermal Transfer, normal to high speed (over 300mm/s).
zApplications
Bar code printer
Label printer
Packaging printer
ATM
Ticket printer
zFeatures
1) ROHM new technology “STEP FREE” structure will provide, high corrosion resistance, better resistance against
scratching damage, high ef ficiency.
2) High-hardness protect cote type “W-coat” is employed with 150km abrasion life-time.
3) A built in history-control functionality, high-speed printing up to 300mm / s can be ac hieved at 300dpi wit h clear print
image.
zExternal dimensions (Unit : mm)
DOT No.640
(5.896)
34.0±0.5
MAX.51
#2
#1
(3.5)
CONNECTOR A
66±0.5
54.208
#20
#19
#4 #1
CONNECTOR B
DOT No.1
Max.
TYPE OF PRINTHEAD
20
φ
MAX.4.5
6±0.5
BU9630
φ3 H10 Length 4
MAX.11
40±0.3 (13)
20±0.3
7.104±0.3
M3
17.8±0.2
7.3±0.3
φ3 H10
Effective Depth 3
Effective Depth 3
1/3
Page 2
SE3002-DC70A
Printheads Under development
zEquivalent circuit
VH (COM)
GND
VDD (+5)
/ STB2
/ STB1
BEO
/ RESET
CLK (CP)
/ LOAD
START
INC
220µF
35V
0.1µF
50V
DI
DOT #640 DOT #1
LATCH REGISTER
TO EACH IC
SEL2
SEL1
TM
TM
DI No.
DOT No.
DI 640 to 1
/ STB No.
/ STB2
/ STB1
THERMISTOR
30kΩ B: 3950
DOT No.
640 to 385
384 to 1
zPin assignments
CONNECTOR A CONNECTOR B
No.
1
3
5
7
9
11
13
15
17
19
Circuit
V
DD
GND
GND
/LOAD
INC
SEL2
/RESET
/ STB 1
TM
SENS2
No.
2
4
6
8
10
12
14
16
18
20
Circuit
BEO
DI
CLK(CP)
START
N.C.
SEL1
/ STB 2
TM
SENS1
SENS3
No.
1
3
Circuit
VH (COM)
GND
No.
2
4
Circuit
VH (COM)
GND
2/3
Page 3
SE3002-DC70A
Printheads Under development
zCharacteristics
Parameter
Effective printing width
Dot pitch
Total dot number
Average resistance value
Applied voltage
Applied power
Print cycle
Maximum number of dots energized simultaneously
Maximum clock frequency
Maximum roller diameter
Running life / pulse life
Operating temperature
Symbol Typical Unit
−
−
−
Rave
V
H
PO
SLT
−
−
−
−
−
54.2
0.0847
640
850
24
0.59
0.28
640
8
φ20
150/(1×10
5 to 45
8
)
mm
mm
dots
Ω
V
W/dot
ms
dots
MHz
mm
km/pulses
°C
3/3
