Datasheet SE2522L Datasheet (SIGE)

SE2522L

RangeCharger™ 2.4 GHz Power Amplifier And Power Detector IC

Preliminary Information

Applications

 IEEE 802.11b DSSS radios, Wireless LAN
 2.4GHz cordless phones, ISM radios

Features

 Integrated power detector circuit
 High linear output power for IEEE802.11b:

+20dBm, ACPR 1st lobe –30dBc, 2nd lobe –50dBc

 Low current consumption: 110mA at 3.3V
 High saturated output power for cordless telephone

applications: +23dBm, 140mA at 3.6V

 Single supply voltage: 2.7 to 3.6V
 Wide Temperature range: -40°C to +85°C
 Integrated linear analog control for DC current and

output power management

 Small plastic package: 8 Pin LPCC

Ordering Information

Type Package Remark

SE2522L 8 Pin LPCC Samples

SE2522L-R 8 Pin LPCC Shipped in

Tape & Reel

SE2522L-EK1 Evaluation Kit

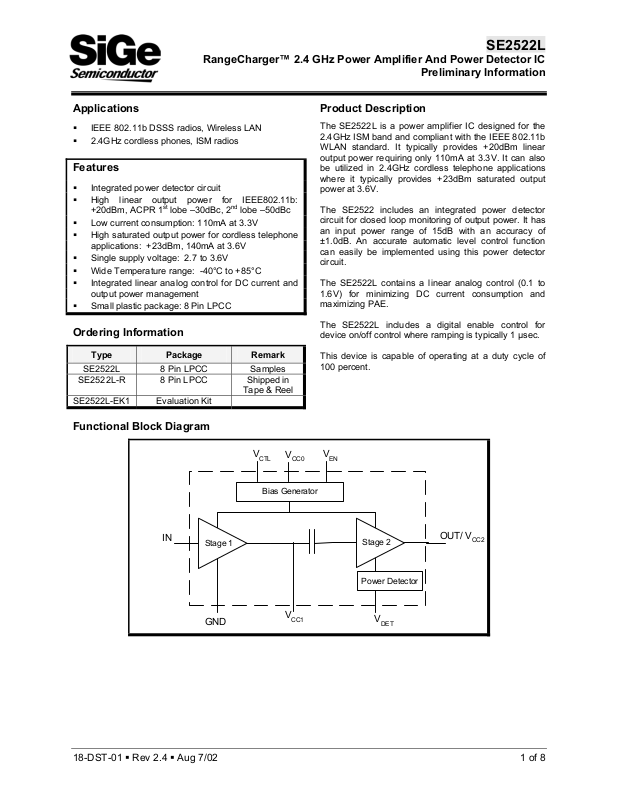

Functional Block Diagram

Product Description

The SE2522L is a power amplifier IC designed for the

2.4GHz ISM band and compliant with the IEEE 802.11b
WLAN standard. It typically provides +20dBm linear
output power requiring only 110mA at 3.3V. It can also
be utilized in 2.4GHz cordless telephone applications
where it typically provides +23dBm saturated output
power at 3.6V.

The SE2522 includes an integrated power detector
circuit for closed loop monitoring of output power. It has
an input power range of 15dB with an accuracy of
±1.0dB. An accurate automatic level control function
can easily be implemented using this power detector
circuit.

The SE2522L contains a linear analog control (0.1 to

1.6V) for minimizing DC current consumption and
maximizing PAE.

The SE2522L includes a digital enable control for
device on/off control where ramping is typically 1 µsec.

This device is capable of operating at a duty cycle of
100 percent.

IN

Stage 1

GND

V

V

CTL

Bias Generator

V

CC0

CC1

V

EN

Stage 2

Power Detector

V

DET

OUT/ V

CC2

18-DST-01  Rev 2.4  Aug 7/02 1 of 8

RangeCharger™ 2.4 GHz Power Amplifier And Power Detector IC

Pin Out Diagram

Note: Pads and die pad shown are at the bottom of package.

SE2522L

Preliminary Information

8

7

6

5

SE2522L

Bottom View

Die Pad

1

VDET

VCTL

2

3

VEN

4

INVCC0

SE2522L

Top View

1

VDET

2

3

4

2522L

VCTL

VEN

IN VCC0

8

7

6

5

OUT/VCC2

NC

CC1

V

OUT/VCC2

NC

CC1

V

Pin Out Description

Pin No. Name Description

1 V

2

3

4 IN Power amplifier RF input, external input matching network with DC blocking is required.

5

6

7 NC No connect

8

Die Pad GND Heatslug Die Pad is ground

Analog power detector output

DET

Controls the RF output power and DC current level of the power amplifier. An analog
control signal between 0.1V and 1.6V varies the PA output power between Min. and

V

CTL

Max. values.
Power Amplifier Enable pin. A digital control signal with logic high (power up) and logic

V

EN

V

CC0

V

CC1

OUT/V

low (power down) is used to turn the device on and off.

Bias supply voltage.

Stage 1 collector supply voltage, an external inter-stage matching network is required.

PA Output and Stage2 collector supply voltage, external output matching network with

CC2

DC blocking is required.

18-DST-01  Rev 2.4  Aug 7/02 2 of 8

SE2522L

RangeCharger™ 2.4 GHz Power Amplifier And Power Detector IC

Preliminary Information

Absolute Maximum Ratings

These are stress ratings only. Exposure to stresses beyond these maximum ratings may cause permanent damage
to, or affect the reliability of the device. Avoid operating the device outside the recommended operating conditions
defined below. This device is ESD sensitive with an ESD rating of < 600V. Handling and assembly of this device
should be at ESD protected workstations.

Symbol Parameter Min. Max. Unit

VCC Supply Voltage -0.3 +3.6 V

V

Control Voltage -0.3 V

CTL

V

CC

VEN Ramping Voltage -0.3 VCC V

PIN RF Input Power +8 dBm

T

Storage Temperature Range -40 +150

STG

Tj Maximum Junction Temperature +150

°C
°C

Recommended Operating Conditions

Symbol Parameter Min. Typ. Max. Unit

TA Operating Temperature -40 +85

VCC Supply Voltage 2.7 3.3 3.6 V

DC Electrical Characteristics

Conditions: V

CC0=VCC1=VCC2=VEN

Output externally matched to 5

Symbol Parameter Min. Typ. Max. Unit

ICC Supply Current, V

I

Supply Current (sat) @ PIN = +2dBm - 140 175 mA

CC(sat)

V

PA Output Power Control Voltage Range 0.1 1.6 V

CTL

I

Current sunk by V

CTL

Logic High Voltage 2.0 V

VEN

Logic Low Voltage 0.8 V

I

Leakage Current when VEN = 0V, V

STBY

=3.3V, V

=1.6V, T

CTL

=25°C, f =2.45GHz, using IEEE802.11b modulation, Input and

A

0Ω, unless otherwise noted.

= 1.6V, PIN = -7dBm - 110 130 mA

CTL

Pin 55 100

CTL

= 0V 0.1 200

CTL

°C

µA

µA

18-DST-01  Rev 2.4  Aug 7/02 3 of 8

SE2522L

RangeCharger™ 2.4 GHz Power Amplifier And Power Detector IC

Preliminary Information

AC Electrical Characteristics

= V

= V

= V

Conditions: V

CC0

CC1

CC2

= 3.3V, V

EN

and SiGe Semiconductor SE2522L-EK1 Evaluation Kit otherwise noted.

Symbol Parameter Note Min. Typ. Max. Unit

f

L-U

Frequency Range 2400 2485 MHz

Output Power @ PIN =-7dBm, V
ACPR < -30dBc

P

OUT

Output Power @ PIN =-7dBm, V
ACPR < -30dBc

Output Power (sat) @ PIN = +2dBm,

= 1.6V

V

CTL

dP
/dV

OUT

CTL

Control Voltage Sensitivity 20 dB/V

G Gain, small signal 27 dB

G

VAR

Gain Variation over band (2400-2485MHz) 1.0 2.0 dB

2f,3f,4f,5f Harmonics 1

IS21 I

Isolation in “OFF” State, P

OFF

V

=0V

EN

<= +2dBm,

IN

IS12I Reverse Isolation 32 42 dB

tR Rise and Fall Time 10% to 90% 1.2 µs

STAB Stability (PIN <= +2dBm, Load VSWR = 6:1)

PDR Power detect range, peak power 6 23 dBm

CTL

=1.6V,

CTL

= 0.1V,

CTL

= 1.6V, T

= 25°C, f = 2.45GHz, using IEEE802.11b modulation,

A

2 18 20 22 dBm

2 - -5 5 dBm

3 21 23 - dBm

-50

dBc

20 30 dB

All non-harmonically related outputs less than

-50 dBc/100kHz

PDT PA power detect, response time, 5pF load 4 0.1 5

PDV

PDV

PDV

PDVa

PA power detect, output voltage maximum,

max

load > 5kOhms

PA power detect, output voltage minimum,

min

load > 5kOhms

PA power detect output voltage,

p19

P

= 13dBm peak

OUT

PA power detect output voltage accuracy,

p19

P

= 19dBm peak

OUT

4 1.8 V

4 0.2 V

4 0.8 V

4

±35

mV

µsec

Notes: (1) Harmonic levels and ACPR are greatly affected by topology of external matching networks.

(2) Parameter measured with RF modulation based on IEEE 802.11b standard and matching networks

optimized for linear output power performance
(3) With matching networks optimized for saturated output power performance
(4) Measured at V

DET

pin

18-DST-01  Rev 2.4  Aug 7/02 4 of 8

RangeCharger™ 2.4 GHz Power Amplifier And Power Detector IC

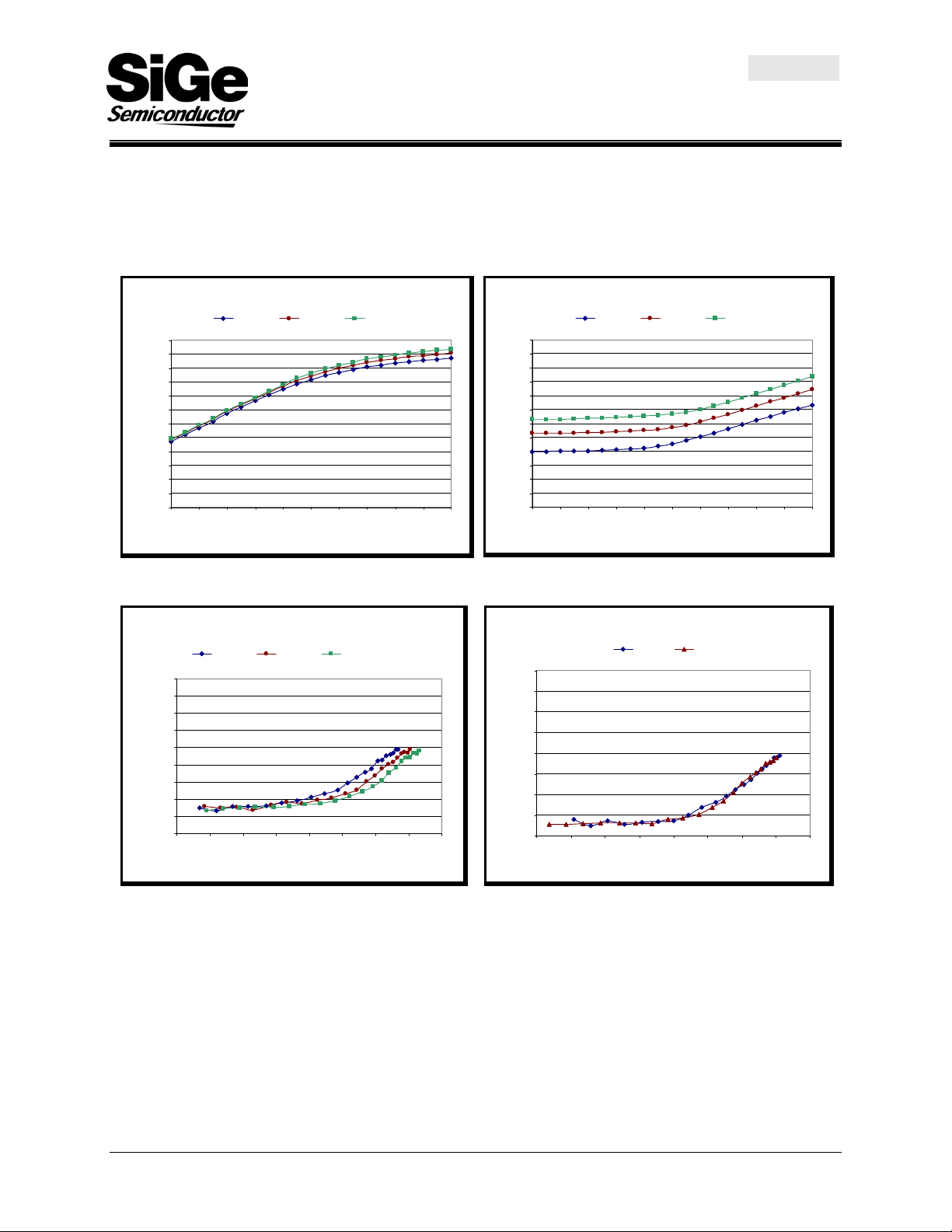

Typical Performance Characteristics

Conditions: V

=3.3V, V

CC

=1.6V, VEN=3.3V, F=2.45GHz, using IEEE802.11b modulation, and matching networks

CTL

optimized for linear output power performance. Performance graphs are based on preliminary
evaluation information and may differ from the AC and DC electrical specifications.

SE2522L

Preliminary Information

Output Power vs. Input Pow er

3.0V/T=25C

24.0

22.0

20.0

18.0

16.0

14.0

12.0

(dBm)

OUT

10.0

P

8.0

6.0

4.0

2.0

0.0

-18 -16 -14 -12 -10 -8 -6 -4 -2 0 2

3.3V/T=25C

P

(dBm)

IN

3.6V/T=25C

170

160

150

140

130

120

110

(mA)

CC

I

100

90

80

70

60

50

-18 -16 -14 -12 -10 -8 -6 -4 -2 0 2

Supply Current vs. Input Power

3.0V/T=25C

3.3V/T=25C

P

(dBm)

IN

3.6V/T=25C

ACPR vs. Outp ut Po we r

3.0V/T=25C

0.0

-5.0

-10.0

-15.0

-20.0

-25.0

-30.0

ACPR/1Ch (dBc)

-35.0

-40.0

-45.0

8.0 10.0 12.0 14.0 16.0 18.0 20.0 22.0 24.0

3.3V/T=25C

P

OUT

3.6V/T=25C

(dBm)

-5.0

-10.0

-15.0

-20.0

-25.0

ACPR/1Ch (dBc)

-30.0

-35.0

-40.0

ACPR Across Frequency Band (VCC=3.3V)

f = 2.4GHz

0.0

8.0 10.0 12.0 14.0 16.0 18.0 20.0 22.0 24.0

f = 2.5GHz

(dBm)

P

OUT

18-DST-01  Rev 2.4  Aug 7/02 5 of 8

SE2522L

RangeCharger™ 2.4 GHz Power Amplifier And Power Detector IC

Preliminary Information

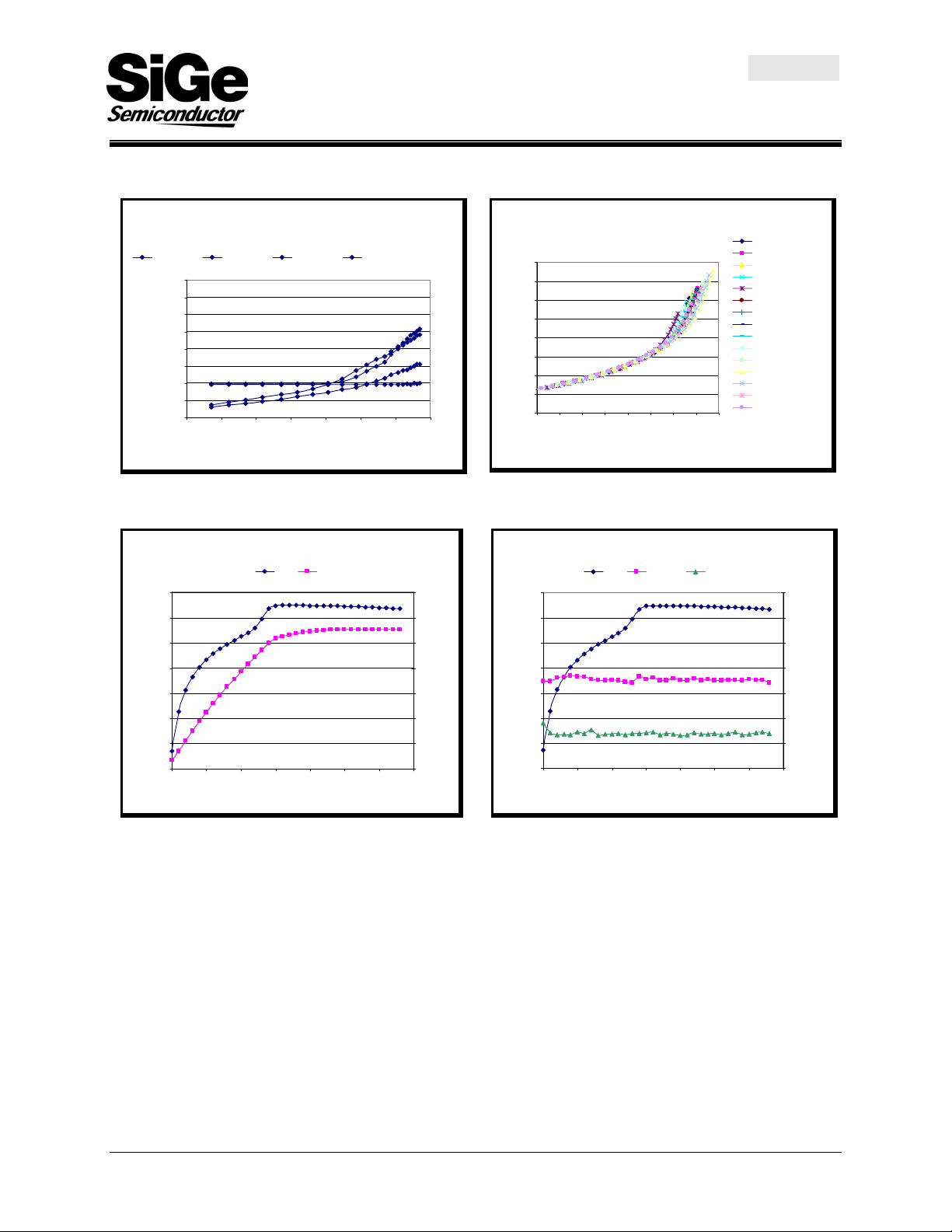

Harmonics vs Output Power (VCC=3.3V)

2Fo/T=25C

0.0

-10.0

-20.0

-30.0

-40.0

-50.0

-60.0

Harmonics (dBm/1MHz)

-70.0

-80.0

3Fo/T=25C

8.0 10.0 12.0 14.0 16.0 18.0 20.0 22.0

4Fo/T=25C

P

(dBm)

OUT

5Fo/T=25C

1.60

1.40

1.20

1.00

(V)

0.80

DET

V

0.60

0.40

0.20

0.00

Powe r Detector Response vs. Output Powe r

8.0 10.0 12.0 14.0 16.0 18.0 20.0 22.0 24. 0

(dBm)

P

OUT

3.0V/T=25C

3.0V/T=-40C

3.0V/T=0C

3.0V/T=40C

3.0V/T=85C

3.3V/T=25C

3.3V/T=25C

3.3V/T=0C

3.3V/T=40C

3.3V/T=85C

3.6V/T=25C

3.6V/T=-40C

3.6V/T=0C

3.6V/T=40C

3.6V/T=85C

Output Po we r vs. V

20.0

15.0

10.0

5.0

(dBm)

0.0

OUT

P

-5.0

-10.0

-15.0
0 0.5 1 1.5 2 2.5 3 3.5

POUT

V

CTL

(PIN=-10dBm)

CTL

ICC

(V)

140

120

100

80

60

40

20

0

ACPR vs. V

POUT ACPR/1Ch ACPR/2Ch

20.0

15.0

10.0

5.0

(mA)

CC

I

(dBm)

0.0

OUT

P

-5.0

-10.0

-15.0

00.511.522.533.5

(PIN=-10dBm)

CTL

V

(V)

CTL

0.0

-10.0

-20.0

-30.0

-40.0

-50.0

-60.0

-70.0

ACPR (dBc)

18-DST-01  Rev 2.4  Aug 7/02 6 of 8

Package Information

SE2522L

RangeCharger™ 2.4 GHz Power Amplifier And Power Detector IC

Preliminary Information

Notes: 1. Dimensions are in millimeters

2. Tolerance 0.1mm unless otherwise specified

3. Moisture/Reflow Sensitivity Classification: Level 1 (IPC/JEDEC-J-STD-020A)

4. Lead finish is 100% lead free electrolytic tin.

5. Exposed heat/electrical ground pad at bottom of package

18-DST-01  Rev 2.4  Aug 7/02 7 of 8

SE2522L

RangeCharger™ 2.4 GHz Power Amplifier And Power Detector IC

Preliminary Information

http://www.sige.com

Headquarters: Canada

Phone: [phone]

Fax: [phone]

2680 Queensview Drive

Ottawa ON K2B 8J9 Canada

[email protected]

San Diego United Kingdom

Phone: [phone] South Building, Walden Court
Fax: [phone] Parsonage Lane, Bishop’s Stortford
Hertfordshire CM23 5DB
Hong Kong
Phone: [phone]
Phone: [phone] Fax: [phone]

Product Preview
The datasheet contains information from the product concept specification. SiGe Semiconductor Inc. reserves the right to change
information at any time without notification.

Preliminary Information
The datasheet contains information from the design target specification. SiGe Semiconductor Inc. reserves the right to change
information at any time without notification.

Final
The datasheet contains information from the final product specification. SiGe Semiconductor Inc. reserves the right to change
information at any time without notification. Production testing may not include testing of all parameters.

Information furnished is believed to be accurate and reliable and is provided on an “as is” basis. SiGe Semiconductor Inc. assumes
no responsibility or liability for the direct or indirect consequences of use of such information nor for any infringement of patents or
other rights of third parties, which may result from its use. No license or indemnity is granted by implication or otherwise under any
patent or other intellectual property rights of SiGe Semiconductor Inc. or third parties. Specifications mentioned in this publication
are subject to change without notice. This publication supersedes and replaces all information previously supplied. SiGe
Semiconductor Inc. products are NOT authorized for use in implantation or life support applications or systems without express
written approval from SiGe Semiconductor Inc.

RangerCharger

Copyright 2002 SiGe Semiconductor
All Rights Reserved

TM

, StreamChargerTM, PointChargerTM, and LightChargerTM are trademarks owned by SiGe Semiconductor Inc.

18-DST-01  Rev 2.4  Aug 7/02 8 of 8
