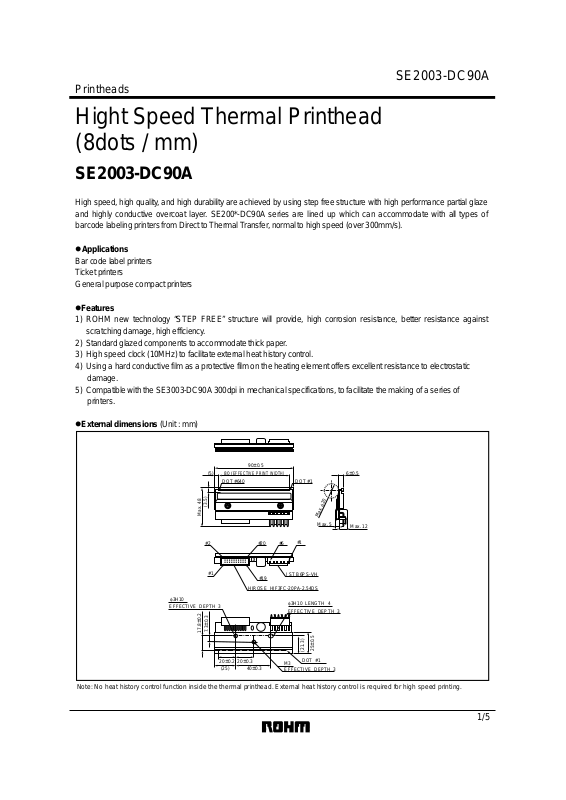

Page 1
SE2003-DC90A
Printheads
Hight Speed Thermal Printhead
(8dots / mm)
SE2003-DC90A
High speed, high quality, and high durability are achieved by using step free structure with high performance partial glaze
and highly conductive overcoat la yer. SE200*-DC90A series are lined up which can accom modate with all types of
barcode labeling printers from Direct to Thermal Transfer, normal to high speed (over 300mm/s).
zApplications
Bar code label printers
Ticket printers
General purpose compact printers
zFeatu res
1) ROHM new technology “STEP FREE” structure will provide, high corrosion resistance, better resistance against
scratching damage, high ef ficiency.
2) Standard glazed components to accommodate thick paper.
3) High speed clock (10MHz) to facilitate external heat history control.
4) Using a hard conductive film as a protective film on the heating element offers excellent resistance to electrostatic
damage.
5) Compatible with the SE3003-DC90A 300dpi in mechanical specifications, to facilitate the making of a series of
printers.
zExternal dimensions (Unit : mm)
(5)
DOT #640
(3.5)
Max. 48
#2 #20
#1
φ3H10
EFFECTIVE DEPTH 3
0.2
0.3
±
±
7.3
17.8
(25)
Note: No heat history control function inside the thermal printhead. External heat history control is required for high speed printing.
#19
HIROSE HIF3FC-20PA-2.54DS
20
±
0.320±0.2
40±0.3
DOT #1
#1
#6
JST B6PS-VH
φ3H10 LENGTH 4
EFFECTIVE DEPTH 3
0.5
±
25
(21.3)
DOT #1
M3
EFFECTIVE DEPTH 3
Max. φ20
Max. 5
6
±
Max. 12
0.5
90±0.5
80 (
EFFECTIVE PRINT WIDTH)
1/5
Page 2
SE2003-DC90A
Printheads
zCharacteristics
Parameter
Effective printing width
Dot pitch
Total dot number
Average resistance value
Applied voltage
Applied power
Print cycle
Maximum number of dots energized simultaneously
Maximum clock frequency
Maximum roller diameter
Running life / pulse life
Operating temperature
zPin configuration
HIROSE JST
CircuitNo.
1
3
5
7
9
11
13
15
17
19
V
DD
GND
N.C.
LA
GND
N.C.
DD
V
STB1
TM
SENS2
10
12
14
16
18
20
2
4
6
8
BEO
DI2
CLK
GND
DI1
GND
STB2
TM
SENS1
SENS3
Symbol Typical Unit
−
−
−
Rave
V
H
P
O
SLT
−
−
−
−
−
CircuitNo.No. Circuit
1
2
3
4
5
6
VH
VH
VH
GND
GND
GND
80
0.125
640
550
24
0.899
0.42
448
10
20
50 / 10
5 to 45
8
mm
mm
dots
Ω
V
W / dot
ms
dots
MHz
mm
km / pulses
°C
2/5
Page 3
SE2003-DC90A
Printheads
zTiming chart
t3
CLK
t1 t2
DI
BEO
CLK
STBn
DRIVER
OUT
t5 t4
LA
t6 t7
t8 t8
Fig.1
3/5
Page 4
SE2003-DC90A
Printheads
zEquivalent circuit
DOT #640
VH
220µF 35V
GND
BEO
STB2
STB1
DOT#1
DI 2
DI 1
CLK
V
GND
TM
TM
LA
640
DD
0.1µF 50V
321
LATCH
320
1
DI No.
DI 2
DOT No.
640 to 321
320 to 1
Fig. 2
STB No.
STB 2
STB 1
DOT No.
640 to 321
320 to 1DI 1
4/5
Page 5
SE2003-DC90A
Printheads
zElectrical characteristics curves
1.5
1.4
1.2
1.0
0.8
0.6
OPTICAL DENSITY
0.4
0.2
0.0
0.060 0.100 0.150 0.200 0.250
mJ / dot)
ENERGY (
0.50
0.45
0.40
mJ / dot)
0.35
(
0.30
(MAX)
0.25
0.20
0.15
0.10
SUPPLY ENERGY
0.05
0.00
0 0.4 0.8 1.2 1.6 2.01.8 2.21.41.00.60.2
SCANNING LINE TIME (
ms / line)
180
160
140
120
100
80
60
40
RESISTANCE VALUE : (kΩ)
20
0
−
100 10203040506070
TEMPERATURE : (°C)
R25=30kΩ
B=3950k
Fig. 3 Representative density curve
Fig. 4 Maximum energy curve
Fig. 5 Thermistor curve
5/5
