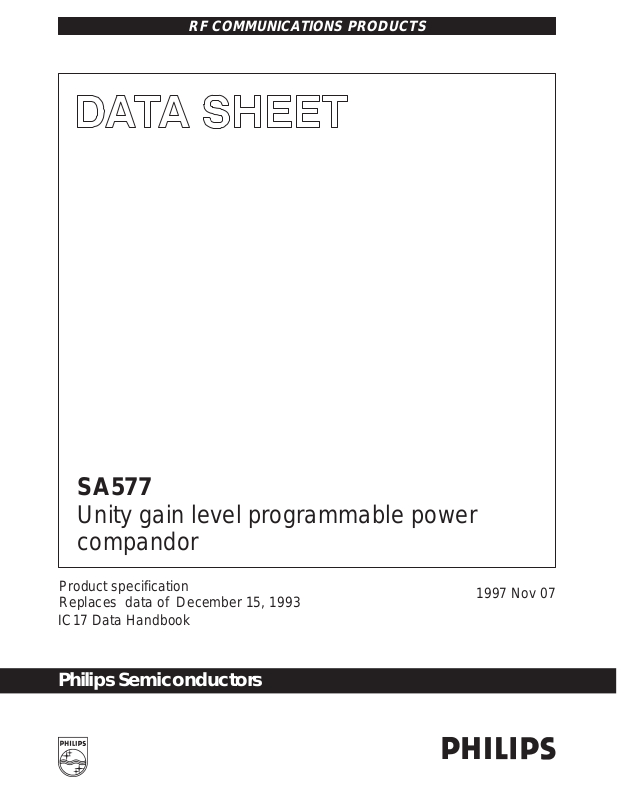

RF COMMUNICATIONS PRODUCTS

SA577

Unity gain level programmable power
compandor

Product specification
Replaces data of December 15, 1993

IC17 Data Handbook

Philips Semiconductors

1997 Nov 07

Philips Semiconductors Product specification

SYMBOL

PARAMETER

UNITS

SA577Unity gain level programmable low power compandor

DESCRIPTION

The SA577 is a unity gain level programmable compandor designed
for low power applications. The SA577 is internally configured as an
expandor and a compressor to minimize external component count.

FEA TURES

•Operating voltage range: 1.8V to 7V

•Low power consumption (1.4mA @ 3.6V)

•0dB level programmable (10mV

RMS

to 1.0V

RMS

)

•Over 90dB of dynamic range

•Wide input/output swing capability (rail-to-rail)

•Low external component count

•SA577 meets cellular radio specifications

•ESD hardened

PIN CONFIGURATION

D Package

GCELL

RECT

EXP

EXP

1

IN

2

IN

3

CAP

4

OUT

5

V

REF

6

I

REF

7

GND

Figure 1. Pin Configuration

14

V

CC

13

COMP

12

COMP

11

COMP

10

RECT

9

GCELL

8

COMP

APPLICATIONS

•High performance portable communications

•Cellular radio

•Cordless telephone

•Consumer audio

•Wireless microphones

•Modems

•Electric organs

•Hearing aids

•Automatic level control (ALC)

CAP2
IN
CAP1

IN

IN

OUT

SR00716

ORDERING INFORMATION

DESCRIPTION TEMPERATURE RANGE ORDER CODE DWG #

14-Pin Plastic Small Outline (SO)

ABSOLUTE MAXIMUM RATINGS

T

V

θ

CC

T

A

STG

JA

Supply voltage 8 V
Operating ambient temperature range –40 to +85

Storage temperature range –65 to +150
Thermal impedance SO 125

–40 to +85°C

SA577D SOT108-1

RATING

SA577

°C
°C

°C/W

1997 Nov 07 853-1535 18666

2

Philips Semiconductors Product specification

dBV

V

V

SA577Unity gain level programmable low power compandor

ELECTRICAL CHARACTERISTICS

TA = 25°C, VCC = 3.6VDC, compandor 0dB level = –20dBV = 100mV
R1, R2 and R3 are 1% resistors.

SYMBOL PARAMETER TEST CONDITIONS SA577 UNITS

V

I

V

Supply voltage

CC

Supply current

CC

Reference voltage

REF

R

Summing amp output load 10 kΩ

L

1

2

THD Total harmonic distortion 1kHz, 0dB, BW = 3.5kHz 0.25 1.5 %

E

Expandor output noise voltage BW = 20kHz, RS = 0Ω 10 25 µV

NO

0dB Unity gain level 0dB at 1kHz –1.5 0.18 1.5 dB

Programmable range

3

R1 = R3 = 18.7kΩ, R2 = 24.3kΩ 0

R1 = R3 = 22.6kΩ, R2 = 100kΩ –10
R1 = R3 = 7.15kΩ, R2 = 100kΩ –20
R1 = R3 = 1.33kΩ, R2 = 200kΩ –40

V

Output voltage offset No signal –150 1 150 mV

OS

Expandor output DC shift No signal to 0dB –100 7 100 mV
Tracking error relative to 0dB output -20dB expandor –1.0 0.3 1.0 dB
Crosstalk, COMP to EXP 1kHz, 0dB, C
Output swing low 0.2

O

Output swing high VCC – 0.2

, output load RL = 10kΩ, Freq = 1kHz, unless otherwise specified.

RMS

LIMITS

MIN TYP MAX

2 3.6 7 V

No signal

= 100kΩ

R

2

1.4 2 mA

VCC = 3.6V 1.7 1.8 1.9 V

= 10µF –80 –65 dB

REF

NOTE:

1. Operation down to V

2. Reference voltage, V

3. Unity gain level can be adjusted CONTINUOUSLY between –40dBV = 10mV

= 1.8V is possible, see application note AN1762.

CC

, is typically at 1/2 VCC.

REF

AN1762.

and 0dBV = 1.0V

RMS

. For details see application note

RMS

1997 Nov 07

3

Philips Semiconductors Product specification

SA577Unity gain level programmable low power compandor

BLOCK DIAGRAM and TEST AND APPLICATION CIRCUIT

C1

EXP

IN

+

10µF

RECT

EXP

CAP

+

2.2µF

C2

C3

EXP

OUT

10µF

C4

V

REF

*R1, R2 and R3 are 1% resistors.

+

10µF

R2*

V

REF

GND

10k

C7

10µF

CAP2

+

CAP1

RECT

R3*

GCELL

+

C5

+

V

C8

COMP

+

IN

C9

10µF

CC

2.2µF

C6

2.2µF

IN

IN

COMP

SR00717

OUT

Σ

5k

14

COMP

13

30k 30k 10k

Σ

10k

8.6k

RECTIFIER

12

11

+

COMP

10

10k

V

CC

COMPRESSOR

∆G

GAINCELL

9

10µF

8

GAINCELL

10k

1

R1*

IN

RECTIFIER

2

∆G

10k

3

+

4

EXPANDOR

5

6

I

REF

BANDGAP

7

GND

Figure 2. Block Diagram and Test and Application Circuit

1997 Nov 07

4

Philips Semiconductors Product specification

SA577Unity gain level programmable low power compandor

TYPICAL PERFORMANCE CHARACTERISTICS

VCC = 3.6V, TA = 25°C, R1=R3=7.15kΩ, R2=100kΩ, 0dB level = 100mV , Freq. = 1kHz

SUPPLY CURRENT vs SUPPLY VOLTAGE

SUPPLY CURRENT vs TEMPERATURE

1.6

1.8

1.6

1.4

1.2

1

SUPPLY CURRENT (mA)

0.8

0.6
12345678

UNITY GAIN ERROR vs SUPPLY VOLTAGE

0.6
NOTE: UNITY GAIN ERROR MAY BE

SET TO 0 AT ANY V
ADJUSTING THE VALUE OF R1, R3

0.4

0.2

0

-0.2

SUPPLY VOLTAGE (V)

BY

CC

COMPRESSOR

EXPANDOR

1.5

1.4

1.3

1.2

SUPPLY CURRENT (mA)

1.1

1

-40 -20 0 20 40 60 80 100

UNITY GAIN ERROR vs TEMPERATURE

0.6

0.4

0.2

0

-0.2

AMBIENT TEMPERATURE (°C)

EXPANDOR

COMPRESSOR

UNITY GAIN ERROR (dB)

-0.4

-0.6
234567

TRACKING ERROR vs INPUT LEVEL

1

0.5

0

OUTPUT ERROR (dB)

-0.5

-1
23456

SUPPLY VOLTAGE (V)

EXPANDOR

COMPRESSOR

INPUT LEVEL (dB)

NOTE: RELATIVE
TO UNITY GAIN

Figure 3. Typical Performance Characteristics

UNITY GAIN ERROR (dB)

-0.4

-0.6

-40 -20 0 20 40 60 80 100

0.5

0.4

0.3

THD (%)

0.2

0.1

-40 -20 0 20 40 60 80 100

TEMPERATURE (°C)

THD vs TEMPERATURE

COMPRESSOR

EXPANDOR

TEMPERATURE (°C)

SR00715

1997 Nov 07

5

Philips Semiconductors Product specification

SA577Unity gain level programmable power compandor

SO14: plastic small outline package; 14 leads; body width 3.9 mm SOT108-1

1997 Nov 07

6

Philips Semiconductors Product specification

SA577Unity gain level programmable power compandor

DEFINITIONS

Data Sheet Identification Product Status Definition

Objective Specification

Preliminary Specification

Product Specification

Formative or in Design

Preproduction Product

Full Production

Philips Semiconductors and Philips Electronics North America Corporation reserve the right to make changes, without notice, in the products,
including circuits, standard cells, and/or software, described or contained herein in order to improve design and/or performance. Philips
Semiconductors assumes no responsibility or liability for the use of any of these products, conveys no license or title under any patent, copyright,
or mask work right to these products, and makes no representations or warranties that these products are free from patent, copyright, or mask
work right infringement, unless otherwise specified. Applications that are described herein for any of these products are for illustrative purposes
only. Philips Semiconductors makes no representation or warranty that such applications will be suitable for the specified use without further testing
or modification.
