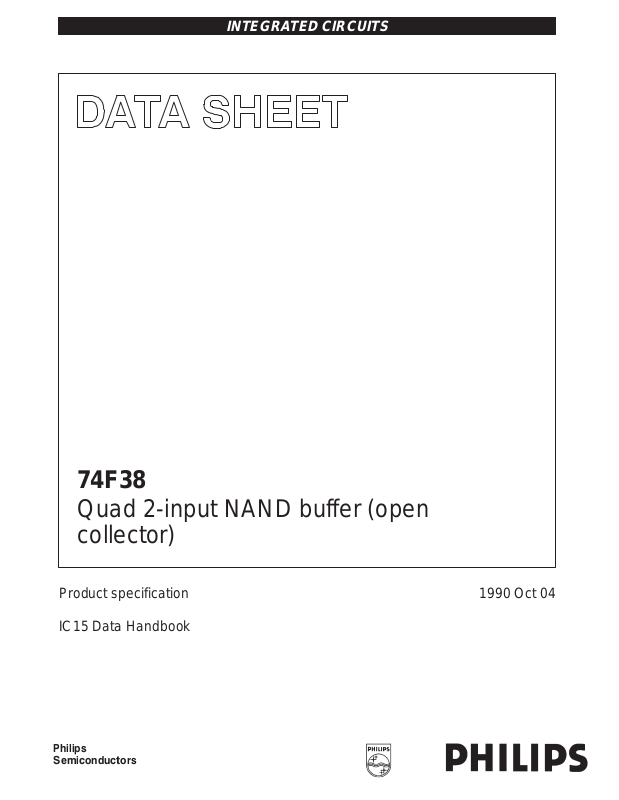

Page 1
INTEGRATED CIRCUITS
74F38
Quad 2-input NAND buffer (open
collector)
Product specification
IC15 Data Handbook
1990 Oct 04
Page 2
Philips Semiconductors Product specification
74F38Quad 2-input NAND buffer (open collector)
FEA TURE
PIN CONFIGURATION
•Industrial temperature range available (–40°C to +85°C)
1
D0a
2
D0b
D1a
D1b
GND
Q
3
0
4
5
1
6
Q
TYPE
TYPICAL
PROPAGATION
DELAY
TYPICAL
SUPPLY CURRENT
(TOTAL)
74F38 7.0ns 13mA
ORDERING INFORMA TION
ORDER CODE
DESCRIPTION
COMMERCIAL RANGE
VCC = 5V ±10%, T
= 0°C to +70°C
amb
VCC = 5V ±10%, T
INDUSTRIAL RANGE
= –40°C to +85°C
amb
14-pin plastic DIP N74F38N I74F38N SOT27-1
14-pin plastic SO N74F38D I74F38D SOT108-1
INPUT AND OUTPUT LOADING AND FAN OUT TABLE
PINS DESCRIPTION 74F (U.L.) HIGH/LOW LOAD VALUE HIGH/LOW
Dna, Dnb Data inputs 1.0/2.0 20µA/1.2mA
Qn Data output OC/106.7 OC/64mA
NOTES:
1 One (1.0) FAST unit load is defined as: 20µA in the high state and 0.6mA in the low state.
2 OC = open collector
14
V
13
D3b
12
D3a
Q
11
D2b
10
D2a
9
Q2
87
SF00001
CC
3
PKG DWG #
LOGIC DIAGRAM
VCC = Pin 14
GND = Pin 7
LOGIC SYMBOL
VCC = Pin 14
GND = Pin 7
1
D0a
2
D0b
4
D1a
5
D1b
9
D2a
10
D2b
12
D3a
13
D3b
12459101213
D0a D0bD1a D2a D2b D3a D3bD1b
Q0 Q1 Q2 Q3
36811
3
6
8
11
SF00002
FUNCTION TABLE
INPUTS OUTPUT
Q
0
Q
1
Q2
Dna Dnb Qn
L L H
L H H
H L H
H H L
Q
3
NOTES:
H = High voltage level
L = Low voltage level
IEC/IEEE SYMBOL
1
2
4
5
9
10
12
13
SF00003
&
3
6
8
11
SF00043
October 4, 1990 853–0052 00620
2
Page 3
Philips Semiconductors Product specification
74F38Quad 2-input NAND buffer (open collector)
ABSOLUTE MAXIMUM RATINGS
(Operation beyond the limit set forth in this table may impair the useful life of the device.
Unless otherwise noted these limits are over the operating free air temperature range.)
SYMBOL
V
V
I
IN
V
I
OUT
T
amb
T
stg
CC
IN
OUT
Supply voltage –0.5 to +7.0 V
Input voltage –0.5 to +7.0 V
Input current –30 to +5 mA
Voltage applied to output in high output state –0.5 to V
Current applied to output in low output state 128 mA
Operating free air temperature range Commercial range 0 to +70 °C
Storage temperature range –65 to +150 °C
RECOMMENDED OPERATING CONDITIONS
SYMBOL PARAMETER LIMITS UNIT
V
V
V
I
V
I
T
CC
IH
IL
Ik
OH
OL
amb
Supply voltage 4.5 5.0 5.5 V
High-level input voltage 2.0 V
Low-level input voltage 0.8 V
Input clamp current –18 mA
High-level output voltage 4.5 V
Low-level output current 64 mA
Operating free air temperature range Commercial range 0 +70 °C
PARAMETER RATING UNIT
CC
V
Industrial range –40 to +85 °C
MIN NOM MAX
Industrial range –40 +85 °C
DC ELECTRICAL CHARACTERISTICS
(Over recommended operating free-air temperature range unless otherwise noted.)
SYMBOL
I
OH
V
OL
V
IK
I
I
I
IH
I
IL
I
CC
High-level output current
Low-level output voltage VCC = MIN, VIL = MAX ±10%V
Input clamp voltage VCC = MIN, II = I
Input current at maximum input
voltage
High-level input current VCC = MAX, VI = 2.7V 20 µA
Low-level input current VCC = MAX, VI = 0.5V -1.2 mA
Supply current (total) I
PARAMETER TEST CONDITIONS
VCC = MIN, VIL = MAX, VIH = MIN,
V
= MAX
OH
VIH = MIN, I
= MAX ±5%V
OL
IK
VCC = MAX, VI = 7.0V 100 µA
CCHVCC
I
CCLVCC
= MAX VIN = GND 4.0 7.0 mA
= MAX VIN = 4.5V 22 30 mA
NOTES:
1 For conditions shown as MIN or MAX, use the appropriate value specified under recommended operating conditions for the applicable type.
2 All typical values are at V
= 5V, T
CC
amb
= 25°C.
1
MIN TYP
LIMITS UNIT
2
MAX
250 µA
0.55 V
CC
CC
0.42 0.55 V
-0.73 -1.2 V
October 4, 1990
3
Page 4
Philips Semiconductors Product specification
TEST
CONDITION
74F38Quad 2-input NAND buffer (open collector)
AC ELECTRICAL CHARACTERISTICS
LIMITS
VCC = +5.0V VCC = +5.0V ± 10% VCC = +5.0V ± 10%
SYMBOL PARAMETER
t
PLH
t
PHL
Propagation delay
Dna, Dnb to Qn
AC WAVEFORMS
Waveform 1
T
= +25°C T
amb
= 0°C to +70°C T
amb
= –40°C to +85°C UNIT
amb
CL = 50pF, RL = 500Ω CL = 50pF, RL = 500Ω CL = 50pF, RL = 500Ω
MIN TYP MAX MIN MAX MIN MAX
7.5
10.0
1.5
3.0
12.5
5.0
7.5
1.5
13.0
5.5
7.5
1.5
14.5
6.0
ns
Dna, Dnb
Qn
V
M
t
PHL
V
M
t
PLH
V
M
V
M
SF00005
Waveform 1. Propagation delay for inverting outputs
NOTE:
For all waveforms, V
= 1.5V.
M
TYPICAL PROPAGATION DELAYS VERSUS LOAD FOR OPEN COLLECTOR OUTPUTS
18
16
14
12
t
10
8
Propagation delay (ns)
6
PLH
4
2
0
0 100 200 300 400 500 600
Load resistor (Ω)
NOTE:
1 When using open collector parts, the value of the pull-up resistor greatly affects the value of the t
pull-up resistor value from 500Ω to 100Ω will improve the t
pull-up resistor is changed, the user must make certain that the total I
not exceed the I
minimum specification.
OL
October 4, 1990
up to 50% with only a slight increase in the t
PLH
current through the resistor and the total IIL’s of the receivers does
OL
4
t
PHL
SF00044
. For example, changing the specified
PLH
. However, if the value of the
PHL
Page 5
Philips Semiconductors Product specification
74F38Quad 2-input NAND buffer (open collector)
TEST CIRCUIT AND WAVEFORM
7.0V
R
L
C
R
L
L
PULSE
GENERATOR
V
CC
V
IN
R
T
D.U.T.
V
OUT
Test Circuit for Open Collector Outputs
DEFINITIONS:
= Load resistor;
R
L
see AC electrical characteristics for value.
= Load capacitance includes jig and probe capacitance;
C
L
see AC electrical characteristics for value.
R
= Termination resistance should be equal to Z
T
pulse generators.
OUT
of
NEGATIVE
PULSE
POSITIVE
PULSE
family
74F
90%
10%
amplitude
t
w
V
M
10%
t
V
90%
M
THL (tf
t
TLH (tr
)
)
t
TLH (tr
t
THL (tf
t
w
Input Pulse Definition
INPUT PULSE REQUIREMENTS
V
rep. rate
M
3.0V 1.5V
1MHz 500ns
10%
)
)
90%
t
w
V
M
V
M
90%
10%
t
TLHtTHL
2.5ns 2.5ns
AMP (V)
0V
AMP (V)
0V
SF00027
October 4, 1990
5
Page 6
Philips Semiconductors Product specification
Quad 2-input NAND buffer (open collector)
DIP14: plastic dual in-line package; 14 leads (300 mil) SOT27-1
74F38
1990 Oct 04
6
Page 7
Philips Semiconductors Product specification
Quad 2-input NAND buffer (open collector)
SO14: plastic small outline package; 14 leads; body width 3.9 mm SOT108-1
74F38
1990 Oct 04
7
Page 8
Philips Semiconductors Product specification
Quad 2-input NAND buffer (open collector)
Data sheet status
Data sheet
status
Objective
specification
Preliminary
specification
Product
specification
Product
status
Development
Qualification
Production
Definition
This data sheet contains the design target or goal specifications for product development.
Specification may change in any manner without notice.
This data sheet contains preliminary data, and supplementary data will be published at a later date.
Philips Semiconductors reserves the right to make chages at any time without notice in order to
improve design and supply the best possible product.
This data sheet contains final specifications. Philips Semiconductors reserves the right to make
changes at any time without notice in order to improve design and supply the best possible product.
[1]
74F38
[1] Please consult the most recently issued datasheet before initiating or completing a design.
Definitions
Short-form specification — The data in a short-form specification is extracted from a full data sheet with the same type number and title. For
detailed information see the relevant data sheet or data handbook.
Limiting values definition — Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one
or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or
at any other conditions above those given in the Characteristics sections of the specification is not implied. Exposure to limiting values for extended
periods may affect device reliability.
Application information — Applications that are described herein for any of these products are for illustrative purposes only. Philips
Semiconductors make no representation or warranty that such applications will be suitable for the specified use without further testing or
modification.
Disclaimers
Life support — These products are not designed for use in life support appliances, devices or systems where malfunction of these products can
reasonably be expected to result in personal injury . Philips Semiconductors customers using or selling these products for use in such applications
do so at their own risk and agree to fully indemnify Philips Semiconductors for any damages resulting from such application.
Right to make changes — Philips Semiconductors reserves the right to make changes, without notice, in the products, including circuits, standard
cells, and/or software, described or contained herein in order to improve design and/or performance. Philips Semiconductors assumes no
responsibility or liability for the use of any of these products, conveys no license or title under any patent, copyright, or mask work right to these
products, and makes no representations or warranties that these products are free from patent, copyright, or mask work right infringement, unless
otherwise specified.
Philips Semiconductors
811 East Arques Avenue
P.O. Box 3409
Sunnyvale, California 94088–3409
Telephone 800-234-7381
Copyright Philips Electronics North America Corporation 1998
All rights reserved. Printed in U.S.A.
print code Date of release: 10-98
Document order number: 9397-750-05064
