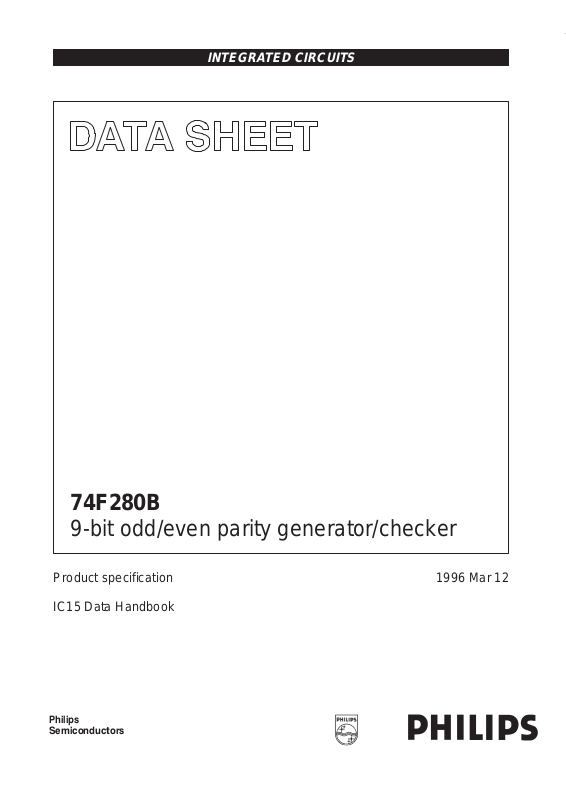

Page 1
74F280B
9-bit odd/even parity generator/checker
Product specification
IC15 Data Handbook
1996 Mar 12
INTEGRATED CIRCUITS
Page 2
Philips Semiconductors Product specification
74F280B9-bit odd/even parity generator/checker
2
1996 Mar 12 853-0363 16555
FEA TURES
•High-impedance NPN base inputs for reduced loading
(20µA in Low and High states)
•Buffered inputs — one normalized load
•Word length easily expanded by cascading
•Industrial temperature range available (–40°C to +85°C)
DESCRIPTION
The 74F280B is a 9-bit Parity Generator or Checker commonly used
to detect errors in high speed data transmission or data retrieval
systems. Both Even (∑
E
) and Odd (∑O) parity outputs are available
for generating or checking even or odd parity on up to 9 bits.
The Even (∑
E
) parity output is High when an even number of Data
inputs (I
0
- I8) are High. The Odd (∑O) parity output is High when an
odd number of Data inputs are High.
Expansion to larger word sizes is accomplished by tying the Even
(∑
E
) outputs of up to nine parallel devices to the data inputs of the
final stage. This expansion scheme allows an 81-bit data word to be
checked in less than 20ns.
PIN CONFIGURATION
14
13
12
11
10
9
87
6
5
4
3
2
1
V
CC
I
5
I
4
I
3
I
2
I
1
I
0
I
6
I
7
I
8
Σ
E
GND
NC
Σ
O
SF00849
TYPE
TYPICAL
PROPAGATION
DELAY
TYPICAL
SUPPLY CURRENT
(TOTAL)
74F280B 5.5ns 26mA
ORDERING INFORMATION
DESCRIPTION
COMMERCIAL RANGE
V
CC
= 5V ±10%,
T
amb
= 0°C to +70°C
INDUSTRIAL RANGE
V
CC
= 5V ±10%,
T
amb
= –40°C to +85°C
PKG. DWG. #
14-pin plastic DIP N74F280BN I74F280BN SOT27-1
14-pin plastic SO N74F280BD I74F280BD SOT108-1
INPUT AND OUTPUT LOADING AND FAN-OUT TABLE
PINS DESCRIPTION
74F(U.L.)
HIGH/LOW
LOAD VALUE
HIGH/LOW
I0 - I
8
Data inputs 1.0/0.033 20µA/20µA
∑E, ∑
O
Parity outputs 50/33 1.0mA/20mA
NOTE:
One (1.0) FAST Unit Load is defined as: 20µA in the High state and 0.6mA in the Low state.
LOGIC SYMBOL
8 9 10 11 12 13 1 2 4
56
Σ
O
Σ
E
I0I1I2I3I4I5I6I7I
8
SF00845
IEC/IEEE SYMBOL
8
9
10
11
12
13
1
2
4
5
6
Σ
O
Σ
E
VCC=Pin 14
GND=Pin 7
2K
SF00846
Page 3
Philips Semiconductors Product specification
74F280B9-bit odd/even parity generator/checker
1996 Mar 12
3
LOGIC DIAGRAM
Σ
E
Σ
O
5
6
8
9
10
11
12
13
1
2
4
I
0
I
1
I
2
I
3
I
4
I
5
I
6
I
7
I
8
SF00847
VCC=Pin 14
GND=Pin 7
FUNCTION TABLE
INPUTS OUTPUTS
Number of High Data Inputs (I0 - I8)
∑
E
∑
O
Even — 0, 2, 4, 6, 8 H L
Odd — 1, 3, 5, 7, 9 L H
H = High voltage level
L = Low voltage level
Page 4
Philips Semiconductors Product specification
74F280B9-bit odd/even parity generator/checker
1996 Mar 12
4
ABSOLUTE MAXIMUM RATINGS
SYMBOL PARAMETER RATING UNIT
V
CC
Supply voltage –0.5 to +7.0 V
V
IN
Input voltage –0.5 to +7.0 V
I
IN
Input current –30 to +5 mA
V
OUT
Voltage applied to output in High output state –0.5 to V
CC
V
I
OUT
Current applied to output in Low output state 40 mA
p
p
Commercial range 0 to +70 °C
T
amb
Operating free-air temperature range
Industrial range –40 to +85 °C
T
stg
Storage temperature –65 to +150 °C
RECOMMENDED OPERATING CONDITIONS
LIMITS
SYMBOL
PARAMETER
Min Nom Max
UNIT
V
CC
Supply voltage 4.5 5.0 5.5 V
V
IH
High-level input voltage 2.0 V
V
IL
Low-level input voltage 0.8 V
I
IK
Input clamp current –18 mA
I
OH
High-level output current –1
mA
I
OL
Low-level output current 20 mA
p
p
Commercial range 0 70 °C
T
amb
Operating free-air temperature range
Industrial range –40 85 °C
DC ELECTRICAL CHARACTERISTICS
(Over recommended operating free-air temperature range unless otherwise noted.)
1
LIMITS
SYMBOL
PARAMETER
TEST CONDITIONS
1
MIN TYP
2
MAX
UNIT
p
VCC = MIN, VIL = MAX ±10%V
CC
2.5
VOHHigh-level output voltage
VIH = MIN, IOH = MAX ±5%V
CC
2.7 3.4
V
p
VCC = MIN, VIL = MAX ±10%V
CC
0.35 0.50
VOLLow-level output voltage
VIH = MIN, IOL = MAX ±5%V
CC
0.35 0.50
V
V
IK
Input clamp voltage VCC = MIN, II = I
IK
–0.73 –1.2 V
I
I
Input current at maximum input voltage VCC = 0.0V, VI = 7.0V 100 µA
p
Commercial range
20 µA
IIHHigh-level input current
Industrial range
V
CC
=
MAX, V
I
= 2.
7V
40 µA
I
IL
Low-level input current VCC = MAX, VI = 0.5V –20 µA
I
OS
Short-circuit output current
3
VCC = MAX –60 –150 mA
I
CC
Supply current (total) VCC = MAX 26 35 mA
NOTES:
1. For conditions shown as MIN or MAX, use the appropriate value specified under recommended operating conditions for the applicable type.
2. All typical values are at V
CC
= 5V, T
amb
= 25°C.
3. Not more than one output should be shorted at a time. For testing I
OS
, the use of high-speed test apparatus and/or sample-and-hold
techniques are preferable in order to minimize internal heating and more accurately reflect operational values. Otherwise, prolonged shorting
of a High output may raise the chip temperature well above normal and thereby cause invalid readings in other parameter tests. In any
sequence of parameter tests, I
OS
tests should be performed last.
Page 5
Philips Semiconductors Product specification
74F280B9-bit odd/even parity generator/checker
1996 Mar 12
5
AC ELECTRICAL CHARACTERISTICS
LIMITS
T
amb
= +25°C
T
amb
= 0°C to +70°C
T
amb
= -40°C to +85°C
SYMBOL PARAMETER
TEST
V
CC
= +5.
V
C
= 50pF,
V
CC
= +5.V ±
10%
C
= 50pF
,
V
CC
= +5.V ±
10%
C
= 50pF,
UNIT
CONDITIONS
C
L
=
50pF,
RL = 500Ω
C
L
=
50pF,
RL = 500Ω
C
L
=
50pF,
RL = 500Ω
Min Typ Max Min Max Min Max
t
PLH
t
PHL
Propagation delay
I0 - I8 to Σ
E
Waveform 1, 2
4.0
4.0
6.5
7.0
9.0
10.0
3.5
3.5
10.0
11.1
3.0
3.5
11.0
12.0
ns
ns
t
PLH
t
PHL
Propagation delay
I0 - I8 to Σ
O
74F280B
Waveform 1, 2
4.0
4.0
6.5
7.0
9.0
10.0
3.5
3.5
10.0
11.0
3.0
3.5
11.0
12.0
ns
ns
AC WAVEFORMS
For all waveforms, VM=1.5V.
V
M
V
M
V
M
V
M
I0 - I
8
Σ
E,
Σ
O
t
PHL
t
PLH
SF00848
Waveform 1. Propagation Delay for Inverting Outputs
V
M
V
M
V
M
V
M
I0 - I
8
Σ
E,
Σ
O
t
PLH
t
PHL
SF00850
Waveform 2. Propagation Delay for Non-Inverting Outputs
TEST CIRCUIT AND WAVEFORM
t
w
90%
V
M
10%
90%
V
M
10%
90%
V
M
10%
90%
V
M
10%
NEGATIVE
PULSE
POSITIVE
PULSE
t
w
AMP (V)
0V
0V
t
THL (tf
)
INPUT PULSE REQUIREMENTS
rep. rate
t
w
t
TLHtTHL
1MHz 500ns
2.5ns 2.5ns
Input Pulse Definition
V
CC
family
74F
D.U.T.
PULSE
GENERATOR
R
L
C
L
R
T
V
IN
V
OUT
Test Circuit for Totem-Pole Outputs
DEFINITIONS:
R
L
= Load resistor;
see AC ELECTRICAL CHARACTERISTICS for value.
C
L
= Load capacitance includes jig and probe capacitance;
see AC ELECTRICAL CHARACTERISTICS for value.
R
T
= Termination resistance should be equal to Z
OUT
of
pulse generators.
t
THL (tf
)
t
TLH (tr
)
t
TLH (tr
)
AMP (V)
amplitude
3.0V 1.5V
V
M
SF00006
Page 6
Philips Semiconductors Product specification
74F280B
9-bit parity odd/even parity generator/checker
1996 Mar 12
6
DIP14: plastic dual in-line package; 14 leads (300 mil) SOT27-1
Page 7
Philips Semiconductors Product specification
74F280B
9-bit parity odd/even parity generator/checker
1996 Mar 12
7
SO14: plastic small outline package; 14 leads; body width 3.9 mm SOT108-1
Page 8
Philips Semiconductors Product specification
74F280B
9-bit parity odd/even parity generator/checker
1996 Mar 12
8
Definitions
Short-form specification — The data in a short-form specification is extracted from a full data sheet with the same type number and title. For
detailed information see the relevant data sheet or data handbook.
Limiting values definition — Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one
or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or
at any other conditions above those given in the Characteristics sections of the specification is not implied. Exposure to limiting values for extended
periods may affect device reliability.
Application information — Applications that are described herein for any of these products are for illustrative purposes only. Philips
Semiconductors make no representation or warranty that such applications will be suitable for the specified use without further testing or
modification.
Disclaimers
Life support — These products are not designed for use in life support appliances, devices or systems where malfunction of these products can
reasonably be expected to result in personal injury . Philips Semiconductors customers using or selling these products for use in such applications
do so at their own risk and agree to fully indemnify Philips Semiconductors for any damages resulting from such application.
Right to make changes — Philips Semiconductors reserves the right to make changes, without notice, in the products, including circuits, standard
cells, and/or software, described or contained herein in order to improve design and/or performance. Philips Semiconductors assumes no
responsibility or liability for the use of any of these products, conveys no license or title under any patent, copyright, or mask work right to these
products, and makes no representations or warranties that these products are free from patent, copyright, or mask work right infringement, unless
otherwise specified.
Philips Semiconductors
811 East Arques Avenue
P.O. Box 3409
Sunnyvale, California 94088–3409
Telephone 800-234-7381
Copyright Philips Electronics North America Corporation 1999
All rights reserved. Printed in U.S.A.
Date of release: 12-99
Document order number: 9397 750 06706
