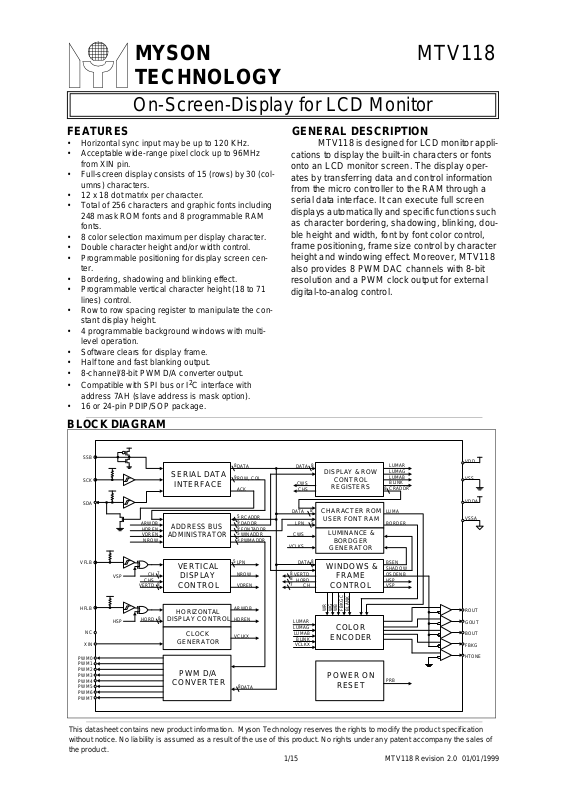

Page 1
This datasheet contains new product information. Myson Technology reserves the rights to modify the product specification
without notice. No liability is assumed as a result of the use of this product. No rights under any patent accompany the sales of
the product.
1/15 MTV118 Revision 2.0 01/01/1999
MTV118MYSON
TECHNOLOGY
FEATURES GENERAL DESCRIPTION

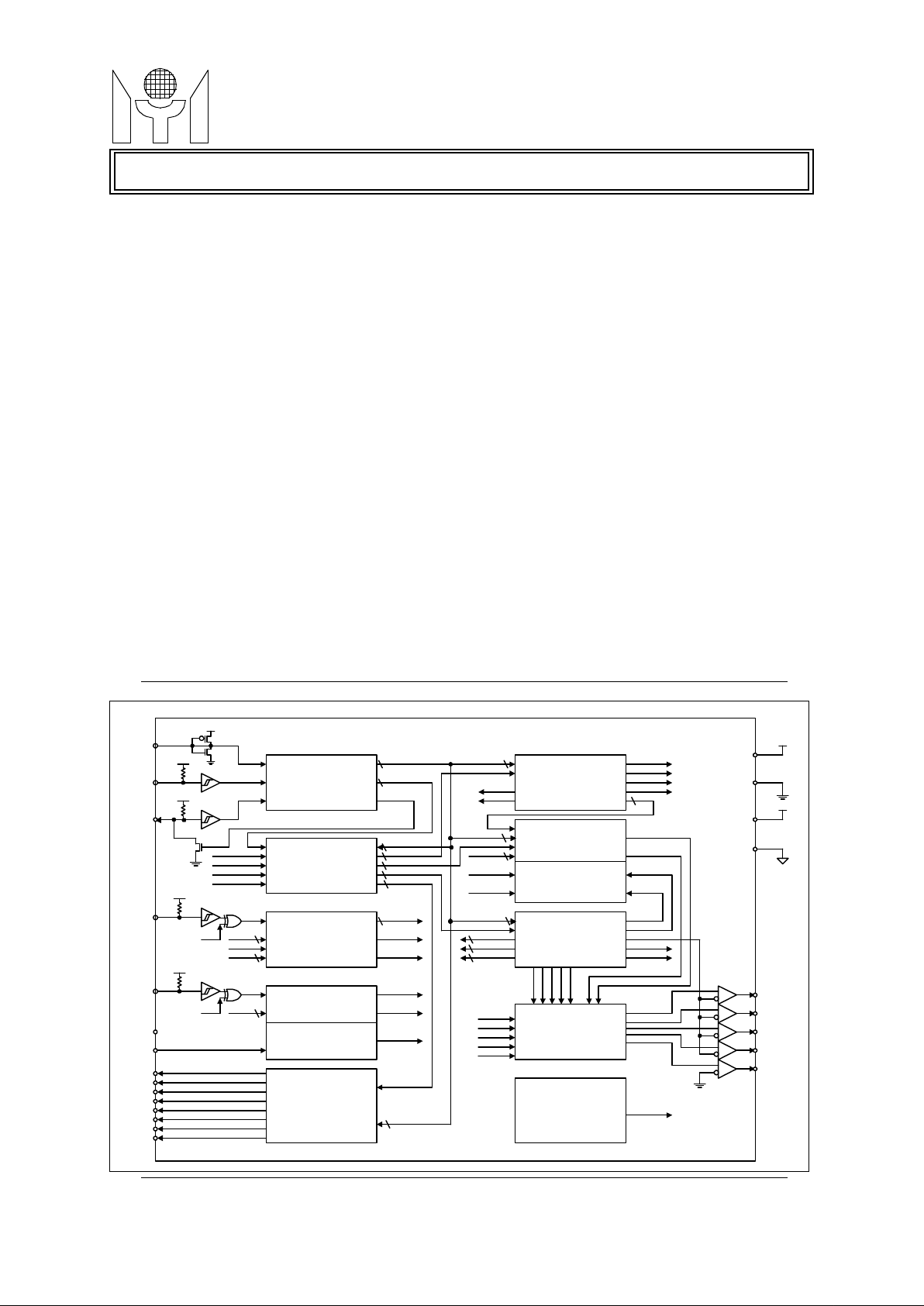

BLOCK DIAGRAM
• Horizontal sync input may be up to 120 KHz.
• Acceptable wide-range pixel clock up to 96MHz
from XIN pin.
• Full-screen display consists of 15 (rows) by 30 (columns) characters.
• 12 x 18 dot matrix per character.
• Total of 256 characters and graphic fonts including
248 mask ROM fonts and 8 programmable RAM
fonts.
• 8 color selection maximum per display character.
• Double character height and/or width control.
• Programmable positioning for display screen center.
• Bordering, shadowing and blinking effect.
• Programmable vertical character height (18 to 71
lines) control.
• Row to row spacing register to manipulate the constant display height.
• 4 programmable background windows with multilevel operation.
• Software clears for display frame.
• Half tone and fast blanking output.
• 8-channel/8-bit PWM D/A converter output.
• Compatible with SPI bus or I2C interface with
address 7AH (slave address is mask option).
• 16 or 24-pin PDIP/SOP package.
On-Screen-Display for LCD Monitor
MTV118 is designed for LCD monitor applications to display the built-in characters or fonts
onto an LCD monitor screen. The display operates by transferring data and control information
from the micro controller to the RAM through a
serial data interface. It can execute full screen
displays automatically and specific functions such
as character bordering, shadowing, blinking, double height and width, font by font color control,
frame positioning, frame size control by character
height and windowing effect. Moreover, MTV118
also provides 8 PWM DAC channels with 8-bit
resolution and a PWM clock output for external
digital-to-analog control.
SERIAL DATA
INTERFACE
ADDRESS BUS
ADMINISTRATOR
VERTICAL
DISPLAY
CONTROL
DISPLAY & ROW
CONTROL
REGISTERS
COLOR
ENCODER
WINDOWS &
FRAME
CONTROL
WRWGWB
FBKGC
BLANK
LUMAR
LUMAG
LUMAB
BLINK
VCLKX
DATA
VERTD
HORD
CH
8
8
7
BSEN
SHADOW
OSDENB
HSP
VSP
HORIZONTAL
DISPLAY CONTROL
CLOCK
GENERATOR
8
DATA
LPN
CWS
VCLKS
5
DATA
CWS
CHS
8 LUMAR
LUMAG
LUMAB
BLINK
CRADDR
8
LUMA
BORDER
ARWDB
HDREN
VCLKX
HORD
8
CH
CHS
VERTD
7
8
LPN
NROW
VDREN
5
RCADDR
DADDR
FONTADDR
WINADDR
PWMADDR
5
9
9
5
5
ARWDB
HDREN
VDREN
NROW
DATA
ROW, COL
ACK
8
9
CHARACTER ROM
USER FONT RAM
LUMINANCE &
BORDGER
GENERATOR
VDD
VSS
VDDA
VSSA
ROUT
GOUT
BOUT
FBKG
HTONE
HFLB
NC
XIN
VFLB
SSB
SCK
SDA
VSP
HSP
PWM D/A
CONVERTER
PWM0
PWM1
PWM2
PWM3
PWM4
PWM5
PWM6
PWM7
8
DATA
8
POWER ON
RESET
PRB
Page 2
2/15 MTV118 Revision 2.0 01/01/1999
MTV118MYSON
TECHNOLOGY

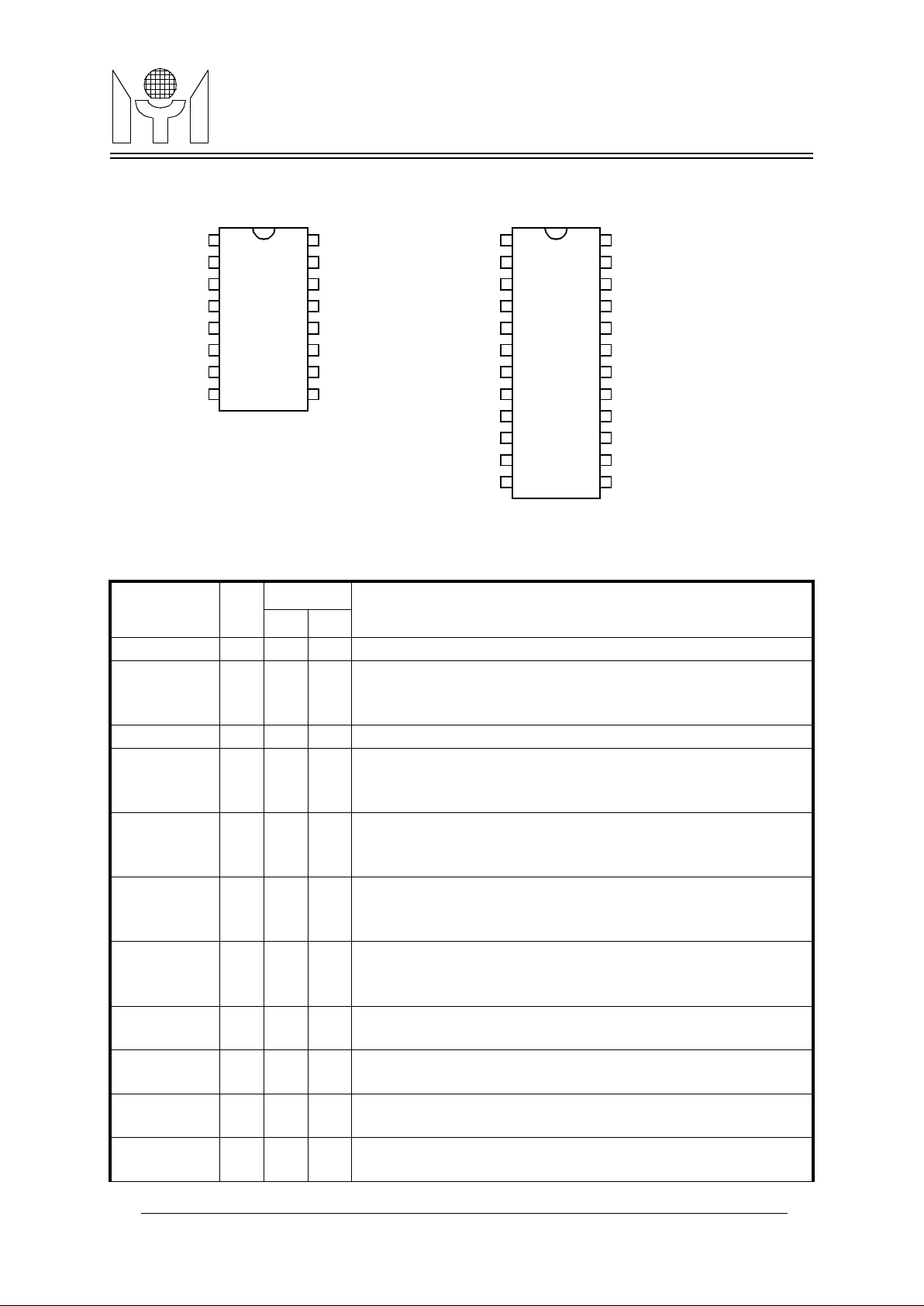

1.0 PIN CONNECTION
2.0 PIN DESCRIPTIONS
Name I/O
Pin #
Descriptions
N16 N24
VSS - 1 1 Ground. This ground pin is used for internal circuitry.
XIN I 2 2
Pixel Clock Input. This is a clock input pin. MTV118 is driven by
an external pixel clock source for all the logics inside. The frequency of XIN must be the integral time of pin HFLB.
NC I 3 3 No connection.
VDD - 4 4
Power supply. Positive 5 V DC supply for internal circuitry. A
0.1uF decoupling capacitor should be connected across VDD and
VSS.
HFLB I 5 5
Horizontal Input. This pin is used to input the horizontal synchronizing signal. It is a leading edge trigger and has an internal pullup resistor.
SSB I 6 6
Serial Interface Enabler. It is used to enable the serial data and
is also used to select the operation of I2C or SPI bus. If this pin is
left floating, I2C bus is enabled, otherwise the SPI bus is enabled.
SDA I 7 7
Serial Data Input. The external data transfers through this pin to
internal display registers and control registers. It has an internal
pull-up resistor.
SCK I 8 8
Serial Clock Input. The clock-input pin is used to synchronize the
data transfer. It has an internal pull-up resistor.
PWM0 O - 9
Open-Drain PWM D/A Converter 0. The output pulse width is
programmable by the register of row 15, column 19.
PWM1 O - 10
Open-Drain PWM D/A Converter 1. The output pulse width is
programmable by the register of row 15, column 20.
PWM2 O - 11
Open-Drain PWM D/A Converter 2. The output pulse width is
programmable by the register of row 15, column 21.
VSS
XIN
NC
VDD
HFLB
SSB
SDA
SCK
VSS
ROUT
GOUT
BOUT
FBKG
HTONE/PWMCK
VFLB
VDD
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
MTV118
VSS
XIN
NC
VDD
HFLB
SSB
SDA
SCK
PWM0
PWM1
PWM2
PWM3
VSS
ROUT
GOUT
BOUT
FBKG
HTONE/PWMCK
VFLB
VDD
PWM7
PWM6
PWM5
PWM4
24
23
22
21
20
19
18
17
16
15
14
13
1
2
3
4
5
6
7
8
9
10
11
12
MTV118N24
Page 3
3/15 MTV118 Revision 2.0 01/01/1999
MTV118MYSON
TECHNOLOGY
3.0 FUNCTIONAL DESCRIPTIONS
3.1 Serial Data Interface
The serial data interface receives data transmitted from an external controller. There are 2 types of bus
which can be accessed through the serial data interface: SPI bus and I2C bus.
3.1.1 SPI Bus
When the SSB pin is pulled to a HIGH or LOW level, the SPI bus operation is selected. A valid transmission should start from pulling SSB to LOW level, enabling the MTV118 receiving mode and retaining
the LOW level until the last cycle for a complete data packet transfer. The protocol is shown in Figure1
on page4.
There are 3 transmission formats as shown below:
Format (a) R - C - D → R - C - D → R - C - D
Format (b) R - C - D → C - D → C - D → C - D
Format (c) R - C - D → D → D → D → D → D
R=row address, C=column address, D=display data
PWM3 O - 12
Open-Drain PWM D/A Converter 3. The output pulse width is
programmable by the register of row 15, column 22.
PWM4 O - 13
Open-Drain PWM D/A Converter 4. The output pulse width is
programmable by the register of row 15, column 23.
PWM5 O - 14
Open-Drain PWM D/A Converter 5. The output pulse width is
programmable by the register of row 15, column 24.
PWM6 O - 15
Open-Drain PWM D/A Converter 6. The output pulse width is
programmable by the register of row 15, column 25.
PWM7 O - 16
Open-Drain PWM D/A Converter 7. The output pulse width is
programmable by the register of row 15, column 26.
VDD - 9 17
Power Supply. Positive 5 V DC supply for internal circuitry and a
0.1uF decoupling capacitor should be connected across VDD and
VSS.
VFLB I 10 18
Vertical Input. This pin is used to input the vertical synchronizing
signal. It is triggered by lead and has an internal pull-up resistor.
HTONE /
PWMCK
O 11 19
Half Tone Output / PWM Clock Output. This is a multiplexed pin
selected by the PWMCK bit. This pin can be a PWM clock or used
to attenuate R, G, B gain of VGA for the transparent windowing
effect.
FBKG O 12 20
Fast Blanking Output. It is used to cut off external R, G, B signals of VGA while this chip is displaying characters or windows.
BOUT O 13 21 Blue Color Output. This is a blue color video signal output.
GOUT O 14 22 Green Color Output. This is a green color video signal output.
ROUT O 15 23 Red Color Output. This is a red color video signal output.
VSS - 16 24 Ground. This ground pin is used for internal circuitry.
Name I/O
Pin #
Descriptions
N16 N24
Page 4
4/15 MTV118 Revision 2.0 01/01/1999
MTV118MYSON
TECHNOLOGY
3.1.2 I2C Bus
I2C bus operation is only selected when the SSB pin is left floating. A valid transmission should begin
from writing the slave address 7AH, which is mask option, to MTV118. The protocol is shown in Figure
2 on page 4..
There are 3 transmission formats as shown below:
Format (a) S - R - C - D → R - C - D → R - C - D
Format (b) S - R - C - D → C - D → C - D → C - D
Format (c) S - R - C - D → D → D → D → D → D
S=slave address, R=row address, C=column address, D=display data
Each arbitrary length of data packet consists of 3 portions: row address (R), column address (C) and
display data (D). Format (a) is suitable for updating small amounts of data which will be allocated with
different row and column addresses. Format (b) is recommended for updating data that has the same
row address but a different column address. Massive data updating or full screen data changes should
be done in format (c) to increase transmission efficiency. The row and column addresses will be incremented automatically when format (c) is applied. Furthermore, the undefined locations in display or font
RAM should be filled with dummy data.
There are 3 types of data which should be accessed through the serial data interface: address bytes of
display registers, attribute bytes of display registers and user font RAM data. The protocol is the same
for all except bits 5 and 6 of the row addresses. The MSB(b7) is used to distinguish row and column
addresses when transferring data from an external controller. Bit 6 of the row address is used to distinguish display registers and user font RAM data and bit6 of the column address is used to differentiate
the column address for formats (a), (b) and (c), respectively. Bit 5 of the row address for display registers is used to distinguish the address byte when it is set to "0" and the attribute byte when it is set to
"1". The configuration of transmission formats is shown in Table1 on page5.
MS
B
LSB
SSB
SCK
SDA
first byte last byte

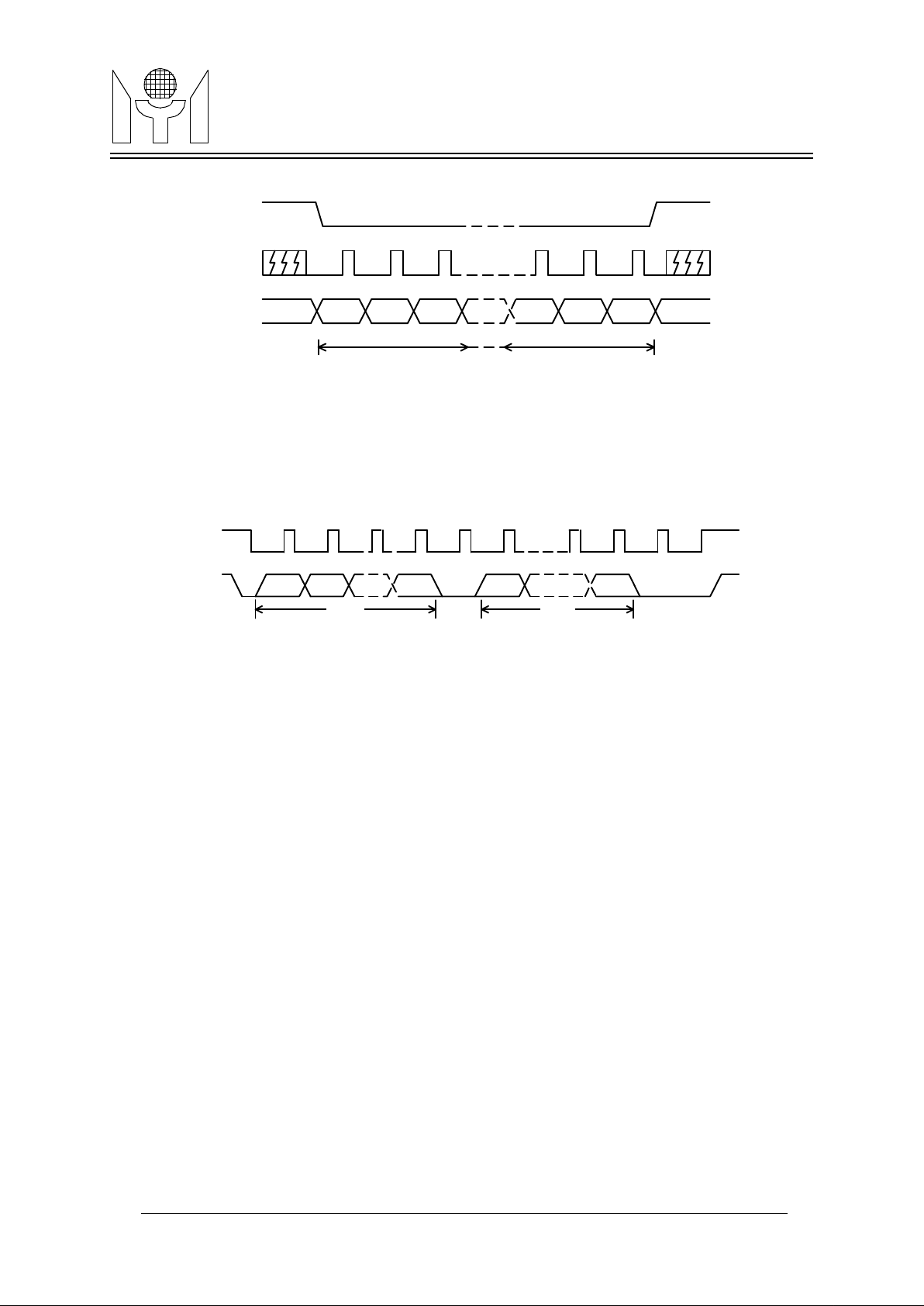

FIGURE 1. Data Transmission Protocol (SPI)
FIGURE 2. Data Transmission Protocol (I2C)
SCK
SDA
first byte
¡@¡@¡@¡@
¡@
START ACK
second byte last byte
ACK STOP
B7 B6 B0 B7 B0
Page 5
5/15 MTV118 Revision 2.0 01/01/1999
MTV118MYSON
TECHNOLOGY
The data transmission is permitted to change from format (a) to format (b) and (c), or from format (b) to
format (a), but not from format (c) back to format (a) and (b). The alternation between transmission formats is configured as the state diagram shown in Figure3 on page5.
3.2 Address Bus Administrator
The administrator manages bus address arbitration of internal registers or user font RAM during external data write-in. The external data write through serial data interface to registers must be synchronized
by internal display timing. In addition, the administrator also provides automatic incrementation to the
address bus when external writing occurs using format (c).
3.3 Vertical Display Control
The vertical display control can generate different vertical display sizes for most display standards in
current monitors. The vertical display size is calculated with the information of a double character height
bit(CHS) and a vertical display height control register(CH6-CH0).The algorithms of a repeating character line display are shown in Tables 2 and 3. The programmable vertical size range is 270 lines to maximum 2130 lines.

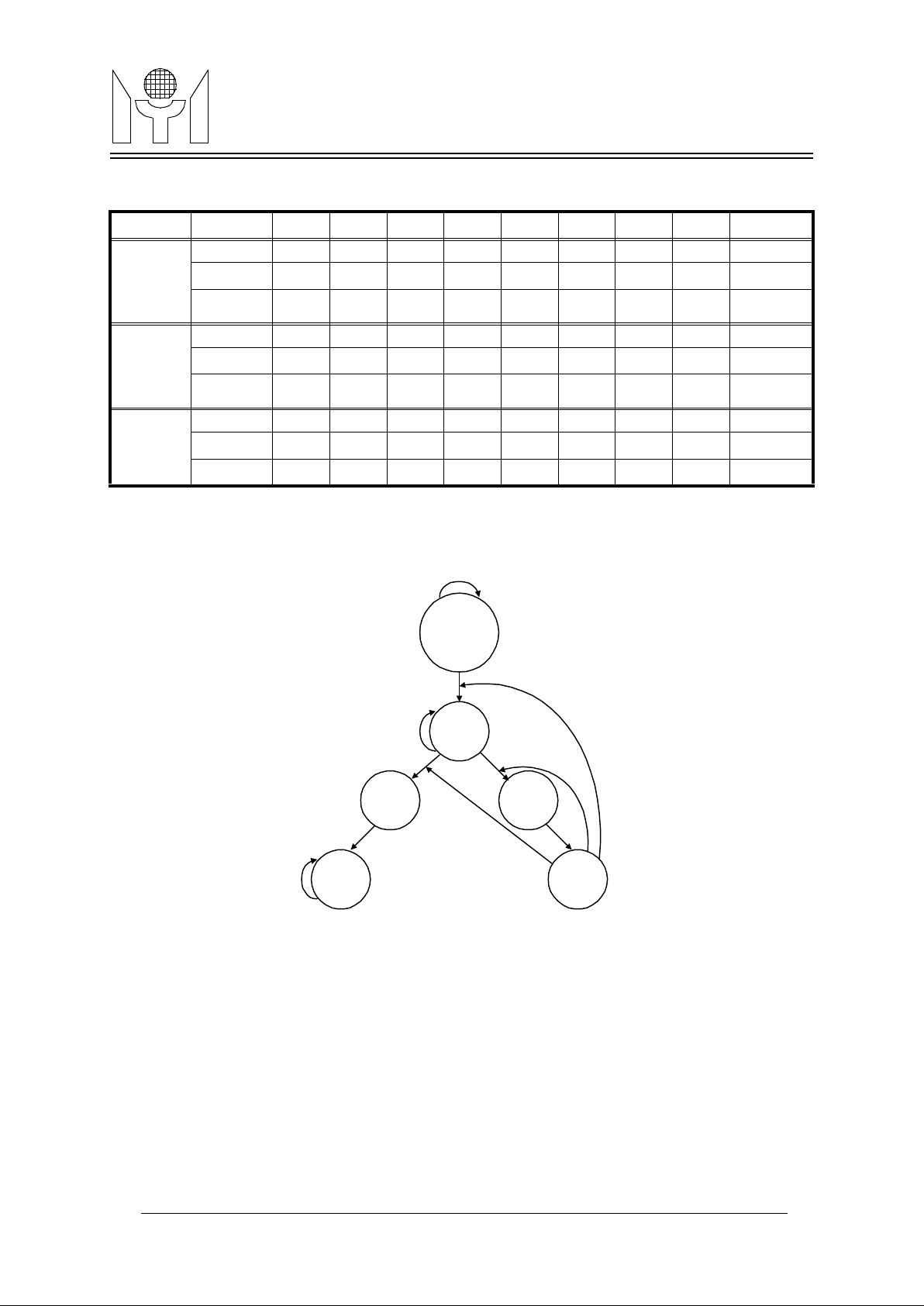

TABLE 1. Configuration of Transmission Formats
Address b7 b6 b5 b4 b3 b2 b1 b0 Format
Address
Bytes of
Display
Reg.
Row 1 0 0 x R3 R2 R1 R0 a,b,c
Column
ab
0 0 x C4 C3 C2 C1 C0 a,b
Column
c
0 1 x C4 C3 C2 C1 C0 c
Attribute
Bytes of
Display
Reg.
Row 1 0 1 x R3 R2 R1 R0 a,b,c
Column
ab
0 0 x C4 C3 C2 C1 C0 a,b
Column
c
0 1 x C4 C3 C2 C1 C0 c
User
Fonts
RAM
Row 1 1 x x x R2 R1 R0 a,b,c
Column
ab
0 0 C5 C4 C3 C2 C1 C0 a,b
Column
c
0 1 C5 C4 C3 C2 C1 C0 c
Initiate
ROW
COL
c
COL
ab
DA
c
DA
ab
1, X
0, 1
0, 0
X, X
X, X
0, 1
1, X
1, X
format (a)
format (b)
format (c)
X, X
0, X
Input = b7, b6
0, 0
FIGURE 3. Transmission State Diagram
Page 6
6/15 MTV118 Revision 2.0 01/01/1999
MTV118MYSON
TECHNOLOGY
The vertical display center for a full-screen display may be figured out according to the information of
the vertical starting position register (VERTD) and VFLB input. The vertical delay starting from the leading edge of VFLB is calculated using the following equation:
Vertical delay time = ( VERTD * 4 + 1 ) * H
Where H = 1 horizontal line display time
Note: “v” means the nth line in the character would be repeated once, while “-” means the nth line in the
character would not be repeated.
3.4 Horizontal Display Control
The horizontal display control is used to generate control timing for a horizontal display based on double character width bit (CWS), horizontal positioning register (HORD) and HFLB input. A horizontal display line includes 360 dots for 30 display characters and the remaining dots for a blank region. The
horizontal delay starting from the HFLB leading edge is calculated using the following equation:
Horizontal delay time = ( HORD * 6 + 49) * P
Where P = 1 XIN pixel display time
3.5 Display & Row Control Registers
The internal RAM contains display and row control registers. The display registers have 450 locations
which are allocated between row 0/column 0 and row 14/column 29 as shown in Figure 4. Each display
register has its corresponding character address on the address byte, and 1 blink bit and its corresponding color bits on attribute bytes. The row control register is allocated at column 30 for row 0 to row
14; it is used to set character size for each respective row. If the double width character (CWS) is cho-
TABLE 2. Repeat Line Weight of Character
CH6-CH0 Repeat Line Weight
CH6,CH5=11 +18*3
CH6,CH5=10 +18*2
CH6,CH5=0x +18
CH4=1 +16
CH3=1 +8
CH2=1 +4
CH1=1 +2
CH0=1 +1
TABLE 3. Repeat Line Number of Character
Repeater Line
Weight
Repeat Line #
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
+1 - - - - - - - - v - - - - - - - - +2 - - - - v - - - - - - - v - - - - +4 - - v - - - v - - - v - - - v - - -
+8 - v - v - v - v - v - v - v - v - +16 - v v v v v v v v v v v v v v v v +17 v v v v v v v v v v v v v v v v v +18 v v v v v v v v v v v v v v v v v v
Page 7
7/15 MTV118 Revision 2.0 01/01/1999
MTV118MYSON
TECHNOLOGY
sen, only even column characters may be displayed on-screen and the odd column characters will be
hidden.
FIGURE 4. Memory map
3.5.1 Register Descriptions
1. (i) Display Register, (Row 0 - 14, Column 0 - 29)
ADDRESS BYTE
CRADDR - Defines ROM character and user-programmable fonts address.
(a) 0 ~ 247 ⇒ 248 built-in characters and graphic symbols
(b) 248 ~ 255 ⇒ 8 user-programmable fonts
ATTRIBUTE BYTE
BLINK - Enables blinking effect when this bit is set to " 1 ". The blinking is alternated per 32 vertical
frames.
R1, G1, B1 - These bits are used to specify its relative address character color 1.
2. Row Control Registers, (Row 0 - 14)
R2, G2, B2 - These bits are used to specify its relative row character color 2. While the corresponding
CCS bit is set to 1, color 2 should be chosen.
CHS - Defines double height character to the respective row.
CWS - Defines double width character to the respective row.
ROW #
COLUMN #
0 1 28 29 30 31
0
1
13
14
DISPLAY REGISTERS
ROW CTRL
REG
RESERVED
ROW 15
COLUMN#
0 23 5 6 8 9 11 12 18 19 26
WINDOW1 WINDOW2 WINDOW3 WINDOW4
FRAME CRTL
REG
PWM D/A
CRTL REG
b7 b6 b5 b4 b3 b2 b1 b0
CRADDR
MSB LSB
b7 b6 b5 b4 b3 b2 b1 b0
- - - - BLINK R1 G1 B1
COLN 30
b7 b6 b5 b4 b3 b2 b1 b0
- - - R2 G2 B2 CHS CWS
Page 8
8/15 MTV118 Revision 2.0 01/01/1999
MTV118MYSON
TECHNOLOGY
3.6 User Font RAM
The user font RAM has 288 locations which are allocated between row 0/column 0 and row 7/column
35 to specify 8 user-programmable fonts, as shown in Figure 5. Each programmable font consists of a
12x18 dot matrix. Each row of dot matrix consists of 2 bytes of data which include 4 dummy bits as
shown in figure 6. That is, the dot matrix data of each font is stored in 36-byte registers. For example,
font 0 is stored in row 0 from column 0 to column 35 and font 1 is stored in row 1 from column 0 to column 35, etc.
FIGURE 5. User Font RAM Memory Map
3.7 Character ROM
The character ROM contains 248 built-in characters and symbols from addresses 0 to 247. Each character and symbol consists of a 12x18 dot matrix. The detail pattern structures for each character and
symbol are shown in 10.0“CHARACTER AND SYMBOL PATTERN” on page 15.
3.8 Luminance & Border Generator
There are 2 shift registers included in the design which can shift out of luminance and border dots to the
color encoder. The bordering and shadowing feature is configured in this block. For bordering effect,
the character will be enveloped with blackedge on 4 sides. For shadowing effect, the character is enveloped with blackedge on right and bottom sides only.
3.9 Window and Frame Control
The display frame position is completely controlled by the contents of VERTD and HORD. The window
size and position control are specified in columns 0 to 11 on row 15 of the memory map, as shown in
Figure 4. Window 1 has the highest priority and window 4 has the least, when 2 windows are overlapping. More detailed information is described as follows:
ROW # COLUMN #
0 1 34 35 36 63
0
1
6
7
USER FONT RAM RESERVED
FIGURE 6. Data Format of Font Dot Matrix
Nth byte (N+1)th byte
12 bits for 1-row data of font dot matrix Dummy bits
rightmost dot of font
N=even number
b7 b6 b5 b4 b3 b2 b1 b0 b7 b6 b5 b4 b3 b2 b1 b0
leftmost dot of font
Page 9
9/15 MTV118 Revision 2.0 01/01/1999
MTV118MYSON
TECHNOLOGY
1. Window control registers:
ROW 15
START(END) ADDR - These addresses are used to specify the window size. It should be noted that
when the start address is greater than the end address, the window will be disa-
bled.
WEN - Enables the window display.
CCS - When a window is overlapping with the character, character color 2 should be chosen while this
bit is set to 1. Color 1 is selected otherwise.
R, G, B - Specifies the color of the relative background window.
2. Frame control registers:
ROW 15
VERTD - Specifies the starting position for vertical display. The total steps are 256, and the increment
of each step is 4 horizontal display lines. The initial value is 4 after power-up.
HORD - Defines the starting position for horizontal display. The total steps are 256 and the increment of
each step is 6 dots. The initial value is 15 after power-up.
CH6-CH0 - Defines the character vertical height, which is programmable from 18 to 71 lines. The char-
acter vertical height is at least 18 lines if the contents of CH6-CH0 are less than 18. For
example, when the content is " 2 ", the character vertical height is regarded as equal to 20
lines. If the contents of CH4-CH0 are greater than or equal to 18, it will be regarded as equal
to 17. See Tables 2 and 3 for a detailed description of this operation.
This byte is reserved for internal testing.
Column
0,3,6,OR 9
b7 b6 b5 b4 b3 b2 b1 b0
ROW START ADDR
MSB LSB
ROW END ADDR
MSB LSB
Column
1,4,7,OR 10
b7 b6 b5 b4 b3 b2 b1 b0
COL START ADDR
MSB LSB
WEN CCS -
Column
2,5,8,OR 11
b7 b6 b5 b4 b3 b2 b1 b0
COL END ADDR
MSB LSB
R G B
Column 12
b7 b6 b5 b4 b3 b2 b1 b0
VERTD
MSB LSB
Column 13
b7 b6 b5 b4 b3 b2 b1 b0
HORD
MSB LSB
Column 14
b7 b6 b5 b4 b3 b2 b1 b0
- CH6 CH5 CH4 CH3 CH2 CH1 CH0
Column 15
b7 b6 b5 b4 b3 b2 b1 b0
Reserved
Page 10
10/15 MTV118 Revision 2.0 01/01/1999
MTV118MYSON
TECHNOLOGY
RSPACE - Defines the row to row spacing in each unit of the horizontal line. That is, extra RSPACE
horizontal lines will be appended below each display row, and the maximum space is 31
lines. The initial value is “0” after power-up.
OSDEN - Activates the OSD operation when this bit is set to "1". The initial value is” 0” after power-up.
BSEN - Enables the bordering and shadowing effect.
SHADOW - Activates the shadowing effect if this bit is set, otherwise the bordering is chosen.
TRIC - Defines the driving state of output pins ROUT, GOUT, BOUT and FBKG when OSD is disabled.
That is, while OSD is disabled, these 4 pins will drive LOW if this bit is set to “1”, otherwise these
pins are in high-impedance state. The initial value is “0” after power-up.
BLANK - Forces the FBKG pin output to HIGH while this bit is set to "1".
WENCLR - Clears all WEN bits of window control registers when this bit is set to "1". The initial value is
“0” after power-up.
RAMCLR - Clears all ADDRESS bytes of display registers when this bit is set to "1". The initial value is
“0” after power-up.
FBKGC - Defines the output configuration for FBKG pin. When it is set to "0", the FBKG outputs during
the display of characters or windows, otherwise, it outputs only during the display of characters.
TEST - = 0 ⇒ Normal mode.
= 1 ⇒ Test mode, not allowed in applications.
FBKGP - Selects the polarity of the output pin FBKG.
= 1 ⇒Positive polarity FBKG output is selected.
= 0 ⇒Negative polarity FBKG output is selected.
The initial value is “1” after power-up.
PWMCK - Selects the output options to the HTONE/PWMCK pin.
= 0 ⇒? HTONE option is selected.
= 1 ⇒? PWMCK option is selected with 50/50 duty cycle and is synchronous with the input
HFLB. The frequency is selected by PWM1, PWM0 as shown in table 4.
The initial value is “0” after power-up.
DWE - Enables double width. When the bit is set to “1”, the display of the OSD menu can change to half
resolution for double character width, and then the number of pixels of each line should be even.
HSP - = 1 ⇒ Accepts positive polarity Hsync input.
Column 16
b7 b6 B5 b4 b3 b2 b1 b0
- - - RSPACE
MSB LSB
Column 17
b7 b6 b5 b4 b3 b2 b1 b0
OSDEN BSEN SHADOW TRIC BLANK WENCLR RAMCLR FBKGC
Column 18
B7 b6 b5 b4 b3 b2 b1 b0
TEST FBKGP PWMCK DWE HSP VSP PWM1 PWM0
Page 11
11/15 MTV118 Revision 2.0 01/01/1999
MTV118MYSON
TECHNOLOGY
= 0 ⇒ Accepts negative polarity Hsync input.
VSP - = 1 ⇒ Accepts positive polarity Vsync input.
= 0 ⇒ Accepts negative polarity Vsync input.
PWM1, PWM0 - Selects the PWMCK output frequency.
= (0, 0) ⇒ XIN frequency /8
= (0, 1) ⇒ XIN frequency /4
= (1, 0) ⇒ XIN frequency /2
= (1, 1) ⇒ XIN frequency /1
The initial value is 0, 0 after power-up.
Notes : When XIN is not present, don't write data in any address. If data is written in any address, a
malfunction may occur.
3.10 PWM D/A Converter
There are 8 open-drain PWM D/A outputs (PWM0 to PWM7). The PWM D/A converter output pulse
width is programmable by writing data to columns 19-26 registers of row 15 with 8-bit resolution to control the pulse width duration from 0/256 to 255/256. The sampling rate is selected by PWM1, PWM0 as
shown in table 4. In applications, all open-drain output pins should be pulled up by external resistors to
supply voltage (5V to 9V) for the desired output range.
ROW 15
PWMDA0 - PWMDA7 - Defines the output pulse width of pins PWM0 to PWM7.
3.11 Color Encoder
The decoder generates the video output to ROUT, GOUT and BOUT by integrating window color, border blackedge, luminance output and color selection output (R, G, B) to form the desired video outputs.
4.0 ABSOLUTE MAXIMUM RATINGS
DC Supply Voltage(VDD,VDDA) -0.3 to +7 V
Ground Voltage -0.3 to VDD+0.3 V
Storage Temperature -65 to +150 oC
Ambient Operating Temperature 0 to +70 oC
TABLE 4. PWMCK Frequency and PWMDA Sampling Rate
(PWM1, PWM0) PWMCK Freq. PWMDA sampling rate
( 0, 0 ) XIN frequency /8 XIN frequency /(8 * 256)
( 0, 1 )
XIN frequency /4 XIN frequency /(4 * 256)
( 1, 0 )
XIN frequency /2 XIN frequency /(2 * 256)
( 1 ,1 )
XIN frequency /1 XIN frequency /(1 * 256)
Column 19
|
Column 26
b7 b6 b5 b4 b3 b2 b1 b0
PWMDA0
|
PWMDA7
MSB LSB
Page 12
12/15 MTV118 Revision 2.0 01/01/1999
MTV118MYSON
TECHNOLOGY
5.0 OPERATING CONDITIONS
DC Supply Voltage(VDD,VDDA) +4.75 to +5.25 V
Operating Temperature 0 to +70 oC
6.0 ELECTRICAL CHARACTERISTICS (Under Operating Conditions)
7.0 SWITCHING CHARACTERISTIC (Under Operating Conditions)
Symbol Parameter Conditions(Notes) Min. Max. Unit
V
IH
Input High Voltage - 0.7 * VDD VDD+0.3 V
V
IL
Input Low Voltage - VSS-0.3
0.3 * VDD
( 0.2 * VDD
for SSB pin )
V
V
OH
Output High Volt-
age
I
OH
≥ -24 mA
VDD-0.8 - V
V
OL
Output Low Volt-
age
IOL ≤ 24 mA
- 0.5 V
V
ODH
Open Drain Out-
put High Voltage
-
(For all OD pins, pulled
up by external 5 to 9V
power supply)
5 9 V
V
ODL
Open Drain Out-
put Low Voltage
5 mA ≥ I
DOL
( For all OD pins )
- 0.5 V
I
SB
Standby Current
Vin = VDD,
I
load = 0uA
l
- 12 mA
I
CC
Operating Current
Pixel rate=96MHz
I
load = 0uA
- 20 mA
Symbol Parameter Min. Typ. Max. Unit
f
HFLB
HFLB input frequency 15 - 120 KHz
T
r
Output rise time - - 5 ns
T
f
Output fall time - - 5 ns
t
BCSU
SSB to SCK set-up time 200 - - ns
t
BCH
SSB to SCK hold time 100 - - ns
t
DCSU
SDA to SCK set-up time 200 - - ns
t
DCH
SDA to SCK hold time 100 - - ns
t
SCKH
SCK HIGH time 500 - - ns
t
SCKL
SCK LOW time 500 - - ns
t
SU:STA
START condition set-up time 500 - - ns
t
HD:STA
START condition hold time 500 - - ns
t
SU:STO
STOP condition set-up time 500 - - ns
Page 13
13/15 MTV118 Revision 2.0 01/01/1999
MTV118MYSON
TECHNOLOGY

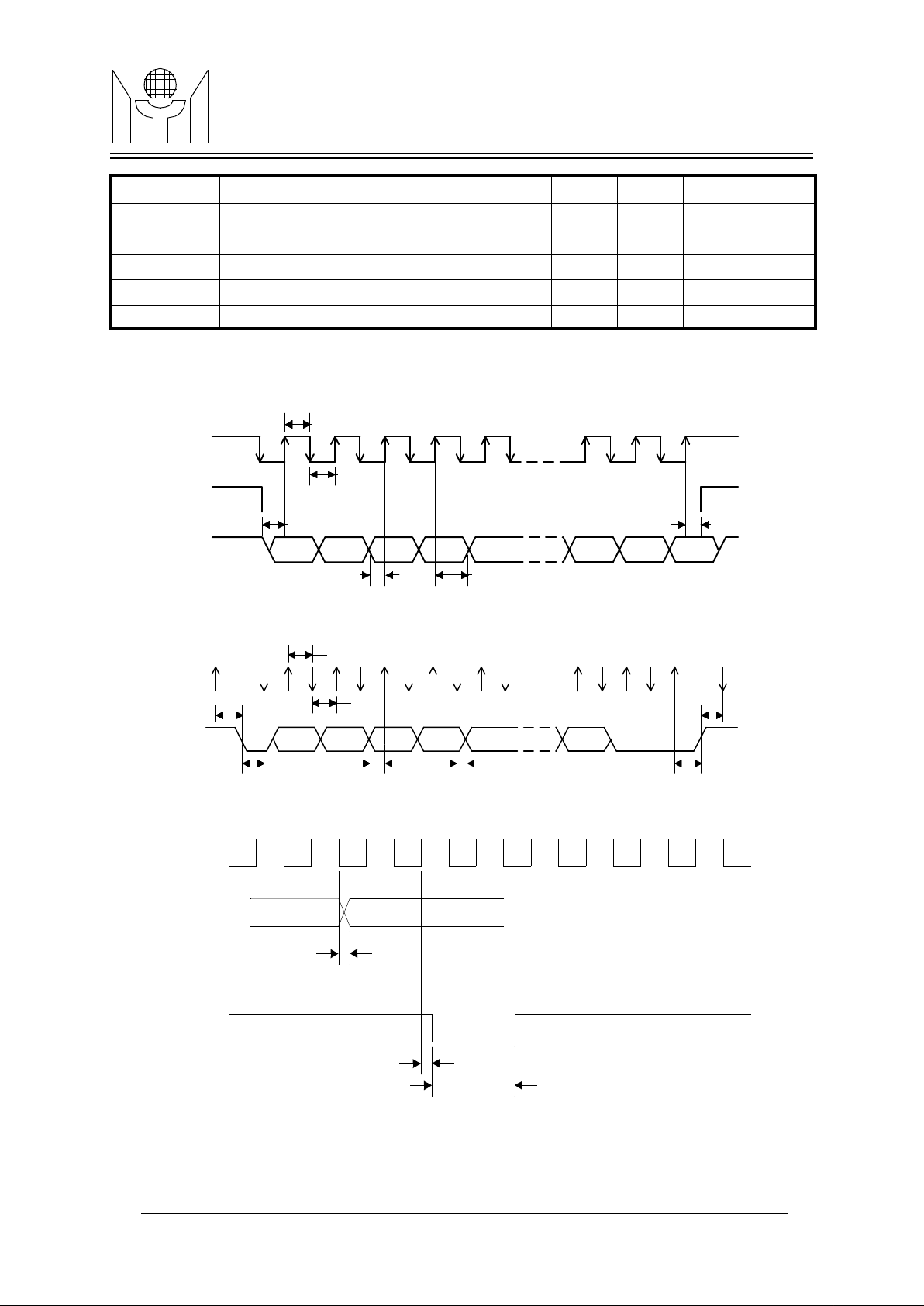

8.0 TIMING DIAGRAMS
t
HD:STO
STOP condition hold time 500 - - ns
t
SETUP
HFLB delay to rising edge of pixel clock 2 6 ns
t
HOLD
minimum pulse width of HFLB 25 ns
t
pd
propagation delay of output to pixel clock 10 ns
PIXin pixel clock input 6 96 MHz
Symbol Parameter Min. Typ. Max. Unit
FIGURE 7. Data Interface Timing (SPI)
SCK
SSB
SDA
t
SCKL
t
SCKH
t
BCSU
t
DCSU
t
DCH
t
BCH
FIGURE 8. Data Interface Timing (I2C)
SCK
SDA
t
SU:STA
t
SCKH
t
HD:STA
t
SCKL
t
DCSU
t
DCH
t
SU:STO
t
HD:STO
PlXin
R,G,B, FBKG
HTONE
t
pd
t
pd:: Propagation Delay to R,G,B, FBKG
and HTONE outputs
SETUP
t
HOLD
t
HFLB
FIGURE 9. Output and HFLB Timing to Pixel Clock
Page 14
14/15 MTV118 Revision 2.0 01/01/1999
MTV118MYSON
TECHNOLOGY

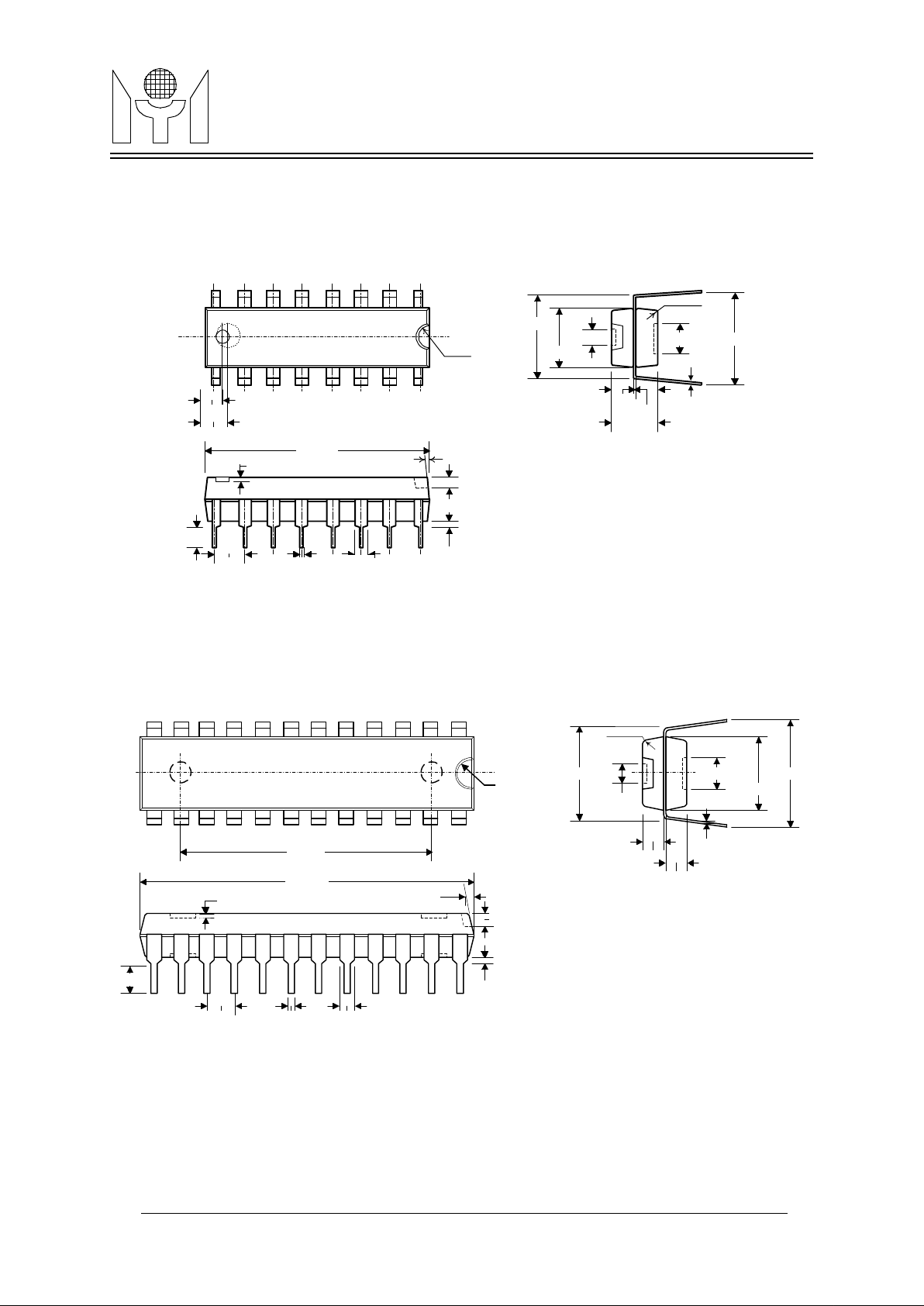

9.0 PACKAGE DIMENSION
9.1 16 PDIP 300Mil
Unit:Mil
9.2 24 PDIP 300Mil
Unit: Mil
75 +/-20
90 +/-20
250 +/-4
55 +/-20
90 +/-20
312 +/-12
65 +/-4
55 +/-4
310Max
350 +/-20
10
R10Max
(4X
)
100Ty
p
18 +/-
2Typ
60 +/-
5Typ
115 Min
750 +/-10
15 Min
35 +/-5
7
Typ
R40
15 Max
930+/-10
R40
55+/-20
312+/-12
R10Max
(4X)
80+/-20
250+/-4
350+/-20
10
18+/-
2Typ
60+/-
5Typ
15Min.
15Max
115Min
100Ty
p
35+/-5
7Ty
p
1245+/-10
65+/-4
65+/-4
Page 15
15/15 MTV118 Revision 2.0 01/01/1999
MTV118MYSON
TECHNOLOGY

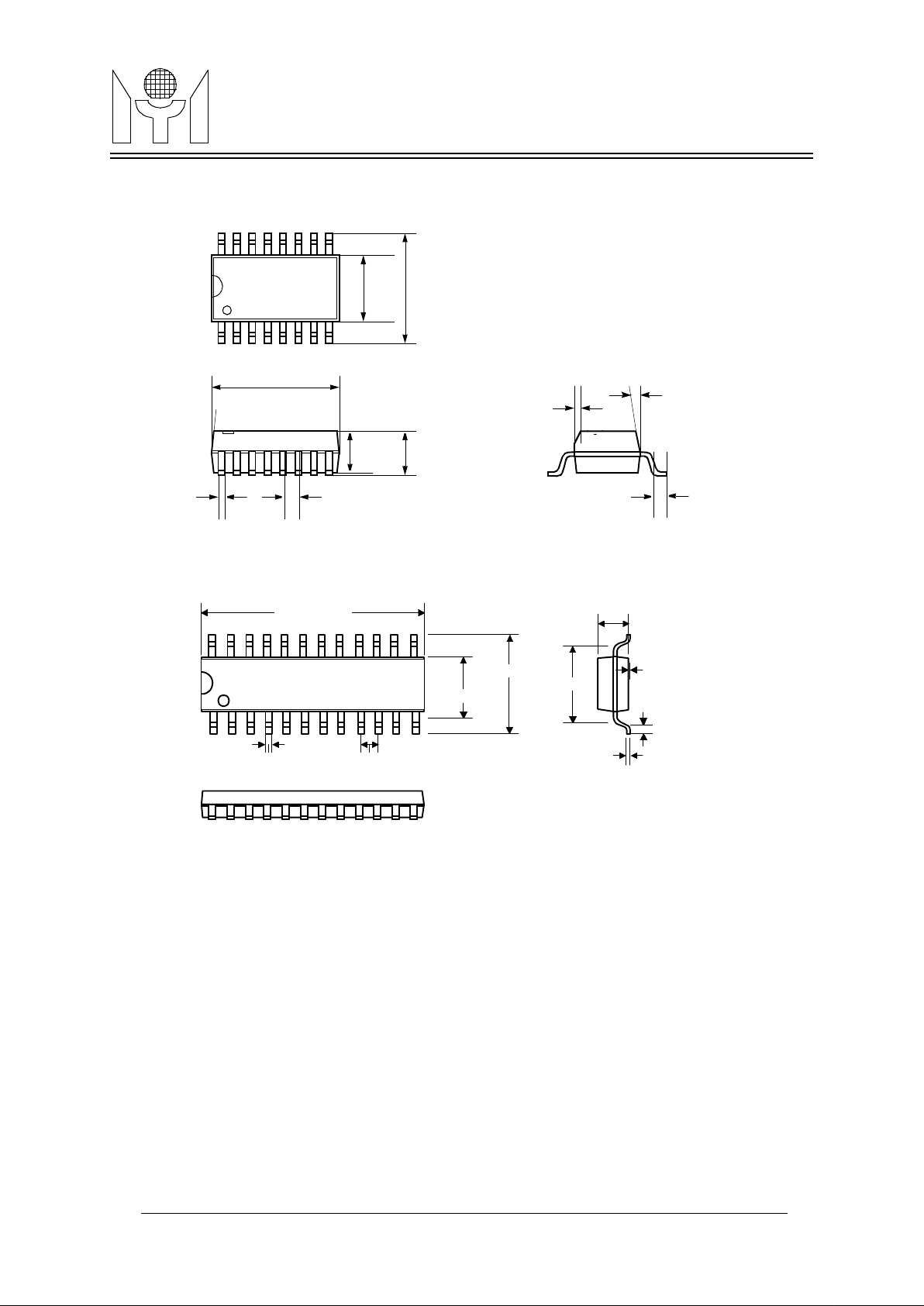

9.3 16-pin SOP 300Mil
Unit: Mil
9.4 24-pin SOP 300Mil
10.0 CHARACTER AND SYMBOL PATTERN
Please see the attachment.
0.015x45
o
7o(4x)
0.028 +0.022 /-0.013
0.295 +/-0.004
0.406 +/-0.013
0.406 +/-0.008
0.016 +/-0.004 0.050
0.098 +/-0.006
0.091
(4x)
0.45mm +/-0.1
15.0mm /+0.4 -0.1
1.27mm
12
1
24
13
5.3mm +0.3/-0.1
7.9mm+/-0.4
6.9mm
0.2mm
+0.1/-0.05
0.5mm+/-0.2
0.1mm +0.2/-0.05
1.85mm/+0.4 -0.15
Myson Technology USA, Inc.
http://www.myson.com
20111 Stevens Creek Blvd. #138 Cupertino, Ca. 95014, U.S.A.
Tel:408-252-8788 FAX: 408-252-8789 Sales@myson.com
Myson Technology, Inc.
http://www.myson.com.tw
No. 2, Industry E. Rd. III, Science-Based Industrial Park, Hsinchu, Taiwan,
R. O. C. Tel: 886-3-5784866 Fax: 886-3-5785002
Page 16
This datasheet contains new product information. Myson Technology reserves the rights to modify the product specification
without notice. No liability is assumed as a result of the use of this product. No rights under any patent accompany the sales of
the product.
1/15 MTV118 Revision 2.0 01/01/1999
MTV118MYSON
TECHNOLOGY
FEATURES GENERAL DESCRIPTION
BLOCK DIAGRAM
• Horizontal sync input may be up to 120 KHz.
• Acceptable wide-range pixel clock up to 96MHz
from XIN pin.
• Full-screen display consists of 15 (rows) by 30 (columns) characters.
• 12 x 18 dot matrix per character.
• Total of 256 characters and graphic fonts including
248 mask ROM fonts and 8 programmable RAM
fonts.
• 8 color selection maximum per display character.
• Double character height and/or width control.
• Programmable positioning for display screen center.
• Bordering, shadowing and blinking effect.
• Programmable vertical character height (18 to 71
lines) control.
• Row to row spacing register to manipulate the constant display height.
• 4 programmable background windows with multilevel operation.
• Software clears for display frame.
• Half tone and fast blanking output.
• 8-channel/8-bit PWM D/A converter output.
• Compatible with SPI bus or I2C interface with
address 7AH (slave address is mask option).
• 16 or 24-pin PDIP/SOP package.
On-Screen-Display for LCD Monitor
MTV118 is designed for LCD monitor applications to display the built-in characters or fonts
onto an LCD monitor screen. The display operates by transferring data and control information
from the micro controller to the RAM through a
serial data interface. It can execute full screen
displays automatically and specific functions such
as character bordering, shadowing, blinking, double height and width, font by font color control,
frame positioning, frame size control by character
height and windowing effect. Moreover, MTV118
also provides 8 PWM DAC channels with 8-bit
resolution and a PWM clock output for external
digital-to-analog control.
SERIAL DATA
INTERFACE
ADDRESS BUS
ADMINISTRATOR
VERTICAL
DISPLAY
CONTROL
DISPLAY & ROW
CONTROL
REGISTERS
COLOR
ENCODER
WINDOWS &
FRAME
CONTROL
WRWGWB
FBKGC
BLANK
LUMAR
LUMAG
LUMAB
BLINK
VCLKX
DATA
VERTD
HORD
CH
8
8
7
BSEN
SHADOW
OSDENB
HSP
VSP
HORIZONTAL
DISPLAY CONTROL
CLOCK
GENERATOR
8
DATA
LPN
CWS
VCLKS
5
DATA
CWS
CHS
8 LUMAR
LUMAG
LUMAB
BLINK
CRADDR
8
LUMA
BORDER
ARWDB
HDREN
VCLKX
HORD
8
CH
CHS
VERTD
7
8
LPN
NROW
VDREN
5
RCADDR
DADDR
FONTADDR
WINADDR
PWMADDR
5
9
9
5
5
ARWDB
HDREN
VDREN
NROW
DATA
ROW, COL
ACK
8
9
CHARACTER ROM
USER FONT RAM
LUMINANCE &
BORDGER
GENERATOR
VDD
VSS
VDDA
VSSA
ROUT
GOUT
BOUT
FBKG
HTONE
HFLB
NC
XIN
VFLB
SSB
SCK
SDA
VSP
HSP
PWM D/A
CONVERTER
PWM0
PWM1
PWM2
PWM3
PWM4
PWM5
PWM6
PWM7
8
DATA
8
POWER ON
RESET
PRB
Page 17
2/15 MTV118 Revision 2.0 01/01/1999
MTV118MYSON
TECHNOLOGY
1.0 PIN CONNECTION
2.0 PIN DESCRIPTIONS
Name I/O
Pin #
Descriptions
N16 N24
VSS - 1 1 Ground. This ground pin is used for internal circuitry.
XIN I 2 2
Pixel Clock Input. This is a clock input pin. MTV118 is driven by
an external pixel clock source for all the logics inside. The frequency of XIN must be the integral time of pin HFLB.
NC I 3 3 No connection.
VDD - 4 4
Power supply. Positive 5 V DC supply for internal circuitry. A
0.1uF decoupling capacitor should be connected across VDD and
VSS.
HFLB I 5 5
Horizontal Input. This pin is used to input the horizontal synchronizing signal. It is a leading edge trigger and has an internal pullup resistor.
SSB I 6 6
Serial Interface Enabler. It is used to enable the serial data and
is also used to select the operation of I2C or SPI bus. If this pin is
left floating, I2C bus is enabled, otherwise the SPI bus is enabled.
SDA I 7 7
Serial Data Input. The external data transfers through this pin to
internal display registers and control registers. It has an internal
pull-up resistor.
SCK I 8 8
Serial Clock Input. The clock-input pin is used to synchronize the
data transfer. It has an internal pull-up resistor.
PWM0 O - 9
Open-Drain PWM D/A Converter 0. The output pulse width is
programmable by the register of row 15, column 19.
PWM1 O - 10
Open-Drain PWM D/A Converter 1. The output pulse width is
programmable by the register of row 15, column 20.
PWM2 O - 11
Open-Drain PWM D/A Converter 2. The output pulse width is
programmable by the register of row 15, column 21.
VSS
XIN
NC
VDD
HFLB
SSB
SDA
SCK
VSS
ROUT
GOUT
BOUT
FBKG
HTONE/PWMCK
VFLB
VDD
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
MTV118
VSS
XIN
NC
VDD
HFLB
SSB
SDA
SCK
PWM0
PWM1
PWM2
PWM3
VSS
ROUT
GOUT
BOUT
FBKG
HTONE/PWMCK
VFLB
VDD
PWM7
PWM6
PWM5
PWM4
24
23
22
21
20
19
18
17
16
15
14
13
1
2
3
4
5
6
7
8
9
10
11
12
MTV118N24
Page 18
3/15 MTV118 Revision 2.0 01/01/1999
MTV118MYSON
TECHNOLOGY
3.0 FUNCTIONAL DESCRIPTIONS
3.1 Serial Data Interface
The serial data interface receives data transmitted from an external controller. There are 2 types of bus
which can be accessed through the serial data interface: SPI bus and I2C bus.
3.1.1 SPI Bus
When the SSB pin is pulled to a HIGH or LOW level, the SPI bus operation is selected. A valid transmission should start from pulling SSB to LOW level, enabling the MTV118 receiving mode and retaining
the LOW level until the last cycle for a complete data packet transfer. The protocol is shown in Figure1
on page4.
There are 3 transmission formats as shown below:
Format (a) R - C - D → R - C - D → R - C - D
Format (b) R - C - D → C - D → C - D → C - D
Format (c) R - C - D → D → D → D → D → D
R=row address, C=column address, D=display data
PWM3 O - 12
Open-Drain PWM D/A Converter 3. The output pulse width is
programmable by the register of row 15, column 22.
PWM4 O - 13
Open-Drain PWM D/A Converter 4. The output pulse width is
programmable by the register of row 15, column 23.
PWM5 O - 14
Open-Drain PWM D/A Converter 5. The output pulse width is
programmable by the register of row 15, column 24.
PWM6 O - 15
Open-Drain PWM D/A Converter 6. The output pulse width is
programmable by the register of row 15, column 25.
PWM7 O - 16
Open-Drain PWM D/A Converter 7. The output pulse width is
programmable by the register of row 15, column 26.
VDD - 9 17
Power Supply. Positive 5 V DC supply for internal circuitry and a
0.1uF decoupling capacitor should be connected across VDD and
VSS.
VFLB I 10 18
Vertical Input. This pin is used to input the vertical synchronizing
signal. It is triggered by lead and has an internal pull-up resistor.
HTONE /
PWMCK
O 11 19
Half Tone Output / PWM Clock Output. This is a multiplexed pin
selected by the PWMCK bit. This pin can be a PWM clock or used
to attenuate R, G, B gain of VGA for the transparent windowing
effect.
FBKG O 12 20
Fast Blanking Output. It is used to cut off external R, G, B sig-
nals of VGA while this chip is displaying characters or windows.
BOUT O 13 21 Blue Color Output. This is a blue color video signal output.
GOUT O 14 22 Green Color Output. This is a green color video signal output.
ROUT O 15 23 Red Color Output. This is a red color video signal output.
VSS - 16 24 Ground. This ground pin is used for internal circuitry.
Name I/O
Pin #
Descriptions
N16 N24
Page 19
4/15 MTV118 Revision 2.0 01/01/1999
MTV118MYSON
TECHNOLOGY
3.1.2 I2C Bus
I2C bus operation is only selected when the SSB pin is left floating. A valid transmission should begin
from writing the slave address 7AH, which is mask option, to MTV118. The protocol is shown in Figure
2 on page 4..
There are 3 transmission formats as shown below:
Format (a) S - R - C - D → R - C - D → R - C - D
Format (b) S - R - C - D → C - D → C - D → C - D
Format (c) S - R - C - D → D → D → D → D → D
S=slave address, R=row address, C=column address, D=display data
Each arbitrary length of data packet consists of 3 portions: row address (R), column address (C) and
display data (D). Format (a) is suitable for updating small amounts of data which will be allocated with
different row and column addresses. Format (b) is recommended for updating data that has the same
row address but a different column address. Massive data updating or full screen data changes should
be done in format (c) to increase transmission efficiency. The row and column addresses will be incremented automatically when format (c) is applied. Furthermore, the undefined locations in display or font
RAM should be filled with dummy data.
There are 3 types of data which should be accessed through the serial data interface: address bytes of
display registers, attribute bytes of display registers and user font RAM data. The protocol is the same
for all except bits 5 and 6 of the row addresses. The MSB(b7) is used to distinguish row and column
addresses when transferring data from an external controller. Bit 6 of the row address is used to distinguish display registers and user font RAM data and bit6 of the column address is used to differentiate
the column address for formats (a), (b) and (c), respectively. Bit 5 of the row address for display registers is used to distinguish the address byte when it is set to "0" and the attribute byte when it is set to
"1". The configuration of transmission formats is shown in Table1 on page5.
MS
B
LSB
SSB
SCK
SDA
first byte last byte
FIGURE 1. Data Transmission Protocol (SPI)
FIGURE 2. Data Transmission Protocol (I2C)
SCK
SDA
first byte
¡@¡@¡@¡@
¡@
START ACK
second byte last byte
ACK STOP
B7 B6 B0 B7 B0
Page 20
5/15 MTV118 Revision 2.0 01/01/1999
MTV118MYSON
TECHNOLOGY
The data transmission is permitted to change from format (a) to format (b) and (c), or from format (b) to
format (a), but not from format (c) back to format (a) and (b). The alternation between transmission formats is configured as the state diagram shown in Figure3 on page5.
3.2 Address Bus Administrator
The administrator manages bus address arbitration of internal registers or user font RAM during external data write-in. The external data write through serial data interface to registers must be synchronized
by internal display timing. In addition, the administrator also provides automatic incrementation to the
address bus when external writing occurs using format (c).
3.3 Vertical Display Control
The vertical display control can generate different vertical display sizes for most display standards in
current monitors. The vertical display size is calculated with the information of a double character height
bit(CHS) and a vertical display height control register(CH6-CH0).The algorithms of a repeating character line display are shown in Tables 2 and 3. The programmable vertical size range is 270 lines to maximum 2130 lines.
TABLE 1. Configuration of Transmission Formats
Address b7 b6 b5 b4 b3 b2 b1 b0 Format
Address
Bytes of
Display
Reg.
Row 1 0 0 x R3 R2 R1 R0 a,b,c
Column
ab
0 0 x C4 C3 C2 C1 C0 a,b
Column
c
0 1 x C4 C3 C2 C1 C0 c
Attribute
Bytes of
Display
Reg.
Row 1 0 1 x R3 R2 R1 R0 a,b,c
Column
ab
0 0 x C4 C3 C2 C1 C0 a,b
Column
c
0 1 x C4 C3 C2 C1 C0 c
User
Fonts
RAM
Row 1 1 x x x R2 R1 R0 a,b,c
Column
ab
0 0 C5 C4 C3 C2 C1 C0 a,b
Column
c
0 1 C5 C4 C3 C2 C1 C0 c
Initiate
ROW
COL
c
COL
ab
DA
c
DA
ab
1, X
0, 1
0, 0
X, X
X, X
0, 1
1, X
1, X
format (a)
format (b)
format (c)
X, X
0, X
Input = b7, b6
0, 0
FIGURE 3. Transmission State Diagram
Page 21
6/15 MTV118 Revision 2.0 01/01/1999
MTV118MYSON
TECHNOLOGY
The vertical display center for a full-screen display may be figured out according to the information of
the vertical starting position register (VERTD) and VFLB input. The vertical delay starting from the leading edge of VFLB is calculated using the following equation:
Vertical delay time = ( VERTD * 4 + 1 ) * H
Where H = 1 horizontal line display time
Note: “v” means the nth line in the character would be repeated once, while “-” means the nth line in the
character would not be repeated.
3.4 Horizontal Display Control
The horizontal display control is used to generate control timing for a horizontal display based on double character width bit (CWS), horizontal positioning register (HORD) and HFLB input. A horizontal display line includes 360 dots for 30 display characters and the remaining dots for a blank region. The
horizontal delay starting from the HFLB leading edge is calculated using the following equation:
Horizontal delay time = ( HORD * 6 + 49) * P
Where P = 1 XIN pixel display time
3.5 Display & Row Control Registers
The internal RAM contains display and row control registers. The display registers have 450 locations
which are allocated between row 0/column 0 and row 14/column 29 as shown in Figure 4. Each display
register has its corresponding character address on the address byte, and 1 blink bit and its corresponding color bits on attribute bytes. The row control register is allocated at column 30 for row 0 to row
14; it is used to set character size for each respective row. If the double width character (CWS) is cho-
TABLE 2. Repeat Line Weight of Character
CH6-CH0 Repeat Line Weight
CH6,CH5=11 +18*3
CH6,CH5=10 +18*2
CH6,CH5=0x +18
CH4=1 +16
CH3=1 +8
CH2=1 +4
CH1=1 +2
CH0=1 +1
TABLE 3. Repeat Line Number of Character
Repeater Line
Weight
Repeat Line #
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
+1 - - - - - - - - v - - - - - - - - +2 - - - - v - - - - - - - v - - - - +4 - - v - - - v - - - v - - - v - - -
+8 - v - v - v - v - v - v - v - v - +16 - v v v v v v v v v v v v v v v v +17 v v v v v v v v v v v v v v v v v +18 v v v v v v v v v v v v v v v v v v
Page 22
7/15 MTV118 Revision 2.0 01/01/1999
MTV118MYSON
TECHNOLOGY
sen, only even column characters may be displayed on-screen and the odd column characters will be
hidden.
FIGURE 4. Memory map
3.5.1 Register Descriptions
1. (i) Display Register, (Row 0 - 14, Column 0 - 29)
ADDRESS BYTE
CRADDR - Defines ROM character and user-programmable fonts address.
(a) 0 ~ 247 ⇒ 248 built-in characters and graphic symbols
(b) 248 ~ 255 ⇒ 8 user-programmable fonts
ATTRIBUTE BYTE
BLINK - Enables blinking effect when this bit is set to " 1 ". The blinking is alternated per 32 vertical
frames.
R1, G1, B1 - These bits are used to specify its relative address character color 1.
2. Row Control Registers, (Row 0 - 14)
R2, G2, B2 - These bits are used to specify its relative row character color 2. While the corresponding
CCS bit is set to 1, color 2 should be chosen.
CHS - Defines double height character to the respective row.
CWS - Defines double width character to the respective row.
ROW #
COLUMN #
0 1 28 29 30 31
0
1
13
14
DISPLAY REGISTERS
ROW CTRL
REG
RESERVED
ROW 15
COLUMN#
0 23 5 6 8 9 11 12 18 19 26
WINDOW1 WINDOW2 WINDOW3 WINDOW4
FRAME CRTL
REG
PWM D/A
CRTL REG
b7 b6 b5 b4 b3 b2 b1 b0
CRADDR
MSB LSB
b7 b6 b5 b4 b3 b2 b1 b0
- - - - BLINK R1 G1 B1
COLN 30
b7 b6 b5 b4 b3 b2 b1 b0
- - - R2 G2 B2 CHS CWS
Page 23
8/15 MTV118 Revision 2.0 01/01/1999
MTV118MYSON
TECHNOLOGY
3.6 User Font RAM
The user font RAM has 288 locations which are allocated between row 0/column 0 and row 7/column
35 to specify 8 user-programmable fonts, as shown in Figure 5. Each programmable font consists of a
12x18 dot matrix. Each row of dot matrix consists of 2 bytes of data which include 4 dummy bits as
shown in figure 6. That is, the dot matrix data of each font is stored in 36-byte registers. For example,
font 0 is stored in row 0 from column 0 to column 35 and font 1 is stored in row 1 from column 0 to column 35, etc.
FIGURE 5. User Font RAM Memory Map
3.7 Character ROM
The character ROM contains 248 built-in characters and symbols from addresses 0 to 247. Each character and symbol consists of a 12x18 dot matrix. The detail pattern structures for each character and
symbol are shown in 10.0“CHARACTER AND SYMBOL PATTERN” on page 15.
3.8 Luminance & Border Generator
There are 2 shift registers included in the design which can shift out of luminance and border dots to the
color encoder. The bordering and shadowing feature is configured in this block. For bordering effect,
the character will be enveloped with blackedge on 4 sides. For shadowing effect, the character is enveloped with blackedge on right and bottom sides only.
3.9 Window and Frame Control
The display frame position is completely controlled by the contents of VERTD and HORD. The window
size and position control are specified in columns 0 to 11 on row 15 of the memory map, as shown in
Figure 4. Window 1 has the highest priority and window 4 has the least, when 2 windows are overlapping. More detailed information is described as follows:
ROW # COLUMN #
0 1 34 35 36 63
0
1
6
7
USER FONT RAM RESERVED
FIGURE 6. Data Format of Font Dot Matrix
Nth byte (N+1)th byte
12 bits for 1-row data of font dot matrix Dummy bits
rightmost dot of font
N=even number
b7 b6 b5 b4 b3 b2 b1 b0 b7 b6 b5 b4 b3 b2 b1 b0
leftmost dot of font
Page 24
9/15 MTV118 Revision 2.0 01/01/1999
MTV118MYSON
TECHNOLOGY
1. Window control registers:
ROW 15
START(END) ADDR - These addresses are used to specify the window size. It should be noted that
when the start address is greater than the end address, the window will be disa-
bled.
WEN - Enables the window display.
CCS - When a window is overlapping with the character, character color 2 should be chosen while this
bit is set to 1. Color 1 is selected otherwise.
R, G, B - Specifies the color of the relative background window.
2. Frame control registers:
ROW 15
VERTD - Specifies the starting position for vertical display. The total steps are 256, and the increment
of each step is 4 horizontal display lines. The initial value is 4 after power-up.
HORD - Defines the starting position for horizontal display. The total steps are 256 and the increment of
each step is 6 dots. The initial value is 15 after power-up.
CH6-CH0 - Defines the character vertical height, which is programmable from 18 to 71 lines. The char-
acter vertical height is at least 18 lines if the contents of CH6-CH0 are less than 18. For
example, when the content is " 2 ", the character vertical height is regarded as equal to 20
lines. If the contents of CH4-CH0 are greater than or equal to 18, it will be regarded as equal
to 17. See Tables 2 and 3 for a detailed description of this operation.
This byte is reserved for internal testing.
Column
0,3,6,OR 9
b7 b6 b5 b4 b3 b2 b1 b0
ROW START ADDR
MSB LSB
ROW END ADDR
MSB LSB
Column
1,4,7,OR 10
b7 b6 b5 b4 b3 b2 b1 b0
COL START ADDR
MSB LSB
WEN CCS -
Column
2,5,8,OR 11
b7 b6 b5 b4 b3 b2 b1 b0
COL END ADDR
MSB LSB
R G B
Column 12
b7 b6 b5 b4 b3 b2 b1 b0
VERTD
MSB LSB
Column 13
b7 b6 b5 b4 b3 b2 b1 b0
HORD
MSB LSB
Column 14
b7 b6 b5 b4 b3 b2 b1 b0
- CH6 CH5 CH4 CH3 CH2 CH1 CH0
Column 15
b7 b6 b5 b4 b3 b2 b1 b0
Reserved
Page 25
10/15 MTV118 Revision 2.0 01/01/1999
MTV118MYSON
TECHNOLOGY
RSPACE - Defines the row to row spacing in each unit of the horizontal line. That is, extra RSPACE
horizontal lines will be appended below each display row, and the maximum space is 31
lines. The initial value is “0” after power-up.
OSDEN - Activates the OSD operation when this bit is set to "1". The initial value is” 0” after power-up.
BSEN - Enables the bordering and shadowing effect.
SHADOW - Activates the shadowing effect if this bit is set, otherwise the bordering is chosen.
TRIC - Defines the driving state of output pins ROUT, GOUT, BOUT and FBKG when OSD is disabled.
That is, while OSD is disabled, these 4 pins will drive LOW if this bit is set to “1”, otherwise these
pins are in high-impedance state. The initial value is “0” after power-up.
BLANK - Forces the FBKG pin output to HIGH while this bit is set to "1".
WENCLR - Clears all WEN bits of window control registers when this bit is set to "1". The initial value is
“0” after power-up.
RAMCLR - Clears all ADDRESS bytes of display registers when this bit is set to "1". The initial value is
“0” after power-up.
FBKGC - Defines the output configuration for FBKG pin. When it is set to "0", the FBKG outputs during
the display of characters or windows, otherwise, it outputs only during the display of characters.
TEST - = 0 ⇒ Normal mode.
= 1 ⇒ Test mode, not allowed in applications.
FBKGP - Selects the polarity of the output pin FBKG.
= 1 ⇒Positive polarity FBKG output is selected.
= 0 ⇒Negative polarity FBKG output is selected.
The initial value is “1” after power-up.
PWMCK - Selects the output options to the HTONE/PWMCK pin.
= 0 ⇒? HTONE option is selected.
= 1 ⇒? PWMCK option is selected with 50/50 duty cycle and is synchronous with the input
HFLB. The frequency is selected by PWM1, PWM0 as shown in table 4.
The initial value is “0” after power-up.
DWE - Enables double width. When the bit is set to “1”, the display of the OSD menu can change to half
resolution for double character width, and then the number of pixels of each line should be even.
HSP - = 1 ⇒ Accepts positive polarity Hsync input.
Column 16
b7 b6 B5 b4 b3 b2 b1 b0
- - - RSPACE
MSB LSB
Column 17
b7 b6 b5 b4 b3 b2 b1 b0
OSDEN BSEN SHADOW TRIC BLANK WENCLR RAMCLR FBKGC
Column 18
B7 b6 b5 b4 b3 b2 b1 b0
TEST FBKGP PWMCK DWE HSP VSP PWM1 PWM0
Page 26
11/15 MTV118 Revision 2.0 01/01/1999
MTV118MYSON
TECHNOLOGY
= 0 ⇒ Accepts negative polarity Hsync input.
VSP - = 1 ⇒ Accepts positive polarity Vsync input.
= 0 ⇒ Accepts negative polarity Vsync input.
PWM1, PWM0 - Selects the PWMCK output frequency.
= (0, 0) ⇒ XIN frequency /8
= (0, 1) ⇒ XIN frequency /4
= (1, 0) ⇒ XIN frequency /2
= (1, 1) ⇒ XIN frequency /1
The initial value is 0, 0 after power-up.
Notes : When XIN is not present, don't write data in any address. If data is written in any address, a
malfunction may occur.
3.10 PWM D/A Converter
There are 8 open-drain PWM D/A outputs (PWM0 to PWM7). The PWM D/A converter output pulse
width is programmable by writing data to columns 19-26 registers of row 15 with 8-bit resolution to control the pulse width duration from 0/256 to 255/256. The sampling rate is selected by PWM1, PWM0 as
shown in table 4. In applications, all open-drain output pins should be pulled up by external resistors to
supply voltage (5V to 9V) for the desired output range.
ROW 15
PWMDA0 - PWMDA7 - Defines the output pulse width of pins PWM0 to PWM7.
3.11 Color Encoder
The decoder generates the video output to ROUT, GOUT and BOUT by integrating window color, border blackedge, luminance output and color selection output (R, G, B) to form the desired video outputs.
4.0 ABSOLUTE MAXIMUM RATINGS
DC Supply Voltage(VDD,VDDA) -0.3 to +7 V
Ground Voltage -0.3 to VDD+0.3 V
Storage Temperature -65 to +150 oC
Ambient Operating Temperature 0 to +70 oC
TABLE 4. PWMCK Frequency and PWMDA Sampling Rate
(PWM1, PWM0) PWMCK Freq. PWMDA sampling rate
( 0, 0 ) XIN frequency /8 XIN frequency /(8 * 256)
( 0, 1 )
XIN frequency /4 XIN frequency /(4 * 256)
( 1, 0 )
XIN frequency /2 XIN frequency /(2 * 256)
( 1 ,1 )
XIN frequency /1 XIN frequency /(1 * 256)
Column 19
|
Column 26
b7 b6 b5 b4 b3 b2 b1 b0
PWMDA0
|
PWMDA7
MSB LSB
Page 27
12/15 MTV118 Revision 2.0 01/01/1999
MTV118MYSON
TECHNOLOGY
5.0 OPERATING CONDITIONS
DC Supply Voltage(VDD,VDDA) +4.75 to +5.25 V
Operating Temperature 0 to +70 oC
6.0 ELECTRICAL CHARACTERISTICS (Under Operating Conditions)
7.0 SWITCHING CHARACTERISTIC (Under Operating Conditions)
Symbol Parameter Conditions(Notes) Min. Max. Unit
V
IH
Input High Voltage - 0.7 * VDD VDD+0.3 V
V
IL
Input Low Voltage - VSS-0.3
0.3 * VDD
( 0.2 * VDD
for SSB pin )
V
V
OH
Output High Volt-
age
I
OH
≥ -24 mA
VDD-0.8 - V
V
OL
Output Low Volt-
age
IOL ≤ 24 mA
- 0.5 V
V
ODH
Open Drain Out-
put High Voltage
-
(For all OD pins, pulled
up by external 5 to 9V
power supply)
5 9 V
V
ODL
Open Drain Out-
put Low Voltage
5 mA ≥ I
DOL
( For all OD pins )
- 0.5 V
I
SB
Standby Current
Vin = VDD,
I
load = 0uA
l
- 12 mA
I
CC
Operating Current
Pixel rate=96MHz
I
load = 0uA
- 20 mA
Symbol Parameter Min. Typ. Max. Unit
f
HFLB
HFLB input frequency 15 - 120 KHz
T
r
Output rise time - - 5 ns
T
f
Output fall time - - 5 ns
t
BCSU
SSB to SCK set-up time 200 - - ns
t
BCH
SSB to SCK hold time 100 - - ns
t
DCSU
SDA to SCK set-up time 200 - - ns
t
DCH
SDA to SCK hold time 100 - - ns
t
SCKH
SCK HIGH time 500 - - ns
t
SCKL
SCK LOW time 500 - - ns
t
SU:STA
START condition set-up time 500 - - ns
t
HD:STA
START condition hold time 500 - - ns
t
SU:STO
STOP condition set-up time 500 - - ns
Page 28
13/15 MTV118 Revision 2.0 01/01/1999
MTV118MYSON
TECHNOLOGY
8.0 TIMING DIAGRAMS
t
HD:STO
STOP condition hold time 500 - - ns
t
SETUP
HFLB delay to rising edge of pixel clock 2 6 ns
t
HOLD
minimum pulse width of HFLB 25 ns
t
pd
propagation delay of output to pixel clock 10 ns
PIXin pixel clock input 6 96 MHz
Symbol Parameter Min. Typ. Max. Unit
FIGURE 7. Data Interface Timing (SPI)
SCK
SSB
SDA
t
SCKL
t
SCKH
t
BCSU
t
DCSU
t
DCH
t
BCH
FIGURE 8. Data Interface Timing (I2C)
SCK
SDA
t
SU:STA
t
SCKH
t
HD:STA
t
SCKL
t
DCSU
t
DCH
t
SU:STO
t
HD:STO
PlXin
R,G,B, FBKG
HTONE
t
pd
t
pd:: Propagation Delay to R,G,B, FBKG
and HTONE outputs
SETUP
t
HOLD
t
HFLB
FIGURE 9. Output and HFLB Timing to Pixel Clock
Page 29
14/15 MTV118 Revision 2.0 01/01/1999
MTV118MYSON
TECHNOLOGY
9.0 PACKAGE DIMENSION
9.1 16 PDIP 300Mil
Unit:Mil
9.2 24 PDIP 300Mil
Unit: Mil
75 +/-20
90 +/-20
250 +/-4
55 +/-20
90 +/-20
312 +/-12
65 +/-4
55 +/-4
310Max
350 +/-20
10
R10Max
(4X
)
100Ty
p
18 +/-
2Typ
60 +/-
5Typ
115 Min
750 +/-10
15 Min
35 +/-5
7
Typ
R40
15 Max
930+/-10
R40
55+/-20
312+/-12
R10Max
(4X)
80+/-20
250+/-4
350+/-20
10
18+/-
2Typ
60+/-
5Typ
15Min.
15Max
115Min
100Ty
p
35+/-5
7Ty
p
1245+/-10
65+/-4
65+/-4
Page 30
15/15 MTV118 Revision 2.0 01/01/1999
MTV118MYSON
TECHNOLOGY
9.3 16-pin SOP 300Mil
Unit: Mil
9.4 24-pin SOP 300Mil
10.0 CHARACTER AND SYMBOL PATTERN
Please see the attachment.
0.015x45
o
7o(4x)
0.028 +0.022 /-0.013
0.295 +/-0.004
0.406 +/-0.013
0.406 +/-0.008
0.016 +/-0.004 0.050
0.098 +/-0.006
0.091
(4x)
0.45mm +/-0.1
15.0mm /+0.4 -0.1
1.27mm
12
1
24
13
5.3mm +0.3/-0.1
7.9mm+/-0.4
6.9mm
0.2mm
+0.1/-0.05
0.5mm+/-0.2
0.1mm +0.2/-0.05
1.85mm/+0.4 -0.15
Myson Technology USA, Inc.
http://www.myson.com
20111 Stevens Creek Blvd. #138 Cupertino, Ca. 95014, U.S.A.
Tel:408-252-8788 FAX: 408-252-8789 Sales@myson.com
Myson Technology, Inc.
http://www.myson.com.tw
No. 2, Industry E. Rd. III, Science-Based Industrial Park, Hsinchu, Taiwan,
R. O. C. Tel: 886-3-5784866 Fax: 886-3-5785002
Loading...
