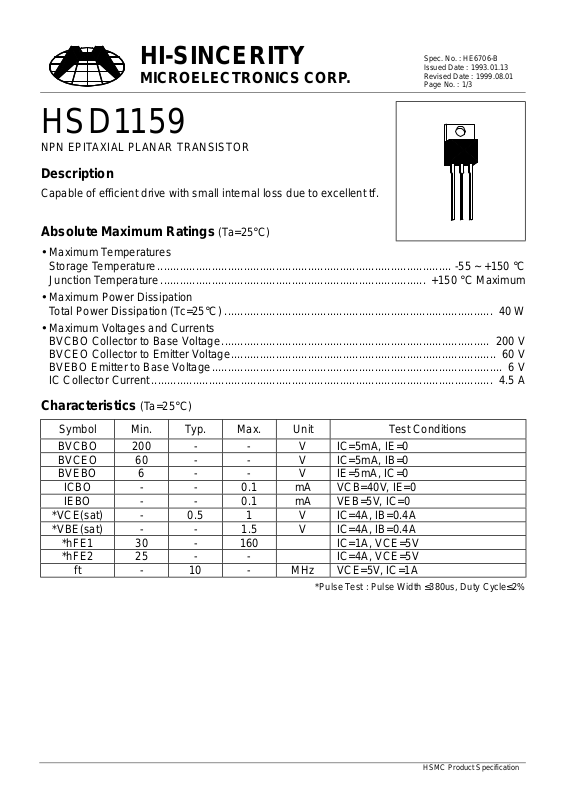

Page 1
HI-SINCERITY
MICROELECTRONICS CORP.
HSD1159
NPN EPITAXIAL PLANAR TRANSISTOR
Description
Capable of efficient drive with small internal loss due to excellent tf.
Spec. No. : HE6706-B
Issued Date : 1993.01.13
Revised Date : 1999.08.01
Page No. : 1/3
Absolute Maximum Ratings
Maximum Temperatures
•
Storage Temperature............................................................................................ -55 ~ +150 °C
Junction Temperature................................................................................... +150 °C Maximum
Maximum Power Dissipation
•
Total Power Dissipation (Tc=25°C) .................................................................................... 40 W
Maximum Voltages and Currents
•
BVCBO Collector to Base Voltage.................................................................................... 200 V
BVCEO Collector to Emitter Voltage................................................................................... 60 V
BVEBO Emitter to Base Voltage........................................................................................... 6 V
IC Collector Current........................................................................................................... 4.5 A
Characteristics
Symbol Min. Typ. Max. Unit Test Co nditions
BVCBO 200 - - V IC=5mA, IE=0
BVCEO 60 - - V IC=5mA, IB=0
BVEBO 6 - - V IE=5mA, IC=0
ICBO - - 0.1 mA VCB=40V, IE=0
IEBO - - 0.1 mA VEB=5V, IC=0
*VCE(sat) - 0.5 1 V IC=4A, IB=0.4A
*VBE(sat) - - 1.5 V IC=4A, IB=0.4A
*hFE1 30 - 160 IC=1A, VCE=5V
*hFE2 25 - - IC=4A, VCE=5V
ft - 10 - MHz VCE=5V, IC=1A
(Ta=25°C)
(Ta=25°C)
*Pulse Test : Pulse Width ≤380us, Duty Cycle≤2%
HSMC Product Specification
Page 2
HI-SINCERITY
MICROELECTRONICS CORP.
Characteristics Curve
Spec. No. : HE6706-B
Issued Date : 1993.01.13
Revised Date : 1999.08.01
Page No. : 2/3
100
Current Gain & Col lector Current
hFE @ VCE=5V
hFE
10
1 10 100 1000 10000
10000
Collector Curren t ( mA)
On Vol t age & Coll ect or Cur r ent
10000
1000
BE (sat)
V
100
Saturation Voltage (mV)
CE (sat)
V
10
1 10 100 1000 10000
Collector Current (mA)
@ IC=10I
@ IC=10I
B
B
Switching Time & Collector Current
10
Saturation Volt age & Col lector C ur rent
1
Tstg
1000
On Voltage (mV)
100
1 10 100 1000 10000
BE (on)
V
@ VCE=4V
Collector Curren t ( mA)
Capa citance & Rev erse-Bi ased Volt age
1000
100
Capacitance (pF)
Cob
Ton
0.1
Switchin g T imes ( us)
0.01
0.1 1.0 10.0
Collector Current (A)
Tf
Safe Operating Ar ea
100000
10000
(mA)
C
1000
PT=1 ms
100
Collector Current-I
10
PT=100 ms
PT=1 s
10
0.1 1 10 100
Reverse- Biased Voltage ( V)
1
1 10 100 1000
Forwar d Voltage- VCE (V)
HSMC Product Specification
Page 3
HI-SINCERITY
MICROELECTRONICS CORP.
TO-220AB Dimension
A B
D
H
I
G
Spec. No. : HE6706-B
Issued Date : 1993.01.13
Revised Date : 1999.08.01
Page No. : 3/3
Marking :
E
M
C
K
HSMC Logo
Part Number
Date Code
Style : Pin 1.Base 2.Collector 3.Emitter
Product Series
Rank
3
2
N
4
1
P
3-Lead TO-220AB Plastic Package
HSMC Package Code : E
DIM
Inches Millimeters Inches M illimeters
Min. Max. Min. Max.
A 0.2197 0.2949 5.58 7.49 I -
O
DIM
Min. Max. Min. Max.
*
0.1508 B 0.3299 0.3504 8.38 8.90 K 0.0295 0.0374 0.75 0.95
C 0.1732 0.185 4.40 4.70 M 0.0449 0.0551 1.14 1.40
D 0.0453 0.0547 1.15 1.39 N -
*
0.1000 E 0.0138 0.0236 0.35 0.60 O 0.5000 0.5618 12.70 14.27
G 0.3803 0.4047 9.66 10.28 P 0.5701 0.6248 14.48 15.87
H-*0.6398 -
Notes :
Material :
• Lead : 42 Alloy ; solder plating
• Mold Compound : Epoxy resin family, flammability solid burning class:UL94V-0
1.Dimension and tolerance based on our Spec. dated Sep. 07,1997.
2.Controlling dimension : millimeters.
3.Maximum lead thickness includes lead finish thickness, and minimum lead thickness is the minimum thickness of base material.
4.If there is any question with packing specification or packing method, pleas e contact your l ocal HSMC sal es office.
*
16.25
*:Typical
*
3.83
*
2.54
