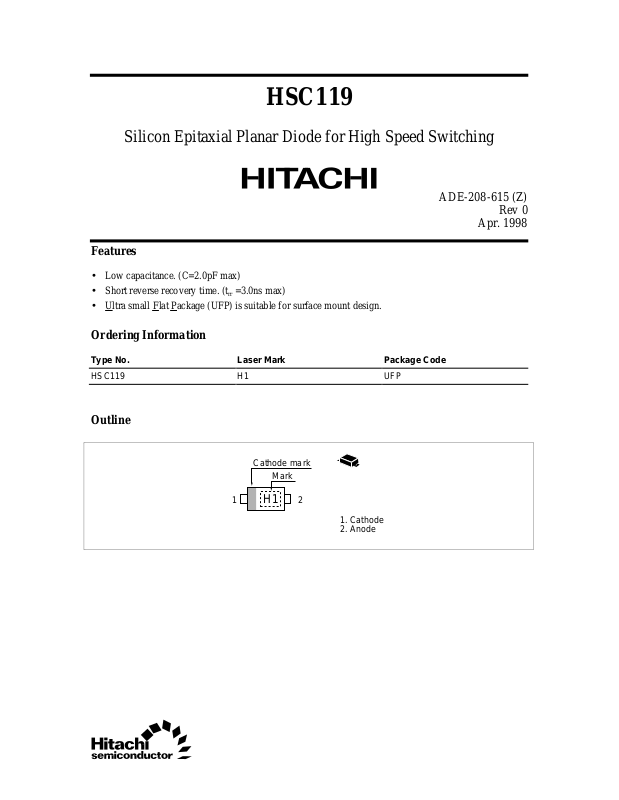

HSC119
Silicon Epitaxial Planar Diode for High Speed Switching
Features
• Low capacitance. (C=2.0pF max)
• Short reverse recovery time. (trr =3.0ns max)
• U ltra small F lat P ackage (UFP) is suitable for surface mount design.
Ordering Information
Type No. Laser Mark Package Code
HSC119 H1 UFP
ADE-208-615 (Z)
Rev 0
Apr. 1998
Outline
Cathode mark
Mark
12
H1
1. Cathode
2. Anode
Page 2
HSC119
Absolute Maximum Ratings (Ta = 25°C)
Item Symbol Value Unit
Peak reverse voltage V
Reverse voltage V
Average forward current I
Peak rectified current I
Non-Repetitive peak
RM
R
O
FM
*1
I
FSM
forward surge current
Junction temperature Tj 125 °C
Storage temperature Tstg –55 to +125 °C
Note 1. Within 1µs forward surge current.
Electrical Characteristics (Ta = 25°C)
Item Symbol Min Typ Max Unit Test Condition
Forward voltage V
Reverse current I
F1
V
F2
R
Capacitance C — — 2.0 pF VR = 0V, f = 1 MHz
Reverse recovery
*1
time
t
rr
Notes 1. Reverse recovery time test circuit
— — 0.8 V IF = 10 mA
— — 1.2 IF = 100 mA
— — 0.1 µAVR = 80V
— — 3.0 ns IF = 10 mA, VR = 6V RL=50Ω
85 V
80 V
100 mA
300 mA
4A
DC
Ro =50
Ω
Pulse
Generator
Supply
0.1µF
Trigger
Ω
3k
Sampling
Oscilloscope
Rin =50
Ω
2
Page 3
Main Characteristic
HSC119
1.0
-1
10
(A)
F
-2
10
Forward current I
Ta=75°C
Ta=25°C
Ta=-25°C
-3
10
0 0.2 0.8
Forward voltage V
0.6
F
Fig.1 Forward current Vs. Forward voltage
1.00.4
(V)
f=1MHz
1.2
-4
10
-5
10
-6
10
(A)
R
-7
10
-8
10
-9
10
Reverse current I
-10
10
-11
10
02040
60 80
Reverse voltage V R (V)
Fig.2 Reverse current Vs. Reverse voltage
Ta=75°C
Ta=50°C
Ta=25°C
100
10
1.0
Capacitance C (pF)
-1
10
10
-1
1.0
Reverse voltage V R (V)
Fig.3 Capacitance Vs. Reverse voltage
10
3
Page 4
HSC119
Package Dimensions
12
Cathode Mark
H1
1.2 ± 0.10
1.6 ± 0.10
0.3 ± 0.05
0.8 ± 0.10
Unit : mm
1. Cathode
2. Anode
0.6 ± 0.10
Hitachi Code
JEDECCode
EIAJCode
Weight(g)
UFP
—
SC-79
0.0016
4
Page 5
