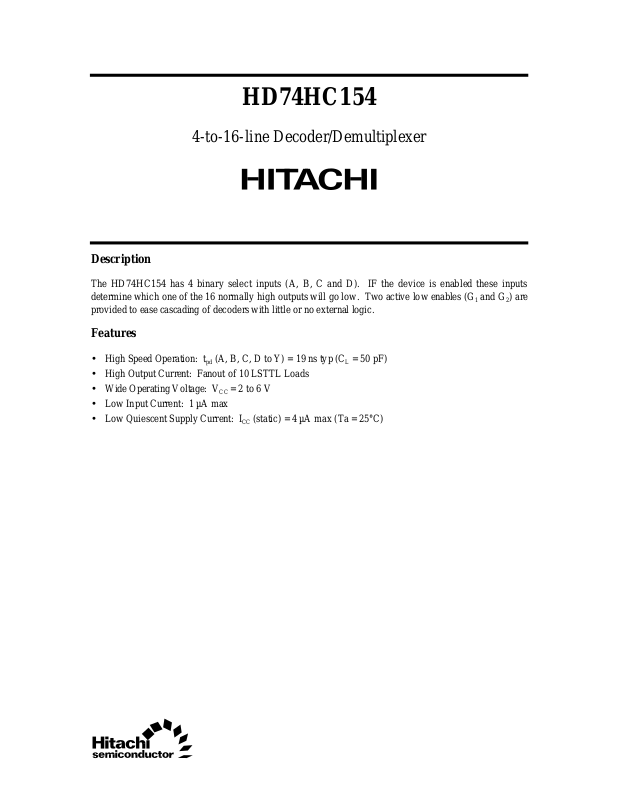

Page 1
HD74HC154
4-to-16-line Decoder/Demultiplexer
Description
The HD74HC154 has 4 binary select inputs (A, B, C and D). IF the device is enabled these inputs
determine which one of the 16 normally high outputs will go low. Two active low enables (G1 and G2) are
provided to ease cascading of decoders with little or no external logic.
Features
• High Speed Operation: tpd (A, B, C, D to Y) = 19 ns typ (CL = 50 pF)
• High Output Current: Fanout of 10 LSTTL Loads
• Wide Operating Voltage: VCC = 2 to 6 V
• Low Input Current: 1 µA max
• Low Quiescent Supply Current: ICC (static) = 4 µA max (Ta = 25°C)
Page 2
HD74HC154
Function Table
Inputs Outputs
G
1G2
LLLLLLLHHHHHHHHHHHHHHH
LLLLLHHLHHHHHHHHHHHHHH
LLLLHLHHLHHHHHHHHHHHHH
LLLLHHHHHL HHHHHHHHHHHH
LLLHLLHHHHLHHHHHHHHHHH
LLLHLHHHHHHL HHHHHHHHHH
LLLHHLHHHHHHL HHHHHHHHH
LLLHHHHHHHHHHL HHHHHHHH
LLHLL LHHHHHHHHLHHHHHHH
LL HLL HHHHHHHHHHL HHHHHH
LL HLHL HHHHHHHHHHLHHHHH
LL HLHHHHHHHHHHHHHLHHHH
LL HHL LHHHHHHHHHHHHLHHH
LL HHL HHHHHHHHHHHHHHLHH
LL HHHL HHHHHHHHHHHHHHLH
LL HHHHHHHHHHHHHHHHHHHL
LHXXXXHHHHHHHHHHHHHHHH
HLXXXXHHHHHHHHHHHHHHHH
HHXXXXHHHHHHHHHHHHHHHH
X : Irrelevant
DCBA0123456789101112131415
2
Page 3
Pin Arrangement
Outputs
Y
Y1
Y2
Y3
Y4
Y5
HD74HC154
1
0
2
3
4
5
6
0
1
2
3
4
5
A
B
C
D
G
2
24
23
22
21
20
19
V
CC
A
B
C
Inputs
D
G
2
Y6
Y7
Y8
Y9
Y10
GND
10
11
12
7
8
9
6
7
8
9
10
11
(Top view)
G1
15
14
13
12
18
17
16
15
14
13
G1
Y15
Y14
Y13
Y12
Y11
Outputs
3
Page 4
HD74HC154
DC Characteristics
Ta = –40 to
Ta = 25°C
Item Symbol V
Input voltage V
IH
(V) Min Typ Max Min Max Unit Test Conditions
CC
2.0 1.5 — — 1.5 — V
4.5 3.15 — — 3.15 —
6.0 4.2 — — 4.2 —
V
IL
2.0 — — 0.5 — 0.5 V
4.5 — — 1.35 — 1.35
6.0 — — 1.8 — 1.8
Output voltage V
OH
2.0 1.9 2.0 — 1.9 — V Vin = VIH or VILIOH = –20 µA
4.5 4.4 4.5 — 4.4 —
6.0 5.9 6.0 — 5.9 —
4.5 4.18 — — 4.13 — IOH = –4 mA
6.0 5.68 — — 5.63 — IOH = –5.2 mA
V
OL
2.0 — 0.0 0.1 — 0.1 V Vin = VIH or VILIOL = 20 µA
4.5 — 0.0 0.1 — 0.1
6.0 — 0.0 0.1 — 0.1
4.5 — — 0.26 — 0.33 IOL = 4 mA
6.0 — — 0.26 — 0.33 IOL = 5.2 mA
Input current Iin 6.0 — — ±0.1 — ±1.0 µA Vin = VCC or GND
Quiescent supply
I
CC
6.0 — — 4.0 — 40 µA Vin = VCC or GND, Iout = 0 µA
current
+85°C
4
Page 5
AC Characteristics (CL = 50 pF, Input tr = tf = 6 ns)
Ta = –40 to
Ta = 25°C
Item Symbol V
Propagation delay t
time t
PLH
PHL
(V) Min Typ Max Min Max Unit Test Conditions
CC
2.0 — — 190 — 240 ns A, B, C, D to Y
4.5 — 19 38 — 48
6.0 — — 32 — 41
2.0 — — 160 — 200 G1, G2, to Y
4.5 — 18 32 — 40
6.0 — — 27 — 34
Output rise/fall t
time t
TLH
THL
2.0 — — 75 — 95 ns
4.5 — 5 15 — 19
6.0 — — 13 — 16
Input capacitance Cin — — 5 10 — 10 pF
+85°C
HD74HC154
5
Page 6
1
0.88
1.90 Max
2.54 ± 0.25
30.4
31.75 Max
1.3
0.48 ± 0.10
1324
12
6.6
7.0 Max
0.51 Min
2.54 Min 5.08 Max
0.25
0° – 15°
7.62
+ 0.11
– 0.05
Unit: mm
Hitachi Code
JEDEC
EIAJ
(reference value)
Weight
DP-24N
—
Conforms
1.84 g
Page 7
