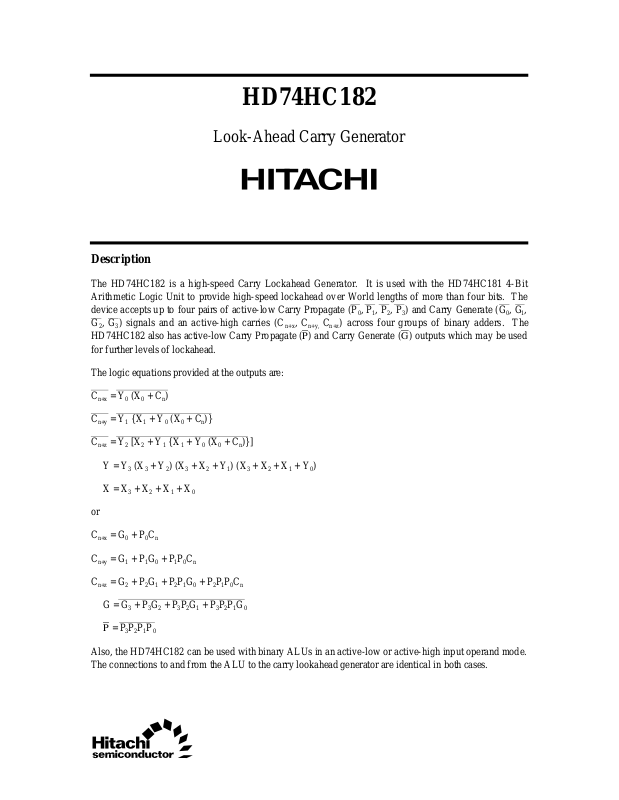

HD74HC182
Look-Ahead Carry Generator
Description
The HD74HC182 is a high-speed Carry Lockahead Generator. It is used with the HD74HC181 4-Bit
Arithmetic Logic Unit to provide high-speed lockahead over World lengths of more than four bits. The
device accepts up to four pairs of active-low Carry Propagate (P0, P1, P2, P3) and Carry Generate (G0, G1,
G2, G3) signals and an active-high carries (C
HD74HC182 also has active-low Carry Propagate (P) and Carry Generate (G) outputs which may be used
for further levels of lockahead.
The logic equations provided at the outputs are:
n+x
, C
n+y, Cn+z
) across four groups of binary adders. The
C
= Y0 (X0 + Cn)
n+x
C
= Y1 {X1 + Y0 (X0 + Cn)}
n+y
C
= Y2 [X2 + Y1 {X1 + Y0 (X0 + Cn)}]
n+z
Y = Y3 (X3 + Y2) (X3 + X2 + Y1) (X3 + X2 + X1 + Y0)
X = X3 + X2 + X1 + X
0
or
C
= G0 + P0C
n+x
C
= G1 + P1G0 + P1P0C
n+y
C
= G2 + P2G1 + P2P1G0 + P2P1P0C
n+z
G = G3 + P3G2 + P3P2G1 + P3P2P1G
P = P3P2P1P
n
n
n
0
0
Also, the HD74HC182 can be used with binary ALUs in an active-low or active-high input operand mode.
The connections to and from the ALU to the carry lookahead generator are identical in both cases.
Page 2
HD74HC182
Features
• High Speed Operation: tpd (Pn to P) = 11 ns typ (CL = 50 pF)
• High Output Current: Fanout of 10 LSTTL Loads
• Wide Operating Voltage: VCC = 2 to 6 V
• Low Input Current: 1 µA max
• Low Quiescent Supply Current: ICC (static) = 4 µA max (Ta = 25°C)
Pin Designations
Item Pin No. Functions
, G1, G2, G
G
0
P0, P1, P2, P
C
n
C
, C
n+x
n+y
, C
3
3
n+z
G 10 Active-low carry propagate output
P 7 Active-low carry propagate output
V
CC
GND 8 Ground
3, 1, 14, 5 Active-low carry generate inputs
4, 2, 15, 6 Active-low carry propagate inputs
13 Carry input
12, 11, 9 Carry outputs
16 Supply voltage
2
Page 3
Pin Arrangement
HD74HC182
Logic Diagram
Inputs
Output
G1
P1
C0
P0
G3
P3
GND
1
2
3
4
5
6
7
P
P1
G
P0
G3
P3
P
0
G1
Cn+z
P2
G
Cn
Cn+x
Cn+y
2
G
8
16
15
14
13
12
11
10
V
CC
P2
G2
Inputs
Cn
Cn+x
Cn+y
Outputs
G
9
C
n+z
(Top view)
P
P
G3
P2
G2
P1
G1
P0
G0
Cn
G
3
n+z
C
Cn+y
Cn+x
3
Page 4
HD74HC182
DC Characteristics
Ta = –40 to
Ta = 25°C
Item Symbol V
Input voltage V
IH
(V) Min Typ Max Min Max Unit Test Conditions
CC
2.0 1.5 — — 1.5 — V
4.5 3.15 — — 3.15 —
6.0 4.2 — — 4.2 —
V
IL
2.0 — — 0.5 — 0.5 V
4.5 — — 1.35 — 1.35
6.0 — — 1.8 — 1.8
Output voltage V
OH
2.0 1.9 2.0 — 1.9 — V Vin = VIH or VILIOH = –20 µA
4.5 4.4 4.5 — 4.4 —
6.0 5.9 6.0 — 5.9 —
4.5 4.18 — — 4.13 — IOH = –4 mA
6.0 5.68 — — 5.63 — IOH = –5.2 mA
V
OL
2.0 — 0.0 0.1 — 0.1 V Vin = VIH or VILIOL = 20 µA
4.5 — 0.0 0.1 — 0.1
6.0 — 0.0 0.1 — 0.1
4.5 — — 0.26 — 0.33 IOL = 4 mA
6.0 — — 0.26 — 0.33 IOL = 5.2 mA
Input current Iin 6.0 — — ±0.1 — ±1.0 µA Vin = VCC or GND
Quiescent supply
I
CC
6.0 — — 4.0 — 40 µA Vin = VCC or GND, Iout = 0 µA
current
+85°C
4
Page 5
AC Characteristics (CL = 50 pF, Input tr = tf = 6 ns)
Ta = –40 to
Ta = 25°C
Item Symbol V
Propagation delay t
time t
PLH
PHL
(V) Min Typ Max Min Max Unit Test Conditions
CC
2.0 — — 140 — 175 ns Pn to P
4.5 — 11 28 — 35
6.0 — — 24 — 30
2.0 — — 150 — 190 ns Cn to output
4.5 — 15 30 — 38
6.0 — — 26 — 33
2.0 — — 185 — 230 ns Pn or Gn to output
4.5 — 17 37 — 46
6.0 — — 31 — 39
Output rise/fall t
time t
TLH
THL
2.0 — — 75 — 95 ns
4.5 — 5 15 — 19
6.0 — — 13 — 16
Input capacitance Cin — — 5 10 — 10 pF
+85°C
HD74HC182
5
Page 6
19.20
20.00 Max
16 9
1.3
Unit: mm
6.30
7.40 Max
81
1.11 Max
2.54 ± 0.25
0.48 ± 0.10
5.06 Max
2.54 Min
0.51 Min
Hitachi Code
JEDEC
EIAJ
Weight
7.62
+ 0.13
0.25
– 0.05
0° – 15°
(reference value)

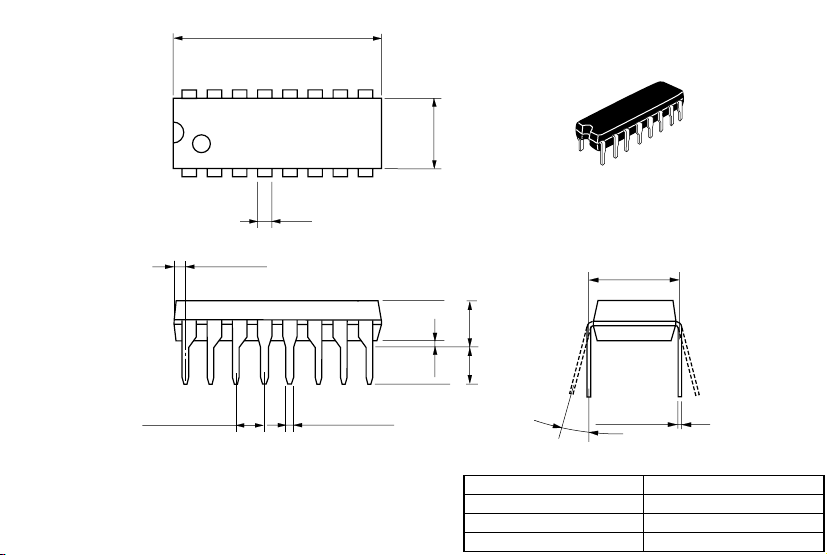

DP-16
Conforms
Conforms
1.07 g
Page 7
16
Unit: mm
10.06
10.5 Max
9
5.5
1
0.80 Max
1.27
*0.42 ± 0.08
0.40 ± 0.06
*Dimension including the plating thickness
Base material dimension
8
0.12
0.10 ± 0.10
0.15
M
2.20 Max
7.80
0.20 ± 0.04
*0.22 ± 0.05
0.70 ± 0.20
Hitachi Code
JEDEC
EIAJ
(reference value)
Weight
+ 0.20
– 0.30
1.15
0° – 8°
FP-16DA
—
Conforms
0.24 g
Page 8
16
Unit: mm
9.9
10.3 Max
9
1
1.27
0.635 Max
*0.42 ± 0.08
0.40 ± 0.06
*Dimension including the plating thickness
Base material dimension
8
0.25
+ 0.11
– 0.04
0.14
0.15
3.95
1.75 Max
M
6.10
1.08
0.20 ± 0.03
*0.22 ± 0.03
0.60
Hitachi Code
JEDEC
EIAJ
Weight
+ 0.10
– 0.30
0° – 8°
+ 0.67
– 0.20
(reference value)
FP-16DN
Conforms
Conforms
0.15 g
Page 9
