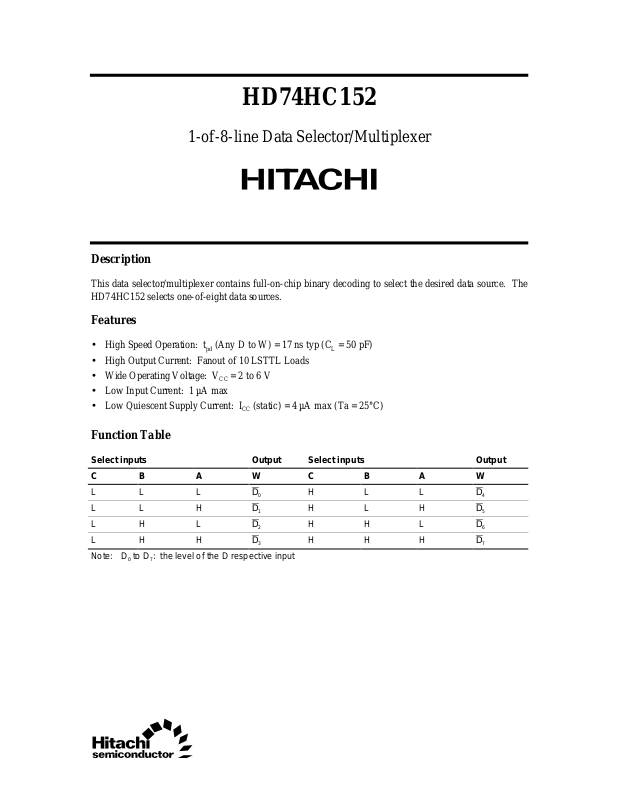

Page 1
HD74HC152
1-of-8-line Data Selector/Multiplexer
Description
This data selector/multiplexer contains full-on-chip binary decoding to select the desired data source. The
HD74HC152 selects one-of-eight data sources.
Features
• High Speed Operation: tpd (Any D to W) = 17 ns typ (CL = 50 pF)
• High Output Current: Fanout of 10 LSTTL Loads
• Wide Operating Voltage: VCC = 2 to 6 V
• Low Input Current: 1 µA max
• Low Quiescent Supply Current: ICC (static) = 4 µA max (Ta = 25°C)
Function Table
Select inputs Output Select inputs Output
CBAWCBAW
LL L D
LL H D
LH L D
LH H D
Note: D0 to D7: the level of the D respective input
0
1
2
3
HLL D
HLHD
HHL D
HHHD
4
5
6
7
Page 2
HD74HC152
Pin Arrangement
1
4
14
V
CC
D4
2
3
D3
D5
13
5
Logic Diagram
Data
Inputs
Output
D0
D1
D2
D3
D4
W
GND
3
2
4
1
5
0
6
D2
D
D0
W
1
D6
D7
12
11
A
B
10
9
C
7
8
6
7
A
B
C
Data
Inputs
Data
Select
(Top view)
W
D5
D6
D7
A
B
C
2
Page 3
HD74HC152
DC Characteristics
Ta = –40 to
Ta = 25°C
Item Symbol V
Input voltage V
IH
(V) Min Typ Max Min Max Unit Test Conditions
CC
2.0 1.5 — — 1.5 — V
4.5 3.15 — — 3.15 —
6.0 4.2 — — 4.2 —
V
IL
2.0 — — 0.5 — 0.5 V
4.5 — — 1.35 — 1.35
6.0 — — 1.8 — 1.8
Output voltage V
OH
2.0 1.9 2.0 — 1.9 — V Vin = VIH or VILIOH = –20 µA
4.5 4.4 4.5 — 4.4 —
6.0 5.9 6.0 — 5.9 —
4.5 4.18 — — 4.13 — IOH = –4 mA
6.0 5.68 — — 5.63 — IOH = –5.2 mA
V
OL
2.0 — 0.0 0.1 — 0.1 V Vin = VIH or VILIOL = 20 µA
4.5 — 0.0 0.1 — 0.1
6.0 — 0.0 0.1 — 0.1
4.5 — — 0.26 — 0.33 IOL = 4 mA
6.0 — — 0.26 — 0.33 IOL = 5.2 mA
Input current Iin 6.0 — — ±0.1 — ±1.0 µA Vin = VCC or GND
Quiescent supply
I
CC
6.0 — — 4.0 — 40 µA Vin = VCC or GND, Iout = 0 µA
current
+85°C
3
Page 4
HD74HC152
AC Characteristics (CL = 50 pF, Input tr = tf = 6 ns)
Ta = –40 to
Ta = 25°C
Item Symbol V
Propagation delay t
time t
PLH
PHL
(V) Min Typ Max Min Max Unit Test Conditions
CC
2.0 — — 160 — 200 ns A, B or C to W
4.5 — 17 32 — 40
6.0 — — 27 — 34
2.0 — — 150 — 190 Any D to W
4.5 — 15 30 — 38
6.0 — — 26 — 33
Output rise/fall t
time t
TLH
THL
2.0 — — 75 — 95 ns
4.5 — 5 15 — 19
6.0 — — 13 — 16
Input capacitance Cin — — 5 10 — 10 pF
+85°C
4
Page 5
1
19.20
20.32 Max
1.30
Unit: mm
814
6.30
7.40 Max
7
2.54 ± 0.25
2.39 Max
0.48 ± 0.10
2.54 Min 5.06 Max
0.51 Min
Hitachi Code
JEDEC
EIAJ
Weight
7.62
+ 0.10
0.25
– 0.05
0° – 15°
(reference value)
DP-14
Conforms
Conforms
0.97 g
Page 6
14
1.27
10.5 Max
1
10.06
1.42 Max
Unit: mm
8
5.5
7
+ 0.20
7.80
– 0.30
2.20 Max
*0.22 ± 0.05
1.15
0.20 ± 0.04
0° – 8°
0.70 ± 0.20
*0.42 ± 0.08
0.40 ± 0.06
*Dimension including the plating thickness
Base material dimension
0.12
0.10 ± 0.10
0.15
M
Hitachi Code
JEDEC
EIAJ
(reference value)
Weight
FP-14DA
—
Conforms
0.23 g
Page 7
9.05 Max
14
Unit: mm
8.65
8
*Pd plating
1
0.635 Max
1.27
*0.40 ± 0.06
7
+ 0.11
0.25
3.95
– 0.04
0.14
0.15
1.75 Max
M
6.10
1.08
*0.20 ± 0.05
0.60
Hitachi Code
JEDEC
EIAJ
Weight
+ 0.10
– 0.30
0° – 8°
+ 0.67
– 0.20
(reference value)
FP-14DN
Conforms
Conforms
0.13 g
