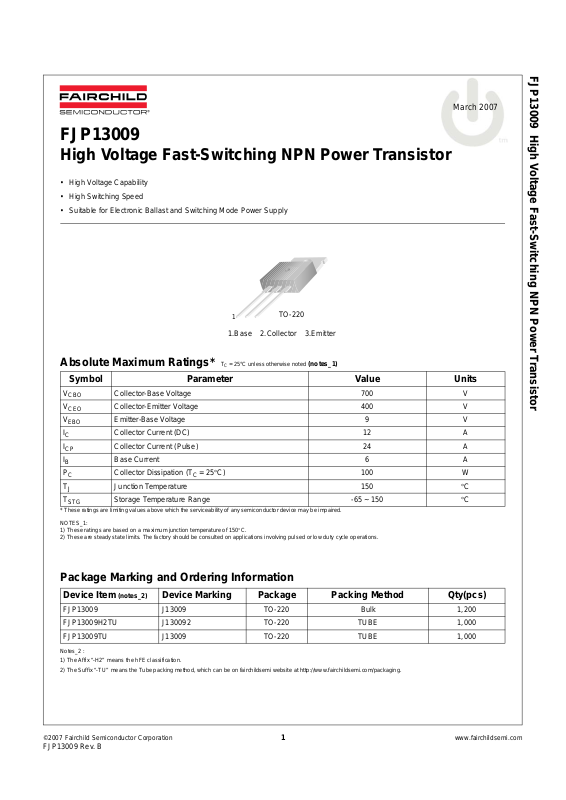

Page 1
FJP13009
High Voltage Fast-Switching NPN Power Transistor
• High Voltage Capability
• High Switching Speed
• Suitable for Electronic Ballast and Switching Mode Power Supply
FJP13009 High Voltage Fast-Switching NPN Power Transistor
March 2007
1
TO-220
1.Base 2.Collector 3.Emitter
Absolute Maximum Ratings* T
= 25°C unless otherwise noted (notes_1)
C
Symbol Parameter Value Units
V
CBO
V
CEO
V
EBO
I
C
I
CP
I
B
P
C
T
J
T
STG
* These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
NOTES_1:
1) These ratings are based on a maximum junction temperature of 150°C.
2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Collector-Base Voltage 700 V
Collector-Emitter Voltage 400 V
Emitter-Base Voltage 9 V
Collector Current (DC) 12 A
Collector Current (Pulse) 24 A
Base Current 6 A
Collector Dissipation (TC = 25°C) 100 W
Junction Temperature 150 °C
Storage Temperature Range -65 ~ 150 °C
Package Marking and Ordering Information
Device Item (notes_2) Device Marking Package Packing Method Qty(pcs)
FJP13009 J13009 TO-220 Bulk 1,200
FJP13009H2TU J130092 TO-220 TUBE 1,000
FJP13009TU J13009 TO-220 TUBE 1,000
Notes_2 :
1) The Affix “-H2” means the hFE classification.
2) The Suffix “-TU” means the Tube packing method, which can be on fairchildsemi website at http://www.fairchildsemi.com/packaging.
©2007 Fairchild Semiconductor Corporation 1 www.fairchildsemi.com
FJP13009 Rev. B
Page 2
FJP13009 High Voltage Fast-Switching NPN Power Transistor
Electrical Characteristics T
= 25°C unless otherwise noted
C
Symbol Parameter Conditions Min. Typ. Max Units
V
(sus) Collector-Emitter Sustaining Voltage IC = 10mA, IB = 0 400 V
CEO
I
EBO
h
FE
VCE(sat) * Collector-Emitter Saturation Voltage IC = 5A, IB = 1A
VBE (sat) * Base-Emitter Saturation Voltage IC = 5A, IB = 1A
C
ob
f
T
t
ON
t
STG
t
F
* Pulse Test: PW ≤ 300µs, Duty Cycle ≤ 2%
Emitter Cut-off Current V
* DC Current Gain
= 9V, IC = 0 1 mA
EB
V
= 5V, IC = 5A (h
CE
V
= 5V, IC = 8A
CE
FE1
)
8
6
40
30
1
IC = 8A, IB = 1.6A
IC = 12A, IB = 3A
1.5
3
1.2
IC = 8A, IB = 1.6A
Output Capacitance V
Current Gain Bandwidth Product V
Turn On Time V
Storage Time 3 µs
= 10V, f = 0.1MHz 180 pF
CB
= 10V, IC = 0.5A 4 MHz
CE
= 125V, IC = 8A
CC
IB1 = - IB2 = 1.6A, RL = 15,6Ω
1.6
1.1 µs
Fall Time 0.7 µs
hFE Classification
Classification H1 H2
h
FE1
8 ~ 17 15 ~ 28
V
V
V
V
V
FJP13009 Rev. B
2 www.fairchildsemi.com
Page 3
Typical Performance Characteristics
FJP13009 High Voltage Fast-Switching NPN Power Transistor
100
10
, DC CURRENT GAIN
FE
h
1
0.1 1 10 100
IC[A], COLLECTOR CURRENT
Figure 1. DC current Gain Figure 2. Base-Emitter Saturation Voltage
1000
100
10
[pF], CAPACITANCE
ob
C
VCE = 5V
VCE(sat)
IC = 3 I
B
10
1
VBE(sat)
0.1
(sat)[V], SATURATION VOLTAGE
CE
(sat), V
BE
V
0.01
0.1 1 10 100
IC[A], COLLECTOR CURRENT
Collector-Emitter Saturation Voltage
10000
1000
[ns], TURN ON TIME
100
D
, t
R
t
tD, VBE(off)=5V
VCC=125V
I
t
R
=5I
C
B
[ns], TURN OFF TIME
F
, t
STG
t
FJP13009 Rev. B
1
0.1 1 10 100 1000
VCB[V], COLLECTOR BASE VOLTAGE
10
0.1 1 10 100
IC[A], COLLECTOR CURRENT
Figure 3. Collector Output Capacitance Figure 4. Turn On Time
10000
1000
100
0.1 1 10 100
VCC=125V
IC=5I
t
STG
t
F
IC[A], COLLECTOR CURRENT
100
B
10
1
0.1
[A], COLLECTOR CURRENT
C
I
0.01
1 10 100 1000
VCE[V], COLLECTOR-EMITTER VOLTAGE
D
C
Figure 5. Turn Off Time Figure 6. Forward Bias Safe Operating Area
3 www.fairchildsemi.com
1ms
10
µ
1
s
00
µ
s
Page 4
Typical Performance Characteristics (Continued)
FJP13009 High Voltage Fast-Switching NPN Power Transistor
100
10
1
0.1
[A], COLLECTOR CURRENT
C
I
0.01
10 100 1000 10000
Vcc=50V,
I
=1A, IB2 = -1A
B1
L = 1mH
VCE[V], COLLECTOR-EMITTER VOLTAGE
Figure 7. Reverse Bias Safe Operating Area
120
100
80
60
40
[W], POWER DISSIPATION
C
P
20
0
0 25 50 75 100 125 150 175
TC[oC], CASE TEMPERATURE
Figure 8. Power Derating
FJP13009 Rev. B
4 www.fairchildsemi.com
Page 5
Mechanical Dimensions
4.50
0
0
5
FJP13009 High Voltage Fast-Switching NPN Power Transistor
TO-220
(1.70)
±0.20
9.20
±0.20
13.08
±0.10
1.30
(1.46)
(1.00)
1.27
2.54TYP
[2.54
±0.10
±0.20
]
9.90
(8.70)
ø3.60
±0.20
±0.10
(45°)
1.52
±0.10
0.80
±0.10
2.54TYP
[2.54
±0.20
(3.70)(3.00)
]
±0.10
2.80
±0.20
18.95MAX.
15.90
±0.30
10.08
0.50
+0.10
–0.05
1.30
2.40
±0.2
+0.1
–0.0
±0.20
FJP13009 Rev. B
10.00
±0.20
Dimensions in Millimeters
5 www.fairchildsemi.com
