Page 1

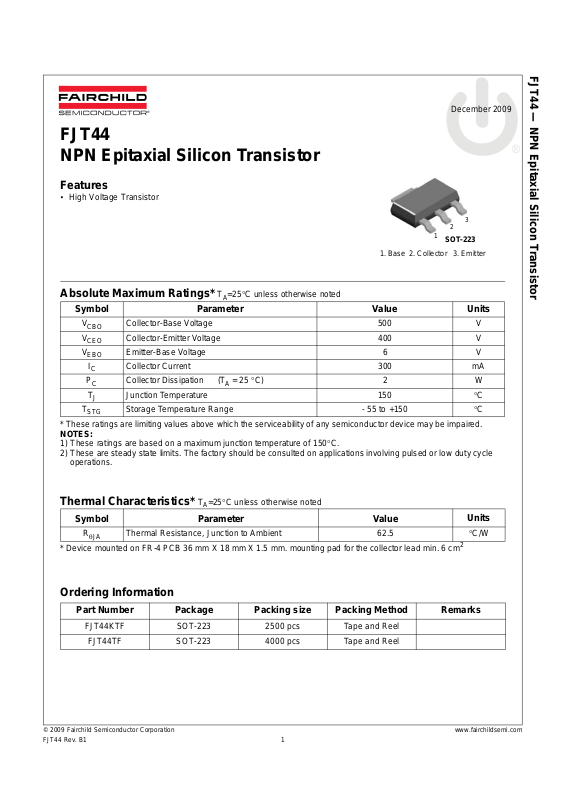

FJT44 NPN Epitaxial Silicon Transistor

Features

• High Voltage Transistor

December 2009

SOT-223

1. Base 2. Collector 3. Emitter

FJT44 — NPN Epitaxial Silicon Transistor

Absolute Maximum Ratings* T

=25°C unless otherwise noted

Symbol Parameter Value Units

CBO

CEO

EBO

STG

* These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.

NOTES:

1) These ratings are based on a maximum junction temperature of 150°C.

2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.

Thermal Characteristics* T

Symbol Parameter Value

θJA

* Device mounted on FR-4 PCB 36 mm X 18 mm X 1.5 mm. mounting pad for the collector lead min. 6 cm

Collector-Base Voltage 500 V Collector-Emitter Voltage 400 V Emitter-Base Voltage 6 V Collector Current 300 mA Collector Dissipation (TA = 25 °C) 2 W Junction Temperature 150 °C Storage Temperature Range - 55 to +150 °C

=25°C unless otherwise noted

Units

Thermal Resistance, Junction to Ambient 62.5 °C/W

Ordering Information

Part Number Package Packing size Packing Method Remarks

FJT44KTF SOT-223 2500 pcs Tape and Reel

FJT44TF SOT-223 4000 pcs Tape and Reel

Page 2

FJT44 — NPN Epitaxial Silicon Transistor

Electrical Characteristics* T

= 25°C unless otherwise noted

Symbol Parameter Test Conditions Min. Typ. Max. Units

CBO

CEO

EBO

CBO

CES

EBO

CE(sat)

BE(sat)

obo

* Pulse Test: Pulse Width ≤ 300μs, Duty Cycle ≤ 2.0%

Collector-Base Breakdown Voltage IC = 100μA, IE = 0 Collector-Emitter Breakdown Voltage IC = 1mA, IB = 0 Emitter-Base Breakdown Voltage IE = 100μA, IC = 0 Collector-Base Cutoff Current VCB = 400V, IE = 0 Collector-Emitter Cutoff Current VCE = 400V, VBE = 0 Emitter-Base Cutoff Current VCE = 4V, IC = 0 DC Current Gain VCE=10V, IC=1mA

VCE=10V, IC=10mA VCE=10V, IC=50mA

=10V, IC=100mA

Collector-Emitter Saturation Voltage IC = 1mA, IB = 0.1mA

IC = 10mA, IB = 1mA

IC = 50mA, IB = 5mA Base-Emitter Saturation Voltage IC = 10mA, IB = 1mA Output Capacitance VCB = 20V, IE = 0, f = 1MHz

500 V 400 V

100 nA 500 nA 100 nA

40 50

200 45 40

0.4

0.5

0.75

0.75 V 7pF

V V V

Page 3

Typical Performance Characteristics

FJT44 — NPN Epitaxial Silicon Transistor

160

140

120

100

, DC CURRENT GAIN

-20

-40 1 10 100 1000 10000

IC[mA], COLLECTOR CURRENT

Figure 1. DC current Gain Figure 2. Turn-On Switching Times

t[us], TIME

100

VCE=10V

VCC=150V IC/IB=10

TA=25oC

VCC=150V IC/IB=10

TA=25oC VBE(off)=4V

t[us], TIME

0.1 1 10 100

IC[mA], COLLECTOR CURRENT

1000

100

[pF], CAPACITANCE

[pF],C

TA=25oC f=1MHz

0.1 110100

IC[mA], COLLECTOR CURRENT

0.1 1 10 100 1000

VCB[V], COLLECTOR-BASE VOLTAGE

Figure 3. Turn-Off Switching Times Figure 4. Capacitance

1.0

0.8

0.6

0.4

TA=25oC

VBE(sat) @IC/IB=10

VBE(on) @VCE=10V

[V], VOLTAGE

0.2

0.0

VCE(sat)@IC/IB=10

0.1 1 10 100 1000

IC[mA], COLLECTOR CURRENT

0.5

0.4

0.3

0.2

0.1

[V] COLLECTOR EMITTER VOLTAGE

0.0 10 100 1000 10000 100000

IC[mA], COLLECTOR CURRENT

IC=10mAIC=1mA

IC=50mA

TA=25oC

Figure 5. On Voltage Figure 6. Collector Saturation Region

Page 4

Typical Performance Characteristics (Continued)

FJT44 — NPN Epitaxial Silicon Transistor

100

, SMALL SIGNAL CURRENT GAIN

0.1

0.1 1 10 100 1000

IC[mA], COLLECTOR CURREN T

VCE=10V f=10MHz TA=25oC

Figure 1. High Frequency Current Gain

Page 5

Physical Dimensions

1.60

(

3.00

SOT-223

±0.10

MAX1.80

±0.20

1.75

±0.20

0.08MAX

+0.04

0.06

–0.02

FJT44 — NPN Epitaxial Silicon Transistor

±0.20

0.65

±0.30

2.30 TYP

(0.95) (0.95)

±0.20

0.46)(0.89)

4.60

6.50

±0.25

±0.20

0.70

±0.10

3.50 (0.60) (0.60)

0.25

+0.10 –0.05

7.00

0°~10°

Dimensions in Millimeters
