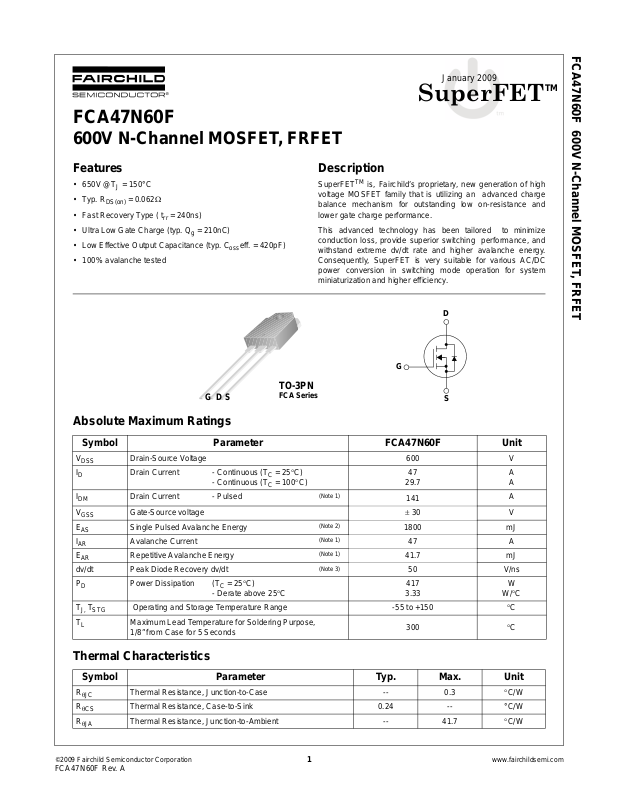

FCA47N60F 600V N-Channel MOSFET, FRFET

D

G

S

GSD

TO-3PN

FCA Series

FCA47N60F

600V N-Channel MOSFET, FRFET

Features

•650V @TJ = 150°C

•Typ. R

• Fast Recovery Type ( t

• Ultra Low Gate Charge (typ. Q

• Low Effective Output Capacitance (typ. C

• 100% avalanche tested

DS(on)

= 0.062Ω

= 240ns)

rr

= 210nC)

g

eff. = 420pF)

oss

Description

SuperFETTM is, Fairchild’s proprietary, new generation of high
voltage MOSFET family that is utilizing an advanced charge
balance mechanism for outstanding low on-resistance and
lower gate charge performance.

This advanced technology has been tailored to minimize
conduction loss, provide superior switching performance, and
withstand extreme dv/dt rate and higher avalanche energy.
Consequently, SuperFET is very suitable for various AC/DC
power conversion in switching mode operation for system
miniaturization and higher efficiency.

January 2009

TM

SuperFET

Absolute Maximum Ratings

Symbol Parameter FCA47N60F Unit

V

DSS

I

D

I

DM

V

GSS

E

AS

I

AR

E

AR

dv/dt Peak Diode Recovery dv/dt
P

D

T

J, TSTG

T

L

Drain-Source Voltage 600 V
Drain Current - Continuous (TC = 25°C)

Drain Current - Pulsed
Gate-Source voltage ± 30 V

Single Pulsed Avalanche Energy
Avalanche Current
Repetitive Avalanche Energy

Power Dissipation (TC = 25°C)

Operating and Storage Temperature Range -55 to +150 °C
Maximum Lead Temperature for Soldering Purpose,

1/8” from Case for 5 Seconds

- Continuous (T

- Derate above 25°C

= 100°C)

C

(Note 1)

(Note 2)
(Note 1)
(Note 1)
(Note 3)

47

29.7
141

1800 mJ

47 A

41.7 mJ

50 V/ns

417

3.33

300 °C

Thermal Characteristics

Symbol Parameter Typ. Max. Unit

R

θJC

R

θCS

R

θJA

Thermal Resistance, Junction-to-Case -- 0.3 °C/W
Thermal Resistance, Case-to-Sink 0.24 -- °C/W
Thermal Resistance, Junction-to-Ambient -- 41.7 °C/W

A
A

A

W

W/°C

©2009 Fairchild Semiconductor Corporation 1 www.fairchildsemi.com

FCA47N60F Rev. A

Package Marking and Ordering Information

Device Marking Device Package Reel Size Tape Width Quantity

FCA47N60F FCA47N60F TO-3PN - - 30

FCA47N60F 600V N-Channel MOSFET, FRFET

Electrical Characteristics T

= 25°C unless otherwise noted

C

Symbol Parameter Conditions Min Typ Max Units

Off Characteristics

BV

DSS

ΔBV
/ ΔT

BV

DS

I

DSS

I

GSSF

I

GSSR

On Characteristics

V

GS(th)

R

DS(on)

g

FS

Dynamic Characteristics

C

iss

C

oss

C

rss

C

oss

C

oss

Switching Characteristics

t

d(on)

t

r

t

d(off)

t

f

Q

g

Q

gs

Q

gd

Drain-Source Diode Characteristics and Maximum Ratings

I

S

I

SM

V

SD

t

rr

Q

rr

NOTES:

1. Repetitive Rating: Pulse width limited by maximum junction temperature

2. IAS = 18A, VDD = 50V, RG = 25Ω, Starting TJ = 25°C
≤ 47A, di/dt ≤ 1,200A/μs, VDD ≤ BV

3. I

SD

4. Pulse Test: Pulse width ≤ 300μs, Duty Cycle ≤ 2%

5. Essentially Independent of Operating Temperature Typical Characteristics

Drain-Source Breakdown Voltage VGS = 0V, ID = 250μA, TJ = 25°C 600 -- -- V

= 0V, ID = 250μA, TJ = 150°C -- 650 -- V

V

GS

Breakdown Voltage Temperature

DSS

Coefficient

J

Drain-Source Avalanche Breakdown
Voltage

Zero Gate Voltage Drain Current VDS = 600V, VGS = 0V

I

= 250μA, Referenced to 25°C--0.6--V/°C

D

VGS = 0V, ID = 47A

V

= 480V, TC = 125°C

DS

-- 700 -- V

--

--

--

--

10

100μAμA
Gate-Body Leakage Current, Forward VGS = 30V, VDS = 0V -- -- 100 nA
Gate-Body Leakage Current, Reverse VGS = -30V, VDS = 0V -- -- -100 nA

Gate Threshold Voltage VDS = VGS, ID = 250μA3.0--5.0V
Static Drain-Source

On-Resistance
Forward Transconductance VDS = 40V, ID = 23.5A

Input Capacitance VDS = 25V, VGS = 0V,
Output Capacitance -- 3200 4200 pF

V

= 10V, ID = 23.5A -- 0.062 0.073 Ω

GS

(Note 4)

-- 40 -- S

-- 5900 8000 pF

f = 1.0MHz

Reverse Transfer Capacitance -- 250 -- pF
Output Capacitance VDS = 480V, VGS = 0V, f = 1.0MHz -- 160 -- pF

eff. Effective Output Capacitance VDS = 0V to 400V, VGS = 0V -- 420 -- pF

Turn-On Delay Time VDD = 300V, ID = 47A

R

= 25Ω

Turn-On Rise Time -- 210 450 ns

G

-- 185 430 ns

Turn-Off Delay Time -- 520 1100 ns
Turn-Off Fall Time -- 75 160 ns
Total Gate Charge VDS = 480V, ID = 47A

V

= 10V

Gate-Source Charge -- 38 -- nC

GS

Gate-Drain Charge -- 110 -- nC

(Note 4, 5)

-- 210 270 nC

(Note 4, 5)

Maximum Continuous Drain-Source Diode Forward Current -- -- 47 A
Maximum Pulsed Drain-Source Diode Forward Current -- -- 141 A
Drain-Source Diode Forward Voltage VGS = 0V, IS = 47A -- -- 1 . 4 V
Reverse Recovery Time VGS = 0V, IS = 47A

dI

/dt =100A/μs (Note 4)

Reverse Recovery Charge -- 2.04 -- μC

, Starting TJ = 25°C

DSS

F

-- 240 -- ns

FCA47N60F Rev. A

2 www.fairchildsemi.com

Typical Performance Characteristics

246810

10

0

10

1

10

2

- Note

1. V

DS

= 40V

2. 250

μs Pulse Test

-55°C

150°C

25°C

I

D

, Drain Current [A]

VGS , Gate-Source Voltage [V]

10

-1

10

0

10

1

10

0

10

1

10

2

V

GS

Top : 15.0 V

10.0 V

8.0 V

7.0 V

6.5 V

6.0 V
Bottom : 5.5 V

* Notes :

1. 250

μs Pulse Test

2. T

C

= 25oC

I

D

, Drain Current [A]

VDS, Drain-Source Voltage [V]

0 20 40 60 80 100 120 140 160 180 200

0.00

0.05

0.10

0.15

0.20

0.25

VGS = 20V

VGS = 10V

* Note : TJ = 25°C

R

DS(ON)

[Ω],Drain-Source On-Resistance

ID, Drain Current [A]

0.20.40.60.81.01.21.41.6

10

0

10

1

10

2

25°C

150°C

* Notes :

1. V

GS

= 0V

2. 250

μs Pulse Test

I

DR

, Reverse Drain Current [A]

VSD , Source-Drain Voltage [V]

10

-1

10

0

10

1

0

5000

10000

15000

20000

25000

C

iss

= Cgs + Cgd (Cds = shorted)

C

oss

= Cds + C

gd

C

rss

= C

gd

* Notes :

1. V

GS

= 0 V

2. f = 1 MHz

C

rss

C

oss

C

iss

Capacitance [pF]

VDS, Drain-Source Voltage [V]

0 50 100 150 200 250

0

2

4

6

8

10

12

VDS = 250V

VDS = 100V

VDS = 400V

* Note : ID = 47A

V

GS

, Gate-Source Voltage [V]

QG, Total Gate Ch arge [nC]

Figure 1. On-Region Characteristics Figure 2. Transfer Characteristics

Figure 3. On-Resistance Variation vs. Figure 4. Body Diode Forward Voltage

Drain Current and Gate Voltage Variation vs. Source Current

and Temperatue

FCA47N60F 600V N-Channel MOSFET, FRFET

Figure 5. Capacitance Characteristics Figure 6. Gate Charge Characteristics

FCA47N60F Rev. A

3 www.fairchildsemi.com

Typical Performance Characteristics (Continued)

-100 -50 0 50 100 150 200

0.8

0.9

1.0

1.1

1.2

* Notes :

1. V

GS

= 0 V

2. I

D

= 250μA

BV

DSS

, (Normalized)

Drain-Source Breakdown Voltage

TJ, Junction Temperature [°C]

-100 -50 0 50 100 150 200

0.0

0.5

1.0

1.5

2.0

2.5

3.0

* Notes :

1. V

GS

= 10 V

2. I

D

= 23.5 A

R

DS(ON)

, (Normalized)

Drain-Source On-Resistance

TJ, Junction Temperature [°C]

10

0

10

1

10

2

10

3

10

-1

10

0

10

1

10

2

Operation in This Area
is Limited by R

DS(on)

DC

10 ms

1 ms

100 μs

* Notes :

1. T

C

= 25°C

2. T

J

= 150°C

3. Single Pulse

I

D

, Drain Current [A]

VDS, Drain-Source Voltage [V]

25 50 75 100 125 150

0

10

20

30

40

50

I

D

, Drain Current [A]

TC, Case Temperature [°C]

10

-5

10

-4

10

-3

10

-2

10

-1

10

0

10

1

10

-2

10

-1

* Notes :

1. Z

θJC

(t) = 0.3° C/W Max.

2. D uty F a c to r, D = t

1/t2

3. TJM - TC = PDM * Z

θJC

(t)

single pulse

D=0.5

0.02

0.2

0.05

0.1

0.01

Z

θJC

(t), Thermal Response

t1, Square Wave Pulse Duration [sec]

t

1

P

DM

t

2

Figure 7. Breakdown Voltage Variation Figure 8. On-Resistance Variation
vs. Temperature vs. Temperature

Figure 9. Safe Operating Area Figure 10. Maximum Drain Current

vs. Case Temperature

FCA47N60F 600V N-Channel MOSFET, FRFET

FCA47N60F Rev. A

Figure 10. Transient Thermal Response Curve

4 www.fairchildsemi.com

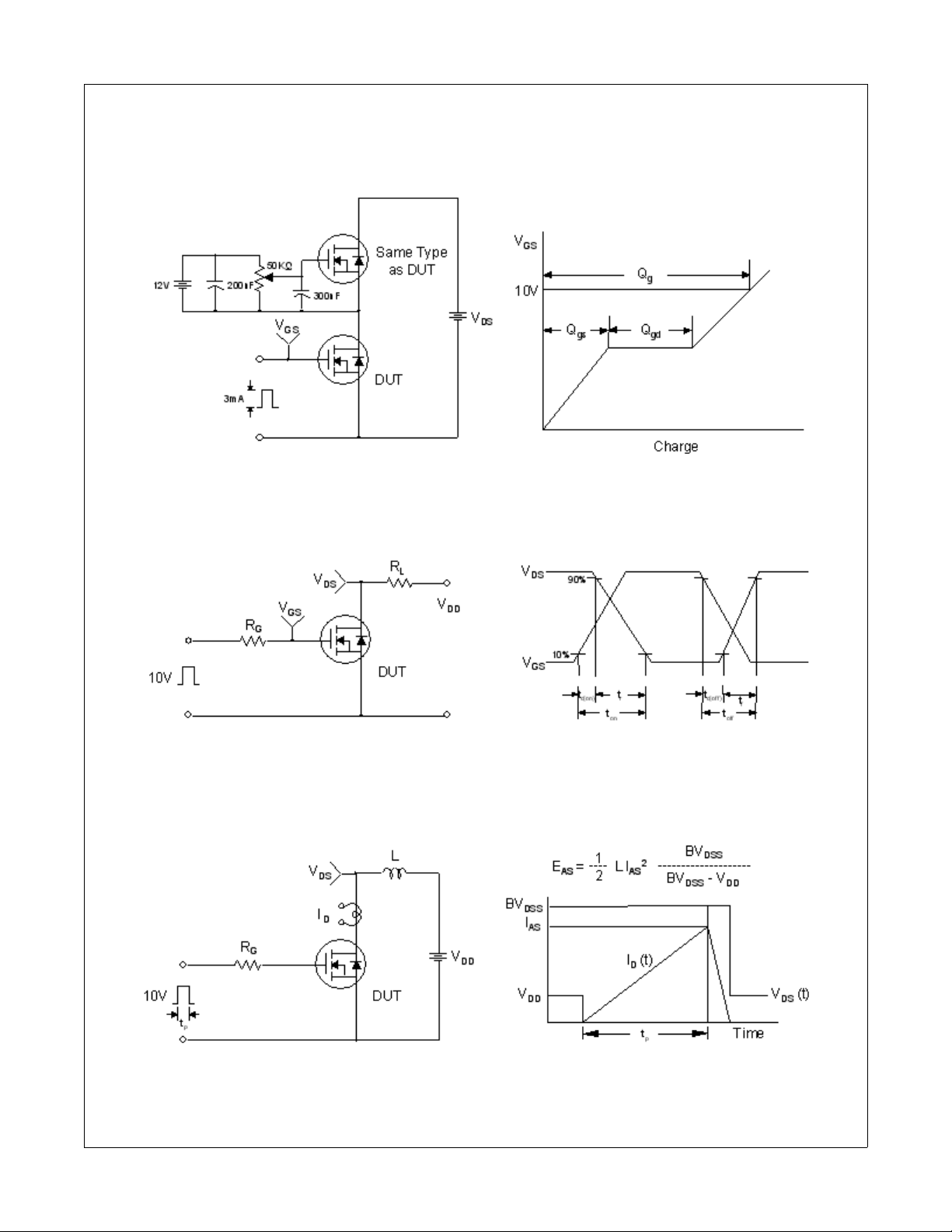

Gate Charge Test Circuit & Waveform

Resistive Switching Test Circuit & Waveforms

FCA47N60F 600V N-Channel MOSFET, FRFET

FCA47N60F Rev. A

Unclamped Inductive Switching Test Circuit & Waveforms

5 www.fairchildsemi.com

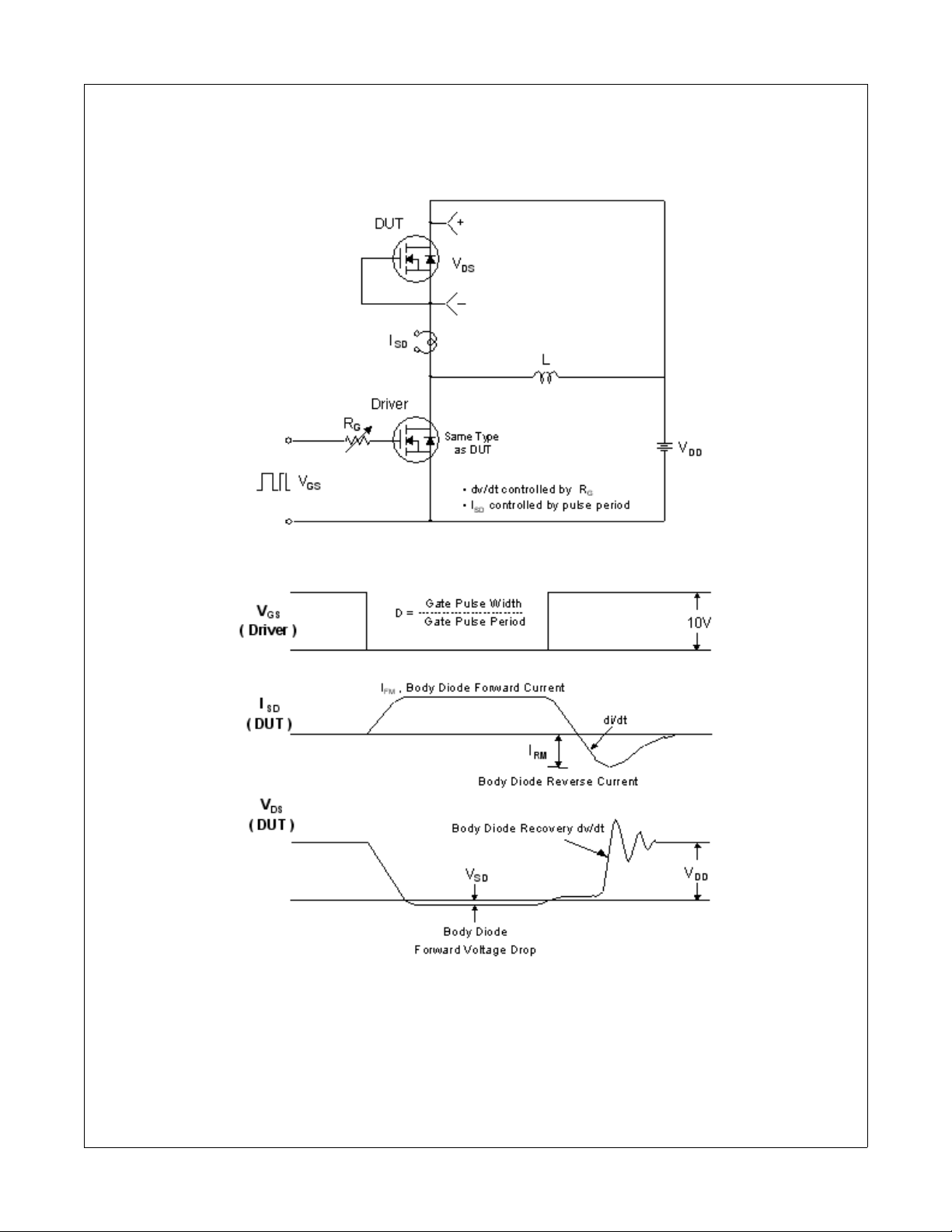

Peak Diode Recovery dv/dt Test Circuit & Waveforms

FCA47N60F 600V N-Channel MOSFET, FRFET

FCA47N60F Rev. A

6 www.fairchildsemi.com

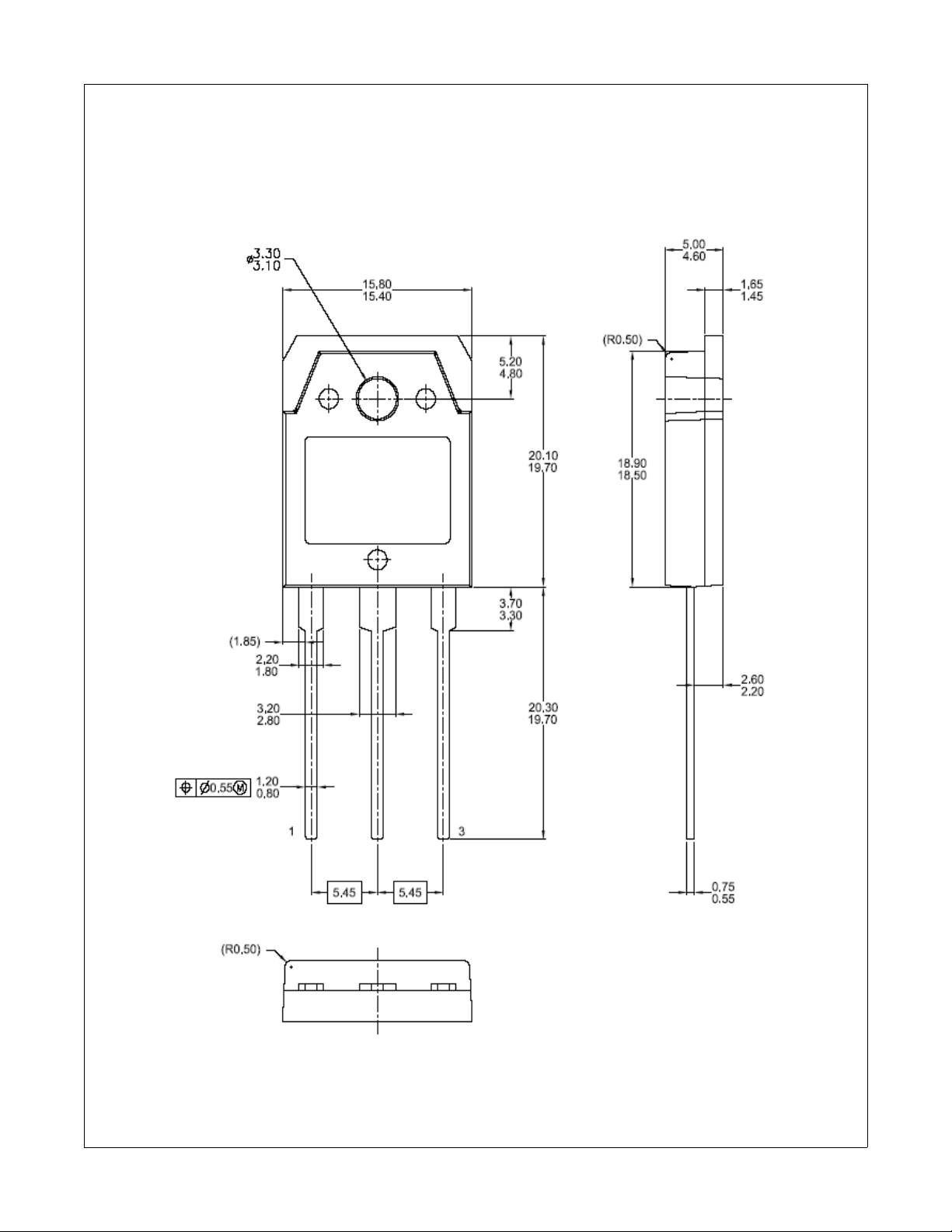

Mechanical Dimensions

TO-3PN

FCA47N60F 600V N-Channel MOSFET, FRFET

FCA47N60F Rev. A

Dimensions in Millimeters

7 www.fairchildsemi.com

TRADEMARKS

®

The following includes registered and unregistered trademarks and service marks, owned by Fairchild Semiconductor and/or its global subsidiaries, an d is not
intended to be an exhaustive list of all such trademarks.

Build it Now™
CorePLUS™
CorePOWER™
CROSSVOLT™
CTL™
Current Transfer Logic™
EcoSPARK
EfficentMax™
EZSWITCH™ *

™

Fairchild
Fairchild Semiconductor
FACT Quiet Series™
FACT
FAST
FastvCore™
FlashWriter
FPS™
F-PFS™

®

®

®
®

®

*

®

* EZSWITCH™ and FlashWriter

®

are trademarks of System General Corporation, used under license by Fairchild Semiconductor.

®

FRFET
Global Power Resource
Green FPS™
Green FPS™ e-Series™
GTO™
IntelliMAX™
ISOPLANAR™
MegaBuck™
MICROCOUPLER™
MicroFET™
MicroPak™
MillerDrive™
MotionMax™
Motion-SPM™
OPTOLOGIC
OPTOPLANAR

®

®

®

PDP SPM™
Power-SPM™
PowerTrench
PowerXS™

®

SM

Programmable Active Droop™

®

QFET
QS™
Quiet Series™
RapidConfigure™

™

Saving our world, 1mW /W /kW at a time™
SmartMax™
SMART START™

®

SPM
STEALTH™
SuperFET™
SuperSOT™-3
SuperSOT™-6
SuperSOT™-8
SupreMOS™
SyncFET™

®

The Power Franchise

®

TinyBoost™
TinyBuck™

®

TinyLogic
TINYOPTO™
TinyPower™
TinyPWM™
TinyWire™
μSerDes™

®

UHC
Ultra FRFET™
UniFET™
VCX™
VisualMax™
XS™

DISCLAIMER

FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE
RELIABILITY, FUNCTION, OR DESIGN. FAIRCHILD DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY
PRODUCT OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
THESE SPECIFICATIONS DO NOT EXPAND THE TERMS OF FAIRCHILD’S WORLDWIDE TERMS AND CONDITIONS, SPECIFICALLY THE WARRANTY
THEREIN, WHICH COVERS THESE PRODUCTS.

FCA47N60F 600V N-Channel MOSFET, FRFET

LIFE SUPPORT POLICY

FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE
EXPRESS WRITTEN APPROVAL OF FAIRCHILD SEMICONDUCTOR CORPORATION.

As used herein:

1. Life support devices or systems are devices or systems which, (a) are
intended for surgical implant into the body or (b ) support or sustain li fe,
and (c) whose failure to perform when properly use d in accordance with
instructions for use provided in the labeling, can be reasonably
expected to result in a significant injury of the user.

ANTI-COUNTERFEITING POLICY

Fairchild Semiconductor Corporation’s Anti-Counterfeiting Policy. Farichild’s Anti-Counterfeiting Policy is also stated on our external website,
www.fairchildsemi.com, under Sales Support

Counterfeiting of semiconductor parts is a growing problem in the ind ustry. All manufactures of semiconductor prod ucts are experiencing co unterfeiting of their
parts. Customers who inadvertently purchase counterfeit parts experience many pro blems such as lo ss of brand r eput ation, substanda rd pe rfo rmance, f ailed
application, and increased cost of production and manufacturing delays. Fairchild is taking strong measures to protect ourselves and our customers from the
proliferation of counterfeit parts. Farichild str ongly encourages custome rs to purchase Far ichild parts ei ther direct ly from Fairchi ld or from Authorized Fairchild
Distributors who are listed by country on our web page cited above. Products customers buy either from fairchild directly or from Authorized Fairchild
Distributors are genuine parts, have full traceability, meet Fairchild’s quality standards for handing and storage and provide access to Farichild’s full range of
up-to-date technical and product information. Fairchild and our Authorized Distributors will stand behind all warranties and will appropriately address and
warranty issues that may arise. Fairchild will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. Farichild is

.

2. A critical component in any component of a life support, device, or
system whose failure to perform can be reasonably expected to cause
the failure of the life support device or system, or to affect its safety or
effectiveness.

committed to combat this global problem and encourage our customers to do their p art in stopping thi s practice by buying direct or from authorized distr ibutors.

PRODUCT STATUS DEFINITIONS
Definition of Terms

Datasheet Identification Product Status Definition

Advance Information Formative / In Design

Preliminary First Production

No Identification Needed Full Production

Obsolete Not In Production

Datasheet contains the design specifications for product development. Specifications
may change in any manner without notice.

Datasheet contains preliminary data; supplementary data will be published at a later
date. Fairchild Semiconductor reserves the right to make changes at any time without
notice to improve design.

Datasheet contains final specifications. Fairchild Semiconductor reserves the right to
make changes at any time without notice to improve the design.

Datasheet contains specifications on a product that is discontinued by Fairchild
Semiconductor. The datash eet is for reference information only.

Rev. I37

8 www.fairchildsemi.com

FCA47N60F Rev. A
