Datasheet DM-4101N-1 Datasheet (DATEL)

E

®

INNOVATION and EX C ELL E N C

®

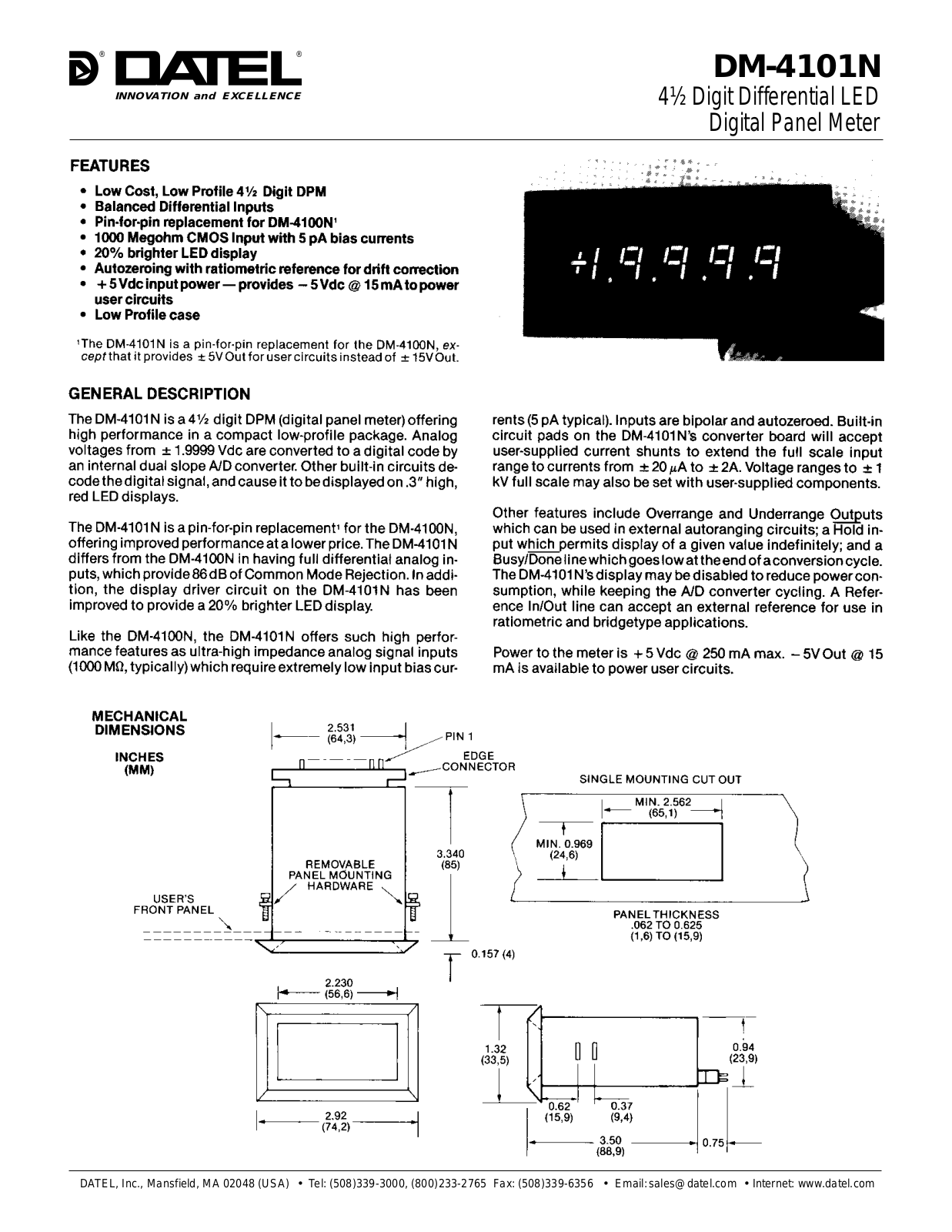

DM-4101N

4½ Digit Differential LED

Digital Panel Meter

DATEL, Inc., Mansfield, MA 02048 (USA) • Tel: [phone] Fax: [phone] • Email: [e-mail] • Internet: www.datel.com

DM-4101N

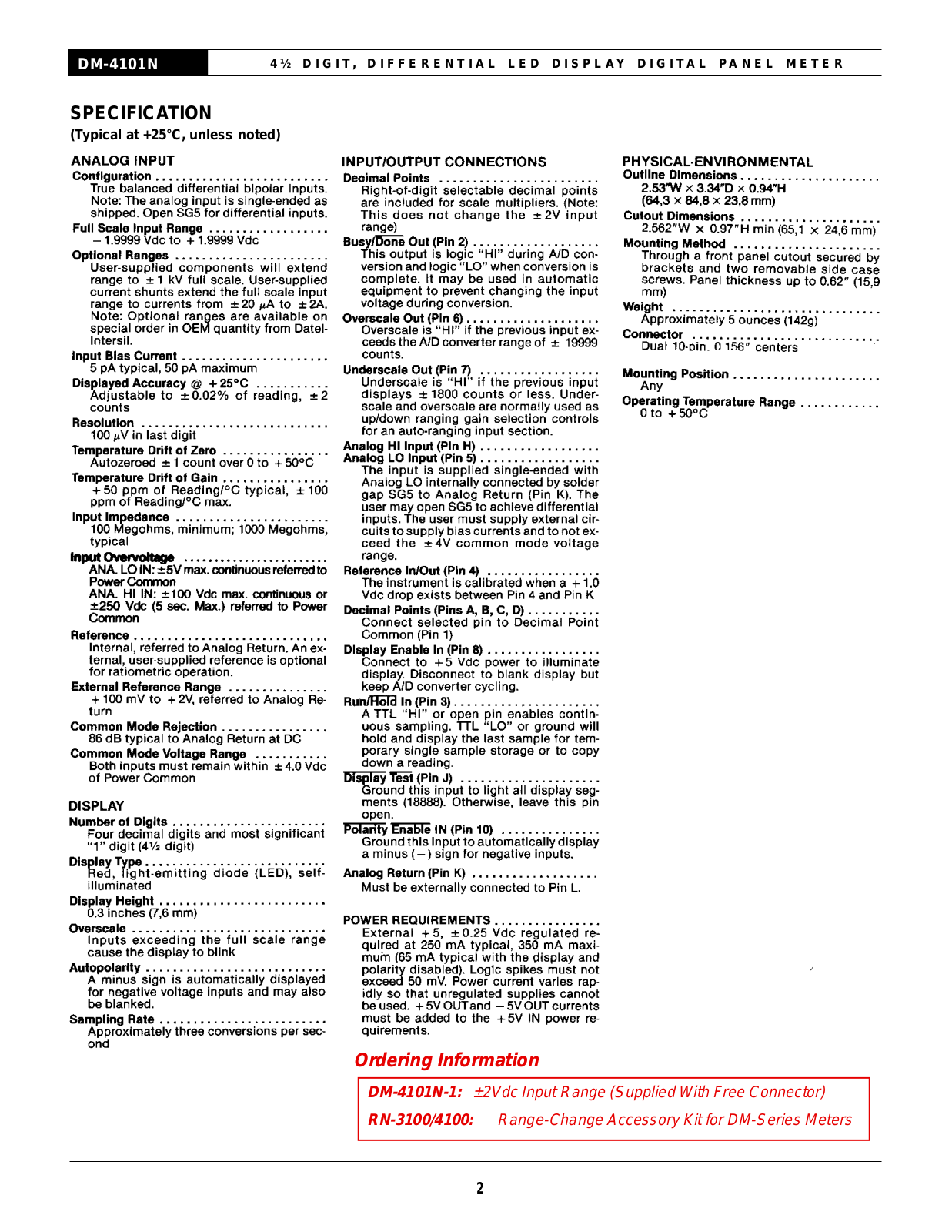

SPECIFICATION

(Typical at +25°C, unless noted)

4½ DIGIT, DIFFERENTIAL LED DISPLAY DIGITAL PANEL METER

Ordering Information

DM-4101N-1: ±2Vdc Input Range (Supplied With F ree Connector)
RN-3100/4100: Range-Change Accessory Kit for DM-Series Meters

2

DMS-20PC-0/5

4½ DIGIT, DIFFERENTIAL LED DISPLAY DIGITAL PANEL METER

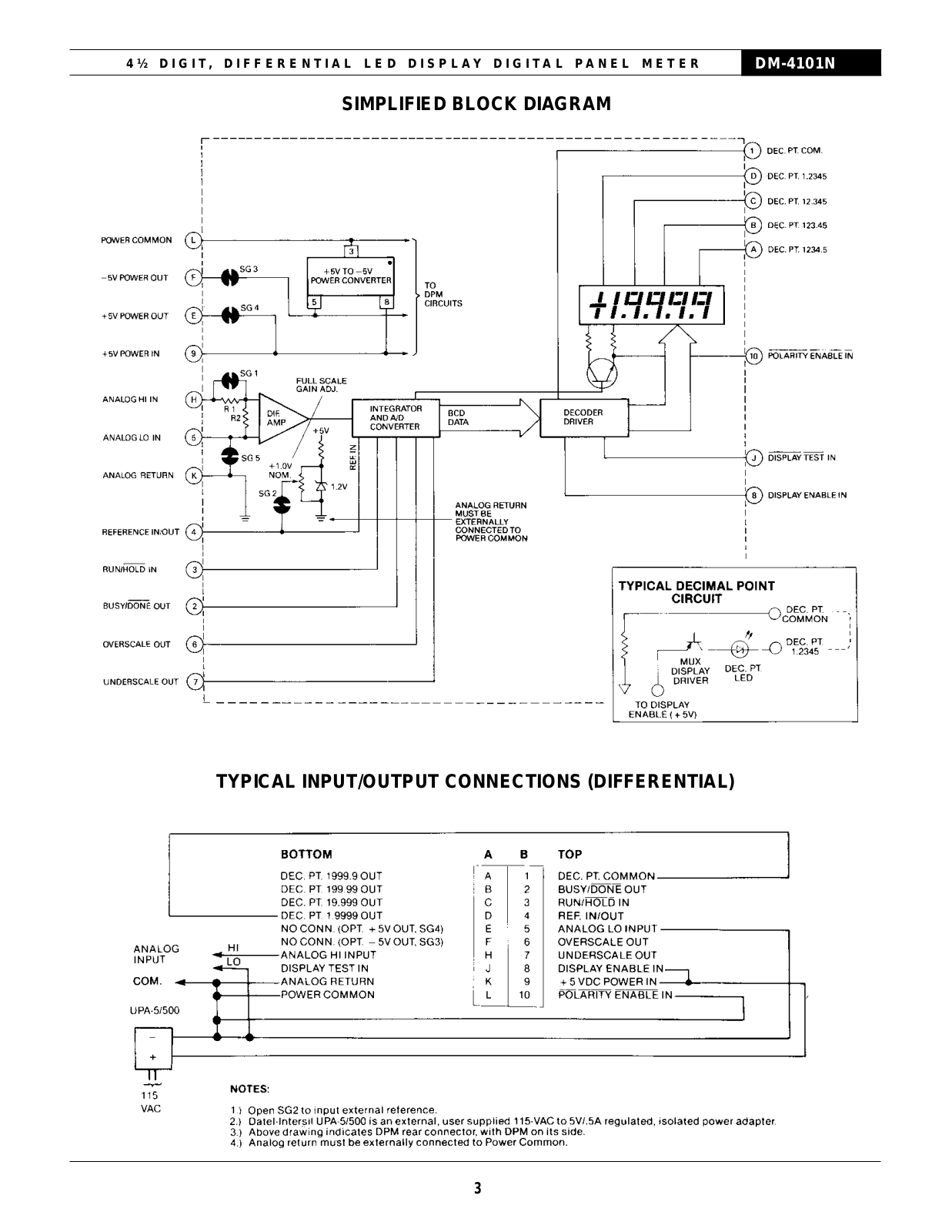

SIMPLIFIED BLOCK DIAGRAM

DMS-20PC-4/20S

DM-4101N

TYPICAL INPUT/OUTPUT CONNECTIONS (DIFFERENTIAL)

3

DM-4101N

4½ DIGIT, DIFFERENTIAL LED DISPLAY DIGITAL PANEL METER

*

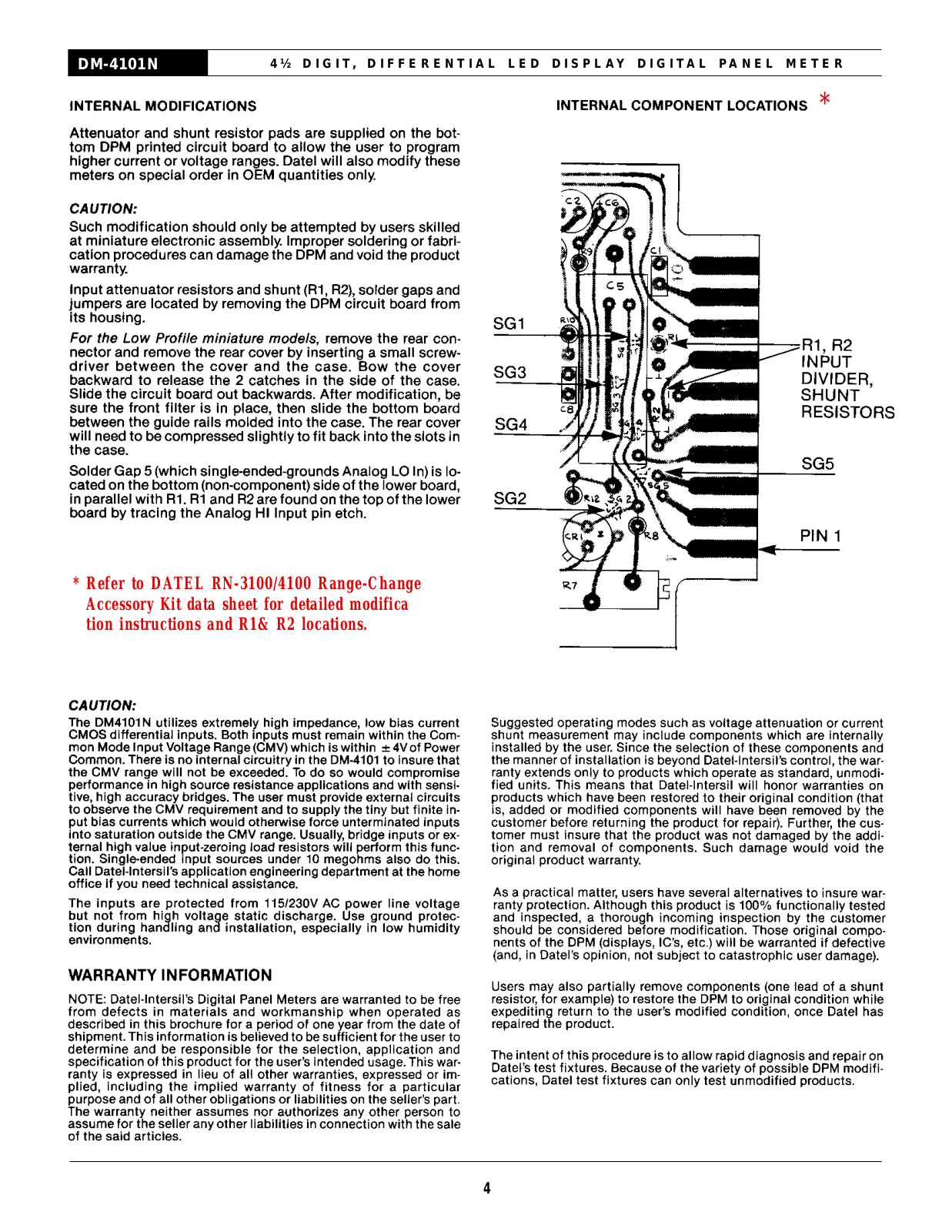

* Refer to DATEL RN-3100/4100 Range-Change

Accessory Kit data sheet for detailed modifica
tion instructions and R1& R2 locations.

4

DMS-20PC-0/5

4½ DIGIT, DIFFERENTIAL LED DISPLAY DIGITAL PANEL METER

DM-4101N

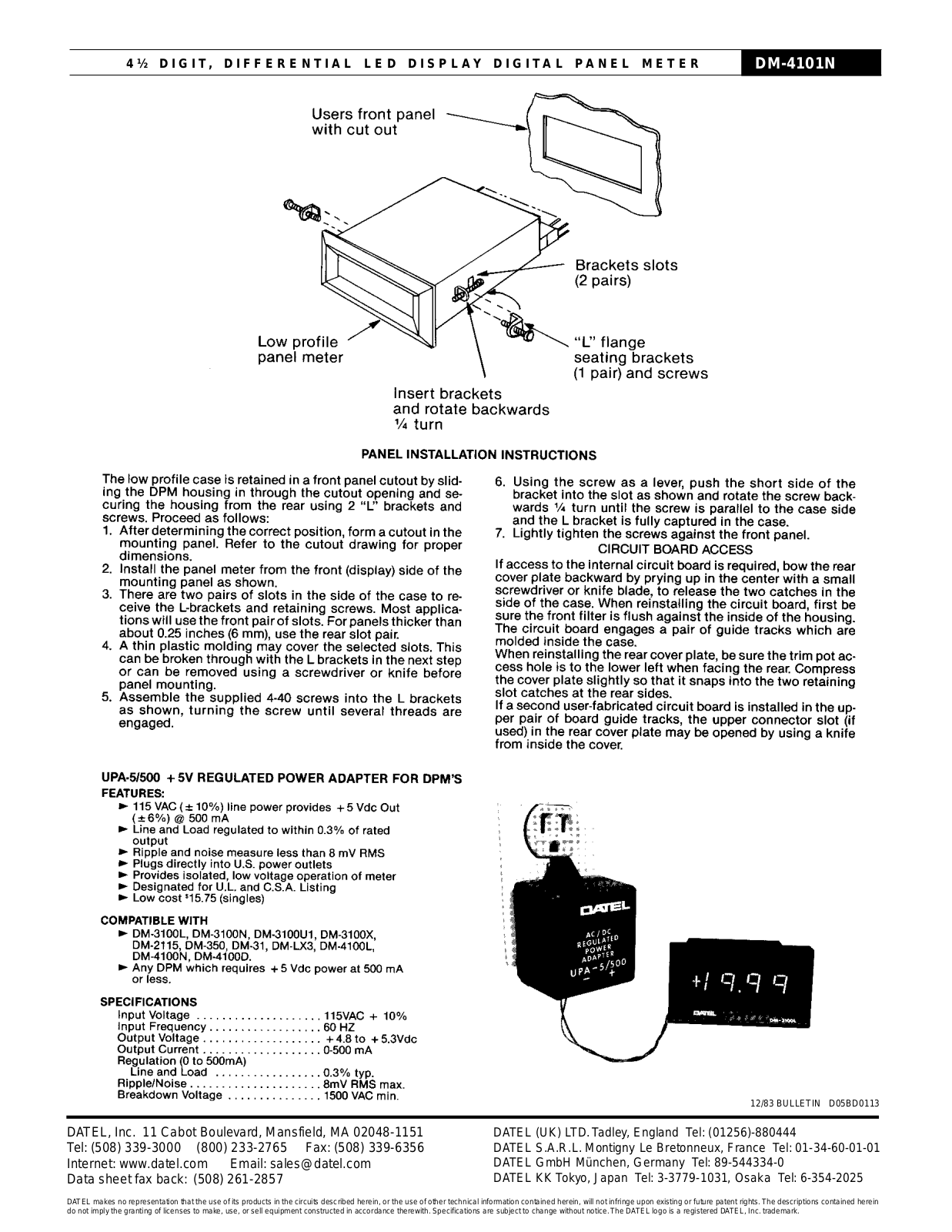

12/83 BULLETIN D05BD0113

DATEL, Inc. 11 Cabot Boulevard, Mansfield, MA 02048-1151
Tel: [phone] [phone] Fax: [phone]
Internet: www.datel.com Email: [e-mail]
Data sheet fax back: [phone]

DATEL makes no representation that the use of its products in the circuits described herein, or the use of other technical information contained herein, will not infringe upon existing or future patent rights. The descriptions contained herein
do not imply the granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifications are subject to change without notice. The DATEL logo is a registered DATEL, Inc. trademark.
