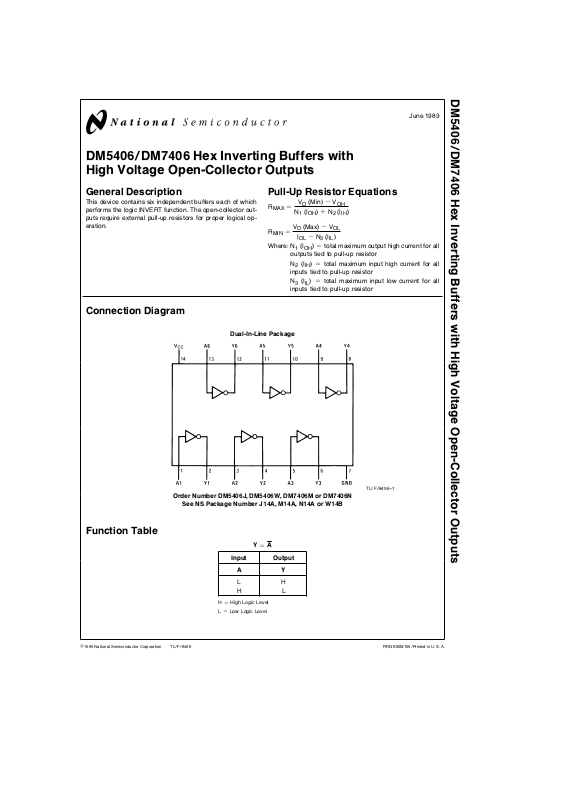

DM5406/DM7406 Hex Inverting Buffers with High Voltage Open-Collector Outputs
June 1989
DM5406/DM7406 Hex Inverting Buffers with
High Voltage Open-Collector Outputs
General Description
This device contains six independent buffers each of which
performs the logic INVERT function. The open-collector outputs require external pull-up resistors for proper logical operation.
Pull-Up Resistor Equations
R
MAX
e
VO(Min)bV
OH
N1(IOH)aN2(IIH)
R
MIN
e
VO(Max)bV
OL
I
OL
b
N3(IIL)
Where: N
1(IOH
)etotal maximum output high current for all
outputs tied to pull-up resistor
N
2(IIH
)etotal maximum input high current for all
inputs tied to pull-up resistor
N
3(IIL
)etotal maximum input low current for all
inputs tied to pull-up resistor
Connection Diagram
Dual-In-Line Package
TL/F/6496– 1
Order Number DM5406J, DM5406W, DM7406M or DM7406N
See NS Package Number J14A, M14A, N14A or W14B
Function Table
YeA
Input Output
AY
LH
HL
H
e
High Logic Level
L
e
Low Logic Level
C
1995 National Semiconductor Corporation RRD-B30M105/Printed in U. S. A.
Page 2
Absolute Maximum Ratings (Note)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales
Office/Distributors for availability and specifications.
Supply Voltage 7V
Input Voltage 5.5V
Output Voltage 30V
Operating Free Air Temperature Range
DM54
b
55§Ctoa125§C
DM74 0
§
Ctoa70§C
Storage Temperature Range
b
65§Ctoa150§C
Note:
The ‘‘Absolute Maximum Ratings’’ are those values
beyond which the safety of the device cannot be guaranteed. The device should not be operated at these limits. The
parametric values defined in the ‘‘Electrical Characteristics’’
table are not guaranteed at the absolute maximum ratings.
The ‘‘Recommended Operating Conditions’’ table will define
the conditions for actual device operation.
Recommended Operating Conditions
Symbol Parameter
DM5406 DM7406
Units
Min Nom Max Min Nom Max
V
CC
Supply Voltage 4.5 5 5.5 4.75 5 5.25 V
V
IH
High Level Input Voltage 2 2 V
V
IL
Low Level Input Voltage 0.8 0.8 V
V
OH
High Level Output Voltage 30 30 V
I
OL
Low Level Output Current 30 40 mA
T
A
Free Air Operating Temperature
b
55 125 0 70
§
C
Electrical Characteristics over recommended operating free air temperature range (unless otherwise noted)
Symbol Parameter Conditions Min
Typ
Max Units
(Note 1)
V
I
Input Clamp Voltage V
CC
e
Min, I
I
eb
12 mA
b
1.5 V
I
CEX
High Level Output V
CC
e
Min, V
O
e
30V
250 mA
Current V
IL
e
Max
V
OL
Low Level Output V
CC
e
Min, I
OL
e
Max
0.7
Voltage V
IH
e
Min V
I
OL
e
16 mA, V
CC
e
Min 0.4
I
I
Input Current@Max V
CC
e
Max, V
I
e
5.5V
1mA
Input Voltage
I
IH
High Level Input Current V
CC
e
Max, V
I
e
2.4V 40 mA
I
IL
Low Level Input Current V
CC
e
Max, V
I
e
0.4V
b
1.6 mA
I
CCH
Supply Current with V
CC
e
Max
30 48 mA
Outputs High
I
CCL
Supply Current with V
CC
e
Max
27 51 mA
Outputs Low
Switching Characteristics at V
CC
e
5V and T
A
e
25§C (See Section 1 for Test Waveforms and Output Load)
Symbol Parameter Conditions Min Max Units
t
PLH
Propagation Delay Time C
L
e
15 pF
15 ns
Low to High Level Output R
L
e
110X
t
PHL
Propagation Delay Time
23 ns
High to Low Level Output
Note 1: All typicals are at V
CC
e
5V, T
A
e
25§C.
2
Page 3
Physical Dimensions inches (millimeters)
14-Lead Ceramic Dual-In-Line Package (J)
Order Number DM5406J
NS Package Number J14A
14-Lead Small Outline Molded Package (M)
Order Number DM7406M
NS Package Number M14A
3

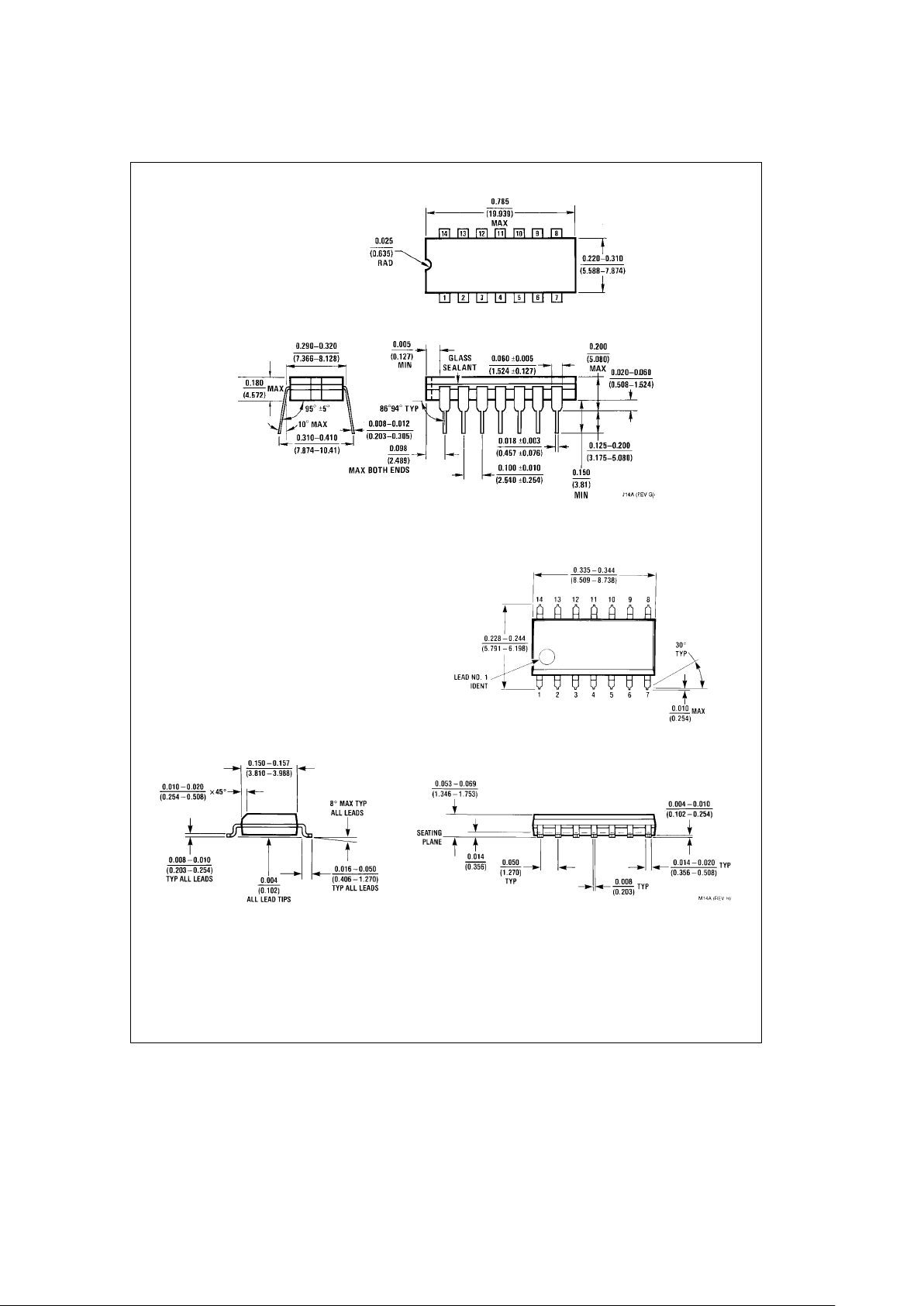

Page 4
DM5406/DM7406 Hex Inverting Buffers with High Voltage Open-Collector Outputs
Physical Dimensions inches (millimeters) (Continued)
14-Lead Molded Dual-In-Line Package (N)
Order Number DM7406N
NS Package Number N14A
14-Lead Ceramic Flat Package (W)
Order Number DM5406W
NS Package Number W14B
