Datasheet DM-4101L Datasheet (DATEL)

E

®

INNOVATION and EX C ELL E N C

®

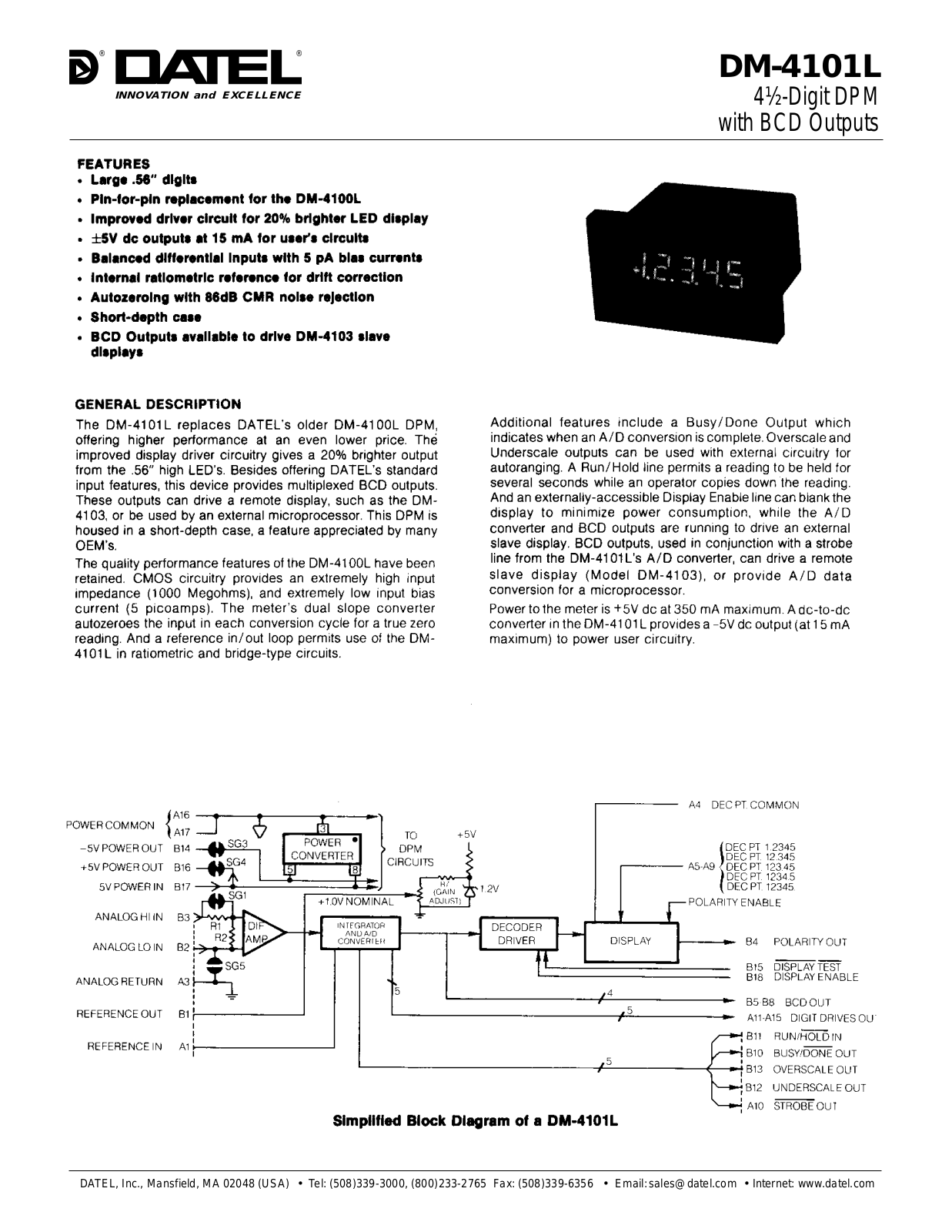

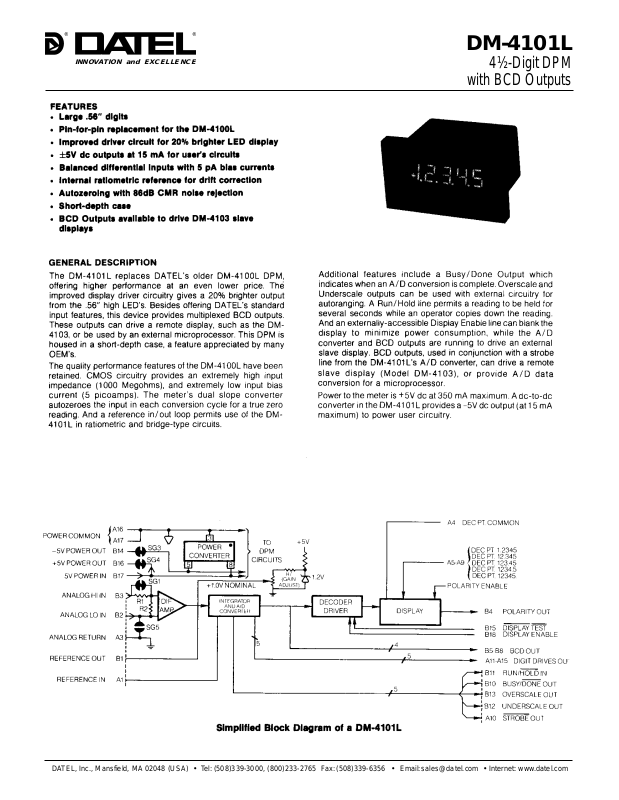

DM-4101L

4½-Digit DPM

with BCD Outputs

DATEL, Inc., Mansfield, MA 02048 (USA) • Tel: [phone] Fax: [phone] • Email: [e-mail] • Internet: www.datel.com

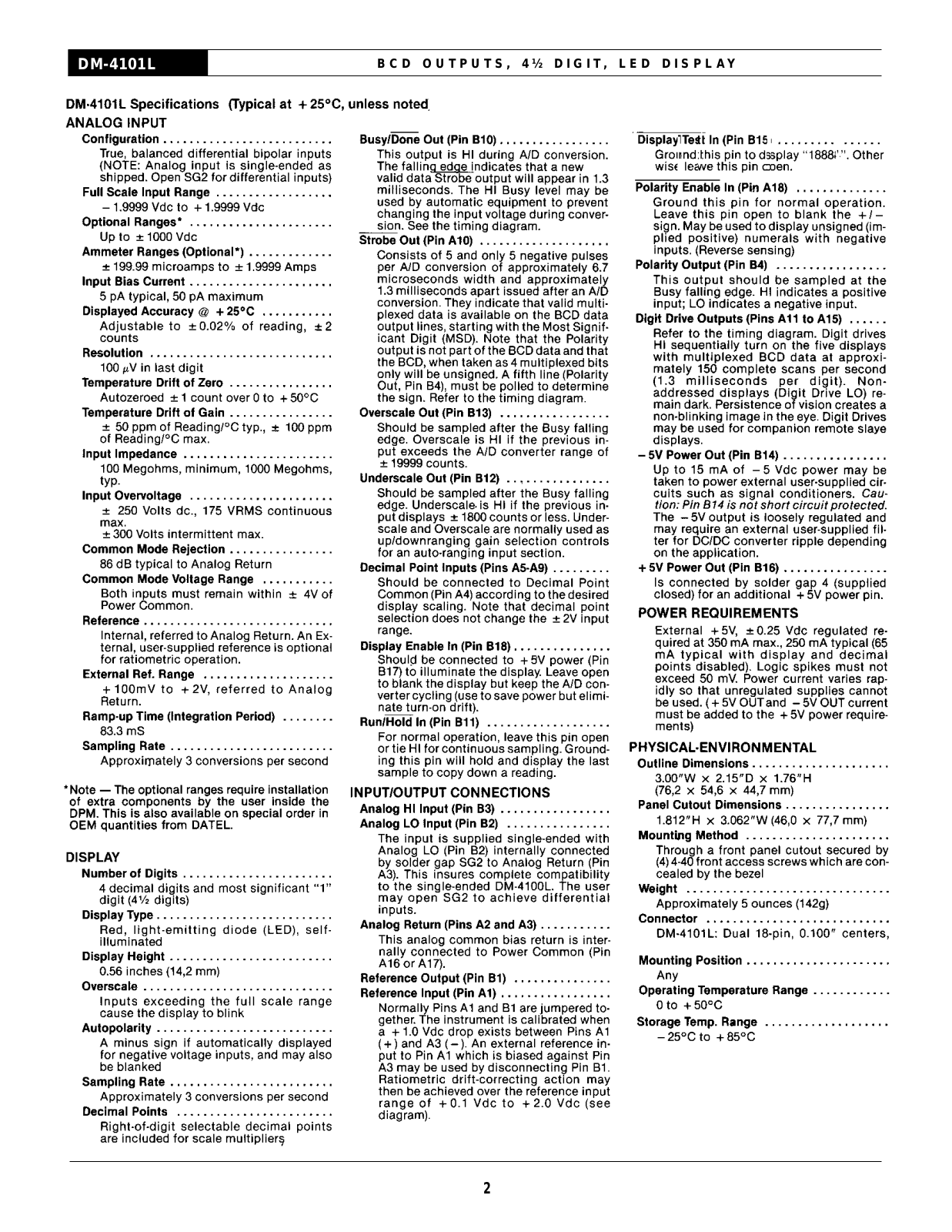

DM-4101L

BCD OUTPUTS, 4½ DIGIT, LED DISPLAY

2

DMS-20PC-0/5

BCD OUTPUTS, 4½ DIGIT, LED DISPLAY PANEL METER

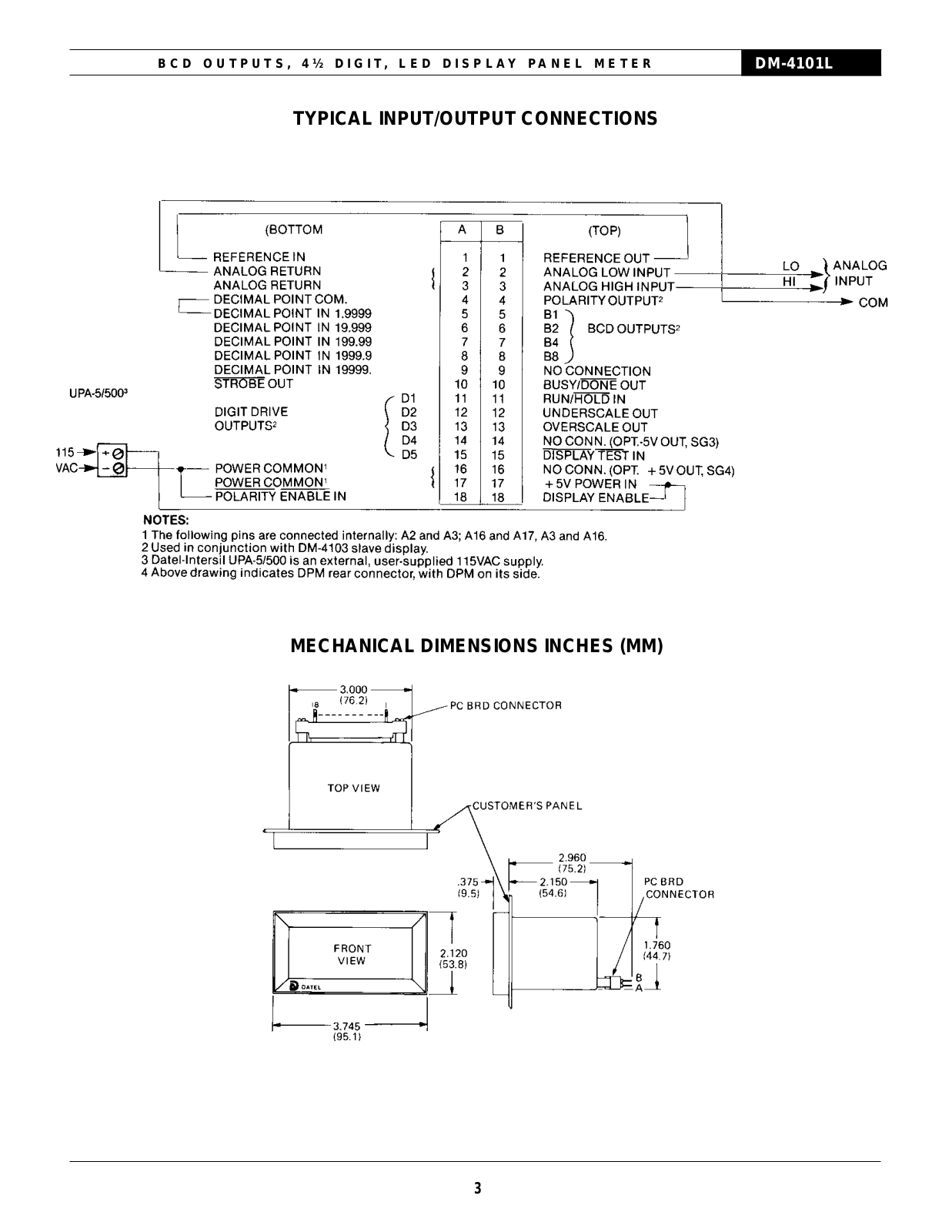

TYPICAL INPUT/OUTPUT CONNECTIONS

DMS-20PC-4/20S

DM-4101L

MECHANICAL DIMENSIONS INCHES (MM)

3

DM-4101L

BCD OUTPUTS, 4½ DIGIT, LED DISPLAY DIGITAL PANEL METER

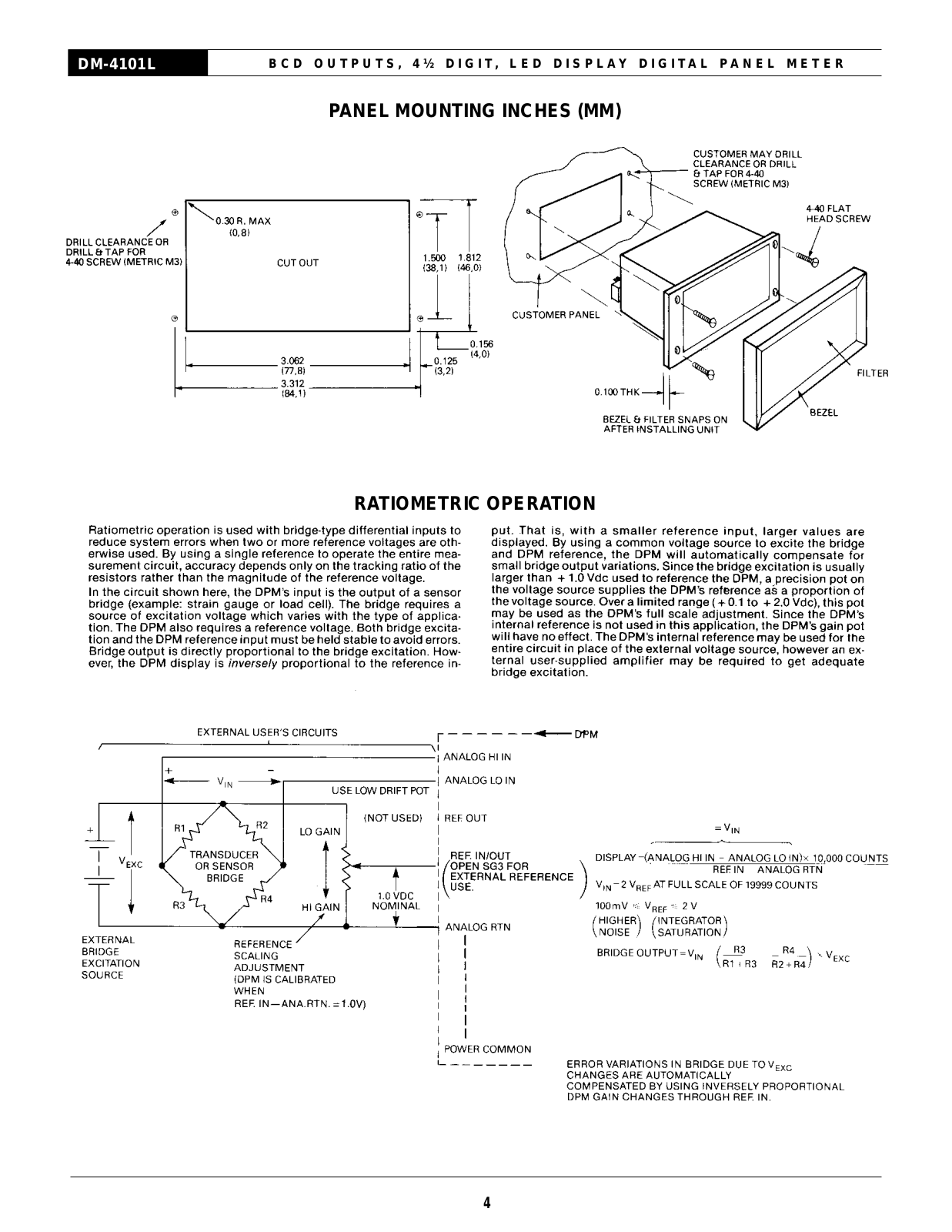

PANEL MOUNTING INCHES (MM)

RATIOMETRIC OPERATION

4

DMS-20PC-0/5

BCD OUTPUTS, 4½ DIGIT, LED DISPLAY DIGITAL PANEL METER

DM-4101L

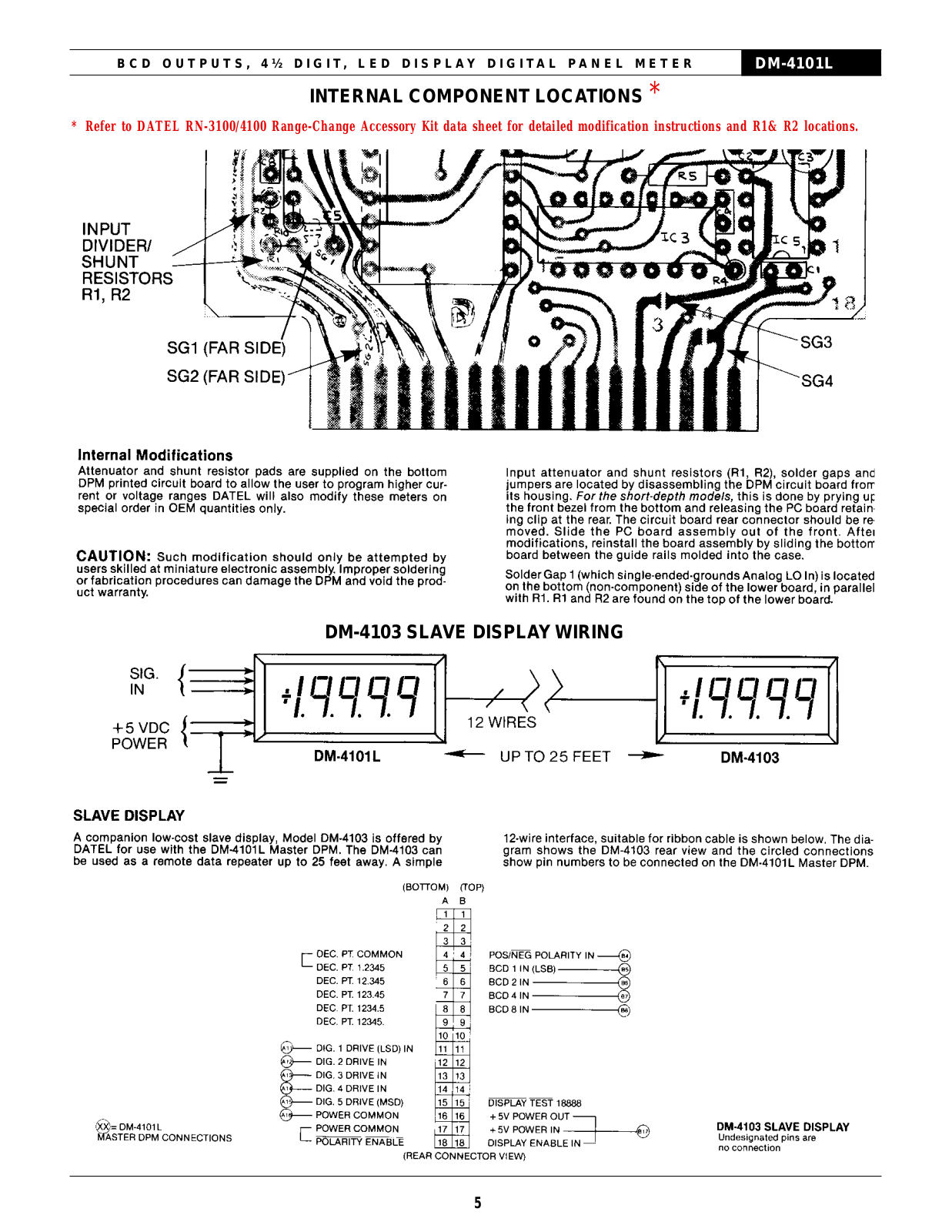

INTERNAL COMPONENT LOCATIONS

* Refer to DATEL RN-3100/4100 Range-Change Accessory Kit data sheet for detailed modification instructions and R1& R2 locations.

*

DM-4103 SLAVE DISPLAY WIRING

5

DM-4101L

BCD OUTPUTS, 4½ DIGIT, LED DISPLAY DIGITAL PANEL METER

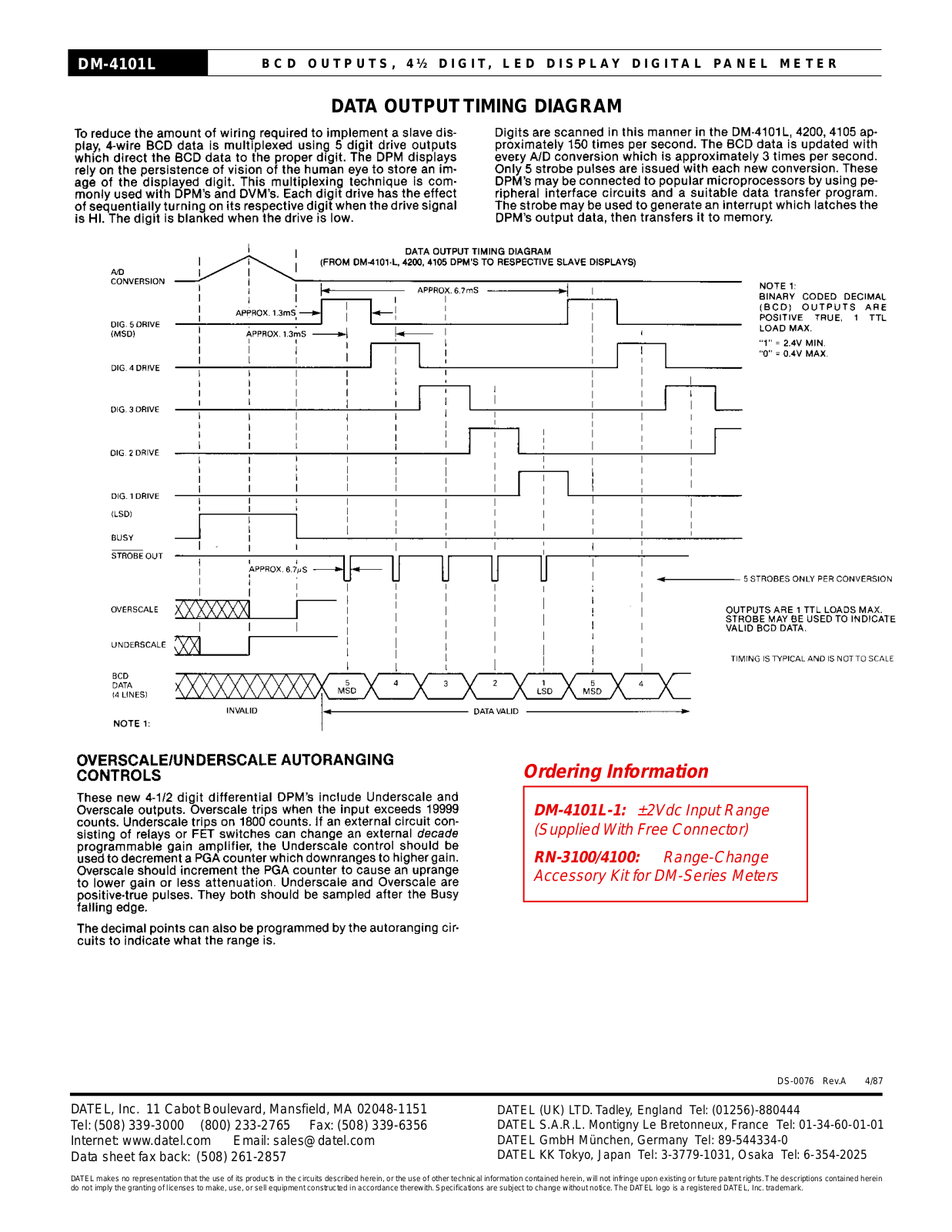

DATA OUTPUT TIMING DIAGRAM

Ordering Information

DM-4101L-1: ±2Vdc Input Range

(Supplied With Free Connector)
RN-3100/4100: Range-Change

Accessory Kit for DM-Series Meters

DS-0076 Rev.A 4/87
