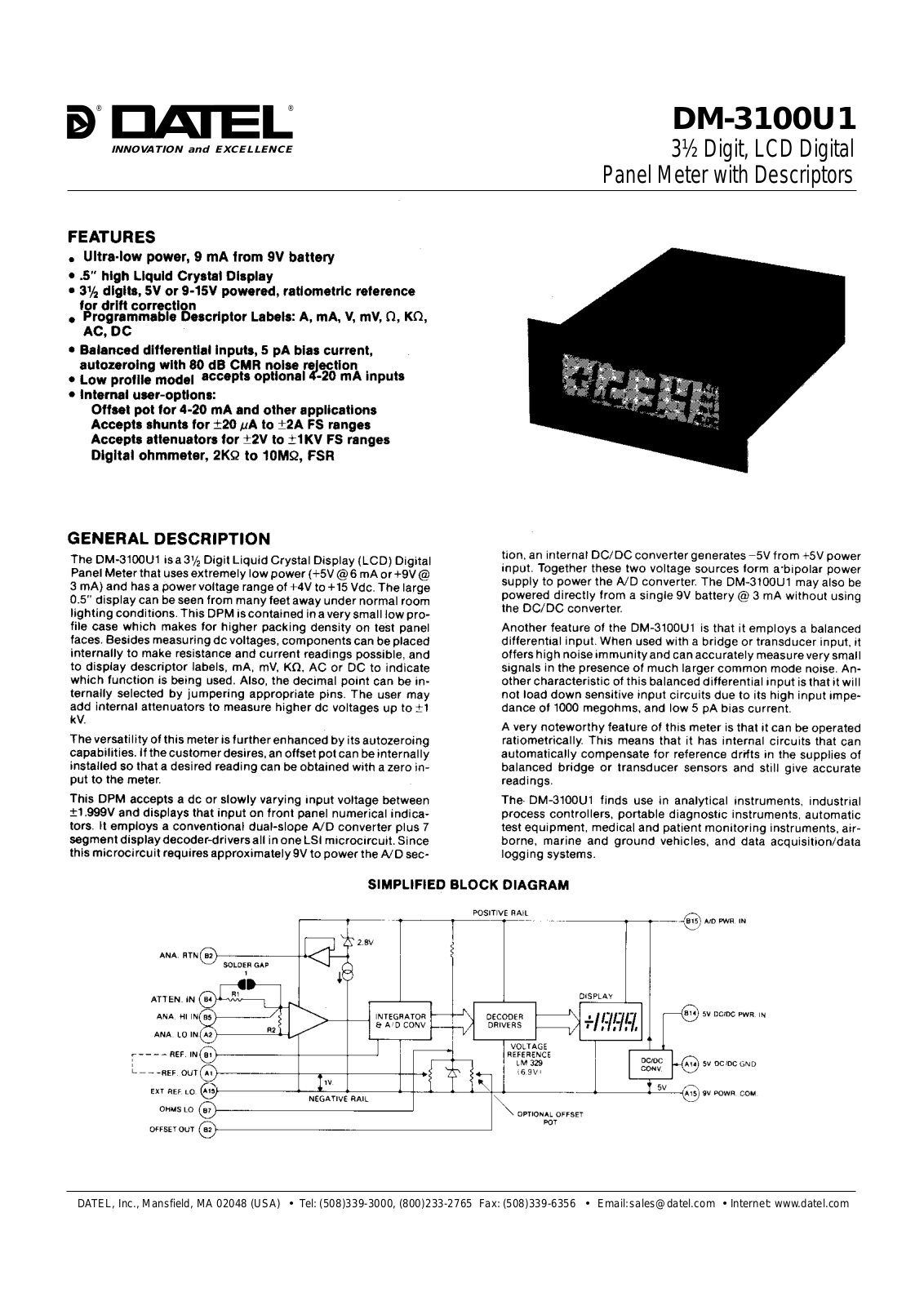

DM-3100U1
3½ Digit, LCD Digital
Panel Meter with Descriptors
INNOVATION and EX C ELL E N C
E
®
®

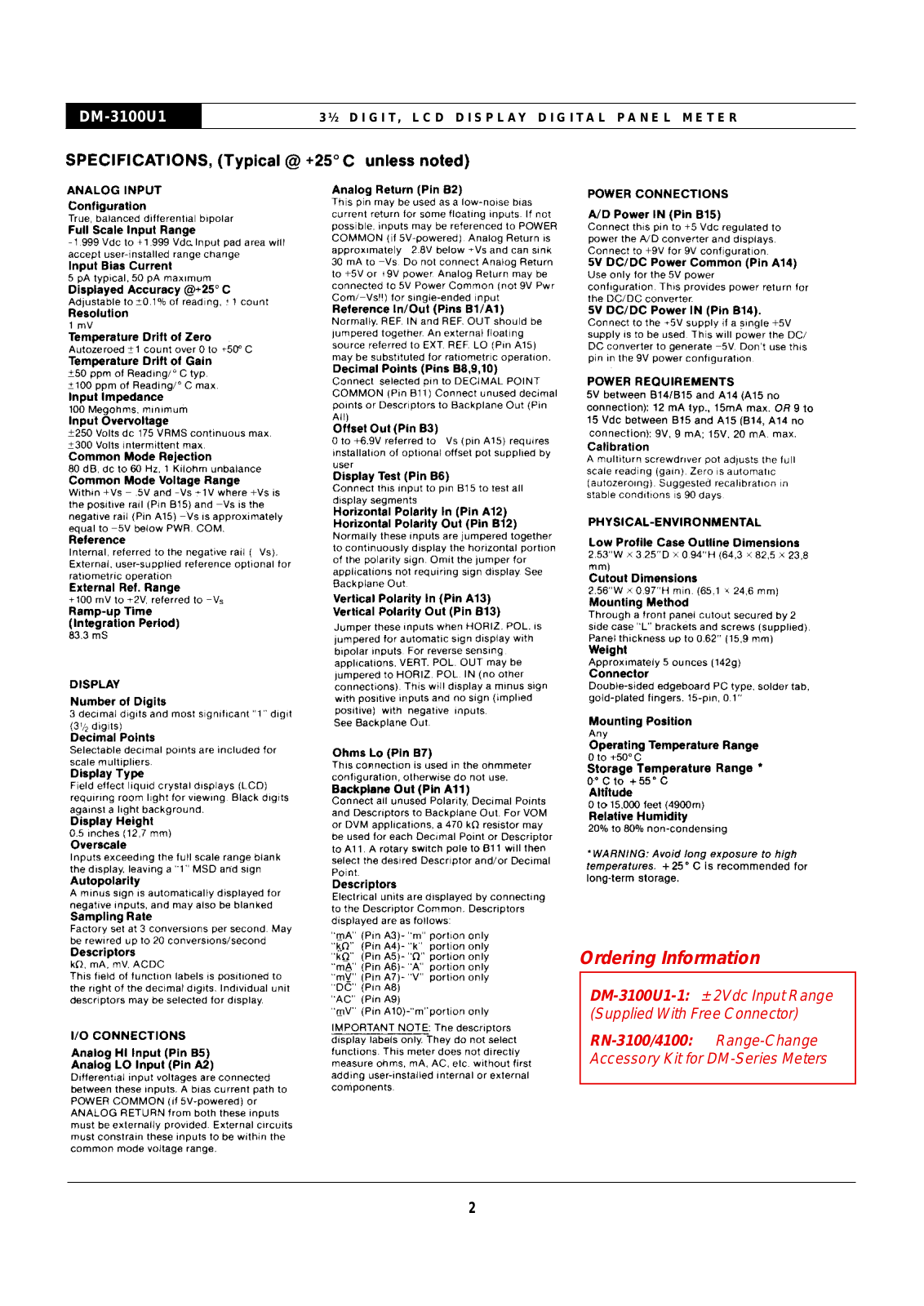

Page 2
3½ DIGIT, LCD DISPLAY DIGITAL PANEL METER
DM-3100U1
2
DM-3100U1-1: ± 2Vdc Input Range (Supplied With Free Connector)
RN-3100/4100: Range-Change Accessory Kit for DM-Series Meters
Ordering Information
Page 3
3
DMS-20PC-4/20S
DMS-20PC-0/5
3½ DIGIT, LCD DISPLAY DIGITAL PANEL METER
DM-3100U1

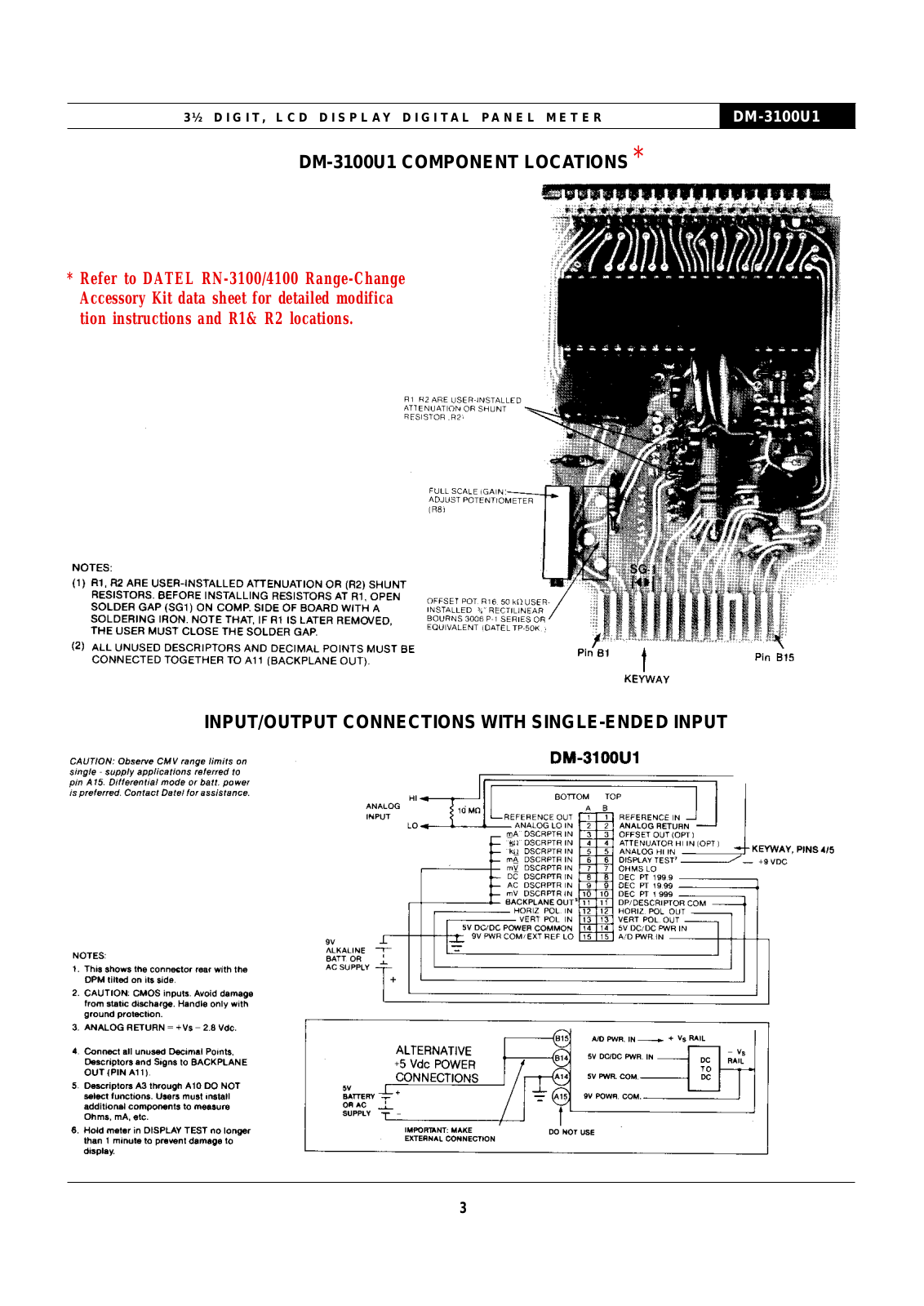

DM-3100U1 COMPONENT LOCATIONS
INPUT/OUTPUT CONNECTIONS WITH SINGLE-ENDED INPUT
* Refer to DATEL RN-3100/4100 Range-Change
Accessory Kit data sheet for detailed modifica tion instructions and R1& R2 locations.
*
Page 4
3½ DIGIT, LCD DISPLAY DIGITAL PANEL METER
DM-3100U1
4

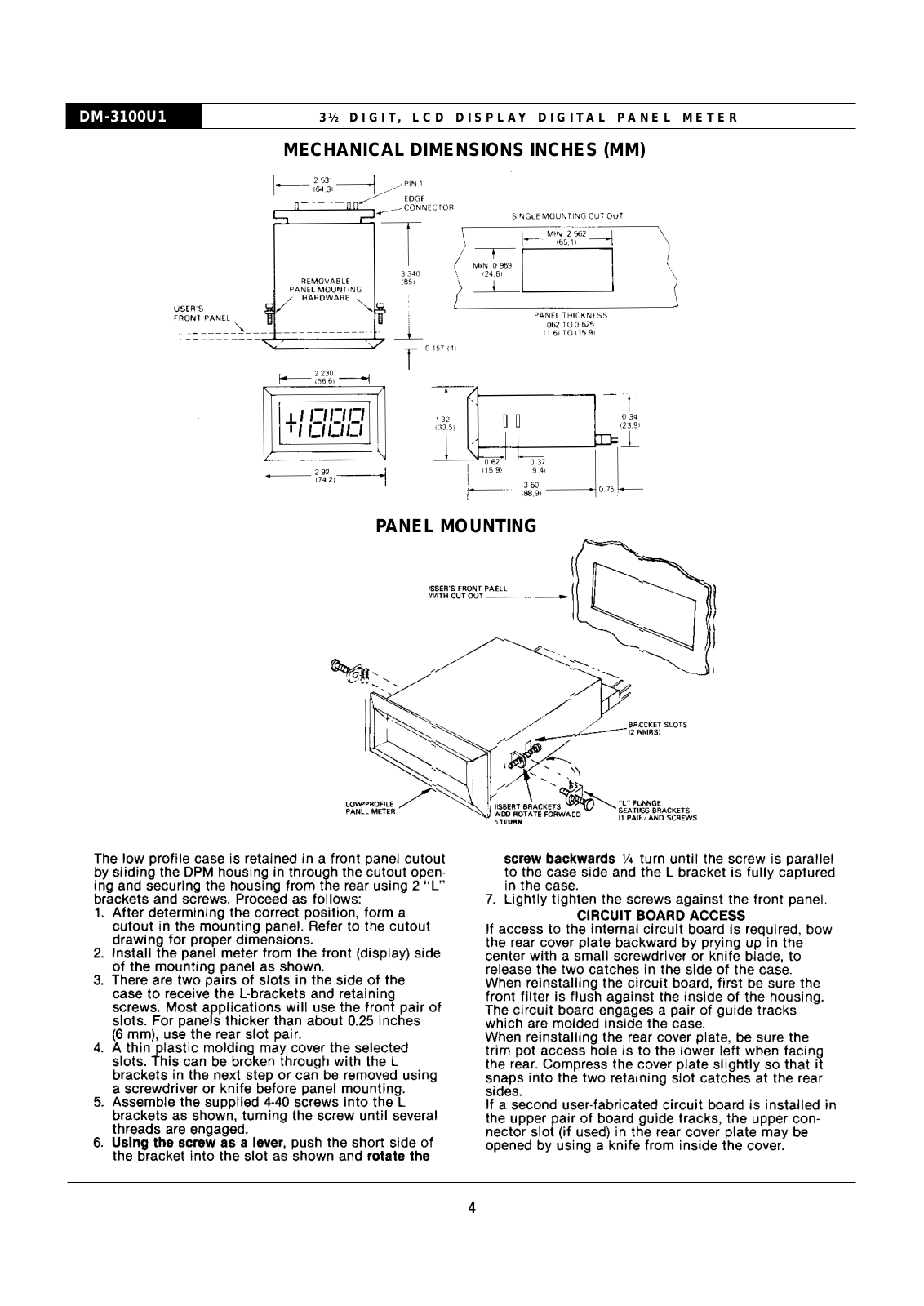

MECHANICAL DIMENSIONS INCHES (MM)
PANEL MOUNTING

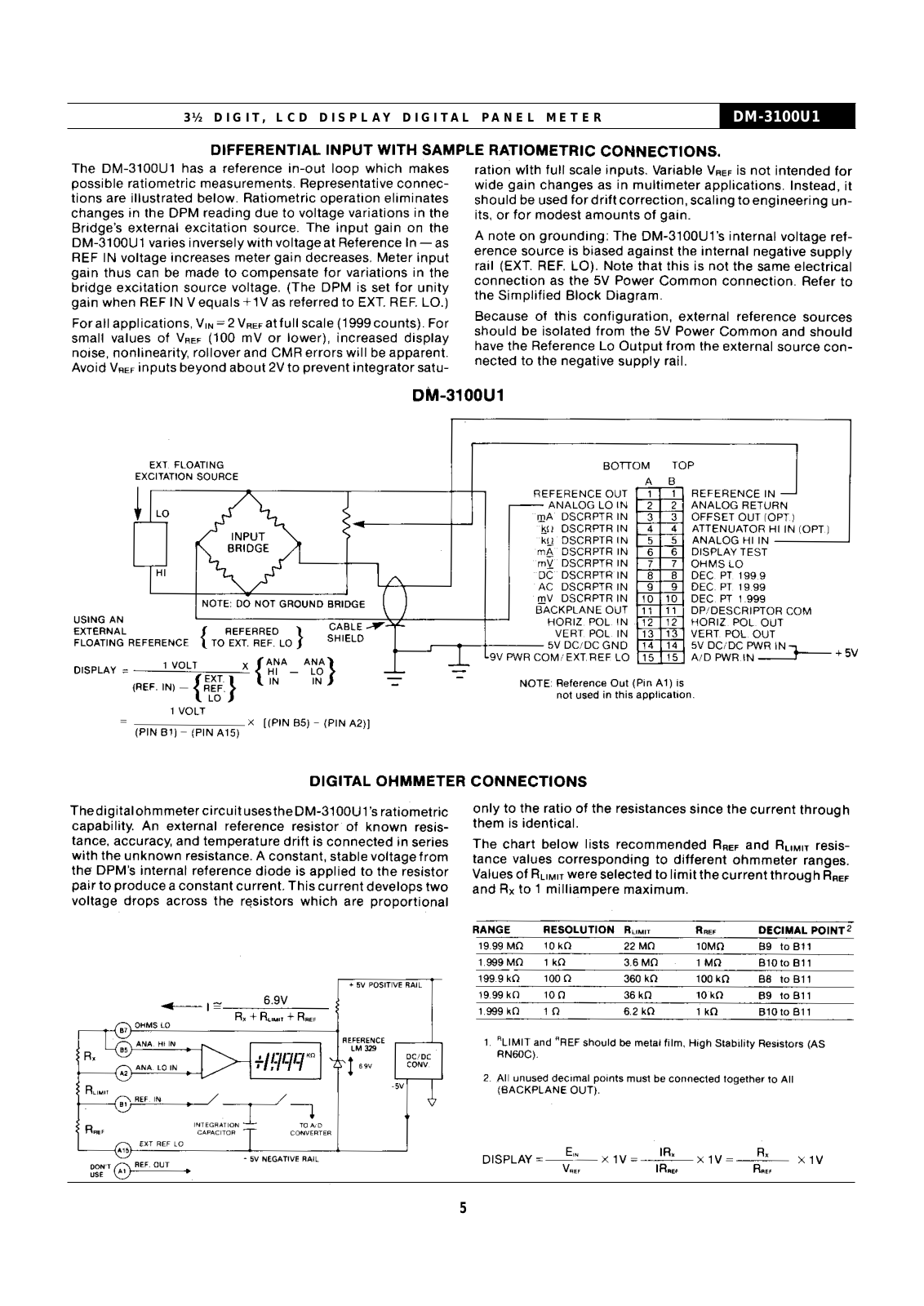

Page 5
5
3½ DIGIT, LCD DISPLAY DIGITAL PANEL METER
DM-3100U1

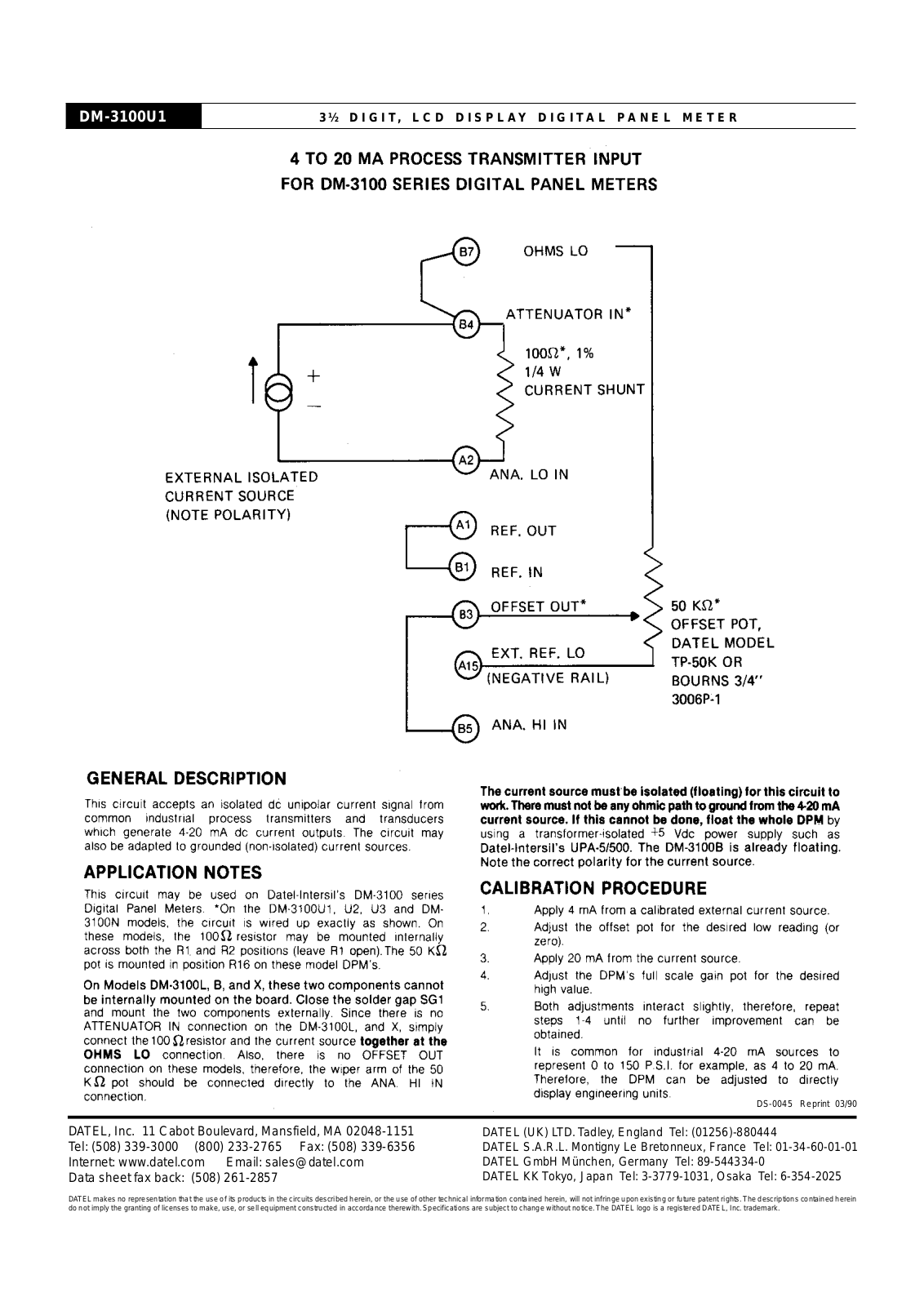

Page 6
DS-0045 Reprint 03/90
DATEL, Inc. 11 Cabot Boulevard, Mansfield, MA 02048-1151 Tel: (508) 339-3000 (800) 233-2765 Fax: (508) 339-6356 Internet: www.datel.com Email: sales@datel.com Data sheet fax back: (508) 261-2857
DATEL (UK) LTD. Tadley, England Tel: (01256)-880444 DATEL S.A.R.L. Montigny Le Bretonneux, France Tel: 01-34-60-01-01 DATEL GmbH München, Germany Tel: 89-544334-0 DATEL KK Tokyo, Japan Tel: 3-3779-1031, Osaka Tel: 6-354-2025
DATEL makes no representation that the use of its products in the circuits described herein, or the use of other technical information contained herein, will not infringe upon existing or future patent rights. The descriptions contained herein do not imply the granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifications are subject to change without notice. The DATEL logo is a registered DATEL, Inc. trademark.
3½ DIGIT, LCD DISPLAY DIGITAL PANEL METER
DM-3100U1
